SY6BCL862SCDMA MOBILE PHONE

-1- BCL-862S User’s Manual (preliminary) BCL862S User’s Manual -2- BCL-862S User’s Manual (preliminary) Precautions and Notices for Safety This is the section for keeping your safety and preventing your property damage. Use your phone correctly after reading this carefully. For more detailed information, please check ‘Pre cautions and Notices for Battery Use’ and ‘Precautions and Notices for Safety’. Precautions - Be cautious when you use battery. -Turn your phone off in a potent ially explosive atmosphere. - Turn your phone off during flight. - Do not use your phone while driving. - Turn your phone off in the hospital. Notices - Be aware of the details on electromagnetic waves of your phone. - Do not touch your phone or its power plug with a wet hand. - Do not remodel, disassemble, or repair your phone on your own. - Use the accessories and battery approved. - Turn your phone off in the public place. - Use a standard charger acquired TTA certified mark. - Do not keep your phone in or near a source of heating, like a stove or microwave oven. -3- BCL-862S User’s Manual (preliminary) Product Introduction BLC862S Introduction BCL862S is Bar type mobile phone operated in the CDMA Digital Cellular Mobile Radio System, supports gpsOne ® function can trace your position around the world. It enables you to place a call by pressing one of the five shortcut keys, and to receive messages. In addition, it displays various items on LCD screen. -4- BCL-862S User’s Manual (preliminary) Product Information BCL862S Features z GPS (Global Positioning System) z Displaying Clock and Date z Five Shortcut Keys Set by a User z Icons for Menu z Adjusting Volume (Bell/Voice) or Contrast z Auto Receive z Bell Sound (1~5) z Auto Keylock z Confirming/Modifying a Phone Number z Blind Power Off z Game z Receiving a Message Confirming Components Components z Cell Phone z Battery Pack z Rubber Plug (Preventing Battery Disassembly) -5- BCL-862S User’s Manual (preliminary) L LCD Screen LCD Screen The LCD screen is largely divided into the upper icon part and the lower text part as shown in the right image. In the icon part, the current state of your phone is displayed including receive sensitivity, Busy/Idle state, Bell/Vibration mode, unchecked message, Auto Keylock mode, and battery level. In the text part, various items are displayed including an animation if necessary. -6- BCL-862S User’s Manual (preliminary) 1. Icon Part In this part, several icons are display ed. The kinds of icons are as follows. Small Icons ★ 1. Busy 2. No Service 3. Vibration Mode 4. Bell Mode 5. Auto Keylock Mode 6. Unchecked Message Large Icons ★ 1. Receive Sensitivity 2. Battery Level 3. Low Voltage Alert 2. Text Part In this part, English, Korean, numbers, and images if necessary are displayed. ASCII (English & Numbers) : up to 16 letters in one line ▶ -7- BCL-862S User’s Manual (preliminary) Keys Keys consist of five Shor tcuts, Menu, Power, and Side one. If any of them is pressed, Auto Backlight turns on (Set the lighting time in the menu). If you do not press any key for 10 seconds, the screen returns to wait mode automatically (except you are checking a message). 1. Shortcut Keys ● Function of Send Key : You can place a call by pressing it long. ● Confirming a Key Setting : If you press one of the shortcut keys shortly, a phone number and a nickname stored in it are displayed. 3. Menu Key ● Use it to enter Menu. You cannot enter it during a call. ● While you are in Menu, it is used to select a desired menu (It functions as an OK key.). ● Changing Bell/Vibration Mode : In Wait mode, you can select a Bell/Vibration mode by pressing long. If one of them is selected, a screen indicating that mode is displayed for a while as shown below. ● Send Key : After you confirm a phone number by pressing a shortcut key, press to place a call to it. 4. Power Key ● Power ON/OFF Key : If you press it long in Wait mode, your phone turns on or off. ● End Key : Use it to disconnect a call. ● Auto Keylock Clear Key : If your phone is locked, press to clear the lock mode. -8- BCL-862S User’s Manual (preliminary) 5. Side Key ● used to adjust call volume (during a call) ● used to adjust keytone volume ● used to scroll menus Power ON/OFF Power ON/OFF BCL862S supports Blind Power Off function. 1. To turn on Press long until you hear the power-on melody. As the melody is heard, a logo is displayed on the screen as shown below. 2. To turn off Press long until you hear the power-off melody. As the melody is heard, an animation is displayed as shown below, and then the power turns off. -9- BCL-862S User’s Manual (preliminary) Initial Screen Initial Screen The initial screen displayed soon after the power turns on is as shown below, and it includes several items, such as time and date. ● The upper screen shows time (12:00), date (Monday, January 1 st ), receive sensitivity, battery level, bell mode, and Auto Keylock mode. ● If you are in non-service area, all the bars in the icon for receive sensitivity disappears, and then No Service icon appears. If a screen is displayed as shown bel ow, your phone is not in service. Register first to use it. In that situation, menu related f unctions are operated normally, but Auto Keylock is not. The icon for Auto Keylock appears on the screen but it is not operated. -10- BCL-862S User’s Manual (preliminary) Calls Placing a Call There are three ways to call to the phone number set in a shortcut key. If no phone number is stored in the key, a beep sound is heard with the initial screen displayed. 1. Place a call by pressing one of the five keys (1~5) long. 2. Press a key shortly to confirm the phone number (or nickname) stored in that key, and press to place a call to it. 3. If a shortcut key is set by the exte rnal services (Internet, WAP, or ARS), when the phone number is displayed on the screen, press to place a call to it. -11- BCL-862S User’s Manual (preliminary) Receiving a Call Press to receive a call. Unanswered Call If you …

Text truncated - open the document above for the full version.

BCL862S Block Diagram Bellwave BCL862S RF Part Block Diagram DUPLEXER LNA RF SAW GPS SAW Control Circuits Control Circuits RF SAW GPS Freq. 1575.42 MHz CDMA Freq. 824~894 MHz PAM LO Generation & Distribution LO Generation & Distribution RX VCO GPS VCO LOOP FILTER TX VCO VC-TCXO Clock : 19.2 MHz DUAL PLL LOOP FILTER M LPF LPF TX Freq. 824~849 MHz RX Freq. 869~894 MHz TX_AGC_ADJ LOCK_DET DAC_REF TX_ON TX_I TX_I/ TX_Q TX_Q/ RX_I RX_I/ RX_Q RX_Q/ AUX_SBI_CK AUX_SBI_ST AUX_SBI_DT SBI_CK SBI_ST SBI_DT <PA_R0> <PAON> RFR6125 RFT6120 BCL862S Logic Part Block Diagram MSM 6050 MCP R SOCKET 24PIN I/O CONNECTOR BLUE LED BLUE LED Key Pad Receiver UART 1 UART 2 JTAG LI- ION BATTERY CHARGER LCD Back Light Key Pad POWER ON / Call LCD BUZZER Microphone Vibrator -UIM TCXO Clock : 19.2 MHz X-Tal Clock : 32.768 kHz BCL862S Power Part Block Diagram MSM6050 MCP R-UIM RFR6125 TCXO RFT6120 PAM LDO 2.7V TK71727SCL LDO 1.8V TK71718SCL LDO 3.0V TK71730SCL LDO 3.0V TK71730SCL LDO 2.8V TK71728SCL LDO 3.0V TK71730SCL LI - ION BATTERY +2.7V_MSMA +1.8V_MSMC +3.0V_MSMP +3.0V_RF_RX +2.8V_TCXO +3.0V_RF_TX I/O CONNECTOR LCD LDO 3.0V TK71730SCL +3.0V_LCD_VDD

Bellwave Co., Ltd. 6th FL. Kamco Yangjae Tower, 949-3, Dogok-Dong, Kangnam-Ku, SEOUL, KOREA(135-270) Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: SY6BCL862S Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: 1. Schematic Diagram 2. Operational Descriptions 3. Part List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Name : Tae-Hyoung Ko Title : BCL862S

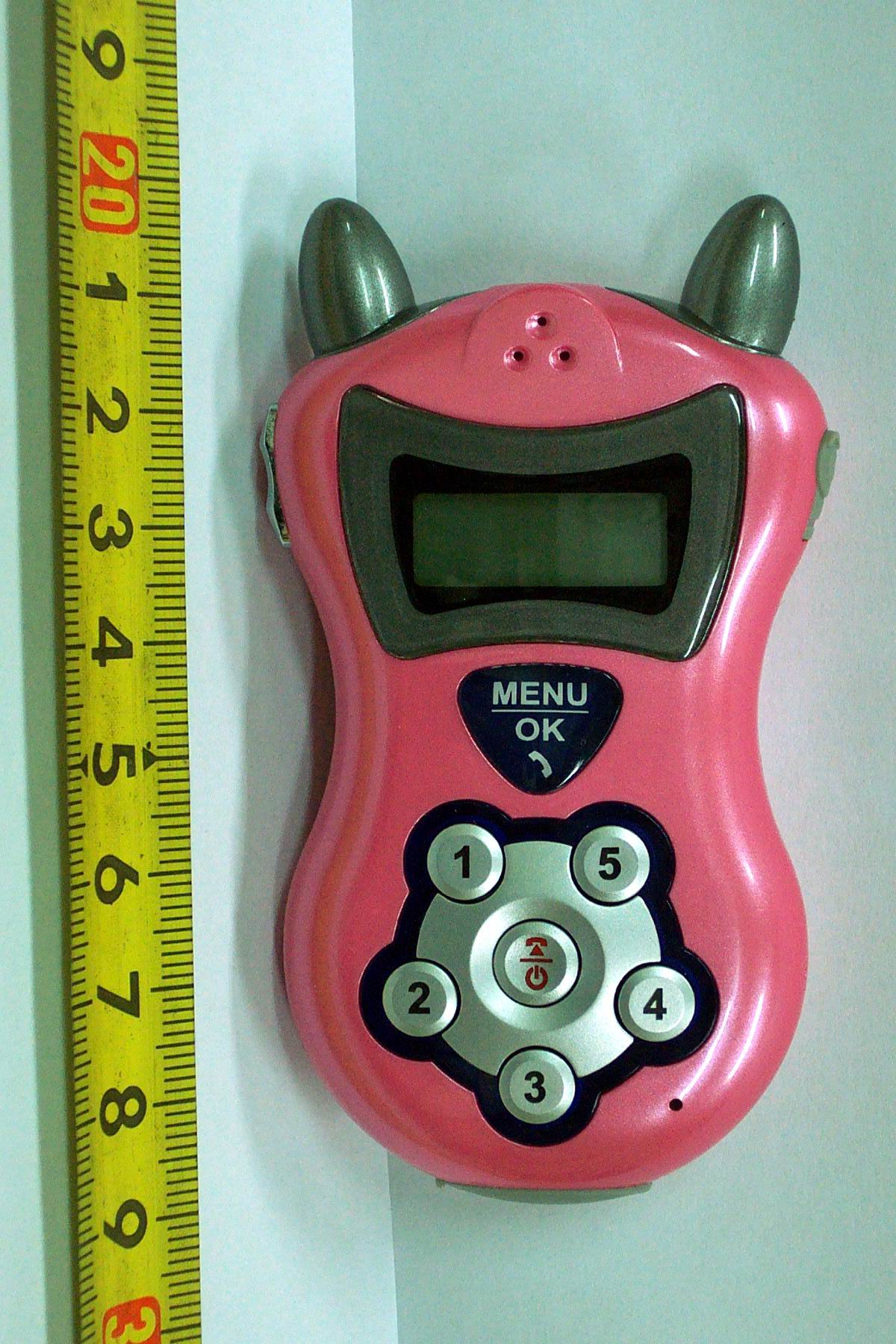

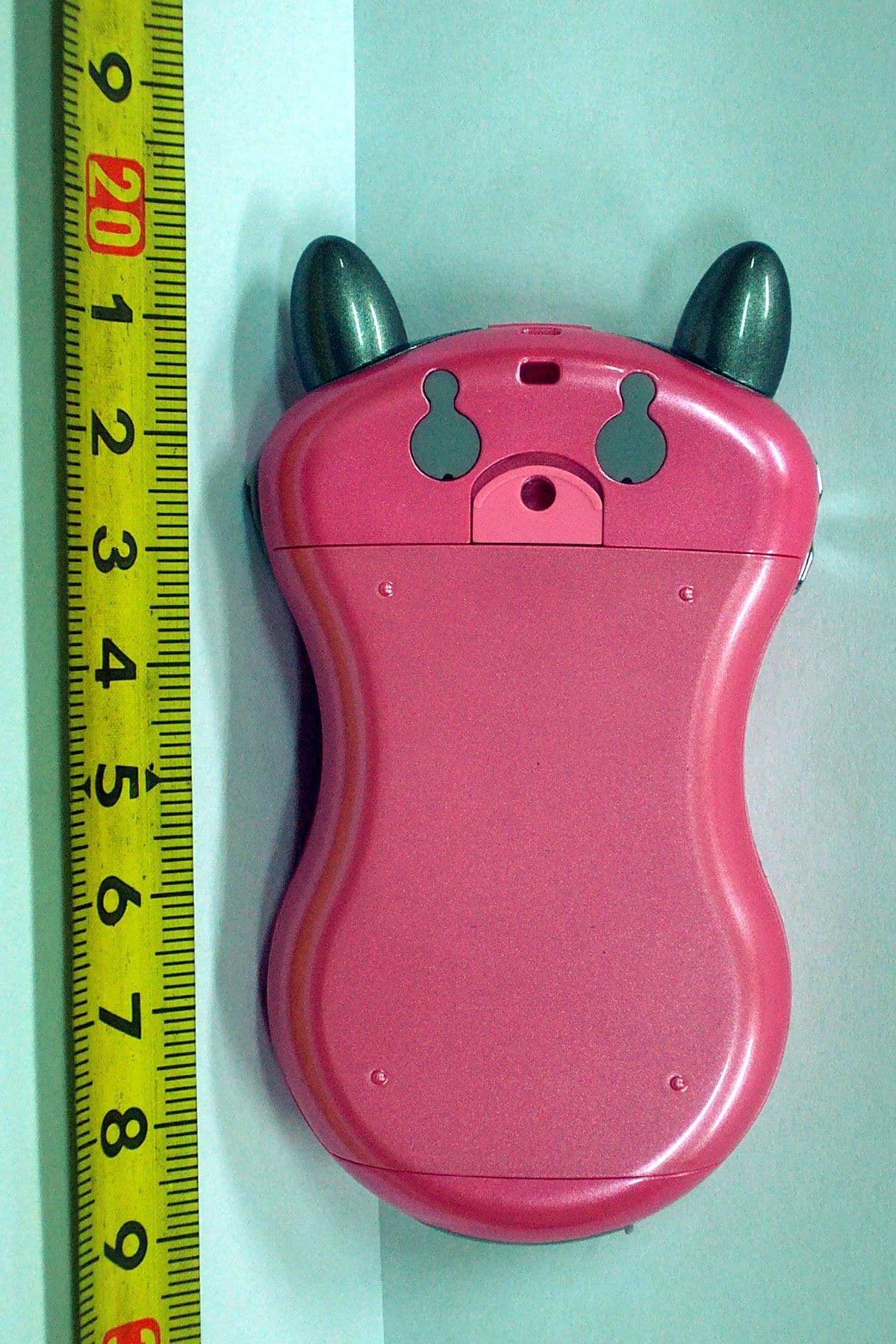

Bellwave Co.,Ltd. FCC ID :SY6BCL862S z Front View of EUT Bellwave Co.,Ltd. FCC ID :SY6BCL862S z Rear View of EUT Bellwave Co.,Ltd. FCC ID :SY6BCL862S z Right Side View of EUT Bellwave Co.,Ltd. FCC ID :SY6BCL862S z Left Side View of EUT Bellwave Co.,Ltd. FCC ID :SY6BCL862S z Top side View of EUT Bellwave Co.,Ltd. FCC ID :SY6BCL862S z Bottom side View of EUT

Bellwave Co.,Ltd. FCC ID :SY6BCL862S APPENDIX A - Labelling Requirement The sample label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. Labelling Requirements

Bellwave Co.,Ltd. FCC ID :SY6BCL862S z Front View of Main Board Bellwave Co.,Ltd. FCC ID :SY6BCL862S z Rear View of Main Board

APPENDIX D Test Procedure 1) Getting Started i. Power-up the laptop. ii. Connect DM port (on Module) to COM port (on PC), And Confirm Power. iii. Execute MaxPwrOnV1.1 Tool. iv. Set Port(1 port) and Baud rate(115200). v. Connect spectrum analyzer to Antenna of Module. vi. Select CDMA2000 1x or Zero IF according to Adaptive phone. vii. Input Measurement channel. viii. Click the Max power on button ix. Confirm CDMA waveform at Measurement channel 2) How to Power On/Off the Transmit Power i. To turn on the transmit power, click the ‘Max Power On’ button. ii. To turn off the transmit power, chick the ‘Tx Off’ button. 3) How to change Channels To change the Tx channels ( 1013, 363,777 ), Put Tx channel number into the blank below of Test channel. 4) How to change Transmit Power Level In the test procedure, Tx power level was set for 24.3dBm View of Cm Test Program View of ‘MaxPwrOnV1.1’ Main view of Program

Bellwave Co.,Ltd Page 1 of 63 FCC ID : SY6BCL862S SAR Report Reference No.: NK2FR128 SAR Evaluation Report FCC ID : SY6BCL862S Project Reference No. : NK2FR128 Product Type : CDMA Mobile Phone Brand Name : Bellwave Model : BCL862S Tested According to : IEEE Standard C95.1 / OET Bulletin 65 Supplement C Tested Period : Jun. 29. 2005 to Jun. 30. 2005 Tested by Seob Lee date : July. 1. 2005 Verified by Seonteag.Jin date : July. 1. 2005 This test results are only related to the item tested. This test report is only limited to the client company and the product. This report must not be used by the client to claim product endorsement by any agency of the U.S. Government. Lab Address : Nemko Korea Co., Ltd 300-2, Osan-Ri, Mohyun-Myun, Yongin-City, Gyunggi-Do, Korea Phone : 82-31-322-2333 Fax : 82-31-322-2332 Bellwave Co.,Ltd Page 2 of 63 FCC ID : SY6BCL862S SAR Report Reference No.: NK2FR128 Contents of This Report 1. General Information 3 1.1 Applicant 3 1.2 Manufacturer 3 1.3 Description of Device 3 2. General Test Condition 4 2.1 Location 4 2.2 Operating Environment 4 2.3 Test Frequency 4 2.4 Support Equipment 4 3. Description of Test Equipment 5 4. SAR Measurement Procedure 9 5. Definition of Reference Points 11 5.1 Ear Reference Point 11 5.2 Handset Reference Points 12 6. Test Configuration Positions 13 6.2 Cheek/Touch Position 13 6.2 Ear/Tilt 15°Position 14 6.3 Body-worn and Other Configurations 15 7. Measurement Uncertainty 16 8. System Verification 17 8.1 Tissue Verification 17 8.2 Test System Validation 18 8.3 Measurement Result of Test Data (CDMA 835MHz Head Validation) 19 8.4 Measurement Result of Test Data (CDMA 835MHz Muscle Validation) 20 9. SAR Measurement Results 21 9.1 SAR Data Summary(CDMA 835MHz Right Head Touch Position) 23 9.2 SAR Data Summary(CDMA 835MHz Right Head Tilt Position) 27 9.3 SAR Data Summary(CDMA 835MHz Left Head Touch Position) 29 9.4 SAR Data Summary(CDMA 835MHz Left Head Tilt Position) 33 9.5 SAR Data Summary(CDMA 835MHz Muscle –15mm Distance- Position) 35 9.6 SAR Data Summary(CDMA 835MHz Muscle –15mm Distance- with Headset Position) 39 9.7 SAR Data Summary(CDMA 835MHz Muscle Touch Position) 41 9.8 SAR Data Summary(CDMA 835MHz Muscle Touch Position with Headset) 45 10. SAR Test Equipment 47 11. References 48 Appendix A 49 Appendix B 51 Appendix C 60 Bellwave Co.,Ltd Page 3 of 63 FCC ID : SY6BCL862S SAR Report Reference No.: NK2FR128 1.General Information 1.1 Applicant Company Name: Bellwave Co., Ltd Company Address: 6 th FL. Kamco Yangjae Tower 949-3, Dogok-Dong, Gangnam-Gu, Seoul 135-270, Korea Phone/Fax: Phone: +86-2-3460-9785 / +82-2-3460-9736 Contact Name: Tae-Hyoung Ko 1.2 Manufacturer Company Name: Shin-Oh Electronics Co., Ltd Company Address: 729-5 Bonoh-dong, Sangrok-Gu, Ansan-shi, Gyunggi-Do, 426-180 Korea (730-2 : 2’nd FA) Phone/Fax: Phone: +86-2-3460-9785 / +82-2-3460-9736 Contact Name: Tae-Hyoung Ko 1.3 Description of Device Category: CDMA Mobile Phone Model Name: BCL862S Brand Name: Bellwave Serial Number: 2004506 Frequency of Operation Tx : 824MHz ~ 849MHz, Rx : 869MHz ~ 894MHz Power Output (Conducted) 0.27W (24.3dBm) Channel Spacing 1.23MHz Modulation method Tx : OQPSK Rx : QPSK Operating Condition -30to +60°C Power Supply Li-ion Battery: 3.9V DC, 950mAh Antenna Type Cellular / GPS monopole antenna : input impedance 50Ω Dimensions 82.0mm X 49.8mm X 18.0mm Weight 60.5g Remarks: - Bellwave Co.,Ltd Page 4 of 63 FCC ID : SY6BCL862S SAR Report Reference No.: NK2FR128 2. General Test Condition 2.1 Location Nemko Korea 300-2, Osan-Ri, Mohyun-Myun, Yongin-City, Gyunggi-Do Phone : 82-31-322-2333 , Fax : 82-31-322-2332 2.2 Operating Environment Parameters Recording during test Accepted deviation Ambient temperature 20 - 22°C 15 - 30°C Relative humidity 30 - 60% 20 - 75% 2.3 Test Frequency CDMA835 Head CDMA835 Body Test Channel Test Frequency (MHz)Test Channel Test Frequency (MHz) 1013 824.70 1013 824.70 0363 835.89 0363 835.89 0777 848.31 0777 848.31 2.4 Support Equipment Equipment Manufacturer Model Name Serial Number Laptop Samsung SENS640 668391AR311176 Bellwave Co.,Ltd Page 5 of 63 FCC ID : SY6BCL862S SAR Report Reference No.: NK2FR128 3. Description of Test Equipment 3.1 SAR Measurement Setup Robotic System Measurements are performed using the DASY4 automated dosimetric assessment system. Which is made by Schmid & Partner Engineering AG (SPEAG) in Zurich, Switzerland and consists of high precision robotics system (Stäubli), robot controller, measurement server, H/P computer, nearfield probe, probe alignment sensor, and the SAM twin phantom containing the brain equivalent material. The robot is a six-axis industrial robot performing precise movements to position the probe to the location (points) of maximum electromagnetic field (EMF) (see Fig. 3.1). Figure 3.1 SAR Measurement System Setup System Hardware A cell controller system contains the power supply, robot controller, teach pendant (Joystick), and a remote control is used to drive the robot motors. The PC consists of the H/P computer with Windows XP system and SAR Measurement Software DASY4, LCD monitor, mouse and keyboard. The Stäubli Robot is connected to the cell controller to allow software manipulation of the robot. A Data Acquisition Electronic (DAE) circuit that performs the signal amplification, signal multiplexing, AD-conversion, offset measurements, mechanical surface detection, collision detection, etc. Is connected to the Electro-Optical Coupler (EOC). The EOC performs the conversion from the optical into digital electric signal of the DAE and transfers data to the measurement server. System Electronics The DAE4 consists of a highly sensitive electrometer-grade preamplifier with autozeroing, a Bellwave Co.,Ltd Page 6 of 63 FCC ID : SY6BCL862S SAR Report Reference No.: NK2FR128 channel and gain-switching multiplexer, a fast 16-bit AD-converter and a command decoder and control logic unit. Transmission to the measurement server is accomplished through an optical downlink for data and…

Text truncated - open the document above for the full version.

Test Report No.: NK2FR127 Bellwave Co.,Ltd. FCC ID :SY6BCL862S Page 1 of 45 Nemko Korea CO., Ltd. 300-2, Osan-Ri, Mohyun-Myun, Yongin-City, Gyunggi-Do, KOREA TEL:+82 31 322 2333 FAX:+82 31 322 2332 FCC EVALUATION REPORT FOR CERTIFICATION Applicant : Bellwave Co.,Ltd. Dates of Issue : July, 07, 2005 6th FL. Kamco Yangjae Tower 949-3, Dogok-Dong, Test Report No. : NK2FR127 Kangnam-Gu Seoul, Korea, (Post code : 135-270) Test Site : Nemko Korea Co., Ltd. FCC ID Brand Name CONTACT PERSON Applied Standard: FCC 47 CFR Part 22, part 2 Test Procedure: ANCI C63.4 , TIA/EIA 603 Equipment Class: Public Mobile Services EUT Type: Single Mode CDMA Mobile Phone The device bearing the brand name and FCC ID specified above has been shown to comply with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4-2003. I attest to the accuracy of data and all measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Tested By : S. Lee Reviewed By : H.H. Kim Engineer Manager & Chief Engineer SY6BCL862S Bellwave Bellwave Co., Ltd. 6th FL, Kamco Yangjae Tower 949-3, Dogok-Dong, Kangnam-Gu Seoul Korea (135-270) Mr. Tae-Hyoung Ko Telephone No. : +82 2 3460-9701 Test Report No.: NK2FR127 Bellwave Co.,Ltd. FCC ID :SY6BCL862S Page 2 of 45 TABLE OF CONTENTS 1. SCOPE 2. INTRODUCTION (Site Description) 3. TEST CONDITIONS & EUT INFORMATION 4. MEASURING INSTRUMENT CALIBRATION 5. SUMMARY OF TEST RESULTS 6. TEST EQUIPMENT 7. DESCRIPTION OF TEST 7.1 Conducted Emission 7.2 Radiated Emission 7.3 Effective Radiated Power/Equivalent Isotropic Radiated Power 7.4 Radiated Spurious & Harmonic Emission 7.5 Occupied Bandwidth / 26dB Emission Bandwidth 7.6 Spurious and Harmonic emissions at Antenna Terminal 7.7 Frequency Stability / Temperature Variation 8. TEST DATA 8.1 Effective Radiated Power 8.2 Conducted Output Power 8.3 Occupied Bandwidth / 26dB Emission Bandwidth 8.4 Radiated Spurious & Harmonic Emission 8.5 Frequency Stability / Temperature Variation 9. TEST PLOTS APPENDIX A - Labelling Requirement APPENDIX B - Photographs of Test Set-up APPENDIX C - EUT Photographs APPENDIX D - Schematic Diagram APPENDIX E - Block Diagram APPENDIX F - USER’S Manual APPENDIX G - Operational Description APPENDIX H – Tune up Procedure 3 4 5 6 7 8 9 9 10 11 12 14 15 17 18 18 19 20 21 23 25 38 39 40 41 42 43 44 45 Test Report No.: NK2FR127 Bellwave Co.,Ltd. FCC ID :SY6BCL862S Page 3 of 45 1. SCOPE Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission under FCC Part 22. Responsible Party : Contact Person : Manufacturer : Bellwave Co.,Ltd. Mr. Tae-Hyoung Ko Tel No. : +82 2 3460-9701 SHIN-OH Electronics Co.,Ltd. 729-5 Bon Oh-Dong, Sangrok-Gu, Ansan-City, Kyounggi-Do, 426-180 Korea (730-2 : 2’nd FA) z FCC ID: SY6BCL862S z Model: BCL862S z Brand Name: Bellwave z EUT Type: Single Mode CDMA Mobile Phone z Electric Rating: DC3.9V, 950mA z Equipment Class: z Classification: z Applied Standard: z Test Procedure(s): z Dates of Test: z Place of Tests: z Test Report No.: Intentional Radiators Licensed Portable Transmitter Held to Ear (PCE) FCC 47 CFR Part 22 , Part2 ANSI C63.4 (2003), TIA/EIA603 Jun 28, 2005 to July 07, 2005 Nemko Korea Co., Ltd. NK2FR127 Test Report No.: NK2FR127 Bellwave Co.,Ltd. FCC ID :SY6BCL862S Page 4 of 45 2. INTRODUCTION The measurement procedure described in American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ANSI C63.4-2003) was used in determining radiated and conducted emissions emanating from Bellwave Co.,Ltd. FCC ID : SY6BCL862S These measurement tests were conducted at Nemko Korea Co., Ltd. The site address is 300-2, Osan-Ri, Mohyun-Myun, Yongin-City, GyungGi-Do, KOREA The area of Nemko Korea Corporation Ltd. Test Site is located in a mountain area at 80 kilometers (48 miles) southeast and Incheon International Airport (Incheon Airport), 30 kilometers (18miles) south-southeast from central Seoul. It is located in the valley surrounded by mountains in all directions where ambient radio signal conditions are quiet and a favorable area to measure the radio frequency interference on open field test site for the computing and ISM devices manufactures. The detailed description of the measurement facility was found to be in compliance with the requirements of §2.948 according to ANSI C63.4 2003. Fig. 1. The map above shows the Seoul in Korea vicinity area. The map also shows Nemko Korea Corporation Ltd. and Incheon Airport. Nemko Korea Co., Ltd. 300-2, Osan-Ri, Mohyun-Myun, Yongin- City GyungGi-Do,KOREA 449-852 Tel)+82-31-322-2333 Fax)+82-31-322-2332 Test Report No.: NK2FR127 Bellwave Co.,Ltd. FCC ID :SY6BCL862S Page 5 of 45 3. TEST CONDITIONS & EUT INFORMATION Operating During Test The EUT was tested at the lowest channel, middle channel and the highest channel with the maximum RF power 24.3dBm and all data recorded in the report. Environmental Conditions Temperature 20°C ~ 25°C Relative Humidity 35% ~ 55% Description of EUT Frequency Range Tx : 824.70MHz ~ 848.31MHz Rx : 869.70MHz ~ 893.31MHz Output Power 0.27W (24.3dBm) Emission Designator 1M23F9W Modulation Method OQPSK Transmit power amplifier(IC) CX77105 Number of channels 20CH Antenna Type Monopole Antenna Antenna Position Right Antenna : GPS / Left Antenna : CDMA Dimensions(L X W X H) 82.0mm X 49.8mm X 18.0mm Weight 60.5g(with Battery) Operating Conditions Storage : -30°C ~ +70°C DC Input Voltage +3.9Vdc , 950mAh Support Equipment Equipment Manufacturer Model Name Serial Num…

Text truncated - open the document above for the full version.
