SY6BPP-UP310DUAL BAND GSM MOBILE PHONE

GSM Phone USER MANUAL MODEL : BPP-UP310 Please read this manual carefully before operating your handset. Retain it for future reference Draft Version (07/07/2006) FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. Body-worn Operation This device was tested for typical body-worn operations using the optional belt-clip/holster placed 0.7 inches (1.8cm) from the body. To comply with FCC RF exposure requirements, a minimum separation distance of 0.7 inches (1.8cm) must be maintained between the user’s body and the phone, including the antenna, whether extended or retracted. The use of third-party belt-clips/ holsters with no metallic components that provide the minimum separation distance of 0.7 inches (1.8cm) can be used to satisfy FCC RF exposure requirements. The use of non-tested accessories or other body-worn operations may not comply with FCC RF exposure requirements and should be avoided. Contact your local dealer for optional accessory items. Vehicle Mounted External Antenna (optional, if available.) A minimum separation distance of 7.9 inches (20cm) must be maintained between a person and the vehicle mounted external antenna to satisfy FCC RF exposure requirements. Table of Contents Safety precautions ...................................... Unpacking................................................... Your Phone ............................................. Part of Your Phone .................................... Display ..................................................... Backlight .................................................. Call Indicator LED ..................................... Getting Started ........................................ Installing a SIM Card .................................. Charging a Battery .................................... Switching the Phone On/Off ........................ Your Phone’s Mode ..................................... Call Functions .......................................... Making a Call ............................................. Making International Calls ........................... Making a Call from the Phonebook ............... Redialing the Last Number .......................... Adjusting the Volume................................... Answering a Call ........................................ Viewing Missed Calls ................................... Quick-switching to Vibration Mode ................ In-Call Options .......................................... Net Service .............................................. Call Divert ................................................. Call Barring ............................................... Call Waiting ............................................... Send My Caller ID ...................................... Network Selection ...................................... Phonebook .............................................. Storing a Phone Number with a Name .......... Speed-Dialing from Phonebook .................... Using Phonebook Options ........................... Recent Call .............................................. Outgoing Call ............................................. Incoming Call ............................................ Missed Call ................................................ Call Timer .................................................. Messages ................................................. Write Messages .......................................... Out Message .............................................. In Message ................................................ Status Report ............................................ Call Voicemail ............................................ Call Broadcast ........................................... Memory Status .......................................... Setting ..................................................... Entering Text .......................................... Changing Text Input Mode ........................... Ezi English Mode ........................................ Letter Mode ............................................... Number Mode ............................................ Symbol Mode ............................................. Settings ................................................... PIN .......................................................... Private Password ........................................ Using the Menus ...................................... Accessing a Menu Functions by Scrolling ....... List of Menu Functions ................................ Reference Information .......................... Access Codes ........................................... Using the Batteries ................................... Safety Information ................................... Care and Maintenance ............................... Glossary ................................................ Safety Precautions Read these simple guidelines. Failure to comply with them may be dangerous or illegal. For more detailed safety information, see “Safety Information” Road safety comes first Do not use a hand-held phone while driving; park the vehicle first. Remember that in some countries, it is illegal to use a…

Text truncated - open the document above for the full version.

Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: SY6BPP-UP310 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Block diagram Schematic Diagram Parts List Operating Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, 23~24FL. Construction Finance Center Bldg. 395-70 Shindaebang-dong Dongjak-gu Seoul, 156-714, Korea Tel : +82.2.829.7415 Fax : +82.2.829.7499 Ju-Won, Seol / Engineer

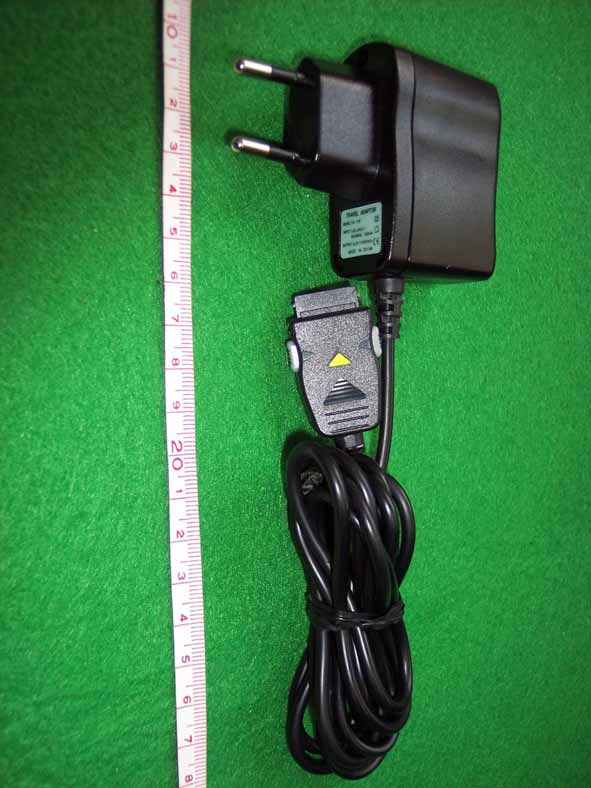

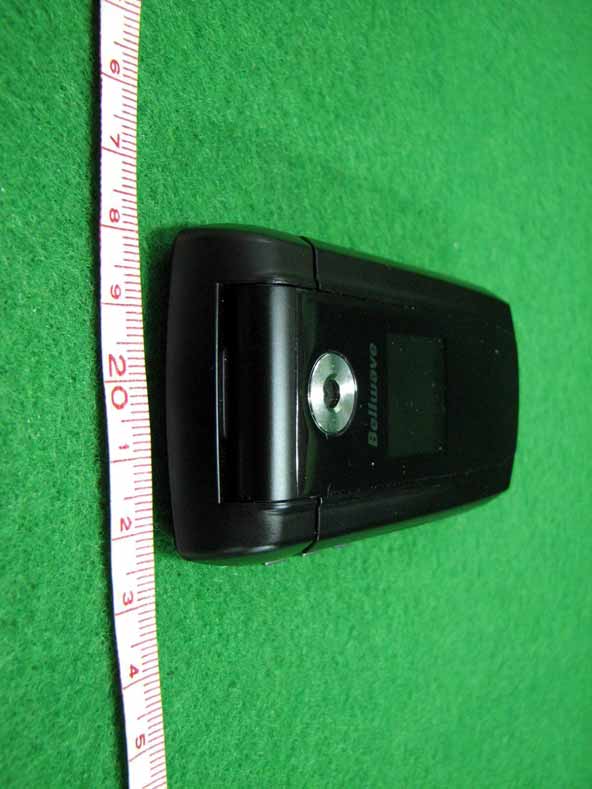

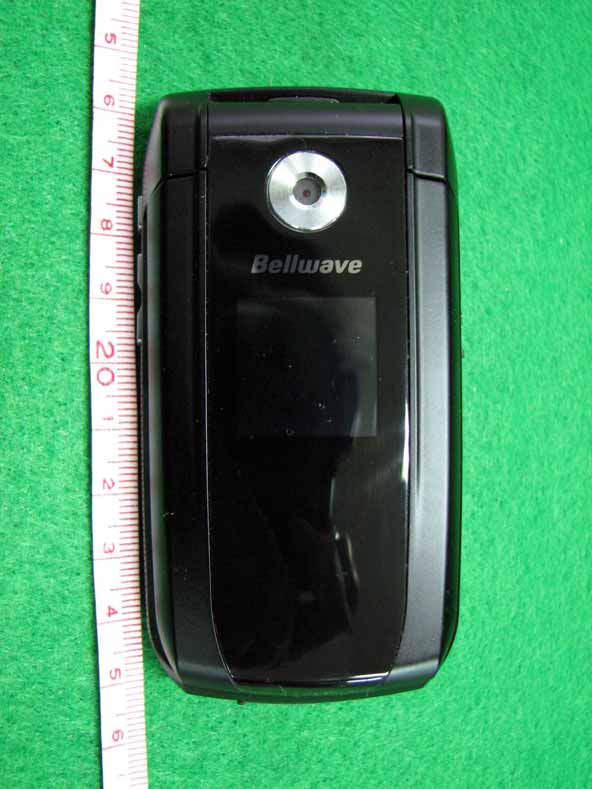

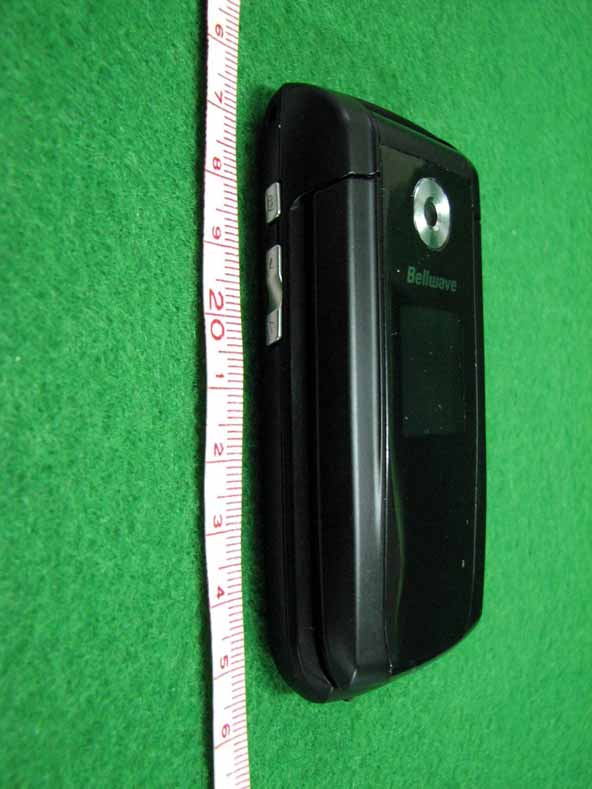

Test Report No.: NK2GR152 Bellwave Co.,Ltd. FCC ID :SY6BPP-UP310 Page 58 of 77 Appendix C – EUT Photographs ● Front Side View of EUT Test Report No.: NK2GR152 Bellwave Co.,Ltd. FCC ID :SY6BPP-UP310 Page 59 of 77 ● Rear Side View of EUT Test Report No.: NK2GR152 Bellwave Co.,Ltd. FCC ID :SY6BPP-UP310 Page 60 of 77 ● Right Side View of EUT Test Report No.: NK2GR152 Bellwave Co.,Ltd. FCC ID :SY6BPP-UP310 Page 61 of 77 ● Left Side View of EUT Test Report No.: NK2GR152 Bellwave Co.,Ltd. FCC ID :SY6BPP-UP310 Page 62 of 77 ● Top Side View of EUT Test Report No.: NK2GR152 Bellwave Co.,Ltd. FCC ID :SY6BPP-UP310 Page 63 of 77 ● Bottom Side View of EUT Test Report No.: NK2GR152 Bellwave Co.,Ltd. FCC ID :SY6BPP-UP310 Page 64 of 77 ● Key-pad Side View of EUT Test Report No.: NK2GR152 Bellwave Co.,Ltd. FCC ID :SY6BPP-UP310 Page 65 of 77 ● Label Side View of EUT Test Report No.: NK2GR152 Bellwave Co.,Ltd. FCC ID :SY6BPP-UP310 Page 72 of 77 ● Adapter View of EUT

Test Report No.: NK2GR152 Bellwave Co.,Ltd. FCC ID :SY6BPP-UP310 Page 55 of 77 The sample label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. *** The following paragraph specified in the user manual. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Appendix B – Photographs of Test Set-up Labelling Requirements

Test Report No.: NK2GR152 Bellwave Co.,Ltd. FCC ID :SY6BPP-UP310 Page 66 of 77 ● Front View of Main Board Test Report No.: NK2GR152 Bellwave Co.,Ltd. FCC ID :SY6BPP-UP310 Page 67 of 77 ● Rear View of Main Board Test Report No.: NK2GR152 Bellwave Co.,Ltd. FCC ID :SY6BPP-UP310 Page 68 of 77 ● Rear View of Main Board without Shield Test Report No.: NK2GR152 Bellwave Co.,Ltd. FCC ID :SY6BPP-UP310 Page 69 of 77 ● Key-pad Side View of EUT Test Report No.: NK2GR152 Bellwave Co.,Ltd. FCC ID :SY6BPP-UP310 Page 70 of 77 ● Key-pad Side View of EUT Test Report No.: NK2GR152 Bellwave Co.,Ltd. FCC ID :SY6BPP-UP310 Page 71 of 77 ● LCD Side View of EUT

Test Configuration of Equipment under Test The EUT has been tested under operating condition. The staying in continuous transmitting mode. Channel Low , Middle and High for each type and band with rated data rate are chosen for full testing. The field strength of spurious radiation emission was measured as EUT stand- up position (H mode) and lie down position (E1 , E2 mode) for GSM with power Adaptor. During all testing, EUT is in link mode with Base Station emulator (8960 Series 10) at maximum power level. PCL = 5 for GSM 850 PCL = 0 for PCS1900 Frequency range investigated : Radiated emission 30MHz to 10GHz for GSM850 , 30MHz to 20GHz for PCS 1900

Bellwave Co.,Ltd Page 1 of 90 FCC ID : SY6BPP-UP310 SAR Report Reference No.: NK2GR153 SAR Evaluation Report FCC ID : SY6BPP-UP310 Project Reference No. : NK2GR153 Product Type : Dual-Band GSM Mobile Phone Brand Name : Bellwave Model : BPP-UP310 Tested According to : IEEE Standard C95.1 / OET Bulletin 65 Supplement C Tested Period : July. 18. 2006 to July. 26. 2006 Tested by Seob Lee date : July. 28. 2006 Verified by Seonteag.Jin date : July. 28. 2006 This test results are only related to the item tested. This test report is only limited to the client company and the product. This report must not be used by the client to claim product endorsement by any agency of the U.S. Government. Lab Address : Nemko Korea Co., Ltd 300-2, Osan-Ri, Mohyun-Myun, Yongin-City, Gyunggi-Do, Korea Phone : 82-31-322-2333 Fax : 82-31-322-2332 Bellwave Co.,Ltd Page 2 of 90 FCC ID : SY6BPP-UP310 SAR Report Reference No.: NK2GR153 Contents of This Report 1. General Information 4 1.1 Applicant 4 1.2 Manufacturer 4 1.3 Description of Device 4 2. General Test Condition 5 2.1 Location 5 2.2 Operating Environment 5 2.3 Test Frequency 5 2.4 Support Equipment 5 3. Description of Test Equipment 6 4. SAR Measurement Procedure 10 5. Definition of Reference Points 12 5.1 Ear Reference Point 12 5.2 Handset Reference Points 13 6. Test Configuration Positions 14 6.2 Cheek/Touch Position 14 6.2 Ear/Tilt 15Position 15 6.3 Body-worn and Other Configurations 16 7. Measurement Uncertainty 17 8. System Verification 18 8.1 Tissue Verification 18 8.2 Test System Validation 19 8.3 Measurement Result of Test Data (GSM 850MHz Head Validation) 20 8.4 Measurement Result of Test Data (GSM 850MHz Muscle Validation) 21 8.5 Measurement Result of Test Data (PCS 1900MHz Head Validation) 22 8.6 Measurement Result of Test Data (PCS 1900MHz Muscle Validation) 23 9. SAR Measurement Results 24 9.1 SAR Measurement Result(GSM 850MHz Right Head Touch Position) 26 9.2 SAR Measurement Result (GSM 850MHz Right Head Tilt Position) 31 9.3 SAR Measurement Result (GSM 850MHz Left Head Touch Position) 33 9.4 SAR Measurement Result (GSM 850MHz Left Head Tilt Position) 37 9.5 SAR Measurement Result (GSM 850MHz Muscle–15mm Distance- Position) 39 Bellwave Co.,Ltd Page 3 of 90 FCC ID : SY6BPP-UP310 SAR Report Reference No.: NK2GR153 9.7 SAR Measurement Result (PCS 1900MHz Right Head Touch Position) 44 9.8 SAR Measurement Result (PCS 1900MHz Right Head Tilt Position) 49 9.9 SAR Measurement Result (PCS 1900MHz Left Head Touch Position) 51 9.10 SAR Measurement Result (PCS 1900MHz Left Head Tilt Position) 55 9.11 SAR Measurement Result (PCS 1900MHz Muscle–15mm Distance-Position) 57 10. SAR Test Equipment 62 11. References 63 Appendix A SAR Definition / RF Exposure Limits 64 Appendix B Probe Calibration 66 Appendix C Dipole Calibrations 75 Appendix D Photographs of EUT 87 Bellwave Co.,Ltd Page 4 of 90 FCC ID : SY6BPP-UP310 SAR Report Reference No.: NK2GR153 1.General Information 1.1 Applicant Company Name: Bellwave Co., Ltd Company Address: 23 P rd P ~24P th P Fl. Construction Finance Center Bldg.395-70 Shindaebang-dong, Dongjak-gu,Seoul,156-714,Korea Phone/Fax: Phone: +82-2-829-7415 / +82-2-829-7499 Contact Name: Ju-Won, Seol 1.2 Manufacturer Company Name: Bellwave Co., Ltd Company Address: 23 P rd P ~24P th P Fl. Construction Finance Center Bldg.395-70 Shindaebang-dong, Dongjak-gu,Seoul,156-714,Korea Phone/Fax: Phone: +82-2-829-7415 / +82-2-829-7499 Contact Name: Ju-Won, Seol 1.3 Description of Device Category: Dual-Band GSM Mobile Phone Model Name: BPP-UP310 Brand Name: Bellwave Serial Number: 0000001 Frequency Band Tx : 824MHz ~ 849MHz, Rx : 869MHz ~ 894MHz Tx : 1850MHz ~ 1910MHz, Rx : 1930MHz ~ 1990MHz Power Output (Conducted) GSM850: 32.26dBm PCS1900: 30.56dBm Frequency Error < 0.1ppm Operating Condition -30to +60 Power Supply Li-ion Battery: 3.7V DC, 760mAh Antenna Type Internal Dimensions 166 X 48 X 7.0mm (95 X 48 X 15mm) Weight 76g(with battery) Remarks: - Bellwave Co.,Ltd Page 5 of 90 FCC ID : SY6BPP-UP310 SAR Report Reference No.: NK2GR153 2. General Test Condition 2.1 Location Nemko Korea 300-2, Osan-Ri, Mohyun-Myun, Yongin-City, Gyunggi-Do Phone : 82-31-322-2333 , Fax : 82-31-322-2332 2.2 Operating Environment Parameters Recording during test Accepted deviation Ambient temperature 20 ~ 22 15 ~ 30 Relative humidity 35 ~ 55% 20 ~ 75% 2.3 Test Frequency GSM850 PCS1900 Test Channel Test Frequency (MHz)Test Channel Test Frequency (MHz) 128 824.2 512 1850.2 190 836.6 661 1880.0 251 848.8 810 1909.8 2.4 Support Equipment Equipment Manufacturer Model Name Serial Number - - - - Bellwave Co.,Ltd Page 6 of 90 FCC ID : SY6BPP-UP310 SAR Report Reference No.: NK2GR153 3. Description of Test Equipment 3.1 SAR Measurement Setup Robotic System Measurements are performed using the DASY4 automated dosimetric assessment system. Which is made by Schmid & Partner Engineering AG (SPEAG) in Zurich, Switzerland and consists of high precision robotics system (Stäubli), robot controller, measurement server, H/P computer, nearfield probe, probe alignment sensor, and the SAM twin phantom containing the brain equivalent material. The robot is a six-axis industrial robot performing precise movements to position the probe to the location (points) of maximum electromagnetic field (EMF) (see Fig. 3.1). Figure 3.1 SAR Measurement System Setup System Hardware A cell controller system contains the power supply, robot controller, teach pendant (Joystick), and a remote control is used to drive the robot motors. The PC consists of the H/P computer with Windows XP system and SAR Measurement Software DASY4, LCD monitor, mouse and keyboard. The Stäubli Robot is connected to the cell controller to allow software manipulation of the robot. A Data Acquisition Electronic (DAE) circuit that performs the signal amplification, signal multiplexing, AD-conversion, offset measurements, mechanical surface detection, collision detection, etc. Is connected to the Electro-Optical Coupler (EOC). The EOC performs th…

Text truncated - open the document above for the full version.

Test Report No.: NK2GR152 Bellwave Co.,Ltd. FCC ID :SY6BPP-UP310 Page 1 of 77 Nemko Korea CO., Ltd. 300-2, Osan-Ri, Mohyun-Myun, Yongin-City, Gyunggi-Do, KOREA TEL:+82 31 322 2333 FAX:+82 31 322 2332 FCC EVALUATION REPORT FOR CERTIFICATION Applicant : Bellwave Co.,Ltd. Dates of Issue : August, 01, 2006 23 P rd P ~24th FL. Construction Finance Center Bldg,395-70 Test Report No. : NK2GR152 Shindaebang-dong,Dongjak-gu,Seoul,156-714,Korea Test Site : Nemko Korea Co., Ltd. FCC ID Brand Name CONTACT PERSON Applied Standard: FCC 47 CFR Part 15 & 2 FCC 47 CFR Part 22H & Part 24E Classification: FCC Class B Device Equipment Class: Public Mobile Services EUT Type: Dual-Band GSM Mobile Phone The device bearing the brand name and FCC ID specified above has been shown to comply with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4-2003. I attest to the accuracy of data and all measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Tested By : S. Lee Reviewed By : H.H. Kim Engineer Manager & Chief Engineer SY6BPP-UP310 Bellwave Bellwave Co., Ltd. 23 rd ~24th FL, Construction Finance Center Bldg.395-70 Shindaebang-dong,Dongjak-gu,Seoul,156-714,Korea Mr. Ju-Won Seol Telephone No. : +82 2 829-7415 Test Report No.: NK2GR152 Bellwave Co.,Ltd. FCC ID :SY6BPP-UP310 Page 2 of 77 TABLE OF CONTENTS 1. Scope 4 2. Introduction (Site Description) 5 3. Test Conditions & EUT Information 6 4. Measuring Instrument Calibration 8 5. Summary of Test Results 9 6. Recommendation / Conclusion 10 7. Test Equipment 11 8. Description of Test 12 8.1 Conducted Emission 12 8.2 Radiated Emission 13 8.3 Effective Radiated Power / Equivalent Isotropic Radiated Power 14 8.4 Radiated Spurious & Harmonic Emission 15 8.5 Occupied Bandwidth / 26dB Emission Bandwidth 17 8.6 Spurious and Harmonic Emissions at Antenna Terminal 18 8.7 Frequency Stability / Temperature Variation 21 9. Test Data 22 9.1 Effective Radiated Power (ERP) 22 9.2 Equivalent Isotropic Radiated Power (EIRP) 23 9.3 Conducted Output Power 24 9.4 Occupied Bandwidth / 26dB Emission Bandwidth 25 9.5 Radiated Spurious & Harmonic Emission (GSM850) 26 9.6 Radiated Spurious & Harmonic Emission (PCS1900) 28 9.7 Frequency Stability / Temperature Variation (GSM850) 30 9.8 Frequency Stability / Temperature Variation (PCS1900) 32 9.9 AC Power LINE Conducted Emission 34 Test Report No.: NK2GR152 Bellwave Co.,Ltd. FCC ID :SY6BPP-UP310 Page 3 of 77 10. Emission Designator 42 11. Test Plots (GSM850) 43 12. Test Plots (PCS1900) 49 Appendix A: Labelling Requirement 55 Appendix B: Photographs of Test Set-up 56 Appendix C: EUT Photographs 58 Appendix D: Schematic Diagram 73 Appendix E: Block Diagram 74 Appendix F: USER’S Manual 75 Appendix G: Operational Description 76 Appendix H: Turn up Procedure 77 Test Report No.: NK2GR152 Bellwave Co.,Ltd. FCC ID :SY6BPP-UP310 Page 4 of 77 1. Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission under FCC Part 15 & Part 22 & 24. Responsible Party: Contact Person: Manufacturer: Bellwave Co.,Ltd. Mr. Ju-Won Seol Tel : +82 2 829-7415 Bellwave Co.,Ltd. 23P rd P ~24th FL. Construction Finance Center Bldg,395-70 Shindaebang-dong,Dongjak-gu,Seoul,156-714,Korea z FCC ID: SY6BPP-UP310 z Model: BPP-UP310 z Brand Name: Bellwave z EUT Type: Dual-Band GSM Mobile Phone z Electric Rating: DC3.7V, 760mA z Equipment Class: z Classification: z Applied Standard: z Test Procedure(s): z Dates of Test: z Place of Tests: z Test Report No.: Public Mobile Services Licensed Portable Transmitter Held to Ear (PCE) FCC 47 CFR Part 15 & 2 FCC 47 CFR Part 22H &24E ANSI C63.4 (2003), TIA/EIA603 July 18, 2006 to July 31, 2006 Nemko Korea Co., Ltd. NK2GR152 Test Report No.: NK2GR152 Bellwave Co.,Ltd. FCC ID :SY6BPP-UP310 Page 5 of 77 2. Introduction (Site Description) The measurement procedure described in American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ANSI C63.4-2003) was used in determining radiated and conducted emissions emanating from Bellwave Co.,Ltd. FCC ID : SY6BPP-UP310 These measurement tests were conducted at Nemko Korea Co., Ltd. The site address is 300-2, Osan-Ri, Mohyun-Myun, Yongin-City, GyungGi-Do, KOREA The area of Nemko Korea Corporation Ltd. Test Site is located in a mountain area at 80 kilometers (48 miles) southeast and Incheon International Airport (Incheon Airport), 30 kilometers (18miles) south-southeast from central Seoul. It is located in the valley surrounded by mountains in all directions where ambient radio signal conditions are quiet and a favorable area to measure the radio frequency interference on open field test site for the computing and ISM devices manufactures. The detailed description of the measurement facility was found to be in compliance with the requirements of 2.948 according to ANSI C63.4 2003. Fig. 1. The map above shows the Seoul in Korea vicinity area. The map also shows Nemko Korea Corporation Ltd. and Incheon Airport. Nemko Korea Co., Ltd. 300-2, Osan-Ri, Mohyun-Myun, Yongin-City GyungGi-Do,KOREA 449-852 Tel)+82-31-322-2333 Fax)+82-31-322-2332 Test Report No.: NK2GR152 Bellwave Co.,Ltd. FCC ID :SY6BPP-UP310 Page 6 of 77 3. Test Conditions & EUT Information UOperating During Test The EUT was tested at the lowest channel, middle channel and the highest channel with the maximum RF Power and all data recorded in the report. UEnvironmental Conditions Temperature 22 ~ 25 Relative Humidity 35% ~ 65% UDescription of EU…

Text truncated - open the document above for the full version.

Test Report No.: NK2GR152 Bellwave Co.,Ltd. FCC ID :SY6BPP-UP310 Page 56 of 77 The Conducted Test Picture and Radiated Test Picture and show the worst-case configuration and cable placement. z Conducted Test Picture (Front) z Conducted Test Picture (Rear) Test Report No.: NK2GR152 Bellwave Co.,Ltd. FCC ID :SY6BPP-UP310 Page 57 of 77 z Temperature Test Picture
