SY6BPP-UP110CDUAL BAND GSM MOBILE PHONE

Test Report No.: NK2GR089 Bellwave Co.,Ltd. FCC ID :SY6BPP-UP110C Page 72 of 74 Appendix F – USER’S Manual GSM Phone USER MANUAL MODEL : BPP-UP110c Please read this manual carefully before operating your handset. Retain it for future reference Draft Version (04/20/2006) FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. Body-worn Operation This device was tested for typical body-worn operations using the optional belt-clip/holster placed 0.7 inches (1.8cm) from the body. To comply with FCC RF exposure requirements, a minimum separation distance of 0.7 inches (1.8cm) must be maintained between the user’s body and the phone, including the antenna, whether extended or retracted. The use of third-party belt-clips/ holsters with no metallic components that provide the minimum separation distance of 0.7 inches (1.8cm) can be used to satisfy FCC RF exposure requirements. The use of non-tested accessories or other body-worn operations may not comply with FCC RF exposure requirements and should be avoided. Contact your local dealer for optional accessory items. Vehicle Mounted External Antenna (optional, if available.) A minimum separation distance of 7.9 inches (20cm) must be maintained between a person and the vehicle mounted external antenna to satisfy FCC RF exposure requirements. Table of Contents Safety precautions ...................................... Unpacking................................................... Your Phone ............................................. Part of Your Phone .................................... Display ..................................................... Backlight .................................................. Call Indicator LED ..................................... Getting Started ........................................ Installing a SIM Card .................................. Charging a Battery .................................... Switching the Phone On/Off ........................ Your Phone’s Mode ..................................... Call Functions .......................................... Making a Call ............................................. Making International Calls ........................... Making a Call from the Phonebook ............... Redialing the Last Number .......................... Adjusting the Volume................................... Answering a Call ........................................ Viewing Missed Calls ................................... Quick-switching to Vibration Mode ................ In-Call Options .......................................... Net Service .............................................. Call Divert ................................................. Call Barring ............................................... Call Waiting ............................................... Send My Caller ID ...................................... Network Selection ...................................... Phonebook .............................................. Storing a Phone Number with a Name .......... Speed-Dialing from Phonebook .................... Using Phonebook Options ........................... Recent Call .............................................. Outgoing Call ............................................. Incoming Call ............................................ Missed Call ................................................ Call Timer .................................................. Messages ................................................. Write Messages .......................................... Out Message .............................................. In Message ................................................ Status Report ............................................ Call Voicemail ............................................ Call Broadcast ........................................... Memory Status .......................................... Setting ..................................................... Entering Text .......................................... Changing Text Input Mode ........................... Ezi English Mode ........................................ Letter Mode ............................................... Number Mode ............................................ Symbol Mode ............................................. Settings ................................................... PIN .......................................................... Private Password ........................................ Using the Menus ...................................... Accessing a Menu Functions by Scrolling ....... List of Menu Functions ................................ Reference Information .......................... Access Codes ........................................... Using the Batteries ................................... Safety Information ................................... Care and Maintenance ............................... Glossary ................................................ Safety Precautions Read these simple guidelines. Failure to comply with them may be dangerous or illegal. For more detailed safety information, see “Safety Information” Road safety comes first Do not use a ha…

Text truncated - open the document above for the full version.

23~24FL. Construction Finance Center Bldg. 395-70 Shindaebang-dong Dongjak-gu Seoul, 156-714, Korea Tel : +82.2.829.7415 Fax : +82.2.829.7499 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: SY6BPP-UP110C Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Block diagram Schematic Diagram Parts List Operating Description Tuning Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, NAME : Ju-Won, Seol TITLE : Engineer COMPANY : Bellwave Co., Ltd

23~24 FL. Construction Finance Center Bldg. 395-70 Shindaebang-dong, Dongjak-gu, Seoul, 156-714, Korea Tel : +82.2.829.7415 Fax : +82.2.8297499 Timco Engineering, Inc. 849 NW State Road 45 P.O.Box 370 Newberry, FL 32669 To whom it may concern; We confirm that our device ,FCC ID SY6BPP-UP110C, does not support GPRS mode. Ju-Won, Seol / Engineer

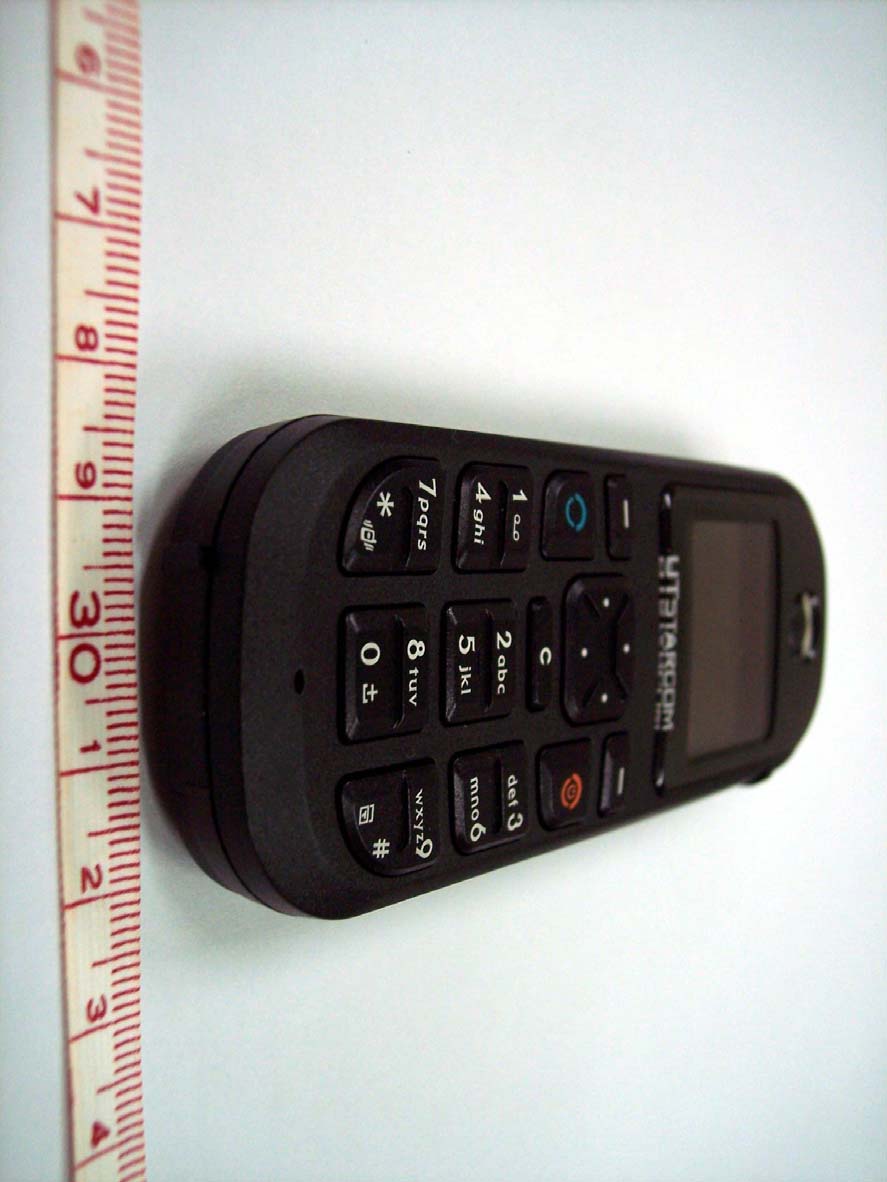

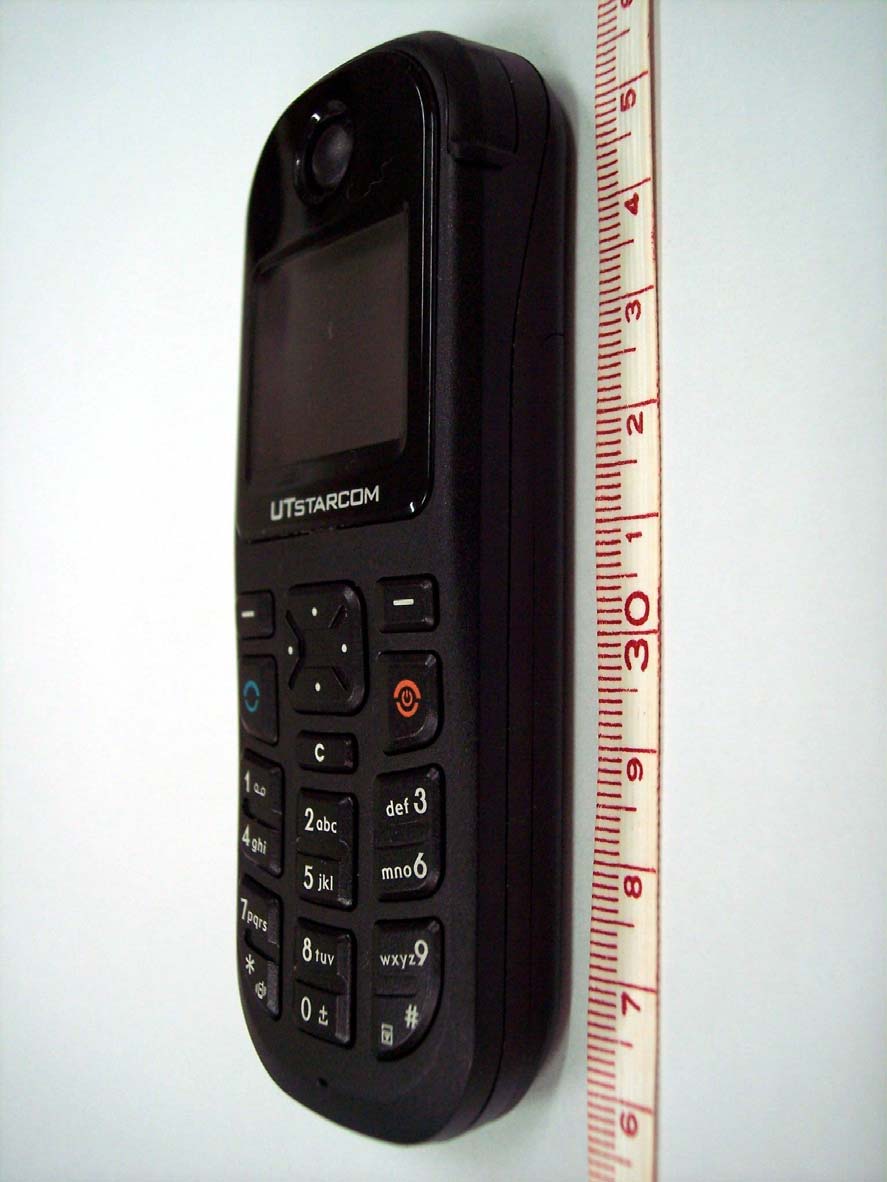

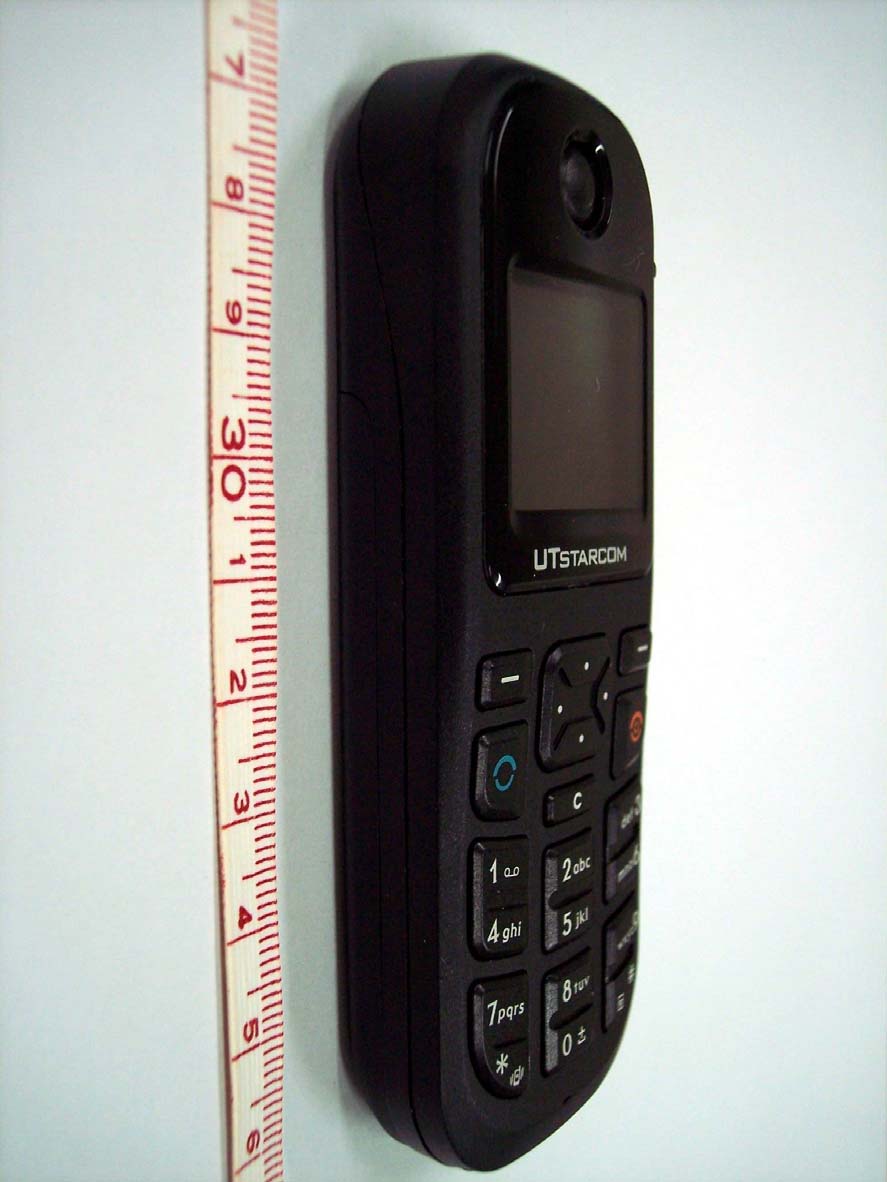

Test Report No.: NK2GR089 Bellwave Co.,Ltd. FCC ID :SY6BPP-UP110C Page 59 of 74 Appendix C – EUT Photographs ● Front Side View of EUT Test Report No.: NK2GR089 Bellwave Co.,Ltd. FCC ID :SY6BPP-UP110C Page 60 of 74 ● Rear Side View of EUT Test Report No.: NK2GR089 Bellwave Co.,Ltd. FCC ID :SY6BPP-UP110C Page 61 of 74 ● Right Side View of EUT Test Report No.: NK2GR089 Bellwave Co.,Ltd. FCC ID :SY6BPP-UP110C Page 62 of 74 ● Left Side View of EUT Test Report No.: NK2GR089 Bellwave Co.,Ltd. FCC ID :SY6BPP-UP110C Page 63 of 74 ● Top Side View of EUT Test Report No.: NK2GR089 Bellwave Co.,Ltd. FCC ID :SY6BPP-UP110C Page 64 of 74 ● Bottom Side View of EUT Test Report No.: NK2GR089 Bellwave Co.,Ltd. FCC ID :SY6BPP-UP110C Page 65 of 74 ● Bottom Side View of EUT

Test Report No.: NK2GR089 Bellwave Co.,Ltd. FCC ID :SY6BPP-UP110C Page 55 of 74 APPENDIX A - Labelling Requirement The sample label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. *** The following paragraph specified in the user manual. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Labelling Requirements

Test Report No.: NK2GR089 Bellwave Co.,Ltd. FCC ID :SY6BPP-UP110C Page 66 of 74 ● Inside View of EUT Test Report No.: NK2GR089 Bellwave Co.,Ltd. FCC ID :SY6BPP-UP110C Page 67 of 74 ● Front View of Main Board Test Report No.: NK2GR089 Bellwave Co.,Ltd. FCC ID :SY6BPP-UP110C Page 68 of 74 ● Rear View of Main Board Test Report No.: NK2GR089 Bellwave Co.,Ltd. FCC ID :SY6BPP-UP110C Page 69 of 74 ● Rear View of Main Board without Shield

Bellwave Co.,Ltd Page 1 of 79 FCC ID : SY6BPP-UP110C SAR Report Reference No.: NK2GR090 SAR Evaluation Report FCC ID : SY6BPP-UP110C Project Reference No. : NK2GR090 Product Type : Dual-Band GSM Mobile Phone Brand Name : Bellwave Model : BPP-UP110C Tested According to : IEEE Standard C95.1 / OET Bulletin 65 Supplement C Tested Period : April. 24. 2006 to April. 28. 2006 Tested by Seob Lee date : May. 08. 2006 Verified by Seonteag.Jin date : May. 08. 2006 This test results are only related to the item tested. This test report is only limited to the client company and the product. This report must not be used by the client to claim product endorsement by any agency of the U.S. Government. Lab Address : Nemko Korea Co., Ltd 300-2, Osan-Ri, Mohyun-Myun, Yongin-City, Gyunggi-Do, Korea Phone : 82-31-322-2333 Fax : 82-31-322-2332 Bellwave Co.,Ltd Page 2 of 79 FCC ID : SY6BPP-UP110C SAR Report Reference No.: NK2GR090 Contents of This Report 1. General Information 4 1.1 Applicant 4 1.2 Manufacturer 4 1.3 Description of Device 4 2. General Test Condition 5 2.1 Location 5 2.2 Operating Environment 5 2.3 Test Frequency 5 2.4 Support Equipment 5 3. Description of Test Equipment 6 4. SAR Measurement Procedure 10 5. Definition of Reference Points 12 5.1 Ear Reference Point 12 5.2 Handset Reference Points 13 6. Test Configuration Positions 14 6.2 Cheek/Touch Position 14 6.2 Ear/Tilt 15°Position 15 6.3 Body-worn and Other Configurations 16 7. Measurement Uncertainty 17 8. System Verification 18 8.1 Tissue Verification 18 8.2 Test System Validation 19 8.3 Measurement Result of Test Data (GSM 850MHz Head Validation) 20 8.4 Measurement Result of Test Data (GSM 850MHz Muscle Validation) 21 8.5 Measurement Result of Test Data (PCS 1900MHz Head Validation) 22 8.6 Measurement Result of Test Data (PCS 1900MHz Muscle Validation) 23 9. SAR Measurement Results 24 9.1 SAR Measurement Result(GSM 850MHz Right Head Touch Position) 26 9.2 SAR Measurement Result (GSM 850MHz Right Head Tilt Position) 30 9.3 SAR Measurement Result (GSM 850MHz Left Head Touch Position) 32 9.4 SAR Measurement Result (GSM 850MHz Left Head Tilt Position) 36 9.5 SAR Measurement Result (GSM 850MHz Muscle–15mm Distance- Position) 38 Bellwave Co.,Ltd Page 3 of 79 FCC ID : SY6BPP-UP110C SAR Report Reference No.: NK2GR090 9.6 SAR Measurement Result (GSM 850MHz Muscle–15mm Distance- with Headset) 42 9.7 SAR Measurement Result (PCS 1900MHz Right Head Touch Position) 44 9.8 SAR Measurement Result (PCS 1900MHz Right Head Tilt Position) 48 9.9 SAR Measurement Result (PCS 1900MHz Left Head Touch Position) 50 9.10 SAR Measurement Result (PCS 1900MHz Left Head Tilt Position) 54 9.11 SAR Measurement Result (PCS 1900MHz Muscle–15mm Distance-Position) 56 9.12 SAR Measurement Result (PCS 1900MHz Muscle–15mm Distance-with Headset) 60 10. SAR Test Equipment 62 11. References 63 Appendix A 64 Appendix B 66 Appendix C 75 Appendix D 76 Bellwave Co.,Ltd Page 4 of 79 FCC ID : SY6BPP-UP110C SAR Report Reference No.: NK2GR090 1.General Information 1.1 Applicant Company Name: Bellwave Co., Ltd Company Address: 6 th FL. Kamco Yangjae Tower 949-3, Dogok-Dong, Gangnam-Gu, Seoul 135-270, Korea Phone/Fax: Phone: +82-2-3460-9785 / +82-2-3460-9736 Contact Name: Ju-Won, Seol 1.2 Manufacturer Company Name: Bellwave Co., Ltd Company Address: 6 th FL. Kamco Yangjae Tower 949-3, Dogok-Dong, Gangnam-Gu, Seoul 135-270, Korea Phone/Fax: Phone: +82-2-3460-9785 / +82-2-3460-9736 Contact Name: Ju-Won, Seol 1.3 Description of Device Category: Dual-Band GSM Mobile Phone Model Name: BPP-UP110C Brand Name: Bellwave Serial Number: 0000001 Frequency Band Tx : 824MHz ~ 849MHz, Rx : 869MHz ~ 894MHz Tx : 1850MHz ~ 1910MHz, Rx : 1930MHz ~ 1990MHz Power Output (Conducted) GSM850: 32.03dBm PCS1900: 29.26dBm Frequency Error < 0.1ppm Operating Condition -30to +60°C Power Supply Li-ion Battery: 3.7V DC, 650mAh Antenna Type Internal Dimensions 105 X 40 X 15.8mm Weight 67g(with Battery) Remarks: - Bellwave Co.,Ltd Page 5 of 79 FCC ID : SY6BPP-UP110C SAR Report Reference No.: NK2GR090 2. General Test Condition 2.1 Location Nemko Korea 300-2, Osan-Ri, Mohyun-Myun, Yongin-City, Gyunggi-Do Phone : 82-31-322-2333 , Fax : 82-31-322-2332 2.2 Operating Environment Parameters Recording during test Accepted deviation Ambient temperature 20 ~ 22°C 15 ~ 30°C Relative humidity 35 ~ 55% 20 ~ 75% 2.3 Test Frequency GSM850 PCS1900 Test Channel Test Frequency (MHz)Test Channel Test Frequency (MHz) 128 824.2 512 1850.2 190 836.6 661 1880.0 251 848.8 810 1909.8 2.4 Support Equipment Equipment Manufacturer Model Name Serial Number - - - - Bellwave Co.,Ltd Page 6 of 79 FCC ID : SY6BPP-UP110C SAR Report Reference No.: NK2GR090 3. Description of Test Equipment 3.1 SAR Measurement Setup Robotic System Measurements are performed using the DASY4 automated dosimetric assessment system. Which is made by Schmid & Partner Engineering AG (SPEAG) in Zurich, Switzerland and consists of high precision robotics system (Stäubli), robot controller, measurement server, H/P computer, nearfield probe, probe alignment sensor, and the SAM twin phantom containing the brain equivalent material. The robot is a six-axis industrial robot performing precise movements to position the probe to the location (points) of maximum electromagnetic field (EMF) (see Fig. 3.1). Figure 3.1 SAR Measurement System Setup System Hardware A cell controller system contains the power supply, robot controller, teach pendant (Joystick), and a remote control is used to drive the robot motors. The PC consists of the H/P computer with Windows XP system and SAR Measurement Software DASY4, LCD monitor, mouse and keyboard. The Stäubli Robot is connected to the cell controller to allow software manipulation of the robot. A Data Acquisition Electronic (DAE) circuit that performs the signal amplification, signal multiplexing, AD-conversion, offset measurements, mechanical surface detection, collision detection, etc. Is connected to the Electro-Optical Coupler (EOC). The EOC perform…

Text truncated - open the document above for the full version.

Test Report No.: NK2GR089 Bellwave Co.,Ltd. FCC ID :SY6BPP-UP110C Page 1 of 74 Nemko Korea CO., Ltd. 300-2, Osan-Ri, Mohyun-Myun, Yongin-City, Gyunggi-Do, KOREA TEL:+82 31 322 2333 FAX:+82 31 322 2332 FCC EVALUATION REPORT FOR CERTIFICATION Applicant : Bellwave Co.,Ltd. Dates of Issue : May, 10, 2006 6th FL. Kamco Yangjae Tower 949-3, Dogok-Dong, Test Report No. : NK2GR089 Kangnam-Gu Seoul, Korea, (Post code : 135-270) Test Site : Nemko Korea Co., Ltd. FCC ID Brand Name CONTACT PERSON Applied Standard: FCC 47 CFR Part 15 & 2 FCC 47 CFR Part 22H & Part 24E Classification: FCC Class B Device Equipment Class: Public Mobile Services EUT Type: Dual-Band GSM Mobile Phone The device bearing the brand name and FCC ID specified above has been shown to comply with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4-2003. I attest to the accuracy of data and all measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Tested By : S. Lee Reviewed By : H.H. Kim Engineer Manager & Chief Engineer SY6BPP-UP110C Bellwave Bellwave Co., Ltd. 6th FL, Kamco Yangjae Tower 949-3, Dogok-Dong, Kangnam-Gu Seoul Korea (135-270) Mr. Ju-Won Seol Telephone No. : +82 2 3460-9785 Test Report No.: NK2GR089 Bellwave Co.,Ltd. FCC ID :SY6BPP-UP110C Page 2 of 74 TABLE OF CONTENTS 1. Scope 4 2. Introduction (Site Description) 5 3. Test Conditions & EUT Information 6 4. Measuring Instrument Calibration 8 5. Summary of Test Results 9 6. Recommendation / Conclusion 10 7. Test Equipment 11 8. Description of Test 12 8.1 Conducted Emission 12 8.2 Radiated Emission 13 8.3 Effective Radiated Power / Equivalent Isotropic Radiated Power 14 8.4 Radiated Spurious & Harmonic Emission 15 8.5 Occupied Bandwidth / 26dB Emission Bandwidth 17 8.6 Spurious and Harmonic Emissions at Antenna Terminal 18 8.7 Frequency Stability / Temperature Variation 21 9. Test Data 22 9.1 Effective Radiated Power (ERP) 22 9.2 Equivalent Isotropic Radiated Power (EIRP) 23 9.3 Conducted Output Power 24 9.4 Occupied Bandwidth / 26dB Emission Bandwidth 25 9.5 Radiated Spurious & Harmonic Emission (GSM850) 26 9.6 Radiated Spurious & Harmonic Emission (PCS1900) 28 9.7 Frequency Stability / Temperature Variation (GSM850) 30 9.8 Frequency Stability / Temperature Variation (PCS1900) 32 9.9 AC Power LINE Conducted Emission 34 Test Report No.: NK2GR089 Bellwave Co.,Ltd. FCC ID :SY6BPP-UP110C Page 3 of 74 10. Emission Designator 42 11. Test Plots (GSM850) 43 12. Test Plots (PCS1900) 49 Appendix A: Labelling Requirement 55 Appendix B: Photographs of Test Set-up 56 Appendix C: EUT Photographs 59 Appendix D: Schematic Diagram 69 Appendix E: Block Diagram 70 Appendix F: USER’S Manual 71 Appendix G: Operational Description 72 Appendix H: Turn up Procedure 73 Test Report No.: NK2GR089 Bellwave Co.,Ltd. FCC ID :SY6BPP-UP110C Page 4 of 74 1. Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission under FCC Part 15 & Part 22 & 24. Responsible Party: Contact Person: Manufacturer: Bellwave Co.,Ltd. Mr. Ju-Won Seol Tel : +82 2 829-7415 Bellwave Co.,Ltd. 6th FL. Kamco Yangjae Tower 949-3, Dogok-Dong, Kangnam-Gu Seoul, Korea, (Post code : 135-270) z FCC ID: SY6BPP-UP110C z Model: BPP-UP110C z Brand Name: Bellwave z EUT Type: Dual-Band GSM Mobile Phone z Electric Rating: DC3.7V, 650mA z Equipment Class: z Classification: z Applied Standard: z Test Procedure(s): z Dates of Test: z Place of Tests: z Test Report No.: Public Mobile Services Licensed Portable Transmitter Held to Ear (PCE) FCC 47 CFR Part 15 & 2 FCC 47 CFR Part 22H &24E ANSI C63.4 (2003), TIA/EIA603 April 22, 2006 to May 09, 2006 Nemko Korea Co., Ltd. NK2GR089 Test Report No.: NK2GR089 Bellwave Co.,Ltd. FCC ID :SY6BPP-UP110C Page 5 of 74 2. Introduction (Site Description) The measurement procedure described in American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ANSI C63.4-2003) was used in determining radiated and conducted emissions emanating from Bellwave Co.,Ltd. FCC ID : SY6BPP-UP110C These measurement tests were conducted at Nemko Korea Co., Ltd. The site address is 300-2, Osan-Ri, Mohyun-Myun, Yongin-City, GyungGi-Do, KOREA The area of Nemko Korea Corporation Ltd. Test Site is located in a mountain area at 80 kilometers (48 miles) southeast and Incheon International Airport (Incheon Airport), 30 kilometers (18miles) south-southeast from central Seoul. It is located in the valley surrounded by mountains in all directions where ambient radio signal conditions are quiet and a favorable area to measure the radio frequency interference on open field test site for the computing and ISM devices manufactures. The detailed description of the measurement facility was found to be in compliance with the requirements of §2.948 according to ANSI C63.4 2003. Fig. 1. The map above shows the Seoul in Korea vicinity area. The map also shows Nemko Korea Corporation Ltd. and Incheon Airport. Nemko Korea Co., Ltd. 300-2, Osan-Ri, Mohyun-Myun, Yongin-City GyungGi-Do,KOREA 449-852 Tel)+82-31-322-2333 Fax)+82-31-322-2332 Test Report No.: NK2GR089 Bellwave Co.,Ltd. FCC ID :SY6BPP-UP110C Page 6 of 74 3. Test Conditions & EUT Information Operating During Test The EUT was tested at the lowest channel, middle channel and the highest channel with the maximum RF Power and all data recorded in the report. Environmental Conditions Temperature 20°C ~ 26°C Relative Humidity 35% ~ 55% Description of EUT GSM850 Tx : 824.2MHz ~ 848.8MHz Rx : 86…

Text truncated - open the document above for the full version.

Test Report No.: NK2GR089 Bellwave Co.,Ltd. FCC ID :SY6BPP-UP110C Page 56 of 74 Appendix B – Photographs of Test Set-up The Conducted Test Picture and Radiated Test Picture and show the worst-case configuration and cable placement. z Conducted Test Picture (Front) z Conducted Test Picture (Rear) Test Report No.: NK2GR089 Bellwave Co.,Ltd. FCC ID :SY6BPP-UP110C Page 57 of 74 z Radiated Test Picture (EUT Antenna H Pol.) z Radiated Test Picture (EUT Antenna E1 Pol.) Test Report No.: NK2GR089 Bellwave Co.,Ltd. FCC ID :SY6BPP-UP110C Page 58 of 74 z Radiated Test Picture (EUT Antenna E2 Pol.) z Temperature Test Picture
