SY6BPP-NEO200DUAL BAND GSM MOBILE PHONE

GPRS Phone USER’S MANUAL MODEL : BPP-NEO200 Please read this manual carefully before operating your handset. Retain it for future reference Draft Version (10/21/2005) FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. Body-worn Operation This device was tested for typical body-worn operations using the optional belt-clip/holster placed 0.7 inches (1.8cm) from the body. To comply with FCC RF exposure requirements, a minimum separation distance of 0.7 inches (1.8cm) must be maintained between the user’s body and the phone, including the antenna, whether extended or retracted. The use of third-party belt-clips/ holsters with no metallic components that provide the minimum separation distance of 0.7 inches (1.8cm) can be used to satisfy FCC RF exposure requirements. The use of non-tested accessories or other body-worn operations may not comply with FCC RF exposure requirements and should be avoided. Contact your local dealer for optional accessory items. Vehicle Mounted External Antenna (optional, if available.) A minimum separation distance of 7.9 inches (20cm) must be maintained between a person and the vehicle mounted external antenna to satisfy FCC RF exposure requirements. Table of Contents Safety precautions ...................................... Unpacking................................................... Your Phone ............................................. Part of Your Phone .................................... Display ..................................................... Backlight .................................................. Call Indicator LED ..................................... Getting Started ........................................ Installing a SIM Card .................................. Charging a Battery .................................... Switching the Phone On/Off ........................ Your Phone’s Mode ..................................... Call Functions .......................................... Making a Call ............................................. Making International Calls ........................... Making a Call from the Phonebook ............... Redialing the Last Number .......................... Adjusting the Volume................................... Answering a Call ........................................ Viewing Missed Calls ................................... Quick-switching to Vibration Mode ................ In-Call Options .......................................... Net Service .............................................. Call Divert ................................................. Call Barring ............................................... Call Waiting ............................................... Send My Caller ID ...................................... Network Selection ...................................... Phonebook .............................................. Storing a Phone Number with a Name .......... Speed-Dialing from Phonebook .................... Using Phonebook Options ........................... Recent Call .............................................. Outgoing Call ............................................. Incoming Call ............................................ Missed Call ................................................ Call Timer .................................................. Messages ................................................. Write Messages .......................................... Out Message .............................................. In Message ................................................ Status Report ............................................ Call Voicemail ............................................ Call Broadcast ........................................... Memory Status .......................................... Setting ..................................................... Entering Text .......................................... Changing Text Input Mode ........................... Ezi Pinyin Mode .......................................... Ezi Stroke Mode ......................................... Ezi English Mode ........................................ Letter Mode ............................................... Number Mode ............................................ Symbol Mode ............................................. Settings ................................................... PIN .......................................................... Private Password ........................................ Using the Menus ...................................... Accessing a Menu Functions by Scrolling ....... List of Menu Functions ................................ Reference Information .......................... Access Codes ........................................... Using the Batteries ................................... Safety Information ................................... Care and Maintenance ............................... Glossary ................................................ Safety Precautions Read these simple guidelines. Failure to comply with them may be dangerous or illegal. For more detailed safety information, see “Safety Information” Road safety comes first Do…

Text truncated - open the document above for the full version.

6F. YangJae Kamco Tower 949-3, DoGok-Dong, KangNam-Ku Seoul Korea 135-270 Tel : +82.2.571.0887 Fax : +82.2.571.0885 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: SY6BPP-NEO200 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematic Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Ju-Won, Seol / Engineer October 18, 2005

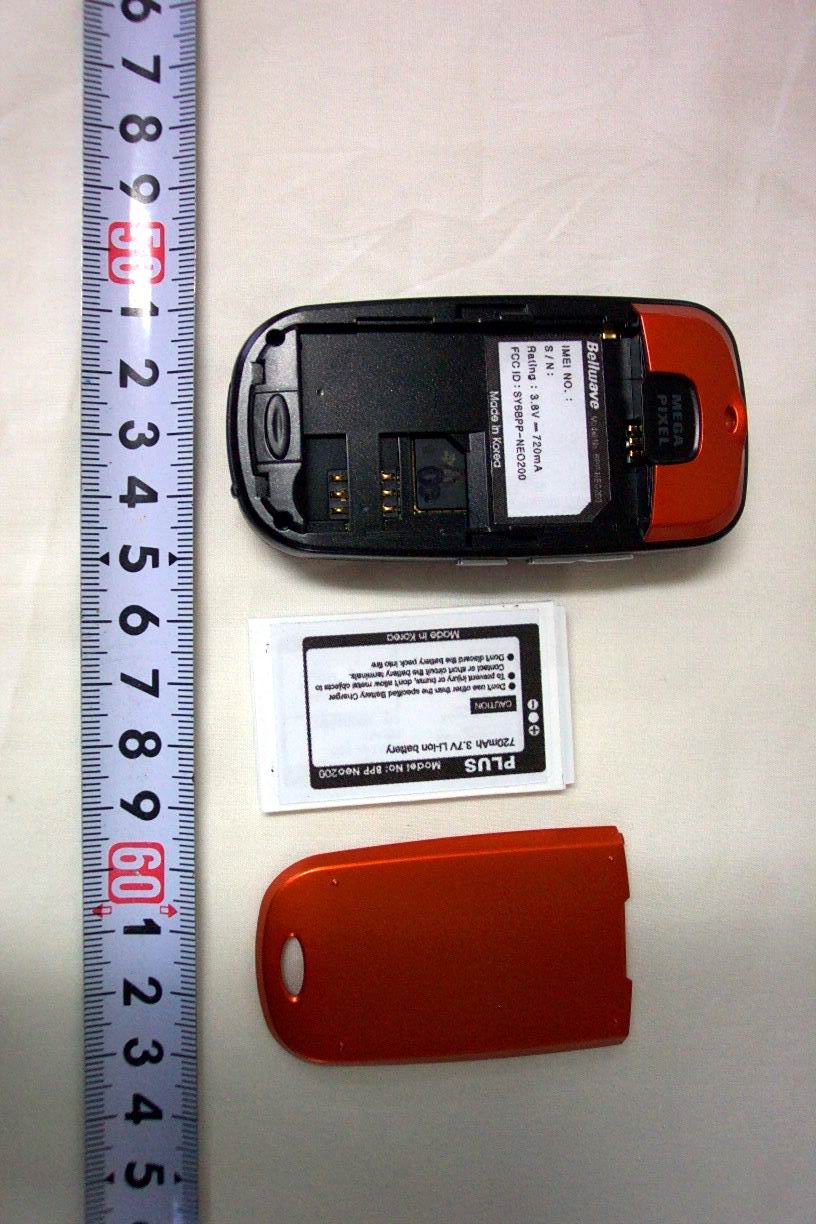

Test Report No.: NK2FR206 Bellwave Co.,Ltd. FCC ID :SY6BPP-NEO200 APPENDIX C – EUT PHOTOGRAPHS ● Front View of EUT Test Report No.: NK2FR206 Bellwave Co.,Ltd. FCC ID :SY6BPP-NEO200 ● Rear View of EUT Test Report No.: NK2FR206 Bellwave Co.,Ltd. FCC ID :SY6BPP-NEO200 ● Right side View of EUT Test Report No.: NK2FR206 Bellwave Co.,Ltd. FCC ID :SY6BPP-NEO200 ● Left side View of EUT Test Report No.: NK2FR206 Bellwave Co.,Ltd. FCC ID :SY6BPP-NEO200 ● Top View of EUT Test Report No.: NK2FR206 Bellwave Co.,Ltd. FCC ID :SY6BPP-NEO200 ● Bottom View of EUT Test Report No.: NK2FR206 Bellwave Co.,Ltd. FCC ID :SY6BPP-NEO200 ● Inside View of EUT Test Report No.: NK2FR206 Bellwave Co.,Ltd. FCC ID :SY6BPP-NEO200 ● Inside View of EUT Test Report No.: NK2FR206 Bellwave Co.,Ltd. FCC ID :SY6BPP-NEO200 ● Adaptor View of EUT

Test Report No.: NK2FR206 Bellwave Co.,Ltd. FCC ID :SY6BPP-NEO200 APPENDIX A - Labelling Requirement The sample label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase.

Test Report No.: NK2FR206 Bellwave Co.,Ltd. FCC ID :SY6BPP-NEO200 APPENDIX C – EUT PHOTOGRAPHS ● Front View of Main Board Test Report No.: NK2FR206 Bellwave Co.,Ltd. FCC ID :SY6BPP-NEO200 ● Rear View of Main Board Test Report No.: NK2FR206 Bellwave Co.,Ltd. FCC ID :SY6BPP-NEO200 ● Rear View of Main Board Test Report No.: NK2FR206 Bellwave Co.,Ltd. FCC ID :SY6BPP-NEO200 ● Front View of LCD Test Report No.: NK2FR206 Bellwave Co.,Ltd. FCC ID :SY6BPP-NEO200 ● Front View of LCD

Test Report No.: NK2FR206 Bellwave Co.,Ltd. FCC ID :SY6BPP-NEO200 APPENDIX G – OPERATIONAL DESCRIPTION Bellwave. Inc 1/27 NEO200_850T Circuit Description Bellwave. Inc 2/27 REVISED HISTORY DATE ISSUE CONTENTS OF CHANGES S/W VERSION September / 2005 ISSUE 1.0 Initial Release Bellwave. Inc 3/27 * The information in this manual is subject to change without notice and should not be construed as a commitment by BELLWAVE Inc. Furthermore, BELLWAVE Inc. reserves the right, without notice, to make changes to equipment design as advances in engineering and manufacturing methods warrant. * This manual provides the information necessary to install, program, operate and maintain the NEO200_850T. Bellwave. Inc 4/27 SECTION 1. PERFORMANCE 1.1 H/W Feature Item Feature Comment Standard Battery Li-ion, 720mAh Size: 4.45(T)x31.5(W)x52.3(L) mm Weight: 16g AVG TCVR Current GSM850: 230mA, DCS1800/PCS1900: 180mA Standby Current < 4.0mA Talk time < 4 hours (GSM TX Level 7) Standby time 200 hours (Paging Period:2, RSSI: -85dBm) Charging time 2.5 hours RX Sensitivity GSM850 : -108dBm, DCS/PCS : -106dBm TX output power GSM850: 32.2dBm (Level 5) DCS1800/PCS1900: 29.3dBm (Level 0) GPRS compatibility Class 10 SIM card type 1.8V/3V Small Display 128 × 160 dots main LCD, 96 × 96 sub LCD Status Indicator 2 color LED ANT Internal Antenna EAR Phone Jack 8 pole earphone jack PC Synchronization Yes Speech coding EFR/FR Data and Fax Yes Vibrator Yes Buzzer Yes Voice Recoding Yes C-Mike Yes Receiver Yes Travel Adapter Yes Options No Bellwave. Inc 5/27 1.2 Technical Specification Item Description Specification 1 Frequency Band GSM 850 TX : 824– 849 MHz GSM 850 RX : 869 – 894 MHz DCS 1800 TX : 1710 – 1785 MHz DCS 1800 RX : 1805 – 1880 MHz PCS 1900 TX : 1850 – 1910 MHz PCS 1900 RX : 1930 – 1990 MHz 2 Phase Error RMS < 5 degrees Peak < 20 degrees 3 Frequency Error < 0.1ppm GSM850 Level Power Toler. Level Power Toler. 5 33 dBm ±2dB 13 17 dBm ±3dB 6 31 dBm ±3dB 14 15 dBm ±3dB 7 29 dBm ±3dB 15 13 dBm ±3dB 8 27 dBm ±3dB 16 11 dBm ±5dB 9 25 dBm ±3dB 17 9 dBm ±5dB 10 23 dBm ±3dB 18 7 dBm ±5dB 11 21 dBm ±3dB 19 5 dBm ±5dB 12 19 dBm ±3dB DCS1800/1900 Level Power Toler. Level Power Toler. 0 30 dBm ±2dB 8 14 dBm ±3dB 1 28 dBm ±3dB 9 12 dBm ±4dB 2 26 dBm ±3dB 10 10 dBm ±4dB 3 24 dBm ±3dB 11 8 dBm ±4dB 4 22 dBm ±3dB 12 6 dBm ±4dB 5 20 dBm ±3dB 13 4 dBm ±4dB 6 18 dBm ±3dB 14 2 dBm ±5dB 4 Power Level 7 16 dBm ±3dB 15 0 dBm ±5dB Bellwave. Inc 6/27 GSM850 Offset from Carrier (kHz). Max. dBc 100 +0.5 200 -30 250 -33 400 -60 600 ~ 1,200 -60 1,200 ~ 1,800 -60 1,800 ~ 3,000 -63 3,000 ~ 6,000 -65 6,000 -71 DCS1800/PCS1900 Offset from Carrier (kHz). Max. dBc 100 +0.5 200 -30 250 -33 400 -60 600 ~ 1,200 -60 1,200 ~ 1,800 -60 1,800 ~ 3,000 -65 3,000 ~ 6,000 -65 5 Output RF Spectrum (due to modulation) 6,000 -73 GSM850 Offset from Carrier (kHz) Max. (dBm) 400 -19 600 -21 1,200 -21 1,800 -24 DCS Offset from Carrier (kHz) Max. (dBm) 400 -22 600 -24 1,200 -24 6 Output RF Spectrum (due to switching transient) 1,800 -27 7 Spurious Emissions Conduction, Emission Status Conduction, Emission Status Bellwave. Inc 7/27 8 Bit Error Ratio GSM850 BER (Class II) < 2.439% @-102dBm DCS1800/PCS1900 BER (Class II) < 2.439% @-100dBm 9 Rx Level Report accuracy ± 3 dB 10 SLR 8 ± 3 dB Frequency (Hz) Max.(dB) Min.(dB) 100 -12 / 200 0 / 300 0 -12 1,000 0 -6 2,000 4 -6 3,000 4 -6 3,400 4 -9 11 Sending Response 4,000 0 / 12 RLR 2 ± 3 dB Frequency (Hz) Max.(dB) Min.(dB) 100 -12 / 200 0 / 300 2 -7 500 * -5 1,000 0 -5 3,000 2 -5 3,400 2 -10 4,000 2 13 Receiving Response * Mean that Adopt a straight line in between 300 Hz and 1,000 Hz to be Max. level in the range. 14 STMR 13 ± 5 dB 15 Stability Margin > 6 dB dB to ARL (dB) Level Ratio (dB) -35 17.5 -30 22.5 -20 30.7 -10 33.3 0 33.7 7 31.7 16 Distortion 10 25.5 17 Side tone Distortion Three stage distortion < 10% 18 <Change> System frequency (26 MHz) tolerance ≤ 2.5 ppm 19 <Change>32.768KHz tolerance ≤ 30ppm Bellwave. Inc 8/27 20 Power consumption Full power < 250mA (GSM850) ; < 200mA (DCS/PCS) Standby - Normal Mode ≤ 4.0mA(Mix. power) - Using Test mode on DSP Sleep function ≤ 6mA 21 Talk Time GSM850/Level 7 (Battery Capacity 720mA):1800 Min GSM850/Level 12(Battery Capacity720:250 Min 22 Standby Time Under conditions, at least 200 hours: 1. Brand new and full 740mAh battery 2. Full charge, no receive/send and keep GSM in idle mode. 3. Broadcast set off. 4. Signal strength display set at 3 level above. 5. Backlight of phone set off. 23 Ringer Volume At least 80 dB under below conditions: 1. Ringer set as ringer. 2. Test distance set as 50 cm 24 Charge Voltage Fast Charge : < 500 mA Slow Charge: < 60 mA Antenna Bar Number Rx level 0 Rx≤-103dBm 1 Rx≤-95dBm 2 Rx≤-91dBm 3 Rx≤-86dBm 4 Rx≤-81dBm 25 Antenna Display 5 Rx＞-81dBm Battery Bar Number Voltage 0 3.4∼ 3.54 V 1 3.55 ∼ 3.68 V 2 3.69 ∼ 3.81 V 3 3.82 ∼4.2V 26 Battery Indicator 3.35~3.60 V (Call) 27 Low Voltage Warning 3.35~3.50V (Standby) 28 Forced shut down Voltage 3.35 ± 0.03 V 29 Battery Type 1 Li-ion Battery Standard Voltage = 3.7 V Battery full charge voltage = 4.2 V Capacity: 720mAh 30 Travel Charger Switching-mode charger Input: 100 ∼ 240 V, 50/60Hz Out put: 5.2V, 600mA Bellwave. Inc 9/27 SECTION 2. TECHNICAL BRIEF 2.1 General Description RF part consists of a transmit part, a receive part, a voltage supply part. The RF main chipset SMARTi SD2 is a single-chip multi-band GSM850 and DCS/PCS (GPRS) wireless communication (voice and data applications). This device integrated a receive section based on a zero-IF receiver architecture and a transmit section based on an offset phase-locked loop (OPLL) with a fully integrated transmit VCO. 2.2 Receiver Part A. RF Front End Demodulator RF front end is consists of FEM(U100), Tri band LNAs integrated in transceiver. The Received RF signals (GSM 925MHz ~ 960MHz, DCS 1805MHz ~ 1880MHz, PCS 1930MHz ~1990MHz ) are fed into the antenna or FEM. An antenna matching circuit is between the antenna and the FEM. The FEM control the Rx and Tx paths. …

Text truncated - open the document above for the full version.

MODELNAME MODEL CODE NO. COLOR VERSION PURCHASE AS M O 1 BE080014601 U500 Digital BASEBAND (Calypso C035) D751992GHHR TI 1 2 BE080024001 U501 Analog BASEBAND (IOTA-A07) TWL3025BGGMR TI 1 3 BE080021501 U402 MCP 192(FLASH)×64(pSDRAM) S99PL193JC0BAWUB0 SPANSION 1 4 BE080023301 U405 NAND FLASH 512 K9K1208D0C-D/JIB0 삼성전기(주) 1 5 U715 BUFFER 3-STATE OUTPUT KIC7SZ125FU KEC 1 6 BE080022601 U729 MELODY IC, 64Poly (MA-5si) YMU787 YAMAHA 1 7 BE080022801 U601 MULTIMEDIA CHIP AIT813G AIT 1 8 BE080021801 U201 RF MAIN CHIP (SMARTISD2) PMB6271 INFINEON 1 9 BE080021001 U101 POWER AMP MODULE SKY77325 SKY WORKS 1 10 U100 ANT SWITCH LMSP65HA-294 MURATA 1 11 BE120002901 ANT101 Coaxial Connectors with switch CRS5001-1702 SMK 1 12 BE040005201 U301 U302 U303 U304 U305 U306 U307 CHIP EMI FILTER LC COMBINED ARRAY TYPE LFA24-2A1A144M MITSUBISHI 7 13 BE080022901 U203 LDO 1.5V, 2.6V RF XC6401FFC3MRN TOREX 1 14 BE080022401 U404 DUAL LDO (1.8V / 2.85V) XC6401FF59ER TOREX 1 15 BE080022501 U403 DUAL LDO (3.0V / 3.3V) XC6401FF26DR TOREX 1 16 BE080006701 U721 U722 U723 ANALOG SWITCH DG9411DL-T1 VISHAY 3 U713 U714 ANALOG SWITCH SN74LVC1G3157 TI 2 17 BE080008101 U728 COMPARATOR DUAL TC75W56FK(TE85L) TOSHIBA 1 18 BE080015301 U504 U505 DECODER SN74LVC1G19DCKR TI 2 19 BE050002701 U102 TR DUAL(PNP+PNP) TYPE, Built in Resistor EMB9-T2R ROHM 1 20 BE050002301 U204 TR DUAL(NPN+PNP) TYPE, Built in Resistor EMD9-T2R ROHM 1 21 BE070000701 Q800 Camera ON/OFF FET Si1305DL-T2 VISHAY 1 22 BE060001601 U401 CHARGER IC Si7703EDN VISHAY 1 23 BE080012901 U308 VIBRATOR IC MDC3105LT1 ON SEMI. 1 24 BE080019601 RD800 HALL SWITCH A3212EEHLT ALLEGRO 1 25 BE100003001 X201 X-TAL 26MHz 10ppm (3.2*2.5*0.6) NX3225DA N D K 1 26 BE100003101 X501 X-TAL 32.768KHz 30ppm (3.2*1.5*0.9) CC7V-T1 M.C.S 1 27 BE120010601 CN304 B2B CONNECTOR, LCD_64P (HEADER) AXK864145Y NAIS 1 28 BE120006001 CN301 SYSTEM I/O CONNECTOR, 24Pin 4124R-21A00 Shinhwa M.S. 1 29 BE120009901 CN401 BATTERY CONNECTOR BT03-F200C-03 TEMEX 1 30 BE120002001 CN303 SIM CONNECTOR 1.5t 1318-723-6 AMP 1 31 BE030006301 F401 F402 FERRITE BEADS, (1608) BLM11P300SPTBLM18PG300SN1D MURATA 2 BOM SHEET 2005 년 10 월 17 일 Neo200_850T Rev 1.0 Reference Depart./Name Date Remarks ITEM NAME Q’ty VENDOR P/NO. VENDOR H/W Group LEVEL SPE C o m No ITEM CODE NO. REF.NO. NEO200_Rev5.0 1/4 Bellwave™ PURCHASE AS M O Remarks ITEM NAME Q’ty VENDOR P/NO. VENDOR LEVEL SPE C o m No ITEM CODE NO. REF.NO. 32 BE030007801 F801 F802 F803 F804 FERRITE BEADS, (1005) BLM15BD102PN1BLM15BD102SN1D MURATA 4 33 BE030007401 F500 F501 U716 U717 F705 F706 FERRITE BEADS, (1005) BLM15BB121SN1D MURATA 6 34 BD100001301 V300 V301 VARISTOR 1005 SIZE(50pF) AVLC14S02050 AMOTECH 2 35 BD100000401 V302 V303 V801 V802 V803 V804 V805 V806 V807V808 V809 V810 V811 V812 V813 V814 V815 V816V817 VARISTOR 1005 SIZE (50pF) AVLC5S02050 AMOTECH 19 36 BE060002801 D101 TVS Diode RSB6.8S PROTEK 1 37 BE090001401 D801 D802 D803 D804 D805 D806 D807 D808 D809D810 D811 D812 D813 KEY LED (DEEP BLUE) (0603) BL-HB336G-TRB BRIGHT LED 13 38 BE020017701 C518 C519 C521 TAN_CAP 4.7uF/10V (P_2012) TMCRP1A475MTRY Hitachi AIC 3 39 BE020014601 C222 C223 C411 C413 C416 C419 C517 C520 TAN_CAP 10uF/6.3V (P_2012) TMCRP0J106MTRY Hitachi AIC 8 40 C410 C420 U726 TAN_CAP 10uF/10V (P_2012) TMCP1A106MTRF Hitachi AIC 3 41 C401 TAN_CAP 33uF/10V (A_3216) F951A336MAA NICHICON 1 42 BE020011602 U724 U725 TAN_CAP 33uF/6.3V (P_2012) F950J336MPAAQ2 NICHICON 2 43 BE020011901 U727 TAN_CAP 47uF/6.3V (A_3216) TMCMA0J476MTRF Hitachi AIC 1 44 BE020022501 C101 TAN_CAP 100uF/6.3V (A_3216) F950J107MAAAQ2 NICHICON 1 45 BE030009301 L203 L204 CHIP INDUCTOR (1005) 5.6nH 0402CS-5N6XJBW COILCRAFT 2 C108 CHIP INDUCTOR (1005) 4.7nH HK1005 4.7NJ TAIYO YUDEN 1 46 BE030001802 L101 CHIP INDUCTOR (1005) 39nH HK1005 39NJ TAIYO YUDEN 1 47 BE030010301 L201 CHIP INDUCTOR (1005) 18nH 0402CS-18NXJBW COILCRAFT 1 48 BE020001301 C104 CAP CERAMIC CHIP 4.7pF GRM36C0G 4R7C 50PNGRP1555C1H4R7CZ01E MURATA 1 49 C213 C214 CAP CERAMIC CHIP 1.5pF GRM1555C1H1R5CZ01EGRP1555C1H1R5CZ01E MURATA 2 50 C226 C227 CAP CERAMIC CHIP 2.7pF GRM1555C1H2R7CZ01EGRP1555C1H2R7CZ01E MURATA 2 51 BE020001601 C208 C209 CAP CERAMIC CHIP 6.0pF GRM36C0G 6R0C 50PNGRP1555C1H6R0CZ01E MURATA 2 52 BE020001801 C112 CAP CERAMIC CHIP 6.8pF GRM36C0G 6R8C 50PNGRP1555C1H6R8CZ01E MURATA 1 53 BE020002201 C110 C824 C826 CAP CERAMIC CHIP 9.0pF GRM36C0G 9R0C 50PNGRP1555C1H9R0CZ01E MURATA 3 54 BE020002301 C109 CAP CERAMIC CHIP 10pF GRM36C0G 100J 50PNGRP1555C1H100JZ01E MURATA 1 55 BE020002701 C115 C506 CAP CERAMIC CHIP 12pF GRM36C0G 120J 50PNGRP1555C1H120JZ01E MURATA 2 56 BE020003101 C823 C825 C827 C802 CAP CERAMIC CHIP 15pF GRM36C0G 150J 50PNGRP1555C1H150JZ01E MURATA 4 57 BE020003701 C502 C503 C716 C717 CAP CERAMIC CHIP 22pF GRM1555C1H220JZ01EGRP1555C1H220JZ01E MURATA 4 58 BE020004201 C111 CAP CERAMIC CHIP 27pF GRM36C0G 270J 50PNGRP1555C1H270JZ01E MURATA 1 59 BE020004801 C106 CAP CERAMIC CHIP 33pF GRM36C0G 330J 50PNGRP1555C1H330JZ01E MURATA 1 NEO200_Rev5.0 2/4 Bellwave™ PURCHASE AS M O Remarks ITEM NAME Q’ty VENDOR P/NO. VENDOR LEVEL SPE C o m No ITEM CODE NO. REF.NO. 60 BE020005701 C114 C217 CAP CERAMIC CHIP 47pF GRM36C0G 470J 50PNGRP1555C1H470JZ01E MURATA 2 61 BE020002401 C302 C806 C807 CAP CERAMIC CHIP 100pF GRM36C0G 101J 50PNGRP1555C1H101JD01E MURATA 3 62 BE020003201 C301 CAP CERAMIC CHIP 150pF GRM36C0G 151J 50PNGRP1555C1H151JD01E MURATA 1 63 BE020003501 C116 C810 C817 CAP CERAMIC CHIP 180pF GRM36C0G 181J 50PNGRP1556C1E181JD01E MURATA 3 64 BE020003801 C224 C225 CAP CERAMIC CHIP 220pF GRM36X7R 221K 50PNGRP155R71H221KD01E MURATA 2 65 BE020007401 C504 CAP CERAMIC CHIP 1 nF GRM36X7R 102K 50PNGRP155R71H102KA01E MURATA 1 C113 CHIP INDUCTOR (1005) 2.7nH HK1005 2.7NJ TAIYO YUDEN 1 66 BE020000801 C812 CAP CERAMIC CHIP 2.2nF GRM36X7R 222K 25PNGRP155R71E222KD01E MURATA 1 67 BE020012401 C203 C206 CAP. CERAMIC, 5600pF(5.6N) GRM36X7R 562K 25PNGRP155R71E562KD01E MURATA 2 68 BE020007501 C103 C105 C107 C215 C220 C221 CAP CERAMIC CHIP 10nF GRM36X7R 103K 16PNGRP155R71C103KA01E MURATA 6 69 BE020003301 C3…

Text truncated - open the document above for the full version.

Bellwave Co.,Ltd Page 1 of 79 FCC ID : SY6BPP-NEO200 SAR Report Reference No.: NK2FR207 SAR Evaluation Report FCC ID : SY6BPP-NEO200 Project Reference No. : NK2FR207 Product Type : Dual-Mode GPRS Mobile Phone Brand Name : Bellwave Model : BPP-NEO200 Tested According to : IEEE Standard C95.1 / OET Bulletin 65 Supplement C Tested Period : October. 24. 2005 to October. 28. 2005 Tested by Seob Lee date : October. 31. 2005 Verified by Seonteag.Jin date : October. 31. 2005 This test results are only related to the item tested. This test report is only limited to the client company and the product. This report must not be used by the client to claim product endorsement by any agency of the U.S. Government. Lab Address : Nemko Korea Co., Ltd 300-2, Osan-Ri, Mohyun-Myun, Yongin-City, Gyunggi-Do, Korea Phone : 82-31-322-2333 Fax : 82-31-322-2332 Bellwave Co.,Ltd Page 2 of 79 FCC ID : SY6BPP-NEO200 SAR Report Reference No.: NK2FR207 Contents of This Report 1. General Information 4 1.1 Applicant 4 1.2 Manufacturer 4 1.3 Description of Device 4 2. General Test Condition 5 2.1 Location 5 2.2 Operating Environment 5 2.3 Test Frequency 5 2.4 Support Equipment 5 3. Description of Test Equipment 6 4. SAR Measurement Procedure 10 5. Definition of Reference Points 12 5.1 Ear Reference Point 12 5.2 Handset Reference Points 13 6. Test Configuration Positions 14 6.2 Cheek/Touch Position 14 6.2 Ear/Tilt 15°Position 15 6.3 Body-worn and Other Configurations 16 7. Measurement Uncertainty 17 8. System Verification 18 8.1 Tissue Verification 18 8.2 Test System Validation 19 8.3 Measurement Result of Test Data (GSM 850MHz Head Validation) 20 8.4 Measurement Result of Test Data (GSM 850MHz Muscle Validation) 21 8.5 Measurement Result of Test Data (PCS 1900MHz Head Validation) 22 8.6 Measurement Result of Test Data (PCS 1900MHz Muscle Validation) 23 9. SAR Measurement Results 24 9.1 SAR Measurement Result(GSM 850MHz Right Head Touch Position) 26 9.2 SAR Measurement Result (GSM 850MHz Right Head Tilt Position) 30 9.3 SAR Measurement Result (GSM 850MHz Left Head Touch Position) 32 9.4 SAR Measurement Result (GSM 850MHz Left Head Tilt Position) 36 9.5 SAR Measurement Result (GSM 850MHz Muscle-15mm Distance) 38 9.6 SAR Measurement Result (GSM 850MHz Muscle-15mm Distance-with Headset) 42 9.7 SAR Measurement Result (PCS 1900MHz Right Head Touch Position) 44 9.8 SAR Measurement Result (PCS 1900MHz Right Head Tilt Position) 48 9.9 SAR Measurement Result (PCS 1900MHz Left Head Touch Position) 50 9.10 SAR Measurement Result (PCS 1900MHz Left Head Tilt Position) 54 9.11 SAR Measurement Result (PCS 1900MHz Muscle-15mm Distance) 56 9.12 SAR Measurement Result (PCS 1900MHz Muscle-15mm Distance-with Headset) 60 10. SAR Test Equipment 62 11. References 63 Bellwave Co.,Ltd Page 3 of 79 FCC ID : SY6BPP-NEO200 SAR Report Reference No.: NK2FR207 Appendix A 64 Appendix B 66 Appendix C 75 Appendix D 76 Bellwave Co.,Ltd Page 4 of 79 FCC ID : SY6BPP-NEO200 SAR Report Reference No.: NK2FR207 1.General Information 1.1 Applicant Company Name: Bellwave Co., Ltd Company Address: 6 th FL. Kamco Yangjae Tower 949-3, Dogok-Dong, Gangnam-Gu, Seoul 135-270, Korea Phone/Fax: Phone: +82-2-3460-9785 / +82-2-3460-9736 Contact Name: Ju-Won, Seol 1.2 Manufacturer Company Name: Shin-Oh Electronics Co., Ltd Company Address: 729-5 Bonoh-dong, Sangrok-Gu, Ansan-shi, Gyunggi-Do, 426-180 Korea (730-2 : 2’nd FA) Phone/Fax: Phone: +86-2-3460-9785 / +82-2-3460-9736 Contact Name: Ju-Won, Seol 1.3 Description of Device Category: Dual-Mode GPRS Mobile Phone Model Name: BPP-NEO200 Brand Name: Bellwave Serial Number: 0000001 Frequency of Operation Tx : 824MHz ~ 849MHz, Rx : 869MHz ~ 894MHz Tx : 1850MHz ~ 1910MHz, Rx : 1930MHz ~ 1990MHz Power Output (Conducted) GSM850: 33.0dBm (Level 5) PCS1900: 30dBm (Level 0) Operating Condition -30to +60°C Power Supply Li-ion Battery: 3.7V DC, 720mAh Antenna Type Internal Dimensions 83.4 X 41.6 X 22.3 mm Weight 89g(with Battery) Remarks: - Bellwave Co.,Ltd Page 5 of 79 FCC ID : SY6BPP-NEO200 SAR Report Reference No.: NK2FR207 2. General Test Condition 2.1 Location Nemko Korea 300-2, Osan-Ri, Mohyun-Myun, Yongin-City, Gyunggi-Do Phone : 82-31-322-2333 , Fax : 82-31-322-2332 2.2 Operating Environment Parameters Recording during test Accepted deviation Ambient temperature 21 ~ 23°C 15 ~ 30°C Relative humidity 30 ~ 60% 20 ~ 75% 2.3 Test Frequency GSM850 GSM1900 Test Channel Test Frequency (MHz)Test Channel Test Frequency (MHz) 128 824.2 512 1850.2 190 836.5 661 1880.0 251 848.8 810 1909.8 2.4 Support Equipment Equipment Manufacturer Model Name Serial Number - - - - Bellwave Co.,Ltd Page 6 of 79 FCC ID : SY6BPP-NEO200 SAR Report Reference No.: NK2FR207 3. Description of Test Equipment 3.1 SAR Measurement Setup Robotic System Measurements are performed using the DASY4 automated dosimetric assessment system. Which is made by Schmid & Partner Engineering AG (SPEAG) in Zurich, Switzerland and consists of high precision robotics system (Stäubli), robot controller, measurement server, H/P computer, nearfield probe, probe alignment sensor, and the SAM twin phantom containing the brain equivalent material. The robot is a six-axis industrial robot performing precise movements to position the probe to the location (points) of maximum electromagnetic field (EMF) (see Fig. 3.1). Figure 3.1 SAR Measurement System Setup System Hardware A cell controller system contains the power supply, robot controller, teach pendant (Joystick), and a remote control is used to drive the robot motors. The PC consists of the H/P computer with Windows XP system and SAR Measurement Software DASY4, LCD monitor, mouse and keyboard. The Stäubli Robot is connected to the cell controller to allow software manipulation of the robot. A Data Acquisition Electronic (DAE) circuit that performs the signal amplification, signal multiplexing, AD-conversion, offset measurements, mechanical surface detection, collision detection, etc. Is connected to the Electro-Optical Coupler (EOC). The…

Text truncated - open the document above for the full version.

Test Report No.: NK2FR206 Bellwave Co.,Ltd. FCC ID :SY6BP-NEO200 Page 1 of 61 Nemko Korea CO., Ltd. 300-2, Osan-Ri, Mohyun-Myun, Yongin-City, Gyunggi-Do, KOREA TEL:+82 31 322 2333 FAX:+82 31 322 2332 FCC EVALUATION REPORT FOR CERTIFICATION Applicant : Bellwave Co.,Ltd. Dates of Issue : November, 03, 2005 6th FL. Kamco Yangjae Tower 949-3, Dogok-Dong, Test Report No. : NK2FR206 Kangnam-Gu Seoul, Korea, (Post code : 135-270) Test Site : Nemko Korea Co., Ltd. FCC ID Brand Name CONTACT PERSON Applied Standard: FCC 47 CFR Part 22H & Part 24E & Part 2 Test Procedure: ANSI C63.4 , TIA/EIA 603 Equipment Class: Public Mobile Services EUT Type: Dual-Band GPRS Mobile Phone The device bearing the brand name and FCC ID specified above has been shown to comply with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4-2003. I attest to the accuracy of data and all measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Tested By : S. Lee Reviewed By : H.H. Kim Engineer Manager & Chief Engineer SY6BPP-NEO200 Bellwave Bellwave Co., Ltd. 6th FL, Kamco Yangjae Tower 949-3, Dogok-Dong, Kangnam-Gu Seoul Korea (135-270) Mr. Ju-Won Seol Telephone No. : +82 2 3460-9785 Test Report No.: NK2FR206 Bellwave Co.,Ltd. FCC ID :SY6BP-NEO200 Page 2 of 61 TABLE OF CONTENTS 1. SCOPE 2. INTRODUCTION (Site Description) 3. TEST CONDITIONS & EUT INFORMATION 4. MEASURING INSTRUMENT CALIBRATION 5. SUMMARY OF TEST RESULTS 6. TEST EQUIPMENT 7. DESCRIPTION OF TEST 7.1 Conducted Emissions 7.2 Radiated Emissions 7.3 Effective Radiated Power/Equivalent Isotropic Radiated Power 7.4 Radiated Spurious & Harmonic Emission 7.5 Occupied Bandwidth / 26dB Emission Bandwidth 7.6 Spurious and Harmonic emissions at Antenna Terminal 7.7 Frequency Stability / Temperature Variation 8. TEST DATA 8.1 Effective Radiated Power (ERP) 8.2 Equivalent Isotropic Radiated Power (EIRP) 8.3 Conducted Output Power 8.4 Occupied Bandwidth / 26dB Emission Bandwidth 8.5 Radiated Spurious & Harmonic Emission (GSM850) 8.6 Radiated Spurious & Harmonic Emission (PCS1900) 8.7 Frequency Stability / Temperature Variation (GSM850) 8.8 Frequency Stability / Temperature Variation (PCS1900) 8.9 AC Power LINE Conducted Emission 9. SAMPLE CALCULATION 10. CONCLUSION 11. TEST PLOTS (GSM850) 12. TEST PLOTS (PCS1900) APPENDIX A - Labelling Requirement APPENDIX B - Photographs of Test Set-up APPENDIX C - EUT Photographs APPENDIX D - Schematic Diagram APPENDIX E - Block Diagram APPENDIX F - USER’S Manual APPENDIX G - Operational Description APPENDIX H - Tune up Procedure 3 4 5 6 7 8 9 9 10 11 12 14 15 18 19 19 20 21 22 23 25 27 29 31 39 40 41 47 54 55 56 57 58 59 60 61 Test Report No.: NK2FR206 Bellwave Co.,Ltd. FCC ID :SY6BP-NEO200 Page 3 of 61 1. SCOPE Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission under FCC Part 22&24. Responsible Party : Contact Person : Manufacturer : Bellwave Co.,Ltd. Mr. Ju-Won Seol Tel : +82 2 3460-9785 SHIN-OH Electronics Co.,Ltd. 729-5 Bon Oh-Dong, Sangrok-Gu, Ansan-City, Kyounggi-Do, 426-180 Korea …
