SY6BPP-UP100Dual-Band GSM Mobile Phone

GSM Phone USER’S MANUAL MODEL : BPP-UP100 Please read this manual carefully before operating your handset. Retain it for future reference Draft Version (09/28/2005) FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. Body-worn Operation This device was tested for typical body-worn operations using the optional belt-clip/holster placed 0.7 inches (1.8cm) from the body. To comply with FCC RF exposure requirements, a minimum separation distance of 0.7 inches (1.8cm) must be maintained between the user’s body and the phone, including the antenna, whether extended or retracted. The use of third-party belt-clips/ holsters with no metallic components that provide the minimum separation distance of 0.7 inches (1.8cm) can be used to satisfy FCC RF exposure requirements. The use of non-tested accessories or other body-worn operations may not comply with FCC RF exposure requirements and should be avoided. Contact your local dealer for optional accessory items. Vehicle Mounted External Antenna (optional, if available.) A minimum separation distance of 7.9 inches (20cm) must be maintained between a person and the vehicle mounted external antenna to satisfy FCC RF exposure requirements. Table of Contents Safety precautions ...................................... Unpacking................................................... Your Phone ............................................. Part of Your Phone .................................... Display ..................................................... Backlight .................................................. Call Indicator LED ..................................... Getting Started ........................................ Installing a SIM Card .................................. Charging a Battery .................................... Switching the Phone On/Off ........................ Your Phone’s Mode ..................................... Call Functions .......................................... Making a Call ............................................. Making International Calls ........................... Making a Call from the Phonebook ............... Redialing the Last Number .......................... Adjusting the Volume................................... Answering a Call ........................................ Viewing Missed Calls ................................... Quick-switching to Vibration Mode ................ In-Call Options .......................................... Net Service .............................................. Call Divert ................................................. Call Barring ............................................... Call Waiting ............................................... Send My Caller ID ...................................... Network Selection ...................................... Phonebook .............................................. Storing a Phone Number with a Name .......... Speed-Dialing from Phonebook .................... Using Phonebook Options ........................... Recent Call .............................................. Outgoing Call ............................................. Incoming Call ............................................ Missed Call ................................................ Call Timer .................................................. Messages ................................................. Write Messages .......................................... Out Message .............................................. In Message ................................................ Status Report ............................................ Call Voicemail ............................................ Call Broadcast ........................................... Memory Status .......................................... Setting ..................................................... Entering Text .......................................... Changing Text Input Mode ........................... Ezi Pinyin Mode .......................................... Ezi Stroke Mode ......................................... Ezi English Mode ........................................ Letter Mode ............................................... Number Mode ............................................ Symbol Mode ............................................. Settings ................................................... PIN .......................................................... Private Password ........................................ Using the Menus ...................................... Accessing a Menu Functions by Scrolling ....... List of Menu Functions ................................ Reference Information .......................... Access Codes ........................................... Using the Batteries ................................... Safety Information ................................... Care and Maintenance ............................... Glossary ................................................ Safety Precautions Read these simple guidelines. Failure to comply with them may be dangerous or illegal. For more detailed safety information, see “Safety Information” Road safety comes first Do n…

Text truncated - open the document above for the full version.

BB Serial BUS(B S P) BB Serial BUS(B S P) Clock Gene (CK G ) Clock Gene (CK G ) MCU Serial Po rt (USP) MCU Serial Po rt (USP) Test Acc e ss Po rt (TAP) Test Acc e ss Po rt (TAP) Voice ban d Serial Port (VSP) Voice ban d Serial Port (VSP) Voltage Regula tion (VREG) Voltage Regula tion (VREG) SIM Card I/ O (SIM) SIM Card I/ O (SIM) Auxi liary Drive r s (ACD) Auxi liary Drive r s (ACD) VOL RE F PWR CT L (VRPC) VOL RE F PWR CT L (VRPC) Bac k u p (BRE G) Bac k u p (BRE G) APCAFC ADAC APCAFC ADAC Ti m i ng Serial Po rt (TSP) Ti m i ng Serial Po rt (TSP) BB CODEC (BBC) BB CODEC (BBC) Voice ban d CODEC (VBC) Voice ban d CODEC (VBC) Monitoring ADC (MA DC) Monitoring ADC (MA DC) Ba tte ry Charge r I/ O (BCI) Ba tte ry Charge r I/ O (BCI) ARM7 ARM7 RTC RTC SL I C E R SL I C E R DPLL & CL KM DPLL & CL KM INT H INT H WTD O G WTD O G DMA ( 4+) DMA ( 4+) cDSP S28C128 cDSP S28C128 ULPD ULPD Mem o ry P r ot ec t i on Unit Mem o ry P r ot ec t i on Unit i-SRAM 4Mbit i-SRAM 4Mbit Boot RO M Boot RO M Debug Unit Debug Unit MEMIF MEMIF U502/D751749GHH SPI SPI GEA GEA Die ID Die ID TIMER 1 TIMER 1 TIMER 2 TIMER 2 ARMIO ARMIO uWIR E uWIR E TPU TPU TS P TS P SIM SIM PWL PWL UART UART PWT PWT LPG LPG 12C 12C CRYPT CRYPT RIF RIF MCSI MCSI JTAG JTAG Bridge Bridge Bridge Bridge GP I O GP I O SIM CON SIM CON U50 1/ TWL 3 025 Mono Dot LCD 120x 64 Mono Dot LCD 120x 64 ①② ③ ④⑤ ⑥ ⑦⑧ ⑨ ⓧⓞ ⓜ ①② ③ ④⑤ ⑥ ⑦⑧ ⑨ ⓧⓞ ⓜ Mem o ry Mem o ry EAR/MIC JACK EAR/MIC JACK I/ O CON 24 PIN I/ O CON 24 PIN + + Ba tte ry Li-Io n 720m Ah Ba tte ry Li-Io n 720m Ah RF Block Calypso+IOTA+RITA Calypso+IOTA+RITA Vi brator EAR/SP K MIC ARM7 ARM7 SL I C E R SL I C E R cDSP S28C128 cDSP S28C128 ULPD ULPD Mem o ry P r ot ec t i on Unit Mem o ry P r ot ec t i on Unit i-SRAM 4Mbit i-SRAM 4Mbit Boot RO M Boot RO M Debug Unit Debug Unit MEM Interface MEM Interface U502/D751749GHH SPI SPI GEA GEA Die ID Die ID TIMER 1 TIMER 1 TIMER 2 TIMER 2 uWIR E uWIR E TPU TPU Ti m i ng Serial Po rt(TSP) Ti m i ng Serial Po rt(TSP) SIM SIM PWL PWL UART UART PWT PWT LPG LPG 12C 12C MCSI MCSI JTAG JTAG Bridge Bridge Bridge Bridge ◆ ◆ BB Block Diagram (Calypso, IOTA) BB Block Diagram (Calypso, IOTA) BB Serial BUS(B S P) BB Serial BUS(B S P) Clock Gene (CK G ) Clock Gene (CK G ) MCU Serial Po rt (USP) MCU Serial Po rt (USP) Test Acc e ss Po rt (TAP) Test Acc e ss Po rt (TAP) Voice ban d Serial Port (VSP) Voice ban d Serial Port (VSP) Voltage Regula tion (VREG) Voltage Regula tion (VREG) SIM Card I/ O ( SIM) SIM Card I/ O ( SIM) Auxi liary Drive r s (ACD) Auxi liary Drive r s (ACD) VOL RE F PWR CT L (VRPC) VOL RE F PWR CT L (VRPC) Bac k u p (BRE G) Bac k u p (BRE G) APCAFC ADAC APCAFC ADAC Ti m i ng Serial Po rt (TSP) Ti m i ng Serial Po rt (TSP) Voice ban d CODEC (VBC) Voice ban d CODEC (VBC) Monitoring ADC (MA DC) Monitoring ADC (MA DC) Ba tte ry Charge r I/ O ( BCI) Ba tte ry Charge r I/ O ( BCI) U501/TWL3025 SIM Con n ector SIM Con n ector 26MHz I/ O CON 24 PIN I/ O CON 24 PIN RF/xxx ◀ ( XXX ) PA_ON ◀ PA_BAND ◀ ANT_SW ◀ ①② ③ ④⑤ ⑥ ⑦⑧ ⑨ ⓧⓞ ⓜ ①② ③ ④⑤ ⑥ ⑦⑧ ⑨ ⓧⓞ ⓜ Mono Dot LCD 120x 64 Mono Dot LCD 120x 64 RF/Uxxx xxx RF/Uxxx xxxx EAR/MIC JACK EAR/MIC JACK + + BAT Li-Io n 7w 0 m Ah BAT Li-Io n 7w 0 m Ah U40 1 Flas h / SRAM 32 M x 04 M U40 1 Flas h / SRAM 32 M x 04 M ARMI/O (GPI O) ARMI/O (GPI O) 6.5M Hz RTC RTC DMA DMA CRYPT CRYPT RIF RIF DPLL & CL KM DPLL & CL KM INT H INT H WTD O G WTD O G Back_ LEDs 1.8V/3.0V BB CODEC (BBC) BB CODEC (BBC) JTAG TAP VBC DSP Vi brator EAR/ SP K 32.768KHz MIC ◆ ◆ RF Block Diagram (GSM850+PCS1900) RF Block Diagram (GSM850+PCS1900) Phase Comp Phase Comp DIP DIP PCS PAM PAM PA_BAND PA_BAND GSM850 GSM850 Lo w Lo w PCS PCS Hi gh Hi gh GA T E GA T E RX RX T X _GSM850 T X _GSM850 TX _ P CS TX _ P CS ANT SW1 ANT SW1 Hi gh Hi gh ANT SW2 ANT SW2 Hi gh Hi gh Lo w Lo w Hi gh Hi gh Hi gh Hi gh Lo w Lo w PAM U10 3 SKY 77 328 GSM850 PCS IQ U101 Antenna S w itch Bas eb and (TI ) U50 1 IOT A + U50 2 Cal yp so Lit e Bas eb and (TI ) U50 1 IOT A + U50 2 Cal yp so Lit e IQ U201/TRF6151C ÷ 4: G S M ÷ 4: G S M ÷ 2: P C S ÷ 2: P C S 0 ̊ / 90 ̊ 0 ̊ / 90 ̊ D u a l Band F requ e n c y Table Du al B a n d Freq uency Tab l e BAND BAND RX RX GSM 850 GSM 850 869 ~ 894 869 ~ 894 PCS PCS 1930~1990 1930~1990 TX TX 824 ~849 824 ~849 1850~1910 1850~1910 MAIN VC O 1 MAIN VC O 1 3476~3840 3476~3840 3610~3980 3610~3980 PGA PGA GSM 850 PCS DCS LNA PAD PAD Phase Comp Phase Comp R div R div N Divider N Divider M div M div 0 ̊ / 90 ̊ 0 ̊ / 90 ̊ Voltage Regulators Voltage Regulators PA Controller PA Controller Serial interface Serial interface 3. 6G GSM 85 0 MAIN VC O 2 MAIN VC O 2 3269~3957 3269~3957 3176~3547 3176~3547 X 201 VC-TCXO 26MHz for MURATA’s A nten na Sw it ch

6F. YangJae Kamco Tower 949-3, DoGok-Dong, KangNam-Ku Seoul Korea 135-270 Tel : +82.2.571.0887 Fax : +82.2.571.0885 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: SY6BPP-UP100 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematic Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Ju-Won, Seol / Engineer

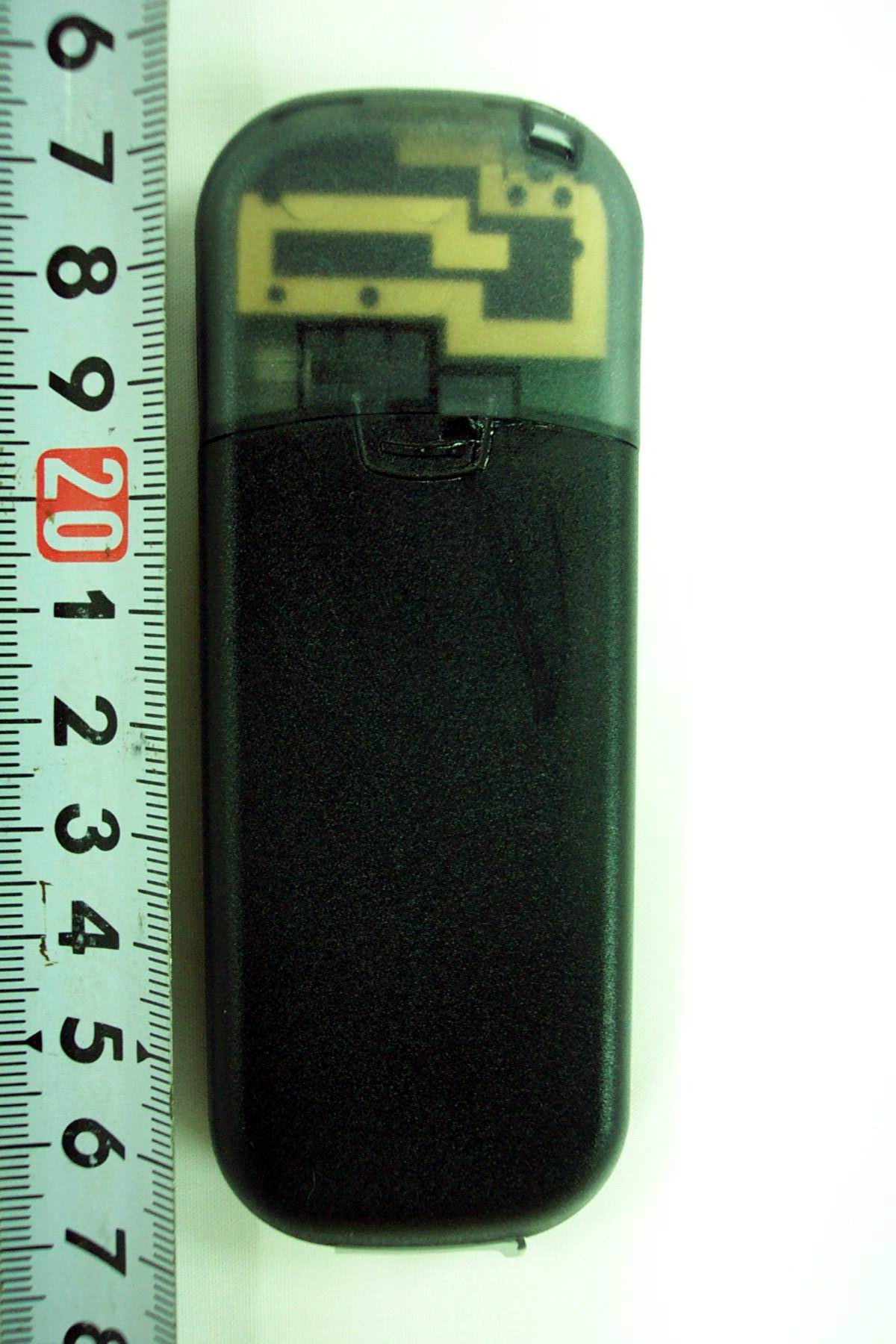

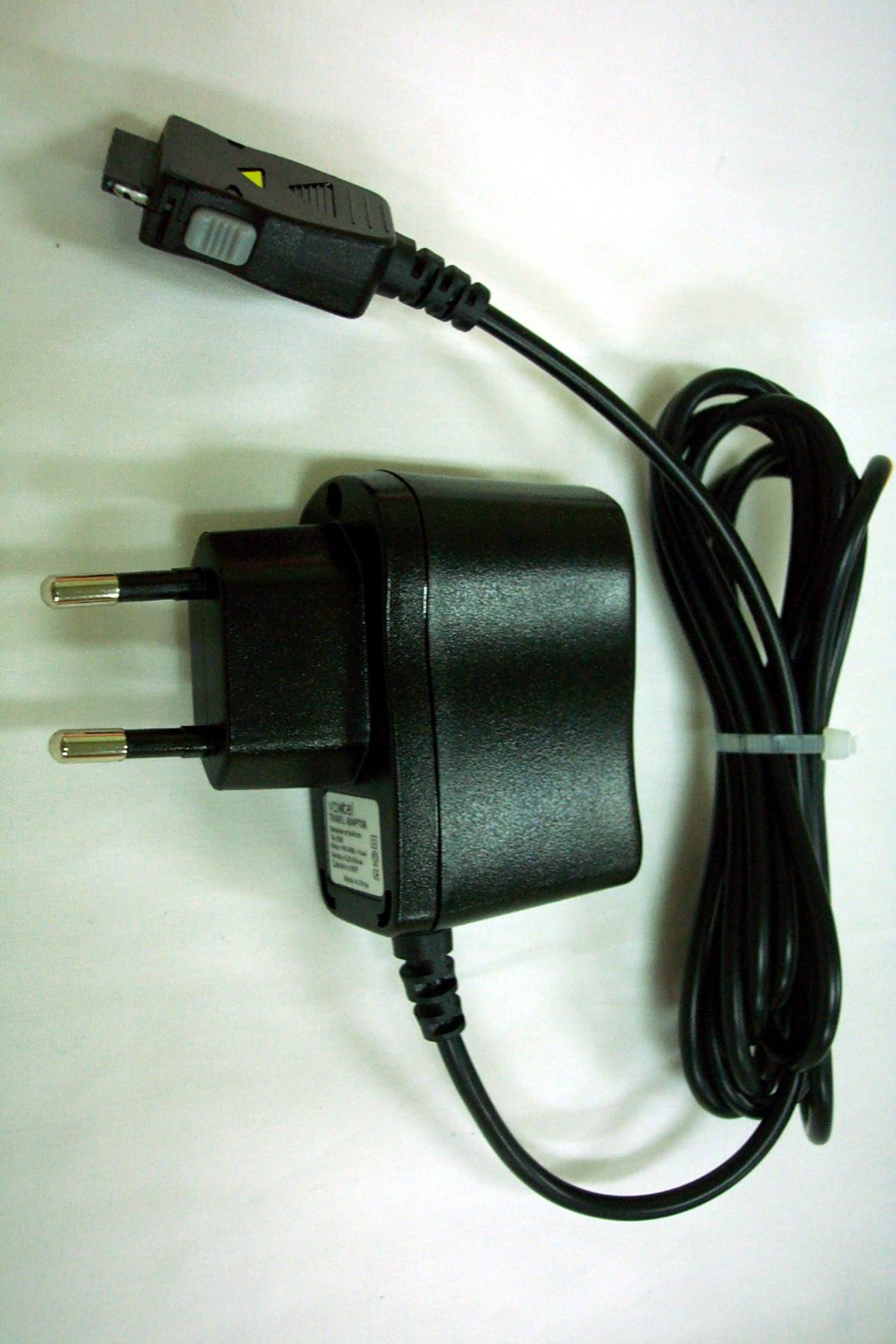

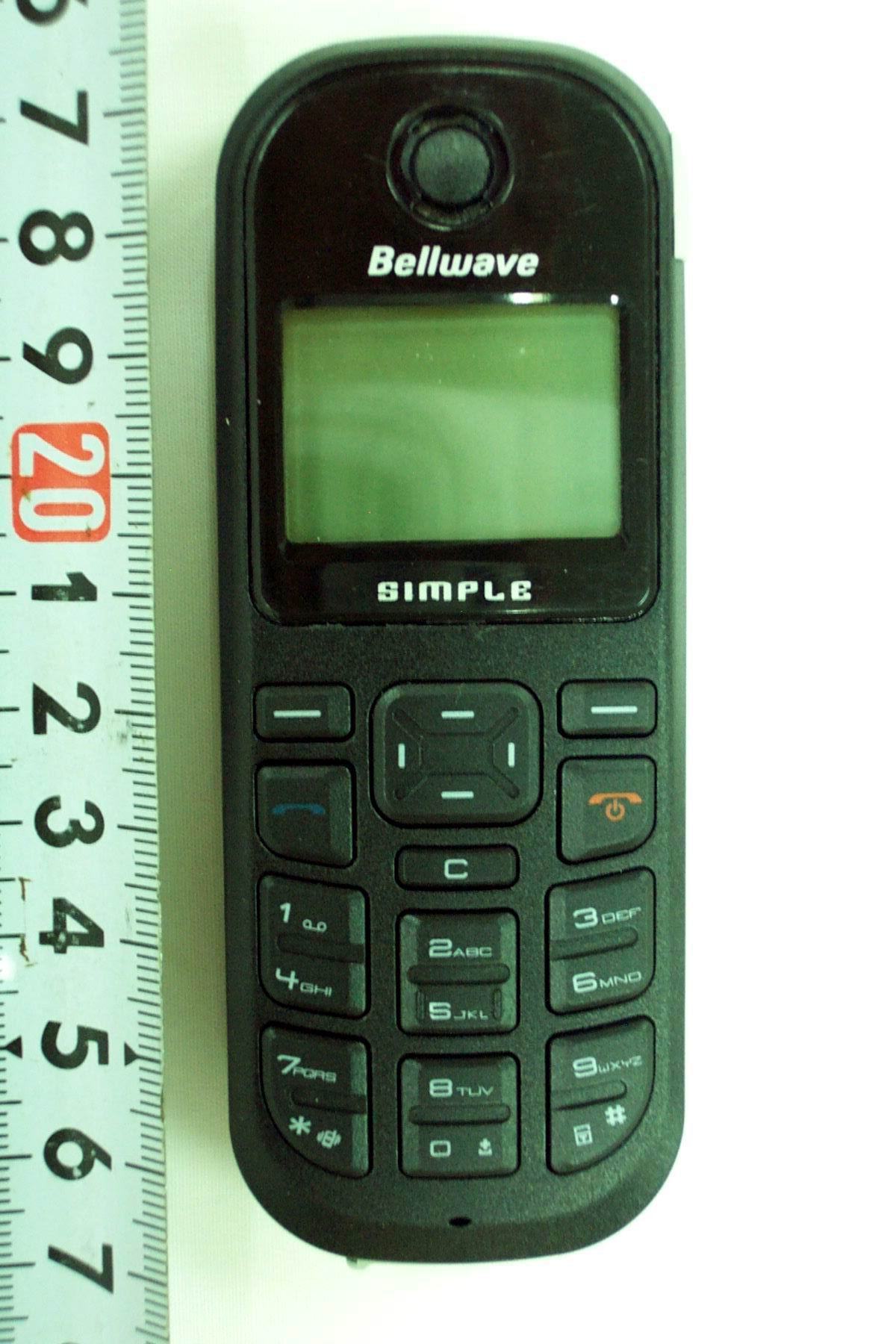

Test Report No.: NK2FR180 Bellwave Co.,Ltd. FCC ID :SY6BPP-UP100 APPENDIX C – EUT PHOTOGRAPHS ● Front View of EUT Test Report No.: NK2FR180 Bellwave Co.,Ltd. FCC ID :SY6BPP-UP100 ● Rear View of EUT Test Report No.: NK2FR180 Bellwave Co.,Ltd. FCC ID :SY6BPP-UP100 ● Right side View of EUT Test Report No.: NK2FR180 Bellwave Co.,Ltd. FCC ID :SY6BPP-UP100 ● Left side View of EUT Test Report No.: NK2FR180 Bellwave Co.,Ltd. FCC ID :SY6BPP-UP100 ● Top View of EUT Test Report No.: NK2FR180 Bellwave Co.,Ltd. FCC ID :SY6BPP-UP100 ● Bottom View of EUT Test Report No.: NK2FR180 Bellwave Co.,Ltd. FCC ID :SY6BPP-UP100 ● Inside View of EUT Test Report No.: NK2FR180 Bellwave Co.,Ltd. FCC ID :SY6BPP-UP100 ● Adaptor View of EUT

Test Report No.: NK2FR180 Bellwave Co.,Ltd. FCC ID :SY6BPP-UP100 APPENDIX A - Labelling Requirement The sample label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase.

Test Report No.: NK2FR180 Bellwave Co.,Ltd. FCC ID :SY6BPP-UP100 APPENDIX C – EUT PHOTOGRAPHS ● Front View of Main Board Test Report No.: NK2FR180 Bellwave Co.,Ltd. FCC ID :SY6BPP-UP100 ● Rear View of Main Board

Bellwave. Inc 1/26 BPP-UP100 Circuit Description Bellwave. Inc 2/26 REVISED HISTORY DATE ISSUE CONTENTS OF CHANGES S/W VERSION Semtember / 2004 ISSUE 0.1 Initial Release Bellwave. Inc 3/26 * The information in this manual is subject to change without notice and should not be construed as a commitment by BELLWAVE Inc. Furthermore, BELLWAVE Inc. reserves the right, without notice, to make changes to equipment design as advances in engineering and manufacturing methods warrant. * This manual provides the information necessary to install, program, operate and maintain the UP-100. Bellwave. Inc 4/26 SECTION 1. PERFORMANCE 1.1 H/W Feature Item Feature Comment Phone size Size : 105(L)x40(W)x15.8(T) Standard Battery Li-ion, 720mAh Size: 4.5(T)x32(W)x53(L) mm Weight: 16g AVG TCVR Current GSM850: 230mA, PCS: 180mA Standby Current < 4.0mA Talk time < 4 hours (GSM TX Level 7) Standby time 200 hours (Paging Period:2, RSSI: -85dBm) Charging time 2.5 hours RX Sensitivity GSM850 : -107dBm, PCS : -106dBm TX output power GSM850: 32.5dBm (Level 5) PCS1900: 29.5dBm (Level 0) GPRS compatibility Class 10 SIM card type 1.8V/3V Small Display 120 × 64 dots LCD Status Indicator Soft icons Key Pad 0 ∼ 9, #, *, Navigation Key, Menu Key, Send Key, END/PWR Key ANT Internal EAR Phone Jack 3 pole earphone jack PC Synchronization Yes Speech coding EFR/FR Data and Fax Yes Vibrator Yes Buzzer Yes Voice Recoding No C-Mike Yes Receiver Yes Travel Adapter Yes Options No Bellwave. Inc 5/26 1.2 Technical Specification Item Description Specification 1 Frequency Band GSM 850 TX : 824 – 849 MHz GSM 850 RX : 869 – 894 MHz PCS 1900 TX : 1850 – 1910 MHz PCS 1900 RX : 1930 – 1990 MHz 2 Phase Error RMS < 5 degrees Peak < 20 degrees 3 Frequency Error < 0.1ppm GSM850 Level Power Toler. Level Power Toler. 5 33 dBm ±2dB 13 17 dBm ±3dB 6 31 dBm ±3dB 14 15 dBm ±3dB 7 29 dBm ±3dB 15 13 dBm ±3dB 8 27 dBm ±3dB 16 11 dBm ±5dB 9 25 dBm ±3dB 17 9 dBm ±5dB 10 23 dBm ±3dB 18 7 dBm ±5dB 11 21 dBm ±3dB 19 5 dBm ±5dB 12 19 dBm ±3dB PCS Level Power Toler. Level Power Toler. 0 30 dBm ±2dB 8 14 dBm ±3dB 1 28 dBm ±3dB 9 12 dBm ±4dB 2 26 dBm ±3dB 10 10 dBm ±4dB 3 24 dBm ±3dB 11 8 dBm ±4dB 4 22 dBm ±3dB 12 6 dBm ±4dB 5 20 dBm ±3dB 13 4 dBm ±4dB 6 18 dBm ±3dB 14 2 dBm ±5dB 4 Power Level 7 16 dBm ±3dB 15 0 dBm ±5dB Bellwave. Inc 6/26 GSM850 Offset from Carrier (kHz). Max. dBc 100 +0.5 200 -30 250 -33 400 -60 600 ~ 1,200 -60 1,200 ~ 1,800 -60 1,800 ~ 3,000 -63 3,000 ~ 6,000 -65 6,000 -71 PCS Offset from Carrier (kHz). Max. dBc 100 +0.5 200 -30 250 -33 400 -60 600 ~ 1,200 -60 1,200 ~ 1,800 -60 1,800 ~ 3,000 -65 3,000 ~ 6,000 -65 5 Output RF Spectrum (due to modulation) 6,000 -73 GSM850 Offset from Carrier (kHz) Max. (dBm) 400 -19 600 -21 1,200 -21 1,800 -24 PCS Offset from Carrier (kHz) Max. (dBm) 400 -22 600 -24 1,200 -24 6 Output RF Spectrum (due to switching transient) 1,800 -27 Bellwave. Inc 7/26 7 Spurious Emissions Conduction, Emission Status Conduction, Emission Status 8 Bit Error Ratio GSM850 BER (Class II) < 2.439% @-102dBm PCS BER (Class II) < 2.439% @-100dBm 9 Rx Level Report accuracy ± 3 dB 10 SLR 8 ± 3 dB Frequency (Hz)Max.(dB) Min.(dB) 100 -12 / 200 0 / 300 0 -12 1,000 0 -6 2,000 4 -6 3,000 4 -6 3,400 4 -9 11 Sending Response 4,000 0 / 12 RLR 2 ± 3 dB Frequency (Hz)Max.(dB) Min.(dB) 100 -12 / 200 0 / 300 2 -7 500 * -5 1,000 0 -5 3,000 2 -5 3,400 2 -10 4,000 2 13 Receiving Response * Mean that Adopt a straight line in between 300 Hz and 1,000 Hz to be Max. level in the range. 14 STMR 13 ± 5 dB 15 Stability Margin > 6 dB dB to ARL (dB) Level Ratio (dB) -35 17.5 -30 22.5 -20 30.7 -10 33.3 0 33.7 7 31.7 16 Distortion 10 25.5 17 Side tone Distortion Three stage distortion < 10% 18 <Change> System frequency (26 MHz) tolerance ≤ 2.5 ppm Bellwave. Inc 8/26 19 <Change>32.768KHz tolerance ≤ 30ppm 20 Power consumption Full power < 250mA (GSM850) ; < 200mA (PCS) Standby - Normal Mode ≤ 4.0mA(Mix. power) - Using Test mode on DSP Sleep function ≤ 6mA 21 Talk Time GSM850/Level 7 (Battery Capacity 720mA):1800 Min GSM850/Level 12(Battery Capacity720:250 Min 22 Standby Time Under conditions, at least 200 hours: 1. Brand new and full 740mAh battery 2. Full charge, no receive/send and keep GSM in idle mode. 3. Broadcast set off. 4. Signal strength display set at 3 level above. 5. Backlight of phone set off. 23 Ringer Volume At least 80 dB under below conditions: 1. Ringer set as ringer. 2. Test distance set as 50 cm 24 Charge Voltage Fast Charge : < 500 mA Slow Charge: < 60 mA Antenna Bar Number Power 5 -85 dBm ∼ 4 -90 dBm ∼ –86 dBm 3 -95 dBm ∼ –91 dBm 2 -100 dBm ∼ –96 dBm 1 -105 dBm ∼ –101 dBm 25 Antenna Display 0 ∼ –105 dBm Batter Bar Number Voltage 0 ∼ 3.62 V 1 3.62 ∼ 3.71 V 2 3.72 ∼ 3.78 V 3 3.79 ∼3.92V 26 Battery Indicator 4 3.93~4.2V 3.35~3.60 V (Call) 27 Low Voltage Warning 3.35~3.50V (Standby) 28 Forced shut down Voltage 3.35 ± 0.03 V 29 Battery Type 1 Li-ion Battery Standard Voltage = 3.8 V Battery full charge voltage = 4.2 V Capacity: 720mAh 30 Travel Charger Switching-mode charger Input: 100 ∼ 240 V, 50/60Hz Out put: 5.2V, 600mA SECTION 2. TECHNICAL BRIEF 2.1 General Description The RF parts consist of a transmitter part, a receiver part, a frequency synthesizer part and a VCTCXO part. The TexasInstuments transceiver is composed of one RF chipset TRF6151C which is a quadruple-band GSM/GPRS wireless communications. This device integrates a receiver based on direct conversion architecture, a transmitter based on modulation-loop architecture, frequency synthesizing including a 26-MHzVCXO, a main N-integer synthesizer, two main VCOs, a programmable main-loop filter, two TX VCOs, a TX loop filter, voltage regulators to supply on-chip and off-chip RF functions, and a power-amplifier controller. 2.2 Receiver Part A. RF Front End RF front end consists of FEMU101), dual band LNAs integrated in transceiver The Received RF signals(GSM 869MHz ~ 894MHz, PCS 1930MHz ~ 1990MHz) are fed into the antenna or mobile switch. An antenna matching circuit is between the antenna …

Text truncated - open the document above for the full version.

00 0 24 Y / G LED 반납요망 2000 E D BOM SHEET MODELNAME UP100e MODEL CODE NO. e p art / Na m COLOR Date 2005-08-29 VERSION Reference NO ITEM NAME VENDOR P/NO VENDOR Q'ty 자재출고처 소요량 합계 1차출고 2차출고 Remarks 305a 305b 305a 305b 1 BASEBAND MAIN CHIP 2 (Calypso Lite) D751749GHHR TI 1 1 성남물류센터 100 30 130 2 BASEBAND MAIN CHIP 1 (IOTA) TWL3025BGGMR TI 1 1 성남물류센터 100 30 130 3 RF MAIN CHIP TRF6151RGZ (V2.2) TRF6151CR TI 1 1 벨웨이브본사 100 30 130 130 52EA V2.4로 투입 4 POWER AMP MODULE SKY77328 SKYWORKS 1 1 성남물류센터 100 30 130 5 FLASH+SRAM MCP 32/04 Memory S71PL032J04BAW0B0 SPANSION 1 1 벨웨이브본사 100 30 130 130 삼 성MCP 반납요망 130EA 6 FEM LMSP54KA-246 MURATA 1 성남물류센터 100 - 100 7 FEM LMSP54KA-249 MURATA 1 성남물류센터 - 30 30 8 Audio Amplifier TPA6203A1 TI 1 1 위너웍스 100 30 130 9 Charge pump CAT3200TDI-TE7 Catalyst 1 1 성남물류센터 100 30 130 10 COXIOL CONNECTOR MM8430-2610RB3 MURATA 1 1 신오 보유 100 30 130 300 11 TR DUAL TYPE EMB9 T2R ROHM 1 1 성남물류센터 100 30 130 12 TR DUAL TYPE EMD9 T2R ROHM 1 성남물류센터 - 30 30 13 VARIABLE CAPACITANCE DIODE FOR VCO HVC375B HITACHI 1 위너웍스 - 30 30 14 VIBRATOR DRIVER IC MDC3105LT1 ON SEMICONDUCTOR 1 1 성남물류센터 100 30 130 15 P-Channel MOSFET SI7703EDN VISHAY 1 1 성남물류센터 100 30 130 16 X-TAL 26MHz TTS18V 26MHz Tokyo denpa 1 성남물류센터 100 - 100 17 X-TAL 26MHz TSS-3225A Tokyo denpa 1 벨웨이브본사 - 30 30 40 18 X-TAL 32.768KHz MS1V-T1S MCS 1 1 성남물류센터 100 30 130 140 19 VARISTOR 1005 SIZE (15pF) AVLC18S02015 ECVAL100518X40 AMOTECH JOINSET 3 3 벨웨이브본사 300 90 390 600 20 VARISTOR 1005 SIZE (50pF) AVLC14S02050 ECVAL100514E30 AMOTECH JOINSET20 20 신오 보유 2,000 600 2,600 600 3,000 신오재고확인 21 VARISTOR 1005 SIZE (480pF) AVL5M02200 ECVAS100505E1548 AMOTECH JOINSET 2 2 벨웨이브본사 200 60 260 600 22 FERRITE BEADS (1608) BLM18PG300SN1D MURATA 2 2 성남물류센터 200 60 260 23 FERRITE BEADS BLM15BB121SN1D MURATA 1 1 성남물류센터 100 30 130 LED AMBER 0.6T BL-HJF36A-AV-TRB BRIGHT 10 10 벨웨이브본사 300 100 400 450 LED AMBER 0.4T BL-HJC36G-AV-TRB BRIGHT 10 10 벨웨이브본사 700 200 900 1,000 25 TAN_CAP 33uF/10V TMCMA1A336MTRF HITACHI 1 1 성남물류센터 100 30 130 26 TAN_CAP 100uF/6.3V F950J107MAAAQ2 NICHICON 1 1 성남물류센터 100 30 130 27 SYSTEM I/O CONNECTOR, 24pin 4124R-21A0 신화엠에스 1 1 성남물류센터 100 30 130 28 SIM CONNECTOR, Bridge & 6PIN SIM-SB-6P-3.0_rev2 MIT 1 1 위너웍스 100 30 130 29 BATTERY CONNECTOR, 3pin BT03-F200C-03 TMX 1 1 성남물류센터 100 30 130 30 Vibrator cylinder type, 6pie Z6SH1B0060711 JINLONG 1 1 위너웍스 100 30 130 31 EAR JACK, 5pin KJA-PH-3-0028 KSD 1 1 위너웍스 100 30 130 32 CHIP INDUCTOR (1005) 1.8nH HK1005 1N8S HI1005 1N8ST TAIYO YUDEN DA R 1 1 성남물류센터 100 30 130 33 CHIP INDUCTOR (1005) 2.7nH HK1005 2N7S HI1005 2N7ST TAIYO YUDEN DA R 1 2 벨웨이브본사 100 60 160 600 34 CHIP INDUCTOR (1005) 4.7nH HK1005 4N7S HI1005 4N7ST TAIYO YUDEN DA R 2 2 벨웨이브본사 200 60 260 500 35 CHIP INDuCTOR (1005) 6.8nH HK1005 6N8S HI1005 6N8ST TAIYO YUDEN DA R 2 2 벨웨이브본사 200 60 260 500 36 CHIP INDUCTOR (1005) 1.5nH HK1005 1N5J HI1005 1N5ST TAIYO YUDEN DA R 1 1 벨웨이브본사 100 30 130 600 37 CHIP INDUCTOR (1005) 100nH HK1005 R10J HI1005T10JT TAIYO YUDEN DA R 1 1 벨웨이브본사 100 30 130 500 38 CAP. CERAMIC CHIP 0.5pF GRM36C0G 0R5C 50PN 0402GC50 8 MURATA PHYCOMP 2 2 벨웨이브본사 200 60 260 500 39 CAP. CERAMIC CHIP 1pF GRM36C0G 010D 50PN 0402CG10 9 MURATA PHYCOMP 1 1 벨웨이브본사 100 30 130 500 40 CAP. CERAMIC CHIP 4.7pF GRM36C0G 4R7C 50PN 0402CG47 9 MURATA PHYCOMP 1 2 벨웨이브본사 100 60 160 500 41 CAP. CERAMIC CHIP 8pF GRM36C0G 080D 50PN 0402CG80 9 MURATA PHYCOMP 1 1 벨웨이브본사 100 30 130 500 42 CAP. CERAMIC CHIP 9pF GRM36C0G 090D 50PN 0402CG90 9 MURATA PHYCOMP 11 벨웨이브본사 100 30 130 43 CAP. CERAMIC CHIP 12pF GRM36C0G 120J 50PN 0402CG12 0 MURATA PHYCOMP 44 벨웨이브본사 400 120 520 500 500 44 CAP. CERAMIC CHIP 15pF GRM36C0G 150J 50PN 0402CG15 0 MURATA PHYCOMP 17 17 벨웨이브본사 1,700 510 2,210 500 500 45 CAP. CERAMIC CHIP 22pF GRM36C0G 220J 50PN 0402CG22 0 MURATA PHYCOMP 1 1 벨웨이브본사 100 30 130 300 46 CAP. CERAMIC CHIP 27pF GRM36C0G 270J 50PN 0402CG27 0 MURATA PHYCOMP 4 4 벨웨이브본사 400 120 520 500 47 CAP. CERAMIC CHIP 33pF GRM36C0G 330J 50PN 0402CG33 0 MURATA PHYCOMP 1 1 벨웨이브본사 100 30 130 500 48 CAP. CERAMIC CHIP 39pF GRM36C0G 390J 50PN 0402CG39 0 MURATA PHYCOMP 1 1 벨웨이브본사 100 30 130 500 49 CAP. CERAMIC CHIP 47pF GRM36C0G 470J 50PN 0402CG47 0 MURATA PHYCOMP 10 10 벨웨이브본사 1,000 300 1,300 500 1,300 50 CAP. CERAMIC CHIP 100pF GRM36C0G 101J 50PN 0402CG10 MURATA PHYCOMP 89 벨웨이브본사 800 270 1,070 500 1,000 51 CAP. CERAMIC CHIP 120pF GRM36C0G 121J 50PN 0402CG12 MURATA PHYCOMP 1 1 벨웨이브본사 100 30 130 500 52 CAP. CERAMIC CHIP 150pF GRM36C0G 151J 50PN 0402CG15 MURATA PHYCOMP 1 1 벨웨이브본사 100 30 130 500 53 CAP. CERAMIC CHIP 180pF GRM36C0G 181J 50PN 0402CG18 MURATA PHYCOMP 1 1 성남물류센터 100 30 130 54 CAP. CERAMIC CHIP 330pF GRM36X7R 331K 50PN 04022R33 MURATA PHYCOMP 2 2 벨웨이브본사 200 60 260 500 55 CAP. CERAMIC CHIP 1nF GRM36X7R 102K 50PN 04022R10 2 MURATA PHYCOMP 2 2 벨웨이브본사 200 60 260 500 56 CAP. CERAMIC CHIP 10nF GRM36X7R 103K 16PN 04022R10 3 MURATA PHYCOMP 4 2 벨웨이브본사 400 60 460 500 57 CAP. CERAMIC CHIP 15nF GRM36X7R 153K 16PN 04022R15 3 MURATA PHYCOMP 1 1 벨웨이브본사 100 30 130 500 24 Y / G LED 반납요망 2000 E 3344 02 5 58 CAP. CERAMIC CHIP 22nF GRM36X7R 223K 16PN 04022R22 MURATA PHYCOMP 1 1 벨웨이브본사 100 30 130 500 59 CAP. CERAMIC CHIP 33nF GRM36X7R 333K 16PN 04022R33 MURATA PHYCOMP 1 벨웨이브본사 - 30 30 500 60 CAP. CERAMIC CHIP 220nF 10V GRM36Y5V 224Z 16PN 04022F22 MURATA 4 PHYCOMP 4 벨웨이브본사 400 120 520 500 61 CAP. CERAMIC CHIP 0.1uF GRM36Y5V 104Z 16PN 04022F10 MURATA PHYCOMP 31 31 벨웨이브본사 3,100 930 4,030 500 3,800 62 CAP. CERAMIC CHIP 1uF 10V GRM36Y5V 105Z 6.3PN 04022F1 MURATA PHYCOMP 17 16 벨웨이브본사 1,700 480 2,180 500 63 CAP. CERAMIC CHIP 2.2uF (1608) 6.3V GRM39Y5V 225Z 6.3PN 06032F2 MURATA PHYCOMP 2 2 벨웨이브본사 200 60 260 500 64 CAP. CERAMIC CHIP 4.7uF (1608) GRM188R60J475KE19D 06032B47 MURATA PHYCOMP 11 11 벨웨이브본사 1,100 330 1,430 500 65 RES. CHIP 0 ohm +-5%(J) 1/16W 1005(0402) MCR01MZPJ000 TSR16GTJ000V ROHM TATEYAMA 13 13 벨웨이브본사 1,300 390 1,690 500 1,500 66 RES. CHIP 4.7 ohm +-5%(J) 1/16W 1005(0402) MCR01MZPJ4R7 TSR16GTJ4R7V ROHM TATEYAMA 3 3 벨웨이브본사 300 90 390 10,000 67 RES. CHIP 10 ohm +-5%(J) 1/16W 1005(0402) MCR01MZPJ100 TSR1…

Text truncated - open the document above for the full version.

Test Report No.: NK2FR180 Bellwave Co.,Ltd. FCC ID :SY6BPP-UP100 APPENDIX H – TUNE UP PROCEDURE Test Report No.: NK2FR180 Bellwave Co.,Ltd. FCC ID :SY6BPP-UP100 Test Configuration of Equipment under Test The EUT has been tested under operating condition. The staying in continuous transmitting mode. Channel Low , Middle and High for each type and band with rated data rate are chosen for full testing. The field strength of spurious radiation emission was measured as EUT stand- up position (H mode) and lie down position (E1 , E2 mode) for GSM with power Adaptor. During all testings, EUT is in link mode with Base Station emulator (8960 Series 10) at maximum power level. PCL = 5 for GSM 850 PCL = 0 for GSM1900 Frequency range investigated : Radiated emission 30MHz to 10000MHz for GSM850 , 30MHz to 20000MHz for GSM 1900

Bellwave Co.,Ltd Page 1 of 79 FCC ID : SY6BPP-UP100 SAR Report Reference No.: NK2FR181 SAR Evaluation Report FCC ID : SY6BPP-UP100 Project Reference No. : NK2FR181 Product Type : Dual-Mode GSM Mobile Phone Brand Name : Bellwave Model : BPP-UP100 Tested According to : IEEE Standard C95.1 / OET Bulletin 65 Supplement C Tested Period : September. 21. 2005 to September. 26. 2005 Tested by Seonhyang Kim date : September. 27. 2005 Verified by Seonteag.Jin date : September. 27. 2005 This test results are only related to the item tested. This test report is only limited to the client company and the product. This report must not be used by the client to claim product endorsement by any agency of the U.S. Government. Lab Address : Nemko Korea Co., Ltd 300-2, Osan-Ri, Mohyun-Myun, Yongin-City, Gyunggi-Do, Korea Phone : 82-31-322-2333 Fax : 82-31-322-2332 Bellwave Co.,Ltd Page 2 of 79 FCC ID : SY6BPP-UP100 SAR Report Reference No.: NK2FR181 Contents of This Report 1. General Information 4 1.1 Applicant 4 1.2 Manufacturer 4 1.3 Description of Device 4 2. General Test Condition 5 2.1 Location 5 2.2 Operating Environment 5 2.3 Test Frequency 5 2.4 Support Equipment 5 3. Description of Test Equipment 6 4. SAR Measurement Procedure 10 5. Definition of Reference Points 12 5.1 Ear Reference Point 12 5.2 Handset Reference Points 13 6. Test Configuration Positions 14 6.2 Cheek/Touch Position 14 6.2 Ear/Tilt 15°Position 15 6.3 Body-worn and Other Configurations 16 7. Measurement Uncertainty 17 8. System Verification 18 8.1 Tissue Verification 18 8.2 Test System Validation 19 8.3 Measurement Result of Test Data (GSM 850MHz Head Validation) 20 8.4 Measurement Result of Test Data (GSM 850MHz Muscle Validation) 21 8.5 Measurement Result of Test Data (GSM 1900MHz Head Validation) 22 8.6 Measurement Result of Test Data (GSM 1900MHz Muscle Validation) 23 9. SAR Measurement Results 24 9.1 SAR Measurement Result(GSM 850MHz Right Head Touch Position) 26 9.2 SAR Measurement Result (GSM 850MHz Right Head Tilt Position) 30 9.3 SAR Measurement Result (GSM 850MHz Left Head Touch Position) 32 9.4 SAR Measurement Result (GSM 850MHz Left Head Tilt Position) 36 9.5 SAR Measurement Result (GSM 850MHz Muscle–15mm Distance- Position) 38 9.6 SAR Measurement Result (GSM 850MHz Muscle–15mm Distance- with Headset) 42 9.7 SAR Measurement Result (GSM 1900MHz Right Head Touch Position) 44 9.8 SAR Measurement Result (GSM 1900MHz Right Head Tilt Position) 48 9.9 SAR Measurement Result (GSM 1900MHz Left Head Touch Position) 50 9.10 SAR Measurement Result (GSM 1900MHz Left Head Tilt Position) 54 9.11 SAR Measurement Result (GSM 1900MHz Muscle–15mm Distance-Position) 56 9.12 SAR Measurement Result (GSM 1900MHz Muscle–15mm Distance-with Headset) 60 10. SAR Test Equipment 62 11. References 63 Bellwave Co.,Ltd Page 3 of 79 FCC ID : SY6BPP-UP100 SAR Report Reference No.: NK2FR181 Appendix A 64 Appendix B 66 Appendix C 75 Appendix D 76 Bellwave Co.,Ltd Page 4 of 79 FCC ID : SY6BPP-UP100 SAR Report Reference No.: NK2FR181 1.General Information 1.1 Applicant Company Name: Bellwave Co., Ltd Company Address: 6 th FL. Kamco Yangjae Tower 949-3, Dogok-Dong, Gangnam-Gu, Seoul 135-270, Korea Phone/Fax: Phone: +82-2-3460-9785 / +82-2-3460-9736 Contact Name: Ju-Won, Seol 1.2 Manufacturer Company Name: Shin-Oh Electronics Co., Ltd Company Address: 729-5 Bonoh-dong, Sangrok-Gu, Ansan-shi, Gyunggi-Do, 426-180 Korea (730-2 : 2’nd FA) Phone/Fax: Phone: +86-2-3460-9785 / +82-2-3460-9736 Contact Name: Tae-Hyoung Ko 1.3 Description of Device Category: Dual-Mode GSM Mobile Phone Model Name: BPP-UP100 Brand Name: Bellwave Serial Number: 0000001 Frequency of Operation Tx : 824MHz ~ 849MHz, Rx : 869MHz ~ 894MHz Tx : 1850MHz ~ 1910MHz, Rx : 1930MHz ~ 1990MHz Power Output (Conducted) GSM850: 32.5dBm (Level 5) PCS1900: 29.5dBm (Level 0) Operating Condition -30to +60°C Power Supply Li-ion Battery: 3.8V DC, 720mAh Antenna Type Internal Dimensions 105 X 40 X 15.8mm Weight 67g(with Battery) Remarks: - Bellwave Co.,Ltd Page 5 of 79 FCC ID : SY6BPP-UP100 SAR Report Reference No.: NK2FR181 2. General Test Condition 2.1 Location Nemko Korea 300-2, Osan-Ri, Mohyun-Myun, Yongin-City, Gyunggi-Do Phone : 82-31-322-2333 , Fax : 82-31-322-2332 2.2 Operating Environment Parameters Recording during test Accepted deviation Ambient temperature 20 - 22°C 15 - 30°C Relative humidity 30 - 60% 20 - 75% 2.3 Test Frequency GSM…
