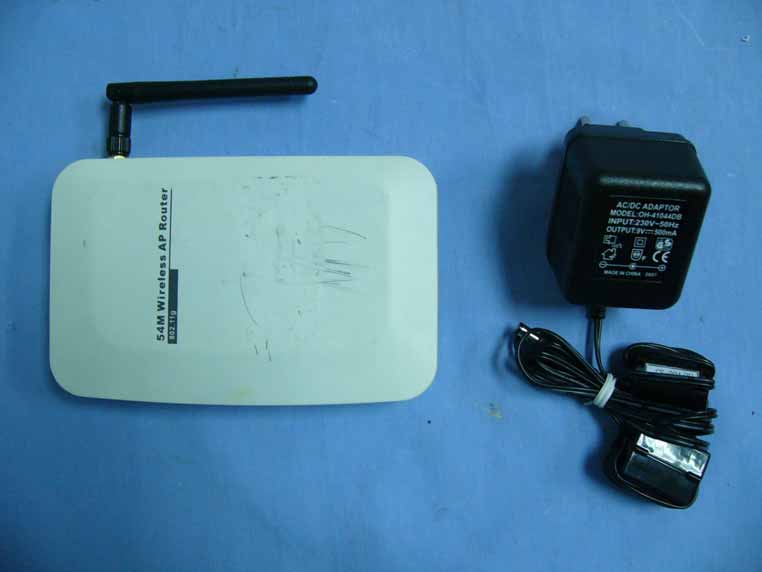

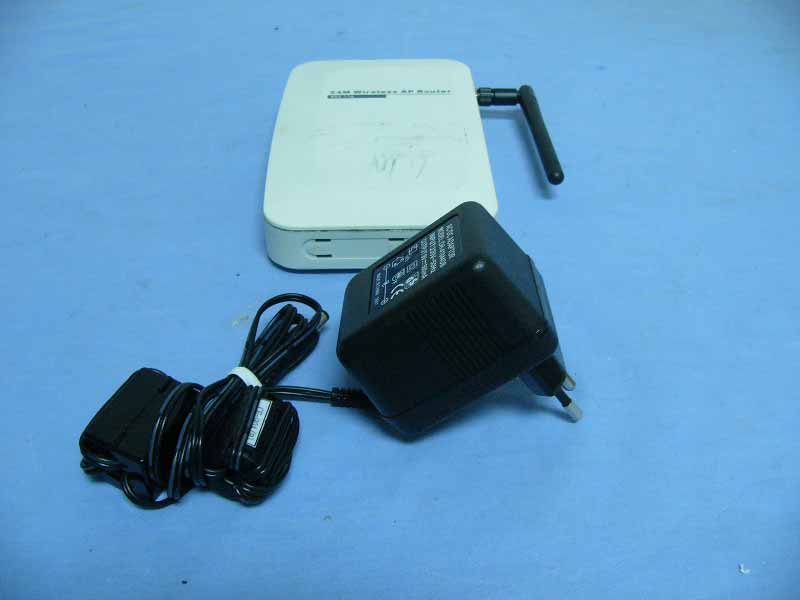

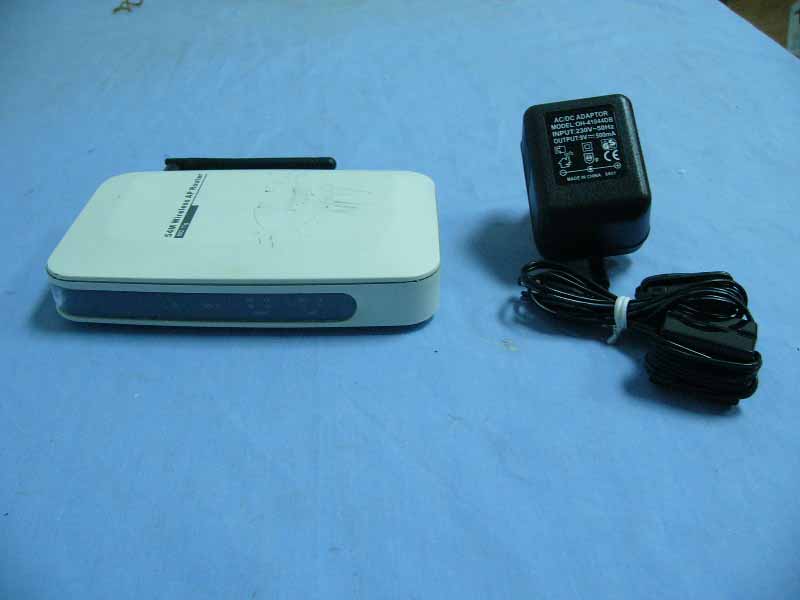

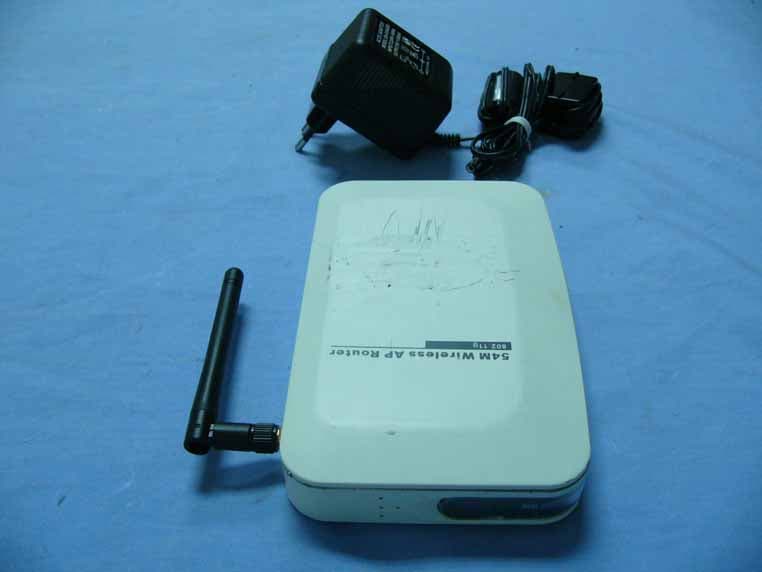

T58520G2006M1Wireless Access Point

Wireless Access Point User manual Page 1 of 1 Wireless Access Point User’s Manual Federal Communications Commission (FCC) Requirements, Part 15 This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ---Reorient or relocate the receiving antenna. ---Increase the separation between the equipment and receiver. ---Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ---Consult the dealer or an experienced radio/TV technician for help. Regulatory information / Disclaimers Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE (CO-LOCATION) FCC RF Radiation Exposure Statement: This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. The antenna(s) Wireless Access Point User manual Page 2 of 2 Table of Contents Chapter 1 Introduction ...................................................................... 2 1.1 Welcome .............................................................................................................................. 2 1.2 About This Guide .............................................................................................................. 2 1.3 Copyright statement........................................................................................................ 3 Chapter 2 System Requirements ....................................................... 3 Chapter 3 Getting to Know the Wireless Access Point ....................... 3 3.1 Back Panel ........................................................................................................................... 3 3.2 LED Description ............................................................................................................... 13 Chapter 4 hardware connection....................................................... 25 Chapter 5 Configuring Local PC to Access the Wireless AP .............. 54 5.1 Setting up TCP/IP ........................................................................................................... 56 5.1.1 Windows 2000 ..................................................................................................... 57 5.1.2 Windows XP/2003.............................................................................................. 84 5.2 Additional Settings for Wireless Client................................................................. 121 5.3 Checking PC’s IP and Connection with the AP................................................... 134 Chapter 6 Web Configuration ........................................................ 171 6.1 Logging In....................................................................................................................... 172 6.2 Status................................................................................................................................194 6.3 LAN Setup ........................................................................................................................ 218 6.4 Wireless Settings .......................................................................................................... 229 6.4.1 Basic Wireless Settings .................................................................................. 231 6.4.2 Wireless Security .............................................................................................. 245 6.4.3 Wireless MAC Filter.......................................................................................... 311 6.4.4 WDS Set............................................................................................................... 327 6.4.5 Advanced Wireless Settings......................................................................... 334 6.4.6 Client Info............................................................................................................ 346 6.4.7 DHCP Server ....................................................................................................... 354 6.4.8 Site Survey ......................................................................................................... 369 6.5 MISC .................................................................................................................................. 377 6.5.1 Login ID & Password Setup .......................................................................... 378 6.5.2 Restore Default / Restart System.............................................................. 389 6.5.3 Firmware Upgrade............................................................................................ 405 Appendix I: Troubleshooting ....................................................... 411 1. I cannot access the Web-based Configuration Utility from the Ethe…

Text truncated - open the document above for the full version.

Netcore Technology Inc. ______ 14 Building, Jinhe Industrial Park, Yufeng Manage Dist., Zhangmutou Town, Dongguan City, Guangdong Province, China Date: 2006/8/8 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize the Shenzhen office of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS SZ, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CCS SZ on our behalf shall have the same effect as acts of our own. In authorizing CCS SZ as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant.

Netcore Technology Inc. ______ 14 Building, Jinhe Industrial Park, Yufeng Manage Dist., Zhangmutou Town, Dongguan City, Guangdong Province, China Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: T58520G2006M1 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. Best Regards

Helen Zhao Subject: FW: RE: FW: Netcore Technology Inc., FCC ID: T58520G2006M1, Assessment NO.: AN06T6042, Notice#1 8/22/2006 -----Original Message----- From: eric.wong [mailto:[email protected]] Sent: Tuesday, August 22, 2006 2:48 AM To: Helen Zhao Subject: Re:RE: FW: Netcore Technology Inc., FCC ID: T58520G2006M1, Assessment NO.: AN06T6042, Notice#1 Hello Helen, Please find the replies below in Blue . Thank you!! Eric Wong -----Original Message----- From: Helen Zhao Sent: Thursday, August 10, 2006 3:32 PM To: Helen Zhao Subject: Netcore Technology Inc., FCC ID: T58520G2006M1, Assessment NO.: AN06T6042, Notice#1 Question #1: The internal photos show an aluminium foil shielding instead of spray shielding is used. Please specify the aluminium foil was added as modification during the test or it came with the sample. Please also explain whether final products will be used the same shielding method or not. The applicant needs to submit a marketing statement to address this issue. (ERIC: Please find the photos of the mass production unit attached . FYI the most different between the testing sample and the mass production unit is the latter is plated a layer of British-made "silver conductive paint" (In grey color) instead of using the foil shielding. The shielding foil just onto the bottom side of the PCB has not changed between the testing and mass production. This is a typical methology on the EMI debugging and the picture is truly captured from the mass production unit, it would adopted on all the unit placing into the market.) Question #2: This device is a PC peripheral, please confirm whether digital portion is authorized through DoC or Certification. If it is through DoC, please add FCC DoC on the FCC ID label. Otherwise please submit a separate application under equipment class of "JBP". (ERIC: This device is subjected for the DoC and the DoC logo is added, please kindly find the revised label attached.) Question #3: The test report (page 4) indicates "Model difference: Based on the same product". If there is any difference in design or appearance, please indicate clearly, if there is no difference, you can say "All models are identical to each other except for market designation for marketing purpuse. " (ERIC: Please find the updates upon your comment on the revised report attached) Question #4: The test report (page 6) indicates worst case at 11b mode is 11Mbps, the highest datarate; worst case at 11g is 6Mbps, the lowest datarate, please verify again: 11b mode: 11Mbps or 1Mbps? 11g mode: 6Mbps or 54Mbps? (ERIC: Please find the updates upon your comment on the revised report attached) Question #5: Test report (page 9) does not list AC/DC power supply as accessory. Please update the report, please also indicate clearly if any ferrite cores are incorporated. (ERIC: Please find the updates upon your comment on the revised report attached) Question #6: Test Report - The test report radiated emission above 1GHz, only peak results are provided, not average results. Please note when peak result exceeds average limit, you need to provide average result to show average result is below the average limit. Please provide additional average test results whenever peak result exceeds average limit (page 54, 55, 58). (ERIC: Please find the updates upon your comment on the revised report attached) Question #7: Test report - power line conducted emission: Please provide plots. (ERIC: Please find the updates upon your comment on the revised report attached) Best Regards, Helen Zhao The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. 8/22/2006

Compliance Certification Services Inc. Report No.: SZ060713B02-RP FCC ID: T58520G2006M1 Date of Issue: Aug. 08, 2006 Page 1 Rev. 00 APPENDIX I RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT Wireless Access Point Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5.825GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power IEEE 802.11b Mode: 13.83dBm (24.15mW) IEEE 802.11g Mode: 12.89 dBm (19.45mW) Antenna gain (Max) 2 dBi (Numeric gain: 1.58) Evaluation applied MPE Evaluation* SAR Evaluation N/A Remark: 1. The maximum output power is 13.83dBm (24.15mW) at 2437MHz (with 1.58 numeric antenna gain.) 2. DTS device is not subject to routine RF evaluation; MPE estimate is used to justify the compliance. 3. For mobile or fixed location transmitters, no SAR consideration applied. The maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger. TEST RESULTS No non-compliance noted. Compliance Certification Services Inc. Report No.: SZ060713B02-RP FCC ID: T58520G2006M1 Date of Issue: Aug. 08, 2006 Page 2 Rev. 00 Calculation Given d GP E ×× = 30 & 3770 2 E S= Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 2 2 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Maximum Permissible Exposure EUT output power = 24.15 mW Numeric Antenna gain = 1.58 Substituting the MPE safe distance using d = 20 cm into Equation 1: Yields GPS××=000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Æ Power density = 0.0077 mW / cm 2 (For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.)

Compliance Certification Services (Shenzhen) Inc. Report No: SZ060713B02-RP FCC ID: T58520G2006M1 Date of Issue: August 08, 2006 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 of 66 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Wireless Access Point Model: 520G / NC-520GM1 / NE-520GM1 Trade Name: N/A Prepared for NETCORE TECHNOLOGY INC. 9F, B BLOCK, RESEARCH&DEVELOPMENT BUILDING, TSING HUA INFORMATION PARK, HIGH-TECH INDUSTRIAL PARK NORTH SECTION, NANSHAN, SHENZHEN, CHINA Prepared by COMPLIANCE CERTIFICATION SERVICES (SHENZHEN) INC. NO. 5, JINAO INDUSTRIAL PARK, NO. 35 JUKENG ROAD, DASHUIKENG VILLAGE, GUANLAN TOWN, BAOAN DISTRICT, SHENZHEN, CHINA TEL: 86-755-28055000 FAX: 86-755-28055221 LAB CODE:200577-0 Compliance Certification Services (Shenzhen) Inc. Report No: SZ060713B02-RP FCC ID: T58520G2006M1 Date of Issue: August 08, 2006 Page 2 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION....................................................................................................3 2. EUT DESCRIPTION ...........................................................................................................................4 3. TEST METHODOLOGY ....................................................................................................................5 3.1 EUT CONFIGURATION........................................................................................................................5 3.2 EUT EXERCISE....................................................................................................................................5 3.3 GENERAL TEST PROCEDURES.............................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS.........................................................6 3.5 DESCRIPTION OF TEST MODES...........................................................................................................6 4. INSTRUMENT CALIBRATION........................................................................................................7 5. FACILITIES AND ACCREDITATIONS ..........................................................................................8 5.1 FACILITIES ........................................................................................................8 5.2 EQUIPMENT........................................................................................................................................8 5.3 LABORATORY ACCREDITATIONS AND LISTING..................................................................................8 6. SETUP OF EQUIPMENT UNDER TEST .........................................................................................9 6.1 SETUP CONFIGURATION OF EUT.........................................................................................................9 6.2 SUPPORT EQUIPMENT .................................................................................................................9 7. FCC PART 15.247 REQUIREMENTS.............................................................................................10 7.1 6DB BANDWIDTH.............................................................................................................................10 7.2 PEAK POWER....................................................................................................................................16 7.3 BAND EDGES MEASUREMENT ................................................................................................22 7.4 PEAK POWER SPECTRAL DENSITY....................................................................................................31 7.5 SPURIOUS EMISSIONS.................................................................................................................37 7.6 POWERLINE CONDUCTED EMISSIONS..............................................................................................59 APPENDIX 1 PHOTOGRPHS OF TEST SETUP .................................................................................65 Compliance Certification Services (Shenzhen) Inc. Report No: SZ060713B02-RP FCC ID: T58520G2006M1 Date of Issue: August 08, 2006 Page 3 1. TEST RESULT CERTIFICATION Applicant: NETCORE TECHNOLOGY INC. 9F, B BLOCK, RESEARCH&DEVELOPMENT BUILDING, TSING HUA INFORMATION PARK, HIGH-TECH INDUSTRIAL PARK NORTH SECTION, NANSHAN, SHENZHEN, CHINA Equipment Under Test: Wireless Access Point Trade Name: N/A Model: 520G / NC-520GM1 / NE-520GM1 Date of Test: July 13-August 08, 2006 APPLICABLE STANDARDS STANDARD TEST RESULT FCC Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services (Shenzhen) Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Tested By: Henry Ding Reviewed By: Harris Lai / General Manager Eric Wong / Assistant manager COMPLIANCE CERTIFICATION COMPLIANCE CERTIFICATION SERVICES (SHENZHEN) INC. SERVICES (SHENZHEN) INC. Compliance Certification Services (Shenzhen) Inc. Report No: SZ060713B02-RP FCC ID: T58520G2006M1 Date of Issue: August 08, 2006 Page 4 2. EUT DESCRIPTION Product Wireless Access Point Trade Name N/A Model Number 520G / NC-520GM1 / NE-520GM1 Model Difference All models are identical to each other except for market designation for marketing purpose Power Supply Powered by the …

Text truncated - open the document above for the full version.

Compliance Certification Services (Shenzhen) Inc. Report No: SZ060713B02-RP FCC ID: T58520G2006M1 Date of Issue: August 08, 2006 Page 63 APPENDIX 1 PHOTOGRPHS OF TEST SETUP LINE CONDUCTED EMISSION TEST Compliance Certification Services (Shenzhen) Inc. Report No: SZ060713B02-RP FCC ID: T58520G2006M1 Date of Issue: August 08, 2006 Page 64 RADIATED EMISSION TEST
