T58M6RAX1800 Whole Home Mesh WiFi 6 System

CONTENTS English 1 Netis AX1800 Whole Home Mesh Wi-Fi 6 System 3

Differences Description We NETIS SYSTEMS CO., LTD. state: Product： AX1800 Whole Home Mesh WiFi 6 System Model Name： M6, N6T-Suit Trade Name: N/A FCC ID: T58M6R The electrical circuit design, layout, components used and internal wiring for above models are identical, only different in model name. Signatory Date 2022-06-24 Signature Name: Kinki Wang Title: Auditor Company: NETIS SYSTEMS CO., LTD. Address: Floor 8, Building B, TongFang Information Harbor, No.11 Langshan Road, Nanshan District, Shenzhen, China

NETIS SYSTEMS CO., LTD Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2022/06/24 Subject; Request for Confidentiality FCC ID: T58M6R To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure SOFTWARE SECURITY REQUIREMENTS FOR U-NII DEVICES In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Kinki Wang Title: Auditor

FCC Software Configuration Control Declaration Rev1.1.docx NETIS SYSTEMS CO., LTD FCC Software Configuration Control Declaration Date: 2022-06-24 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Attn: NETIS SYSTEMS CO., LTD Product Name: AX1800 Dual-Band Wireless Router Model Number(s): M6, N6T-Suit FCC ID: T58M6R Regarding FCC Country Code Selection guidelines identified in KDB 594280. “All applications for equipment authorization for transmitters that can have radio parameters, or other technical parameters, reported to the Commission set by software must have an attestation indicating that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified.” We declare that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified. Name: Kinki Wang Date: 2022-06-24 Title: Auditor Signatureof applicant

NETIS SYSTEMS CO., LTD Agent Authorization Company: NETIS SYSTEMS CO., LTD Address: Floor 8, Building B, TongFang Information Harbor, No.11 Langshan Road, Nanshan District, Shenzhen, China Product Name: AX1800 Whole Home Mesh WiFi 6 System Model Number(s): M6, N6T-Suit Product Description: AX1800 Whole Home Mesh WiFi 6 System We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2022/06/24 Name: Kinki Wang Title: Auditor Company: NETIS SYSTEMS CO., LTD

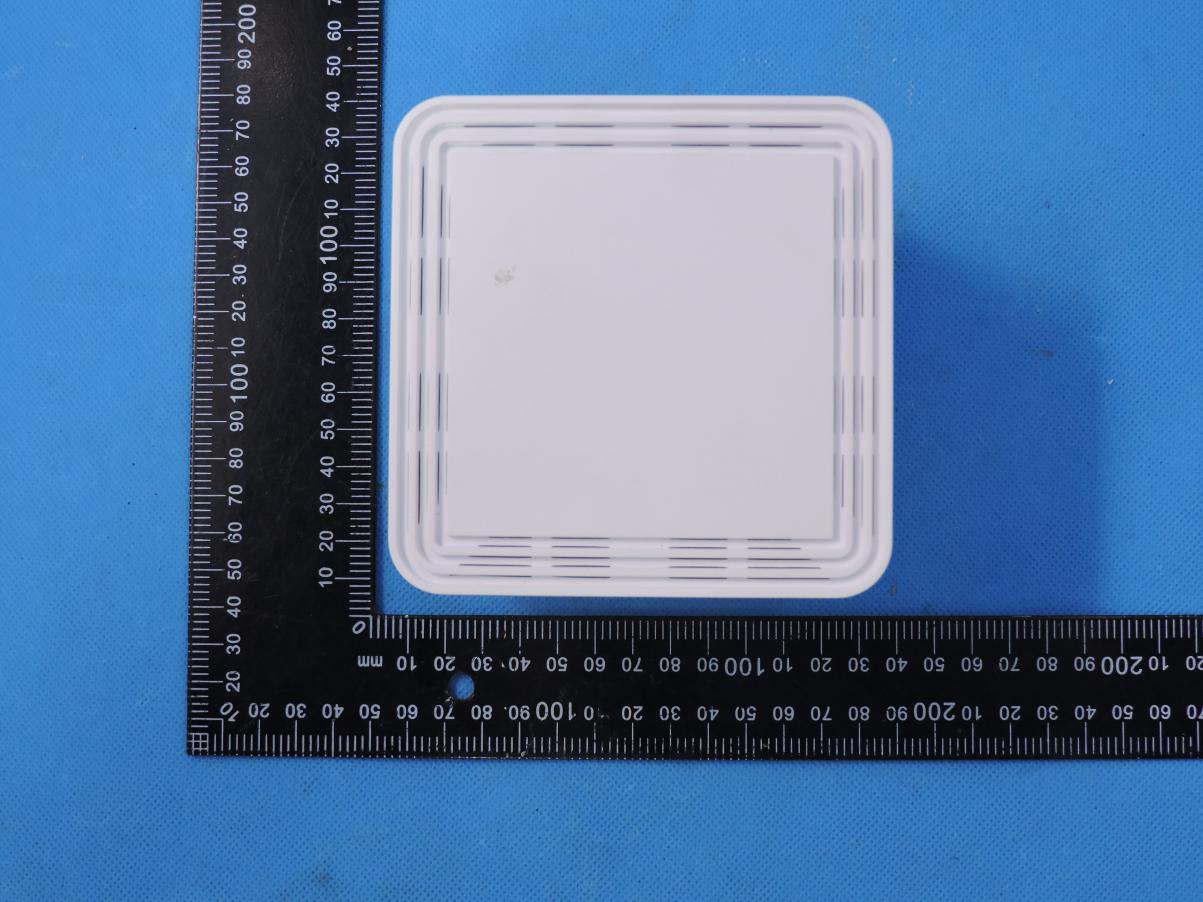

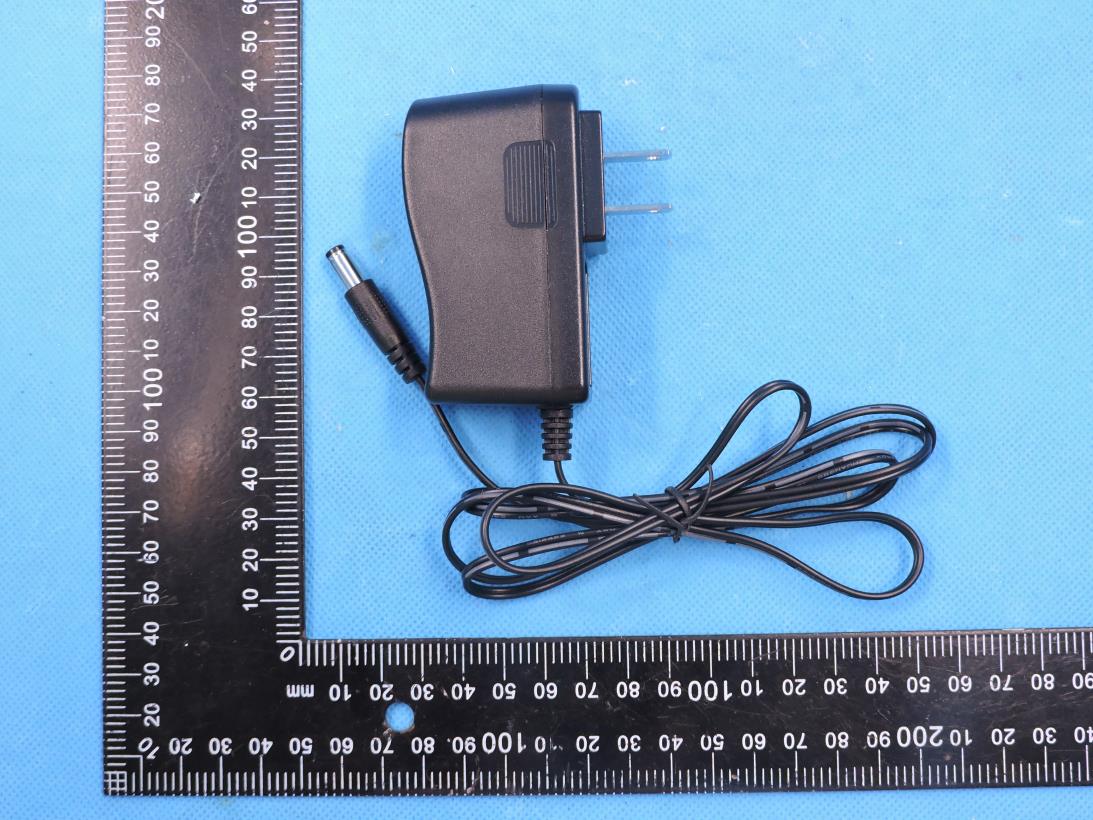

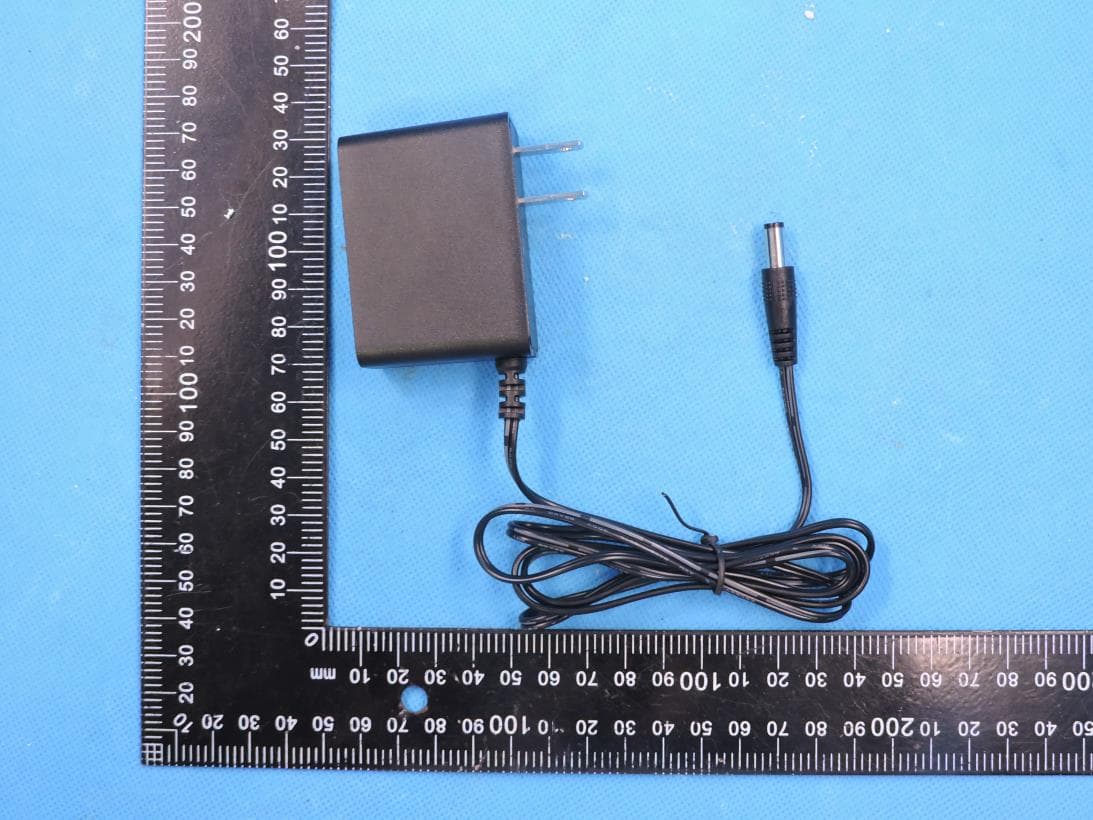

Page 1 of 6 Report No.: STS2204179 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model:M6 Photo 1 Photo 2 Page 2 of 6 Report No.: STS2204179 Photo 3 Photo 4 Page 3 of 6 Report No.: STS2204179 Photo 5 Photo 6 Page 4 of 6 Report No.: STS2204179 Photo 7 Photo 8 Page 5 of 6 Report No.: STS2204179 Photo 9 Photo 10 Page 6 of 6 Report No.: STS2204179 Photo 11 Photo 12

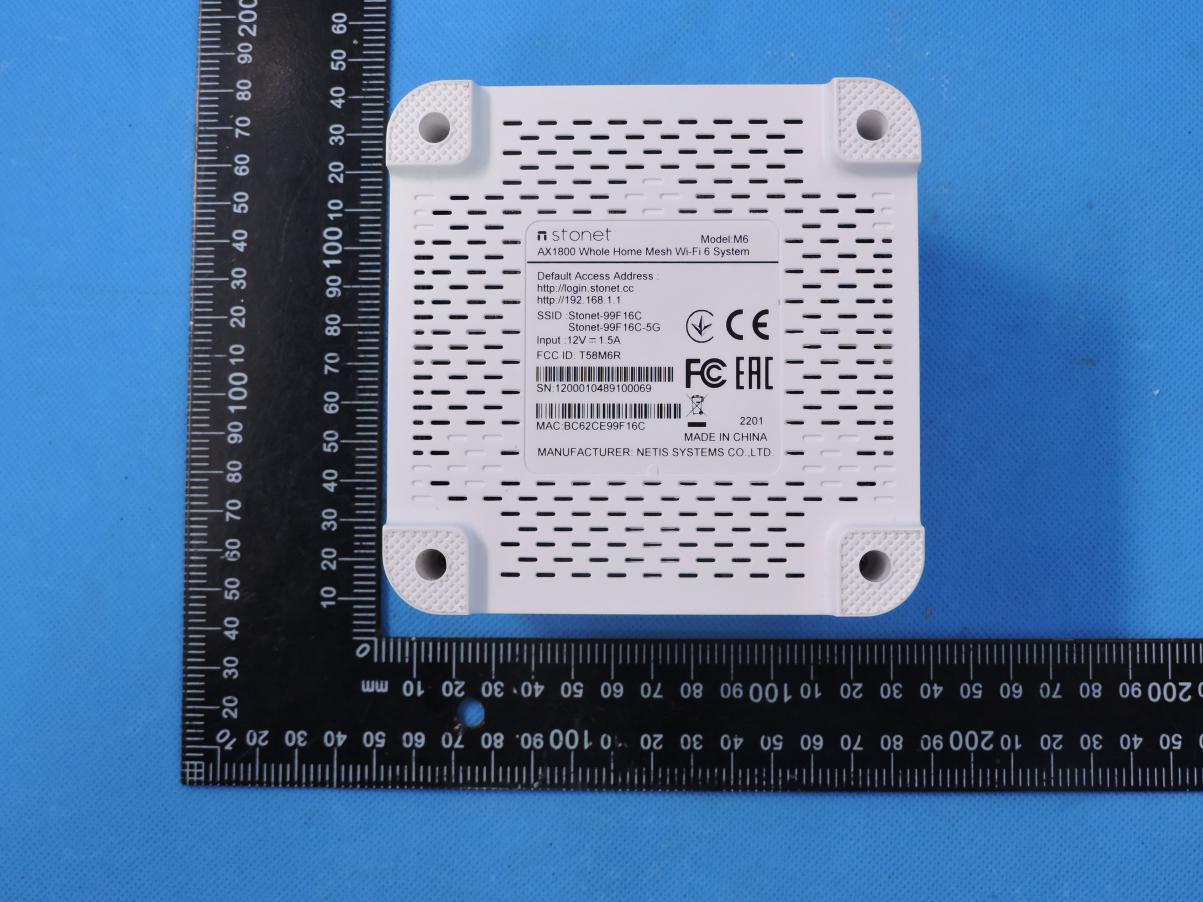

FCC Label Note: The label is attached to the back cover

Page 1 of 5 Report No.: STS2204179 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model: M6 Photo 1 Photo 2 Page 2 of 5 Report No.: STS2204179 Photo 3 Photo 4 5G WIFI Antenna B 2.4G WIFI Antenna A 2.4G WIFI Antenna B 5G WIFI Antenna A Page 3 of 5 Report No.: STS2204179 Photo 5 Photo 6 Page 4 of 5 Report No.: STS2204179 Photo 7 Photo 8 Page 5 of 5 Report No.: STS2204179 Photo 9 Photo 10

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, all test data presented in this report is only applicable to presented test sample. Shenzhen STS Test Services Co., Ltd. A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] RADIO TEST REPORT Report No: STS2204179H02 Issued for NETIS SYSTEMS CO., LTD. Floor 8, Building B, TongFang Information Harbor, No.11 Langshan Road, Nanshan District, Shenzhen, China Product Name: AX1800 Whole Home Mesh WiFi 6 System Brand Name: N/A Model Name: M6 Series Model: N6T-Suit FCC ID: T58M6R Test Standard: FCC 47CFR §2.1091 S T L A B S Page 2 of 10 Report No.: STS2204179H02 Test Report Certification Applicant’s Name ................. : NETIS SYSTEMS CO., LTD. Address ................................. : Floor 8, Building B, TongFang Information Harbor, No.11 Langshan Road, Nanshan District, Shenzhen, China Manufacturer's Name .......... : NETIS SYSTEMS CO., LTD Address ................................. : Floor 8, Building B, TongFang Information Harbor, No.11 Langshan Road, Nanshan District, Shenzhen, China Product Description Product Name ........................ : AX1800 Whole Home Mesh WiFi 6 System Brand Name ......................... : N/A Model Name .......................... : ... : M6 Series Model .......................... : N6T-Suit Standards ............................. : FCC 47CFR §2.1091 447498 D04 Interim General RF Exposure Guidance v01 This report shall not be reproduced except in full, without the written approval of STS, this document only be altered or revised by STS, personal only, and shall be noted in the revision of the document. Date of Test ........................................... : Date of receipt of test item ..................... : 24 Apr. 2022 Date (s) of performance of tests ............. : 24 Apr. 2022 ~ 13 June 2022 Date of Issue .......................................... : 13 June 2022 Test Result.............................................. : Pass Testing Engineer : (Chris Chen) Technical Manager : (Sean she) Authorized Signatory : (Bovey Yang) Page 3 of 10 Report No.: STS2204179H02 TABLE OF CONTENTS 1. GENERAL INFORMATION 5 1.1 GENERAL DESCRIPTION OF THE EUT 5 1.2 TEST FACTORY 6 2. FCC 47CFR §2.1091 REQUIREMENT 7 2.1 TEST STANDARDS 7 2.2 LIMIT 7 2.3 TEST RESULT 10 Page 4 of 10 Report No.: STS2204179H02 Revision History Rev. Issue Date Report No. Effect Page Contents 00 13 June 2022 STS2204179H02 ALL Initial Issue Page 5 of 10 Report No.: STS2204179H02 1. GENERAL INFORMATION 1.1 GENERAL DESCRIPTION OF THE EUT Product Name AX1800 Whole Home Mesh WiFi 6 System Brand Name N/A Model Name M6 Series Model N6T-Suit Model Difference Only different in model name. Product Description The EUT is AX1800 Whole Home Mesh WiFi 6 System Operation Frequency: 2.4G WIFI: 802.11b/g/n/ax 20: 2412~2462 MHz 802.11n/ax(40MHz):2422~2452MHz 5G WIFI: IEEE 802.11a/ n(HT20)/ac(VHT20)/ ax(HE20): 5.180GHz-5.240GHz IEEE 802.11n(HT40)/ac(VHT40)/ax(HE40): 5.190GHz-5.230GHz IEEE 802.11ac(VHT80)/ax(HE80): 5.210GHz IEEE 802.11ax(HE160): 5.250GHz IEEE 802.11a/ n(HT20)/ac(VHT20)/ ax(HE20): 5.745GHz-5.825GHz IEEE 802.11n(HT40)/ac(VHT40)/ax(HE40): 5.755GHz-5.795GHz IEEE 802.11ac(VHT80)/ax(HE80): 5.775GHz Modulation Type: 2.4G WIFI: 802.11b(DSSS):CCK,DQPSK,DBPSK 802.11g(OFDM): BPSK,QPSK,16-QAM,64-QAM 802.11n(OFDM): BPSK,QPSK,16-QAM,64-QAM 802.11ax(OFDM, OFDMA): BPSK,QPSK,16-QAM,64-QAM,256-QAM, 1024QAM 5G WIFI: 802.11a(OFDM): BPSK,QPSK,16-QAM,64-QAM 802.11n(OFDM): BPSK,QPSK,16-QAM,64-QAM 802.11ac(OFDM): BPSK,QPSK,16-QAM,64-QAM,256-QAM 802.11ax(OFDM, OFDMA): BPSK,QPSK,16-QAM,64-QAM,256-QAM, 1024QAM Antenna gain: ANT A: 4dBi, ANT B: 4dBi, MIMO: 7.01dBi Antenna Designation: PCB Page 6 of 10 Report No.: STS2204179H02 Adapter Model: KL-WA120150-D Input: 100-240V~ 50/60Hz 0.7A Output:12.0V1.5A Model: DJ18W-1201500U Input: 100-240V~ 50/60Hz 0.6A MAX Output:12.0V1.5A 18.0W Hardware Version V1.0 Software Version V1.3.211126.151347 1.2 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 Page 7 of 10 Report No.: STS2204179H02 2. FCC 47CFR §2.1091 REQUIREMENT 2.1 TEST STANDARDS Follow the maximum permissible exposure (MPE) limits specified in 447498 D04 Interim General Radio Frequency Exposure Guidelines v01. The gain of the antenna used in the product was extracted from the supplied antenna data sheet and the maximum total power input to the antenna was also measured. Calculate the distance from the product to the MPE limit by the formula. 2.2 LIMIT For single RF sources (i.e., any single fixed RF source, mobile device, or portable device, as defined in paragraph (b)(2) of this section): A single RF source is exempt if: (A) The available maximum time-averaged power is no more than 1 mW, regardless of separation distance. This exemption may not be used in conjunction with other exemption criteria other than those in paragraph (b)(3)(ii)(A) of Part 1.1307. Medical implant devices may only use this exemption and that in paragraph (b)(3)(ii)(A); (B) Or the available maximum time-averaged power or effective radiated power (ERP), whichever is greater, is less than or equal to the threshold Pth (mW) described in the following formula. This method shall only be used at separation distances (cm) from 0.5 centimeters to 40 centimeters and at frequencies from 0.3 GHz to 6 GHz (inclusive). Pth is given by: Page 8 of 10 Report No.: STS2204179H02 (C) Or using below table and the minimum separation distance (R in meters) from the body of a nearby person for the frequency (f in MHz) at which the so…

Text truncated - open the document above for the full version.

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, all test data presented in this report is only applicable to presented test sample. Shenzhen STS Test Services Co., Ltd. A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] RADIO TEST REPORT Report No.:STS2204179W05 Issued for NETIS SYSTEMS CO., LTD. Floor 8, Building B, TongFang Information Harbor, No.11 Langshan Road, Nanshan District, Shenzhen, China Product Name: AX1800 Whole Home Mesh WiFi 6 System Brand Name: N/A Model Name: M6 Series Model: N6T-Suit FCC ID: T58M6R Test Standard: FCC Part 15.407 S T L A B S Page 2 of 57 Report No.: STS2204179W05 TEST RESULT CERTIFICATION Applicant’s Name ................. : NETIS SYSTEMS CO., LTD. Address ................................. : Floor 8, Building B, TongFang Information Harbor, No.11 Langshan Road, Nanshan District, Shenzhen, China Manufacturer's Name .......... : NETIS SYSTEMS CO., LTD Address ................................. : Floor 8, Building B, TongFang Information Harbor, No.11 Langshan Road, Nanshan District, Shenzhen, China Product Description Product Name ........................ : AX1800 Whole Home Mesh WiFi 6 System Brand Name ......................... : N/A Model Name .......................... : M6 Series Model .......................... : N6T-Suit Test Standards ..................... : FCC Part15.407 Test Procedure............................... : ANSI C63.10-2013 This device described above has been tested by STS, the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of STS, this document only be altered or revised by STS, personal only, and shall be noted in the revision of the document. Date of Test ........................................... : Date of receipt of test item ..................... : 24 Apr. 2022 Date (s) of performance of tests ............. : 24 Apr. 2022 ~ 13 June 2022 Date of Issue .......................................... : 13 June 2022 Test Result.............................................. : Pass Testing Engineer : (Chris Chen) Technical Manager : (Sean she) Authorized Signatory : (Bovey Yang) Page 3 of 57 Report No.: STS2204179W05 Table of Contents Page 1 . SUMMARY OF TEST RESULTS 6 1.1 TEST FACTORY 7 1.2 MEASUREMENT UNCERTAINTY 7 2 . GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF THE EUT 8 2.2 DESCRIPTION OF TEST MODES 11 2.3 TEST SOFTWARE AND POWER LEVEL 12 2.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 13 2.5 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 14 2.6 EQUIPMENTS LIST FOR ALL TEST ITEMS 15 3 . EMC EMISSION TEST 17 3.1 CONDUCTED EMISSION MEASUREMENT 17 3.2 RADIATED EMISSION AND ( BANDEDGE) MEASUREMENT 21 4. POWER SPECTRAL DENSITY TEST 49 4.1 LIMIT 49 4.2 TEST PROCEDURE 49 4.3 DEVIATION FROM STANDARD 50 4.4 TEST SETUP 50 4.5 EUT OPERATION CONDITIONS 50 4.6 TEST RESULTS 50 5. BANDWIDTH MEASUREMENT 51 5.1 EMISSION BANDWIDTH (EBW) 26 BANDWID PROCEDURES / LIMIT 51 5.2 OCCUPIED BANDWIDTH ( 99%) TEST APPLIED PROCEDURES / LIMIT 52 5.3 MINIMUM EMISSION BANDWIDTH(6 DB) PROCEDURES / LIMIT 53 6. MAXIMUM CONDUCTED OUTPUT POWER 54 6.1 LIMIT 54 6.2 TEST PROCEDURE 54 6.3 DEVIATION FROM STANDARD 54 6.4 TEST SETUP 54 6.5 EUT OPERATION CONDITIONS 54 6.6 TEST RESULTS 54 7. AUTOMATICALLY DISCONTINUE TRANSMISSION 55 7.1 LIMIT OF AUTOMATICALLY DISCONTINUE TRANSMISSION 55 7.2 TEST RESULT OF AUTOMATICALLY DISCONTINUE TRANSMISSION 55 Page 4 of 57 Report No.: STS2204179W05 Table of Contents Page 8. ANTENNA REQUIREMENT 56 8.1 STANDARD REQUIREMENT 56 8.2 EUT ANTENNA 56 APPENDIX - PHOTOS OF TEST SETUP 57 Page 5 of 57 Report No.: STS2204179W05 Revision History Rev. Issue Date Report NO. Effect Page Contents 00 13 June 2022 STS2204179W05 ALL Initial Issue Page 6 of 57 Report No.: STS2204179W05 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: § 15.407,KDB 789033 D02 General U-NII Test Procedures New Rules v02r01 FCC Part 15.407 FCC standard Test Item Results 15.207 AC Conducted Emission PASS 15.407 (a) /15.407 (e) 26dB/6dB &99% Bandwidth PASS 15.407(a) Maximum Conducted Output Power PASS 15.407(b)/15.205/15.209 Radiated Emission And (bandedge Emissions) Measurement PASS 15.407(a) Power Spectral Density PASS 15.407(c) Automatically Discontinue Transmission PASS 15.203/15.204 Antenna Requirement PASS NOTE: (1) ‘N/A’ denotes test is not applicable in this Test Report. (2) All tests are according to ANSI C63.10-2013. Page 7 of 57 Report No.: STS2204179W05 1.1 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 RF output power, conducted ±0.87dB 2 Unwanted Emissions, conducted ±2.895dB 3 All emissions, radiated 9K-30MHz ±3.80dB 4 All emissions, radiated 30M-1GHz ±4.09dB 5 All emissions, radiated 1G-6GHz ±4.92dB 6 All emissions, radiated>6G ±5.49dB 7 Conducted Emission (9KHz-30MHz) ±2.73dB Page 8 of 57 Report No.: STS2204179W05 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF THE EUT Product Name AX1800 Whole Home Mesh WiFi 6 System Trade Name N/A Model Name M6 Series Model N6T-Suit Model Difference Only different in model name. Product Description The EUT is a AX1800 Whole …

Text truncated - open the document above for the full version.

Report No:STS2204179W05_Appendix 5.2G WIFI Duty Cycle Condition Mode Frequency (MHz) Antenna Duty Cycle (%) Correction Factor (dB) 1/T (kHz) NVNT a 5180 Ant1 96.08 0.17 0.72 NVNT a 5200 Ant1 96.05 0.18 0.72 NVNT a 5240 Ant1 96.15 0.17 0.72 NVNT a 5180 Ant2 96.05 0.18 0.72 NVNT a 5200 Ant2 96.08 0.17 0.72 NVNT a 5240 Ant2 96.08 0.17 0.72 NVNT ac20 5180 Sum 92.28 0.35 1.46 NVNT ac20 5200 Sum 92.28 0.35 1.46 NVNT ac20 5240 Sum 92.6 0.33 1.45 NVNT ac40 5190 Sum 86.55 0.63 2.82 NVNT ac40 5230 Sum 86.36 0.64 2.83 NVNT ac80 5210 Sum 36.71 4.35 5.28 NVNT ax20 5180 Sum 90.49 0.43 1.84 NVNT ax20 5200 Sum 90.49 0.43 1.84 NVNT ax20 5240 Sum 90.42 0.44 1.84 NVNT ax40 5190 Sum 84.78 0.72 3.29 NVNT ax40 5230 Sum 84.36 0.74 3.3 NVNT ax80 5210 Sum 35.29 4.52 5.65 NVNT n20 5180 Sum 95.77 0.19 0.77 NVNT n20 5200 Sum 95.92 0.18 0.77 NVNT n20 5240 Sum 95.95 0.18 0.77 NVNT n40 5190 Sum 91.91 0.37 1.57 NVNT n40 5230 Sum 92.17 0.35 1.56 Report No:STS2204179W05_Appendix 5.2G WIFI Test Graphs Duty Cycle NVNT a 5180MHz Ant1 Duty Cycle NVNT a 5200MHz Ant1 Report No:STS2204179W05_Appendix 5.2G WIFI Duty Cycle NVNT a 5240MHz Ant1 Duty Cycle NVNT a 5180MHz Ant2 Report No:STS2204179W05_Appendix 5.2G WIFI Duty Cycle NVNT a 5200MHz Ant2 Duty Cycle NVNT a 5240MHz Ant2 Report No:STS2204179W05_Appendix 5.2G WIFI Duty Cycle NVNT ac20 5180MHz Sum Duty Cycle NVNT ac20 5200MHz Sum Report No:STS2204179W05_Appendix 5.2G WIFI Duty Cycle NVNT ac20 5240MHz Sum Duty Cycle NVNT ac40 5190MHz Sum Report No:STS2204179W05_Appendix 5.2G WIFI Duty Cycle NVNT ac40 5230MHz Sum Duty Cycle NVNT ac80 5210MHz Sum Report No:STS2204179W05_Appendix 5.2G WIFI Duty Cycle NVNT ax20 5180MHz Sum Duty Cycle NVNT ax20 5200MHz Sum Report No:STS2204179W05_Appendix 5.2G WIFI Duty Cycle NVNT ax20 5240MHz Sum Duty Cycle NVNT ax40 5190MHz Sum Report No:STS2204179W05_Appendix 5.2G WIFI Duty Cycle NVNT ax40 5230MHz Sum Duty Cycle NVNT ax80 5210MHz Sum Report No:STS2204179W05_Appendix 5.2G WIFI Duty Cycle NVNT n20 5180MHz Sum Duty Cycle NVNT n20 5200MHz Sum Report No:STS2204179W05_Appendix 5.2G WIFI Duty Cycle NVNT n20 5240MHz Sum Duty Cycle NVNT n40 5190MHz Sum Report No:STS2204179W05_Appendix 5.2G WIFI Duty Cycle NVNT n40 5230MHz Sum Report No:STS2204179W05_Appendix 5.2G WIFI Maximum Average Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Duty Factor (dB) Total Power (dBm) Limit (dBm) Verdict NVNT a 5180 Ant1 8.93 0.17 9.1 <=23.98 Pass NVNT a 5200 Ant1 9.96 0.18 10.14 <=23.98 Pass NVNT a 5240 Ant1 10.79 0.17 10.96 <=23.98 Pass NVNT a 5180 Ant2 11.48 0.18 11.66 <=23.98 Pass NVNT a 5200 Ant2 11.52 0.17 11.69 <=23.98 Pass NVNT a 5240 Ant2 11.45 0.17 11.62 <=23.98 Pass NVNT ac20 5180 Ant1 8.67 0.35 9.02 <=23.98 Pass NVNT ac20 5180 Ant2 11.1 0.35 11.45 <=23.98 Pass NVNT ac20 5180 Sum 13.06 0.33 13.39 <=22.97 Pass NVNT ac20 5200 Ant1 9.61 0.35 9.96 <=23.98 Pass NVNT ac20 5200 Ant2 11.34 0.35 11.69 <=23.98 Pass NVNT ac20 5200 Sum 13.57 0.33 13.90 <=22.97 Pass NVNT ac20 5240 Ant1 10.35 0.35 10.70 <=23.98 Pass NVNT ac20 5240 Ant2 11.53 0.35 11.88 <=23.98 Pass NVNT ac20 5240 Sum 13.99 0.33 14.32 <=22.97 Pass NVNT ac40 5190 Ant1 8.61 0.63 9.24 <=23.98 Pass NVNT ac40 5190 Ant2 10.82 0.63 11.45 <=23.98 Pass NVNT ac40 5190 Sum 12.86 0.63 13.49 <=22.97 Pass NVNT ac40 5230 Ant1 9.89 0.64 10.53 <=23.98 Pass NVNT ac40 5230 Ant2 11.16 0.64 11.80 <=23.98 Pass NVNT ac40 5230 Sum 13.58 0.64 14.22 <=22.97 Pass NVNT ac80 5210 Ant1 5.11 4.35 9.46 <=23.98 Pass NVNT ac80 5210 Ant2 6.79 4.35 11.14 <=23.98 Pass NVNT ac80 5210 Sum 9.04 4.35 13.39 <=22.97 Pass NVNT ax20 5180 Ant1 9.09 0.43 9.52 <=23.98 Pass NVNT ax20 5180 Ant2 11.55 0.43 11.98 <=23.98 Pass NVNT ax20 5180 Sum 13.5 0.43 13.93 <=22.97 Pass NVNT ax20 5200 Ant1 9.96 0.43 10.39 <=23.98 Pass NVNT ax20 5200 Ant2 11.64 0.43 12.07 <=23.98 Pass NVNT ax20 5200 Sum 13.89 0.43 14.32 <=22.97 Pass NVNT ax20 5240 Ant1 10.6 0.44 11.04 <=23.98 Pass NVNT ax20 5240 Ant2 11.73 0.44 12.17 <=23.98 Pass NVNT ax20 5240 Sum 14.21 0.44 14.65 <=22.97 Pass NVNT ax40 5190 Ant1 8.7 0.72 9.42 <=23.98 Pass NVNT ax40 5190 Ant2 11.06 0.72 11.78 <=23.98 Pass NVNT ax40 5190 Sum 13.05 0.72 13.77 <=22.97 Pass NVNT ax40 5230 Ant1 9.92 0.74 10.66 <=23.98 Pass NVNT ax40 5230 Ant2 11.26 0.74 12.00 <=23.98 Pass NVNT ax40 5230 Sum 13.65 0.74 14.39 <=22.97 Pass Report No:STS2204179W05_Appendix 5.2G WIFI NVNT ax80 5210 Ant1 4.7 4.52 9.22 <=23.98 Pass NVNT ax80 5210 Ant2 6.88 4.52 11.40 <=23.98 Pass NVNT ax80 5210 Sum 8.94 4.52 13.46 <=22.97 Pass NVNT n20 5180 Ant1 8.92 0.19 9.11 <=23.98 Pass NVNT n20 5180 Ant2 11.33 0.19 11.52 <=23.98 Pass NVNT n20 5180 Sum 13.3 0.19 13.49 <=22.97 Pass NVNT n20 5200 Ant1 9.88 0.18 10.06 <=23.98 Pass NVNT n20 5200 Ant2 11.54 0.18 11.72 <=23.98 Pass NVNT n20 5200 Sum 13.8 0.18 13.98 <=22.97 Pass NVNT n20 5240 Ant1 10.56 0.18 10.74 <=23.98 Pass NVNT n20 5240 Ant2 11.67 0.18 11.85 <=23.98 Pass NVNT n20 5240 Sum 14.16 0.18 14.34 <=22.97 Pass NVNT n40 5190 Ant1 8.37 0.37 8.74 <=23.98 Pass NVNT n40 5190 Ant2 10.63 0.37 11.00 <=23.98 Pass NVNT n40 5190 Sum 12.66 0.37 13.03 <=22.97 Pass NVNT n40 5230 Ant1 10.15 0.35 10.50 <=23.98 Pass NVNT n40 5230 Ant2 11.45 0.35 11.80 <=23.98 Pass NVNT n40 5230 Sum 13.86 0.35 14.21 <=22.97 Pass Report No:STS2204179W05_Appendix 5.2G WIFI Test Graphs Average Power NVNT a 5180MHz Ant1 Average Power NVNT a 5200MHz Ant1 Report No:STS2204179W05_Appendix 5.2G WIFI Average Power NVNT a 5240MHz Ant1 Average Power NVNT a 5180MHz Ant2 Report No:STS2204179W05_Appendix 5.2G WIFI Average Power NVNT a 5200MHz Ant2 Average Power NVNT a 5240MHz Ant2 Report No:STS2204179W05_Appendix 5.2G WIFI Average Power NVNT ac20 5180MHz Ant1 Average Power NVNT ac20 5180MHz Ant2 Report No:STS2204179W05_Appendix 5.2G WIFI Average Power NVNT ac20 5200MHz Ant1 Average Power NVNT ac20 5200MHz Ant2 Report No:STS2204179W05_Appendix 5.2G WIFI Average Power NVNT ac20 5240MHz Ant1 Average Power NVNT ac20 5240MHz Ant2 Report No:STS2204179W05_Appendix 5.2G WIFI Average Power NVNT ac40 5190MHz Ant1 Average Power NVNT ac40…

Text truncated - open the document above for the full version.

Report No:STS2204179W05_Appendix 5.8G WIFI Duty Cycle Condition Mode Frequency (MHz) Antenna Duty Cycle (%) Correction Factor (dB) 1/T (kHz) NVNT a 5745 Ant1 96.05 0.18 0.72 NVNT a 5785 Ant1 96.05 0.18 0.72 NVNT a 5825 Ant1 96.05 0.18 0.72 NVNT a 5745 Ant2 96.05 0.18 0.72 NVNT a 5785 Ant2 96.08 0.17 0.72 NVNT a 5825 Ant2 96.05 0.18 0.72 NVNT ac20 5745 Sum 92.19 0.35 1.46 NVNT ac20 5785 Sum 92.26 0.35 1.46 NVNT ac20 5825 Sum 92.19 0.35 1.46 NVNT ac40 5755 Sum 86.6 0.62 2.81 NVNT ac40 5795 Sum 86.46 0.63 2.82 NVNT ac80 5775 Sum 35.55 4.49 5.27 NVNT ax20 5745 Sum 90.49 0.43 1.84 NVNT ax20 5785 Sum 90.49 0.43 1.84 NVNT ax20 5825 Sum 90.58 0.43 1.84 NVNT ax40 5755 Sum 84.58 0.73 3.3 NVNT ax40 5795 Sum 84.27 0.74 3.31 NVNT ax80 5775 Sum 31.73 4.99 5.67 NVNT n20 5745 Sum 95.74 0.19 0.77 NVNT n20 5785 Sum 95.74 0.19 0.77 NVNT n20 5825 Sum 95.71 0.19 0.77 NVNT n40 5755 Sum 92.09 0.36 1.56 NVNT n40 5795 Sum 91.88 0.37 1.57 Report No:STS2204179W05_Appendix 5.8G WIFI Test Graphs Duty Cycle NVNT a 5745MHz Ant1 Duty Cycle NVNT a 5785MHz Ant1 Report No:STS2204179W05_Appendix 5.8G WIFI Duty Cycle NVNT a 5825MHz Ant1 Duty Cycle NVNT a 5745MHz Ant2 Report No:STS2204179W05_Appendix 5.8G WIFI Duty Cycle NVNT a 5785MHz Ant2 Duty Cycle NVNT a 5825MHz Ant2 Report No:STS2204179W05_Appendix 5.8G WIFI Duty Cycle NVNT ac20 5745MHz Sum Duty Cycle NVNT ac20 5785MHz Sum Report No:STS2204179W05_Appendix 5.8G WIFI Duty Cycle NVNT ac20 5825MHz Sum Duty Cycle NVNT ac40 5755MHz Sum Report No:STS2204179W05_Appendix 5.8G WIFI Duty Cycle NVNT ac40 5795MHz Sum Duty Cycle NVNT ac80 5775MHz Sum Report No:STS2204179W05_Appendix 5.8G WIFI Duty Cycle NVNT ax20 5745MHz Sum Duty Cycle NVNT ax20 5785MHz Sum Report No:STS2204179W05_Appendix 5.8G WIFI Duty Cycle NVNT ax20 5825MHz Sum Duty Cycle NVNT ax40 5755MHz Sum Report No:STS2204179W05_Appendix 5.8G WIFI Duty Cycle NVNT ax40 5795MHz Sum Duty Cycle NVNT ax80 5775MHz Sum Report No:STS2204179W05_Appendix 5.8G WIFI Duty Cycle NVNT n20 5745MHz Sum Duty Cycle NVNT n20 5785MHz Sum Report No:STS2204179W05_Appendix 5.8G WIFI Duty Cycle NVNT n20 5825MHz Sum Duty Cycle NVNT n40 5755MHz Sum Report No:STS2204179W05_Appendix 5.8G WIFI Duty Cycle NVNT n40 5795MHz Sum Report No:STS2204179W05_Appendix 5.8G WIFI Maximum Average Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Duty Factor (dB) Total Power (dBm) Limit (dBm) Verdict NVNT a 5745 Ant1 9.34 0.18 9.52 <=30 Pass NVNT a 5785 Ant1 9.61 0.18 9.79 <=30 Pass NVNT a 5825 Ant1 9.76 0.18 9.94 <=30 Pass NVNT a 5745 Ant2 11.24 0.18 11.42 <=30 Pass NVNT a 5785 Ant2 11 0.17 11.17 <=30 Pass NVNT a 5825 Ant2 10.74 0.18 10.92 <=30 Pass NVNT ac20 5745 Ant1 9.21 0.35 9.56 <=30 Pass NVNT ac20 5745 Ant2 11.08 0.35 11.43 <=30 Pass NVNT ac20 5745 Sum 13.26 0.35 13.61 <=28.99 Pass NVNT ac20 5785 Ant1 9.32 0.35 9.67 <=30 Pass NVNT ac20 5785 Ant2 10.8 0.35 11.15 <=30 Pass NVNT ac20 5785 Sum 13.13 0.35 13.48 <=28.99 Pass NVNT ac20 5825 Ant1 9.44 0.35 9.79 <=30 Pass NVNT ac20 5825 Ant2 10.59 0.35 10.94 <=30 Pass NVNT ac20 5825 Sum 13.06 0.35 13.41 <=28.99 Pass NVNT ac40 5755 Ant1 8.71 0.62 9.33 <=30 Pass NVNT ac40 5755 Ant2 10.39 0.62 11.01 <=30 Pass NVNT ac40 5755 Sum 12.64 0.62 13.26 <=28.99 Pass NVNT ac40 5795 Ant1 9 0.63 9.63 <=30 Pass NVNT ac40 5795 Ant2 10.26 0.63 10.89 <=30 Pass NVNT ac40 5795 Sum 12.69 0.63 13.32 <=28.99 Pass NVNT ac80 5775 Ant1 4.87 4.49 9.36 <=30 Pass NVNT ac80 5775 Ant2 6.59 4.49 11.08 <=30 Pass NVNT ac80 5775 Sum 8.82 4.49 13.31 <=28.99 Pass NVNT ax20 5745 Ant1 9.24 0.43 9.67 <=30 Pass NVNT ax20 5745 Ant2 11.21 0.43 11.64 <=30 Pass NVNT ax20 5745 Sum 13.35 0.43 13.78 <=28.99 Pass NVNT ax20 5785 Ant1 9.55 0.43 9.98 <=30 Pass NVNT ax20 5785 Ant2 10.99 0.43 11.42 <=30 Pass NVNT ax20 5785 Sum 13.34 0.43 13.77 <=28.99 Pass NVNT ax20 5825 Ant1 9.58 0.43 10.01 <=30 Pass NVNT ax20 5825 Ant2 10.7 0.43 11.13 <=30 Pass NVNT ax20 5825 Sum 13.19 0.43 13.62 <=28.99 Pass NVNT ax40 5755 Ant1 8.77 0.73 9.50 <=30 Pass NVNT ax40 5755 Ant2 10.5 0.73 11.23 <=30 Pass NVNT ax40 5755 Sum 12.73 0.73 13.46 <=28.99 Pass NVNT ax40 5795 Ant1 9.06 0.74 9.80 <=30 Pass NVNT ax40 5795 Ant2 10.27 0.74 11.01 <=30 Pass NVNT ax40 5795 Sum 12.72 0.74 13.46 <=28.99 Pass Report No:STS2204179W05_Appendix 5.8G WIFI NVNT ax80 5775 Ant1 4.83 4.99 9.82 <=30 Pass NVNT ax80 5775 Ant2 6.55 4.99 11.54 <=30 Pass NVNT ax80 5775 Sum 8.78 4.99 13.77 <=28.99 Pass NVNT n20 5745 Ant1 9.24 0.19 9.43 <=30 Pass NVNT n20 5745 Ant2 11.12 0.19 11.31 <=30 Pass NVNT n20 5745 Sum 13.29 0.19 13.48 <=28.99 Pass NVNT n20 5785 Ant1 9.49 0.19 9.68 <=30 Pass NVNT n20 5785 Ant2 10.9 0.19 11.09 <=30 Pass NVNT n20 5785 Sum 13.26 0.19 13.45 <=28.99 Pass NVNT n20 5825 Ant1 9.59 0.19 9.78 <=30 Pass NVNT n20 5825 Ant2 10.57 0.19 10.76 <=30 Pass NVNT n20 5825 Sum 13.12 0.19 13.31 <=28.99 Pass NVNT n40 5755 Ant1 8.98 0.36 9.34 <=30 Pass NVNT n40 5755 Ant2 10.66 0.36 11.02 <=30 Pass NVNT n40 5755 Sum 12.91 0.36 13.27 <=28.99 Pass NVNT n40 5795 Ant1 9.23 0.37 9.60 <=30 Pass NVNT n40 5795 Ant2 10.66 0.37 11.03 <=30 Pass NVNT n40 5795 Sum 13.01 0.37 13.38 <=28.99 Pass Report No:STS2204179W05_Appendix 5.8G WIFI Test Graphs Average Power NVNT a 5745MHz Ant1 Average Power NVNT a 5785MHz Ant1 Report No:STS2204179W05_Appendix 5.8G WIFI Average Power NVNT a 5825MHz Ant1 Average Power NVNT a 5745MHz Ant2 Report No:STS2204179W05_Appendix 5.8G WIFI Average Power NVNT a 5785MHz Ant2 Average Power NVNT a 5825MHz Ant2 Report No:STS2204179W05_Appendix 5.8G WIFI Average Power NVNT ac20 5745MHz Ant1 Average Power NVNT ac20 5745MHz Ant2 Report No:STS2204179W05_Appendix 5.8G WIFI Average Power NVNT ac20 5785MHz Ant1 Average Power NVNT ac20 5785MHz Ant2 Report No:STS2204179W05_Appendix 5.8G WIFI Average Power NVNT ac20 5825MHz Ant1 Average Power NVNT ac20 5825MHz Ant2 Report No:STS2204179W05_Appendix 5.8G WIFI Average Power NVNT ac40 5755MHz Ant1 Average Power NVNT ac40 5755MHz Ant2 Report No:STS2204179W05_Appendix 5.8G WIFI Average Power NVNT ac40 5795MHz Ant1 Average Power NVNT ac40 5795MHz Ant2 Repor…

Text truncated - open the document above for the full version.

Report No:STS2204179W05_Appendix 5.8G WIFI -6dB Bandwidth NVNT ax80 5775MHz Ant1 -6dB Bandwidth NVNT ax80 5775MHz Ant2 Report No:STS2204179W05_Appendix 5.8G WIFI -6dB Bandwidth NVNT n20 5745MHz Ant1 -6dB Bandwidth NVNT n20 5745MHz Ant2 Report No:STS2204179W05_Appendix 5.8G WIFI -6dB Bandwidth NVNT n20 5785MHz Ant1 -6dB Bandwidth NVNT n20 5785MHz Ant2 Report No:STS2204179W05_Appendix 5.8G WIFI -6dB Bandwidth NVNT n20 5825MHz Ant1 -6dB Bandwidth NVNT n20 5825MHz Ant2 Report No:STS2204179W05_Appendix 5.8G WIFI -6dB Bandwidth NVNT n40 5755MHz Ant1 -6dB Bandwidth NVNT n40 5755MHz Ant2 Report No:STS2204179W05_Appendix 5.8G WIFI -6dB Bandwidth NVNT n40 5795MHz Ant1 -6dB Bandwidth NVNT n40 5795MHz Ant2 Report No:STS2204179W05_Appendix 5.8G WIFI Occupied Channel Bandwidth Condition Mode Frequency (MHz) Antenna 99% OBW (MHz) NVNT a 5745 Ant1 16.489 NVNT a 5785 Ant1 16.464 NVNT a 5825 Ant1 16.446 NVNT a 5745 …

Text truncated - open the document above for the full version.
