T58NX30RAX3000 Wireless Dual-Band WiFi6 Router

FCC Caution. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

NETISSYSTEMSCO., LTD 2023 /3/29 EurofinsElectricaland ElectronicTestingNA, Inc. 914 WestPatapscoAvenue Baltimore,MD 21230 RE: AttestationStatementsPart 2.911(d)(5)(i)requestfor (FCCID :T58NX30R) NETIS SYSTEMS CO., LTD (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Signature: KINKI NETISSYSTEMSCO., LTD 2023 /3/29 EurofinsElectricaland ElectronicTestingNA, Inc. 914 WestPatapscoAvenue Baltimore,MD 21230 RE: AttestationStatementsPart 2.911(d)(5)(ii)requestfor (FCCID :T58NX30R) NETIS SYSTEMS CO., LTD (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Signature: KINKI

AttestationStatements 2023/3/29 TO:FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046,USA RE:AttestationStatementsPart2.911(d)(7)requestfor(FCCID:T58NX30R) NETISSYSTEMSCO.,LTD,theundersigned,herebyauthorizeNTSYSINC.toactasour designatedU.S.agentforserviceofprocess,NETISSYSTEMSCO.,LTDacceptsto maintainanagentfornolessthanoneyearafterthegranteehasterminatedall marketingandimportationortheconclusionofanyCommission-relatedproceeding involvingtheequipment. NTSYSINC.acceptstheresponsibilitytoactasdesignatedU.S.agentforserviceof process. ApplicantInformation： Companyname:NETISSYSTEMSCO.,LTD ContactName:KINKI Address:Floor8,BuildingB,TongFangInformationHarbor,No.11LangshanRoad,Nanshan District,Shenzhen,China TelephoneNo:0755-86677840 Email:[email protected] Signature: KINKI U.S.AgentInformation: CompanyName:NTSYSINC. Address:721BreaCanyonRoad,Suite10,Walnut,CA91789 FRN:0033645284 ContactName:John TelephoneNo:(626)5869338 Email:[email protected] Signature:

Model Confirmation Letter We,NETIS SYSTEMS CO., LTD Product Name:AX3000 Wireless Dual-Band WiFi6 Router Model No.: NX30,DIR-X3060Z,DIR-X3000,DIR-X3000Z We declare that Model DIR-X3060Z,DIR-X3000,DIR-X3000Z have same working principles & PCB Board & block diagram & operating principle as the certified prototype of model NX30,They’re No difference, Just sold to D-link. Company Name:NETIS SYSTEMS CO., LTD Date: 2023/4/13 Signture:

NETISSYSTEMSCO.,LTD 2023.3.29 EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 RE:LETTEROFAGENTAUTHORIZATION ToWhomItMayConcern: We,theundersigned,herebyauthorize(ShenzhenLGTTestServiceCo.,Ltd.)toactonour behalfinallmattersrelatingtoapplicationforequipmentauthorization,includingthesigningof alldocumentsrelatingtothesematters. Wealsoherebycertifythatnopartytotheapplicationauthorizedhereunderissubjecttothe denialofbenefits,includingFCCbenefits,pursuanttoSection5301oftheAnti-DrugAbuseAct of1988,21U.S.C.853(a). Thisagreementexpiresoneyearfromthecurrentdate. Sincerely, Signature:Date:2023.03.29 Name:KINKI Title:Manager Company:NETISSYSTEMSCO.,LTD

NETIS SYSTEMS CO., LTD Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2023.3.29 Subject; Request for Confidentiality FCC ID:T58NX30R To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market.Long-Term Confidentiality: Schematic Diagram Block Diagram Operational Description Part List In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: KINKI/NETIS SYSTEMS CO., LTD Title:Manager

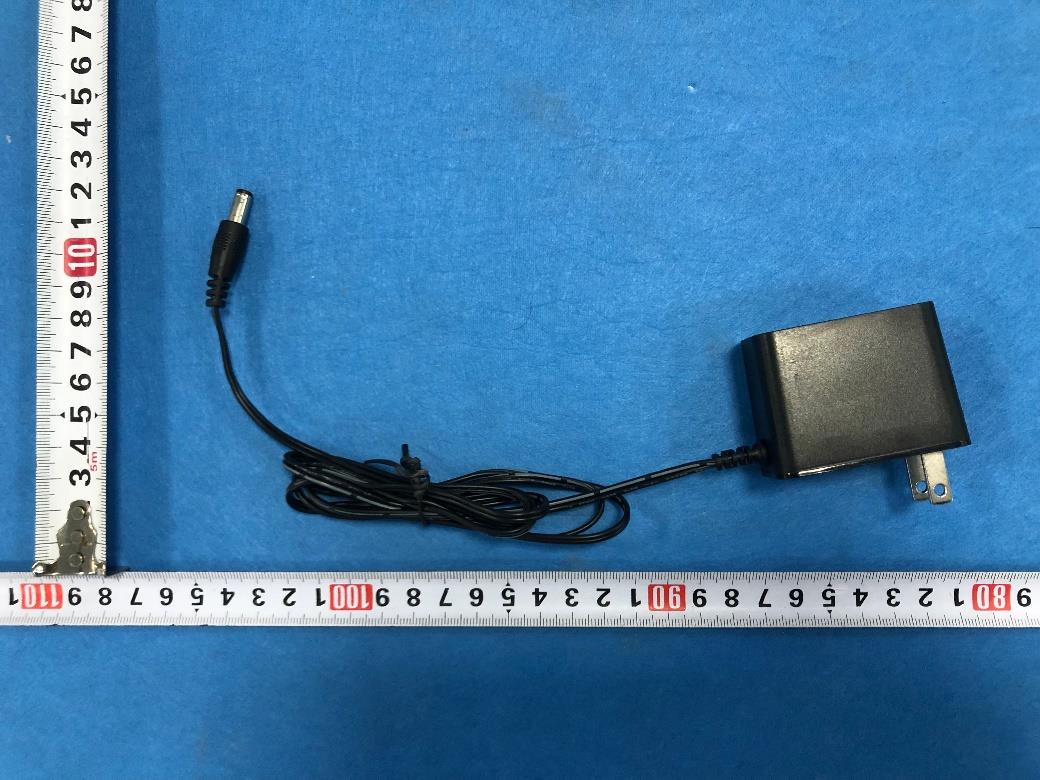

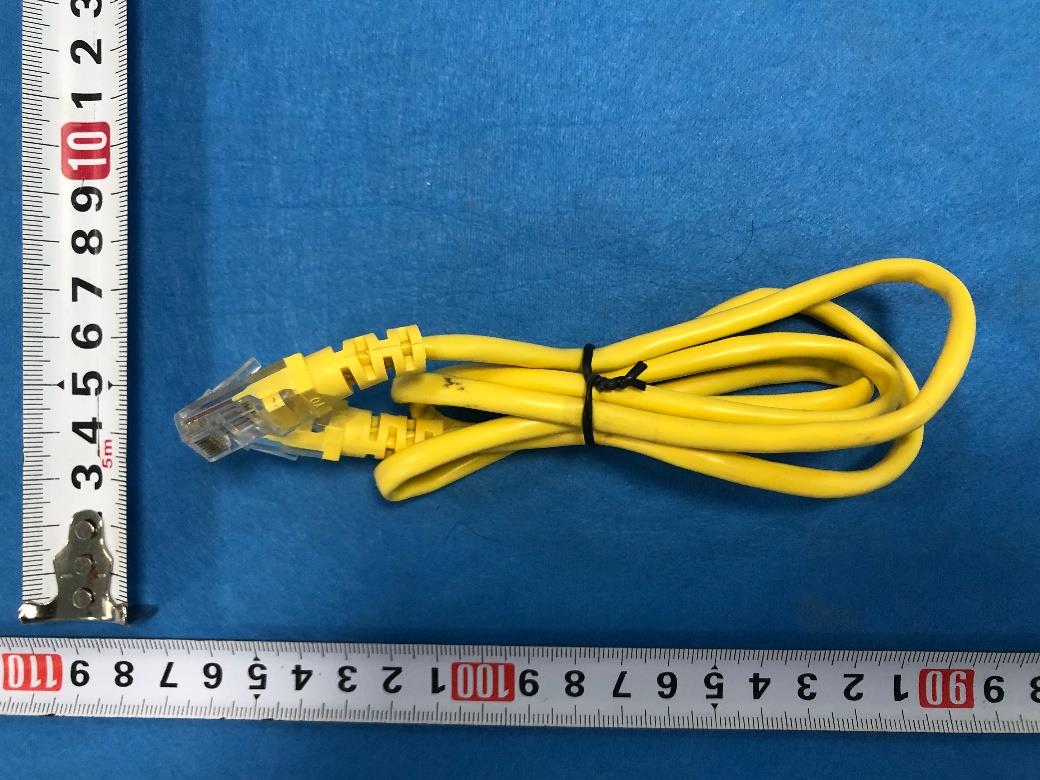

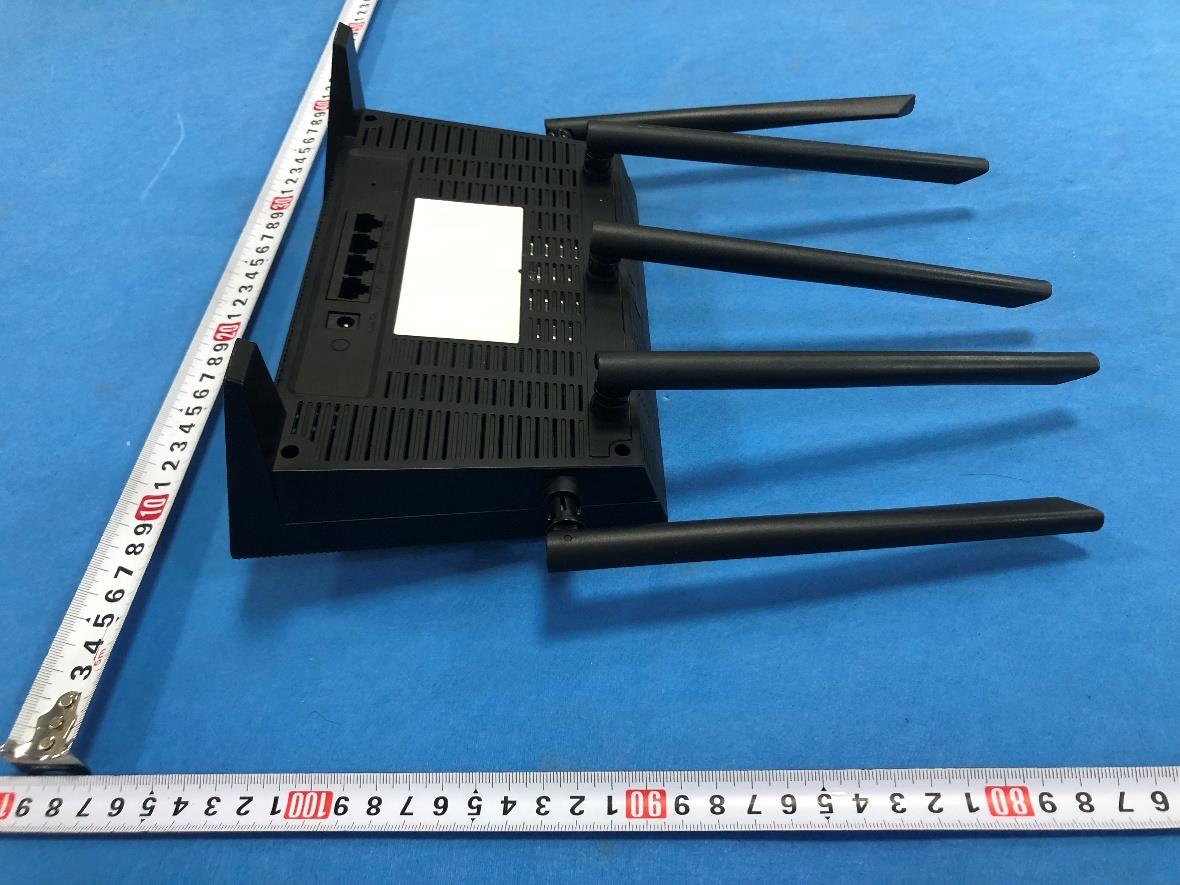

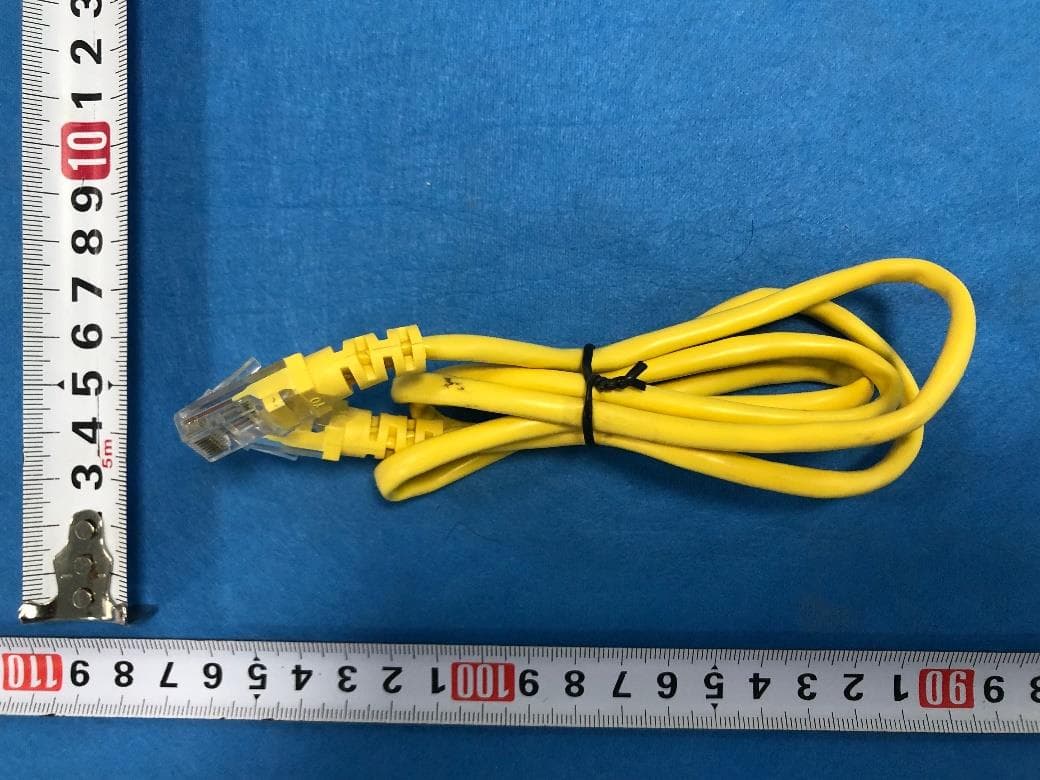

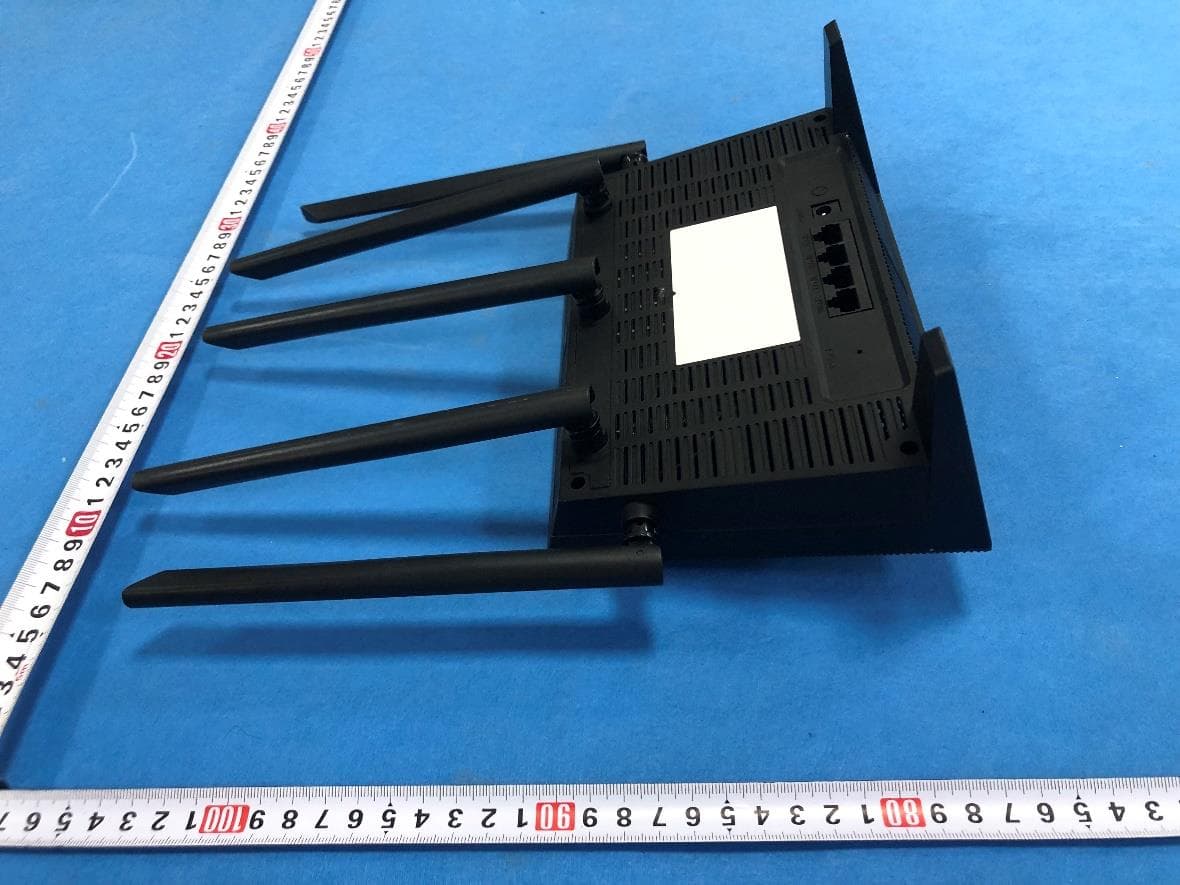

Page 1 of 6 Report No.: LGT23C033 Appendix - External Photographs of EUT Constructional Details FCC ID: T58NX30R Model: NX30 Photo 1 Photo 2 Page 2 of 6 Report No.: LGT23C033 Photo 3 Photo 4 Page 3 of 6 Report No.: LGT23C033 Photo 5 Photo 6 Page 4 of 6 Report No.: LGT23C033 Photo 7 Photo 8 Page 5 of 6 Report No.: LGT23C033 Photo 9 Photo 10 Page 6 of 6 Report No.: LGT23C033 Photo 11 Photo 12

Label AX3000 Wireless Dual-Band WiFi6 Router FCC ID: T58NX30R

Page 1 of 4 Report No.: LGT23C033 Appendix - Internal Photographs of EUT Constructional Details FCC ID: T58NX30R Model: NX30 Photo 1 Photo 2 2.4GHz ANT1 5GHz ANT3 1 5GHz ANT2 5GHz ANT1 2.4GHz ANT2 Page 2 of 4 Report No.: LGT23C033 Photo 3 Photo 4 Page 3 of 4 Report No.: LGT23C033 Photo 5 Photo 6 Page 4 of 4 Report No.: LGT23C033 Photo 7

RF Exposure Report FCC ID:T58NX30R RF Exposure Measurement The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The gain of the antennas used in the product is extracted from the Antenna data sheets provided and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis Transmission formula is far field assumption, the calculated result of that is an over- prediction for near field power density. It is taken as worst case to specify the safety range. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of the human exposure to radio-frequency (RF) radiation as specified in 1.1307 (b) Limits for Maximum Permissible Exposure (MPE) F= Frequency in MHz Friss Formula Friss Transmission Formula: Pd = (Pout * G) / (4*pi*r²) Where Pd = power density in mW/cm² Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = Distance between observation point and the center of radiator in cm If we know the maximum gain of the antenna and the total output power to the antenna, through calculation, we will know MPE value at distance 20cm. EUT Operation condition EUT was enabled to transmit and receive at lowest, middle and highest channels. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance from the antenna should be included in the User manual. So, this device is classified as Mobile device. Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm²) Limits for Occupational / controlled Exposures 300 - 1500 -- -- F/300 1500 – 100000 -- -- 5.0 Limits for General population / Uncontrolled Exposure 300 - 1500 -- -- F/1500 1500 – 100000 -- -- 1.0 2.4G WIFI Mode 2412~2462 MHz Detector PEAK 802.11b 15±1dBm 802.11g 16±1dBm 802.11n20 18±1dBm 802.11n40 18±1dBm 802.11ax20 17±1dBm 802.11ax40 19±1dBm ANT Gain (G) Antenna number:3 Antenna gain:ANT1:4.96dBi;ANT2:5.55dBi;MIMO:8.27dBi. 802.11b3.58924121639.81070.028441 802.11g3.13324621750.11870.035801 802.11n206.71424621979.43280.106151 802.11n406.71424371979.43280.106151 802.11ax206.71424621863.09570.084321 802.11ax406.714243720100.00000.133641 Power Density (mW/cm²) Limit (mW/cm²) ANT Gain(gain of antenna in linear scale) Protocol Channel Frequency (MHz) Output Power to Antenna (dBm) Output Power to Antenna (mW) 5G WIFI Mode 5180~5825MHz Detector PEAK a 9±1dBm n20 13±1dBm n40 13±1dBm ac80 12.5±1dBm ac160 14±1dBm ax80 13±1dBm ax160 15±1dBm ANT Gain (G) Antenna number:3 Antenna gain: ANT1: 5.15dBi;ANT2: 5.5dBi;ANT3: 5.85dBi,MiNO:10.28dBi. a3.59257851010.00000.007151 n2010.66652401425.11890.017961 n4010.66652301425.11890.053331 ac8010.666521013.522.38720.047531 ac16010.66652501531.62280.067141 ax8010.66652101425.11890.053331 ax16010.66652501639.81070.084521 Power Density (mW/cm²) Limit (mW/cm²) ANT Gain(gain of antenna in linear scale) Protocol Channel Frequency (MHz) Output Power to Antenna (dBm) Output Power to Antenna (mW)

The test report is effective only with both signature and specialized stamp. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report only apply to the tested sample. Shenzhen LGT Test Service Co., Ltd. Tel: 0755-89668180 E-mail:[email protected] Web: www.lgt-cert.com Room 205, Building 13, Zone B, Chen Hsong Industrial Park, No.177 Renmin West Road, Jinsha Community, Kengzi Street, Pingshan New District, Shenzhen, China RF TEST REPORT Product Name: AX3000 Wireless Dual-Band WiFi6 Router Model Name: NX30, DIR-X3060Z, DIR-X3000, DIR-X3000Z FCC ID: T58NX30R Issued For : NETIS SYSTEMS CO., LTD Floor 8, Building B, TongFang Information Harbor, No.11 Langshan Road, Nanshan District, Shenzhen, China Issued By : Shenzhen LGT Test Service Co., Ltd. Room 205, Building 13, Zone B, Chen Hsong Industrial Park, No.177 Renmin West Road, Jinsha Community, Kengzi Street, Pingshan New District, Shenzhen, China Report Number: LGT23C033RF01 Sample Received Date: Mar. 16, 2023 Date of Test: Mar. 16, 2023 – Mar. 28, 2023 Date of Issue: Mar. 28, 2023 Report No.: LGT23C033RF01 Page 2 of 133 TEST REPORT CERTIFICATION Applicant NETIS SYSTEMS CO., LTD Address Floor 8, Building B, TongFang Information Harbor, No.11 Langshan Road, Nanshan District, Shenzhen, China Manufacturer NETIS SYSTEMS CO., LTD Address Floor 8, Building B, TongFang Information Harbor, No.11 Langshan Road, Nanshan District, Shenzhen, China Factory Jiangxi Netis Technology Co., Ltd. Address No.6 tongjiu road, Economic and Technological Development District, Pingxiang, Jiangxi, China. Product Name AX3000 Wireless Dual-Band WiFi6 Router Trade Mark N/A Model Name NX30, DIR-X3060Z, DIR-X3000, DIR-X3000Z Sample Status: Normal APPLICABLE STANDARDS STANDARD TEST RESULTS FCC Part 15.247, Subpart C ANSI C63.10-2013 PASS Prepared by: Approved by: Zane Shan Vita Li Engineer Technical Director Report No.: LGT23C033RF01 Page 3 of 133 Table of Contents Page 1. SUMMARY OF TEST RESULTS 6 1.1 TEST FACTORY 7 1.2 MEASUREMENT UNCERTAINTY 7 2. GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF THE EUT 8 2.2 DESCRIPTION OF THE TEST MODES 10 2.3 TEST SOFTWARE AND POWER LEVEL 11 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 12 3. EMC EMISSION TEST 13 3.1 CONDUCTED EMISSION MEASUREMENT 13 3.2 RADIATED EMISSION MEASUREMENT 17 4. CONDUCTED SPURIOUS & BAND EDGE EMISSION 31 4.1 LIMIT 31 4.2 TEST PROCEDURE 31 4.3 DEVIATION FROM STANDARD 31 4.4 TEST SETUP 31 4.5 EUT OPERATION CONDITIONS 31 4.6 TEST RESULTS 31 5. POWER SPECTRAL DENSITY TEST 32 5.1 LIMIT 32 5.2 TEST PROCEDURE 32 5.3 DEVIATION FROM STANDARD 32 5.4 TEST SETUP 32 5.5 EUT OPERATION CONDITIONS 32 5.6 TEST RESULTS 32 6. BANDWIDTH TEST 33 6.1 LIMIT 33 6.2 TEST PROCEDURE 33 6.3 DEVIATION FROM STANDARD 33 6.4 TEST SETUP 33 6.5 EUT OPERATION CONDITIONS 33 6.6 TEST RESULTS 33 7. PEAK OUTPUT POWER TEST 34 Report No.: LGT23C033RF01 Page 4 of 133 Table of Contents Page 7.1 LIMIT 34 7.2 TEST PROCEDURE 34 7.3 DEVIATION FROM STANDARD 34 7.4 TEST SETUP 34 7.5 EUT OPERATION CONDITIONS 34 7.6 TEST RESULTS 34 8. ANTENNA REQUIREMENT 35 8.1 STANDARD REQUIREMENT 35 8.2 EUT ANTENNA 35 APPENDIX I:TEST RESULTS 36 DUTY CYCLE 36 MAXIMUM PEAK CONDUCTED OUTPUT POWER 53 -6DB BANDWIDTH 55 MAXIMUM POWER SPECTRAL DENSITY LEVEL 68 BAND EDGE 90 CONDUCTED RF SPURIOUS EMISSION 107 APPENDIX II:PHOTOS OF TEST SETUP 132 Report No.: LGT23C033RF01 Page 5 of 133 Revision History Rev. Issue Date Contents 00 Mar. 28, 2023 Initial Issue Report No.: LGT23C033RF01 Page 6 of 133 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: KDB 558074 D01 15.247 Meas Guidance v05r02. FCC Part 15.247,Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS -- 15.247 (a)(2) 6dB Bandwidth PASS -- 15.247 (b)(3) Output Power PASS -- 15.209 Radiated Spurious Emission PASS -- 15.247 (d) Conducted Spurious & Band Edge Emission PASS -- 15.247 (e) Power Spectral Density PASS -- 15.205 Restricted Band Edge Emission PASS -- Part 15.247(d)/ Part 15.209(a) Band Edge Emission PASS -- 15.203 Antenna Requirement PASS -- NOTE: (1) ‘N/A’ denotes test is not applicable in this Test Report. (2) All tests are according to ANSI C63.10-2013. Report No.: LGT23C033RF01 Page 7 of 133 1.1 TEST FACTORY Company Name: Shenzhen LGT Test Service Co., Ltd. Address: Room 205, Building 13, Zone B, Chen Hsong Industrial Park, No.177 Renmin West Road, Jinsha Community, Kengzi Street, Pingshan New District, Shenzhen, China Accreditation Certificate A2LA Certificate No.: 6727.01 FCC Registration No.: 746540 CAB ID: CN0136 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. Parameter Uncertainty Occupied Channel Bandwidth ±3.2 % RF Output Power, Conducted ±0.71dB Power Spectral Density, Conducted ±1.57 dB Unwanted Emission, Conducted ±0.63dB Conducted emission ±2.80dB All Emissions, Radiated (0.009-30MHz) ±2.16dB All Emissions, Radiated (30MHz-1GHz) ±4.40dB All Emissions, Radiated (1GHz-18GHz) ±5.49dB Temperature ±0.5°C Humidity ±2% Duty Cycle ±2.3% Report No.: LGT23C033RF01 Page 8 of 133 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF THE EUT Product Name AX3000 Wireless Dual-Band WiFi6 Router Trade Mark N/A Model Name NX30 Series Model DIR-X3060Z, DIR-X3000, DIR-X3000Z Model Difference No difference, Just sold to D-link Product Description The EUT is a AX3000 Wireless Dual-Band WiFi6 Router Operation Frequency: 802.11b/g/n/ax(20MHz): 2412~2462 MHz 802.11n/ax(40MHz):2422~2452MHz Modulation Type: 802.11b(DSSS):CCK,DQPSK,DBPSK 802.11g(OFDM):BPSK,QPSK,16-QAM,64-QAM 802.11n(OFDM):BPSK,QPSK,16-QAM,64-QAM 802.11ax(OFDM,OFDMA): BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024QAM Number of Channel: 13CH/9CH Antenna Designation: Omni-directional Antenna Gain(dBi): ANT1: 4.96dBi ANT2: 5.55dBi MIMO: 8.27dBi Channel List Please refer to…

Text truncated - open the document above for the full version.

Report No.: LGT23C033RF01 Page 34 of 133 7. PEAK OUTPUT POWER TEST 7.1 LIMIT FCC Part15.247,Subpart C Section Test Item Limit Frequency Range (MHz) Result 15.247(b)(3) Output Power 1 watt or 30dBm 2400-2483.5 PASS 7.2 TEST PROCEDURE One of the following procedures may be used to determine the maximum peak conducted output power of a DTS EUT. RBW ≥ DTS bandwidth The following procedure shall be used when an instrument with a resolution bandwidth that is greater than the DTS bandwidth is available to perform the measurement: a) Set the RBW ≥ DTS bandwidth. b) Set VBW ≥ [3 × RBW]. c) Set span ≥ [3 × RBW]. d) Sweep time = auto couple. e) Detector = peak. f) Trace mode = max hold. g) Allow trace to fully stabilize. h) Use peak marker function to determine the peak amplitude level. Integrated band power method: The following procedure can be used when the maximum available RBW of the instrument is less than the DTS bandwidth: a) Set the RBW = 1 MHz. b) Set the VBW ≥ [3 × RBW]. c) Set the span ≥ [1.5 × DTS bandwidth]. d) Detector = peak. e) Sweep time = auto couple. f) Trace mode = max hold. g) Allow trace to fully stabilize. h) Use the instrument’s band/channel power measurement function with the band limits set equal to the DTS bandwidth edges (for some instruments, this may require a manual override to select the peak detector). If the instrument does not have a band power function, then sum the spectrum levels (in linear power units) at intervals equal to the RBW extending across the DTS channel bandwidth. PKPM1 Peak power meter method: The maximum peak conducted output power may be measured using a broadband peak RF power meter. The power meter shall have a video bandwidth that is greater than or equal to the DTS bandwidth and shall use a fast-responding diode detector. 7.3 DEVIATION FROM STANDARD No deviation. 7.4 TEST SETUP 7.5 EUT OPERATION CONDITIONS Please refer to section 3.1.4 of this report. 7.6 TEST RESULTS For the measurement records, refer to the appendix I. EUT Power Sensor Report No.: LGT23C033RF01 Page 35 of 133 8. ANTENNA REQUIREMENT 8.1 STANDARD REQUIREMENT 15.203 requirement: For intentional device, according to 15.203: an intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible partyshall be used with the device. 8.2 EUT ANTENNA The EUT antenna is Omni-directional Antenna. It comply with the standard requirement. Report No.: LGT23C033RF01 Page 36 of 133 APPENDIX I:TEST RESULTS DUTY CYCLE Condition Mode Frequency (MHz) Antenna Duty Cycle (%) Correction Factor (dB) 1/T (kHz) NVNT b 2412 Ant1 99.34 0 0.12 NVNT b 2437 Ant1 99.34 0 0.12 NVNT b 2462 Ant1 99.34 0 0.12 NVNT b 2412 Ant2 99.34 0 0.12 NVNT b 2437 Ant2 99.34 0 0.12 NVNT b 2462 Ant2 99.34 0 0.12 NVNT g 2412 Ant1 96.08 0.17 0.72 NVNT g 2437 Ant1 96.15 0.17 0.72 NVNT g 2462 Ant1 96.08 0.17 0.72 NVNT g 2412 Ant2 96.15 0.17 0.72 NVNT g 2437 Ant2 96.15 0.17 0.72 NVNT g 2462 Ant2 96.15 0.17 0.72 NVNT n20 2412 Ant1 95.83 0.18 0.76 NVNT n20 2437 Ant1 95.9 0.18 0.76 NVNT n20 2462 Ant1 95.9 0.18 0.76 NVNT n20 2412 Ant2 95.9 0.18 0.76 NVNT n20 2437 Ant2 95.89 0.18 0.76 NVNT n20 2462 Ant2 95.9 0.18 0.76 NVNT n20 2412 Sum 95.83 0.18 0.76 NVNT n20 2437 Sum 95.9 0.18 0.76 NVNT n20 2462 Sum 95.9 0.18 0.76 NVNT n40 2422 Ant1 92.06 0.36 1.54 NVNT n40 2437 Ant1 92.07 0.36 1.54 NVNT n40 2452 Ant1 92.06 0.36 1.54 NVNT n40 2422 Ant2 92.06 0.36 1.54 NVNT n40 2437 Ant2 92.06 0.36 1.54 NVNT n40 2452 Ant2 92.06 0.36 1.54 NVNT n40 2422 Sum 92.06 0.36 1.54 NVNT n40 2437 Sum 92.06 0.36 1.54 NVNT n40 2452 Sum 92.06 0.36 1.54 NVNT ax20 2412 Ant1 56.79 2.46 11.29 NVNT ax20 2437 Ant1 57.07 2.44 11.16 NVNT ax20 2462 Ant1 57.07 2.44 11.16 NVNT ax20 2412 Ant2 56.92 2.45 11.26 NVNT ax20 2437 Ant2 57.58 2.4 11.06 NVNT ax20 2462 Ant2 57.58 2.4 11.06 NVNT ax20 2412 Sum 56.73 2.46 11.3 NVNT ax20 2437 Sum 57.07 2.44 11.16 NVNT ax20 2462 Sum 57.07 2.44 11.16 NVNT ax40 2422 Ant1 57.55 2.4 11.07 NVNT ax40 2437 Ant1 57.55 2.4 11.07 NVNT ax40 2452 Ant1 57.55 2.4 11.07 NVNT ax40 2422 Ant2 57.55 2.4 11.07 NVNT ax40 2437 Ant2 57.58 2.4 11.06 NVNT ax40 2452 Ant2 57.58 2.4 11.06 NVNT ax40 2422 Sum 85.15 0.7 3.12 NVNT ax40 2437 Sum 85.21 0.7 3.11 NVNT ax40 2452 Sum 85.21 0.7 3.11 Report No.: LGT23C033RF01 Page 37 of 133 Test Graphs Duty Cycle NVNT b 2412MHz Ant1 Duty Cycle NVNT b 2437MHz Ant1 Duty Cycle NVNT b 2462MHz Ant1 Report No.: LGT23C033RF01 Page 38 of 133 Duty Cycle NVNT b 2412MHz Ant2 Duty Cycle NVNT b 2437MHz Ant2 Duty Cycle NVNT b 2462MHz Ant2 Report No.: LGT23C033RF01 Page 39 of 133 Duty Cycle NVNT g 2412MHz Ant1 Duty Cycle NVNT g 2437MHz Ant1 Duty Cycle NVNT g 2462MHz Ant1 Report No.: LGT23C033RF01 Page 40 of 133 Duty Cycle NVNT g 2412MHz Ant2 Duty Cycle NVNT g 2437MHz Ant2 Duty Cycle NVNT g 2462MHz Ant2 Report No.: LGT23C033RF01 Page 41 of 133 Duty Cycle NVNT n20 2412MHz Ant1 Duty Cycle NVNT n20 2437MHz Ant1 Duty Cycle NVNT n20 2462MHz Ant1 Report No.: LGT23C033RF01 Page 42 of 133 Duty Cycle NVNT n20 2412MHz Ant2 Duty Cycle NVNT n20 2437MHz Ant2 Duty Cycle NVNT n20 2462MHz Ant2 Report No.: LGT23C033RF01 Page 43 of 133 Duty Cycle NVNT n20 2412MHz Sum Duty Cycle NVNT n20 2437MHz Sum Duty Cycle NVNT n20 2462MHz Sum Report No.: LGT23C033RF01 Page 44 of 133 Duty Cycle NVNT n40 2422MHz Ant1 Duty Cycle NVNT n40 2437MHz Ant1 Duty Cycle NVNT n40 2452MHz Ant1 Report No.: LGT23C033RF01 Page 45 of 133 Duty Cycle NVNT n40 2422MHz Ant2 Duty Cycle NVNT n40 2437MHz Ant2 Duty Cycle NVNT n40 2452MHz Ant2 Report No.: LGT23C033RF01 Page 46 of 133 Duty Cycle NVNT n40 2422MHz Sum Duty Cycle NVNT n40 2437MHz Sum Duty Cycle NVNT n40 2452MHz Sum Report No.: LGT23C033RF01 Page 47 of 133 Duty Cycle NVNT ax20 2412MHz Ant1 Duty Cycle NVNT ax20 2437MHz Ant1 Duty Cycle NVNT ax20 2462MHz Ant1 Report No.: LGT23C033RF01 Page 48 of 133 Duty Cycle NVNT ax20 2412MHz Ant2 Duty Cycle NVNT ax20 2437MHz Ant2 Duty Cycle NVNT ax20 2462MHz Ant2 Report No.: LGT23C033RF01 Page 49 of 133 Duty Cycle NVNT ax20 2412MHz Sum Duty Cycle NVNT ax20 2437MHz S…

Text truncated - open the document above for the full version.

Report No.: LGT23C033RF01 Page 67 of 133 -6dB Bandwidth NVNT ax40 2422MHz Ant2 -6dB Bandwidth NVNT ax40 2437MHz Ant2 -6dB Bandwidth NVNT ax40 2452MHz Ant2 Report No.: LGT23C033RF01 Page 68 of 133 MAXIMUM POWER SPECTRAL DENSITY LEVEL Condition Mode Frequency (MHz) Antenna Conducted PSD (dBm/3kHz) Limit (dBm/3kHz) Verdict NVNT b 2412 Ant1 -9.08 8 Pass NVNT b 2437 Ant1 -7.59 8 Pass NVNT b 2462 Ant1 -7.95 8 Pass NVNT b 2412 Ant2 -7 8 Pass NVNT b 2437 Ant2 -9.1 8 Pass NVNT b 2462 Ant2 -7.54 8 Pass NVNT g 2412 Ant1 -13.71 8 Pass NVNT g 2437 Ant1 -13.01 8 Pass NVNT g 2462 Ant1 -11.39 8 Pass NVNT g 2412 Ant2 -13.07 8 Pass NVNT g 2437 Ant2 -13.26 8 Pass NVNT g 2462 Ant2 -12.49 8 Pass NVNT n20 2412 Ant1 -14.27 8 Pass NVNT n20 2437 Ant1 -13.05 8 Pass NVNT n20 2462 Ant1 -14.06 8 Pass NVNT n20 2412 Ant2 -13.49 8 Pass NVNT n20 2437 Ant2 -13.33 8 Pass NVNT n20 2462 Ant2 -14.34 8 Pass NVNT n20 2412 Ant1 -14.56 / Pass NVNT n20 2412 Ant2 -13.55 / Pass NVNT n20 2412 Sum -11.02 5.73 Pass NVNT n20 2437 Ant1 -13.04 / Pass NVNT n20 2437 Ant2 -11.73 / Pass NVNT n20 2437 Sum -9.33 5.73 Pass NVNT n20 2462 Ant1 -13.4 / Pass NVNT n20 2462 Ant2 -13.19 / Pass NVNT n20 2462 Sum -10.28 5.73 Pass NVNT n40 2422 Ant1 -16.57 8 Pass NVNT n40 2437 Ant1 -17.59 8 Pass NVNT n40 2452 Ant1 -18.51 8 Pass NVNT n40 2422 Ant2 -15.78 8 Pass NVNT n40 2437 Ant2 -16.69 8 Pass NVNT n40 2452 Ant2 -16.02 8 Pass NVNT n40 2422 Ant1 -16.48 / Pass NVNT n40 2422 Ant2 -16.72 / Pass NVNT n40 2422 Sum -13.59 5.73 Pass NVNT n40 2437 Ant1 -16.24 / Pass NVNT n40 2437 Ant2 -15.64 / Pass NVNT n40 2437 Sum -12.92 5.73 Pass NVNT n40 2452 Ant1 -17.22 / Pass NVNT n40 2452 Ant2 -17.29 / Pass NVNT n40 2452 Sum -14.24 5.73 Pass NVNT ax20 2412 Ant1 -16.26 8 Pass NVNT ax20 2437 Ant1 -15.95 8 Pass NVNT ax20 2462 Ant1 -15.16 8 Pass NVNT ax20 2412 Ant2 -15.09 8 Pass NVNT ax20 2437 Ant2 -14.46 8 Pass NVNT ax20 2462 Ant2 -14.4 8 Pass NVNT ax20 2412 Ant1 -15.98 / Pass NVNT ax20 2412 Ant2 -15.14 / Pass NVNT ax20 2412 Sum -12.53 5.73 Pass NVNT ax20 2437 Ant1 -15.79 / Pass Report No.: LGT23C033RF01 Page 69 of 133 NVNT ax20 2437 Ant2 -14.82 / Pass NVNT ax20 2437 Sum -12.27 5.73 Pass NVNT ax20 2462 Ant1 -14.96 / Pass NVNT ax20 2462 Ant2 -14.57 / Pass NVNT ax20 2462 Sum -11.75 5.73 Pass NVNT ax40 2422 Ant1 -17.37 8 Pass NVNT ax40 2437 Ant1 -17.26 8 Pass NVNT ax40 2452 Ant1 -17.07 8 Pass NVNT ax40 2422 Ant2 -17.44 8 Pass NVNT ax40 2437 Ant2 -17.11 8 Pass NVNT ax40 2452 Ant2 -17.34 8 Pass NVNT ax40 2422 Ant1 -16.76 / Pass NVNT ax40 2422 Ant2 -15.34 / Pass NVNT ax40 2422 Sum -12.98 5.73 Pass NVNT ax40 2437 Ant1 -16.39 / Pass NVNT ax40 2437 Ant2 -15.72 / Pass NVNT ax40 2437 Sum -13.03 5.73 Pass NVNT ax40 2452 Ant1 -17.06 / Pass NVNT ax40 2452 Ant2 -16.34 / Pass NVNT ax40 2452 Sum -13.67 5.73 Pass Report No.: LGT23C033RF01 Page 70 of 133 Test Graphs PSD NVNT b 2412MHz Ant1 PSD NVNT b 2437MHz Ant1 PSD NVNT b 2462MHz Ant1 Report No.: LGT23C033RF01 Page 71 of 133 PSD NVNT b 2412MHz Ant2 PSD NVNT b 2437MHz Ant2 PSD NVNT b 2462MHz Ant2 Report No.: LGT23C033RF01 Page 72 of 133 PSD NVNT g 2412MHz Ant1 PSD NVNT g 2437MHz Ant1 PSD NVNT g 2462MHz Ant1 Report No.: LGT23C033RF01 Page 73 of 133 PSD NVNT g 2412MHz Ant2 PSD NVNT g 2437MHz Ant2 PSD NVNT g 2462MHz Ant2 Report No.: LGT23C033RF01 Page 74 of 133 PSD NVNT n20 2412MHz Ant1 PSD NVNT n20 2437MHz Ant1 PSD NVNT n20 2462MHz Ant1 Report No.: LGT23C033RF01 Page 75 of 133 PSD NVNT n20 2412MHz Ant2 PSD NVNT n20 2437MHz Ant2 PSD NVNT n20 2462MHz Ant2 Report No.: LGT23C033RF01 Page 76 of 133 PSD NVNT n20 2412MHz Ant1 PSD NVNT n20 2412MHz Ant2 PSD NVNT n20 2437MHz Ant1 Report No.: LGT23C033RF01 Page 77 of 133 PSD NVNT n20 2437MHz Ant2 PSD NVNT n20 2462MHz Ant1 PSD NVNT n20 2462MHz Ant2 Report No.: LGT23C033RF01 Page 78 of 133 PSD NVNT n40 2422MHz Ant1 PSD NVNT n40 2437MHz Ant1 PSD NVNT n40 2452MHz Ant1 Report No.: LGT23C033RF01 Page 79 of 133 PSD NVNT n40 2422MHz Ant2 PSD NVNT n40 2437MHz Ant2 PSD NVNT n40 2452MHz Ant2 Report No.: LGT23C033RF01 Page 80 of 133 PSD NVNT n40 2422MHz Ant1 PSD NVNT n40 2422MHz Ant2 PSD NVNT n40 2437MHz Ant1 Report No.: LGT23C033RF01 Page 81 of 133 PSD NVNT n40 2437MHz Ant2 PSD NVNT n40 2452MHz Ant1 PSD NVNT n40 2452MHz Ant2 Report No.: LGT23C033RF01 Page 82 of 133 PSD NVNT ax20 2412MHz Ant1 PSD NVNT ax20 2437MHz Ant1 PSD NVNT ax20 2462MHz Ant1 Report No.: LGT23C033RF01 Page 83 of 133 PSD NVNT ax20 2412MHz Ant2 PSD NVNT ax20 2437MHz Ant2 PSD NVNT ax20 2462MHz Ant2 Report No.: LGT23C033RF01 Page 84 of 133 PSD NVNT ax20 2412MHz Ant1 PSD NVNT ax20 2412MHz Ant2 PSD NVNT ax20 2437MHz Ant1 Report No.: LGT23C033RF01 Page 85 of 133 PSD NVNT ax20 2437MHz Ant2 PSD NVNT ax20 2462MHz Ant1 PSD NVNT ax20 2462MHz Ant2 Report No.: LGT23C033RF01 Page 86 of 133 PSD NVNT ax40 2422MHz Ant1 PSD NVNT ax40 2437MHz Ant1 PSD NVNT ax40 2452MHz Ant1 Report No.: LGT23C033RF01 Page 87 of 133 PSD NVNT ax40 2422MHz Ant2 PSD NVNT ax40 2437MHz Ant2 PSD NVNT ax40 2452MHz Ant2 Report No.: LGT23C033RF01 Page 88 of 133 PSD NVNT ax40 2422MHz Ant1 PSD NVNT ax40 2422MHz Ant2 PSD NVNT ax40 2437MHz Ant1 Report No.: LGT23C033RF01 Page 89 of 133 PSD NVNT ax40 2437MHz Ant2 PSD NVNT ax40 2452MHz Ant1 PSD NVNT ax40 2452MHz Ant2 Report No.: LGT23C033RF01 Page 90 of 133 BAND EDGE Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT b 2412 Ant1 -52.84 -20 Pass NVNT b 2462 Ant1 -57.25 -20 Pass NVNT b 2412 Ant2 -52.26 -20 Pass NVNT b 2462 Ant2 -56.8 -20 Pass NVNT g 2412 Ant1 -43.25 -20 Pass NVNT g 2462 Ant1 -53.72 -20 Pass NVNT g 2412 Ant2 -44.15 -20 Pass NVNT g 2462 Ant2 -50.48 -20 Pass NVNT n20 2412 Ant1 -43.6 -20 Pass NVNT n20 2462 Ant1 -52.94 -20 Pass NVNT n20 2412 Ant2 -42.68 -20 Pass NVNT n20 2462 Ant2 -51.64 -20 Pass NVNT n40 2422 Ant1 -35.29 -20 Pass NVNT n40 2452 Ant1 -48.01 -20 Pass NVNT n40 2422 Ant2 -35.96 -20 Pass NVNT n40 2452 Ant2 -48.42 -20 Pass NVNT ax20 2412 Ant1 -37.51 -20 Pass NVNT ax20 2462 Ant1 -48.09 -20 Pass NVNT ax20 2412 Ant2 -40.39 -20 Pass NVNT ax20 2462 Ant2 -44.28 -20 Pass NVNT ax40 2422 Ant1 -36.01 -20 Pass NVNT…

Text truncated - open the document above for the full version.

Report No.: LGT23C033RF01 Page 100 of 133 Band Edge NVNT n40 2452MHz Ant1 Emission Band Edge NVNT n40 2422MHz Ant2 Ref Band Edge NVNT n40 2422MHz Ant2 Emission Report No.: LGT23C033RF01 Page 101 of 133 Band Edge NVNT n40 2452MHz Ant2 Ref Band Edge NVNT n40 2452MHz Ant2 Emission Band Edge NVNT ax20 2412MHz Ant1 Ref Report No.: LGT23C033RF01 Page 102 of 133 Band Edge NVNT ax20 2412MHz Ant1 Emission Band Edge NVNT ax20 2462MHz Ant1 Ref Band Edge NVNT ax20 2462MHz Ant1 Emission Report No.: LGT23C033RF01 Page 103 of 133 Band Edge NVNT ax20 2412MHz Ant2 Ref Band Edge NVNT ax20 2412MHz Ant2 Emission Band Edge NVNT ax20 2462MHz Ant2 Ref Report No.: LGT23C033RF01 Page 104 of 133 Band Edge NVNT ax20 2462MHz Ant2 Emission Band Edge NVNT ax40 2422MHz Ant1 Ref Band Edge NVNT ax40 2422MHz Ant1 Emission Report No.: LGT23C033RF01 Page 105 of 133 Band Edge NVNT ax40 2452MHz Ant1 Ref Band Edge NVNT ax40 2452MHz Ant1 Emission Band Edge NVNT ax40 2422MHz Ant2 Ref Report No.: LGT23C033RF01 Page 106 of 133 Band Edge NVNT ax40 2422MHz Ant2 Emission Band Edge NVNT ax40 2452MHz Ant2 Ref Band Edge NVNT ax40 2452MHz Ant2 Emission Report No.: LGT23C033RF01 Page 107 of 133 CONDUCTED RF SPURIOUS EMISSION Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT b 2412 Ant1 -51.61 -20 Pass NVNT b 2437 Ant1 -52.15 -20 Pass NVNT b 2462 Ant1 -53.38 -20 Pass NVNT b 2412 Ant2 -53.56 -20 Pass NVNT b 2437 Ant2 -52.48 -2…

Text truncated - open the document above for the full version.
