T58N6TRAX1800 Dual-Band Wireless Router

Power Mesh and Internet WAN

NETIS SYSTEMS CO., LTD Agent Authorization Company: NETIS SYSTEMS CO., LTD Address: Floor 8, Building B, TongFang Information Harbor, No.11 Langshan Road, Nanshan District, Shenzhen, China Product Name: AX1800 Dual-Band Wireless Router Model Number(s): N6T Product Description: AX1800 Dual-Band Wireless Router We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2022/05/31 Name: Kinki Wang Title: Auditor Company: NETIS SYSTEMS CO., LTD

NETIS SYSTEMS CO., LTD Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2022/05/31 Subject; Request for Confidentiality FCC ID: T58N6TR To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure SOFTWARE SECURITY REQUIREMENTS FOR U-NII DEVICES In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Kinki Wang Title: Auditor

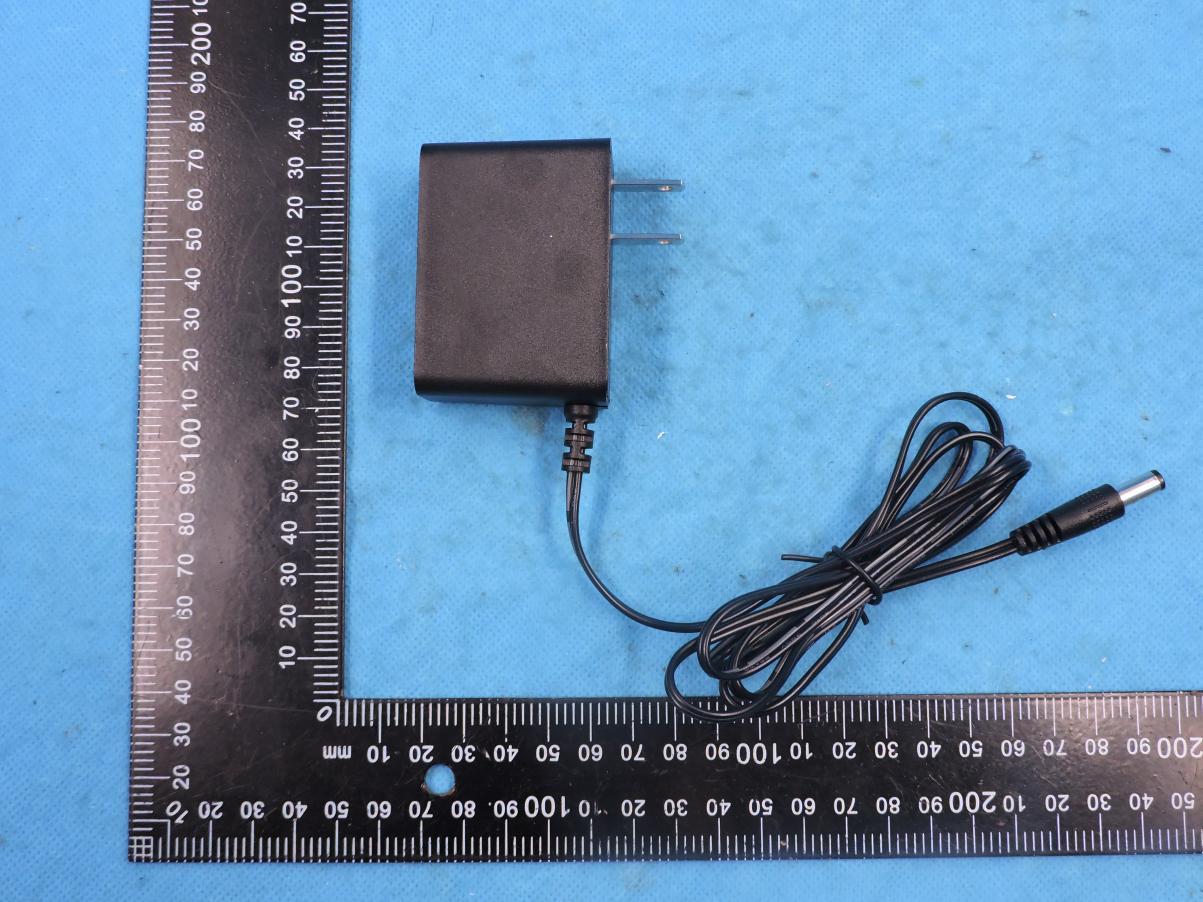

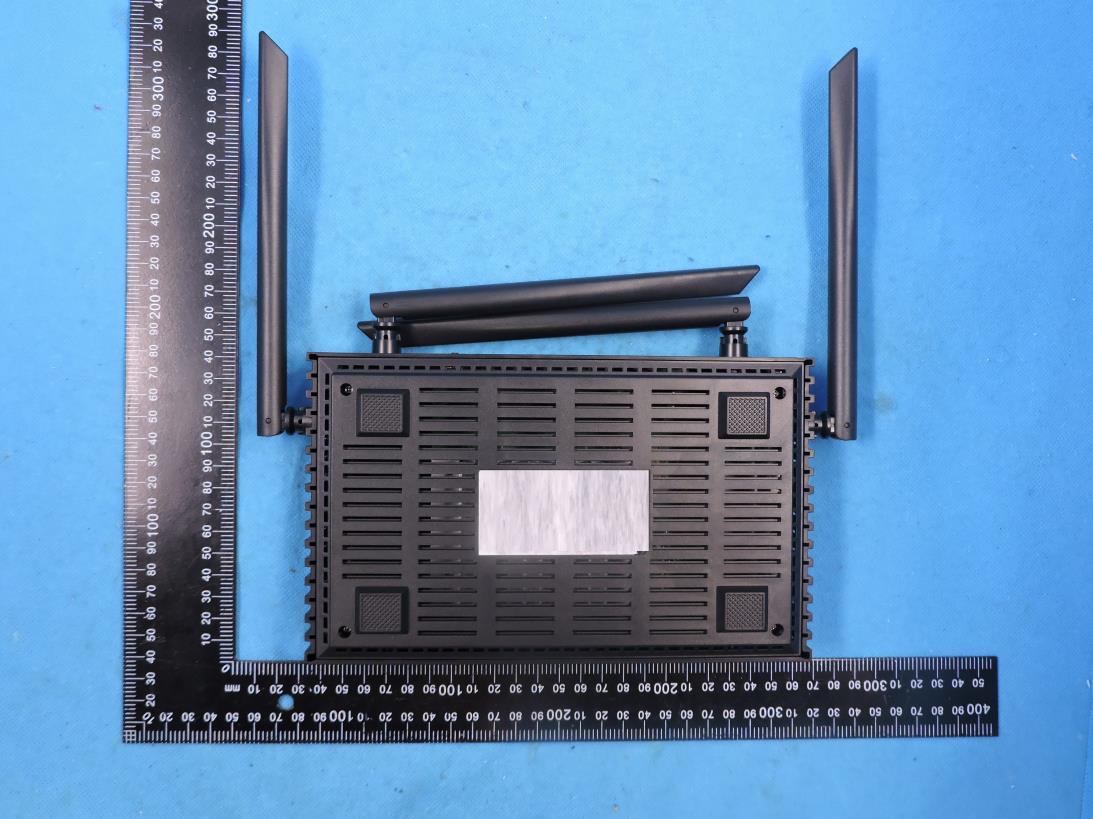

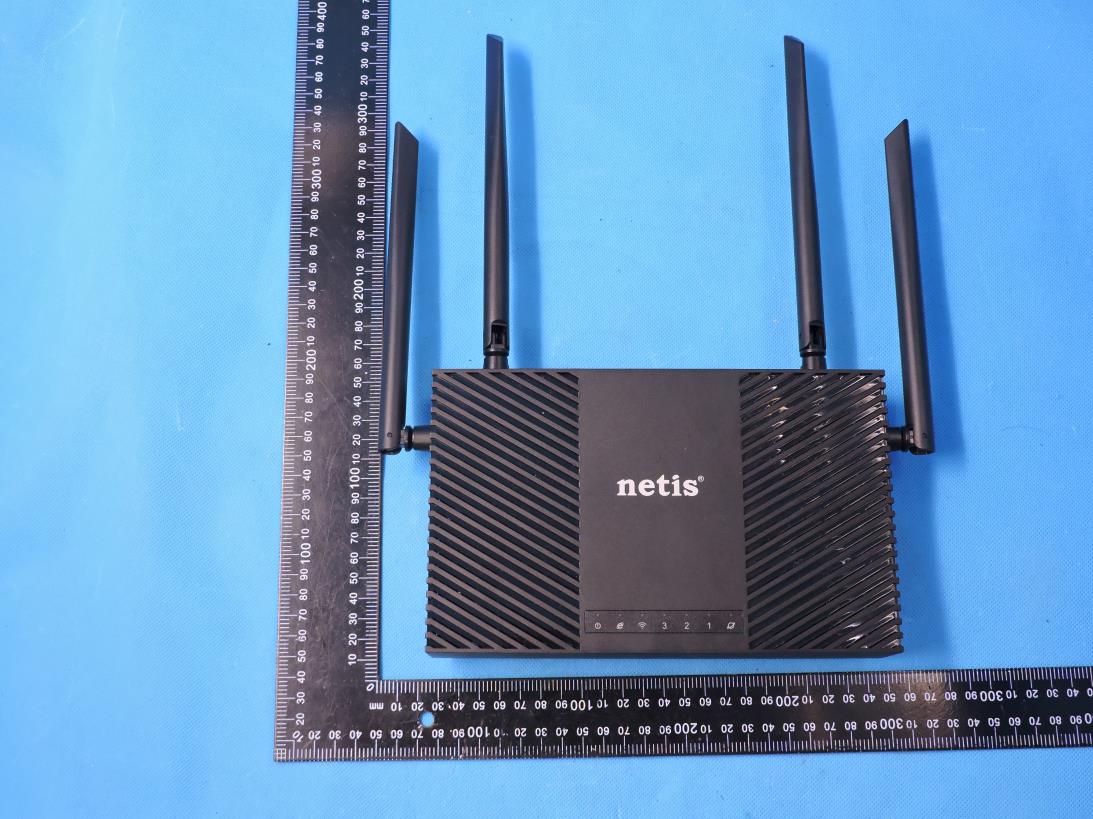

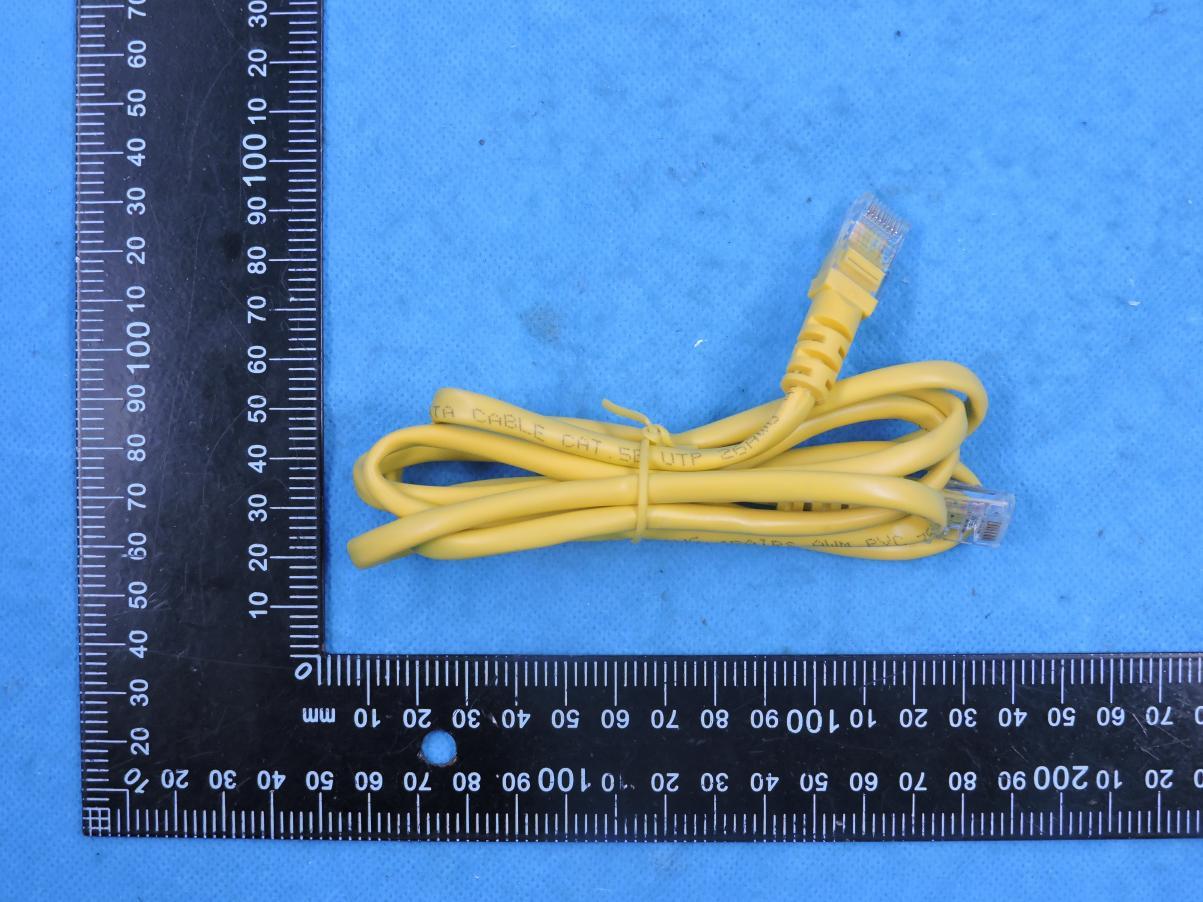

Page 1 of 6 Report No.: STS2203358 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model: N6T Photo 1 Photo 2 Page 2 of 6 Report No.: STS2203358 Photo 3 Photo 4 Page 3 of 6 Report No.: STS2203358 Photo 5 Photo 6 Page 4 of 6 Report No.: STS2203358 Photo 7 Photo 8 Page 5 of 6 Report No.: STS2203358 Photo 9 Photo 10 Page 6 of 6 Report No.: STS2203358 Photo 11

FCC Label Note: The label is attached to the back cover

Page 1 of 3 Report No.: STS2203358 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model: N6T Photo 1 Photo 2 WIFI Antenna Page 2 of 3 Report No.: STS2203358 Photo 3 Photo 4 Page 3 of 3 Report No.: STS2203358 Photo 5 Photo 6

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, all test data presented in this report is only applicable to presented test sample. Shenzhen STS Test Services Co., Ltd. A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] RADIO TEST REPORT Report No: STS2203358H02 Issued for NETIS SYSTEMS CO., LTD Floor 8, Building B, TongFang Information Harbor, No.11 Langshan Road, Nanshan District, Shenzhen, China Product Name: AX1800 Dual-Band Wireless Router Brand Name: N/A Model Name: N6T Series Model: N/A FCC ID: T58N6TR Test Standard: FCC 47CFR §2.1091 S T L A B S Page 2 of 10 Report No.: STS2203358H02 Test Report Certification Applicant’s Name ................. : NETIS SYSTEMS CO., LTD Address ................................. : Floor 8, Building B, TongFang Information Harbor, No.11 Langshan Road, Nanshan District, Shenzhen, China Manufacturer's Name .......... : NETIS SYSTEMS CO., LTD Address ................................. : Floor 8, Building B, TongFang Information Harbor, No.11 Langshan Road, Nanshan District, Shenzhen, China Product Description Product Name ........................ : AX1800 Dual-Band Wireless Router Brand Name ......................... : N/A Model Name .......................... : ... : N6T Series Model .......................... : N/A Standards ............................. : FCC 47CFR §2.1091 447498 D04 Interim General RF Exposure Guidance v01 This report shall not be reproduced except in full, without the written approval of STS, this document only be altered or revised by STS, personal only, and shall be noted in the revision of the document. Date of Test ........................................... : Date of receipt of test item ..................... : 28 Mar. 2022 Date (s) of performance of tests ............. : 28 Mar. 2022 ~ 23 May 2022 Date of Issue .......................................... : 23 May 2022 Test Result.............................................. : Pass Testing Engineer : (Chris Chen) Technical Manager : (Sean she) Authorized Signatory : (Bovey Yang) Page 3 of 10 Report No.: STS2203358H02 TABLE OF CONTENTS 1. GENERAL INFORMATION 5 1.1 GENERAL DESCRIPTION OF THE EUT 5 1.2 TEST FACTORY 6 2. FCC 47CFR §2.1091 REQUIREMENT 7 2.1 TEST STANDARDS 7 2.2 LIMIT 7 2.3 TEST RESULT 10 Page 4 of 10 Report No.: STS2203358H02 Revision History Rev. Issue Date Report No. Effect Page Contents 00 23 May 2022 STS2203358H02 ALL Initial Issue Page 5 of 10 Report No.: STS2203358H02 1. GENERAL INFORMATION 1.1 GENERAL DESCRIPTION OF THE EUT Product Name AX1800 Dual-Band Wireless Router Brand Name N/A Model Name N6T Series Model N/A Model Difference N/A Product Description The EUT is AX1800 Dual-Band Wireless Router Operation Frequency: 2.4G WIFI: 802.11b/g/n/ax 20: 2412~2462 MHz 802.11n/ax(40MHz):2422~2452MHz 5G WIFI: IEEE 802.11a/ n(HT20)/ac(VHT20)/ ax(HE20): 5.180GHz-5.240GHz IEEE 802.11n(HT40)/ac(VHT40)/ax(HE40): 5.190GHz-5.230GHz IEEE 802.11ac(VHT80)/ax(HE80): 5.210GHz IEEE 802.11a/ n(HT20)/ac(VHT20)/ ax(HE20): 5.745GHz-5.825GHz IEEE 802.11n(HT40)/ac(VHT40)/ax(HE40): 5.755GHz-5.795GHz IEEE 802.11ac(VHT80)/ax(HE80): 5.775GHz Modulation Type: 2.4G WIFI: 802.11b(DSSS):CCK,DQPSK,DBPSK 802.11g(OFDM): BPSK,QPSK,16-QAM,64-QAM 802.11n(OFDM): BPSK,QPSK,16-QAM,64-QAM 802.11ax(OFDM, OFDMA): BPSK,QPSK,16-QAM,64-QAM,256-QAM, 1024QAM 5G WIFI: 802.11a(OFDM): BPSK,QPSK,16-QAM,64-QAM 802.11n(OFDM): BPSK,QPSK,16-QAM,64-QAM 802.11ac(OFDM): BPSK,QPSK,16-QAM,64-QAM,256-QAM 802.11ax(OFDM, OFDMA): BPSK,QPSK,16-QAM,64-QAM,256-QAM, 1024QAM Antenna gain: ANT A: 5dBi, ANT B: 5dBi, MIMO: 8.01dBi Antenna Designation: PIFA Page 6 of 10 Report No.: STS2203358H02 Adapter Model: KL-WA120150-D Input: 100-240V~ 50/60Hz 0.7A Output:12.0V1.5A Model: DJ18W-1201500U Input: 100-240V~ 50/60Hz 0.6A MAX Output:12.0V1.5A 18.0W Hardware Version V1.0; Software Version V1.0.1.211018.110520 1.2 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 Page 7 of 10 Report No.: STS2203358H02 2. FCC 47CFR §2.1091 REQUIREMENT 2.1 TEST STANDARDS Follow the maximum permissible exposure (MPE) limits specified in 447498 D04 Interim General Radio Frequency Exposure Guidelines v01. The gain of the antenna used in the product was extracted from the supplied antenna data sheet and the maximum total power input to the antenna was also measured. Calculate the distance from the product to the MPE limit by the formula. 2.2 LIMIT For single RF sources (i.e., any single fixed RF source, mobile device, or portable device, as defined in paragraph (b)(2) of this section): A single RF source is exempt if: (A) The available maximum time-averaged power is no more than 1 mW, regardless of separation distance. This exemption may not be used in conjunction with other exemption criteria other than those in paragraph (b)(3)(ii)(A) of Part 1.1307. Medical implant devices may only use this exemption and that in paragraph (b)(3)(ii)(A); (B) Or the available maximum time-averaged power or effective radiated power (ERP), whichever is greater, is less than or equal to the threshold Pth (mW) described in the following formula. This method shall only be used at separation distances (cm) from 0.5 centimeters to 40 centimeters and at frequencies from 0.3 GHz to 6 GHz (inclusive). Pth is given by: Page 8 of 10 Report No.: STS2203358H02 (C) Or using below table and the minimum separation distance (R in meters) from the body of a nearby person for the frequency (f in MHz) at which the source operates, the ERP (watts) is no more than the calculated value prescribed for th…

Text truncated - open the document above for the full version.

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, all test data presented in this report is only applicable to presented test sample. Shenzhen STS Test Services Co., Ltd. A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] RADIO TEST REPORT Report No.:STS2203358W04 Issued for NETIS SYSTEMS CO., LTD Floor 8, Building B, TongFang Information Harbor, No.11 Langshan Road, Nanshan District, Shenzhen, China Product Name: AX1800 Dual-Band Wireless Router Brand Name: N/A Model Name: N6T Series Model: N/A FCC ID: T58N6TR Test Standard: FCC Part 15.247 S T L A B S Page 2 of 138 Report No.:STS2203358W04 TEST RESULT CERTIFICATION Applicant’s Name ................. : NETIS SYSTEMS CO., LTD Address ................................. : Floor 8, Building B, TongFang Information Harbor, No.11 Langshan Road, Nanshan District, Shenzhen, China Manufacturer's Name ........... : NETIS SYSTEMS CO., LTD Address ................................. : Floor 8, Building B, TongFang Information Harbor, No.11 Langshan Road, Nanshan District, Shenzhen, China Product Description Product Name ........................ : AX1800 Dual-Band Wireless Router Brand Name ........................... : N/A Model Name .......................... : N6T Series Model .......................... : N/A Test Standards ..................... : FCC Part 15.247 Test Procedure........................: ANSI C63.10-2013 This device described above has been tested by STS, the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of STS, this document only be altered or revised by STS, personal only, and shall be noted in the revision of the document. Date of Test ........................................... : Date of receipt of test item ...................... : 28 Mar. 2022 Date (s) of performance of tests ............. : 28 Mar. 2022 ~ 23 May 2022 Date of Issue .......................................... : 23 May 2022 Test Result .............................................. : Pass Testing Engineer : (Chris Chen) Technical Manager : (Sean she) Authorized Signatory : (Bovey Yang) Page 3 of 138 Report No.:STS2203358W04 Table of Contents Page 1. SUMMARY OF TEST RESULTS 6 1.1 TEST FACTORY 7 1.2 MEASUREMENT UNCERTAINTY 7 2. GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF THE EUT 8 2.2 DESCRIPTION OF THE TEST MODES 10 2.3 TEST SOFTWARE AND POWER LEVEL 11 2.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 11 2.5 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 12 2.6 EQUIPMENTS LIST FOR ALL TEST ITEMS 13 3. EMC EMISSION TEST 15 3.1 CONDUCTED EMISSION MEASUREMENT 15 3.2 RADIATED EMISSION MEASUREMENT 19 4. CONDUCTED SPURIOUS & BAND EDGE EMISSION 31 4.1 LIMIT 31 4.2 TEST PROCEDURE 31 4.3 DEVIATION FROM STANDARD 31 4.4 TEST SETUP 31 4.5 EUT OPERATION CONDITIONS 31 4.6 TEST RESULTS 31 5. POWER SPECTRAL DENSITY TEST 32 5.1 LIMIT 32 5.2 TEST PROCEDURE 32 5.3 DEVIATION FROM STANDARD 32 5.4 TEST SETUP 32 5.5 EUT OPERATION CONDITIONS 32 5.6 TEST RESULTS 32 6. BANDWIDTH TEST 33 6.1 LIMIT 33 6.2 TEST PROCEDURE 33 6.3 DEVIATION FROM STANDARD 33 6.4 TEST SETUP 33 6.5 EUT OPERATION CONDITIONS 33 Page 4 of 138 Report No.:STS2203358W04 Table of Contents Page 6.6 TEST RESULTS 33 7. PEAK OUTPUT POWER TEST 34 7.1 LIMIT 34 7.2 TEST PROCEDURE 34 7.3 DEVIATION FROM STANDARD 34 7.4 TEST SETUP 35 7.5 EUT OPERATION CONDITIONS 35 7.6 TEST RESULTS 35 8. ANTENNA REQUIREMENT 36 8.1 STANDARD REQUIREMENT 36 8.2 EUT ANTENNA 36 APPENDIX 1-TEST DATA 37 1. DUTY CYCLE 37 2. MAXIMUM PEAK CONDUCTED OUTPUT POWER 57 3. -6DB BANDWIDTH 77 4. MAXIMUM POWER SPECTRAL DENSITY LEVEL 87 5. BAND EDGE 106 6. CONDUCTED RF SPURIOUS EMISSION 119 APPENDIX 2-PHOTOS OF TEST SETUP 138 Page 5 of 138 Report No.:STS2203358W04 Revision History Rev. Issue Date Report No. Effect Page Contents 00 23 May 2022 STS2203358W04 ALL Initial Issue Page 6 of 138 Report No.:STS2203358W04 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: KDB 558074 D01 15.247 Meas Guidance v05r02. FCC Part 15.247,Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS -- 15.247 (a)(2) 6dB Bandwidth PASS -- 15.247 (b)(3) Output Power PASS -- 15.209 Radiated Spurious Emission PASS -- 15.247 (d) Conducted Spurious & Band Edge Emission PASS -- 15.247 (e) Power Spectral Density PASS -- 15.205 Restricted Band Edge Emission PASS -- Part 15.247(d)/ part 15.209(a) Band Edge Emission PASS -- 15.203 Antenna Requirement PASS -- NOTE: (1) ‘N/A’ denotes test is not applicable in this Test Report. (2) All tests are according to ANSI C63.10-2013. Page 7 of 138 Report No.:STS2203358W04 1.1 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ±U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 RF output power, conducted ±0.87dB 2 Unwanted Emissions, conducted ±2.895dB 3 All emissions, radiated 9K-30MHz ±3.80dB 4 All emissions, radiated 30M-1GHz ±4.09dB 5 All emissions, radiated 1G-6GHz ±4.92dB 6 All emissions, radiated>6G ±5.49dB 7 Conducted Emission (9KHz-30MHz) ±2.73dB Page 8 of 138 Report No.:STS2203358W04 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF THE EUT Product Name AX1800 Dual-Band Wireless …

Text truncated - open the document above for the full version.

Page 1 of 2 FCC ID: T58N6TR DTS&U-NII Setup photo Model name: N6T DTS&U-NII conduction DTS&U-NII radiation L Page 2 of 2 FCC ID: T58N6TR DSS&DTS&U-NII radiation H
