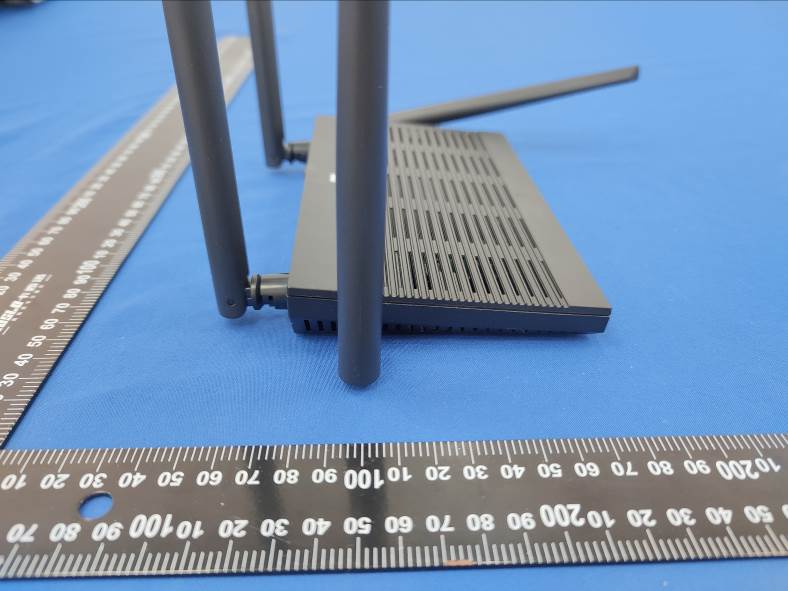

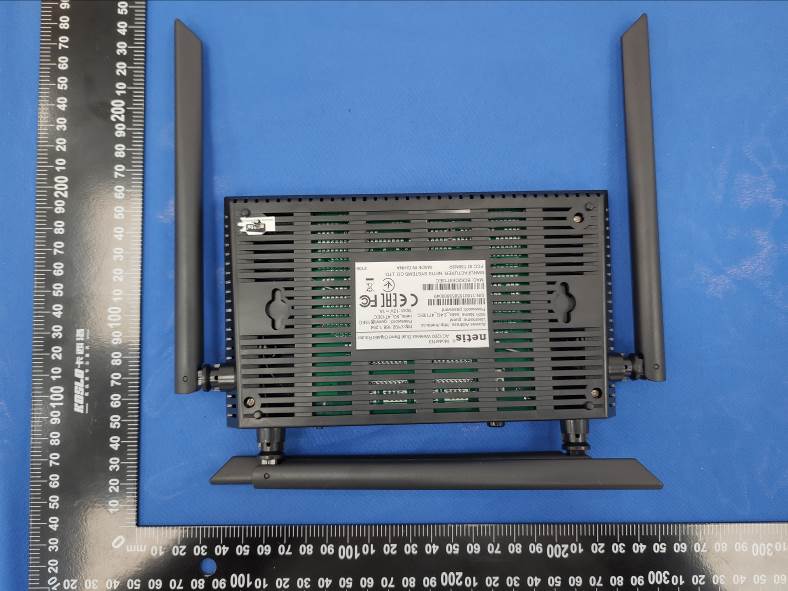

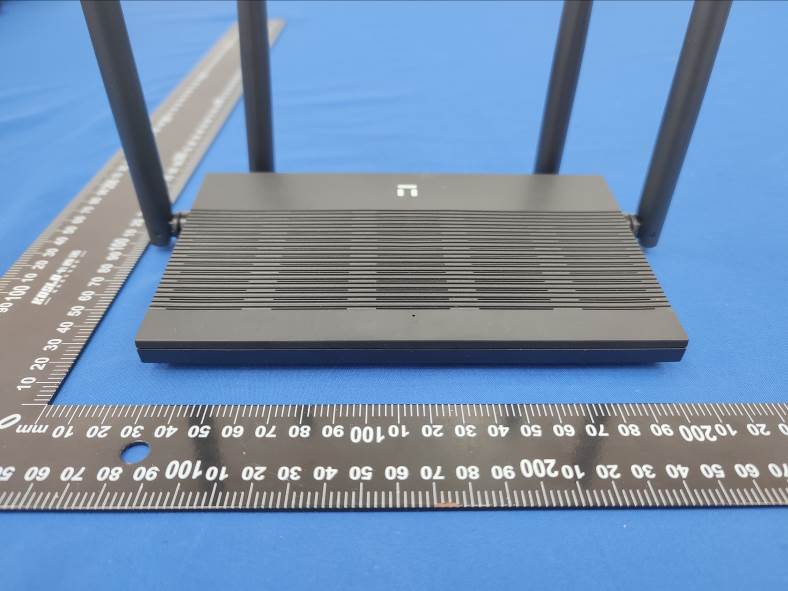

T58N3RAC1200 Wireless Dual Band Gigabit Router

NETIS SYSTEMS CO., LTD. Floor 8, Building B, TongFang Information Harbor, No.11 Langshan Road, Nanshan District, Shenzhen, China Tel: +86-755-86677078 Fax: +86-755-86186779 Date: 2021-09-18 Dear Sir/Madam, We, NETIS SYSTEMS CO., LTD. Hereby declares the following statement for Federal Communications Commission, PCB board, circuit, structure and internal of these model(s) are the same, Only color and model number is different for these model: Product name: AC1200 Wireless Dual Band Gigabit Router Model no.: N3, N3D Sincerely, Print Name:Kinki Wang Company:NETIS SYSTEMS CO., LTD. Address:Floor 8, Building B, TongFang Information Harbor, No.11 Langshan Road, Nanshan District, Shenzhen, China Phone:+86-755-86677078 Fax:+86-755-86186779 E-Mail:[email protected]

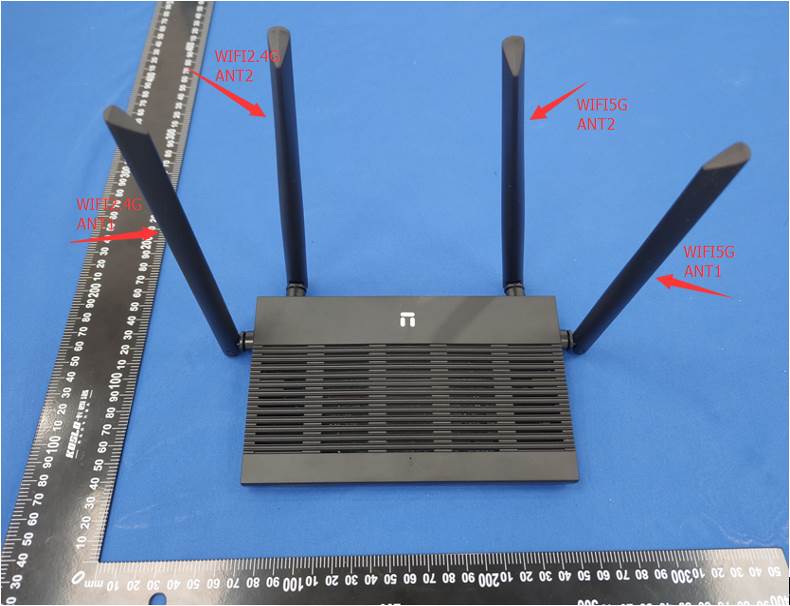

NETIS SYSTEMS CO., LTD. Floor 8, Building B, TongFang Information Harbor, No.11 Langshan Road, Nanshan District, Shenzhen, China Tel: +86-755-86677078 Fax: +86-755-86186779 Declaration concerning Antenna Specification Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date: 2021/09/18 TO WHOM IT MAY CONCERN It is hereby declared that the product Model No.: N3, N3D FCC ID: T58N3R Fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for Fixed Internal antenna type(s) described below: Model No. of antenna: N/A Type of antenna: External Antenna 2x2 Gain of the antenna (Max.): 5.0dBi Directional gain: 8.01dBi Frequency range: 2400MHz-2500MHz; 5.1GHz-5.8GHz The antenna will be fixed to the radio module by integral connector, and no other antennas not listed above should be used. Sincerely, Print Name:Kinki Wang Company:NETIS SYSTEMS CO., LTD. Address:Floor 8, Building B, TongFang Information Harbor, No.11 Langshan Road, Nanshan District, Shenzhen, China Phone:+86-755-86677078 Fax:+86-755-86186779 E-Mail:[email protected]

C5266091_X8_Ed.1 1/1 Letter of Authorization Company: NETIS SYSTEMS CO., LTD Address: Floor 8, Building B, TongFang Information Harbor, No.11 Langshan Road, Nanshan District, Shenzhen, China Product Name: AC1200 Dual Band WiFi Repeater Model Number: N3, N3D FCC Identifier: T58N3R We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name:Kinki WangDate:Sep. 18, 2021 Title: ManagerAuditor Signature of applicant:

C5266091_X10_Ed.1 1/1 NETIS SYSTEMS CO., LTD. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date:Sep. 18, 2021 Subject: Request for Confidentiality FCC ID: T58N3R To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. ExhibitsLong-Term Confidentiality Short-Term Confidentiality ID Label/LocationNoNo Attestation StatementNoNo External PhotosNo Block Diagram Schematics Test ReportNoNo Test Setup PhotosNo User’s Manual Internal Photos Parts List / Tune Up RF Exposure Info Operational Description Cover Letter(s)NoNo SDR Software / Security InfoNo Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Name:Kinki WangDate: Sep. 18, 2021 C5266091_X10_Ed.1 1/1 Title: ManagerAuditor Signature of applicant:

NETIS SYSTEMS CO., LTD. Floor 8, Building B, TongFang Information Harbor, No.11 Langshan Road, Nanshan District, Shenzhen, China Tel: +86-755-86677078 Fax: +86-755-86186779 UNII Device Declaration Letter To whom it may concern: We have declared below featured for FCC equipment authorization, Device FCC ID:T58N3R (1)DFS Device: Master Client with Radar detection capability ■ N/A  Client without radar detection capability, (2)Active / Passive Scanning ,adhoc mode access point capability Frequency Band (MHz) Active Scanning (the device can transmit a probe (beacon)) passive scanning (where the device is can listen only with no probes) Ad Hoc Mode Capability Access point Capability 5180-5240 Yes No Yes No Yes No Yes No 5260-5230 Yes No Yes No Yes No Yes No 5500-5700 Yes No Yes No Yes No Yes No 5745-5825 Yes No Yes No Yes No Yes No 5190-5230 Yes No Yes No Yes No Yes No 5270-5310 Yes No Yes No Yes No Yes No 5510-5670 Yes No Yes No Yes No Yes No 5755-5795 Yes No Yes No Yes No Yes No (3)Country code selection ability  Yes No If yes, pls explain how it was implemented: (4)Meet 15.202 requirement  Yes No pls check below : A master device is defined as a device operating in a mode in which it has the capability to transmit without receiving an enabling signal. In this mode it is able to select a channel and initiate a network by sending enabling signals to other devices A client device is defined as a device operating in a mode in which the transmissions of the device are under control of the master. A device in client mode is not able to initiate a network. (5)For client devices that have software configuration control to operate in different modes (active scanning in some and passive scanning in others) in different bands (devices with multiple equipment classes or those that operate on non- DFS frequencies) or modular devices which configure the modes of operations through software, the application must provide software and operations description on how the software and / or hardware is implemented to ensure that proper operations modes cannot be modified by end user or an installer.  Apply Does not apply (If apply, pls help to provide explanation on it was implement, and how software was controlled) Sincerely, Print Name:Kinki Wang Company:NETIS SYSTEMS CO., LTD. Address:Floor 8, Building B, TongFang Information Harbor, No.11 Langshan Road, Nanshan District, Shenzhen, China Phone:+86-755-86677078 Fax:+86-755-86186779 E-Mail:[email protected]

FCC ID: T58N3R

FCC ID: T58N3R

RF Exposure evaluation FCC ID: T58N3R Exposure category: General population/uncontrolled environment EUT Type: Production Unit Device Type: Mobile Device 1. Reference According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. 447498 D01 General RF Exposure Guidance v06: RF Exposure Procedures and Equipment Authorization Policies for Mobile and Portable Devices 2. Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 3. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 4. Antenna Information N3 can only use antennas certificated as follows provided by manufacturer. Internal Identification Antenna type and antenna number Operate frequency band Maximum antenna gain Directional gain: WIFI ANT 1 FPC antenna 2.4GHz – 2.5 GHz 5.1GHz – 5.8 GHz 5.00dBi 8.01dBi WIFI ANT 2 FPC antenna 2.4GHz – 2.5 GHz 5.1GHz – 5.8 GHz 5.00dBi 5. Conducted power [2.4GHz WLAN SISO Mode] Mode Channel Frequency Peak Conducted Output Power (dBm) Tune_Up Antenna1 Antenna2 Antenna1 Antenna2 IEEE 802.11b 1 2412 17.06 16.54 17±1 17±1 7 2437 16.16 16.74 17±1 17±1 13 2462 17.40 17.06 17±1 17±1 IEEE 802.11g 1 2412 19.24 19.04 19±1 19±1 7 2437 19.50 19.16 19±1 19±1 13 2462 19.71 19.57 19±1 19±1 IEEE 802.11n HT20 1 2412 18.90 18.87 19±1 19±1 7 2437 19.25 19.09 19±1 19±1 13 2462 19.49 19.33 19±1 19±1 IEEE 802.11n HT40 3 2422 18.56 18.42 19±1 19±1 7 2437 18.74 18.50 19±1 19±1 11 2452 18.90 18.67 19±1 19±1 [2.4GHz WLAN MIMO Mode] Mode Channel Frequency Peak Conducted Output Power (dBm) Tune_Up Antenna1 Antenna2 Antenna1 Antenna2 IEEE 802.11n HT20 1 2412 18.51 18.51 18±1 18±1 7 2437 18.70 18.58 18±1 18±1 13 2462 18.83 18.87 18±1 18±1 IEEE 802.11n HT40 3 2422 18.26 17.60 18±1 18±1 7 2437 18.45 17.85 18±1 18±1 11 2452 18.30 18.04 18±1 18±1 [5GHz WLAN Band 1 SISO Mode] Mode Channel Frequency Average Conducted Output Power (dBm) Tune_Up Antenna1 Antenna2 Antenna1 Antenna2 IEEE 802.11a 36 5180 13.78 14.45 14.5±1 14.5±1 40 5200 14.06 14.72 14.5±1 14.5±1 48 5240 14.62 15.42 14.5±1 14.5±1 IEEE 802.11n HT20 36 5180 13.83 14.57 14.5±1 14.5±1 40 5200 14.08 14.71 14.5±1 14.5±1 48 5240 14.59 15.21 14.5±1 14.5±1 IEEE 802.11n HT40 38 5190 13.73 14.37 14±1 14±1 46 5230 14.12 14.74 14±1 14±1 IEEE 802.11ac VHT20 36 5180 13.84 14.53 14.5±1 14.5±1 40 5200 14.10 14.72 14.5±1 14.5±1 48 5240 14.61 15.26 14.5±1 14.5±1 IEEE 802.11ac VHT40 38 5190 13.69 14.14 14±1 14±1 46 5230 14.03 14.51 14±1 14±1 IEEE 802.11ac VHT80 42 5210 11.78 13.01 12.5±1 12.5±1 [5GHz WLAN Band 1 MIMO Mode] Mode Channel Frequency Average Conducted Output Power (dBm) Tune_Up Antenna1 Antenna2 Antenna1 Antenna2 IEEE 802.11n HT20 36 5180 12.38 12.78 12.5±1 12.5±1 40 5200 12.35 12.87 12.5±1 12.5±1 48 5240 12.82 13.36 12.5±1 12.5±1 IEEE 802.11n HT40 38 5190 11.85 12.80 12.5±1 12.5±1 46 5230 12.24 13.09 12.5±1 12.5±1 IEEE 802.11ac VHT20 36 5180 11.64 13.07 12.5±1 12.5±1 40 5200 11.96 12.92 12.5±1 12.5±1 48 5240 12.65 13.22 12.5±1 12.5±1 IEEE 802.11ac VHT40 38 5190 12.37 12.66 12.5±1 12.5±1 46 5230 11.95 12.96 12.5±1 12.5±1 IEEE 802.11ac VHT80 42 5210 11.85 12.79 12.5±1 12.5±1 [5GHz WLAN Band 3 SISO Mode] Mode Channel Frequency Average Conducted Output Power (dBm) Tune_Up Antenna1 Antenna2 Antenna1 Antenna2 IEEE 802.11a 149 5745 13.27 13.47 14±1 14±1 157 5785 13.77 13.83 14±1 14±1 165 5825 14.85 14.81 14±1 14±1 IEEE 802.11n HT20 149 5745 13.24 13.35 14±1 14±1 157 5785 13.74 13.77 14±1 14±1 165 5825 14.89 14.78 14±1 14±1 IEEE 802.11n HT40 151 5755 13.51 13.52 13±1 13±1 159 5795 13.90 12.43 13±1 13±1 IEEE 802.11ac VHT20 149 5745 13.28 13.32 14±1 14±1 157 5785 13.74 13.49 14±1 14±1 165 5825 14.87 14.36 14±1 14±1 IEEE 802.11ac VHT40 151 5755 13.38 13.31 13±1 13±1 159 5795 13.80 13.51 13±1 13±1 IEEE 802.11ac VHT80 155 5775 13.38 13.34 13±1 13±1 [5GHz WLAN Band 3 MIMO Mode] Mode Channel Frequency Average Conducted Output Power (dBm) Tune_Up Antenna1 Antenna2 Antenna1 Antenna2 IEEE 802.11n HT20 149 5745 11.57 11.47 12±1 12±1 157 5785 11.99 11.83 12±1 12±1 165 5825 13.09 13.04 12.5±1 12.5±1 IEEE 802.11n HT40 151 5755 11.69 11.87 12±1 12±1 159 5795 12.04 12.04 12.5±1 12.5±1 IEEE 802.11ac VHT20 149 5745 11.33 11.88 12±1 12±1 157 5785 12.03 12.03 12±1 12±1 165 5825 12.86 13.34 12.5±1 12.5±1 IEEE 802.11ac VHT40 151 5755 11.31 12.15 12±1 12±1 159 5795 11.95 11.82 12.5±1 12.5±1 IEEE 802.11ac VHT80 155 5775 11.62 11.55 12.5±1 12.5±1 6. Standalone MPE Result As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna, the RF power density can be obtained. 2.4GHz WLAN SISO MODE ANT1 Modulation Type Output power Antenna Gain (dBi) Antenna Gain (linear) M…

Text truncated - open the document above for the full version.

FCC ID:T58N3R 1 / 205 Annex for FCC 5G WIFI Appendix A1: Emission Bandwidth Test Result TestMode Antenna Channel 26db EBW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant1 5180 18.440 5170.840 5189.280 --- PASS Ant2 5180 18.520 5170.760 5189.280 --- PASS Ant1 5200 18.560 5190.720 5209.280 --- PASS Ant2 5200 18.560 5190.760 5209.320 --- PASS Ant1 5240 18.560 5230.720 5249.280 --- PASS Ant2 5240 18.600 5230.720 5249.320 --- PASS Ant1 5745 18.600 5735.640 5754.240 --- PASS Ant2 5745 18.600 5735.640 5754.240 --- PASS Ant1 5785 18.560 5775.680 5794.240 --- PASS Ant2 5785 18.600 5775.760 5794.360 --- PASS Ant1 5825 18.600 5815.680 5834.280 --- PASS Ant2 5825 18.520 5815.760 5834.280 --- PASS 11N20SISO Ant1 5180 19.520 5170.360 5189.880 --- PASS Ant2 5180 19.600 5170.360 5189.960 --- PASS Ant1 5200 19.600 5190.320 5209.920 --- PASS Ant2 5200 19.480 5190.360 5209.840 --- PASS Ant1 5240 19.560 5230.320 5249.880 --- PASS Ant2 5240 19.520 5230.360 5249.880 --- PASS Ant1 5745 19.560 5735.280 5754.840 --- PASS Ant2 5745 19.560 5735.280 5754.840 --- PASS Ant1 5785 19.520 5775.280 5794.800 --- PASS Ant2 5785 19.600 5775.280 5794.880 --- PASS Ant1 5825 19.480 5815.320 5834.800 --- PASS Ant2 5825 19.600 5815.280 5834.880 --- PASS 11N40SISO Ant1 5190 41.360 5169.600 5210.960 --- PASS Ant2 5190 41.200 5169.680 5210.880 --- PASS Ant1 5230 41.440 5209.520 5250.960 --- PASS Ant2 5230 41.040 5209.760 5250.800 --- PASS Ant1 5755 41.600 5734.280 5775.880 --- PASS Ant2 5755 41.440 5734.360 5775.800 --- PASS Ant1 5795 41.680 5774.280 5815.960 --- PASS Ant2 5795 41.520 5774.360 5815.880 --- PASS 11AC20SISO Ant1 5180 19.680 5170.320 5190.000 --- PASS Ant2 5180 19.360 5170.440 5189.800 --- PASS Ant1 5200 19.600 5190.360 5209.960 --- PASS Ant2 5200 19.400 5190.400 5209.800 --- PASS Ant1 5240 19.600 5230.320 5249.920 --- PASS Ant2 5240 19.440 5230.360 5249.800 --- PASS Ant1 5745 19.520 5735.360 5754.880 --- PASS FCC ID:T58N3R 2 / 205 Ant2 5745 19.440 5735.360 5754.800 --- PASS Ant1 5785 19.560 5775.360 5794.920 --- PASS Ant2 5785 19.520 5775.360 5794.880 --- PASS Ant1 5825 19.640 5815.280 5834.920 --- PASS Ant2 5825 19.520 5815.320 5834.840 --- PASS 11AC40SISO Ant1 5190 41.200 5169.440 5210.640 --- PASS Ant2 5190 41.360 5169.600 5210.960 --- PASS Ant1 5230 41.440 5209.440 5250.880 --- PASS Ant2 5230 40.240 5210.160 5250.400 --- PASS Ant1 5755 41.920 5734.120 5776.040 --- PASS Ant2 5755 41.520 5734.360 5775.880 --- PASS Ant1 5795 41.840 5774.120 5815.960 --- PASS Ant2 5795 40.800 5774.680 5815.480 --- PASS 11AC80SISO Ant1 5210 81.920 5169.520 5251.440 --- PASS Ant2 5210 81.120 5169.840 5250.960 --- PASS Ant1 5775 82.080 5734.040 5816.120 --- PASS Ant2 5775 81.600 5734.200 5815.800 --- PASS 11N20MIMO Ant1 5180 19.680 5170.280 5189.960 --- PASS Ant2 5180 21.320 5169.400 5190.720 --- PASS Ant1 5200 19.480 5190.360 5209.840 --- PASS Ant2 5200 19.560 5190.480 5210.040 --- PASS Ant1 5240 19.640 5230.280 5249.920 --- PASS Ant2 5240 19.400 5230.520 5249.920 --- PASS Ant1 5745 19.640 5735.280 5754.920 --- PASS Ant2 5745 19.440 5735.320 5754.760 --- PASS Ant1 5785 19.640 5775.280 5794.920 --- PASS Ant2 5785 19.320 5775.680 5795.000 --- PASS Ant1 5825 19.640 5815.280 5834.920 --- PASS Ant2 5825 19.400 5815.360 5834.760 --- PASS 11N40MIMO Ant1 5190 41.600 5169.440 5211.040 --- PASS Ant2 5190 41.040 5169.680 5210.720 --- PASS Ant1 5230 41.280 5209.520 5250.800 --- PASS Ant2 5230 40.080 5210.240 5250.320 --- PASS Ant1 5755 41.920 5734.200 5776.120 --- PASS Ant2 5755 41.440 5734.200 5775.640 --- PASS Ant1 5795 41.840 5774.120 5815.960 --- PASS Ant2 5795 40.720 5774.680 5815.400 --- PASS 11AC20MIMO Ant1 5180 19.520 5170.400 5189.920 --- PASS Ant2 5180 22.520 5169.800 5192.320 --- PASS Ant1 5200 19.520 5190.360 5209.880 --- PASS Ant2 5200 20.080 5190.320 5210.400 --- PASS Ant1 5240 19.440 5230.360 5249.800 --- PASS Ant2 5240 19.440 5230.520 5249.960 --- PASS Ant1 5745 19.520 5735.280 5754.800 --- PASS Ant2 5745 19.440 5735.280 5754.720 --- PASS FCC ID:T58N3R 3 / 205 Ant1 5785 19.480 5775.360 5794.840 --- PASS Ant2 5785 19.360 5775.680 5795.040 --- PASS Ant1 5825 19.520 5815.360 5834.880 --- PASS Ant2 5825 19.480 5815.320 5834.800 --- PASS 11AC40MIMO Ant1 5190 41.200 5169.600 5210.800 --- PASS Ant2 5190 44.480 5168.240 5212.720 --- PASS Ant1 5230 41.200 5209.680 5250.880 --- PASS Ant2 5230 41.120 5210.240 5251.360 --- PASS Ant1 5755 41.840 5734.360 5776.200 --- PASS Ant2 5755 42.000 5733.880 5775.880 --- PASS Ant1 5795 41.680 5774.440 5816.120 --- PASS Ant2 5795 40.080 5776.040 5816.120 --- PASS 11AC80MIMO Ant1 5210 81.440 5169.680 5251.120 --- PASS Ant2 5210 80.480 5170.320 5250.800 --- PASS Ant1 5775 81.440 5734.200 5815.640 --- PASS Ant2 5775 81.280 5734.360 5815.640 --- PASS FCC ID:T58N3R 4 / 205 Test Graphs 11A_Ant1_5180 11A_Ant2_5180 11A_Ant1_5200 FCC ID:T58N3R 5 / 205 11A_Ant2_5200 11A_Ant1_5240 11A_Ant2_5240 11A_Ant1_5745 FCC ID:T58N3R 6 / 205 11A_Ant2_5745 11A_Ant1_5785 11A_Ant2_5785 FCC ID:T58N3R 7 / 205 11A_Ant1_5825 11A_Ant2_5825 11N20SISO_Ant1_5180 FCC ID:T58N3R 8 / 205 11N20SISO_Ant2_5180 11N20SISO_Ant1_5200 11N20SISO_Ant2_5200 FCC ID:T58N3R 9 / 205 11N20SISO_Ant1_5240 11N20SISO_Ant2_5240 11N20SISO_Ant1_5745 FCC ID:T58N3R 10 / 205 11N20SISO_Ant2_5745 11N20SISO_Ant1_5785 11N20SISO_Ant2_5785 FCC ID:T58N3R 11 / 205 11N20SISO_Ant1_5825 11N20SISO_Ant2_5825 11N40SISO_Ant1_5190 FCC ID:T58N3R 12 / 205 11N40SISO_Ant2_5190 11N40SISO_Ant1_5230 11N40SISO_Ant2_5230 FCC ID:T58N3R 13 / 205 11N40SISO_Ant1_5755 11N40SISO_Ant2_5755 11N40SISO_Ant1_5795 FCC ID:T58N3R 14 / 205 11N40SISO_Ant2_5795 11AC20SISO_Ant1_5180 11AC20SISO_Ant2_5180 FCC ID:T58N3R 15 / 205 11AC20SISO_Ant1_5200 11AC20SISO_Ant2_5200 11AC20SISO_Ant1_5240 FCC ID:T58N3R 16 / 205 11AC20SISO_Ant2_5240 11AC20SISO_Ant1_5745 11AC20SISO_Ant2_5745 FCC ID:T58N3R 17 / 205 11AC20SISO_Ant1_5785 11AC20SISO_Ant2_5785 11AC20SISO_Ant1_5825 FCC ID:T58N3R 18 / 205 11AC20SISO_Ant2_5825 11AC40SISO_Ant1_5190 11AC40SISO_Ant2_5190 FCC ID:T58N3R 19 / 205 11AC40SISO_Ant1_5230 11AC40SISO_Ant2_5230 11AC4…

Text truncated - open the document above for the full version.

FCC ID:T58N3R 35 / 205 11AC40MIMO_Ant1_5795 11AC40MIMO_Ant2_5795 11AC80MIMO_Ant1_5210 FCC ID:T58N3R 36 / 205 11AC80MIMO_Ant2_5210 11AC80MIMO_Ant1_5775 11AC80MIMO_Ant2_5775 FCC ID:T58N3R 37 / 205 FCC ID:T58N3R 38 / 205 Appendix A2: Occupied channel bandwidth Test Result TestMode Antenna Channel OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant1 5180 16.525 5171.825 5188.350 --- PASS Ant2 5180 16.521 5171.829 5188.350 --- PASS Ant1 5200 16.525 5191.801 5208.326 --- PASS Ant2 5200 16.521 5191.810 5208.331 --- PASS Ant1 5240 16.516 5231.811 5248.327 --- PASS Ant2 5240 16.507 5231.816 5248.323 --- PASS Ant1 5745 16.551 5736.761 5753.312 --- PASS Ant2 5745 16.547 5736.763 5753.310 --- PASS Ant1 5785 16.549 5776.774 5793.323 --- PASS Ant2 5785 16.550 5776.769 5793.319 --- PASS Ant1 5825 16.538 5816.790 5833.328 --- PASS Ant2 5825 16.530 5816.800 5833.330 --- PASS 11N20SISO Ant1 5180 17.638 5171.290 5188.928 --- PASS Ant2 5180 17.644 5171.284 5188.928 --- PASS Ant1 5200 17.646 5191.260 5208.906 --- PASS Ant2 5200 17.638 5191.267 5208.905 --- PASS Ant1 5240 17.622 5231.274 5248.896 --- PASS Ant2 5240 17.625 5231.275 5248.900 --- PASS Ant1 5745 17.659 5736.230 5753.889 --- PASS Ant2 5745 17.655 5736.237 5753.892 --- PASS Ant1 5785 17.661 5776.236 5793.897 --- PASS Ant2 5785 17.656 5776.241 5793.897 --- PASS Ant1 5825 17.650 5816.258 5833.908 --- PASS Ant2 5825 17.637 5816.261 5833.898 --- PASS 11N40SISO Ant1 5190 36.395 5172.056 5208.451 --- PASS Ant2 5190 36.416 5172.049 5208.465 --- PASS Ant1 5230 36.386 5212.049 5248.435 --- PASS Ant2 5230 36.377 5212.050 5248.427 --- PASS Ant1 5755 36.614 5736.799 5773.413 --- PASS Ant2 5755 36.538 5736.875 5773.413 --- PASS Ant1 5795 36.552 5776.893 5813.445 --- PASS Ant2 5795 36.535 5776.904 5813.439 --- PASS 11AC20SISO Ant1 5180 17.679 5171.275 5188.954 --- PASS Ant2 5180 17.639 5171.277 5188.916 --- PASS Ant1 5200 17.700 5191.240 5208.940 --- PASS Ant2 5200 17.630 5191.274 5208.904 --- PASS Ant1 5240 17.669 5231.256 5248.925 --- PASS Ant2 5240 17.620 5231.275 5248.895 --- PASS Ant1 5745 17.705 5736.216 5753.921 --- PASS Ant2 5745 17.651 5736.239 5753.890 --- PASS Ant1 5785 17.689 5776.226 5793.915 --- PASS FCC ID:T58N3R 39 / 205 Ant2 5785 17.644 5776.245 5793.889 --- PASS Ant1 5825 17.685 5816.246 5833.931 --- PASS Ant2 5825 17.640 5816.260 5833.900 --- PASS 11AC40SISO Ant1 5190 36.420 5171.952 5208.372 --- PASS Ant2 5190 36.355 5172.078 5208.433 --- PASS Ant1 5230 36.469 5211.905 5248.374 --- PASS Ant2 5230 36.221 5212.061 5248.282 --- PASS Ant1 5755 36.679 5736.676 5773.355 --- PASS Ant2 5755 36.547 5736.853 5773.400 --- PASS Ant1 5795 36.553 5776.777 5813.330 --- PASS Ant2 5795 36.340 5776.917 5813.257 --- PASS 11AC80SISO Ant1 5210 75.185 5172.861 5248.046 --- PASS Ant2 5210 74.878 5173.023 5247.901 --- PASS Ant1 5775 75.536 5737.311 5812.847 --- PASS Ant2 5775 75.153 5737.435 5812.588 --- PASS 11N20MIMO Ant1 5180 17.691 5171.268 5188.959 --- PASS Ant2 5180 17.721 5171.232 5188.953 --- PASS Ant1 5200 17.678 5191.250 5208.928 --- PASS Ant2 5200 17.683 5191.296 5208.979 --- PASS Ant1 5240 17.681 5231.260 5248.941 --- PASS Ant2 5240 17.616 5231.357 5248.973 --- PASS Ant1 5745 17.704 5736.226 5753.930 --- PASS Ant2 5745 17.653 5736.209 5753.862 --- PASS Ant1 5785 17.705 5776.232 5793.937 --- PASS Ant2 5785 17.561 5776.477 5794.038 --- PASS Ant1 5825 17.685 5816.252 5833.937 --- PASS Ant2 5825 17.629 5816.239 5833.868 --- PASS 11N40MIMO Ant1 5190 36.401 5171.999 5208.400 --- PASS Ant2 5190 36.325 5172.043 5208.368 --- PASS Ant1 5230 36.415 5211.929 5248.344 --- PASS Ant2 5230 36.134 5212.129 5248.263 --- PASS Ant1 5755 36.681 5736.677 5773.358 --- PASS Ant2 5755 36.545 5736.733 5773.278 --- PASS Ant1 5795 36.592 5776.748 5813.340 --- PASS Ant2 5795 36.282 5776.960 5813.242 --- PASS 11AC20MIMO Ant1 5180 17.644 5171.287 5188.931 --- PASS Ant2 5180 17.791 5171.205 5188.996 --- PASS Ant1 5200 17.642 5191.272 5208.914 --- PASS Ant2 5200 17.746 5191.270 5209.016 --- PASS Ant1 5240 17.627 5231.274 5248.901 --- PASS Ant2 5240 17.612 5231.379 5248.991 --- PASS Ant1 5745 17.646 5736.237 5753.883 --- PASS Ant2 5745 17.652 5736.205 5753.857 --- PASS Ant1 5785 17.653 5776.249 5793.902 --- PASS Ant2 5785 17.578 5776.511 5794.089 --- PASS FCC ID:T58N3R 40 / 205 Ant1 5825 17.646 5816.270 5833.916 --- PASS Ant2 5825 17.623 5816.235 5833.858 --- PASS 11AC40MIMO Ant1 5190 36.405 5172.067 5208.472 --- PASS Ant2 5190 36.910 5171.852 5208.762 --- PASS Ant1 5230 36.387 5212.067 5248.454 --- PASS Ant2 5230 36.386 5212.384 5248.770 --- PASS Ant1 5755 36.616 5736.824 5773.440 --- PASS Ant2 5755 36.830 5736.581 5773.411 --- PASS Ant1 5795 36.579 5776.852 5813.431 --- PASS Ant2 5795 35.632 5778.146 5813.778 --- PASS 11AC80MIMO Ant1 5210 74.965 5172.956 5247.921 --- PASS Ant2 5210 74.947 5172.993 5247.940 --- PASS Ant1 5775 75.098 5737.395 5812.493 --- PASS Ant2 5775 75.278 5737.402 5812.680 --- PASS FCC ID:T58N3R 41 / 205 Test Graphs 11A_Ant1_5180 11A_Ant2_5180 11A_Ant1_5200 FCC ID:T58N3R 42 / 205 11A_Ant2_5200 11A_Ant1_5240 11A_Ant2_5240 11A_Ant1_5745 FCC ID:T58N3R 43 / 205 11A_Ant2_5745 11A_Ant1_5785 11A_Ant2_5785 FCC ID:T58N3R 44 / 205 11A_Ant1_5825 11A_Ant2_5825 11N20SISO_Ant1_5180 FCC ID:T58N3R 45 / 205 11N20SISO_Ant2_5180 11N20SISO_Ant1_5200 11N20SISO_Ant2_5200 FCC ID:T58N3R 46 / 205 11N20SISO_Ant1_5240 11N20SISO_Ant2_5240 11N20SISO_Ant1_5745 FCC ID:T58N3R 47 / 205 11N20SISO_Ant2_5745 11N20SISO_Ant1_5785 11N20SISO_Ant2_5785 FCC ID:T58N3R 48 / 205 11N20SISO_Ant1_5825 11N20SISO_Ant2_5825 11N40SISO_Ant1_5190 FCC ID:T58N3R 49 / 205 11N40SISO_Ant2_5190 11N40SISO_Ant1_5230 11N40SISO_Ant2_5230 FCC ID:T58N3R 50 / 205 11N40SISO_Ant1_5755 11N40SISO_Ant2_5755 11N40SISO_Ant1_5795 FCC ID:T58N3R 51 / 205 11N40SISO_Ant2_5795 11AC20SISO_Ant1_5180 11AC20SISO_Ant2_5180 FCC ID:T58N3R 52 / 205 11AC20SISO_Ant1_5200 11AC20SISO_Ant2_5200 11AC20SISO_Ant1_5240 FCC ID:T58N3R 53 / 205 11AC20SISO_Ant2_5240 11AC20SISO_Ant1_5745 11AC20SISO_Ant2_5745 FCC ID:T58N3R 54 / 205 11AC20SISO_Ant1_5785 11AC20SISO_An…

Text truncated - open the document above for the full version.

FCC ID:T58N3R 69 / 205 11AC20MIMO_Ant2_5785 11AC20MIMO_Ant1_5825 11AC20MIMO_Ant2_5825 FCC ID:T58N3R 70 / 205 11AC40MIMO_Ant1_5190 11AC40MIMO_Ant2_5190 11AC40MIMO_Ant1_5230 FCC ID:T58N3R 71 / 205 11AC40MIMO_Ant2_5230 11AC40MIMO_Ant1_5755 11AC40MIMO_Ant2_5755 FCC ID:T58N3R 72 / 205 11AC40MIMO_Ant1_5795 11AC40MIMO_Ant2_5795 11AC80MIMO_Ant1_5210 FCC ID:T58N3R 73 / 205 11AC80MIMO_Ant2_5210 11AC80MIMO_Ant1_5775 11AC80MIMO_Ant2_5775 FCC ID:T58N3R 74 / 205 FCC ID:T58N3R 75 / 205 Appendix A3: Min emission bandwidth Test Result TestMode Antenna Channel 6db EBW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant1 5745 16.560 5736.760 5753.320 0.5 PASS Ant2 5745 16.560 5736.760 5753.320 0.5 PASS Ant1 5785 16.560 5776.760 5793.320 0.5 PASS Ant2 5785 16.600 5776.760 5793.360 0.5 PASS Ant1 5825 16.600 5816.760 5833.360 0.5 PASS Ant2 5825 16.600 5816.760 5833.360 0.5 PASS 11N20SISO Ant1 5745 17.760 5736.160 5753.920 0.5 PASS Ant2 5745 17.720 5736.200 5753.920 0.5 PASS Ant1 5785 17.720 5776.200 5793.920 0.5 PASS Ant2 5785 17.760 5776.160 5793.920 0.5 PASS Ant1 5825 17.720 5816.200 5833.920 0.5 PASS Ant2 5825 17.720 5816.200 5833.920 0.5 PASS 11N40SISO Ant1 5755 36.640 5736.760 5773.400 0.5 PASS Ant2 5755 36.640 5736.760 5773.400 0.5 PASS Ant1 5795 36.640 5776.760 5813.400 0.5 PASS Ant2 5795 36.640 5776.760 5813.400 0.5 PASS 11AC20SISO Ant1 5745 17.760 5736.160 5753.920 0.5 PASS Ant2 5745 17.720 5736.200 5753.920 0.5 PASS Ant1 5785 17.800 5776.160 5793.960 0.5 PASS Ant2 5785 17.720 5776.200 5793.920 0.5 PASS Ant1 5825 17.800 5816.160 5833.960 0.5 PASS Ant2 5825 17.720 5816.200 5833.920 0.5 PASS 11AC40SISO Ant1 5755 36.720 5736.680 5773.400 0.5 PASS Ant2 5755 36.560 5736.760 5773.320 0.5 PASS Ant1 5795 36.560 5776.760 5813.320 0.5 PASS Ant2 5795 36.560 5776.760 5813.320 0.5 PASS 11AC80SISO Ant1 5775 76.640 5736.760 5813.400 0.5 PASS Ant2 5775 76.320 5736.760 5813.080 0.5 PASS 11N20MIMO Ant1 5745 17.800 5736.160 5753.960 0.5 PASS Ant2 5745 17.680 5736.200 5753.880 0.5 PASS Ant1 5785 17.800 5776.160 5793.960 0.5 PASS Ant2 5785 17.120 5776.880 5794.000 0.5 PASS Ant1 5825 17.800 5816.160 5833.960 0.5 PASS Ant2 5825 17.720 5816.200 5833.920 0.5 PASS 11N40MIMO Ant1 5755 36.640 5736.760 5773.400 0.5 PASS Ant2 5755 36.560 5736.760 5773.320 0.5 PASS Ant1 5795 36.640 5776.760 5813.400 0.5 PASS Ant2 5795 36.560 5776.760 5813.320 0.5 PASS 11AC20MIMO Ant1 5745 17.720 5736.200 5753.920 0.5 PASS Ant2 5745 17.760 5736.160 5753.920 0.5 PASS FCC ID:T58N3R 76 / 205 Ant1 5785 17.800 5776.160 5793.960 0.5 PASS Ant2 5785 15.480 5778.520 5794.000 0.5 PASS Ant1 5825 17.760 5816.200 5833.960 0.5 PASS Ant2 5825 17.760 5816.160 5833.920 0.5 PASS 11AC40MIMO Ant1 5755 36.640 5736.760 5773.400 0.5 PASS Ant2 5755 36.640 5736.680 5773.320 0.5 PASS Ant1 5795 36.640 5776.760 5813.400 0.5 PASS Ant2 5795 27.200 5786.200 5813.400 0.5 PASS 11AC80MIMO Ant1 5775 76.320 5736.760 5813.080 0.5 PASS Ant2 5775 76.640 5736.760 5813.400 0.5 PASS FCC ID:T58N3R 77 / 205 Test Graphs 11A_Ant1_5745 11A_Ant2_5745 11A_Ant1_5785 FCC ID:T58N3R 78 / 205 11A_Ant2_5785 11A_Ant1_5825 11A_Ant2_5825 11N20SISO_Ant1_5745 FCC ID:T58N3R 79 / 205 11N20SISO_Ant2_5745 11N20SISO_Ant1_5785 11N20SISO_Ant2_5785 FCC ID:T58N3R 80 / 205 11N20SISO_Ant1_5825 11N20SISO_Ant2_5825 11N40SISO_Ant1_5755 FCC ID:T58N3R 81 / 205 11N40SISO_Ant2_5755 11N40SISO_Ant1_5795 11N40SISO_Ant2_5795 FCC ID:T58N3R 82 / 205 11AC20SISO_Ant1_5745 11AC20SISO_Ant2_5745 11AC20SISO_Ant1_5785 FCC ID:T58N3R 83 / 205 11AC20SISO_Ant2_5785 11AC20SISO_Ant1_5825 11AC20SISO_Ant2_5825 FCC ID:T58N3R 84 / 205 11AC40SISO_Ant1_5755 11AC40SISO_Ant2_5755 11AC40SISO_Ant1_5795 FCC ID:T58N3R 85 / 205 11AC40SISO_Ant2_5795 11AC80SISO_Ant1_5775 11AC80SISO_Ant2_5775 FCC ID:T58N3R 86 / 205 11N20MIMO_Ant1_5745 11N20MIMO_Ant2_5745 11N20MIMO_Ant1_5785 FCC ID:T58N3R 87 / 205 11N20MIMO_Ant2_5785 11N20MIMO_Ant1_5825 11N20MIMO_Ant2_5825 FCC ID:T58N3R 88 / 205 11N40MIMO_Ant1_5755 11N40MIMO_Ant2_5755 11N40MIMO_Ant1_5795 FCC ID:T58N3R 89 / 205 11N40MIMO_Ant2_5795 11AC20MIMO_Ant1_5745 11AC20MIMO_Ant2_5745 FCC ID:T58N3R 90 / 205 11AC20MIMO_Ant1_5785 11AC20MIMO_Ant2_5785 11AC20MIMO_Ant1_5825 FCC ID:T58N3R 91 / 205 11AC20MIMO_Ant2_5825 11AC40MIMO_Ant1_5755 11AC40MIMO_Ant2_5755 FCC ID:T58N3R 92 / 205 11AC40MIMO_Ant1_5795 11AC40MIMO_Ant2_5795 11AC80MIMO_Ant1_5775 FCC ID:T58N3R 93 / 205 11AC80MIMO_Ant2_5775 FCC ID:T58N3R 94 / 205 Appendix B: Maximum conducted output power Test Result TestMode Antenna Channel Result[dBm] Limit[dBm] Verdict 11A Ant1 5180 13.78 <=30 PASS Ant2 5180 14.45 <=30 PASS Ant1 5200 14.06 <=30 PASS Ant2 5200 14.72 <=30 PASS Ant1 5240 14.62 <=30 PASS Ant2 5240 15.42 <=30 PASS Ant1 5745 13.27 <=30 PASS Ant2 5745 13.47 <=30 PASS Ant1 5785 13.77 <=30 PASS Ant2 5785 13.83 <=30 PASS Ant1 5825 14.85 <=30 PASS Ant2 5825 14.81 <=30 PASS 11N20SISO Ant1 5180 13.83 <=30 PASS Ant2 5180 14.57 <=30 PASS Ant1 5200 14.08 <=30 PASS Ant2 5200 14.71 <=30 PASS Ant1 5240 …

Text truncated - open the document above for the full version.
