T58DL4305RADSL2 Modem Plus 300Mbps Wireless-N Router

DL4305 ADSL2+ Modem Plus 300Mbps Wireless-N Router Quick Installation Guide 1 1. Hardware Installation Step 1: Connect the ADSL Line. Method one: Plug one end of the twisted‐pair ADSL cable into the ADSL LINE port on the rear panel of the router, and insert the other end into the wall socket. Method two: You can use a separate splitter. The external splitter has three ports: • Line: Connect to the wall jack • Phone: Connect to the phone sets • Modem: Connect to the ADSL LINE port of the router Step 2: Connect the Ethernet cable. Attach one end of a network cable to your computer's Ethernet port or a regular hub/switch port, and the other end to the LAN port on the router. Step 3: Power on the computers and LAN devices. Step 4: Attach the power adapter. Connect the power adapter to the power connector on the rear of the device and plug in the adapter to 2 a wall outlet or power extension. Figure 1 3 Name Status Indication On Power is on PWR Off Power is off Flash The ADSL negotiation is in progress On The LINE port is linked up. ADSL Off The LINE port is linked down. Flash Data is being transferred over the Internet. On A successful PPP connection has been built. Internet Off There is no successful PPP connection or the Router works on Bridge mode. Flash There is wireless data being transmitted. On The wireless function is enabled but no data is being transmitted. WLAN Off The wireless function is disabled. Flash Data is being transferred over the 1‐4 (LAN) port. On There is a successful connection on the corresponding 1‐4 (LAN) port but no activity. LAN(1‐4) Off There is no connection on the corresponding 1‐4 (LAN) port or the connection is abnormal. 4 2. Configure PC ForWindows 7 or Windows Vista as below. Step 1: Click , then select the Open Network and Sharing Center. Figure 2 Step 2: Click the Change adapter settings. Figure 3 Step 3: Click Local Area Connection with the right button of your mouse. Then select Properties. 5 Figure 4 Step 4: Double click the “Internet Protocol Version 4(TCP/IPv4)”. Figure 5 6 Step 5: Select the “Obtain an IP address automatically” as below. Then click “OK”. Figure 6 3. Login Start your web browser and type the private IP address of the Router in the URL field: 192.168.1.1. Figure 7 Then,enter the default User Name admin and the default Passwordadmin 7 Figure 8 And then click OK to access to the Wireless Modem Management Panelscreen. 4. Modem Management This webpage provides you the convenient and simplest way to configure your Modem to access the internet. Firstly. Click and go to “Setup”‐>”WAN” , Page is showing below: (we are taking PPPoE for example) Secondly. Enter the VPI and VCI provided by your ISP and select the Channel mode as PPPoE Third: Enter the Fixed IP address which provided by your ISP then click “ Add” 8 Fourth: Click “Save” botton to make it effetive. Figure 9 5. Wireless Network&Security To connect to the Wireless AP, we should have the most basic configuration of the router at first. In this section, you can set the wireless network parameters required to access the AP of your WLAN 9 interface. Go to Setup->WLAN->Basic page, you can configure the wireless parameters. Here you may enable or disable the wireless function. You can also change the wireless parameters, such as Band, SSID, Channel Width, Control Sideband, Channel Number and Radio Power. Figure 10 Step 2:Go to Setup->WLAN->Security page, you can configure the wireless security parameters. Here you can choose the encryption method to prevent any 10 unauthorized access to your wireless network. There are three most commonly used encryption method (a total of six encryption support), including the WEP encryption, WPA-Personal, WPA2-Personal, etc. Click “Apply Changes” to make it effective Figure 11 Step 3: Click “My Network Places” with the right button of your mouse. Then select “Properties”. 11 Figure 12 Step 4: Click “Wireless Network Connection” with the right button of your mouse. Then select “View Available Wireless Networks”. Figure 13 Step 5: Double click the wireless network your product provided. 12 Figure 14 Step 6: Input the key you stetted before if the wireless network you connecting to requests password. Certification FCC CE FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to pro‐vide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not in‐stalled and used in accordance with the instructions, may cause 13 harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/ TV technician for help. FCC Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co‐located or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution! Any changes or modific…

Text truncated - open the document above for the full version.

DL4305D ADSL2+ Modem Plus 300Mbps Wireless-N Router Quick Installation Guide 1 1. Hardware Installation Step 1: Connect the ADSL Line. Method one: Plug one end of the twisted‐pair ADSL cable into the ADSL LINE port on the rear panel of the router, and insert the other end into the wall socket. Method two: You can use a separate splitter. The external splitter has three ports: • Line: Connect to the wall jack • Phone: Connect to the phone sets • Modem: Connect to the ADSL LINE port of the router Step 2: Connect the Ethernet cable. Attach one end of a network cable to your computer's Ethernet port or a regular hub/switch port, and the other end to the LAN port on the router. Step 3: Power on the computers and LAN devices. Step 4: Attach the power adapter. Connect the power adapter to the power connector on the rear of the device and plug in the adapter to 2 a wall outlet or power extension. Figure 1 3 Name Status Indication On Power is on PWR Off Power is off Flash The ADSL negotiation is in progress On The LINE port is linked up. ADSL Off The LINE port is linked down. Flash Data is being transferred over the Internet. On A successful PPP connection has been built. Internet Off There is no successful PPP connection or the Router works on Bridge mode. Flash There is wireless data being transmitted. On The wireless function is enabled but no data is being transmitted. WLAN Off The wireless function is disabled. Flash Data is being transferred over the 1‐4 (LAN) port. On There is a successful connection on the corresponding 1‐4 (LAN) port but no activity. LAN(1‐4) Off There is no connection on the corresponding 1‐4 (LAN) port or the connection is abnormal. 4 2. Configure PC ForWindows 7 or Windows Vista as below. Step 1: Click , then select the Open Network and Sharing Center. Figure 2 Step 2: Click the Change adapter settings. Figure 3 Step 3: Click Local Area Connection with the right button of your mouse. Then select Properties. 5 Figure 4 Step 4: Double click the “Internet Protocol Version 4(TCP/IPv4)”. Figure 5 6 Step 5: Select the “Obtain an IP address automatically” as below. Then click “OK”. Figure 6 3. Login Start your web browser and type the private IP address of the Router in the URL field: 192.168.1.1. Figure 7 Then,enter the default User Name admin and the default Passwordadmin 7 Figure 8 And then click OK to access to the Wireless Modem Management Panelscreen. 4. Modem Management This webpage provides you the convenient and simplest way to configure your Modem to access the internet. Firstly. Click and go to “Setup”‐>”WAN” , Page is showing below: (we are taking PPPoE for example) Secondly. Enter the VPI and VCI provided by your ISP and select the Channel mode as PPPoE Third: Enter the Fixed IP address which provided by your ISP then click “ Add” 8 Fourth: Click “Save” botton to make it effetive. Figure 9 5. Wireless Network&Security To connect to the Wireless AP, we should have the most basic configuration of the router at first. In this section, you can set the wireless network parameters required to access the AP of your WLAN 9 interface. Go to Setup->WLAN->Basic page, you can configure the wireless parameters. Here you may enable or disable the wireless function. You can also change the wireless parameters, such as Band, SSID, Channel Width, Control Sideband, Channel Number and Radio Power. Figure 10 Step 2:Go to Setup->WLAN->Security page, you can configure the wireless security parameters. Here you can choose the encryption method to prevent any 10 unauthorized access to your wireless network. There are three most commonly used encryption method (a total of six encryption support), including the WEP encryption, WPA-Personal, WPA2-Personal, etc. Click “Apply Changes” to make it effective Figure 11 Step 3: Click “My Network Places” with the right button of your mouse. Then select “Properties”. 11 Figure 12 Step 4: Click “Wireless Network Connection” with the right button of your mouse. Then select “View Available Wireless Networks”. Figure 13 Step 5: Double click the wireless network your product provided. 12 Figure 14 Step 6: Input the key you stetted before if the wireless network you connecting to requests password. Certification FCC CE FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to pro‐vide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not in‐stalled and used in accordance with the instructions, may cause 13 harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/ TV technician for help. FCC Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co‐located or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution! Any changes or modifi…

Text truncated - open the document above for the full version.

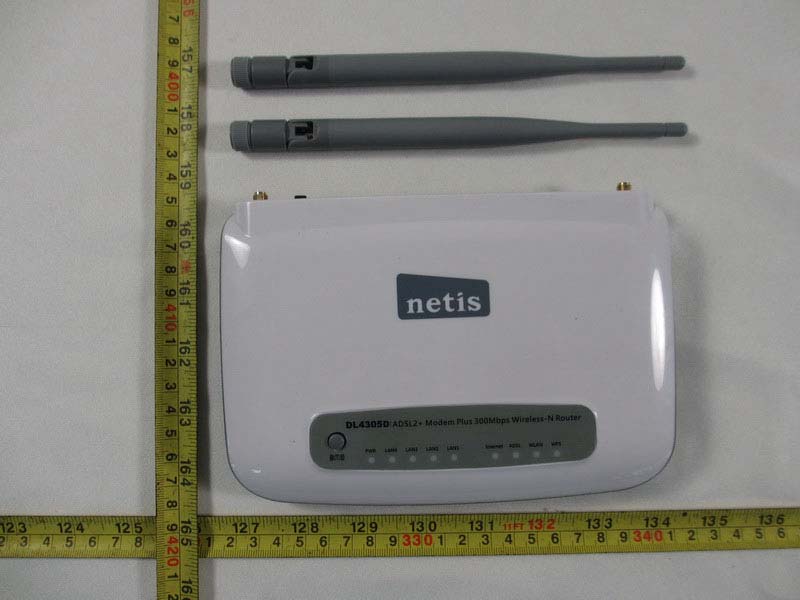

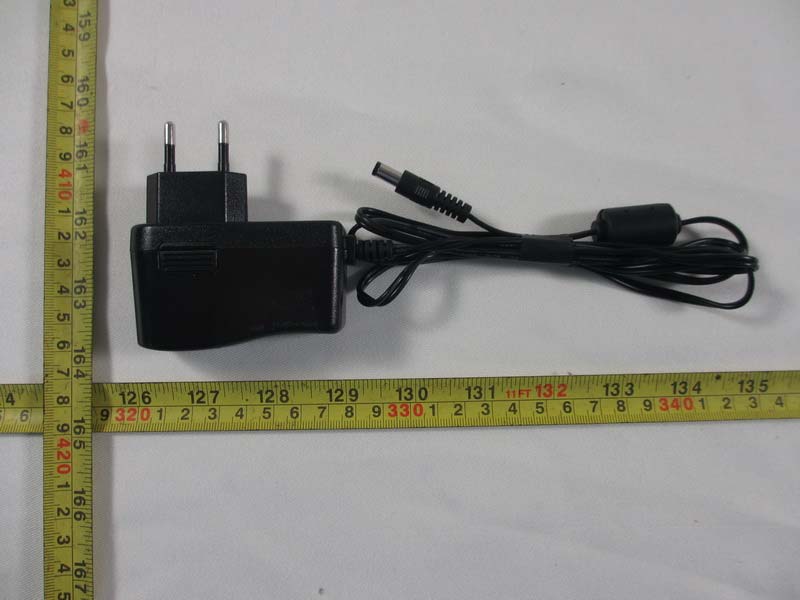

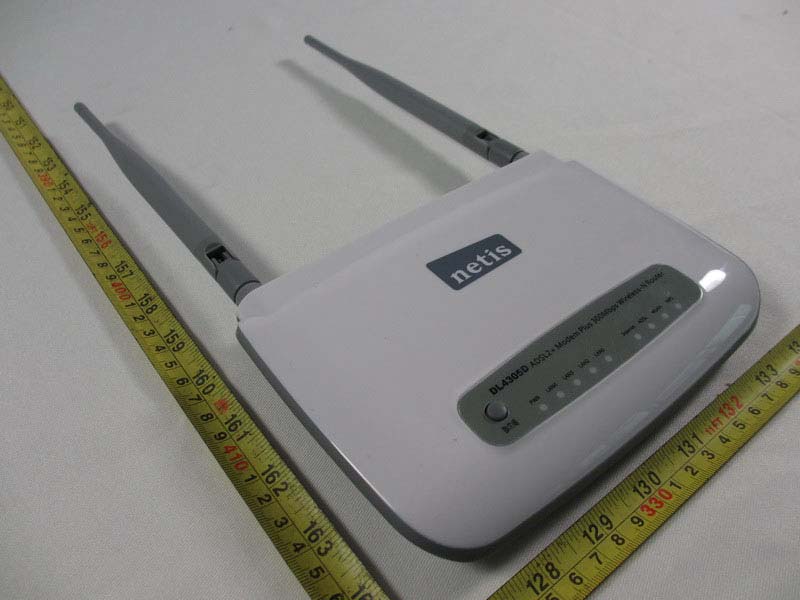

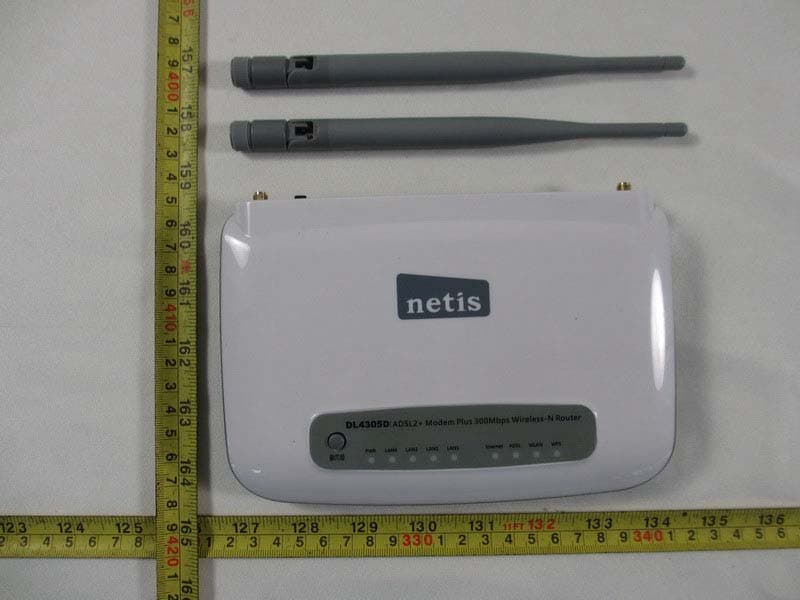

Neutron Engineering Inc. Project No.: 1110C092A Page 2 of 10 Model: DL4305D Neutron Engineering Inc. Project No.: 1110C092A Page 3 of 10 Neutron Engineering Inc. Project No.: 1110C092A Page 4 of 10 Neutron Engineering Inc. Project No.: 1110C092A Page 5 of 10 Model: DL4305 Neutron Engineering Inc. Project No.: 1110C092A Page 10 of 10

Neutron Engineering Inc. Project No.: 1110C092A Page 6 of 10 Neutron Engineering Inc. Project No.: 1110C092A Page 7 of 10 Neutron Engineering Inc. Project No.: 1110C092A Page 8 of 10 Neutron Engineering Inc. Project No.: 1110C092A Page 9 of 10

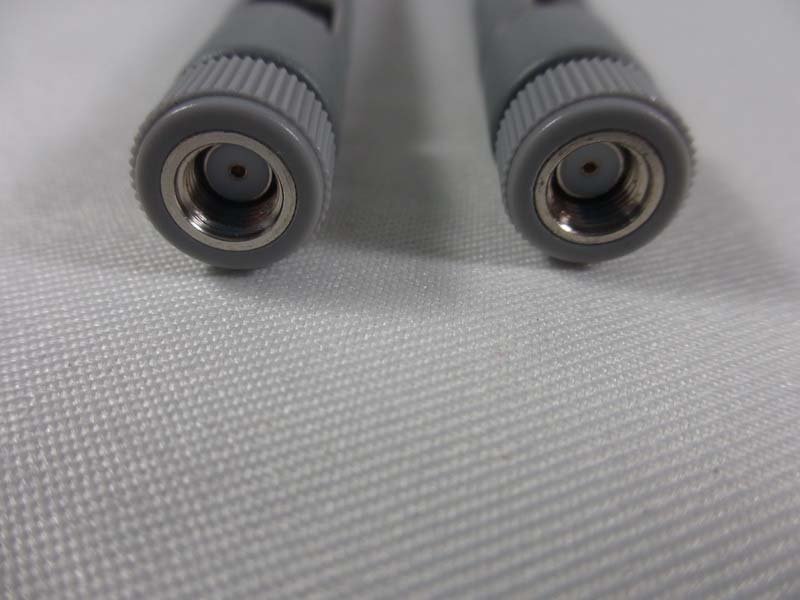

Neutron Engineering Inc. FCC RF EXPOSURE REPORT FCC ID: T58DL4305R Project No. : 1110C092A Equipment : ADSL2+ Modem Plus 300Mbps Wireless-N Router Model : DL4305D; DL4305 Applicant : NETIS SYSTEMS CO., LTD Address : 9F,B Block,Tsinghua Information Park, High-tech Industrial Park, Nanshan, Shenzhen, China According: : FCC Guidelines for Human Exposure IEEE C92.76 Neutron Engineering Inc. No.3, Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL : (0769) 8318-3000 FAX : (0769) 8319-6000 Neutron Engineering Inc. MPE CALCULATION METHOD: Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Ant. Brand nameModel NameAntenna Type Connector Gain (dBi) Gain (numeric) Note 1 HONGLIN RG178 Dipole R-SMA 5.28 3.3729 TX/RX 2 HONGLIN 2.4GHz 5dBi, Dipole N/A 5.28 3.3729 TX/RX Note: The EUT incorporates a MIMO function. Physically, the EUT provides two completed transmitters and two receivers (2T2R). Operating Mode TX Mode 1TX 2TX 802.11b V (ANT1 or ANT2) - 802.11g V (ANT1 or ANT2) - 802.11n(20MHz) - V (ANT1 & ANT2) 802.11n(40MHz) - V (ANT1 & ANT2) Neutron Engineering Inc. TEST RESULTS EUT： ADSL2+ Modem Plus 300Mbps Wireless-N Router Model Name ： DL4305D Temperature： 25 °C Relative Humidity： 60 % Pressure： 1012 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX B MODE /CH01, CH06, CH11-ANT 1 Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 17.36 54.4503 0.036555301 Complies 17.58 57.2796 0.038454781 Complies 17.70 58.8844 0.039532141 Complies EUT： ADSL2+ Modem Plus 300Mbps Wireless-N Router Model Name ： DL4305D Temperature： 25 °C Relative Humidity： 60 % Pressure： 1012 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX G MODE /CH01, CH06, CH11-ANT 1 Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 19.19 82.9851 0.055712211 Complies 19.46 88.3080 0.059285761 Complies 19.54 89.9498 0.060387961 Complies Neutron Engineering Inc. EUT： ADSL2+ Modem Plus 300Mbps Wireless-N Router Model Name ： DL4305D Temperature： 25 °C Relative Humidity： 60 % Pressure： 1012 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX N-20M MODE /CH01, CH06, CH11 - ANT 1 Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 14.88 30.7610 0.020651441 Complies 14.42 27.6694 0.018575921 Complies 14.60 28.8403 0.019362011 Complies EUT： ADSL2+ Modem Plus 300Mbps Wireless-N Router Model Name ： DL4305D Temperature： 25 °C Relative Humidity： 60 % Pressure： 1012 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX N-20M MODE /CH01, CH06, CH11 - ANT 2 Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 14.45 27.8612 0.018704681 Complies 14.60 28.8403 0.019362011 Complies 14.24 26.5461 0.017821751 Complies Neutron Engineering Inc. EUT： ADSL2+ Modem Plus 300Mbps Wireless-N Router Model Name ： DL4305D Temperature： 25 °C Relative Humidity： 60 % Pressure： 1012 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX N-20M MODE /CH01, CH06, CH11 – ANT0+ ANT 1 Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 17.68 58.6138 0.039350511 Complies 17.52 56.4937 0.037927161 Complies 17.43 55.3350 0.037149281 Complies EUT： ADSL2+ Modem Plus 300Mbps Wireless-N Router Model Name ： DL4305D Temperature： 25 °C Relative Humidity： 60 % Pressure： 1012 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX N-40M MODE /CH03, CH06, CH09 - ANT 1 Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 15.02 31.7687 0.021328011 Complies 14.26 26.6686 0.017904011 Complies 14.46 27.9254 0.018747801 Complies Neutron Engineering Inc. EUT： ADSL2+ Modem Plus 300Mbps Wireless-N Router Model Name ： DL4305D Temperature： 25 °C Relative Humidity： 60 % Pressure： 1012 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX N-40M MODE /CH03, CH06, CH09 - ANT 2 Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 14.12 25.8226 0.017336061 Complies 14.17 26.1216 0.017536801 Complies 14.19 26.2422 0.017617751 Complies EUT： ADSL2+ Modem Plus 300Mbps Wireless-N Router Model Name ： DL4305D Temperature： 25 °C Relative Humidity： 60 % Pressure： 1012 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX N-40M MODE /CH03, CH06, CH09 - ANT 1+ANT 2 Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 17.60 57.5440 0.038632281 Complies 17.23 52.8445 0.035477281 Complies 17.34 54.2001 0.036387351 Complies

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1110C092A Page 1 of 146 FCC Radio Test Report FCC ID: T58DL4305R This report concerns (check one) : Original Grant Class II Change Issued Date : Jan. 31, 2013 Project No. : 1110C092A Equipment : ADSL2+ Modem Plus 300Mbps Wireless-N Router Model Name : DL4305D; DL4305 Applicant : NETIS SYSTEMS CO., LTD Address : 9F,B Block,Tsinghua Information Park, High-tech Industrial Park, Nanshan, Shenzhen, China Manufacturer : Shenzhen Netcore Industrial Ltd. Address : 9F,B Block, Tsinghua Information Park, High-tech Industrial Park, Nanshan, Shenzhen, China Tested by: Neutron Engineering Inc. EMC Laboratory Date of Receipt: Jan. 14, 2013 Date of Test: Jan. 14, 2013 ~ Jan. 28, 2013 Testing Engineer : (David Mao) Technical Manager : (Leo Hung) Authorized Signatory : (Steven Lu) Neutron Engineering Inc. No.3,Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL : (0769) 8318-3000 FAX : (0769) 8319-6000 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1110C092A Page 2 of 146 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C, or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutron shall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Neutron Engineering Inc. Report No.: NEI-FCCP-1-1110C092A Page 3 of 146 Table of Contents Page 1 . CERTIFICATION 5 2 . SUMMARY OF TEST RESULTS 6 2.1 TEST FACILITY 7 2.2 MEASUREMENT UNCERTAINTY 7 3 . GENERAL INFORMATION 8 3.1 GENERAL DESCRIPTION OF EUT 8 3.2 DESCRIPTION OF TEST MODES 10 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 11 3.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 12 3.5 DESCRIPTION OF SUPPORT UNITS 14 4 . EMC EMISSION TEST 15 4.1 CONDUCTED EMISSION MEASUREMENT 15 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 15 4.1.2 MEASUREMENT INSTRUMENTS LIST AND SETTING 15 4.1.3 TEST PROCEDURE 16 4.1.4 DEVIATION FROM TEST STANDARD 16 4.1.5 TEST SETUP 16 4.1.6 EUT OPERATING CONDITIONS 16 4.1.7 TEST RESULTS 17 4.2 RADIATED EMISSION MEASUREMENT 20 4.2.1 RADIATED EMISSION LIMITS 20 4.2.2 MEASUREMENT INSTRUMENTS LIST ANS SETTING 21 4.2.3 TEST PROCEDURE 22 4.2.4 DEVIATION FROM TEST STANDARD 22 4.2.5 TEST SETUP 23 4.2.6 EUT OPERATING CONDITIONS 24 4.2.7 TEST RESULTS (BELOW 30MHZ) 25 4.2.8 TEST RESULTS (BETWEEN 30 – 1000 MHZ) 26 4.2.9 TEST RESULTS (ABOVE 1000 MHZ) 33 5 . BANDWIDTH TEST 81 5.1 APPLIED PROCEDURES / LIMIT 81 5.1.1 MEASUREMENT INSTRUMENTS LIST 81 5.1.2 TEST PROCEDURE 81 5.1.3 DEVIATION FROM STANDARD 81 5.1.4 TEST SETUP 81 5.1.5 EUT OPERATION CONDITIONS 81 5.1.6 TEST RESULTS 82 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1110C092A Page 4 of 146 Table of Contents Page 6 . MAXIMUM OUTPUT POWER TEST 94 6.1 APPLIED PROCEDURES / LIMIT 94 6.1.1 MEASUREMENT INSTRUMENTS LIST 94 6.1.2 TEST PROCEDURE 94 6.1.3 DEVIATION FROM STANDARD 94 6.1.4 TEST SETUP 94 6.1.5 EUT OPERATION CONDITIONS 94 6.1.6 TEST RESULTS 95 7 . ANTENNA CONDUCTED SPURIOUS EMISSION 98 7.1 APPLIED PROCEDURES / LIMIT 98 7.1.1 MEASUREMENT INSTRUMENTS LIST 98 7.1.2 TEST PROCEDURE 98 7.1.3 DEVIATION FROM STANDARD 98 7.1.4 TEST SETUP 98 7.1.5 EUT OPERATION CONDITIONS 98 7.1.6 TEST RESULTS 99 8 . POWER SPECTRAL DENSITY TEST 129 8.1 APPLIED PROCEDURES / LIMIT 129 8.1.1 MEASUREMENT INSTRUMENTS LIST 129 8.1.2 TEST PROCEDURE 129 8.1.3 DEVIATION FROM STANDARD 129 8.1.4 TEST SETUP 129 8.1.5 EUT OPERATION CONDITIONS 129 8.1.6 TEST RESULTS 130 9 . EUT TEST PHOTO 144 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1110C092A Page 5 of 146 1. CERTIFICATION Equipment : ADSL2+ Modem Plus 300Mbps Wireless-N Router Brand Name : netis Model Name : DL4305D; DL4305 Applicant : NETIS SYSTEMS CO., LTD Factory : Dongguan City Netcore Network Technology Co., Ltd. Address : No.10-1,Sankeng Road, Qinghutou, Tangxia Town, Dongguan City. Date of Test : Jan. 14, 2013 ~ Jan. 28, 2013 Test Item : ENGINEERING SAMPLE Standards : FCC Part15, Subpart C(15.247) / ANSI C63.4-2003 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCP-1-1110C092A) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of NVLAP and TAF according to the ISO-17025 quality assessment standard and technical standard(s). Neutron Engineering Inc. Report No.: NEI-FCCP-1-1110C092A Page 6 of 146 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247(d) Antenna conducted Spurious EmissionPASS 15.247(a)(2) 6dB Bandwidth PA…

Text truncated - open the document above for the full version.

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1110C092A Page 144 of 146 9. EUT TEST PHOTO Conducted Measurement Photos Neutron Engineering Inc. Report No.: NEI-FCCP-1-1110C092A Page 145 of 146 Radiated Measurement Photos 30~1000MHz Neutron Engineering Inc. Report No.: NEI-FCCP-1-1110C092A Page 146 of 146 Radiated Measurement Photos Above 1000MHz
