T58DL4322R1300Mpbs Wireless N ADSL2+ Modem Router

netis Wireless N ADSL2+ Modem Router Quick Installation Guide R CONTENTS 1 English 6 Español 11 Português 16 Français 1.Package Contents * This QIG is for all netis 150Mbps/300Mbps wireless N ADSL2+ modem routers, including models- DL4310, DL4310D, DL4311, DL4311D, DL4312, DL4312D, DL4322, DL4322D, DL4323, DL4323D , etc. * The product model shown in this QIG is DL4323, as an example. netis Wireless N ADSL2+ Modem Router Quick Installation Guide 1 2.Hardware Connection Wireless N ADSL2+ Modem Router Power Adapter ADSL Splitter Ethernet CableTelephone Cable *2 QIG MODEM netis Wireless N ADSL2+ Modem Router Quick Installation Guide 2.1. Connect the ADSL line with the attached telephone cable. Connect the LINE port of ADSL Splitter to the wall jack with a telephone cable. Connect the MODEM port of ADSL Splitter to the ADSL port on netis Modem Router with the other telephone cable. Connect your telephone to the PHONE port of ADSL Splitter. Tip: If no telephone is needed, please connect the ADSL port on netis Modem Router to the wall jack with the phone cable directly. 2.2. Connect your computer to one of the LAN ports on netis Modem Router with an Ethernet cable. 2.3. Plug the provided Power Adapter into the PWR jack of netis Modem Router and the other end to a standard electrical socket. 2.4. Wait for one minute then check if the LED indicators of the Modem Router display normally. PWR: Solid on. ADSL: Solid on when the modem is synchronized. LAN: Solid on or flashing if the corresponding LAN port is connected. Tip: If the LED indicators display abnormally, please check if all the cables are well connected. If the ADSL LED is off or flashing, please contact your ISP (Internet Service Provider) to check the Internet connection. PHONE 2 3. Configure the Modem Router via Web Management Page 3.1. Necessary Information before the configuration. For a successful setup, you're recommended to contact your ISP first and ask for the following network parameters which will be required during the configuration procedures. a. VPI/VCI; b. Connection Type; c. Encapsulation Type (Optional); d. Username & Password (Optional, according to your Connection Type). 3.2. Set the IP address of the wired network adapter on your computer as “Automatic” or “DHCP”. For Windows 8/ 7/Vista 1) Go to “Settings” (Win 8)/“Start” (Win 7/Vista)> “Control Panel”. 2) Left-click on “Network and Internet”> “Network and Sharing Center”> “Change adapter settings” (Win 8/7)/“Manage network connections” (Win Vista). 3) Right-click on “Local Area Connection” and left-click on “Properties”. 4) Double-click on “Internet Protocol Version 4 (TCP/IPv4)”. 5) Select “Obtain an IP address automatically” and “Obtain DNS server address automatically” then left-click on “OK”. For Windows XP/2000 1) Go to “Start”> “Control Panel”. 2) Left-click on “Network and Internet Connections”> “Network Connections”. 3) Right-click on “Local Area Connection” and left-click on “Properties”. 4) Double-click on “Internet Protocol (TCP/IP)”. 5) Select “Obtain an IP address automatically” and “Obtain DNS server address automatically” then left-click on “OK”. For MAC OS 1) Click on the “Apple” menu> “System Preferences”. 2) Click on the “Network” icon. 3) Click on “Ethernet” in the left side box and click on “Advanced” in the lower right corner. 4) In the top options, select “TCP/IP”. 5) In the pull-down menu next to “Configure IPv4” select “Using DHCP”. 6) Click “OK” then “Apply”. 192.168.1.1 3.3. Open your browser and type 192.168.1.1 in the address field. Then type in the username guest and password guest to login the web management page. netis Wireless N ADSL2+ Modem Router Quick Installation Guide 3 3.4. Under “Quick Start” page, left-click on “START” and the Wizard will guide you through the following four steps. Then left-click on “NEXT”. 1) Set the PVC (VPI/VCI) value. Left-click “Cancel” if you know the PVC (VPI/VCI) from your ISP, then input the value manually. If you don't know the exact value, please left-click on “OK”, and then it will take less than one minute to search for the available PVC automatically. Once the PVC value is input or shows up in the following page, left-click on “NEXT”. netis Wireless N ADSL2+ Modem Router Quick Installation Guide 3) Configure your wireless network name (SSID) and password, and then left-click on “NEXT”. 4) Left-click on “NEXT” and then “CLOSE” to save the current settings. Quick Start will be finished. 2) Select the Internet Connection Type given by your ISP, then left-click on “NEXT”. If “Dynamic IP Address” is selected, select the Connection Type defined by your ISP and the router will automatically receive the IP parameters from your ISP. If “Static IP Address” is selected, enter the IP Address/Subnet Mask/ISP Gateway/DNS Servers/Connection Type given by your ISP. If “PPPoE/PPPoA” is selected, input the Username/ Password and select the Connection Type given by your ISP. If “Bridge Mode” is selected, select the Connection Type defined by your ISP. Tip 1: Default IP address: 192.168.1.1 Default login username: guest Default SSID: netis Default login password: guest Default wireless password: password 4 netis Wireless N ADSL2+ Modem Router Quick Installation Guide Tip 2: After the basic Internet settings, you may open some popular websites to check your Internet connection. If you cannot access the Internet, please refer to the instructions in “Troubleshooting”. How do I restore my netis Modem Router's configuration to its default settings? With the router powered on, use a pin to press and hold the Default button on the rear panel for 8 to 10 seconds before releasing it. The router will reboot and all configurations are back to factory default. Q A 4.Troubleshooting What can I do if my Internet cannot be accessed? 1) Check to verify the hardware connections are correct. Please refer to the “Hardware Connection” step. 2) Login to netis Modem Router's web management page and ensure that you input the correct netwo…

Text truncated - open the document above for the full version.

NETIS SYSTEMS CO., LTD 4F & 5F, R&D Building, Oriental Cyberport, High-Tech Industrial Park, Nanshan, Shenzhen, China Date (February ,26 ,2014) BABT FCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, Due to the business consideration, we hereby declare that our product of 300 Mbps Wireless N ADSL2+ Modem Router Model: DL4322; DL4322D have as following difference Serial model DL4322 with fixed antenna; DL4322D with detachable antenna Any questions regarding this declaration, please don’t hesitate to contact us. Sincerely, Signature___________________________________ Name/Title: SelenaBai / Director Contact information / Address 4F & 5F, R&D Building, Oriental Cyberport, High-Tech Industrial Park, Nanshan, Shenzhen, China TEL: +86 0755-86186790 FAX: +86 0755-86186779 Email: [email protected]

NETIS SYSTEMS CO., LTD 4F & 5F, R&D Building, Oriental Cyberport, High-Tech Industrial Park, Nanshan, Shenzhen, China Date : February ,26 ,2014 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC Application for FCC ID: T58DL4322R1 To Whom It May Concern: We, as the grantee of this project FCC ID: T58DL4322R1, would like to declare that the composite portion categorized as computer peripheral has been authorized under the Declaration of Confor mity procedures. Sincerely yours, Name/Title: SelenaBai / Director Contact information / Address 4F & 5F, R&D Building, Oriental Cyberport, High-Tech Industrial Park, Nanshan, Shenzhen, China TEL: +86 0755-86186790 FAX: +86 0755-86186779 Email: [email protected]

NETIS SYSTEMS CO., LTD 4F & 5F, R&D Building, Oriental Cyberport, High-Tech Industrial Park, Nanshan, Shenzhen, China Date : February ,26 ,2014 BABT TCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Confidentiality Request FCC ID: T58DL4322R1 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, NETIS SYSTEMS CO., LTD hereby requests permanent confidential treatment of information accompanying this application as outlined below: Schematics Block Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, _____________________________________ Signature Name/Title: SelenaBai / Director Contact information / Address 4F & 5F, R&D Building, Oriental Cyberport, High-Tech Industrial Park, Nanshan, Shenzhen, China TEL: +86 0755-86186790 FAX: +86 0755-86186779 Email: [email protected]

Letter of Authorization We Name: NETIS SYSTEMS CO., LTD. Address: 4F&5F R&D Building,Oriental Cyberport High-Tech Industrial Park, Nanshan, Shenzhen, China Declare the following Person: Name： Alex Chen Title：Vice President is authorized to sign all the related doucuments of FCC certification，the signature has the same effectas as SelenaBai: on our behalf. Authorized Person: SelenaBai Signature: City: Shenzhen Date: 2014-2-26

NETIS SYSTEMS CO., LTD 4F & 5F, R&D Building, Oriental Cyberport, High-Tech Industrial Park, Nanshan, Shenzhen, China Date : February ,26 ,2014 BABT FCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, NETIS SYSTEMS CO., LTD hereby authorize Compliance Certification Services Inc / David.Wang toact as our agent in all matters relating to applications for equipment authorization, including thesigning of all documents relating to these matters. This authorization expires on 6/20/2014 Sincerely, _____________________________________ Signature Name/Title: SelenaBai / Director Contact information / Address 4F & 5F, R&D Building, Oriental Cyberport, High-Tech Industrial Park, Nanshan, Shenzhen, China TEL: +86 0755-86186790 FAX: +86 0755-86186779 Email: [email protected]

Report No: T140219D03 Page 3 Rev.00 DL4322D Report No: T140219D03 Page 4 Rev.00 Report No: T140219D03 Page 5 Rev.00 Report No: T140219D03 Page 6 Rev.00 Antenna Report No: T140219D03 Page 7 Rev.00 NT120050UL

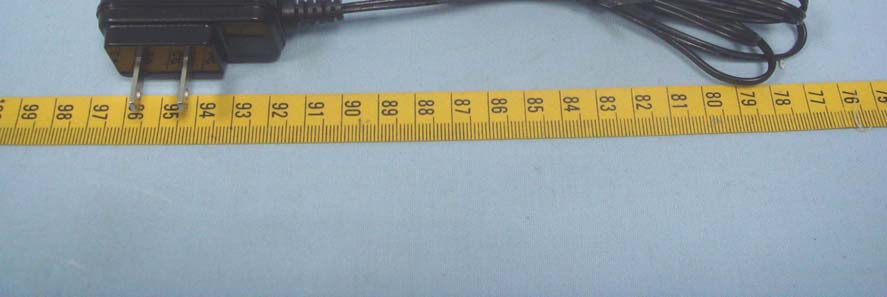

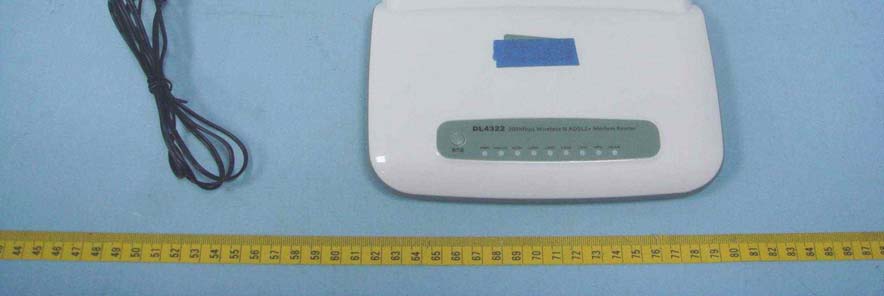

Report No: T140219D03 Page 1 / 17 Rev.00 EXTERNAL PHOTOGRAPHS OF EUT DL4322 Report No: T140219D03 Page 2 Rev.00 Report No: T140219D03 Page 7 Rev.00 NT120050UL

Report No: T140219D03 Page 12 Rev.00 DL4322 Report No: T140219D03 Page 13 Rev.00 Report No: T140219D03 Page 14 Rev.00 Report No: T140219D03 Page 15 Rev.00 Report No: T140219D03 Page 16 Rev.00 Report No: T140219D03 Page 17 Rev.00

Report No: T140219D03 Page 8 Rev.00 INTERNAL PHOTOGRAPHS OF EUT DL4322 Report No: T140219D03 Page 9 Rev.00 Report No: T140219D03 Page 10 Rev.00 Report No: T140219D03 Page 11 Rev.00

Compliance Certification Services Inc. Report No.: T140219D03-MF Date of Issue: March 25, 2014 Page 1 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. APPENDIX I RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT 300Mbps Wireless N ADSL2+ Modem Router Model DL4322; DL4322D RF Module Realtek Model: RTL8192ER-CG Model Discrepancy 1. All the model numbers (list on this report) are identical, just for marketing purpose only except Antenna. Model Number Antenna DL4322 Fixed DL4322D Detachable Frequency band (Operating) 802.11b/g/n HT20: 2.412GHz ~ 2.462GHz 802.11n HT40: 2.422GHz ~ 2.452GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classificatio n Occupational/Controlled exposure (S = 5mW/cm2) General Population/Uncontrolled exposure (S=1mW/cm2) Antenna Specificatio n 2.4GHz: Antenna1 Gain :5.00 dBi (Numeric gain:3.16) For IEEE 802.11b/g Antenna2 Gain :5.00 dBi (Numeric gain:3.16) For IEEE 802.11b/g MIMO:5.0 dBi+ 5.0 dBi= 8.01 dBi (Numeric gain:6.32) For IEEE 802.11 n Maximum Average output power IEEE 802.11b Mode: 16.39 dBm(43.551 mW) IEEE 802.11g Mode: 15.47 dBm(35.237 mW) IEEE 802.11n HT 20 Mode: 17.08 dBm(51.050 mW) IEEE 802.11n HT 40 Mode: 14.36 dBm(27.290 mW) Maximum Tune up Power IEEE 802.11b Mode: 19.00 dBm(79.433 mW) IEEE 802.11g Mode: 17.00 dBm(50.119 mW) IEEE 802.11n HT 20 Mode: 18.00 dBm(63.096 mW) IEEE 802.11n HT 40 Mode: 16.00 dBm(39.811 mW) Compliance Certification Services Inc. Report No.: T140219D03-MF Date of Issue: March 25, 2014 Page 2 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Evaluation applied MPE Evaluation* SAR Evaluation N/A Compliance Certification Services Inc. Report No.: T140219D03-MF Date of Issue: March 25, 2014 Page 3 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 2014/03/25 Initial Issue ALL Scott Hsu Compliance Certification Services Inc. Report No.: T140219D03-MF Date of Issue: March 25, 2014 Page 4 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TEST RESULTS No non-compliance noted. Calculation Given d GP E   30 & 377 2 E S Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 377 30 d GP S   Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields   22 0796.0 100/377 1000/30 d GP d GP S      Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Compliance Certification Services Inc. Report No.: T140219D03-MF Date of Issue: March 25, 2014 Page 5 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Maximum Permissible Exposure Substituting the MPE safe distance using d = 20 cm into Equation 1: GPS000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 IEEE 802.11b mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 6243779.4333.16200.05001 IEEE 802.11g mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 1241250.1193.16200.03151 IEEE 802.11n HT20 mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 1241263.0966.32200.07941 IEEE 802.11n HT40 mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 6243739.8116.32200.05011

Compliance Certification Services Inc. Report No.: T140219D03-RP1 FCC ID: T58DL4322R1 Date of Issue: March 13, 2014 Page 1 / 28 Rev.00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For 300Mbps Wireless N ADSL2+ Modem Router Model: DL4322; DL4322D Trade Name:netis Issued to NETIS SYSTEMS CO., LTD 4F&5F, R&DBuilding, Oriental Cyberport, High-TechIndustrial Park, Nanshan, Shenzhen, China Issued by Compliance Certification Services Inc. No.81-1, Lane 210, Bade 2nd Rd., LujhuTownship, TaoyuanCounty 33841, Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 http://www.ccsrf.com [email protected] Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NIST or any government agencies. The test results in the report only apply to the tested sample. Compliance Certification Services Inc. Report No.: T140219D03-RP1 FCC ID: T58DL4322R1 Date of Issue: March 13, 2014 Page 2 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 March 13, 2014 Initial Issue ALL Landy Huang Compliance Certification Services Inc. Report No.: T140219D03-RP1 FCC ID: T58DL4322R1 Date of Issue: March 13, 2014 Page 3 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION ...........................................................................................4 2. EUT DESCRIPTION................................................................................................................5 3. TEST METHODOLOGY..........................................................................................................6 3.1 EUT CONFIGURATION ......................................................................................................6 3.2 EUT EXERCISE ..................................................................................................................6 3.3 GENERAL TEST PROCEDURES .......................................................................................6 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS............................................7 3.5 DESCRIPTION OF TEST MODES ......................................................................................8 4. INSTRUMENT CALIBRATION ...............................................................................................9 4.1 MEASURING INSTRUMENT CALIBRATION......................................................................9 4.2 MEASUREMENT EQUIPMENT USED................................................................................9 4.3 MEASUREMENT UNCERTAINTY ....................................................................................10 5. FACILITIES AND ACCREDITATIONS .................................................................................11 5.1 FACILTIES ........................................................................................................................11 5.2 EQUIPMENT .....................................................................................................................11 5.3 TABLE OF ACCREDITATIONS AND LISTINGS ...............................................................12 6. SETUP OF EQUIPMENT UNDER TEST ..............................................................................13 6.1 SETUP CONFIGURATION OF EUT..................................................................................13 6.2 SUPPORT EQUIPMENT ...................................................................................................13 7. FCC PART 15.247 REQUIREMENTS ..................................................................................14 7.1 6 DB BANDWIDTH .............................................................................................................14 7.2 PEAK POWER...................................................................................................................25 7.3 AVERAGE POWER...........................................................................................................27 7.4 BAND EDGES MEASUREMENT ......................................................................................29 7.5 PEAK POWER SPECTRAL DENSITY ..............................................................................46 7.6 SPURIOUS EMISSIONS ...................................................................................................57 7.7 POWERLINE CONDUCTED EMISSIONS ........................................................................89 8. APPENDIX I PHOTOGRAPHS OF TEST SETUP................................................................92 9. APPENDIX 1: PHOTOGRAPHS OF EUT.............................................................................96 Compliance Certification Services Inc. Report No.: T140219D03-RP1 FCC ID: T58DL4322R1 Date of Issue: March 13, 2014 Page 4 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1. TEST RESULT CERTIFICATION Applicant: NETIS SYSTEMS CO., LTD 4F&5F, R&DBuilding, Oriental Cyberport, High-TechIndustrial Park, Nanshan, Shenzhen, China Manufacturer: Shenzhen Netcore Industrial Ltd. 4F&5F, R&DBuilding, Oriental Cyberport, High-TechIndustrial Park, Nanshan, Shenzhen, China Equipment Under Test: 300Mbps Wireless N ADSL2+ Modem Router Trade Name: netis Model: DL4322; DL4322D Date of Test: March 6 ~ 12, 2014 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: T140219D03-RP1 FCC ID: T58DL4322R1 Date of Issue: March 13, 2014 Page 92 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 8. APPENDIX IPHOTOGRAPHS OF TEST SETUP Radiated Emission Set up Photos Below 1GHz Compliance Certification Services Inc. Report No.: T140219D03-RP1 FCC ID: T58DL4322R1 Date of Issue: March 13, 2014 Page 93 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Above 1GHz Compliance Certification Services Inc. Report No.: T140219D03-RP1 FCC ID: T58DL4322R1 Date of Issue: March 13, 2014 Page 94 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Conducted Emission Setup Photos Compliance Certification Services Inc. Report No.: T140219D03-RP1 FCC ID: T58DL4322R1 Date of Issue: March 13, 2014 Page 95 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Powerline Conducted EmissionsSetup Photos
