T58E1R300Mbps Wireless N Range Extender

RF_160, Issue 02 Declaration of Authorization 2014-6-20 We Company Name: NETIS SYSTEMS CO., LTD. Address: 4F&5F R&D Building,Oriental Cyberport, High-Tech Industrial Park, Nanshan, Shenzhen, China Declare that: Name Representative of agent: Ms. Cathy Wang Agent Company name: Neutron Engineering, Inc. Address: No.3 Jinshagang 1st Road, Shixia, Dalang Town City: Dong Guan Country: China is authorized to apply for Certification of the following product(s), including signing of 731 form(s): Product description: 300Mbps Wireless N Range Extender Type designation: E1 Brand: netis on our behalf. Signature: Name: Selena Bai Tel: +86-755-86186790 Fax: +86-755-86186779 E-mail: [email protected] Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

NETIS SYSTEMS CO., LTD. Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Sections 0.457 and 0.459 pertaining to confidential material. NETIS SYSTEMS CO., LTD. would like the following documents regarding this submission for FCC ID: T58E1R to be kept confidential. 1. Schematic 2. Block diagram 3. Circuit description The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, Name: Selena Bai Title: Director 2014-06-20

NETIS SYSTEMS CO., LTD. Ad Hoc Mode Declaration We, the undersigning company Name: NETIS SYSTEMS CO., LTD. Address: 4F&5F R&D Building, Oriental Cyberport, High-Tech Industrial Park, Nanshan City: Shenzhen Country: China Hereby confirm that the following products: Product description: 300Mbps Wireless N Range Extender Type designation: E1 Brand: netis Doesn’t have Ad Hoc Mode function on “non-US frequencies”. In addition, the frequency selection feature is disabled by firmware for devices marketed to the US. For this product, only channels 1~11 will be used in USA. Country code selection is disabled. Signature: Name: Selena Bai / Director

RV-0000000 Project No.: 1406C021 Page 2 of 9 Neutron Engineering Inc. RV-0000000 Project No.: 1406C021 Page 3 of 9 Neutron Engineering Inc.

RV-0000000 Project No.: 1406C021 Page 4 of 9 Neutron Engineering Inc. RV-0000000 Project No.: 1406C021 Page 5 of 9 Neutron Engineering Inc. RV-0000000 Project No.: 1406C021 Page 6 of 9 Neutron Engineering Inc. R V-0000000 Project No.: 1406C021Page 7 of 9 Neutron Engineering Inc. RV-0000000 Project No.: 1406C021 Page 8 of 9 Neutron Engineering Inc. RV-0000000 Project No.: 1406C021 Page 9 of 9 Neutron Engineering Inc.

Neutron Engineering Inc. FCC RF EXPOSURE REPORT FCC ID: T58EIR Project No. : 1406C021 Equipment : 300Mbps Wireless N Range Extender Model : E1 Applicant : NETIS SYSTEMS CO., LTD Address : 4F&5F R&D Buildin g, Oriental Cyberport, High-Tech Industrial Park, Nanshan, Shenzhen, China. According: : FCC Guidelines for Human Exposure IEEE C95.1 Neutron Engineering Inc. No.3, Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL : (0769) 8318-3000 FAX : (0769) 8319-6000 Neutron Engineering Inc. MPE CALCULATION METHOD: Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Table for Filed Antenna Ant. Brand Model Name Antenna TypeConnector Gain (dBi) Note 1 RGFRA1903041A1TInternal N/A 2 - 2 RGFRA1903041A1TInternal N/A 2 TX/RX 3 RGFRA1903041A1TInternal N/A 2 TX/RX 4 RGFRA1903041A1TInternal N/A 2 - 5 RGFRA1903041A1TInternal N/A 2 - Neutron Engineering Inc. TEST RESULTS EUT： 300Mbps Wireless N Range Extender Model Name ： E1 Temperature： 25°C Relative Humidity： 55 % Pressure： 1016 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX B mode/CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 2 1.5849 20.30 107.1519 0.033802621 Complies 2 1.5849 20.07 101.6249 0.032059031 Complies 2 1.5849 20.08 101.8591 0.032132931 Complies EUT： 300Mbps Wireless N Range Extender Model Name ： E1 Temperature： 25°C Relative Humidity： 55 % Pressure： 1016 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX G mode/CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 2 1.5849 21.08 128.2331 0.040452971 Complies 2 1.5849 22.16 164.4372 0.051874081 Complies 2 1.5849 22.49 177.4189 0.055969361 Complies Neutron Engineering Inc. EUT： 300Mbps Wireless N Range Extender Model Name ： E1 Temperature： 25°C Relative Humidity： 55 % Pressure： 1016 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX N-20M Mode/CH01, CH06, CH11 – Ant 2 +Ant 3 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 2 1.5849 23.50 223.8721 0.070623681 Complies 2 1.5849 25.05 319.8895 0.100913761 Complies 2 1.5849 23.99 250.6109 0.079058831 Complies EUT： 300Mbps Wireless N Range Extender Model Name ： E1 Temperature： 25°C Relative Humidity： 55 % Pressure： 1016 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX N-40M Mode/CH03, CH06, CH09 – Ant 2 +Ant 3 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 2 1.5849 23.32 214.7830 0.067756411 Complies 2 1.5849 23.32 214.7830 0.067756411 Complies 2 1.5849 23.68 233.3458 0.073612301 Complies Note: the calculate distance is 20cm.

Report No. : Neut : NEI-FCCP- This rep Proje Equip Mode Appli Addr Tes t Date Date Issu Test Tec h Aut tron Eng 1-1406C02 1 FCC port concer ect No. : pment : el Name : icant : ess : 4 ted by: Neu e of Receip e of Test: J ued Date: Ju ting Engine hnical Man horized Sig Neut N TEL: 0 gineerin 1 C Rad FCC rns (check 1406C021 300Mbps W E1 NETIS SY S 4F&5F R&D Industrial P utron Engine pt: Jun. 05, un. 05, 201 un. 19, 201 eer nager gnatory tron E No.3, Jinsh Dalang To 0769-8318- ng Inc. dio T ID: T5 one): O Wireless N R STEMS CO D Building, Park, Nansh eering Inc. 2014 4~ Jun.18, 4 : : : Engin hagang 1st own, Dong -3000 FA Test R 58E1R Original Gra Range Exte ., LTD Oriental C y an, Shenzh EMC Labor 2014 (Davi d (Leo H (Steve neerin t Road, Sh gguan, Chin AX: 0769-8 Repor R ant Clas nder yberport, Hig hen, China. ratory d Mao) Hung) en Lu) ng Inc ixia, na. 8319-6000 Pag rt ss II Change gh-Tech c. ge 1 of 148 e Neutron Engineering Inc. Report No.: NEI-FCCP-1-1406C021 Page 2 of 148 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C, or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutron shall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Neutron Engineering Inc. Report No.: NEI-FCCP-1-1406C021 Page 3 of 148 Table of Contents Page 1 . CERTIFICATION 6 2 . SUMMARY OF TEST RESULTS 7 2.1 TEST FACILITY 8 2.2 MEASUREMENT UNCERTAINTY 8 3 . GENERAL INFORMATION 9 3.1 GENERAL DESCRIPTION OF EUT 9 3.2 DESCRIPTION OF TEST MODES 11 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 12 3.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 13 3.5 DESCRIPTION OF SUPPORT UNITS 14 4 . EMC EMISSION TEST 15 4.1 CONDUCTED EMISSION MEASUREMENT 15 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 15 4.1.2 TEST PROCEDURE 15 4.1.3 DEVIATION FROM TEST STANDARD 15 4.1.4 TEST SETUP 16 4.1.5 EUT OPERATING CONDITIONS 16 4.1.6 EUT TEST CONDITIONS 16 4.1.7 TEST RESULTS 16 4.2 RADIATED EMISSION MEASUREMENT 17 4.2.1 RADIATED EMISSION LIMITS 17 4.2.2 TEST PROCEDURE 18 4.2.3 DEVIATION FROM TEST STANDARD 18 4.2.4 TEST SETUP 18 4.2.5 EUT OPERATING CONDITIONS 19 4.2.6 EUT TEST CONDITIONS 19 4.2.7 TEST RESULTS (9KHZ TO 30MHZ) 20 4.2.8 TEST RESULTS (BETWEEN 30MHZ TO 1000 MHZ) 20 4.2.9 TEST RESULTS (ABOVE 1000 MHZ) 20 5 . BANDWIDTH TEST 21 5.1 APPLIED PROCEDURES 21 5.1.1 TEST PROCEDURE 21 5.1.2 DEVIATION FROM STANDARD 21 5.1.3 TEST SETUP 21 5.1.4 EUT OPERATION CONDITIONS 21 5.1.5 EUT TEST CONDITIONS 21 5.1.6 TEST RESULTS 21 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1406C021 Page 4 of 148 Table of Contents Page 6 . MAXIMUM OUTPUT POWER TEST 22 6.1 APPLIED PROCEDURES / LIMIT 22 6.1.1 TEST PROCEDURE 22 6.1.2 DEVIATION FROM STANDARD 22 6.1.3 TEST SETUP 22 6.1.4 EUT OPERATION CONDITIONS 22 6.1.5 EUT TEST CONDITIONS 22 6.1.6 TEST RESULTS 22 7 . ANTENNA CONDUCTED SPURIOUS EMISSION 23 7.1 APPLIED PROCEDURES / LIMIT 23 7.1.1 TEST PROCEDURE 23 7.1.2 DEVIATION FROM STANDARD 23 7.1.3 TEST SETUP 23 7.1.4 EUT OPERATION CONDITIONS 23 7.1.5 EUT TEST CONDITIONS 23 7.1.6 TEST RESULTS 23 8 . POWER SPECTRAL DENSITY TEST 24 8.1 APPLIED PROCEDURES / LIMIT 24 8.1.1 TEST PROCEDURE 24 8.1.2 DEVIATION FROM STANDARD 24 8.1.3 TEST SETUP 24 8.1.4 EUT OPERATION CONDITIONS 24 8.1.5 EUT TEST CONDITIONS 24 8.1.6 TEST RESULTS 24 9 . MEASUREMENT INSTRUMENTS LIST 25 10 . EUT TEST PHOTO 27 ATTACHMENT A - CONDUCTED EMISSION 31 ATTACHMENT B - RADIATED EMISSION (9KHZ TO 30MHZ) 34 ATTACHMENT C - RADIATED EMISSION (30MHZ TO 1000MHZ) 36 ATTACHMENT D - RADIATED EMISSION (ABOVE 1000MHZ) 43 ATTACHMENT E - BANDWIDTH 92 ATTACHMENT F - MAXIMUM OUTPUT POWER 105 ATTACHMENT G - ANTENNA CONDUCTED SPURIOUS EMISSION 109 ATTACHMENT H - POWER SPECTRAL DENSITY 134 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1406C021 Page 5 of 148 REPORT ISSUED HISTORY Issued No. Description Issued Date NEI-FCCP-1-1406C021 Original Issue. Jun. 19, 2014 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1406C021 Page 6 of 148 1. CERTIFICATION Equipment : 300Mbps Wireless N Range Extender Brand Name : netis Model Name : E1 Applicant : NETIS SYSTEMS CO., LTD Date of Test : Jun. 05, 2014~ Jun.18, 2014 Test Item : ENGINEERING SAMPLE Standard(s) : FCC Part15, Subpart C(15.247) / ANSI C63.4-2009 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCP-1-1406C021) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). Neutron Engineering Inc. Report No.: NEI-FCCP-1-1406C021 Page …

Text truncated - open the document above for the full version.

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1406C021 Page 91 of 148 Orthogonal Axis : X Test Mode : TX N-40M MODE 2452MHz Horizontal Neutron Engineering Inc. Report No.: NEI-FCCP-1-1406C021 Page 92 of 148 ATTACHMENT E - BANDWIDTH Neutron Engineering Inc. Report No.: NEI-FCCP-1-1406C021 Page 93 of 148 Test Mode : TX B Mode_CH01/06/11 TX CH 01 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1406C021 Page 94 of 148 TX CH 06 TX CH 11 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1406C021 Page 95 of 148 Test Mode: TX G Mode_CH01/06/11 TX CH 01 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1406C021 Page 96 of 148 TX CH 06 TX CH 11 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1406C021 Page 97 of 148 Test Mode : TX N-20MHz Mode_CH01/06/11_ANT 2 TX CH 01 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1406C021 Page 98 of 148 TX CH 06 TX CH 11 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1406C021 Page 99 of 148 Test Mode : TX N-20MHz Mode_CH01/06/11_ANT 3 TX CH 01 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1406C021 Page 100 of 148 TX CH 06 TX CH 11 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1406C021 Page 101 of 148 Test Mode : TX N-40MHz Mode_CH03/06/09_ANT 2 TX CH 03 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1406C021 Page 102 of 148 TX CH 06 TX CH 09 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1406C021 Page 103 of 148 Test Mode : TX N-40MHz Mode_CH03/06/09_ANT 3 TX CH 03 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1406C021 Page 104 of 148 TX CH 06 TX CH 09 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1406C021 Page 105 of 148 ATTACHMENT F - MAXIMUM OUTPUT POWER Neutron Engineering Inc. Report No.: NEI-FCCP-1-1406C021 Page 106 of 148 Test Mode : TX B Mode Test Channel Frequency (MHz) Output Power (dBm) Limit (dBm) Limit (Watt) CH01 2412 20.30 30 1 CH06 2437 20.07 30 1 CH11 2462 20.08 30 1 Test Mode : TX G Mode Test Channel Frequency (MHz) Output Power (dBm) Limit (dBm) Limit (Watt) CH01 2412 21.08 30 1 CH06 2437 22.16 30 1 CH11 2462 22.49 30 1 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1406C021 Page 107 of 148 Test Mode : TX N-20M Mode_ANT 2 Test Channel Frequency (MHz) Output Power (dBm) Limit (dBm) Limit (Watt) CH01 2412 20.36 30 1 CH06 2437 22.04 30 1 CH11 2462 20.98 30 1 Test Mode : TX N-20M Mode_ANT 3 Test Channel Frequency (MHz) Output Power (dBm) Limit (dBm) Limit (Watt) CH01 2412 20.61 30 1 CH06 2437 22.04 30 1 CH11 2462 20.98 30 1 Test Mode : TX N-20M Mode_Total Test Channel Frequency (MHz) Output Power (dBm) Limit (dBm) Limit (Watt) CH01 2412 23.50 30 1 CH06 2437 25.05 30 1 CH11 2462 23.99 30 1 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1406C021 Page 108 of 148 Test Mode : TX N-40M Mode_ANT 2 Test Channel Frequency (MHz) Output Power (dBm) Limit (dBm) Limit (Watt) CH03 2422 20.30 30 1 CH06 2437 20.41 30 1 CH09 2452 20.62 30 1 Test Mode : TX N-40M Mode_ANT 3 Test Channel Frequency (MHz) Output Power (dBm) Limit (dBm) Limit (Watt) CH03 2422 20.31 30 1 CH06 2437 20.20 30 1 CH09 2452 20.71 30 1 Test Mode : TX N-40M Mode_Total Test Channel Frequency (MHz) Output Power (dBm) Limit (dBm) Limit (Watt) CH03 2422 23.32 30 1 CH06 2437 23.32 30 1 CH09 2452 23.68 30 1 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1406C021 Page 109 of 148 ATTACHMENT G - ANTENNA CONDUCTED SPURIOUS EMISSION Neutron Engineering Inc. Report No.: NEI-FCCP-1-1406C021 Page 110 of 148 Test Mode : TX B Mode TX B mode CH01 TX B mode CH11 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1406C021 Page 111 of 148 TX B mode CH01 (30MHz to 1000MHz) TX B mode CH01 (1000MHz to 10 th Harmonic) Neutron Engineering Inc. Report No.: NEI-FCCP-1-1406C021 Page 112 of 148 TX B mode CH06 (30MHz to 1000MHz) TX B mode CH06 (1000MHz to 10 th Harmonic) Neutron Engineering Inc. Report No.: NEI-FCCP-1-1406C021 Page 113 of 148 TX B mode CH11 (30MHz to 1000MHz) TX B mode CH11 (1000MHz to 10 th Harmonic) Neutron Engineering Inc. Report No.: NEI-FCCP-1-1406C021 Page 114 of 148 Test Mode : TX G Mode TX G mode CH01 TX G mode CH11 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1406C021 Page 115 of 148 TX G mode CH01 (30MHz to 1000MHz) TX G mode CH01 (1000MHz to 10 th Harmonic) Neutron Engineering Inc. Report No.: NEI-FCCP-1-1406C021 Page 116 of 148 TX G mode CH06 (30MHz to 1000MHz) TX G mode CH06 (1000MHz to 10 th Harmonic) Neutron Engineering Inc. Report No.: NEI-FCCP-1-1406C021 Page 117 of 148 TX G mode CH11 (30MHz to 1000MHz) TX G mode CH11 (1000MHz to 10 th Harmonic) Neutron Engineering Inc. Report No.: NEI-FCCP-1-1406C021 Page 118 of 148 Test Mode : TX N-20M Mode_ANT 2 TX HT20 mode CH01 TX HT20 mode CH11 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1406C021 Page 119 of 148 TX HT20 mode CH01 (30MHz to 1000MHz) TX HT20 mode CH01 (1000MHz to 10 th Harmonic) Neutron Engineering Inc. Report No.: NEI-FCCP-1-1406C021 Page 120 of 148 TX HT20 mode CH06 (30MHz to 1000MHz) TX HT20 mode CH06 (1000MHz to 10 th Harmonic) Neutron Engineering Inc. Report No.: NEI-FCCP-1-1406C021 Page 121 of 148 TX HT20 mode CH11 (30MHz to 1000MHz) TX HT20 mode CH11 (1000MHz to 10 th Harmonic) Neutron Engineering Inc. Report No.: NEI-FCCP-1-1406C021 Page 122 of 148 Test Mode : TX N-20M Mode_ANT 3 TX HT20 mode CH01 TX HT20 mode CH11 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1406C021 Page 123 of 148 TX HT20 mode CH01 (30MHz to 1000MHz) TX HT20 mode CH01 (1000MHz to 10 th Harmonic) Neutron Engineering Inc. Report No.: NEI-FCCP-1-1406C021 Page 124 of 148 TX HT20 mode CH06 (30MHz to 1000MHz) TX HT20 mode CH06 (1000MHz to 10 th Harmonic) Neutron Engineering Inc. Report No.: NEI-FCCP-1-1406C021 Page 125 of 148 TX HT20 mode CH11 (30MHz to 1000MHz) TX HT20 mode CH11 (1000MHz to 10 th Harmonic) Neutron Engineering Inc. Report No.: NEI-FCCP-1-1406C021 Page 126 of 148 Test Mode : TX N-40M Mode_ANT 2 TX HT40 mode CH03 TX HT40 mode CH09 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1406C021 Page 127 of 148 TX HT40 mode CH03 (30MHz to 1000MHz) TX HT40 mode CH03 (1000MHz to 10 th Harmonic) Neutron Engineering Inc. Report No.: NEI-FCCP-1-1…

Text truncated - open the document above for the full version.

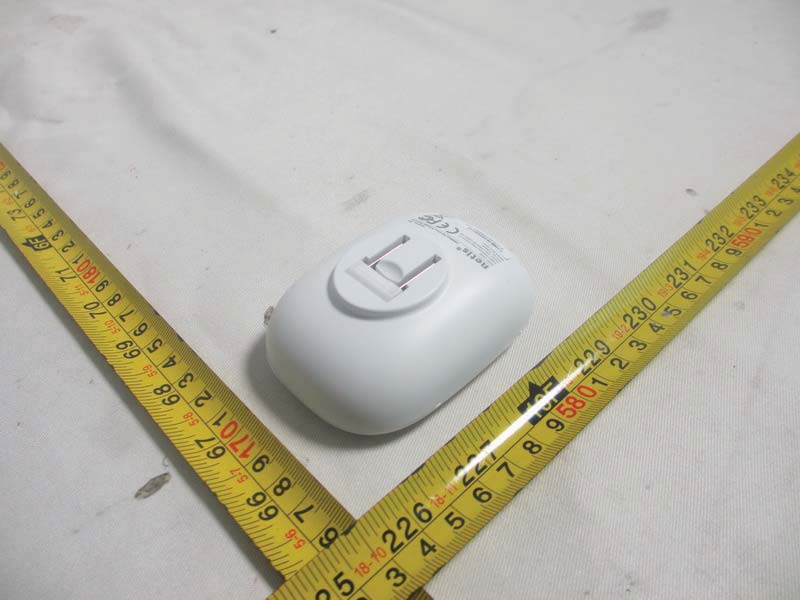

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1406C021 Page 27 of 148 10. EUT TEST PHOTO Conducted Measurement Photos Neutron Engineering Inc. Report No.: NEI-FCCP-1-1406C021 Page 28 of 148 Radiated Measurement Photos 9KHz to 30MHz Neutron Engineering Inc. Report No.: NEI-FCCP-1-1406C021 Page 29 of 148 Radiated Measurement Photos 30MHz to 1000MHz Neutron Engineering Inc. Report No.: NEI-FCCP-1-1406C021 Page 30 of 148 Radiated Measurement Photos Above 1000MHz
