T58Q7RLTE router

Q7 OVERVIEW： The Netis 4G LTE router Q7 is equipped with a 4G LTE module, which allows you to access the Internet with a SIM card. With the separate WiFi antenna systems and unique detachable 4G antenna ports design, it allows you to put the 4G antennas anywhere inside or outside of your house, which brings you a better 4G speed and better WiFi performance. MW5360 also offers a wired WAN port to be used as a common wireless router. FEATURES： • Plug & play, access the internet without any setting • Wide Band for LTE, fit for most ISPs • Multi-access, 4G LTE and Wired access available • Works seamlessly with all 802.11a/b/g/n devices • Simultaneous 2.4GHz 300Mbps • 2* 5dBi high gain WiFi antennas and 2*5dBi detachable 4G antennas 4G LTE Router With Detachable 4G Antennas • Easy wireless security setup at a push of the WPS button • Intelligent bandwidth control to manage the bandwidth usage for each computer reasonably • Internet Access Control- IP filtering, MAC Filtering, Domain Filtering based on time • Quick setup, with built-in multilingual management page SPECIFICATION： Wireless Standards IEEE 802.11b/g/n 2.4GHz Signal Rate Up to 300Mbps 2.4GHz Frequency Range 2.4-2.4835GHz; Transmit Power 24dBm(MAX) 802.11n: 40MHz(300Mbps, 270Mbps, 240Mbps, 180Mbps, 120Mbps, 90Mbps, 60Mbps, 30Mbps) 20MHz (144Mbps, 130Mbps, 115Mbps, 86Mbps, 57Mbps, 43Mbps, 28Mbps, 14Mbps) (Auto-Sense) 801.11g: (54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 11Mbps, 9Mbps, 6Mbps) 802.11b: (11Mbps,9Mbps, 6Mbps, 5.5Mbps, 2Mbps, 1Mbps) Wireless Modes AP/APR, Multi-SSID Wireless Security None / WEP / WPA-PSK / WPA2-PSK / WPA2-Mixed/WPS 4G LTE Band for LTE LTE-FDD： LTE-TDD：B66 WCDMA：B2/B4/B5 GSM/EDGE：B2/B5 Mode FDD-LTE 、 TDD-LTE 、 HSPA+ 、 HSUPA HSDPA 、 WCDMA、EDGE 、 GPRS Card Speed FDD-LTE: 150 Mbps DL, 50 Mbps UL TDD-LTE: 132 Mbps DL, 30 Mbps UL TD-HSUPA:2.8Mbps DL TD-HSUPA:2.2Mbps UL DC-HSPA+:42 Mbps DL HSPA+:21 Mbps DL HSUPA:5.76Mbps UL WCDMA: 384 Kbps DL, 384Kbps UL GPRS:85.6 Kbps DL, 85.6 Kbps UL B2/B4/B5/B7 Hardware Standards IEEE 802.11b, IEEE 802.11g, IEEE 802.11n IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX Interface 1*10/100Mbps Auto MDI/MDIX RJ45 WAN port 2*10/100Mbps Auto MDI/MDIX RJ45 LAN port SIM card slot LED Indicators Power, LAN All, WiFi/WPS,EWAN, LTE Strong, LTE Middle, LTE Weak Buttons Reset/Default, WPS Antenna 2* 5dBi WiFi antennas, 2 SMA detachable 4G antennas Power Supply DC 12V/1.0A(Output) Dimensions (L x W x H ) 182mm*108mm*25mm WAN Type WAN: DHCP / Static IP / PPPoE / L2TP / PPTP / 3G&4G Others Bandwidth Control, Access Control, IPTV, Virtual Server, DMZ, VPN Pass-through, Dynamic DNS, Static Routing Others Certification FCC, PTCRB Environment Operating Temperature: 0 °C ~40 °C Storage Temperature: -40 °C ~70 °C Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing Package 1* MW5360/Q7 1* 12V/1.0A Power Adapter 1* Quick Installation Guide (Multilingual) PICTURES：

NETIS SYSTEMS CO., LTD Agent Authorization Company: NETIS SYSTEMS CO., LTD Address: Floor 8, Building B, TongFang Information Harbor, No.11 Langshan Road, Nanshan District, Shenzhen, China Product Name: LTE router Model Number(s): MW5360, Q7 Product Description: LTE router We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2021-06-29 Name: Jiankuai Li Title: PM Company: SHENZHEN STS TEST SERVICES CO.,LTD.

Differences Description We NETIS SYSTEMS CO., LTD state: Product： LTE router Model Name： MW5360 Trade Name: Q7 The internal circuit design is the same, only different in model name. Signature: Date: 2021-06-29 Name: Jiankuai Li Title: PM Company: SHENZHEN STS TEST SERVICES CO.,LTD.

2020.06.18 FederalCommunicationsCommission Authorization&EvaluationDivision 7345OaklandMillsRoad Columbia,Maryland21046 RE:LETTEROFAGENTAUTHORIZATION ToWhomItMayConcern: We,theundersigned,herebyauthorizeSHENZHENSTSTESTSERVICESCO.,LTD./A1/F,Building B,ZhuokeSciencePark,No.190ChongqingRoad,HepingShequ,FuyongSub-District,Bao’anDistrict, Shenzhen,GuangDong,China/JiankuaiLi(NameofAgentcompanynameandaddress,NameofAgent) toactonourbehalfinallmattersrelatingtoapplicationforequipmentauthorization,includingthe signingofalldocumentsrelatingtothesematters. Name:JiankuaiLi Title:PM E-mail:[email protected] ThisappointmentisvaliduntilfurtheruntilDecember31,2021 Sincerely, Name:KINKIWang Title:Auditor E-mail:[email protected] Company:NETISSYSTEMSCO.,LTD Signature:

ShenZhen Aoni Electronic Industry Co., Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Subject; Request for Confidentiality FCC ID: T58Q7R To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure SOFTWARE SECURITY REQUIREMENTS FOR U-NII DEVICES In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Signature: Date: 2021-06-29 Name: Jiankuai Li Title: PM Company: SHENZHEN STS TEST SERVICES CO.,LTD.

Page 1 of 6 Report No.: STS2105139 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model: MW5360 Photo 1 Photo 2 AUX Antenna Main Antenna WIFI Antenna A WIFI AntennaB Page 2 of 6 Report No.: STS2105139 Photo 3 Photo 4 Page 3 of 6 Report No.: STS2105139 Photo 5 Photo 6 Page 4 of 6 Report No.: STS2105139 Photo 7 Photo 8 Page 5 of 6 Report No.: STS2105139 Photo 9 Photo 10 Page 6 of 6 Report No.: STS2105139 Photo 11

FCC Label 4*6cm, stickers LTE router Model: MW5360 FCC ID: T58Q7R Input: 12V-1.0A NETIS SYSTEMS CO., LTD Made in China

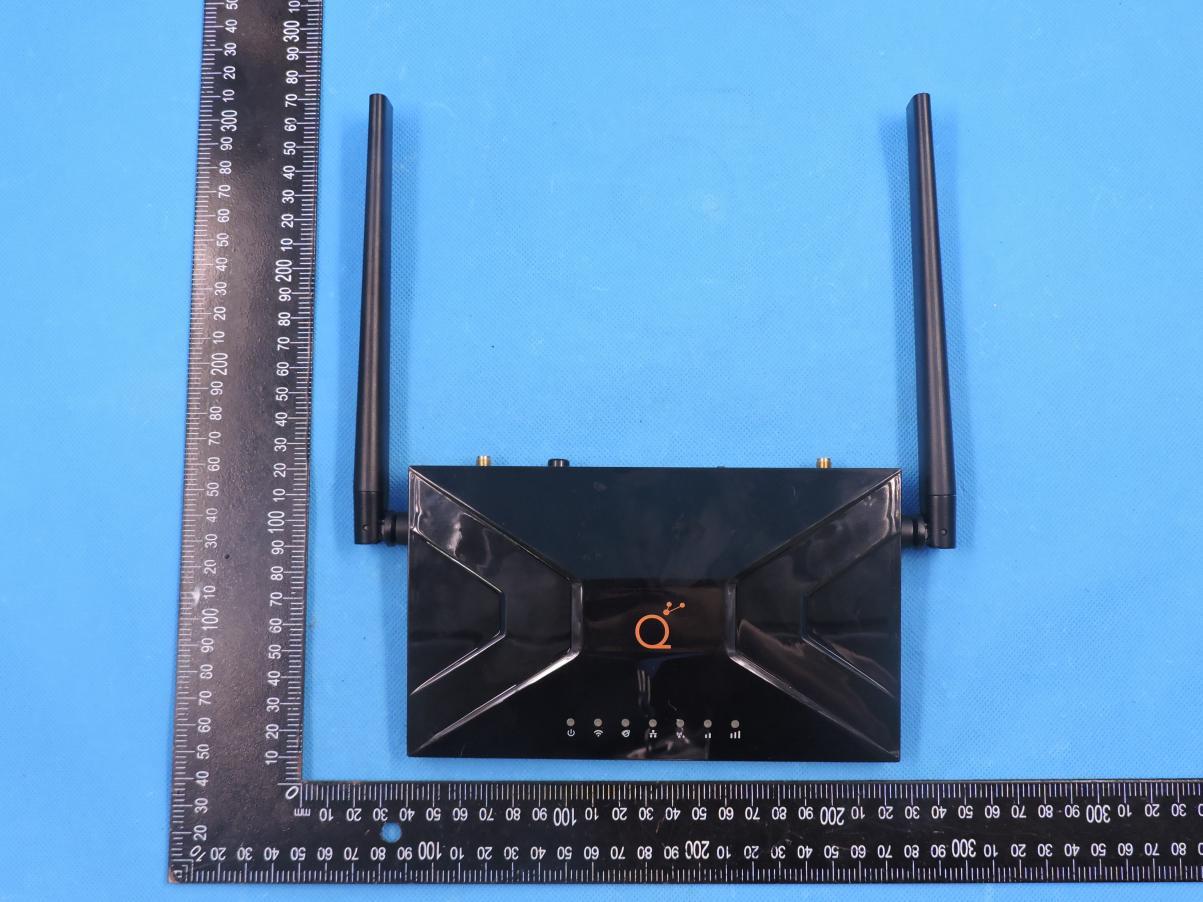

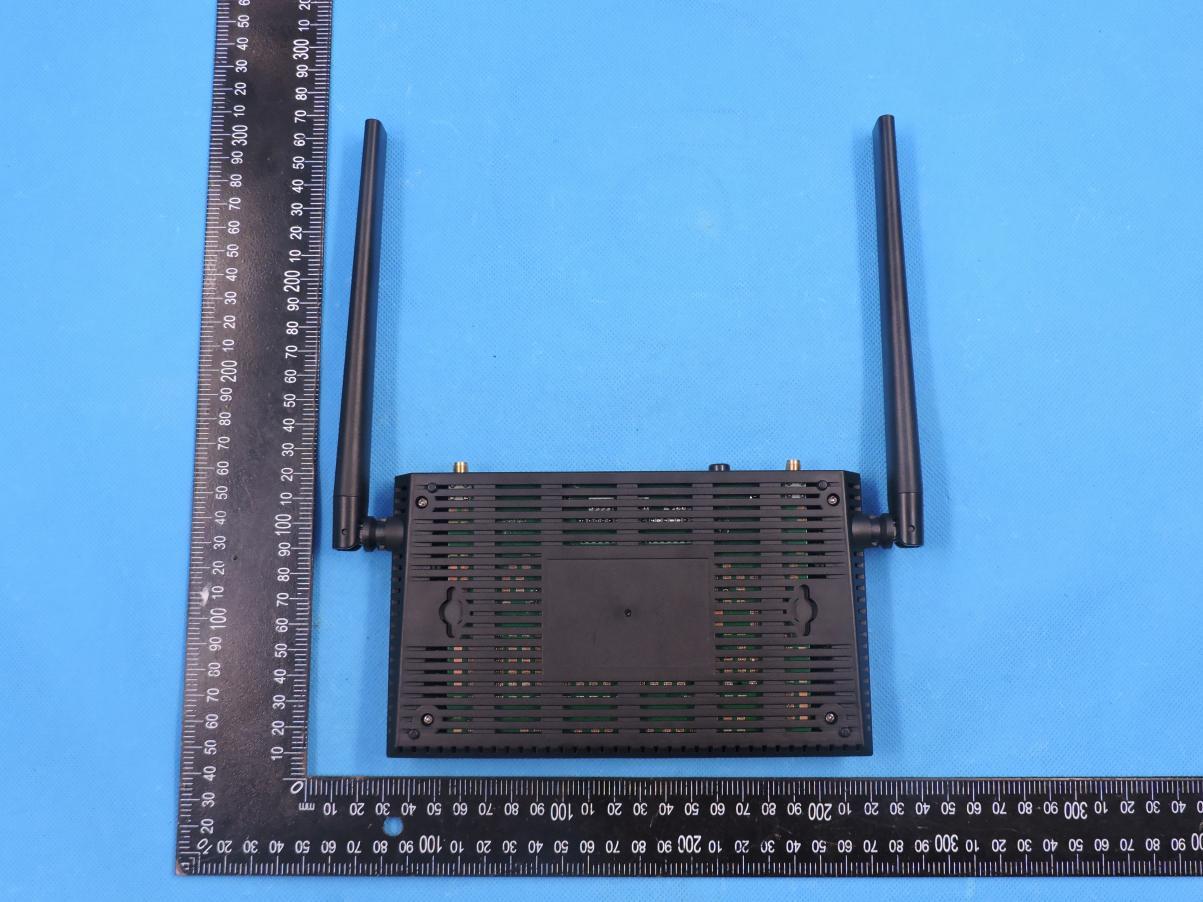

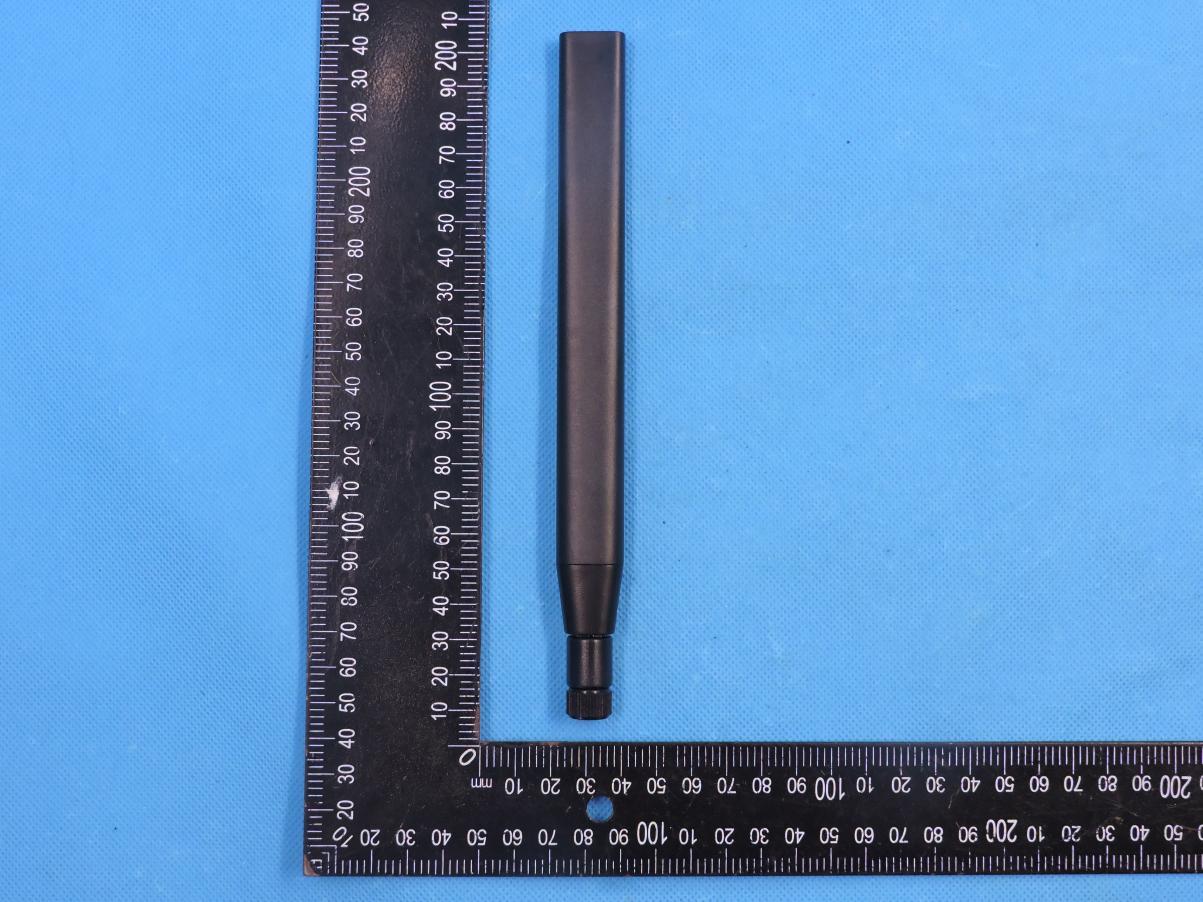

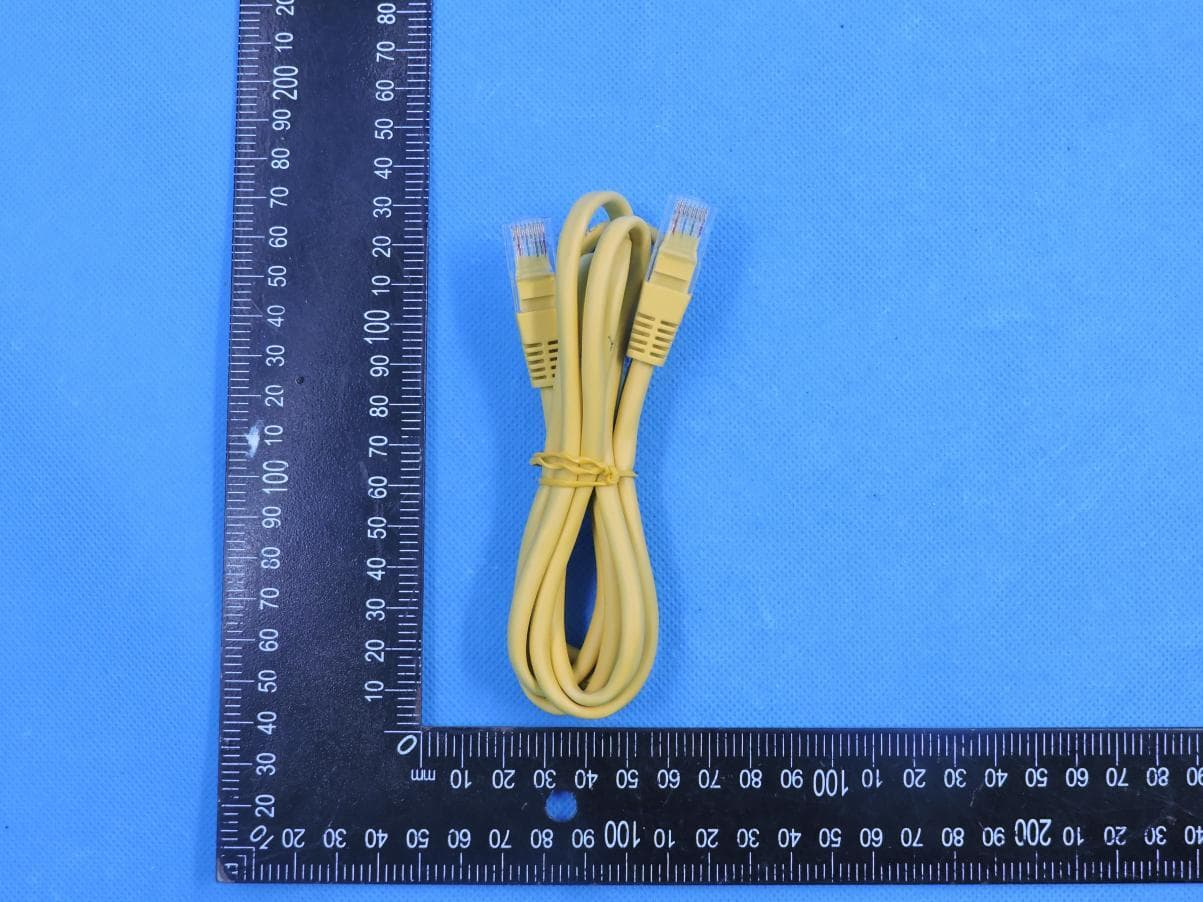

Page 1 of 4 Report No.: STS2105139 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model: MW5360 Photo 1 Photo 2 Page 2 of 4 Report No.: STS2105139 Photo 3 Photo 4 Page 3 of 4 Report No.: STS2105139 Photo 5 Photo 6 Page 4 of 4 Report No.: STS2105139 Photo 7 Photo 8

RF Exposure Report FCC ID: T58Q7R RF Exposure Measurement The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The gain of the antennas used in the product is extracted from the Antenna data sheets provided and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis Transmission formula is far field assumption, the calculated result of that is an over-prediction for near field power density. It is taken as worst case to specify the safety range. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of the human exposure to radio-frequency (RF) radiation as specified in 1.1307 (b) Limits for Maximum Permissible Exposure (MPE) F= Frequency in MHz Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm²) Limits for Occupational / controlled Exposures 300 - 1500 -- -- F/300 1500 – 100000 -- -- 5.0 Limits for General population / Uncontrolled Exposure 300 - 1500 -- -- F/1500 1500 – 100000 -- -- 1.0 Friss Formula Transmission Formula: Pd = (Pout * G) / (4*pi*r²) Where Pd = power density in mW/cm² Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = Distance between observation point and the center of radiator in cm If we know the maximum gain of the antenna and the total output power to the antenna, through calculation, we will know MPE value at distance 20cm. EUT Operation condition EUT was enabled to transmit and receive at lowest, middle and highest channels. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance from the antenna should be included in the User manual. So, this device is classified as Mobile device. 2.4G WIFI Mode 802.11b/g/n20:2412-2462MHz 802.11n40:2422-2452MHz Detector AVG 802.11b 9.5±1dBm 802.11g 10±1dBm 802.11n20 14±1dBm 802.11n40 14±1dBm ANT Gain (G) Antenna A gain : 5dBi, Antenna B gain : 5dBi GANT + 10 log(NANT) dBi=MIMO technology Directional gain=8.01dBi Antenna gain : 5dBi/8.01dBi (gain of antenna in linear scale=3.16/6.32), 802.11 b3.16241210.511.22020.007061 802.11 g3.1624371112.58930.007921 802.11 n206.3224371531.62280.039781 802.11 n406.3224221531.62280.039781 Power Density (mW/cm²) Limit (mW/cm²) ANT Gain(gain of antenna in linear scale) Protocol Channel Frequenc y (MHz) Output Power to Antenna (dBm) Output Power to Antenna (mW) GSM Mode GSM 850: 824 MHz ~ 849MHz 1900: 1850 MHz ~ 1910MHz Detector AVG GSM 850 25±1dBm GSM 1900 22±1dBm ANT Gain (G) GSM 850: 2.53dBi (gain of antenna in linear scale=1.79) PCS 1900:1.59dBi (gain of antenna in linear scale=1.44) GSM 850 1.79 824 25 316.2278 0.11267 0.549333333 GSM 1900 1.44 1850 25 316.2278 0.09064 1 Power Density (mW/cm²) Limit (mW/cm²) ANT Gain(gain of antenna in linear scale) Protocol Channel Frequenc y (MHz) Output Power to Antenna (dBm) Output Power to Antenna (mW) WCDMA Mode WCDMA Band V: 824 MHz ~ 849 MHz Band II: 1850 MHz ~ 1910 MHz Band IV: 1710 MHz ~ 1755 MHz Detector AVG Band II 24±1dBm Band IV 24±1dBm Band V 24±1dBm ANT Gain (G) WCDMA 850: 2.53dBi (gain of antenna in linear scale=1.79) WCDMA1900: 1.59dBi (gain of antenna in linear scale=1.44) WCDMA1700:2dBi (gain of antenna in linear scale=1.58) Band II 1.79 824 25 316.2278 0.11267 0.549333333 Band IV 1.44 1850 25 316.2278 0.09064 1 Band V 1.58 1710 25 316.2278 0.09945 1 Power Density (mW/cm²) Limit (mW/cm²) ANT Gain(gain of antenna in linear scale) Protocol Channel Frequenc y (MHz) Output Power to Antenna (dBm) Output Power to Antenna (mW) LTE Mode LTE LTE Band 2:1850~1910MHz LTE Band 4:1710~1755MHz LTE Band 5:824~849MHz LTE Band 7:2500~2570MHz LTE Band 66:1710~1780MHz Detector AVG LTE Band 2 24±1dBm LTE Band 4 24±1dBm LTE Band 5 24±1dBm LTE Band 7 24±1dBm LTE Band 66 24±1dBm ANT Gain (G) LTE Band2:1.59dBi (gain of antenna in linear scale=1.44) LTE Band4:2dBi (gain of antenna in linear scale=1.58) LTE Band5:2.53dBi (gain of antenna in linear scale=1.79) LTE Band7:3dBi (gain of antenna in linear scale=2.0) LTE Band66:2dBi (gain of antenna in linear scale=1.58) LTE Band 21.44185025316.22780.090641 LTE Band 41.58171025316.22780.099451 LTE Band 51.7982425316.22780.112670.549333333 LTE Band 72250025316.22780.125891 LTE Band 661.58171025316.22780.099451 Power Density (mW/cm²) Limit (mW/cm²) ANT Gain(gain of antenna in linear scale) Protocol Channel Frequenc y (MHz) Output Power to Antenna (dBm) Output Power to Antenna (mW) Multiple Evaluation WIFI/1+GSM/0.55+WCDMA/1+LTE/1=(0.03978/1) + (0.11267/0.55) + (0.11267/0.55) +(0.11267/0.55)=0.6543 According to the maximum gain of the antenna and the total output power to the antenna, through calculation, we will know max MPE value 0.6543 at distance 20cm. This is less than the limit 1, So Compliance the RF exposure requirement.

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, all test data presented in this report is only applicable to presented test sample. Shenzhen STS Test Services Co., Ltd. A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] RADIO TEST REPORT Report No.:STS2105139W03 Issued for NETIS SYSTEMS CO., LTD Floor 8, Building B, TongFang Information Harbor, No.11 Langshan Road, Nanshan District, Shenzhen, China Product Name: LTE router Brand Name: N/A Model Name: MW5360 Series Model: Q7 FCC ID: T58Q7R Test Standard: FCC Part 15.247 S T L A B S S T L A B S Page 2 of 102 Report No.:STS2105139W03 TEST RESULT CERTIFICATION Applicant’s Name ................. : NETIS SYSTEMS CO., LTD Address ................................. : Floor 8, Building B, TongFang Information Harbor, No.11 Langshan Road, Nanshan District, Shenzhen, China Manufacturer's Name ........... : NETIS SYSTEMS CO., LTD Address ................................. : Floor 8, Building B, TongFang Information Harbor, No.11 Langshan Road, Nanshan District, Shenzhen, China Product Description Product Name ........................ : LTE router Brand Name ........................... : N/A Model Name .......................... : MW5360 Series Model .......................... : Q7 Test Standards ..................... : FCC Part15.247 Test Procedure........................: ANSI C63.10-2013 This device described above has been tested by STS, the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of STS, this document only be altered or revised by STS, personal only, and shall be noted in the revision of the document. Date of Test ........................................... : Date of receipt of test item ...................... : 24 May 2021 Date (s) of performance of tests ............. : 24 May 2021 ~ 09 June 2021 Date of Issue .......................................... : 09 June 2021 Test Result .............................................. : Pass Testing Engineer : (Chris Chen) Technical Manager : (Sean she) Authorized Signatory : (Vita Li) Page 3 of 102 Report No.:STS2105139W03 Table of Contents Page 1. SUMMARY OF TEST RESULTS 6 1.1 TEST FACTORY 7 1.2 MEASUREMENT UNCERTAINTY 7 2. GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF THE EUT 8 2.2 DESCRIPTION OF THE TEST MODES 10 2.3 TEST SOFTWARE AND POWER LEVEL 11 2.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 11 2.5 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 12 2.6 EQUIPMENTS LIST FOR ALL TEST ITEMS 13 3. EMC EMISSION TEST 15 3.1 CONDUCTED EMISSION MEASUREMENT 15 3.2 RADIATED EMISSION MEASUREMENT 19 4. CONDUCTED SPURIOUS & BAND EDGE EMISSION 31 4.1 LIMIT 31 4.2 TEST PROCEDURE 31 4.3 DEVIATION FROM STANDARD 31 4.4 TEST SETUP 31 4.5 EUT OPERATION CONDITIONS 31 4.6 TEST RESULTS 32 5. POWER SPECTRAL DENSITY TEST 64 5.1 LIMIT 64 5.2 TEST PROCEDURE 64 5.3 DEVIATION FROM STANDARD 64 5.4 TEST SETUP 64 5.5 EUT OPERATION CONDITIONS 64 5.6 TEST RESULTS 65 6. BANDWIDTH TEST 81 6.1 LIMIT 81 6.2 TEST PROCEDURE 81 6.3 DEVIATION FROM STANDARD 81 6.4 TEST SETUP 81 6.5 EUT OPERATION CONDITIONS 81 Page 4 of 102 Report No.:STS2105139W03 Table of Contents Page 6.6 TEST RESULTS 82 7. PEAK OUTPUT POWER TEST 98 7.1 LIMIT 98 7.2 TEST PROCEDURE 98 7.3 DEVIATION FROM STANDARD 98 7.4 TEST SETUP 98 7.5 EUT OPERATION CONDITIONS 98 7.6 TEST RESULTS 99 8. ANTENNA REQUIREMENT 101 8.1 STANDARD REQUIREMENT 101 8.2 EUT ANTENNA 101 APPENDIX-PHOTOS OF TEST SETUP 102 Page 5 of 102 Report No.:STS2105139W03 Revision History Rev. Issue Date Report No. Effect Page Contents 00 09 June 2021 STS2105139W03 ALL Initial Issue Page 6 of 102 Report No.:STS2105139W03 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: KDB 558074 D01 15.247 Meas Guidance v05r02. FCC Part 15.247,Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS -- 15.247 (a)(2) 6dB Bandwidth PASS -- 15.247 (b)(3) Output Power PASS -- 15.209 Radiated Spurious Emission PASS -- 15.247 (d) Conducted Spurious & Band Edge Emission PASS -- 15.247 (e) Power Spectral Density PASS -- 15.205 Restricted Band Edge Emission PASS -- Part 15.247(d)/ Part 15.209(a) Band Edge Emission PASS -- 15.203 Antenna Requirement PASS -- NOTE: (1) ‘N/A’ denotes test is not applicable in this Test Report. (2) All tests are according to ANSI C63.10-2013. Page 7 of 102 Report No.:STS2105139W03 1.1 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ±U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 RF output power, conducted ±0.68dB 2 Unwanted Emissions, conducted ±2.988dB 3 All emissions, radiated 9K-30MHz ±2.68dB 4 All emissions, radiated 30M-1GHz ±4.39dB 5 All emissions, radiated 1G-6GHz ±5.10dB 6 All emissions, radiated>6G ±5.48dB 7 Conducted Emission (9KHz-150KHz) ±2.79dB 8 Conducted Emission (150KHz-30MHz) ±2.80dB Page 8 of 102 Report No.:STS2105139W03 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF THE EUT Product Name LTE router Trade Name N/A Model Name MW5360 Series Model Q7 Model Difference Only different in model name. Product Description The EUT is a LTE router Operation Frequency: 802.11b/g/n 20: 2412~2462 MHz 802.11n(40MH…

Text truncated - open the document above for the full version.

Page 1 of 2 FCC ID: T58Q7R DTS Setup photo Model name: MW5360 DTS conduction DTS radiation L Page 2 of 2 FCC ID: T58Q7R DTS radiation H
