T58MW5240R3G/4G Wireless N 300Mbps Modem Router, Wireless N 300Mbps Modem Router

netis Wireless N Router Quick Installation Guide R 1.Package Contents *This QIG is for netis MW-Series, W-Series wireless N routers, * The product model shown in this QIG is MW5240 , as an example. Power Adapter Ethernet Cable (Optional) Wireless N Router QIG netis Wireless N Router Quick Installation Guide netis Wireless N Router Quick Installation Guide 1 2.Hardware Connection 2.1. Power off your Modem. 2.2. Connect the WAN port on netis Router to the Modem's LAN port with an Ethernet cable. 2.3. Connect your computer to one of the LAN ports on netis Router with an Ethernet cable. 2.4. Power on your Modem. 2.5. Plug the provided Power Adapter into the PWR jack of netis Router and the other end to a standard electrical socket. Then wait for one minute. CABLE CABLE LINE IN POWER xDSL/Cable Modem Notebook with wireless network adapter Computer with wired network adapter 5 POWER netis Wireless N Router Quick Installation Guide 2 3.Configure the Router via Web Management Page 3.1. Set the IP address of the wired network adapter on your computer as“Automatic” or “DHCP”. For Windows 10/8/ 7/Vista 1) Go to “Settings” (Win 10/8)/ “Start” (Win 7/Vista)> “Control Panel”. 2) Left-click on “Network and Internet”> “Network and Sharing Center”> “Change adapter settings” (Win 10/8/7)/ “Manage network connections” (Win Vista). 3) Right-click on “Local Area Connection” and left-click on “Properties”. 4) Double-click on “Internet Protocol Version 4 (TCP/IPv4)”. 5) Select “Obtain an IP address automatically” and “Obtain DNS server address automatically” then left-click on “OK”. For Windows XP/2000 1) Go to “Start”> “Control Panel”. 2) Left-click on “Network and Internet Connections”> “Network Connections”. 3) Right-click on “Local Area Connection” and left-click on “Properties”. 4) Double-click on “Internet Protocol (TCP/IP)”. 5) Select “Obtain an IP address automatically” and “Obtain DNS server address automatically” then left-click on “OK”. For MAC OS 1) Click on the “Apple” menu> “System Preferences”. 2) Click on the “Network” icon. 3) Click on “Ethernet” in the left side box and click on “Advanced” in the lower right corner. 4) In the top options, select “TCP/IP”. 5) In the pull-down menu next to “Configure IPv4”, select “Using DHCP”. 6) Click “OK” then “Apply”. 3.2. Open your browser and type in the address field to visit http://netis.cc router's web management page. http://netis.cc netis Wireless N Router Quick Installation Guide 3 1) In “Quick Setup” page, select your Internet Connection Type. If “DHCP (Cable Modem)” is selected, the router will automatically receive the IP parameters from your ISP (Internet Service Provider). If “Static IP” is selected, please enter the IP Address/Subnet Mask/Default Gateway/DNS Servers given by your ISP. If “PPPoE” is selected, please enter the Username and Password given by your ISP. 2) Under Wireless Setup, configure your wireless network name (SSID) and password. 3) Left-click on “Save” to make your settings take effect. 3. 3. Select the language as you need on the top box,default is in English. Tip 2: You can click on



button on the top for other Internet connection types and further settings. Tip 1: Deault address:http://netie.cc



OR


http://192.168.1.254 User
name : guest Password: guest@XXXX 2.4G SSID: netis_2.4G_XXXXXX

WiFi Password: password (“XXXX““XXXXXX“:Last 4/6 digits of LAN MAC Address) netis Wireless N Router Quick Installation Guide How do I restore my netis Router's configuration to its default settings? With the router powered on, use a pin to press and hold the Default button on the rear panel for 8 to 10 seconds before releasing it. The router will reboot and all configurations are back to factory default. Q A 4.Troubleshooting What can I do if my Internet cannot be accessed? 1) Check to verify the hardware connections are correct. Please refer to the “Hardware Connection” step. 2) Login to netis Router's web management page and ensure that you set the correct Internet Connection Type. For cable modem users, please configure “MAC Clone” additionally. Q A On the left-side menu, left-click on > “Network”> “WAN”. And in the middle page, left-click on “Advanced”> “MAC Clone” and then “Save” it. 3) Reboot the modem first and then netis Router. Wait for one minute before you check the Internet again. 4) If Internet access is not available, please connect your computer directly to your modem and try the Internet again. If the Internet is still not working, please contact your ISP for further help. 4 1.Contenido del Empaque Adaptador de alimentación Cable Ethernet Router inalámbrico N Guía de Instalación Rápida netis Wireless N Router Quick Installation Guide 6 2.Conexión del Hardware 2.1. Apague el Módem. 2.2. Conecte el puerto de red de área amplia (WAN) del Router netis al puerto de red de área local (LAN) del módem con un cable Ethernet. 2.3. Conecte su ordenador a uno de los puertos de red de área local (LAN) del router netis con un cable Ethernet. 2.4. Encienda el Módem. 2.5. Conecte el adaptador de alimentación suministrado en el conector de alimentación (PWR) del router netis y el otro extremo a una toma de corriente estándar. Luego, espere durante un minuto. *Esta guía de instalación rápida es para todos los router inalámbrico N netis incluyendo modelos *El ejemplo del modelo del producto que se muestra en esta Guía de Instalación Rápida es MW5240. ENTRADA DE LINEA ALIMENTACIÓN XDSL / Cable de Modem portátil (notebook) con el adaptador de red inalámbrica ALIMENTACIÓN ordenador con el adaptador de red por cable CABLE CABLE 5 Guía de Instalación Rápida del Router Inalámbrico N netis R Router Inalámbrico N netis Guía de Instalación Rápida (Opcional) Guía de Instalación Rápida del Router Inalámbrico N netis 7 3. Configurar el Módem Router a través de la Página Web de Administración 3.1. Configure la dirección IP del adaptador de red por cable en su ordenador como “Automático” o “Protocolo de configuración dinámica del host (DHCP)”. Para …

Text truncated - open the document above for the full version.

Date: March 31, 2020 To: SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia United States From: NETIS SYSTEMS CO., LTD Floor 8, Building B, TongFang Information Harbor, No.11 Langshan Road, Nanshan District, Shenzhen, China Regarding: Confidentiality Request regarding application for FCC ID: T58MW5240R1 LONG TERM CONFIDENTIALITY Pursuant to 47 CFR Section 0.459 and 0.457 of the commission’s rules, the applicant hereby request confidential treatment of the documents listed below, associated with the certification application referenced above. Schematic(s) Block Diagrams Operational Descriptions The documents above contain proprietary information not released to the public. Public disclosure of this information may prove harmful to the business of the applicant. Sincerely, Kinki Wang / Director NETIS SYSTEMS CO., LTD Phone: +86-755-86677078 E-Mail: [email protected]

Letter of Authorization We Name: NETIS SYSTEMS CO., LTD. Address: Floor 8, Building B, TongFang Information Harbor, No.11 Langshan Road, Nanshan District, Shenzhen, China Declare the following Person: Name： Alex Chen Title：Vice President is authorized to sign all the related doucuments of FCC certification，the signature has the same effectas as KinkiWang: on our behalf. Authorized Person: KinkiWang Signature: City: Shenzhen Date: 2020-3-6

Date：March 23, 2020 To : SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia United States From: NETIS SYSTEMS CO., LTD Floor 8, Building B, TongFang Information Harbor, No.11 Langshan Road, Nanshan District, Shenzhen, China Dear Sir or Madam, Due to the business consideration, we hereby declare that our product of 3G/4G Wireless N 300Mbps Modem Router ; Wireless N 300Mbps Modem Router Model: MW5240 ; W4;V4 have as following difference Product Name Model Difference 3G/4G Wireless N 300Mbps Modem Router MW5240 With USB Port Wireless N 300Mbps Modem Router W4 Without USB Port Wireless N 300Mbps Modem Router V4 Without USB Port for all the specification and layout are identical except they come with different model number for marketing purposes. Any questions regarding this declaration, please don’t hesitate to contact us. Your Sincerely, Kinki Wang / Director NETIS SYSTEMS CO., LTD Phone: +86-755-86677078 E-Mail: [email protected]

Date: December 5, 2019 TO: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Regarding FCC ID: T58MW5240R To whom it may concern: We, the undersigned, hereby authorize Kevin Tsai / Deputy Manager of SGS Compliance Certification Services Inc. to act on our behalf in all manners relating to application for equipment authorization with respect to the FCC ID above, including signing of all documents relating to these matters. Any and all acts carried out by the agent on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Where our agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by SGS North America, Inc., still resides with NETIS SYSTEMS CO., LTD. This authorization is valid until further written notice from the applicant. Kinki Wang / Director NETIS SYSTEMS CO., LTD Phone: +86-755-86677078 E-Mail: [email protected]

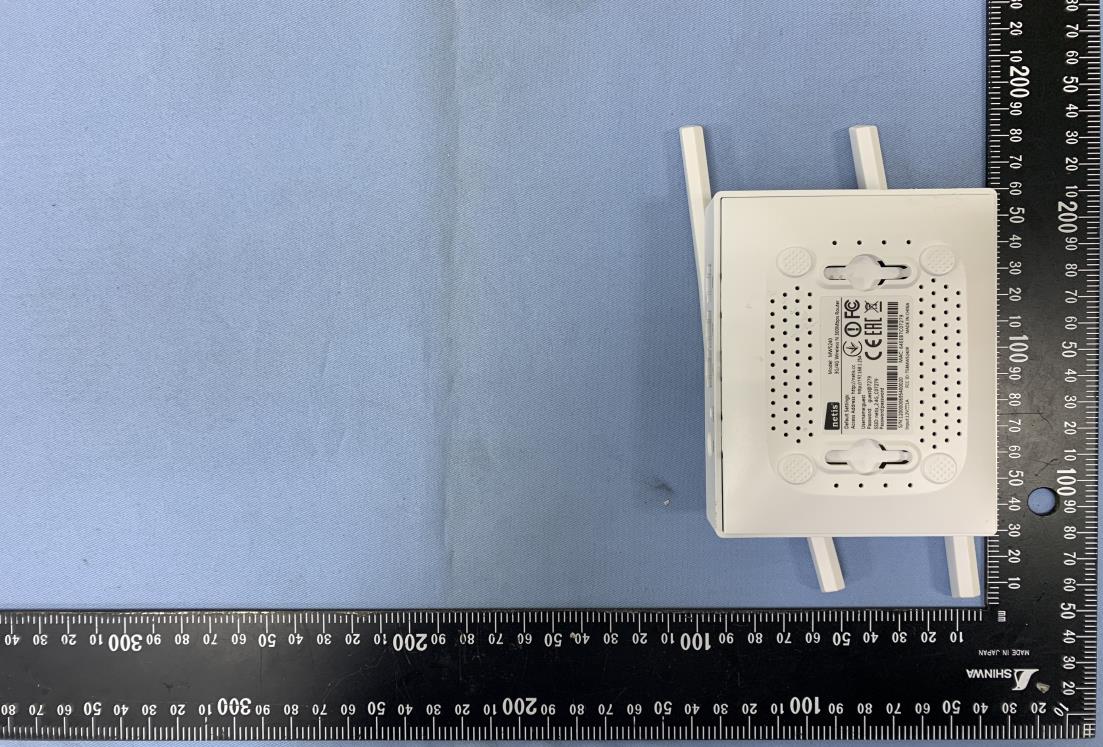

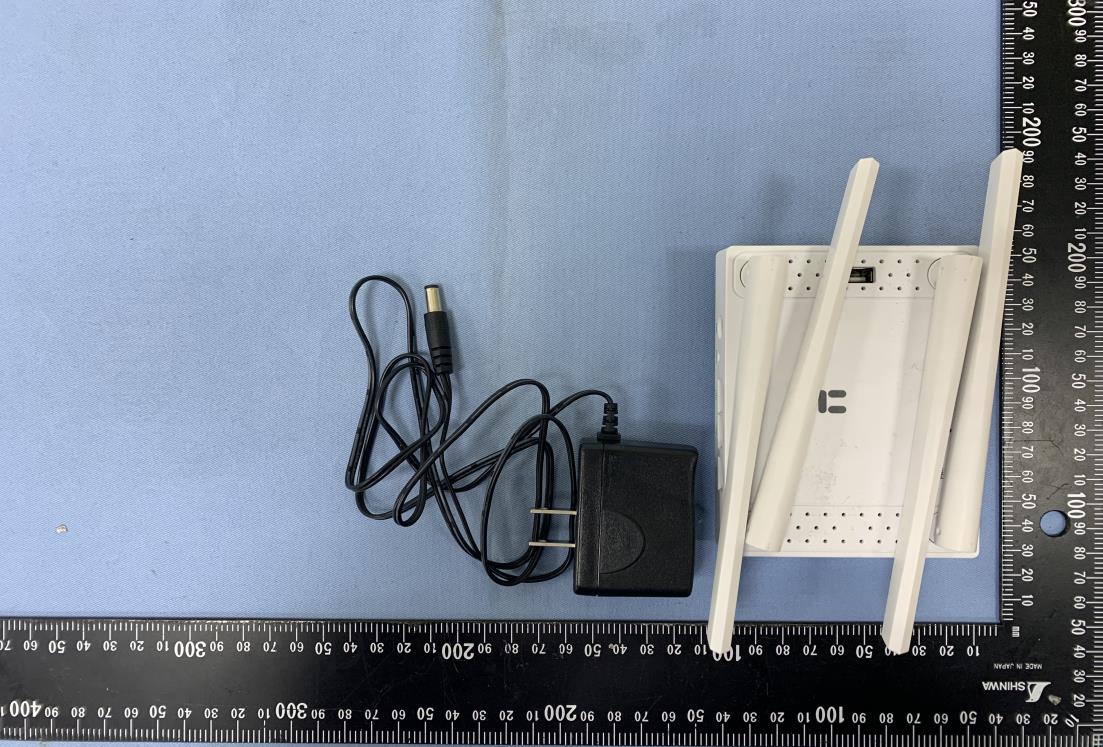

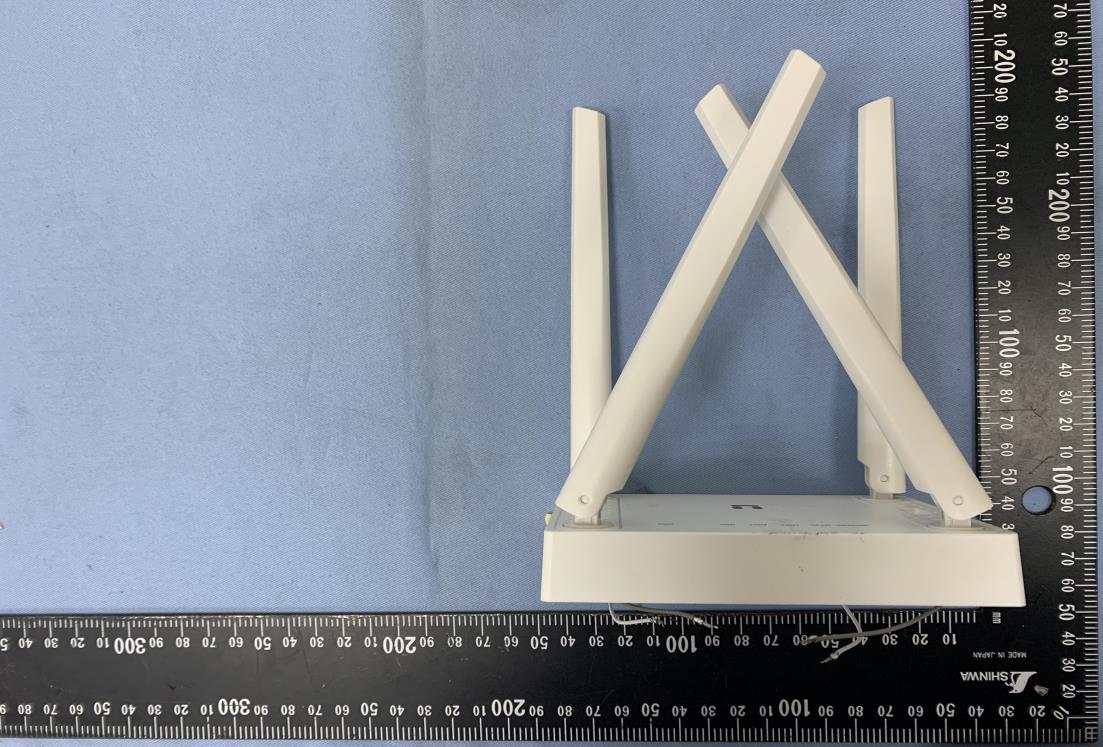

Page 1 / 17 Report No.: T191111D02 Rev.: 00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT Model: MW5240 Page 2 / 17 Report No.: T191111D02 Rev.: 00 Page 3 / 17 Report No.: T191111D02 Rev.: 00 Page 4 / 17 Report No.: T191111D02 Rev.: 00 Page 5 / 17 Report No.: T191111D02 Rev.: 00 Page 6 / 17 Report No.: T191111D02 Rev.: 00 Antenna Page 7 / 17 Report No.: T191111D02 Rev.: 00 Model:V4 、W4 Page 8 / 17 Report No.: T191111D02 Rev.: 00 Page 9 / 17 Report No.: T191111D02 Rev.: 00 Page 10 / 17 Report No.: T191111D02 Rev.: 00 Antenna Page 11 / 17 Report No.: T191111D02 Rev.: 00 Adapter

Page 12 / 17 Report No.: T191111D02 Rev.: 00 INTERNAL PHOTOGRAPHS OF EUT Model: MW5240 Page 13 / 17 Report No.: T191111D02 Rev.: 00 Page 14 / 17 Report No.: T191111D02 Rev.: 00 Module & Crystal Page 15 / 17 Report No.: T191111D02 Rev.: 00 Model:V4 、W4 Page 16 / 17 Report No.: T191111D02 Rev.: 00 Page 17 / 17 Report No.: T191111D02 Rev.: 00 Module & Crystal

FCC ID: T58MW5240R Page 1 / 9 Report No.: T191111D02-MF Rev.: 01 No.11, Wugong 6th Rd., Wugu Dist., New Taipei City, Taiwan / 新北市五股區五工六路11號 t:(886-2) 2299-9720 f:(886-2) 2298-1882 www.sgs.tw www.ccsrf.com KDB 447498 D03 47 C.F.R. Part 1, Subpart I, Section 1.1310 47 C.F.R. Part 2, Subpart J, Section 2.1091 RF EXPOSURE REPORT For Product Name: Model: 3G/4G Wireless N 300Mbps Modem Router MW5240 Wireless N 300Mbps Modem Router W4, V4 Trade Name: netis Issued to NETIS SYSTEMS CO., LTD Floor 8, Building B, TongFang Information Harbor, No.11 Langshan Road, Nanshan District, Shenzhen, China Issued by Compliance Certification Services Inc. Wugu Laboratory No.11, Wugong 6th Rd., Wugu Dist., New Taipei City, Taiwan. (R.O.C.) Issue Date: March 25, 2020 Note: This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NIST or any government agencies. The test results in the report only apply to the tested sample. Page 2 / 9 Report No.: T191111D02-MF Rev.: 01 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 February 26, 2020 Initial Issue ALL Allison Chen 01 March 25, 2020 See the following Note Rev.(01) P.1, 6, 9 Allison Chen Note: Rev.(01) 1. Modify FCC ID, antenna gain, and test data. 2. Add one model number: V4. Page 3 / 9 Report No.: T191111D02-MF Rev.: 01 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION ........................................................................ 4 2. LIMIT .................................................................................................................... 5 3. EUT SPECIFICATION .......................................................................................... 6 4. TEST RESULTS................................................................................................... 8 5. MAXIMUM PERMISSIBLE EXPOSURE .............................................................. 9 Page 4 / 9 Report No.: T191111D02-MF Rev.: 01 1. TEST RESULT CERTIFICATION We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10: 2013 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. APPLICABLE STANDARDS STANDARD TEST RESULT KDB 447498 D03 47 C.F.R. Part 1, Subpart I, Section 1.1310 47 C.F.R. Part 2, Subpart J, Section 2.1091 No non-compliance noted Statements of Conformity Determination of compliance is based on the results of the compliance measurement, not taking into account measurement instrumentation uncertainty. Approved by: Kevin Tsai Deputy Manager Compliance Certification Services Inc. Page 5 / 9 Report No.: T191111D02-MF Rev.: 01 2. LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. Page 6 / 9 Report No.: T191111D02-MF Rev.: 01 3. EUT SPECIFICATION EUT 1. 3G/4G Wireless N 300Mbps Modem Router 2. Wireless N 300Mbps Modem Router Model 1. MW5240 2. W4, V4 Model Discrepancy Difference of the two model numbers (list on this report) are just for marketing purpose only and please see as below: Product name Model Discrepancy 3G/4G Wireless N 300Mbps Modem Router MW5240 has USB port Wireless N 300Mbps Modem Router W4, V4 has no USB port. Frequency band (Operating) Bluetooth: 2402MHz ~ 2480MHz 802.11b/g/n HT20: 2412MHz ~ 2462 MHz 802.11n HT40: 2422MHz ~ 2452MHz 802.11a/n HT20: 5180MHz ~ 5240MHz / 5260MHz ~ 5320MHz / 5500MHz ~ 5700MHz / 5745MHz ~ 5825MHz 802.11n HT40: 5190MHz ~ 5230MHz / 5270MHz ~ 5310MHz / 5510MHz ~ 5670MHz / 5755MHz ~ 5795MHz 802.11ac VHT80: 5210MHz / 5290MHz / 5530MHz / 5775MHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna Specification Dipole Antenna For 2.4GHz Chain 0 Antenna Gain :3.00 dBi (Numeric gain:2.00) Chain 1 Antenna Gain :3.00 dBi (Numeric gain:2.00) MIMO Directional Gain Antenna Gain :3.00 dBi (Numeric gain:2.00) Page 7 / 9 Report No.: T191111D02-MF Rev.: 01 Maximum average output power WIFI 2.4GHz IEEE 802.11b Mode: 21.93 dBm(155.955 mW) IEEE 802.11g Mode: 21.07 dBm(127.938 mW) IEEE 802.11n HT 20 Mode: 23.75 dBm(237.137 mW) IEEE 802.11n HT 40 Mode: 23.89 dBm(244.906 mW) Maximum tune up power IEEE 802.11b Mode: 23.80 dBm(239.883 mW) IEEE 802.11g Mode: 22.90 dBm(194.984 mW) IEEE 802.11n HT 20 Mode: 25.50 dBm(354.813 mW) IEEE 802.11n HT 40 Mode: 25.70 dBm(371.535 mW) Evaluation applied MPE Evaluation* SAR Evaluation N/A Page 8 / 9 Report No.: T191111D02-MF Rev.: 01 4. TEST RESULTS No non-compliance noted. Calculation Given d GP E  = 30 & 377 2 E S= Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 377 30 d GP S  = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 22 0796.0 100/377 1000/30 d GP d GP S  =   = Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Page 9 / 9 Report No.: T191111D02-MF Rev.: 01 5. MAXIMUM PERMISSIBLE EXPOSURE Substituting the MPE safe distance using d = 20 cm into Equation 1: GPS=000199.0 Where P = Pow…

Text truncated - open the document above for the full version.

FCC ID: T58MW5240R Page 1 / 108 Report No.: T191111D02-RP Rev. 02 No.11, Wugong 6th Rd., Wugu Dist., New Taipei City 24891, Taiwan / 新北市五股區五工六路11號 t:(886-2) 2299-9720 f:(886-2) 2298-1882 www.sgs.tw www.ccsrf.com RADIO TEST REPORT FCC 47 CFR PART 15 SUBPART C Test Standard FCC Part 15.247 Brand name netis Product name 1. 3G/4G Wireless N 300Mbps Modem Router 2. Wireless N 300Mbps Modem Router Model No. 1. MW5240 2. W4, V4 Test Result Pass Statements of Conformity Determination of compliance is based on the results of the compliance measurement, not taking into account measurement instrumentation uncertainty. The test Result was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were given in ANSI C63.10: 2013 and compliance standards. The test results of this report relate only to the tested sample (EUT) identified in this report. The test Report of full or partial shall not copy. Without written approval of Compliance Certification Services Inc. (Wugu Laboratory). Approved by: Kevin Tsai Deputy Manager Page 2 / 108 Report No.: T191111D02-RP Rev. 02 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 February 26, 2020 Initial Issue ALL Allison Chen 01 March 25, 2020 See the following Note Rev.(01) P.1, P.4-5 Allison Chen 02 April 6, 2020 See the following Note Rev.(02) P.13 Allison Chen Note: Rev.(01) 1. Modify FCC ID, antenna gain. 2. Add one model number: V4. Rev.(02) 1. Modify duty cycle reported 1/T(kHz) to “N/A” in section 4. Page 3 / 108 Report No.: T191111D02-RP Rev. 02 Table of contents 1. GENERAL INFORMATION ............................................................................................... 4 1.1 EUT INFORMATION ......................................................................................................... 4 1.2 EUT CHANNEL INFORMATION ....................................................................................... 5 1.3 ANTENNA INFORMATION ............................................................................................... 5 1.4 MEASUREMENT UNCERTAINTY .................................................................................... 6 1.5 FACILITIES AND TEST LOCATION................................................................................. 7 1.6 INSTRUMENT CALIBRATION ......................................................................................... 8 1.7 SUPPORT AND EUT ACCESSORIES EQUIPMENT ....................................................... 9 1.8 TEST METHODOLOGY AND APPLIED STANDARDS .................................................... 9 2. TEST SUMMERY ............................................................................................................ 10 3. DESCRIPTION OF TEST MODES .................................................................................. 11 3.1 THE WORST MODE OF OPERATING CONDITION ...................................................... 11 3.2 THE WORST MODE OF MEASUREMENT..................................................................... 12 4. EUT DUTY CYCLE ......................................................................................................... 13 5. TEST RESULT ................................................................................................................ 14 5.1 AC POWER LINE CONDUCTED EMISSION .................................................................. 14 5.2 6dB BANDWIDTH AND OCCUPIED BANDWIDTH(99%) .............................................. 17 5.3 OUTPUT POWER MEASUREMENT .............................................................................. 31 5.4 POWER SPECTRAL DENSITY ...................................................................................... 34 5.5 CONDUCTED BANDEDGE AND SPURIOUS EMISSION .............................................. 42 5.6 RADIATION BANDEDGE AND SPURIOUS EMISSION ................................................. 61 APPENDIX-A TEST PHOTO................................................................................................... A-1 APPENDIX 1 - PHOTOGRAPHS OF EUT Page 4 / 108 Report No.: T191111D02-RP Rev. 02 1. GENERAL INFORMATION 1.1 EUT INFORMATION Applicant NETIS SYSTEMS CO., LTD Floor 8, Building B, TongFang Information Harbor, No.11 Langshan Road, Nanshan District, Shenzhen, China Manufacturer Shenzhen Netcore Industrial Ltd. Floor 8, Building B, TongFang Information Harbor, No.11 Langshan Road, Nanshan District, Shenzhen, China. Equipment / Model Name Product Name Model Name 3G/4G Wireless N 300Mbps Modem Router MW5240 Wireless N 300Mbps Modem Router W4, V4 Model Discrepancy Difference of the two model numbers (list on this report) are just for marketing purpose only and please see as below: Product name Model Discrepancy 3G/4G Wireless N 300Mbps Modem Router MW5240 has USB port Wireless N 300Mbps Modem Router W4, V4 has no USB port. Trade Name netis Received Date November 11, 2019 Date of Test November 26 ~ December 20, 2019 Output Power(W) Mode Output Power (W) IEEE 802.11b Mode 0.2523 IEEE 802.11g Mode 0.4853 IEEE 802.11n HT20 Mode 0.8510 IEEE 802.11n HT40 Mode 0.8716 EUT Power Rating: Power from adapter. Power Supply VDC from Power Adapter AMIGO / AMS195-1201000FU I/P: 100-240Vac, 50/60Hz, 0.5A O/P: 12Vdc, 1.0A Page 5 / 108 Report No.: T191111D02-RP Rev. 02 1.2 EUT CHANNEL INFORMATION Frequency Range 802.11b/g/n HT20: 2412MHz ~ 2462MHz 802.11n HT40: 2422MHz ~ 2452MHz Modulation Type 1. IEEE 802.11b Mode: DSSS(DBPSK/DQPSK/CCK) 2. IEEE 802.11g Mode: OFDM (BPSK/QPSK/16QAM/64QAM) 3. IEEE 802.11n HT20 Mode : OFDM (BPSK/QPSK/16QAM/64QAM) 4. IEEE 802.11n HT40 Mode : OFDM (BPSK/QPSK/16QAM/64QAM) Number of channels 1. IEEE 802.11b Mode: 11 Channels 2. IEEE 802.11g Mode: 11 Channels 3. IEEE 802.11n HT20 Mode : 11 Channels 4. IEEE 802.11n HT40 Mode : 7 Channels Remark: Refer as ANSI C63.10: 2013 clause 5.6.1 Table 4 for test channels Number of frequencies to be tested F…

Text truncated - open the document above for the full version.

Page 42 / 108 Report No.: T191111D02-RP Rev. 02 5.5 CONDUCTED BANDEDGE AND SPURIOUS EMISSION 5.5.1 Test Limit According to §15.247(d), In any 100 kHz bandwidth outside the authorized frequency band, Non-restricted bands shall be attenuated at least 20 dB/30 dB relative to the maximum PSD level in 100 kHz by RF conducted or a radiated measurement which fall in the restricted bands, as defined in §15.205(a), must also comply with the radiated emission limits specified in §15.209(a). 5.5.2 Test Procedure Test method Refer as KDB 558074 D01. 1. EUT RF output port connected to the SA by RF cable, and the path loss was compensated to result. 2. SA setting, RBW=100kHz, VBW=300kHz, Detector=Peak, Trace mode = max hold, SWT = Auto. 3. In any 100 kHz bandwidth outside the authorized frequency band, shall be attenuated at least 20 dB relative to the maximum in-band peak PSD level in 100 kHz when conducted power procedure is used. f the transmitter complies with the conducted power limits based on the use of RMS averaging over a time interval, the attenuation required under this paragraph shall be 30 dB instead of 20 dB. 5.5.3 Test Setup Page 43 / 108 Report No.: T191111D02-RP Rev. 02 5.5.4 Test Result Test Data Chain 0 IEEE 802.11b mode Low CH Reference Level of PSD in 100kHz Band Edge Spurious Emission 30MHz-25GHz Page 44 / 108 Report No.: T191111D02-RP Rev. 02 IEEE 802.11b mode Mid CH Reference Level of PSD in 100kHz Spurious Emission 30MHz-25GHz Page 45 / 108 Report No.: T191111D02-RP Rev. 02 IEEE 802.11b mode High CH Reference Level of PSD in 100kHz Band Edge Spurious Emission 30MHz-25GHz Page 46 / 108 Report No.: T191111D02-RP Rev. 02 IEEE 802.11g mode Low CH Reference Level of PSD in 100kHz Band Edge Spurious Emission 30MHz-25GHz Page 47 / 108 Report No.: T191111D02-RP Rev. 02 IEEE 802.11g mode Mid CH Reference Level of PSD in 100kHz Spurious Emission 30MHz-25GHz Page 48 / 108 Report No.: T191111D02-RP Rev. 02 IEEE 802.11g mode High CH Reference Level of PSD in 100kHz Band Edge Spurious Emission 30MHz-25GHz Page 49 / 108 Report No.: T191111D02-RP Rev. 02 IEEE 802.11 n HT20 mode Low CH Reference Level of PSD in 100kHz Band Edge Spurious Emission 30MHz-25GHz Page 50 / 108 Report No.: T191111D02-RP Rev. 02 IEEE 802.11 n HT20 mode Mid CH Reference Level of PSD in 100kHz Spurious Emission 30MHz-25GHz Page 51 / 108 Report No.: T191111D02-RP Rev. 02 IEEE 802.11n HT20 mode High CH Reference Level of PSD in 100kHz Band Edge Spurious Emission 30MHz-25GHz Page 52 / 108 Report No.: T191111D02-RP Rev. 02 IEEE 802.11 n HT40 mode Low CH Reference Level of PSD in 100kHz Band Edge Spurious Emission 30MHz-25GHz Page 53 / 108 Report No.: T191111D02-RP Rev. 02 IEEE 802.11 n HT40 mode Mid CH Reference Level of PSD in 100kHz Spurious Emission 30MHz-25GHz Page 54 / 108 Report No.: T191111D02-RP Rev. 02 IEEE 802.11n HT40 mode High CH Reference Level of PSD in 100kHz Band Edge Spurious Emission 30MHz-25GHz Page 55 / 108 Report No.: T191111D02-RP Rev. 02 Chain 1 IEEE 802.11 n HT20 mode Low CH Reference Level of PSD in 100kHz Band Edge Spurious Emission 30MHz-25GHz Page 56 / 108 Report No.: T191111D02-RP Rev. 02 IEEE 802.11 n HT20 mode Mid CH Reference Level of PSD in 100kHz Spurious Emission 30MHz-25GHz Page 57 / 108 Report No.: T191111D02-RP Rev. 02 IEEE 802.11n HT20 mode High CH Reference Level of PSD in 100kHz Band Edge Spurious Emission 30MHz-25GHz Page 58 / 108 Report No.: T191111D02-RP Rev. 02 IEEE 802.11 n HT40 mode Low CH Reference Level of PSD in 100kHz Band Edge Spurious Emission 30MHz-25GHz Page 59 / 108 Report No.: T191111D02-RP Rev. 02 IEEE 802.11 n HT40 mode Mid CH Reference Level of PSD in 100kHz Spurious Emission 30MHz-25GHz Page 60 / 108 Report No.: T191111D02-RP Rev. 02 IEEE 802.11n HT40 mode High CH Reference Level of PSD in 100kHz Band Edge Spurious Emission 30MHz-25GHz Page 61 / 108 Report No.: T191111D02-RP Rev. 02 5.6 RADIATION BANDEDGE AND SPURIOUS EMISSION 5.6.1 Test Limit FCC according to §15.247(d), §15.209 and §15.205, In any 100 kHz bandwidth outside the authorized frequency band, all harmonic and spurious must be least 20 dB below the highest emission level with the authorized frequency band. Radiation emission which fall in the restricted bands must also follow the FCC section 15.209 as below limit in table. Below 30 MHz Frequency Field Strength (microvolts/m) Magnetic H-Field (microamperes/m) Measurement Distance (metres) 9-490 kHz 2,400/F (F in kHz) 2,400/F (F in kHz) 300 490-1,705 kHz 24,000/F (F in kHz) 24,000/F (F in kHz) 30 1.705-30 MHz 30 N/A 30 Above 30 MHz Frequency Field Strength (microvolts/m) Measurement Distance (metres) 30-88 100 3 88-216 150 3 216-960 200 3 Above 960 500 3 Page 62 / 108 Report No.: T191111D02-RP Rev. 02 5.6.2 Test Procedure Test method Refer as KDB 558074 D01. 1. The EUT is placed on a turntable, Above 1 GHz is 1.5m and below 1 GHz is 0.8m above ground plane. The EUT Configured un accordance with ANSI C63.10: 2013, and the EUT set in a continuous mode. 2. The turntable shall be rotated for 360 degrees to determine the position of maximum emission level. And EUT is set 3m away from the receiving antenna, which is scanned from 1m to 4m above the ground plane to find out the highest emissions. Measurement are made polarized in both the vertical and the horizontal positions with antenna. 3. Span shall wide enough to full capture the emission measured. The SA from 9kHz to 26.5GHz set to the low, Mid and High channels with the EUT transmit. 4. The SA setting following： (1) Below 1G：RBW = 100kHz, VBW ≥ 3 RBW, Sweep = Auto, Detector = Peak, Trace = Max hold. (2) Above 1G： (2.1) For Peak measurement：RBW = 1MHz, VBW ≥ 3 RBW, Sweep = Auto, Detector = Peak, Trace = Max hold. (2.2) For Average measurement：RBW = 1MHz, VBW ̇If Duty Cycle ≥ 98%, VBW=10Hz. ̇If Duty Cycle < 98%, VBW=1/T. Remark: 1. Although these tests were performed other than open area test site, adequate comparison measurements were confirmed against 30 m open are test site. Therefore sufficient tests we…

Text truncated - open the document above for the full version.

Page A-1 / A-4 Report No.: T191111D02-RP Rev. 02 APPENDIX-A TEST PHOTO Radiation (Below 1GHz) Radiation (Above 1GHz) Page A-2 / A-4 Report No.: T191111D02-RP Rev. 02 Conducted Emission Set Up Photo Page A-3 / A-4 Report No.: T191111D02-RP Rev. 02 Conduction Set Up Photo Page A-4 / A-4 Report No.: T191111D02-RP Rev. 02
