WF2119S netis 150Mbps Wireless-N USB Adapter Quick Installation Guide FCC Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This trans- mitter must not be co-located or operating in conjunction with any other antenna or transmitter. ). This equipment complies with Part 15 of the FCC Caution! The manufacturer is not responsible for any radio or TV inter- ference caused by unauthorized modifications to this equipment. Such modifications could void the user authority to operate the equipment.

Project No.: 1305C017 Page 2 of 9 Neutron Engineering Inc. Project No.: 1305C017 Page 3 of 9 Neutron Engineering Inc. Project No.: 1305C017 Page 4 of 9 Neutron Engineering Inc. Project No.: 1305C017 Page 5 of 9 Neutron Engineering Inc.

Project No.: 1305C017 Page 6 of 9 Neutron Engineering Inc. Project No.: 1305C017 Page 7 of 9 Neutron Engineering Inc. Project No.: 1305C017 Page 8 of 9 Neutron Engineering Inc. Project No.: 1305C017 Page 9 of 9 Neutron Engineering Inc.

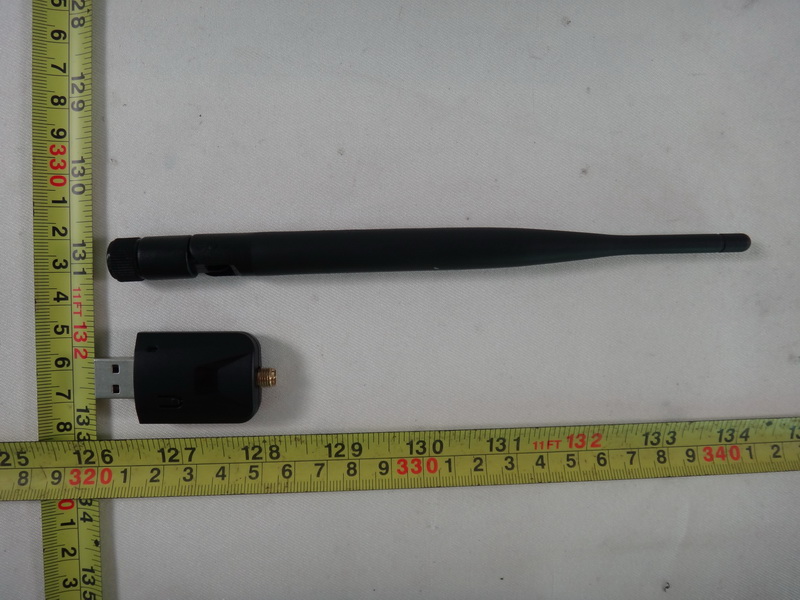

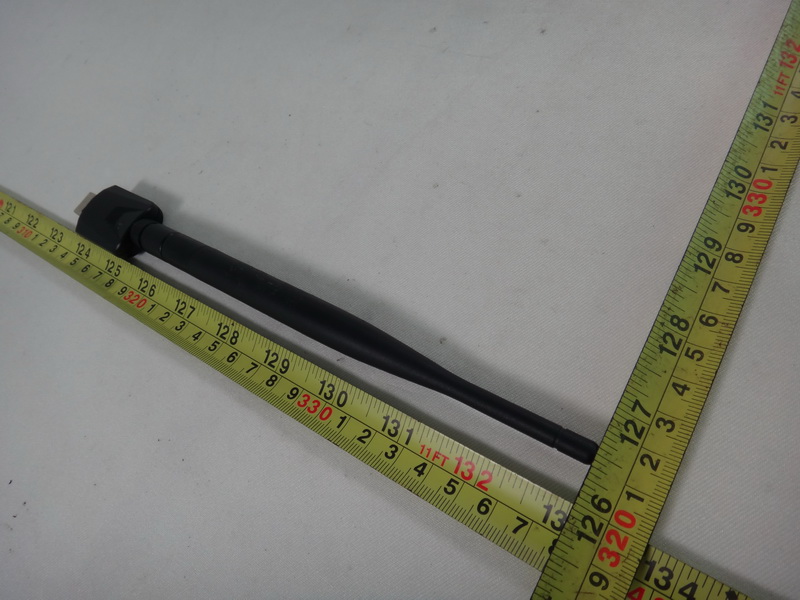

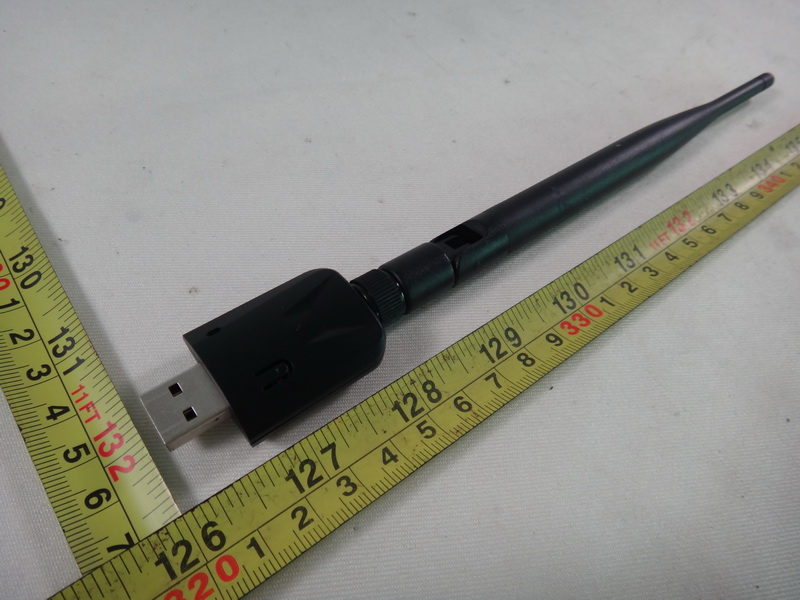

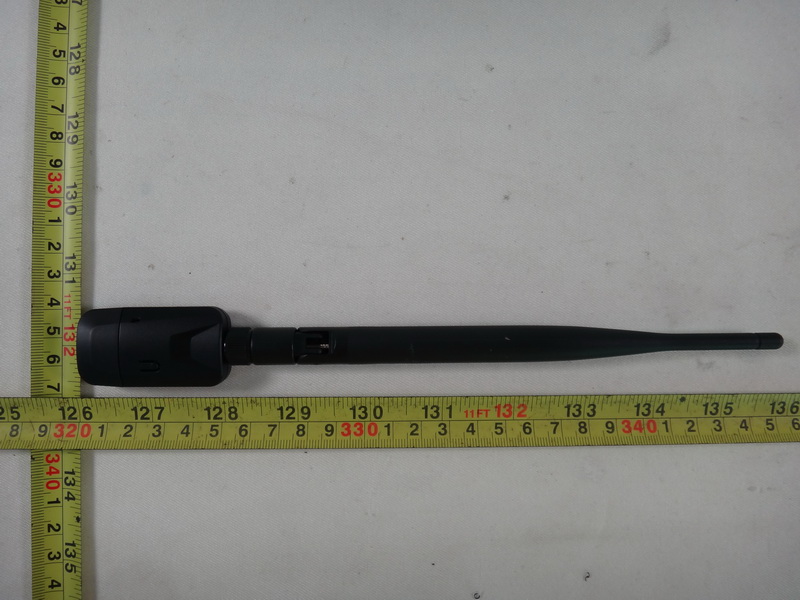

Neutron Engineering Inc. FCC RF EXPOSURE REPORT FCC ID: T58WF2119SR Project No. : 1305C017 Equipment : 150Mbps Wireless-N USB Adapter Model : WF2119S Applicant : NETIS SYSTEMS CO., LTD Address : 9F, B Block, Tsinghua Information Park, High-tech Industrial Park, Nanshan, Shenzhen, China According: : FCC Guidelines for Human Exposure IEEE C95.1 Neutron Engineering Inc. No.3, Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL : (0769) 8318-3000 FAX : (0769) 8319-6000 Neutron Engineering Inc. GENERAL CONCULUSION: Table for Filed Antenna: Ant. Brand Model Name Antenna Type Connector Gain (dBi) 1 Cortec R-AN2400-1901RSDipole SMA Male Reverse 5.02 Maximum measured transmitter power: Mode Output Power (dBm) Out Power (mW) Limit (mW) B/G/N20 3.95 2.5 10 N40 3.88 2.4 10 Maximum power specification in the Tune Up Mode Output Power (dBm) Out Power (mW) Limit (mW) B/G/N20 4.95 3.1 10 N40 4.88 3.1 10 According to FCC KDB447498 V05, Appendix A, SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm The maximum measured output power of this EUT is 3.95dBm (2.5mW) and the maximum power specification of this device is 4.95dBm (3.1mW), therefore both of them are less than 10mW at 5mm distance. Conclusion: No SAR evaluation required since transmitter power is below FCC threshold

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1305C017 Page 1 of 125 FCC Radio Test Report FCC ID: T58WF2119SR This report concerns (check one): Original Grant Class II Change Issued Date : May. 14, 2013 Project No. : 1305C017 Equipment : 150Mbps Wireless-N USB Adapter Model Name : WF2119S Applicant : NETIS SYSTEMS CO., LTD Address : 9F, B Block, Tsinghua Information Park, High-tech Industrial Park, Nanshan, Shenzhen, China Manufacturer : Shenzhen Netcore Industrial Ltd. Address : 9F, B Block, Tsinghua Information Park, High-tech Industrial Park, Nanshan, Shenzhen, China Tested by: Neutron Engineering Inc. EMC Laboratory Date of Receipt: May, 06, 2013 Date of Test: May, 06, 2013 ~ May, 13, 2013 Testing Engineer : (David Mao) Technical Manager : (Leo Hung) Authorized Signatory: (Steven Lu) Neutron Engineering Inc. No.3,Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL : (0769) 8318-3000 FAX : (0769) 8319-6000 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1305C017 Page 2 of 125 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C, or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutron shall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Neutron Engineering Inc. Report No.: NEI-FCCP-1-1305C017 Page 3 of 125 Table of Contents Page 1 . CERTIFICATION 5 2 . SUMMARY OF TEST RESULTS 6 2.1 TEST FACILITY 7 2.2 MEASUREMENT UNCERTAINTY 7 3 . GENERAL INFORMATION 8 3.1 GENERAL DESCRIPTION OF EUT 8 3.2 DESCRIPTION OF TEST MODES 10 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 11 3.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 12 3.5 DESCRIPTION OF SUPPORT UNITS 13 4 . EMC EMISSION TEST 14 4.1 CONDUCTED EMISSION MEASUREMENT 14 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 14 4.1.2 MEASUREMENT INSTRUMENTS LIST AND SETTING 14 4.1.3 TEST PROCEDURE 15 4.1.4 DEVIATION FROM TEST STANDARD 15 4.1.5 TEST SETUP 15 4.1.6 EUT OPERATING CONDITIONS 15 4.1.7 TEST RESULTS 16 4.2 RADIATED EMISSION MEASUREMENT 19 4.2.1 RADIATED EMISSION LIMITS 19 4.2.2 MEASUREMENT INSTRUMENTS LIST ANS SETTING 20 4.2.3 TEST PROCEDURE 21 4.2.4 DEVIATION FROM TEST STANDARD 21 4.2.5 TEST SETUP 22 4.2.6 EUT OPERATING CONDITIONS 23 4.2.7 TEST RESULTS (BELOW 30MHZ) 24 4.2.8 TEST RESULTS-BETWEEN 30MHZ AND 1000MHZ 25 4.2.9 TEST RESULTS (ABOVE 1000 MHZ) 32 5 . BANDWIDTH TEST 80 5.1 APPLIED PROCEDURES / LIMIT 80 5.1.1 MEASUREMENT INSTRUMENTS LIST 80 5.1.2 TEST PROCEDURE 80 5.1.3 DEVIATION FROM STANDARD 80 5.1.4 TEST SETUP 80 5.1.5 EUT OPERATION CONDITIONS 80 5.1.6 TEST RESULTS 81 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1305C017 Page 4 of 125 Table of Contents Page 6 . MAXIMUM OUTPUT POWER TEST 89 6.1 APPLIED PROCEDURES / LIMIT 89 6.1.1 MEASUREMENT INSTRUMENTS LIST 89 6.1.2 TEST PROCEDURE 89 6.1.3 DEVIATION FROM STANDARD 89 6.1.4 TEST SETUP 89 6.1.5 EUT OPERATION CONDITIONS 89 6.1.6 TEST RESULTS 90 7 . ANTENNA CONDUCTED SPURIOUS EMISSION 92 7.1 APPLIED PROCEDURES / LIMIT 92 7.1.1 MEASUREMENT INSTRUMENTS LIST 92 7.1.2 TEST PROCEDURE 92 7.1.3 DEVIATION FROM STANDARD 92 7.1.4 TEST SETUP 92 7.1.5 EUT OPERATION CONDITIONS 92 7.1.6 TEST RESULTS 93 8 . POWER SPECTRAL DENSITY TEST 113 8.1 APPLIED PROCEDURES / LIMIT 113 8.1.1 MEASUREMENT INSTRUMENTS LIST 113 8.1.2 TEST PROCEDURE 113 8.1.3 DEVIATION FROM STANDARD 113 8.1.4 TEST SETUP 113 8.1.5 EUT OPERATION CONDITIONS 113 8.1.6 TEST RESULTS 114 9 . EUT TEST PHOTO 122 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1305C017 Page 5 of 125 1. CERTIFICATION Equipment : 150Mbps Wireless-N USB Adapter Brand Name : netis Model Name : WF2119S Applicant : NETIS SYSTEMS CO., LTD Factory : Dongguan City Netcore Network Technology Co., Ltd. Address : No.10-1,Sankeng Road, Qinghutou, Tangxia Town, Dongguan City Date of Test : May, 06, 2013 ~ May, 13, 2013 Test Item : ENGINEERING SAMPLE Standards : FCC Part15, Subpart C(15.247) / ANSI C63.4-2009 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCP-1-1305C017) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). Neutron Engineering Inc. Report No.: NEI-FCCP-1-1305C017 Page 6 of 125 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247(d) Antenna conducted Spurious EmissionPASS 15.247(a)(2) 6dB Bandwidth PASS 15.247(b)(3) Peak Output Power PASS 15.209/15.205 Radi…

Text truncated - open the document above for the full version.

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1305C017 Page 122 of 125 9. EUT TEST PHOTO Conducted Measurement Photos Neutron Engineering Inc. Report No.: NEI-FCCP-1-1305C017 Page 123 of 125 Radiated Measurement Photos 9K~30MHz Neutron Engineering Inc. Report No.: NEI-FCCP-1-1305C017 Page 124 of 125 Radiated Measurement Photos 30~1000MHz Neutron Engineering Inc. Report No.: NEI-FCCP-1-1305C017 Page 125 of 125 Radiated Measurement Photos Above 1000MHz
