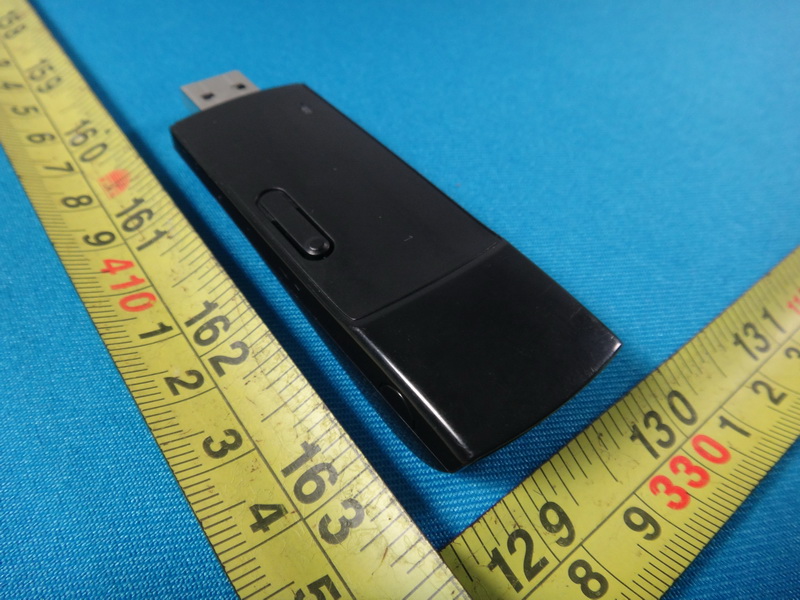

T58WF2150RT300Mbps Wireless Dual Band USB Adapter

netis WF2150 Wireless Dual Band USB Adapter Quick Installation Guide V1.0 2012-11-14 Wireless Dual Band USB Adapter 3 Installation Please insert the Wireless Adapter into your computer before installing driver from netis driver CD. 1. Hardware installation Plug the wireless adapter into an available USB interface your computer directly. Or connect the adapter and your computer with provided USB cradle. 2. Driver installation The Setup Wizard will guide you how to install the driver for Windows8 ,Windows 7 , Windows Vista , Windows XP. And the procedure is similar, so we just take Windows 7 for example. 2.1 Insert netis Driver CD into your CD-ROM. And the Setup Window will appear as below: Just simply click “Install”. Our smart driver assistant will choose the rigth driver for your wireless adapter. Wireless Dual Band USB Adapter 4 2.2 The install wizard will apprear, Select “accept” ollow the step by step procedures and finish the drvier installation. Wireless Dual Band USB Adapter 5 3. Connect to a Wireless network 3.1 Click on your desktop and start the ultility configration page as show below: 3.2 Click to scan available wireless network. And select the wireless which you want to connect to then click Wireless Dual Band USB Adapter 6 3.3 Click and input your wireless password Wireless Dual Band USB Adapter 7 3.3 after input your wireless password. Click to finsih network configration. FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. (Example- use only shielded interface cables when connecting to computer or peripheral devices) FCC Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. The operation frequency of the device in the 5150-5250 MHz band is for indoor use only. Wireless Dual Band USB Adapter 8 Caution! The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user authority to operate the equipment

CERTIFICATE OF COMPLIANCE Ref No.: NEI-FCCE-1-1211C144 Date of Issue: Dec. 11, 2012 Authorized under Declaration of Conformity according to 47 CFR, Part 2 and Part 15 of the FCC Rules. The product listed in follows was (were) tested in the Neutron EMC Laboratory to comply with the criteria limits Class B of conducted and radiated emissions of the Technical Standards FCC Part 15, Subpart B, established by the FCC, USA. Equipment 300Mbps Wireless Dual Band USB Adapter Model Name WF2150 Brand Name netis Applicant NETIS SYSTEMS CO., LTD Address 9F,B Block,Tsinghua Information Park, High-tech Industrial Park, Nanshan, Shenzhen, China Measurement ANSI C63.4 (2009) Method The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCE-1-1211C144) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). The test data contained in the referenced test report relate only to the EUT sample and item(s) tested. Andy Chiu Authorized Signatory Neutron Engineering Inc. B1, No.37, Lane 365, Yang Guang St., NeiHu District 114., Taipei, Taiwan TEL：+886-2-2657-3299 FAX：+886-2-2657-3331

Neutron Engineering Inc. Project No.: 1211C144 Page 2 of 6

Neutron Engineering Inc. Project No.: 1211C144 Page 3 of 6 Neutron Engineering Inc. Project No.: 1211C144 Page 4 of 6 Neutron Engineering Inc. Project No.: 1211C144 Page 5 of 6 Neutron Engineering Inc. Project No.: 1211C144 Page 6 of 6

Neutron Engineering Inc. FCC RF EXPOSURE REPORT FCC ID: T58WF2150RT Project No. : 1211C144 Equipment : 300Mbps Wireless Dual Band USB Adapter Model : WF2150 Applicant : NETIS SYSTEMS CO.,LTD. Address : 9F,B Block,Tsinghua Information Park, High-tech Industrial Park,Nanshan,Shenzhen,China According: : FCC Guidelines for Human Exposure IEEE C95.1 Neutron Engineering Inc. No.3, Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL : (0769) 8318-3000 FAX : (0769) 8319-6000 Neutron Engineering Inc. GENERAL CONCULUSION: No evaluation required if power is below this threshold: F(GHz) P(mW) Low 5.150 High 5.250 11.65 Maximum measured transmitter power: Out Power (dBm) Out Power (mW) Conducted Power 9.97 9.93 EIRP Power 9.97 9.93 Note: Table for Filed Antenna (2T2R) Threshold for no SAR evaluation is 11.65mW. Transmitter power is 9.93mW. Conclusion: No SAR evaluation required since transmitter power is below FCC threshold

Report No.: NEI-FCCP-3-1211C144 Page 1 of 116 Neutron Engineering Inc. FCC Radio Test Report FCC ID: T58WF2150RT This report concerns (check one) : Original Grant Class I Change Issued Date : Dec. 11, 2012 Project No. : 1211C144 Equipment : 300Mbps Wireless Dual Band USB Adapter Model Name : WF2150 Applicant : NETIS SYSTEMS CO., LTD Address : 9F,B Block,Tsinghua Information Park, High-tech Industrial Park, Nanshan, Shenzhen, China Manufacturer : Shenzhen Netcore Industrial Ltd. Address : 9F,B Block, Tsinghua Information Park, High-tech Industrial Park, Nanshan, Shenzhen, China Testing Engineer : (David Mao) Technical Manager : (Leo Hung) Authorized Signatory : (Steven Lu) Neutron Engineering Inc. No.3,Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL : (0769) 8318-3000 FAX : (0769) 8319-6000 Tested by: Neutron Engineering Inc. EMC Laboratory Date of Receipt: Nov. 22, 2012 Date of Test: Nov. 22, 2012 ~ Dec. 10, 2012 Report No.: NEI-FCCP-3-1211C144 Page 2 of 116 Neutron Engineering Inc. Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C., or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutron shall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Report No.: NEI-FCCP-3-1211C144 Page 3 of 116 Neutron Engineering Inc. Table of Contents Page 1 . CERTIFICATION 5 2 . SUMMARY OF TEST RESULTS 6 2.1 TEST FACILITY 7 2.2 MEASUREMENT UNCERTAINTY 7 3 . GENERAL INFORMATION 8 3.1 GENERAL DESCRIPTION OF EUT 8 3.2 DESCRIPTION OF TEST MODES 10 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 11 3.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 12 3.5 DESCRIPTION OF SUPPORT UNITS 13 4 . EMC EMISSION TEST 14 4.1 CONDUCTED EMISSION MEASUREMENT 14 4.1.1 POWER LINE CONDUCTED EMISSION 14 4.1.2 MEASUREMENT INSTRUMENTS LIST 14 4.1.3 TEST PROCEDURE 15 4.1.4 DEVIATION FROM TEST STANDARD 15 4.1.5 TEST SETUP 15 4.1.6 EUT OPERATING CONDITIONS 15 4.1.7 TEST RESULTS 16 4.2 RADIATED EMISSION MEASUREMENT 19 4.2.1 RADIATED EMISSION LIMITS 19 4.2.2 MEASUREMENT INSTRUMENTS LIST 20 4.2.3 TEST PROCEDURE 20 4.2.4 DEVIATION FROM TEST STANDARD 20 4.2.5 TEST SETUP 21 4.2.6 EUT OPERATING CONDITIONS 21 4.2.7 TEST RESULTS-BETWEEN 30MHZ - 1000MHZ 22 4.2.8 TEST RESULTS - ABOVE 1000MHZ 25 5 . 26dB SPECTRUM BANDWIDTH 57 5.1 APPLIED PROCEDURES / LIMIT 57 5.1.1 MEASUREMENT INSTRUMENTS LIST 57 5.1.2 TEST PROCEDURE 57 5.1.3 DEVIATION FROM STANDARD 57 5.1.4 TEST SETUP 57 5.1.5 EUT OPERATION CONDITIONS 58 5.1.6 TEST RESULTS 59 6 . MAXIMUM CONDUCTED OUTPUT POWER 65 Report No.: NEI-FCCP-3-1211C144 Page 4 of 116 Neutron Engineering Inc. Table of Contents Page 6.1 APPLIED PROCEDURES / LIMIT 65 6.1.1 MEASUREMENT INSTRUMENTS LIST 65 6.1.2 TEST PROCEDURE 65 6.1.3 DEVIATION FROM STANDARD 66 6.1.4 TEST SETUP 66 6.1.5 EUT OPERATION CONDITIONS 66 6.1.6 TEST RESULTS 67 7 . ANTENNA CONDUCTED SPURIOUS EMISSION 70 7.1 APPLIED PROCEDURES / LIMIT 70 7.1.1 MEASUREMENT INSTRUMENTS LIST 70 7.1.2 TEST PROCEDURE 70 7.1.3 DEVIATION FROM STANDARD 70 7.1.4 TEST SETUP 70 7.1.5 EUT OPERATION CONDITIONS 70 7.1.6 TEST RESULTS 71 8 . POWER SPECTRAL DENSITY TEST 94 8.1 APPLIED PROCEDURES / LIMIT 94 8.1.1 MEASUREMENT INSTRUMENTS LIST 94 8.1.2 TEST PROCEDURE 94 8.1.3 DEVIATION FROM STANDARD 94 8.1.4 TEST SETUP 94 8.1.5 EUT OPERATION CONDITIONS 94 9 . PEAK EXCURSION MEASUREMENT 104 9.1 APPLIED PROCEDURES / LIMIT 104 9.1.1 MEASUREMENT INSTRUMENTS LIST 104 9.1.2 TEST PROCEDURE 104 9.1.3 DEVIATION FROM STANDARD 104 9.1.4 TEST SETUP 105 9.1.5 EUT OPERATION CONDITIONS 105 9.1.6 TEST RESULTS 106 10 . FREQUENCY STABILITY MEASUREMENT 112 10.1 APPLIED PROCEDURES / LIMIT 112 10.1.1 MEASUREMENT INSTRUMENTS LIST 112 10.1.2 TEST PROCEDURE 112 10.1.3 DEVIATION FROM STANDARD 112 10.1.4 TEST SETUP 113 10.1.5 EUT OPERATION CONDITIONS 113 10.1.6 TEST RESULTS 114 11 . EUT TEST PHOTO 115 Report No.: NEI-FCCP-3-1211C144 Page 5 of 116 Neutron Engineering Inc. 1. CERTIFICATION Equipment : 300Mbps Wireless Dual Band USB Adapter Brand Name : netis Model Name : WF2150 Applicant : NETIS SYSTEMS CO., LTD Factory : Dongguan City Netcore Network Technology Co.,Ltd. Address : No.10-1,Sankeng Road,Qinghutou,Tangxia Town,Dongguan City Date of Test : Nov. 22, 2012 ~ Dec. 10, 2012 Test Item : ENGINEERING SAMPLE Standards : FCC Part15, Subpart E(15.407) / ANSI C63.4 : 2009 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCP-3-1211C144) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of NVLAP and TAF according to the ISO-17025 qualit…
