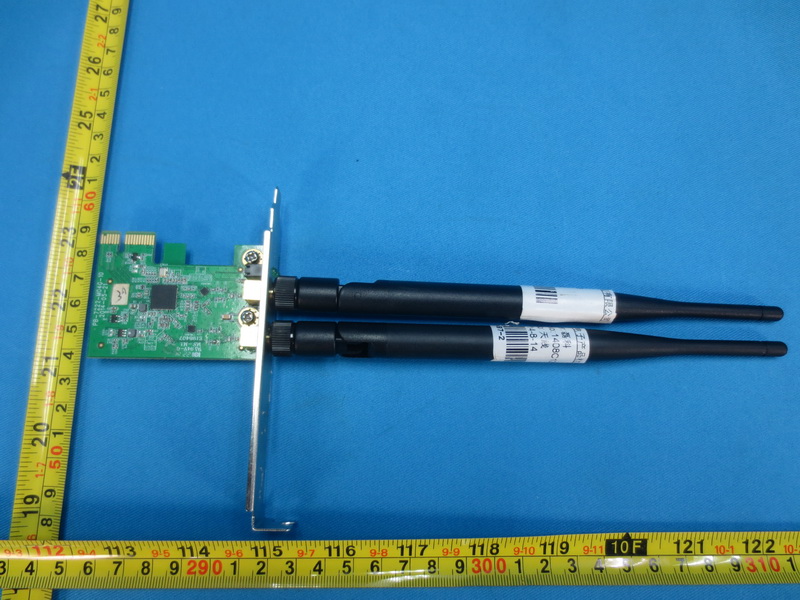

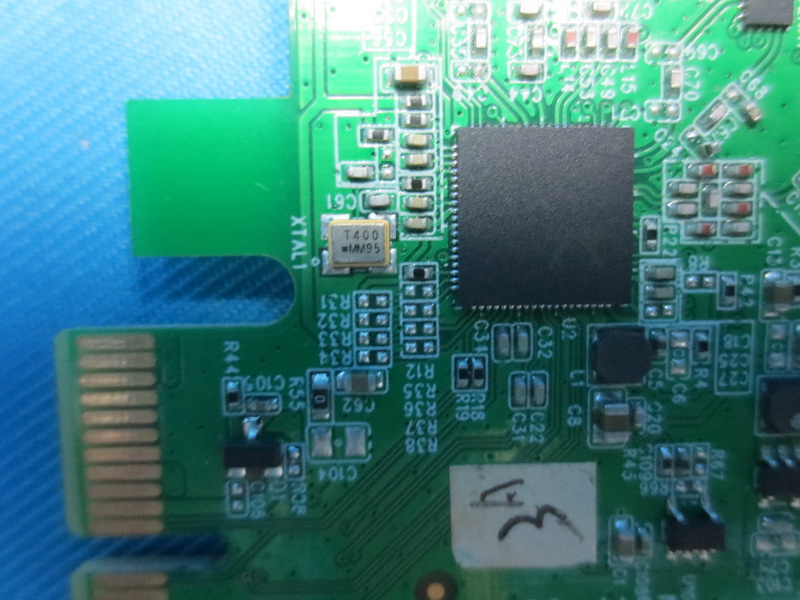

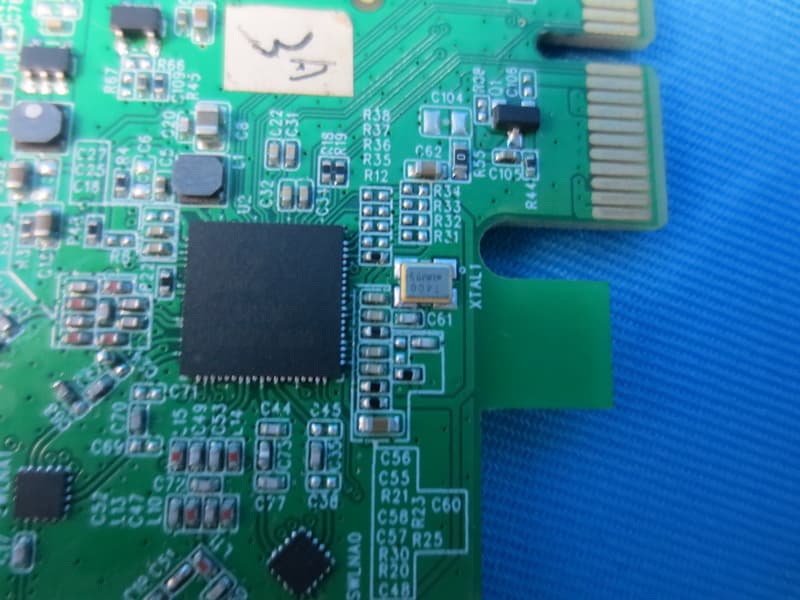

T58WF2166RAC1200 Wireless Dual Band PCI-E Adapter

Operations in the 5150 to 5250MHz band are restricted to indoor use only.

NETIS SYSTEMS CO., LTD. To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Subject: Request for confidentiality FCC ID: T58WF2166R Dear FCC TCB: 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Schematic Block diagram Operational description Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. Sincerely, Selena Bai 2014-09-05

Declaration of Authorization We Name: NETIS SYSTEMS CO., LTD. Address: 4F&5F R&D Building,Oriental Cyberport, High-Tech Industrial Park, Nanshan City: Shenzhen Country: China Declare that: Name Representative of agent: Cathy Wang Agent Company name: BTL Inc. Address: No.3 Jinshagang 1 st Road, Shixia, Dalang Town City: Dong Guan Country: China is authorized to apply for Certification of the following product(s), and sign all related documents, including the 731 forms: Product description: AC1200 Wireless Dual Band PCI-E Adapter Type designation: WF2166 Trademark: netis on our behalf. Date: 2014-09-05 City: Shenzhen Name: Selena Bai Function: Director Signature: .

NETIS SYSTEMS CO., LTD. Ad Hoc Mode Declaration We, the undersigning company Name: NETIS SYSTEMS CO., LTD. Address: 4F&5F R&D Building, Oriental Cyberport, High-Tech Industrial Park, Nanshan City: Shenzhen Country: China Hereby confirm that the following products: Product description: AC1200 Wireless Dual Band PCI-E Adapter Type designation: WF2166 Brand: netis Doesn’t have Ad Hoc Mode function on “non-US frequencies”. In addition, the frequency selection feature is disabled by firmware for devices marketed to the US. For this product, only channels 1~11 will be used in USA. Country code selection is disabled. Signature: ________________________ Name: Selena Bai / Director Date: 2014-09-05

Project No.: 1408C128 Page 2 of 7 Project No.: 1408C128 Page 3 of 7 Project No.: 1408C128 Page 4 of 7 Project No.: 1408C128 Page 5 of 7 Project No.: 1408C128 Page 6 of 7 Project No.: 1408C128 Page 7 of 7

Project No.: 1408C128 Page 2 of 7 Project No.: 1408C128 Page 3 of 7 Project No.: 1408C128 Page 4 of 7 Project No.: 1408C128 Page 5 of 7 Project No.: 1408C128 Page 6 of 7 Project No.: 1408C128 Page 7 of 7

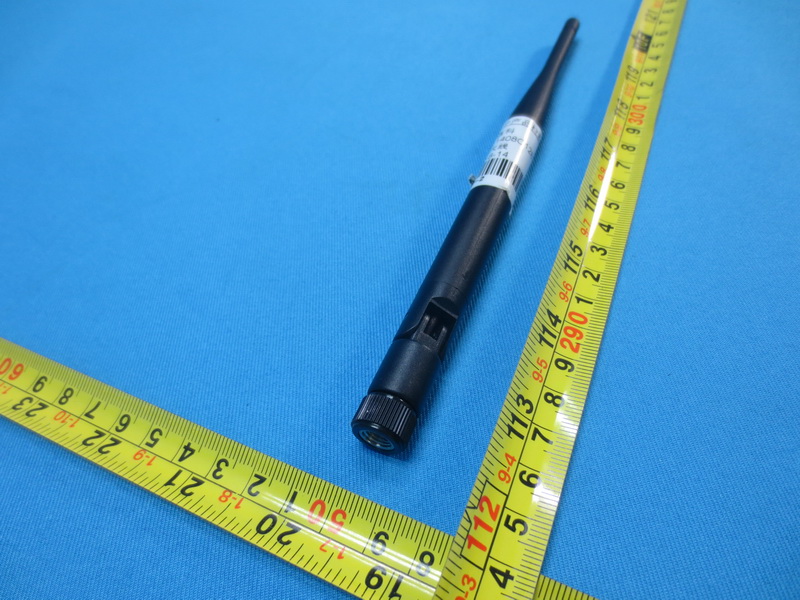

FCC RF EXPOSURE REPORT FCC ID: T58WF2166R Project No. : 1408C128 Equipment : AC1200 Wireless Dual Band PCI-E Adapter Model : WF2166 Applicant : NETIS SYSTEMS CO., LTD Address : 4F&5F R&D Building, Oriental Cyberport, High-Tech Industrial Park, Nanshan, Shenzhen, China. According: : FCC Guidelines for Human Exposure IEEE C95.1 BTL INC. No.3, Jinshagang 1st Road, Shixia, Dalang Town, Dongguan, China. TEL: +86-769-8318-3000 FAX: +86-769-8319-6000 Table for Filed Antenna: 2.4G Ant. Brand Model Name Antenna TypeConnector Gain (dBi) 1 RF21S00014ADipole N/A 4.87 2 RF21S00014ADipole N/A 4.87 5G Ant. Brand Model Name Antenna TypeConnector Gain (dBi) 1 RF21S00014ADipole N/A 5.32 2 RF21S00014ADipole N/A 5.32 TEST RESULTS 2.4G EUT： AC1200 Wireless Dual Band PCI-E Adapter Model Name : WF2166 Temperature： 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode ： TX B MODE /CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 4.87 3.0690 21.33 135.8313 0.082975591 Complies 4.87 3.0690 21.17 130.9182 0.079974291 Complies 4.87 3.0690 20.13 103.0386 0.062943421 Complies EUT： AC1200 Wireless Dual Band PCI-E Adapter Model Name : WF2166 Temperature： 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode ： TX G mode/CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 4.87 3.0690 21.18 131.2200 0.080158651 Complies 4.87 3.0690 22.56 180.3018 0.110141341 Complies 4.87 3.0690 20.78 119.6741 0.073105551 Complies EUT： AC1200 Wireless Dual Band PCI-E Adapter Model Name : WF2166 Temperature: 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode : TX N-20M Mode/CH01, CH06, CH11 – Ant 1 +Ant 2 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 4.87 3.0690 23.05 201.8366 0.123296391 Complies 4.87 3.0690 23.33 215.2782 0.131507451 Complies 4.87 3.0690 22.27 168.6553 0.103026841 Complies EUT： AC1200 Wireless Dual Band PCI-E Adapter Model Name : WF2166 Temperature: 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode : TX N-40M Mode/CH03, CH06, CH09 – Ant 1 +Ant 2 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 4.87 3.0690 22.54 179.4734 0.109635291 Complies 4.87 3.0690 23.15 206.5380 0.126168331 Complies 4.87 3.0690 20.89 122.7439 0.074980851 Complies Band 1 EUT： AC1200 Wireless Dual Band PCI-E Adapter Model Name : WF2166 Temperature: 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode : Band 1/TX A Mode/CH36, CH40, CH48 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 5.32 3.4041 14.68 29.3765 0.019904461 Complies 5.32 3.4041 17.89 61.5177 0.041682171 Complies 5.32 3.4041 18.23 66.5273 0.045076521 Complies EUT： AC1200 Wireless Dual Band PCI-E Adapter Model Name : WF2166 Temperature: 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode : Band 1/TX N-20M Mode/CH36, CH40, CH48– Ant 1 +Ant 2 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 5.32 3.4041 17.35 54.3250 0.036808691 Complies 5.32 3.4041 19.91 97.9490 0.066366721 Complies 5.32 3.4041 20.34 108.1434 0.073274081 Complies EUT： AC1200 Wireless Dual Band PCI-E Adapter Model Name : WF2166 Temperature: 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode : Band 1/TX N-40M Mode/CH38, CH46– Ant 1 +Ant 2 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 5.32 3.4041 13.73 23.6048 0.015993751 Complies 5.32 3.4041 20.01 100.2305 0.067912601 Complies EUT： AC1200 Wireless Dual Band PCI-E Adapter Model Name : WF2166 Temperature: 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode : Band 1/TX AC-20M Mode/CH36, CH40, CH48– Ant 1 +Ant 2 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 5.32 3.4041 16.89 48.8652 0.033109331 Complies 5.32 3.4041 20.01 100.2305 0.067912601 Complies 5.32 3.4041 20.89 122.7439 0.083166871 Complies EUT： AC1200 Wireless Dual Band PCI-E Adapter Model Name : WF2166 Temperature: 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode : Band 1/TX AC-40M Mode/CH38, CH46– Ant 1 +Ant 2 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 5.32 3.4041 14.33 27.1019 0.018363281 Complies 5.32 3.4041 20.43 110.4079 0.074808401 Complies EUT： AC1200 Wireless Dual Band PCI-E Adapter Model Name : WF2166 Temperature: 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode : Band 1/TX AC-80M Mode/CH42– Ant 1 +Ant 2 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 5.32 3.4041 17.25 53.0884 0.035970821 Complies Band 4 EUT： AC1200 Wireless Dual Band PCI-E Adapter Model Name : WF2166 Temperature: 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode : Band 4/TX A Mode/CH149, CH157, CH165 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 5.32 3.4041 12.29 16.9434 0.011480221 Complies 5.32 3.4041 18.12 64…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-1-1408C128 Page 1 of 148 FCC Radio Test Report FCC ID: T58WF2166R This report concerns (check one): Original Grant Class II Change Project No. : 1408C128 Equipment : AC1200 Wireless Dual Band PCI-E Adapter Model Name : WF2166 Applicant : NETIS SYSTEMS CO., LTD Address : 4F&5F R&D Building，Oriental Cyberport, High-Tech Industrial Park, Nanshan, Shenzhen, China. Date of Receipt : Aug. 14, 2014 Date of Test : Aug. 14, 2014~ Sep. 02, 2014 Issued Date : Sep. 03, 2014 Tested by : BTL Inc. Testing Engineer : (David Mao) Technical Manager : (Leo Hung) Authorized Signatory : (Steven Lu) BTL INC. No.3, Jinshagang 1st Road, Shixia, Dalang Town, Dongguan, Guangdong, China. TEL: +86-769-8318-3000 FAX: +86-769-8319-6000 Report No.: BTL-FCCP-1-1408C128 Page 2 of 148 Declaration BTL represents to the client that testing i s done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C, or National Institute of Standards and Technology (NIST) of U.S.A. BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. BTL’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. Thi s report is the confidential property of the client. As a mutual protection to the clients, the public and BTL-self, extracts from the test report shall not be reproduced except in full with BTL’s authorized written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s )/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Report No.: BTL-FCCP-1-1408C128 Page 3 of 148 Table of Contents Page 1 . CERTIFICATION 6 2 . SUMMARY OF TEST RESULTS 7 2.1 TEST FACILITY 8 2.2 MEASUREMENT UNCERTAINTY 8 3 . GENERAL INFORMATION 9 3.1 GENERAL DESCRIPTION OF EUT 9 3.2 DESCRIPTION OF TEST MODES 11 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 12 3.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 13 3.5 DESCRIPTION OF SUPPORT UNITS 14 4 . EMC EMISSION TEST 15 4.1 CONDUCTED EMISSION MEASUREMENT 15 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 15 4.1.2 TEST PROCEDURE 15 4.1.3 DEVIATION FROM TEST STANDARD 15 4.1.4 TEST SETUP 16 4.1.5 EUT OPERATING CONDITIONS 16 4.1.6 EUT TEST CONDITIONS 16 4.1.7 TEST RESULTS 16 4.2 RADIATED EMISSION MEASUREMENT 17 4.2.1 RADIATED EMISSION LIMITS 17 4.2.2 TEST PROCEDURE 18 4.2.3 DEVIATION FROM TEST STANDARD 18 4.2.4 TEST SETUP 18 4.2.5 EUT OPERATING CONDITIONS 19 4.2.6 EUT TEST CONDITIONS 19 4.2.7 TEST RESULTS (9KHZ TO 30MHZ) 20 4.2.8 TEST RESULTS (BETWEEN 30MHZ TO 1000 MHZ) 20 4.2.9 TEST RESULTS (ABOVE 1000 MHZ) 20 5 . BANDWIDTH TEST 21 5.1 APPLIED PROCEDURES 21 5.1.1 TEST PROCEDURE 21 5.1.2 DEVIATION FROM STANDARD 21 5.1.3 TEST SETUP 21 5.1.4 EUT OPERATION CONDITIONS 21 5.1.5 EUT TEST CONDITIONS 21 5.1.6 TEST RESULTS 21 Report No.: BTL-FCCP-1-1408C128 Page 4 of 148 Table of Contents Page 6 . MAXIMUM OUTPUT POWER TEST 22 6.1 APPLIED PROCEDURES / LIMIT 22 6.1.1 TEST PROCEDURE 22 6.1.2 DEVIATION FROM STANDARD 22 6.1.3 TEST SETUP 22 6.1.4 EUT OPERATION CONDITIONS 22 6.1.5 EUT TEST CONDITIONS 22 6.1.6 TEST RESULTS 22 7 . ANTENNA CONDUCTED SPURIOUS EMISSION 23 7.1 APPLIED PROCEDURES / LIMIT 23 7.1.1 TEST PROCEDURE 23 7.1.2 DEVIATION FROM STANDARD 23 7.1.3 TEST SETUP 23 7.1.4 EUT OPERATION CONDITIONS 23 7.1.5 EUT TEST CONDITIONS 23 7.1.6 TEST RESULTS 23 8 . POWER SPECTRAL DENSITY TEST 24 8.1 APPLIED PROCEDURES / LIMIT 24 8.1.1 TEST PROCEDURE 24 8.1.2 DEVIATION FROM STANDARD 24 8.1.3 TEST SETUP 24 8.1.4 EUT OPERATION CONDITIONS 24 8.1.5 EUT TEST CONDITIONS 24 8.1.6 TEST RESULTS 24 9 . MEASUREMENT INSTRUMENTS LIST 25 10 . EUT TEST PHOTO 27 ATTACHMENT A - CONDUCTED EMISSION 31 ATTACHMENT B - RADIATED EMISSION (9KHZ TO 30MHZ) 34 ATTACHMENT C - RADIATED EMISSION (30MHZ TO 1000MHZ) 36 ATTACHMENT D - RADIATED EMISSION (ABOVE 1000MHZ) 43 ATTACHMENT E - BANDWIDTH 92 ATTACHMENT F - MAXIMUM OUTPUT POWER 105 ATTACHMENT G - ANTENNA CONDUCTED SPURIOUS EMISSION 109 ATTACHMENT H - POWER SPECTRAL DENSITY 134 Report No.: BTL-FCCP-1-1408C128 Page 5 of 148 REPORT ISSUED HISTORY Issued No. Description Issued Date BTL-FCCP-1-1408C128 Original Issue. Sep. 03, 2014 Report No.: BTL-FCCP-1-1408C128 Page 6 of 148 1. CERTIFICATION Equipment : AC1200 Wireless Dual Band PCI-E Adapter Brand Name : netis Model Name : WF2166 Applicant : NETIS SYSTEMS CO., LTD Manufacturer : Shenzhen Netcore Industrial Ltd. Address : 4F&5F R&D Building，Oriental Cyberport, High-Tech Industrial Park, Nanshan, Shenzhen, China. Factory : Dongguan City Netcore Network Technology Co.,Ltd. Address : No.10-1,Sankeng Road,Qinghutou,Tangxia Town,Dongguan City Date of Test : Aug. 14, 2014~ Sep. 02, 2014 Test Sample : ENGINEERING SAMPLE Standard(s) : FCC Part15, Subpart C: 2013 (15.247) / ANSI C63.4-2009 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. BTL-FCCP-1-1408C128) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). Report No.: BTL-FCCP-1-1408C128 Page 7 of 148 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): Appl…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-1-1408C128 Page 27 of 148 10. EUT TEST PHOTO Conducted Measurement Photos Report No.: BTL-FCCP-1-1408C128 Page 28 of 148 Radiated Measurement Photos 9KHz to 30MHz Report No.: BTL-FCCP-1-1408C128 Page 29 of 148 Radiated Measurement Photos 30MHz to 1000MHz Report No.: BTL-FCCP-1-1408C128 Page 30 of 148 Radiated Measurement Photos Above 1000MHz
