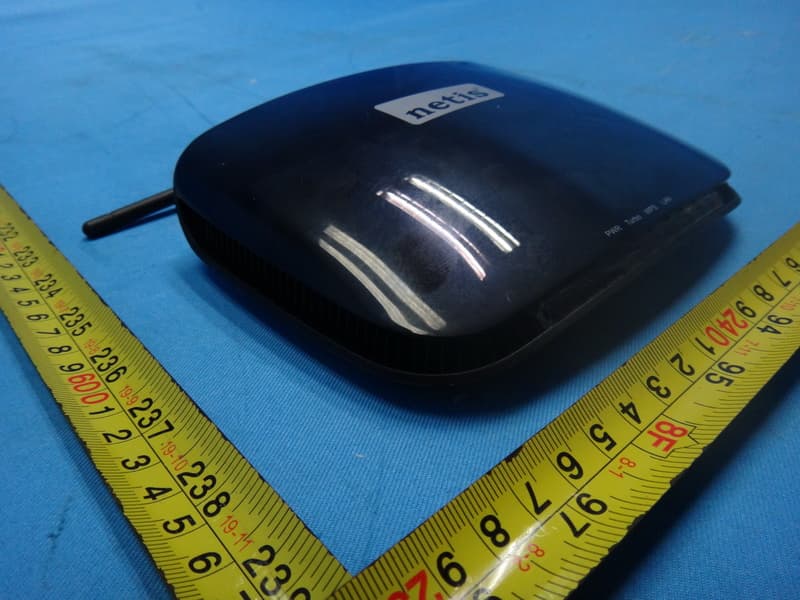

T58WF2210R150Mbps Wireless N Access Point

NETIS SYSTEMS CO., LTD. To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Subject: Request for confidentiality FCC ID: T58WF2210R Dear FCC TCB: 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Schematic Block diagram Operational description Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. Sincerely, Selena Bai 2014-11-27

Declaration of Authorization We Name: NETIS SYSTEMS CO., LTD. Address: 4F&5F R&D Building,Oriental Cyberport, High-Tech Industrial Park, Nanshan City: Shenzhen Country: China Declare that: Name Representative of agent: Cathy Wang Agent Company name: BTL Inc. Address: No.3 Jinshagang 1 st Road, Shixia, Dalang Town City: Dong Guan Country: China is authorized to apply for Certification of the following product(s), and sign all related documents, including the 731 forms: Product description: 150Mbps Wireless N Access Point Type designation: WF2210 Trademark: netis on our behalf. Date: 2014-11-27 City: Shenzhen Name: Selena Bai Function: Director Signature: .

NETIS SYSTEMS CO., LTD. Ad Hoc Mode Declaration We, the undersigning company Name: NETIS SYSTEMS CO., LTD. Address: 4F&5F R&D Building, Oriental Cyberport, High-Tech Industrial Park, Nanshan City: Shenzhen Country: China Hereby confirm that the following products: Product description: 150Mbps Wireless N Access Point Type designation: WF2210 Brand: netis Doesn’t have Ad Hoc Mode function on “non-US frequencies”. In addition, the frequency selection feature is disabled by firmware for devices marketed to the US. For this product, only channels 1~11 will be used in USA. Country code selection is disabled. Signature: ________________________ Name: Selena Bai / Director Date: 2014-11-27

Project No.: 1411C119 Page 2 of 15 Project No.: 1411C119 Page 3 of 15 Project No.: 1411C119 Page 4 of 15 Project No.: 1411C119 Page 5 of 15 Project No.: 1411C119 Page 6 of 15

ODEHOORFDWLRQ

Project No.: 1411C119 Page 7 of 15 Project No.: 1411C119 Page 8 of 15 Project No.: 1411C119 Page 9 of 15 Project No.: 1411C119 Page 10 of 15 Project No.: 1411C119 Page 11 of 15 Project No.: 1411C119 Page 12 of 15 Project No.: 1411C119 Page 13 of 15 Project No.: 1411C119 Page 14 of 15 Project No.: 1411C119 Page 15 of 15

FCC RF EXPOSURE REPORT FCC ID: T58WF2210R Project No. : 1411C119 Equipment : 150Mbps Wireless N Access Point Model : WF2210 Applicant : NETIS SYSTEMS CO., LTD Address : 4F&5F R&D Building, Oriental Cyberport, High-Tech Industrial Park, Nanshan, Shenzhen, China. According: : FCC Guidelines for Human Exposure IEEE C95.1 BTL INC. No.3, Jinshagang 1st Road, Shixia, Dalang Town, Dongguan, China. TEL: +86-769-8318-3000 FAX: +86-769-8319-6000 Table for Filed Antenna: Ant.BrandModel NameAntenna TypeConnector Gain Note 1 Dongguan RF Electronic Technology Co.,LTD RF21S00001ADipoleSMA5.24TX/RX TEST RESULTS EUT： 150Mbps Wireless N Access Point Model Name : WF2210 Temperature： 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode ： TX B Mode_CH01/06/11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 5.24 3.3420 25.21 331.8945 0.22077524 1 Complies 5.24 3.3420 25.23 333.4264 0.22179429 1 Complies 5.24 3.3420 24.05 254.0973 0.16902478 1 Complies EUT： 150Mbps Wireless N Access Point Model Name : WF2210 Temperature： 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode ： TX G Mode_CH01/06/11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 5.24 3.3420 24.86 306.1963 0.20368093 1 Complies 5.24 3.3420 25.29 338.0648 0.22487976 1 Complies 5.24 3.3420 21.83 152.4053 0.10137955 1 Complies EUT： 150Mbps Wireless N Access Point Model Name : WF2210 Temperature: 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode : TX N20 Mode_CH01/06/11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 5.24 3.3420 20.81 120.5036 0.08015865 1 Complies 5.24 3.3420 25.29 338.0648 0.22487976 1 Complies 5.24 3.3420 23.14 206.0630 0.13707251 1 Complies EUT： 150Mbps Wireless N Access Point Model Name : WF2210 Temperature: 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode : TX N40 Mode_CH03/06/09 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 5.24 3.3420 22.14 163.6817 0.10888057 1 Complies 5.24 3.3420 23.24 210.8628 0.14026534 1 Complies 5.24 3.3420 21.22 132.4342 0.08809482 1 Complies Note: the calculated distance is 20 cm.

Report No.: BTL-FCCP-1-1411C119 Page 1 of 137 FCC Radio Test Report FCC ID: T58WF2210R This report concerns (check one): Original Grant Class II Change Project No. : 1411C119 Equipment : 150Mbps Wireless N Access Point Model Name : WF2210 Applicant : NETIS SYSTEMS CO., LTD Address : 4F&5F R&D Building, Oriental Cybe rport, High-Tech Industrial Park, Nanshan, Shenzhen, China. Date of Receipt : Nov. 12, 2014 Date of Test : Nov. 12, 2014~Dec. 10, 2014 Issued Date : Dec. 11, 2014 Tested by : BTL Inc. Testing Engineer : (David Mao) Technical Manager : (Leo Hung) Authorized Signatory : (Steven Lu) BTL INC. No.3, Jinshagang 1st Road, Shixia, Dalang Town, Dongguan, Guangdong, China. TEL: +86-769-8318-3000 FAX: +86-769-8319-6000 Report No.: BTL-FCCP-1-1411C119 Page 2 of 137 Declaration BTL represents to the client that testing i s done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C, or National Institute of Standards and Technology (NIST) of U.S.A. BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. BTL’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. Thi s report is the confidential property of the client. As a mutual protection to the clients, the public and BTL-self, extracts from the test report shall not be reproduced except in full with BTL’s authorized written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s )/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Report No.: BTL-FCCP-1-1411C119 Page 3 of 137 Table of Contents Page 1 . CERTIFICATION 6 2 . SUMMARY OF TEST RESULTS 7 2.1 TEST FACILITY 8 2.2 MEASUREMENT UNCERTAINTY 8 3 . GENERAL INFORMATION 9 3.1 GENERAL DESCRIPTION OF EUT 9 3.2 DESCRIPTION OF TEST MODES 11 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 12 3.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 13 3.5 DESCRIPTION OF SUPPORT UNITS 13 4 . EMC EMISSION TEST 14 4.1 CONDUCTED EMISSION MEASUREMENT 14 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 14 4.1.2 TEST PROCEDURE 14 4.1.3 DEVIATION FROM TEST STANDARD 14 4.1.4 TEST SETUP 15 4.1.5 EUT OPERATING CONDITIONS 15 4.1.6 EUT TEST CONDITIONS 15 4.1.7 TEST RESULTS 15 4.2 RADIATED EMISSION MEASUREMENT 16 4.2.1 RADIATED EMISSION LIMITS 16 4.2.2 TEST PROCEDURE 17 4.2.3 DEVIATION FROM TEST STANDARD 17 4.2.4 TEST SETUP 17 4.2.5 EUT OPERATING CONDITIONS 18 4.2.6 EUT TEST CONDITIONS 18 4.2.7 TEST RESULTS (9KHZ TO 30MHZ) 19 4.2.8 TEST RESULTS (BETWEEN 30MHZ TO 1000 MHZ) 19 4.2.9 TEST RESULTS (ABOVE 1000 MHZ) 19 5 . BANDWIDTH TEST 20 5.1 APPLIED PROCEDURES 20 5.1.1 TEST PROCEDURE 20 5.1.2 DEVIATION FROM STANDARD 20 5.1.3 TEST SETUP 20 5.1.4 EUT OPERATION CONDITIONS 20 5.1.5 EUT TEST CONDITIONS 20 5.1.6 TEST RESULTS 20 Report No.: BTL-FCCP-1-1411C119 Page 4 of 137 Table of Contents Page 6 . MAXIMUM PEAK CONDUCTED OUTPUT POWER TEST 21 6.1 APPLIED PROCEDURES / LIMIT 21 6.1.1 TEST PROCEDURE 21 6.1.2 DEVIATION FROM STANDARD 21 6.1.3 TEST SETUP 21 6.1.4 EUT OPERATION CONDITIONS 21 6.1.5 EUT TEST CONDITIONS 21 6.1.6 TEST RESULTS 21 7 . ANTENNA CONDUCTED SPURIOUS EMISSION 22 7.1 APPLIED PROCEDURES / LIMIT 22 7.1.1 TEST PROCEDURE 22 7.1.2 DEVIATION FROM STANDARD 22 7.1.3 TEST SETUP 22 7.1.4 EUT OPERATION CONDITIONS 22 7.1.5 EUT TEST CONDITIONS 22 7.1.6 TEST RESULTS 22 8 . POWER SPECTRAL DENSITY TEST 23 8.1 APPLIED PROCEDURES / LIMIT 23 8.1.1 TEST PROCEDURE 23 8.1.2 DEVIATION FROM STANDARD 23 8.1.3 TEST SETUP 23 8.1.4 EUT OPERATION CONDITIONS 23 8.1.5 EUT TEST CONDITIONS 23 8.1.6 TEST RESULTS 23 9 . MEASUREMENT INSTRUMENTS LIST 24 10 . EUT TEST PHOTO 26 ATTACHMENT A - CONDUCTED EMISSION 32 ATTACHMENT B - RADIATED EMISSION (9KHZ TO 30MHZ) 37 ATTACHMENT C - RADIATED EMISSION (30MHZ TO 1000MHZ) 39 ATTACHMENT D - RADIATED EMISSION (ABOVE 1000MHZ) 52 ATTACHMENT E - BANDWIDTH 101 ATTACHMENT F – MAXIMUM PEAK CONDUCTED OUTPUT POWER 110 ATTACHMENT G - ANTENNA CONDUCTED SPURIOUS EMISSION 112 ATTACHMENT H - POWER SPECTRAL DENSITY 129 Report No.: BTL-FCCP-1-1411C119 Page 5 of 137 REPORT ISSUED HISTORY Issued No. Description Issued Date BTL-FCCP-1-1411C119 Original Issue. Dec. 11, 2014 Report No.: BTL-FCCP-1-1411C119 Page 6 of 137 1. CERTIFICATION Equipment : 150Mbps Wireless N Access Point Brand Name : netis Model Name : WF2210 Applicant : NETIS SYSTEMS CO., LTD Manufacturer : Shenzhen Netcore Industrial Ltd. Address : 4F&5F R&D Building, Oriental Cyberport, High-Tech Industrial Park, Nanshan, Shenzhen, China. Factory : Dongguan City Netcore Network Technology Co.,Ltd. Address : No.10-1,Sankeng Road,Qinghutou,Tangxia Town,Dongguan City Date of Test : Nov. 12, 2014~Dec. 10, 2014 Test Sample : ENGINEERING SAMPLE Standard(s) : FCC Part15, Subpart C: 2013 (15.247) / ANSI C63.4-2009 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. BTL-FCCP-1-1411C119) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). Report No.: BTL-FCCP-1-1411C119 Page 7 of 137 2. SUMMARY OF TEST RESULTS Test procedures according to the technical s…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-1-1411C119 Page 26 of 137 10. EUT TEST PHOTO Conducted Measurement Photos Without PoE Report No.: BTL-FCCP-1-1411C119 Page 27 of 137 Conducted Measurement Photos With PoE Report No.: BTL-FCCP-1-1411C119 Page 28 of 137 Radiated Measurement Photos 9KHz to 30MHz Report No.: BTL-FCCP-1-1411C119 Page 29 of 137 Radiated Measurement Photos 30MHz to 1000MHz Without PoE Report No.: BTL-FCCP-1-1411C119 Page 30 of 137 Radiated Measurement Photos 30MHz to 1000MHz With PoE Report No.: BTL-FCCP-1-1411C119 Page 31 of 137 Radiated Measurement Photos Above 1000MHz
