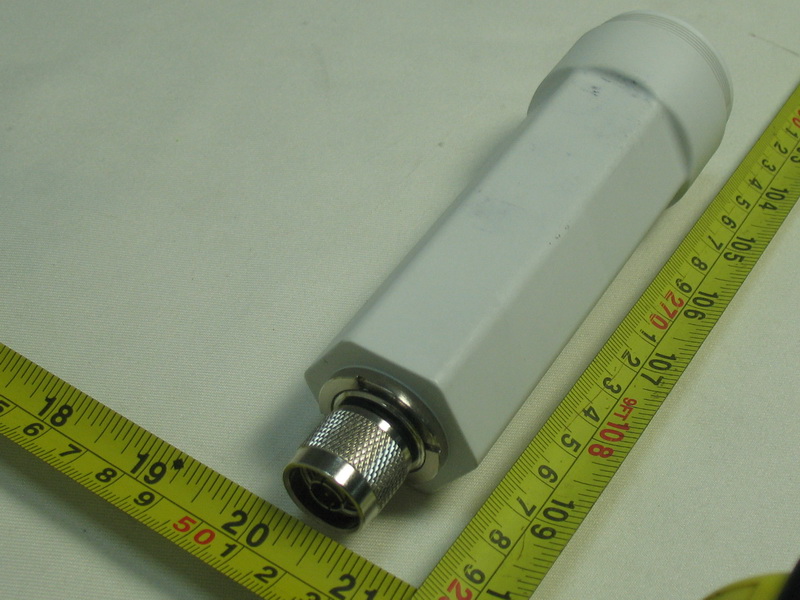

T58WF2301RT150Mbps Wireless-N Outdoor Access Point

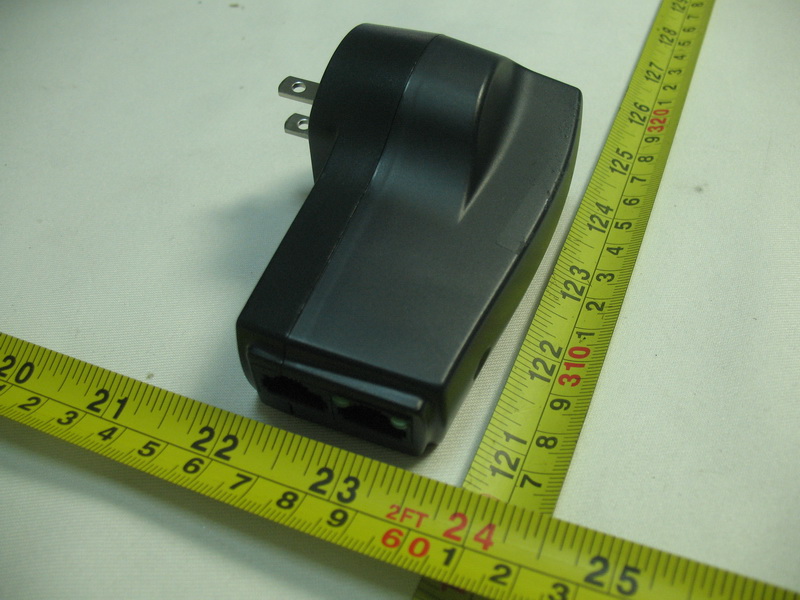

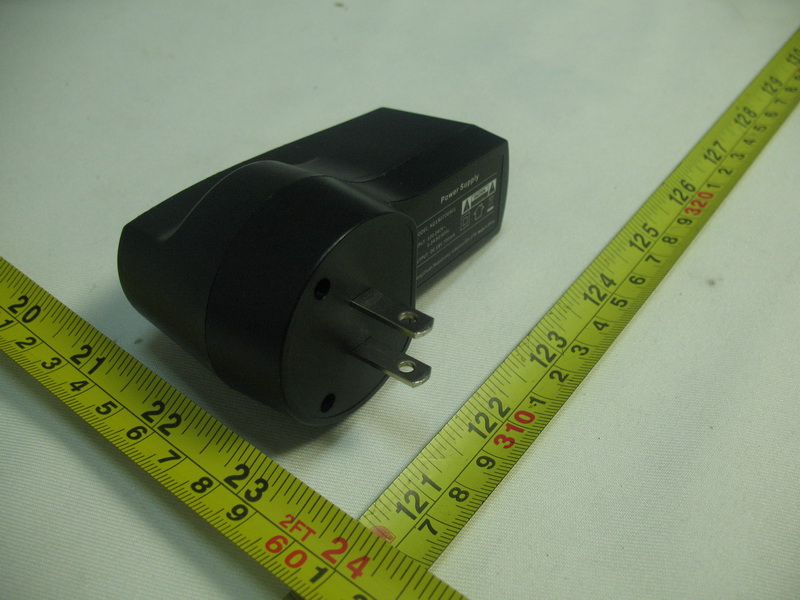

netis 150Mbps Wireless-N Outdoor Access Point Quick Installation Guide WF-2301 V1.1.01 2012-02-08 Package Contents The following items should be found in your package  150Mbps Wireless-N Outdoor AP  PoE Adapter  Quick Installation Guide Please make sure that the package contains the above items, if any of the listed items are damaged or missing, please contact with your distributor. Before You Begin Minimum Requirements:  Broadband Internet access service (DSL / Cable / Ethernet)  Internet Explorer 5.0 or higher for Web configuration  802.11n，802.11g or 802.11b compliant wireless adapters (for wireless connection)  Windows 98/2000/XP/2003/Vista or higher operating system 1. Hardware Installation Procedures The procedures to install the Wireless-N AP please refer to Figure 1-1 Figure 1-1  Step 1 connecting Cable/ADSL Modem to the WAN port. Attach one end of an Ethernet cable to your modem’s Ethernet port, and the other end to one of the WAN ports of your router.  Step 2 connecting the power adapter. Attach one end of an Ethernet cable to the Internet access router LAN port, the other end to the Internet port of power adapter. Then plug the Power Adapter into an AC outlet.  Step 3 connecting the 150Mpbs outdoor adapter. Connect another Ethernet cable from your POE port of the power adapter to the LAN port of 150Mbps outdoor AP.  Step 4 Power on the following devices in this order: Cable/ADSL modem, Router. 2. LED Indicators Figure 2-1 LED Function ON Power on Off Power off On Connection normal Off Abnormal FlashingData transmitting On Power supply normal POE Off Abnormal Flashing 4 light signal strength above 75% 3 light signal strength medium Less than 2 light signal strength is weak. Off No signal 3. Configure computer 3.1. Windows 98/Me 1. Go to Start  Settings  Control Panel. 2. Find and double-click the Network icon. The Network dialog box appears. 3. Click the Configuration label and ensure that you have network card. 4. Select TCP/IP. If TCP/IP appears more than once, please select the item that has an arrow “” pointing to the network card installed on your computer. DO NOT choose the instance of TCP/IP with the words “Dial Up Adapter” beside it. 5. Click Properties. The TCP/IP Properties dialog box appears. 6. Ensure the Obtain IP Address Automatically is checked. 7. From the WINS Configuration dialog box, Ensure that Disable WINS Resolution is checked. 8. From the Gateway dialog box, remove all entries from the Installed gateways by selecting them and clicking Remove. 9. From the DNS Configuration dialog box, remove all entries from the DNS Server Search Order box by selecting them and clicking Remove. Remove all entries from the Domain Suffix Search Order box by selecting them and clicking Remove. Click Disable DNS. 10. Click OK, back to Network Configuration dialog box 11. Click OK, if prompted to restart, click YES. 3.2. Windows 2000 Please follow the steps below to setup your computer: 1. Go to Start  Settings  Control Panel Figure 3-1 2. Double click the icon Network and Dial-up Connections 3. Highlight the icon Local Area Connection, right click your mouse, and click Properties Figure 3-2 4. Highlight Internet Protocol (TCP/IP), and then press Properties button Figure 3-3 5. Choose Obtain an IP address automatically and Obtain DNS server address automatically, and then press OK to close the Internet Protocol (TCP/IP) Properties window Figure 3-4 6. Press OK to close the Local Area Connection Properties window Figure 3-5 3.3. Windows XP Please follow the steps below to setup your computer: 1. Go to Start  Settings  Control Panel 2. Click Network and Internet Connections Figure 3-6 3. Click Network Connections Figure 3-7 4. Highlight the icon Local Area Connection, right click your mouse, and click Properties Figure 3-8 5. Highlight Internet Protocol (TCP/IP), and then press Properties button Figure 3-9 6. Choose Obtain an IP address automatically and Obtain DNS server address automatically, and then press OK to close the Internet Protocol (TCP/IP) Properties window Figure 3-10 7. Press OK to close the Local Area Connection Properties window Figure 3-11 3.4. Windows Vista Please follow the steps below to setup your computer: 1. Go to Start  Settings  Control Panel 2. Click Network and Sharing Center Figure 3-12 3. Click Manage Network Connections Figure 3-13 4. Highlight the icon Local Area Connection, right click your mouse, and click Properties Figure 3-14 5. Highlight Internet Protocol Version 4 (TCP/IP) and then press Properties button Figure 3-15 6. Choose Obtain an IP address automatically and Obtain DNS server address automatically, and then press OK to close the Internet Protocol (TCP/IP) Properties window Figure 3-16 7. Press OK to close the Local Area Connection Properties window. Figure 3-17 3.5. Windows 7 Please follow the steps blow to setup your computer: 1. Go to Start→ Control Panel→ Network and Internet. 2. Click Network and Sharing Center→ Change adapter settings. 3. Highlight the icon Local Area Connection, right click your mouse, and click Properties. Highlight Internet Protocol version 4 (TCP/IPv4). Figure 3-18 Figure 3-19 4. Choose Obtain an IP address automatically and Obtain DNS server address automatically, and then press the OK to close the window. Figure 3-20 5. Press OK to close the Local Area Connection Properties window. 4. Checking Connection with the Adapter After configuring the TCP/IP protocol, use the ping command to verify if the computer can communicate with the Router. To execute the ping command, open the DOS window and Ping the IP address of the 300Mbps Wireless-N Gigabit Router at the DOS prompt:  For Windows 98/Me: Start → Run. Type command and click OK.  For Windows 2000/XP: Start → Run. Type cmd and click OK.  For Windows Vista/7:Start→ Type cmd at the start search bar and press the Enter. If the Command window returns something similar to the following: C:\Documents and Settings\admin>ping 192.168.1.1 Pinging …

Text truncated - open the document above for the full version.

Neutron Engineering Inc. Project No.: 1202C053 Page 2 of 10 1202C053 1202C053 Neutron Engineering Inc. Project No.: 1202C053 Page 2 of 10 1202C053 1202C053 Neutron Engineering Inc. Project No.: 1202C053 Page 3 of 10 1202C053 1202C053 Neutron Engineering Inc. Project No.: 1202C053 Page 3 of 10 1202C053 1202C053 Neutron Engineering Inc. Project No.: 1202C053 Page 4 of 10 1202C053 1202C053 Neutron Engineering Inc. Project No.: 1202C053 Page 4 of 10 1202C053 1202C053 Neutron Engineering Inc. Project No.: 1202C053 Page 5 of 10 1202C053 1202C053 Neutron Engineering Inc. Project No.: 1202C053 Page 5 of 10 1202C053 1202C053 Neutron Engineering Inc. Project No.: 1202C053 Page 6 of 10 1202C053 1202C053 Neutron Engineering Inc. Project No.: 1202C053 Page 6 of 10 1202C053 1202C053 Neutron Engineering Inc. Project No.: 1202C053 Page 7 of 10 1202C053 1202C053 Neutron Engineering Inc. Project No.: 1202C053 Page 7 of 10 1202C053 1202C053

Neutron Engineering Inc. Project No.: 1202C053 Page 8 of 10 1202C053 1202C053 Neutron Engineering Inc. Project No.: 1202C053 Page 8 of 10 1202C053 1202C053 Neutron Engineering Inc. Project No.: 1202C053 Page 9 of 10 1202C053 1202C053 Neutron Engineering Inc. Project No.: 1202C053 Page 9 of 10 1202C053 1202C053 Neutron Engineering Inc. Project No.: 1202C053 Page 10 of 10 1202C053 1202C053 Neutron Engineering Inc. Project No.: 1202C053 Page 10 of 10 1202C053 1202C053

Neutron Engineering Inc. FCC RF EXPOSURE REPORT FCC ID: T58WF2301RT Project No. : 1202C053 Equipment : 150Mbps Wireless-N Outdoor Access Point Model : WF-2301 Applicant : NETIS SYSTEMS CO., LTD. Address : 9F,B Block,Tsinghua Information Park, High-tech Industrial Park,Nanshan, Shenzhen,China According: : FCC Guidelines for Human Exposure IEEE C95.1 Neutron Engineering Inc. No.3, Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL : (0769) 8318-3000 FAX : (0769) 8319-6000 Neutron Engineering Inc. MPE CALCULATION METHOD: Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Ant. Brand Model Name Antenna Type Connector Gain (dBi) 1 Gortec AN2400-6001NMDipole N-type 7.0 Neutron Engineering Inc. TEST RESULTS EUT： 150Mbps Wireless-N Outdoor Access Point Model Name ： WF-2301 Temperature： 25 °C Relative Humidity： 60 % Pressure： 1012 hPa Test Voltage ： AC 120V/60Hz Test Mode ： CH01/CH06/CH11-802.11b Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 7.0 5.0119 15.15 32.7341 0.032655051 Complies 7.0 5.0119 15.42 34.8337 0.034749641 Complies 7.0 5.0119 15.70 37.1535 0.037063841 Complies EUT： 150Mbps Wireless-N Outdoor Access Point Model Name ： WF-2301 Temperature： 25 °C Relative Humidity： 60 % Pressure： 1012 hPa Test Voltage ： AC 120V/60Hz Test Mode ： CH01/CH06/CH11-802.11g Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 7.0 5.0119 21.69 147.5707 0.147214431 Complies 7.0 5.0119 22.31 170.2159 0.169804961 Complies 7.0 5.0119 22.30 169.8244 0.169414421 Complies Neutron Engineering Inc. EUT： 150Mbps Wireless-N Outdoor Access Point Model Name ： WF-2301 Temperature： 25 °C Relative Humidity： 60 % Pressure： 1012 hPa Test Voltage ： AC 120V/60Hz Test Mode ： CH01/CH06/CH11-802.11n 20MHz Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 7.0 5.0119 21.49 140.9289 0.140588691 Complies 7.0 5.0119 22.15 164.0590 0.163662951 Complies 7.0 5.0119 22.09 161.8080 0.161417411 Complies EUT： 150Mbps Wireless-N Outdoor Access Point Model Name ： WF-2301 Temperature： 25 °C Relative Humidity： 60 % Pressure： 1012 hPa Test Voltage ： AC 120V/60Hz Test Mode ： CH03/CH06/CH09-802.11n 40MHz Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 7.0 5.0119 22.35 171.7908 0.171376141 Complies 7.0 5.0119 22.32 170.6082 0.170196401 Complies 7.0 5.0119 21.67 146.8926 0.146538041 Complies

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1202C053 Page 1 of 119 FCC Radio Test Report FCC ID: T58WF2301RT This report concerns (check one) : Original Grant Class II Change Issued Date : Apr. 05, 2012 Project No. : 1202C053 Equipment : 150Mbps Wireless-N Outdoor Access Point Model Name : WF-2301 Applicant : NETIS SYSTEMS CO., LTD. Address : 9F,B Block,Tsinghua Information Park, High-tech Industrial Park,Nanshan, Shenzhen,China Manufacturer : Shenzhen Netcore Industrial Ltd. Address : 9F,B Block,Tsinghua Information Park, High-tech Industrial Park,Nanshan, Shenzhen,China Tested by: Neutron Engineering Inc. EMC Laboratory Date of Receipt: Mar. 15, 2012 Date of Test: Mar. 15, 2012 ~ Apr. 03, 2012 Testing Engineer : (David Mao) Technical Manager : (Leo Hung) Authorized Signatory : (Steven Lu) Neutron Engineering Inc. No.3,Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL : (0769) 8318-3000 FAX : (0769) 8319-6000 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1202C053 Page 2 of 119 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C, or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutron shall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Neutron Engineering Inc. Report No.: NEI-FCCP-1-1202C053 Page 3 of 119 Table of Contents Page 1 . CERTIFICATION 5 2 . SUMMARY OF TEST RESULTS 6 2.1 TEST FACILITY 7 2.2 MEASUREMENT UNCERTAINTY 7 3 . GENERAL INFORMATION 8 3.1 GENERAL DESCRIPTION OF EUT 8 3.2 DESCRIPTION OF TEST MODES 10 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 11 3.4 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 12 3.5 DESCRIPTION OF SUPPORT UNITS (CONDUCTED MODE) 13 4 . EMC EMISSION TEST 14 4.1 CONDUCTED EMISSION MEASUREMENT 14 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 14 4.1.2 MEASUREMENT INSTRUMENTS LIST AND SETTING 14 4.1.3 TEST PROCEDURE 15 4.1.4 DEVIATION FROM TEST STANDARD 15 4.1.5 TEST SETUP 15 4.1.6 EUT OPERATING CONDITIONS 15 4.1.7 TEST RESULTS 16 4.2 RADIATED EMISSION MEASUREMENT 18 4.2.1 RADIATED EMISSION LIMITS 18 4.2.2 MEASUREMENT INSTRUMENTS LIST ANS SETTING 19 4.2.3 TEST PROCEDURE 20 4.2.4 DEVIATION FROM TEST STANDARD 20 4.2.5 TEST SETUP 21 4.2.6 EUT OPERATING CONDITIONS 21 4.2.7 TEST RESULTS (BELOW 30MHZ) 22 4.2.8 TEST RESULTS (BETWEEN 30 – 1000 MHZ) 23 4.2.9 TEST RESULTS (ABOVE 1000 MHZ) 25 5 . BANDWIDTH TEST 73 5.1 APPLIED PROCEDURES / LIMIT 73 5.1.1 MEASUREMENT INSTRUMENTS LIST 73 5.1.2 TEST PROCEDURE 73 5.1.3 DEVIATION FROM STANDARD 73 5.1.4 TEST SETUP 74 5.1.5 EUT OPERATION CONDITIONS 74 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1202C053 Page 4 of 119 Table of Contents Page 5.1.6 TEST RESULTS 75 6 . MAXIMUM OUTPUT POWER TEST 83 6.1 APPLIED PROCEDURES / LIMIT 83 6.1.1 MEASUREMENT INSTRUMENTS LIST 83 6.1.2 TEST PROCEDURE 83 6.1.3 DEVIATION FROM STANDARD 83 6.1.4 TEST SETUP 83 6.1.5 EUT OPERATION CONDITIONS 83 6.1.6 TEST RESULTS 84 7 . ANTENNA CONDUCTED SPURIOUS EMISSION 86 7.1 APPLIED PROCEDURES / LIMIT 86 7.1.1 MEASUREMENT INSTRUMENTS LIST 86 7.1.2 TEST PROCEDURE 86 7.1.3 DEVIATION FROM STANDARD 86 7.1.4 TEST SETUP 86 7.1.5 EUT OPERATION CONDITIONS 86 7.1.6 TEST RESULTS 87 8 . POWER SPECTRAL DENSITY TEST 107 8.1 APPLIED PROCEDURES / LIMIT 107 8.1.1 MEASUREMENT INSTRUMENTS LIST 107 8.1.2 TEST PROCEDURE 107 8.1.3 DEVIATION FROM STANDARD 107 8.1.4 TEST SETUP 107 8.1.5 EUT OPERATION CONDITIONS 107 8.1.6 TEST RESULTS 108 9 . EUT TEST PHOTO 116 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1202C053 Page 5 of 119 1. CERTIFICATION E q u i p m e n t : 150Mbps Wireless-N Outdoor Access Point Brand Name : netis Model Name : WF-2301 A p p l i c a n t : NETIS SYSTEMS CO., LTD. F a c t o r y : Dongguan City Netcore Network Technology Co.,Ltd. A d d r e s s : No.10-1,Sankeng Road,Qinghutou,Tangxia Town,Dongguan City Date of Test : Mar. 15, 2012 ~ Apr. 03, 2012 T e s t I t e m : ENGINEERING SAMPLE Standards : FCC Part15, Subpart C(15.247) / ANSI C63.4 : 2009 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCP-1-1202C053) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of NVLAP and TAF according to the ISO-17025 quality assessment standard and technical standard(s). Neutron Engineering Inc. Report No.: NEI-FCCP-1-1202C053 Page 6 of 119 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247(d) Antenna conducted Spurious EmissionPASS 15.247(a)(2) 6dB…

Text truncated - open the document above for the full version.

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1202C053 Page 116 of 119 9. EUT TEST PHOTO Conducted Measurement Photos Neutron Engineering Inc. Report No.: NEI-FCCP-1-1202C053 Page 116 of 119 9. EUT TEST PHOTO Conducted Measurement Photos Neutron Engineering Inc. Report No.: NEI-FCCP-1-1202C053 Page 117 of 119 Radiated Measurement Photos 9K - 30MHz Neutron Engineering Inc. Report No.: NEI-FCCP-1-1202C053 Page 117 of 119 Radiated Measurement Photos 9K - 30MHz Neutron Engineering Inc. Report No.: NEI-FCCP-1-1202C053 Page 118 of 119 Radiated Measurement Photos 30MHZ - 1000MHz Neutron Engineering Inc. Report No.: NEI-FCCP-1-1202C053 Page 118 of 119 Radiated Measurement Photos 30MHZ - 1000MHz Neutron Engineering Inc. Report No.: NEI-FCCP-1-1202C053 Page 119 of 119 Radiated Measurement Photos Above 1000MHz Neutron Engineering Inc. Report No.: NEI-FCCP-1-1202C053 Page 119 of 119 Radiated Measurement Photos Above 1000MHz
