T58WF2322R300Mbps Wireless N High Power Outdoor AP Router

netis Wireless High Power Outdoor AP Router Quick Installation Guide R Model No. WF2322 WF2370 WF2375 1.Package Contents Please make sure that the package contains above items, if any of the listed items are damaged or missing, please contact your distributor. Outdoor
AP
Router netis Wireless High Power Outdoor AP Router Quick Installation Guide netis Wireless High Power Outdoor AP Router Quick Installation Guide 1 2.Hardware Connection The following items should be found in your package: PoE Injector Power Adapter Quick Installation Guide Mounting Tie x2 Slip-proof Pad x2 * This QIG is for all netis Wireless High Power Outdoor AP Router, including models- WF2322, WF2375, WF2370, etc. * The product model shown in this QIG is WF2322, as an example. The outdoor AP work in pairs, and work best when they are face to face like below, please try to adjust their direction and get the best singal: Please put the slip-proof pads and mounting ties as below: When device works in Client or WISP mode, 1. Connection Step A) Remove the small cover of device. B) Connect one end of the Ethernet cable into the WAN/LAN ( ) port of the device and the other end to the PoE port of the PoE injector. C) Connect the Power Adapter to DC-in port of the PoE injector and plug the other end to wall outlet. D) Connect the Ethernet cable into LAN/WAN port of PoE injector and the other end to the Ethernet port of the PC or AP/switch. E) Re-place the small cover back to the device. 2 For step A) For step B) to E) 2. The connection will be similar to the figure below after the above steps are finished. Computer TO Switch or PC Ethernet Cable Main Electrical Supply INDOOR Power Cable PoE Injector POWER netis Wireless High Power Outdoor AP Router Quick Installation Guide LAN/WAN LAN/WAN LAN/WAN Client 3 When device works in AP/AP Router mode, 1. Connection step A) ~ C) is same as above D) Connect the Ethernet cable into LAN/WAN port of PoE injector and the other end to the Ethernet port of xDSL or Cable modem/router. E) Re-place the small cover back to the device For step B) to E) netis Wireless High Power Outdoor AP Router Quick Installation Guide LAN/WAN LAN/WAN TO Switch or PC Ethernet Cable Main Electrical Supply INDOOR Power Cable PoE Injector POWER LAN/WAN WISP Mode ISP 3. Configure the AP Router via Web Management Page This device works in AP mode by default, so if you are intend to change the working mode or any settings, please connect your computer to or Port of AP and set a static IP for you computer as below steps: 3.1 Set a Static IP for PC Manually set the IP address of the wired network adapter on your computer as below. IP Address/ IPv4 Address: 192.168.1.x (1<x<255) Subnet Mask: 255.255.255.0 Default Gateway/ Router: 192.168.1.1 For Windows 8/ 7/Vista 1) Go to “Settings” (for Windows 8)/“Start” (for Windows 7/Vista) > “Control Panel”. 2) Left-click on “Network and Internet” > “Network and Sharing Center” > “Change adapter settings” (for Windows 8/ 7)/”Manage network connections” (for Windows Vista). 3) Right-click on “Local Area Connection” and left-click on “Properties”. 4) Double-click on “Internet Protocol Version 4 (TCP/IPv4)”. 5) Select “Use the following IP address” then left-click on “OK”. For Windows XP/2000 1) Go to “Start” > “Control Panel”. 2) Left-click on “Network and Internet Connections” > “Network Connections”. 3) Right-click on “Local Area Connection” and left-click on “Properties”. 4) Double-click on “Internet Protocol (TCP/IP)”. 5) Select “Use the following IP address” then left-click on “OK”. For MAC OS 1) Click on the “Apple” menu > “System Preferences”. 2) Click on the “Network” icon. 3) Click on “Ethernet” in the left side box and click on “Advanced” in the lower right corner. 4) In the top options, select “TCP/IP”. 5) In the pull-down menu next to “Configure IPv4” select “Manually”. 6) Fill in the “IPv4 Address/Subnet Mask/Router” parameters, and click “OK” then “Apply”. 4 netis Wireless High Power Outdoor AP Router Quick Installation Guide 2. The connection will be similar to the figure below after the above steps are finished. connect to xDSL or Cable modem/router Ethernet Cable Main Electrical Supply INDOOR Power Cable PoE Injector POWER Internet LAN/WAN AP/AP Router 5 3.3 A dialog box will prompt as below, please enter User name and Password, both default values are guest and click OK. Note: The configuration includes “Internet settings” and “Wireless settings”, if you choose “AP”, please go to Wireless Settings directly. AP Router Mode: Select the correct Connection Type. PPPoESelect “PPPoE” when： 1. WF2322 is connected to a DSL or Cable pure modem. 2. Got username &password from ISP . 3. Broadband connection is needed on PC when bypassing WF2322. Type in the Username & Password provided by the ISP. DHCP Select “DHCP” when: 1. WF2322 is connected to a Cable/DSL modem router. 2. Internet works directly on PC when bypassing WF2322. (Dynamic IP) Static IPSelect “Static IP ” when: 1. Got IP Address, Subnet Mask, Default Gateway, DNS Server from ISP. Type in all the IP Info. netis Wireless High Power Outdoor AP Router Quick Installation Guide 3.2 Open your browser and type http://192.168.1.1 in the address field to visit router's web management page. WISP Mode : Select target network and Connection Type. 1. Click “AP Scan” button to select your target network and click “Connect” button. 2. Type in the wireless security info of the target network. 3. Select connection type. (Please refer to “Internet Settings” →“AP Router Mode”) 6 Note: The DHCP Server will be disabled after switching to “AP” mode successfully, so you will have to set a static IP address for your PC first if you need to login to the web-based management page again. 3.4 The web management page will display after login successfully. Select the language as you need on the top box, default is in English. Wireless Settings Setup a wireless network name in “SSID” box, it is recommended to use WPA-PSK/WPA2-PSK for “Security”…

Text truncated - open the document above for the full version.

NETIS SYSTEMS CO., LTD 4F & 5F, R&D Building, Oriental Cyberport, High-Tech Industrial Park, Nanshan, Shenzhen, China Date : October ,23 ,2014 BABT TCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Confidentiality Request FCC ID: T58WF2322R Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, NETIS SYSTEMS CO., LTD hereby requests permanent confidential treatment of information accompanying this application as outlined below: Common exhibits for which confidentiality is requested are: Schematics Bill of Materials/Parts List Block Diagrams Theory of Operation NETIS SYSTEMS CO., LTD also hereby requests short-term confidential treatment of information accompanying this application as outlined below for a period of 180 days Internal Photos External Photos User Manual Test Set-up Photographs The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Your Sincerely, _____________________________________ Signature Name/Title: SelenaBai / Director Contact information / Address 4F & 5F, R&D Building, Oriental Cyberport, High-Tech Industrial Park, Nanshan, Shenzhen, China TEL: +86 0755-86186790 FAX: +86 0755-86186779 Email: [email protected]

NETIS SYSTEMS CO., LTD 4F & 5F, R&D Building, Oriental Cyberport, High-Tech Industrial Park, Nanshan, Shenzhen, China Date : October ,23 ,2014 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC Application for FCC ID: T58WF2322R To Whom It May Concern: We, as the grantee of this project FCC ID: T58WF2322R, would like to declare that the composite portion categorized as computer peripheral has been authorized under the Declaration of Conformity procedures. Sincerely yours, Name/Title: SelenaBai / Director Contact information / Address 4F & 5F, R&D Building, Oriental Cyberport, High-Tech Industrial Park, Nanshan, Shenzhen, China TEL: +86 0755-86186790 FAX: +86 0755-86186779 Email: [email protected]

Letter of Authorization We Name: NETIS SYSTEMS CO., LTD. Address: 4F&5F R&D Building,Oriental Cyberport High-Tech Industrial Park, Nanshan, Shenzhen, China Declare the following Person: Name： Alex Chen Title：Vice President is authorized to sign all the related doucuments of FCC certification，the signature has the same effectas as SelenaBai: on our behalf. Authorized Person: SelenaBai Signature: City: Shenzhen Date: 2014-2-26

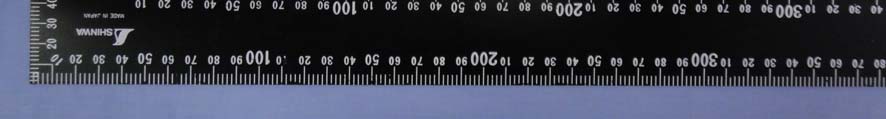

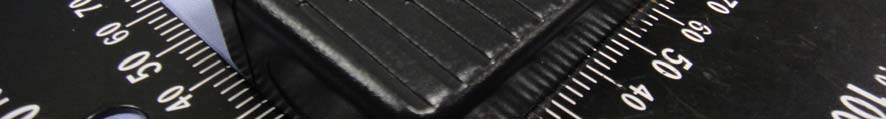

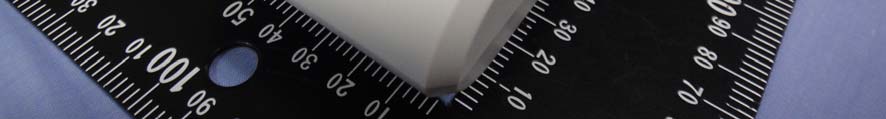

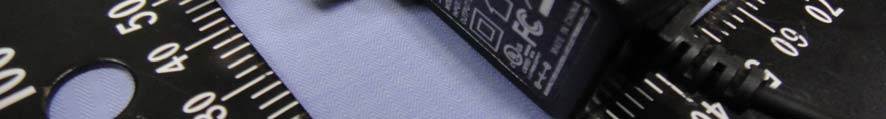

Compliance Certification Services Inc. Report No.: T141007D04 Date of Issue: December 04, 2014 A1 - 1 / 7 Rev. 00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T141007D04 Date of Issue: December 04, 2014 A1 - 2 Rev. 00 Compliance Certification Services Inc. Report No.: T141007D04 Date of Issue: December 04, 2014 A1 - 3 Rev. 00 Compliance Certification Services Inc. Report No.: T141007D04 Date of Issue: December 04, 2014 A1 - 4 Rev. 00

Compliance Certification Services Inc. Report No.: T141007D04 Date of Issue: December 04, 2014 A1 - 5 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T141007D04 Date of Issue: December 04, 2014 A1 - 6 Rev. 00 Compliance Certification Services Inc. Report No.: T141007D04 Date of Issue: December 04, 2014 A1 - 7 Rev. 00 Module Antenna

Compliance Certification Services Inc. FCC ID: T58WF2322R Report No.: T141007D04-RP Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 / 120 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For 300Mbps Wireless N High Power Outdoor AP Router Model: WF2322 Trade Name: netis Issued to NETIS SYSTEMS CO., LTD 4F & 5F, R&D Building, Oriental Cyberport, High-Tech Industrial Park, Nanshan, Shenzhen, China Issued by Compliance Certification Services Inc. No.11, Wugong 6th Rd., Wugu Dist., New Taipei City 24891, Taiwan. (R.O.C.) http://www.ccsrf.com [email protected] Issued Date: December 3, 2014 Compliance Certification Services Inc. FCC ID: T58WF2322R Report No.: T141007D04-RP Page 2 Rev. 00 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 December 3, 2014 Initial Issue ALL Kelly Cheng Compliance Certification Services Inc. FCC ID: T58WF2322R Report No.: T141007D04-RP Page 3 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION .................................................................................................... 4 2. EUT DESCRIPTION ........................................................................................................................... 5 3. TEST METHODOLOGY .................................................................................................................... 6 3.1 EUT CONFIGURATION ................................................................................................................. 6 3.2 EUT EXERCISE ............................................................................................................................... 6 3.3 GENERAL TEST PROCEDURES .................................................................................................. 6 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS .................................................... 7 3.5 DESCRIPTION OF TEST MODES ................................................................................................. 8 4. INSTRUMENT CALIBRATION ........................................................................................................ 9 4.1 MEASURING INSTRUMENT CALIBRATION ............................................................................ 9 4.2 MEASUREMENT EQUIPMENT USED ......................................................................................... 9 4.3 MEASUREMENT UNCERTAINTY ............................................................................................. 10 5. FACILITIES AND ACCREDITATIONS ........................................................................................ 11 5.1 FACILITIES ................................................................................................................................... 11 5.2 EQUIPMENT ................................................................................................................................. 11 5.3 TABLE OF ACCREDITATIONS AND LISTINGS ...................................................................... 12 6. SETUP OF EQUIPMENT UNDER TEST ....................................................................................... 13 6.1 SETUP CONFIGURATION OF EUT ............................................................................................ 13 6.2 SUPPORT EQUIPMENT ............................................................................................................... 13 7. FCC PART 15.247 REQUIREMENTS ............................................................................................. 14 7.1 6DB BANDWIDTH ....................................................................................................................... 14 7.2 PEAK POWER ............................................................................................................................... 34 7.3 AVERAGE POWER ...................................................................................................................... 36 7.4 BAND EDGES MEASUREMENT ................................................................................................ 38 7.5 PEAK POWER SPECTRAL DENSITY ........................................................................................ 68 7.6 SPURIOUS EMISSIONS ............................................................................................................... 79 7.7 RADIATED EMISSIONS .............................................................................................................. 98 7.8 POWERLINE CONDUCTED EMISSIONS ................................................................................ 115 APPENDIX I PHOTOGRAPHS OF TEST SETUP ............................................................................. 118 Compliance Certification Services Inc. FCC ID: T58WF2322R Report No.: T141007D04-RP Page 4 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: NETIS SYSTEMS CO., LTD 4F & 5F, R&D Building, Oriental Cyberport, High-Tech Industrial Park, Nanshan, Shenzhen, China Equipment Under Test: 300Mbps Wireless N High Power Outdoor AP Router Trade Name: netis Model Number: WF2322 Date of Test: November 20 ~ 26, 2014 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2009 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Appro…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: T141007D04-MF Date of Issue: December 8, 2014 Page 1 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. APPENDIX I RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT 300Mbps Wireless N High Power Outdoor AP Router Model WF2322 RF Module Realtek Model: RTL8192ER Frequency band (Operating) 802.11b/g/n HT20: 2.412GHz ~ 2.462GHz 802.11n HT40: 2.422GHz ~ 2.452GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna Specification 2.4GHz: Antenna Gain :10.00 dBi (Numeric gain 10.00) Maximum Average output power IEEE 802.11b Mode: 20.46 dBm (111.173 mW) IEEE 802.11g Mode: 12.87 dBm (19.364 mW) IEEE 802.11n HT 20 Mod e 13.43 dBm (22.029 mW) IEEE 802.11n HT 40 Mod e 13.63 dBm (23.067 mW) Maximum Tune up Power IEEE 802.11b Mode: 22.00 dBm ########### IEEE 802.11g Mode: 14.00 dBm (25.119 mW) IEEE 802.11n HT 20 Mod e 15.00 dBm (31.623 mW) IEEE 802.11n HT 40 Mod e 15.00 dBm (31.623 mW) Evaluation applied MPE Evaluation* SAR Evaluation N/A Compliance Certification Services Inc. Report No.: T141007D04-MF Date of Issue: December 8, 2014 Page 2 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 2014/12/08 Initial Issue ALL Kelly Cheng Compliance Certification Services Inc. Report No.: T141007D04-MF Date of Issue: December 8, 2014 Page 3 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TEST RESULTS No non-compliance noted. Calculation Given d GP E ×× = 30 & 377 2 E S= Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 377 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 22 0796.0 100/377 1000/30 d GP d GP S × ×= × ×× = Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Compliance Certification Services Inc. Report No.: T141007D04-MF Date of Issue: December 8, 2014 Page 4 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Maximum Permissible Exposure Substituting the MPE safe distance using d = 20 cm into Equation 1: GPS××=000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 IEEE 802.11b mode: Ch.Frq.(MHz)P (mW) Gain (num.) D (cm) Power densit y in mW / cm 2 Limit (mW/cm2) 12412158.48910200.31541 IEEE 802.11g mode: Ch.Frq.(MHz)P (mW) Gain (num.) D (cm) Power densit y in mW / cm 2 Limit (mW/cm2) 1241225.11910200.05001 IEEE 802.11n HT20 mode: Ch.Frq.(MHz)P (mW) Gain (num.) D (cm) Power densit y in mW / cm 2 Limit (mW/cm2) 6243731.62310200.06291 IEEE 802.11n HT40 mode: Ch.Frq.(MHz)P (mW) Gain (num.) D (cm) Power densit y in mW / cm 2 Limit (mW/cm2) 6243731.62310200.06291

Compliance Certification Services Inc. FCC ID: T58WF2322R Report No.: T141007D04-RP Page 118 Rev. 00 APPENDIX I PHOTOGRAPHS OF TEST SETUP Conducted Emissions Setup Photos Compliance Certification Services Inc. FCC ID: T58WF2322R Report No.: T141007D04-RP Page 119 Rev. 00 Radiated Emissions Setup Photos Compliance Certification Services Inc. FCC ID: T58WF2322R Report No.: T141007D04-RP Page 120 Rev. 00 Powerline Conducted Emissions Setup Photos
