T58WF2375RAC600 Wireless Dual Band High Power Outdoor AP

netis Wireless High Power Outdoor AP Router Quick Installation Guide R Model No. WF2375 1.Package Contents Please make sure that the package contains above items, if any of the listed items are damaged or missing, please contact your distributor. Outdoor
AP
Router netis Wireless High Power Outdoor AP Router Quick Installation Guide netis Wireless High Power Outdoor AP Router Quick Installation Guide 1 2.Hardware Connection The following items should be found in your package: PoE Injector Power Adapter Quick Installation Guide Mounting Tie x2 Slip-proof Pad x2 * This QIG is for all netis Wireless High Power Outdoor AP Router, including models- WF2322, WF2375, WF2370, etc. * The product model shown in this QIG is WF2322, as an example. The outdoor AP work in pairs, and work best when they are face to face like below, please try to adjust their direction and get the best singal: Please put the slip-proof pads and mounting ties as below: When device works in Client or WISP mode, 1. Connection Step A) Remove the small cover of device. B) Connect one end of the Ethernet cable into the WAN/LAN ( ) port of the device and the other end to the PoE port of the PoE injector. C) Connect the Power Adapter to DC-in port of the PoE injector and plug the other end to wall outlet. D) Connect the Ethernet cable into LAN/WAN port of PoE injector and the other end to the Ethernet port of the PC or AP/switch. E) Re-place the small cover back to the device. 2 For step A) For step B) to E) 2. The connection will be similar to the figure below after the above steps are finished. Computer TO Switch or PC Ethernet Cable Main Electrical Supply INDOOR Power Cable PoE Injector POWER netis Wireless High Power Outdoor AP Router Quick Installation Guide LAN/WAN LAN/WAN LAN/WAN Client 3 When device works in AP/AP Router mode, 1. Connection step A) ~ C) is same as above D) Connect the Ethernet cable into LAN/WAN port of PoE injector and the other end to the Ethernet port of xDSL or Cable modem/router. E) Re-place the small cover back to the device For step B) to E) netis Wireless High Power Outdoor AP Router Quick Installation Guide LAN/WAN LAN/WAN TO Switch or PC Ethernet Cable Main Electrical Supply INDOOR Power Cable PoE Injector POWER LAN/WAN WISP Mode ISP 3. Configure the AP Router via Web Management Page This device works in AP mode by default, so if you are intend to change the working mode or any settings, please connect your computer to or Port of AP and set a static IP for you computer as below steps: 3.1 Set a Static IP for PC Manually set the IP address of the wired network adapter on your computer as below. IP Address/ IPv4 Address: 192.168.1.x (1<x<255) Subnet Mask: 255.255.255.0 Default Gateway/ Router: 192.168.1.1 For Windows 8/ 7/Vista 1) Go to “Settings” (for Windows 8)/“Start” (for Windows 7/Vista) > “Control Panel”. 2) Left-click on “Network and Internet” > “Network and Sharing Center” > “Change adapter settings” (for Windows 8/ 7)/”Manage network connections” (for Windows Vista). 3) Right-click on “Local Area Connection” and left-click on “Properties”. 4) Double-click on “Internet Protocol Version 4 (TCP/IPv4)”. 5) Select “Use the following IP address” then left-click on “OK”. For Windows XP/2000 1) Go to “Start” > “Control Panel”. 2) Left-click on “Network and Internet Connections” > “Network Connections”. 3) Right-click on “Local Area Connection” and left-click on “Properties”. 4) Double-click on “Internet Protocol (TCP/IP)”. 5) Select “Use the following IP address” then left-click on “OK”. For MAC OS 1) Click on the “Apple” menu > “System Preferences”. 2) Click on the “Network” icon. 3) Click on “Ethernet” in the left side box and click on “Advanced” in the lower right corner. 4) In the top options, select “TCP/IP”. 5) In the pull-down menu next to “Configure IPv4” select “Manually”. 6) Fill in the “IPv4 Address/Subnet Mask/Router” parameters, and click “OK” then “Apply”. 4 netis Wireless High Power Outdoor AP Router Quick Installation Guide 2. The connection will be similar to the figure below after the above steps are finished. connect to xDSL or Cable modem/router Ethernet Cable Main Electrical Supply INDOOR Power Cable PoE Injector POWER Internet LAN/WAN AP/AP Router 5 3.3 A dialog box will prompt as below, please enter User name and Password, both default values are guest and click OK. Note: The configuration includes “Internet settings” and “Wireless settings”, if you choose “AP”, please go to Wireless Settings directly. AP Router Mode: Select the correct Connection Type. PPPoESelect “PPPoE” when： 1. WF2322 is connected to a DSL or Cable pure modem. 2. Got username &password from ISP . 3. Broadband connection is needed on PC when bypassing WF2322. Type in the Username & Password provided by the ISP. DHCP Select “DHCP” when: 1. WF2322 is connected to a Cable/DSL modem router. 2. Internet works directly on PC when bypassing WF2322. (Dynamic IP) Static IPSelect “Static IP ” when: 1. Got IP Address, Subnet Mask, Default Gateway, DNS Server from ISP. Type in all the IP Info. netis Wireless High Power Outdoor AP Router Quick Installation Guide 3.2 Open your browser and type http://192.168.1.1 in the address field to visit router's web management page. WISP Mode : Select target network and Connection Type. 1. Click “AP Scan” button to select your target network and click “Connect” button. 2. Type in the wireless security info of the target network. 3. Select connection type. (Please refer to “Internet Settings” →“AP Router Mode”) 6 Note: The DHCP Server will be disabled after switching to “AP” mode successfully, so you will have to set a static IP address for your PC first if you need to login to the web-based management page again. 3.4 The web management page will display after login successfully. Select the language as you need on the top box, default is in English. Wireless Settings Setup a wireless network name in “SSID” box, it is recommended to use WPA-PSK/WPA2-PSK for “Security” and set a wir…

Text truncated - open the document above for the full version.

Letter of Authorization We Name: NETIS SYSTEMS CO., LTD. Address: 4F&5F R&D Building,Oriental Cyberport High-Tech Industrial Park, Nanshan, Shenzhen, China Declare the following Person: Name： Alex Chen Title：Vice President is authorized to sign all the related doucuments of FCC certification，the signature has the same effectas as SelenaBai: on our behalf. Authorized Person: SelenaBai Signature: City: Shenzhen Date: 2015/06/24

NETIS SYSTEMS CO., LTD 4F & 5F, R&D Building, Oriental Cyberport, High-Tech Industrial Park, Nanshan, Shenzhen, China Date : June ,24 ,2015 BABT TCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Confidentiality Request FCC ID: T58WF2375R Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, NETIS SYSTEMS CO., LTD hereby requests permanent confidential treatment of information accompanying this application as outlined below: Common exhibits for which confidentiality is requested are: Schematics Block Diagrams Theory of Operation NETIS SYSTEMS CO., LTD also hereby requests short-term confidential treatment of information accompanying this application as outlined below for a period of 180 days Internal Photos External Photos User Manual Test Set-up Photographs The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Your Sincerely, _____________________________________ Signature Name/Title: SelenaBai / Director Contact information / Address 4F & 5F, R&D Building, Oriental Cyberport, High-Tech Industrial Park, Nanshan, Shenzhen, China TEL: +86 0755-86186790 FAX: +86 0755-86186779 Email: [email protected]

NETIS SYSTEMS CO., LTD 4F & 5F, R&D Building, Oriental Cyberport, High-Tech Industrial Park, Nanshan, Shenzhen, China Date : June ,24 ,2015 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC Application for FCC ID: T58WF2375R To Whom It May Concern: We, as the grantee of this project FCC ID: T58WF2375R, would like to declare that the composite portion categorized as computer peripheral has been authorized under the Declaration of Conformity procedures. Sincerely yours, Name/Title: SelenaBai / Director Contact information / Address 4F & 5F, R&D Building, Oriental Cyberport, High-Tech Industrial Park, Nanshan, Shenzhen, China TEL: +86 0755-86186790 FAX: +86 0755-86186779 Email: [email protected]

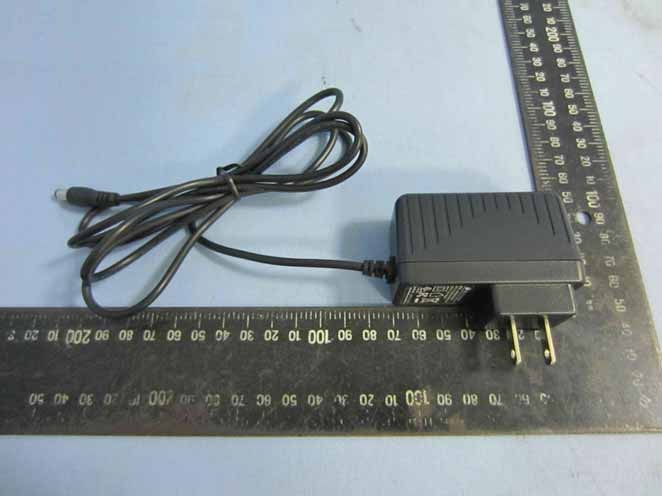

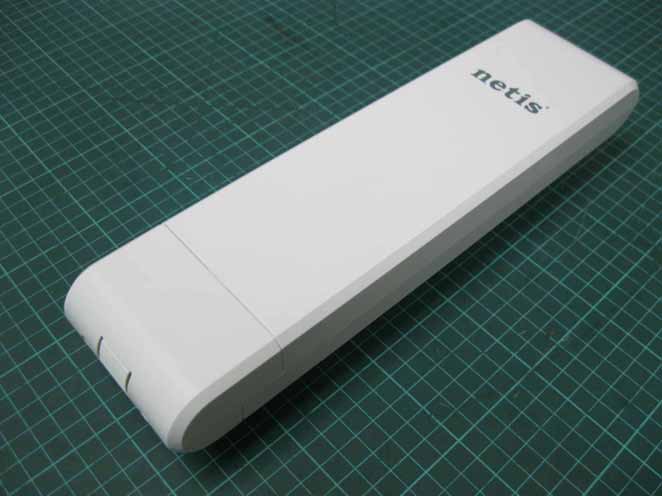

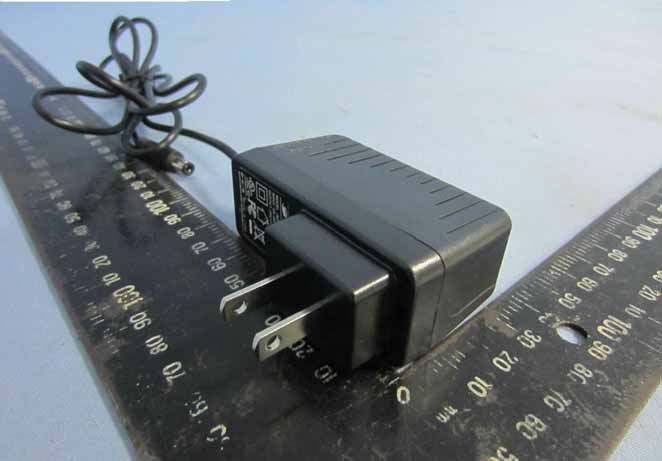

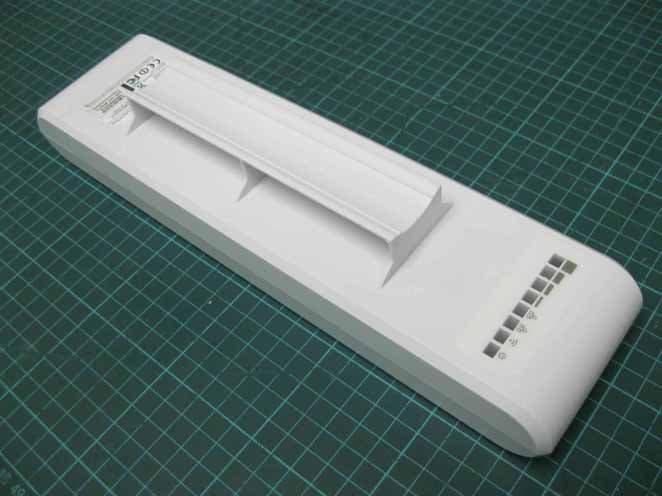

Report No.T150602D12 Page 1 of 6 External Photo Report No.T150602D12 Page 2 of 6 Report No.T150602D12 Page 3 of 6 Power Adapter (Model : JK240050-S04USA) Report No.T150602D12 Page 4 of 6 Report No.T150602D12 Page 5 of 6 PoE Report No.T150602D12 Page 6 of 6

Label Locatioon

Report No.T150602D12 Page 1 of 7 Internal Photo Report No.T150602D12 Page 2 of 7 Report No.T150602D12 Page 3 of 7 Report No.T150602D12 Page 4 of 7 Report No.T150602D12 Page 5 of 7 Report No.T150602D12 Page 6 of 7 Report No.T150602D12 Page 7 of 7 Antenna

Compliance Certification Services Inc. Report No.: T150602D12-RP1-2 Date of Issue: July 17, 2015 Page 1 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT AC600 Wireless Dual Band High Power Outdoor AP Router Model WF2375 Frequency band (Operating) 802.11b/g/gn HT20: 2412 MHz ~ 2462 MHz 802.11gn HT40: 2422 MHz ~ 2452 MHz 802.11a/802.11ac VHT20 : 5180MHz ~ 5240MHz / 5745MHz ~ 5825MHz 802.11ac VHT40 : 5190MHz ~ 5230MHz / 5755MHz ~ 5795MHz 802.11ac VHT80 : 5210MHz / 5775MHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna Specification 5GHz: PIFA Antenna , Antenna Gain: 12.2 dBi (Numeric gain 16.60) 2.4GHz: PIFA Antenna , Antenna Gain: 8.9 dBi (Numeric gain 7.76) Maximum output power 2.4G IEEE 802.11b Mode: 23.64 dBm (231.206 mW) IEEE 802.11g Mode: 26.19 dBm (415.911 mW) IEEE 802.11gn HT 20 Mode: 25.68 dBm (369.828 mW) IEEE 802.11gn HT 40 Mode: 23.87 dBm (243.781 mW) 5G UNII Band 1 IEEE 802.11a Mode: 18.72 dBm (74.473 mW) IEEE 802.11ac VHT20 Mode: 17.46 dBm (55.719 mW) IEEE 802.11ac VHT40 Mode: 17.79 dBm (60.117 mW) IEEE 802.11ac VHT80 Mode: 13.82 dBm (24.099 mW) 5G UNII Band 3 IEEE 802.11a Mode: 18.22 dBm (66.374 mW) IEEE 802.11ac VHT20 Mode: 16.58 dBm (45.499 mW) IEEE 802.11ac VHT40 Mode: 16.66 dBm (46.345 mW) IEEE 802.11ac VHT80 Mode: 15.22 dBm (33.266 mW) Evaluation applied MPE Evaluation* SAR Evaluation N/A Compliance Certification Services Inc. Report No.: T150602D12-RP1-2 Date of Issue: July 17, 2015 Page 2 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 2015/07/17 Initial Issue ALL Michelle Chiu Compliance Certification Services Inc. Report No.: T150602D12-RP1-2 Date of Issue: July 17, 2015 Page 3 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TEST RESULTS No non-compliance noted. Calculation Given d GP E ×× = 30 & 3770 2 E S= Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 22 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Compliance Certification Services Inc. Report No.: T150602D12-RP1-2 Date of Issue: July 17, 2015 Page 4 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Maximum Permissible Exposure Substituting the MPE safe distance using d = 20 cm into Equation 1: GPS××=000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 2.4G IEEE 802.11b mode: Frq.(MHz)P (mW) Gain (num.) D (cm) Power densit y in mW / cm 2 Limit (mW/cm 2 ) 2437231.2068.9200.40951 IEEE 802.11g mode: Frq.(MHz)P (mW) Gain (num.) D (cm) Power densit y in mW / cm 2 Limit (mW/cm 2 ) 2437415.9118.9200.73661 IEEE 802.11gn HT20 mode: Frq.(MHz)P (mW) Gain (num.) D (cm) Power densit y in mW / cm 2 Limit (mW/cm 2 ) 2437369.8288.9200.65501 IEEE 802.11gn HT40 mode: Frq.(MHz)P (mW) Gain (num.) D (cm) Power densit y in mW / cm 2 Limit (mW/cm 2 ) 2437243.7818.9200.43181 Compliance Certification Services Inc. Report No.: T150602D12-RP1-2 Date of Issue: July 17, 2015 Page 5 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 5G UNII Band 1 IEEE 802.11a mode: Frq.(MHz)P (mW) Gain (num.) D (cm) Power densit y in mW / cm 2 Limit (mW/cm 2 ) 520074.47312.2200.18081 IEEE 802.11ac VHT20 mode: Frq.(MHz)P (mW) Gain (num.) D (cm) Power densit y in mW / cm 2 Limit (mW/cm 2 ) 520055.71912.2200.13531 IEEE 802.11ac VHT40 mode: Frq.(MHz)P (mW) Gain (num.) D (cm) Power densit y in mW / cm 2 Limit (mW/cm 2 ) 523060.11712.2200.14601 IEEE 802.11ac VHT80 mode: Frq.(MHz)P (mW) Gain (num.) D (cm) Power densit y in mW / cm 2 Limit (mW/cm 2 ) 521024.09912.2200.05851 5G UNII Band 3 IEEE 802.11a mode: Frq.(MHz)P (mW) Gain (num.) D (cm) Power densit y in mW / cm 2 Limit (mW/cm 2 ) 578566.37412.2200.16111 IEEE 802.11ac VHT20 mode: Frq.(MHz)P (mW) Gain (num.) D (cm) Power densit y in mW / cm 2 Limit (mW/cm 2 ) 582545.49912.2200.11051 IEEE 802.11ac VHT40 mode: Frq.(MHz)P (mW) Gain (num.) D (cm) Power densit y in mW / cm 2 Limit (mW/cm 2 ) 575546.34512.2200.11251 IEEE 802.11ac VHT80 mode: Frq.(MHz)P (mW) Gain (num.) D (cm) Power densit y in mW / cm 2 Limit (mW/cm 2 ) 577533.26612.2200.08081

FCC ID : T58WF2375R Report No.T150602D12-RP1 Page 1 / 92 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. FCC 47 CFR PART 15 SUBPART C AND ANSI C63.10:2013 TEST REPORT For AC600 Wireless Dual Band High Power Outdoor AP Router Model : WF2375 Trade Name : netis Issued for NETIS SYSTEMS CO., LTD 4F & 5F, R&D Building, Oriental Cyberport, High-Tech Industrial Park, Nanshan, Shenzhen, China Issued by Compliance Certification Services Inc. Hsinchu Lab. No.989-1, Wenshan Rd., Shangshan Village, Qionglin Township, Hsinchu County 30741, Taiwan (R.O.C.) TEL: +886-3-5921698 FAX: +886-3-5921108 http://www.ccsrf.com E-Mail : [email protected] Issued Date: June 30, 2015 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF or any government agencies. The test results of this report relate only to the tested sample identified in this report. FCC ID : T58WF2375R Report No.T150602D12-RP1 Page 2 / 92 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 06/30/2015 Initial Issue All Page 92 Michelle Chiu FCC ID : T58WF2375R Report No.T150602D12-RP1 Page 3 / 92 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. TABLE OF CONTENTS TITLE PAGE NO. 1. TEST REPORT CERTIFICATION ................................................................................ 4 2. EUT DESCRIPTION ..................................................................................................... 5 3. DESCRIPTION OF TEST MODES ............................................................................... 6 4. TEST METHODOLOGY ............................................................................................... 8 5. FACILITIES AND ACCREDITATION ........................................................................... 8 5.1 FACILITIES ............................................................................................................ 8 5.2 ACCREDITATIONS ................................................................................................ 8 5.3 MEASUREMENT UNCERTAINTY ......................................................................... 9 6. SETUP OF EQUIPMENT UNDER TEST ...................................................................... 10 7. FCC PART 15.247 REQUIREMENTS .......................................................................... 11 7.1 6dB BANDWIDTH .................................................................................................. 11 7.2 MAXIMUM PEAK OUTPUT POWER ..................................................................... 21 7.3 AVERAGE POWER ............................................................................................... 24 7.4 POWER SPECTRAL DENSITY ............................................................................. 27 7.5 CONDUCTED SPURIOUS EMISSION .................................................................. 38 7.6 RADIATED EMISSION ........................................................................................... 51 7.7 CONDUCTED EMISSION ...................................................................................... 84 APPENDIX SETUP PHOTOS .......................................................................................... 89 FCC ID : T58WF2375R Report No.T150602D12-RP1 Page 4 / 92 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. 1. TEST REPORT CERTIFICATION Applicant NETIS SYSTEMS CO., LTD Address 4F & 5F, R&D Building, Oriental Cyberport, High-Tech Industrial Park, Nanshan, Shenzhen, China Equipment Under Test AC600 Wireless Dual Band High Power Outdoor AP Router Model WF2375 Trade Name netis Tested Date June 02 ~ July 01, 2015 APPLICABLE STANDARD Standard Test Result FCC Part 15 Subpart C AND ANSI C63.10:2013 PASS WE HEREBY CERTIFY THAT: The above equipment has been tested by Compliance Certification Services Inc., and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Approved by: Reviewed by: Rex Liao Jacky Chen Deputy Manager Section Manager FCC ID : T58WF2375R Report No.T150602D12-RP1 Page 5 / 92 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. 2. EUT DESCRIPTION Product Name AC600 Wireless Dual Band High Power Outdoor AP Router Model Number WF2375 Identify Number T150602D12 Received Date June 02, 2015 Frequency Range IEEE 802.11b/g, 802.11gn HT20 : 2412MHz ~ 2462MHz IEEE 802.11gn HT40 : 2422MHz ~ 2452MHz Transmit Power IEEE 802.11b : 23.64 dBm (0.2312 W) IEEE 802.11g : 26.19 dBm (0.4159 W) IEEE 802.11gn HT20 : 25.68 dBm (0.3698 W) IEEE 802.11gn HT40 : 23.87 dBm (0.2438 W) Channel Spacing IEEE 802.11b/g, 802.11gn HT20/HT40 : 5MHz Channel Number IEEE 802.11b/g, 802.11gn HT20 : 11 Channels IEEE 802.11gn HT40 : 7 Channels Transmit Data Rate IEEE 802.11b : up to 11 Mbps IEEE 802.11g : up to 54 Mbps IEEE 802.11gn (HT20,800ns Gl) : up to 65 Mbps IEEE 802.11gn (HT20,400ns Gl) : up to 72.2 Mbps IEEE 802.11gn (HT40,800ns Gl) : up to 135 Mbps IEEE 802.11gn (HT40,400ns Gl) : up to 150 Mbps Type of Modulation IEEE 802.11b : DSSS (CCK, DQPSK, DBPSK) IEEE 802.11g : OFDM (64QAM, 16QAM, QPSK, BPSK) IEEE 802.11gn HT20/40 : OFDM…

Text truncated - open the document above for the full version.

FCC ID : T58WF2375R Report No.T150602D12-RP1 Page 89 / 92 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. APPENDIX SETUP PHOTOS RADIATED EMISSION SETUP Below 1 GHz FCC ID : T58WF2375R Report No.T150602D12-RP1 Page 90 / 92 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. Above 1 GHz FCC ID : T58WF2375R Report No.T150602D12-RP1 Page 91 / 92 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP FCC ID : T58WF2375R Report No.T150602D12-RP1 Page 92 / 92 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. CONDUCTED EMISSION SETUP
