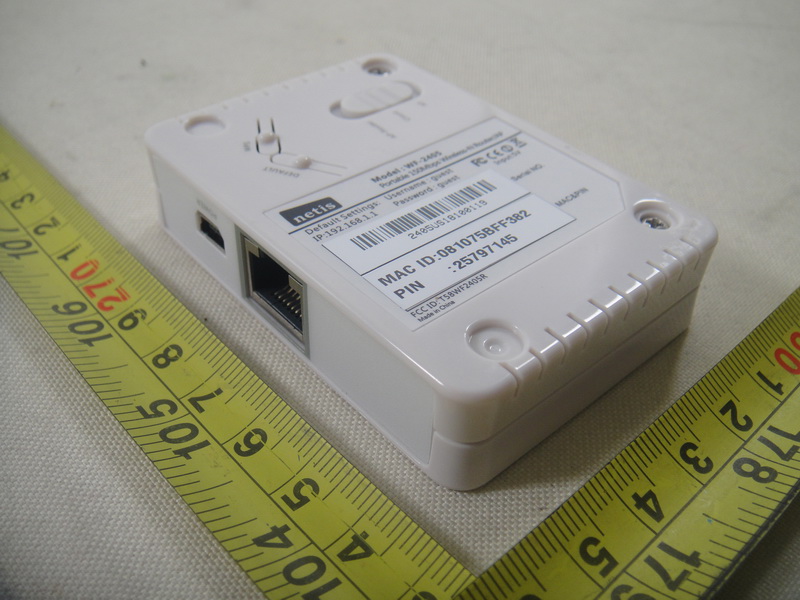

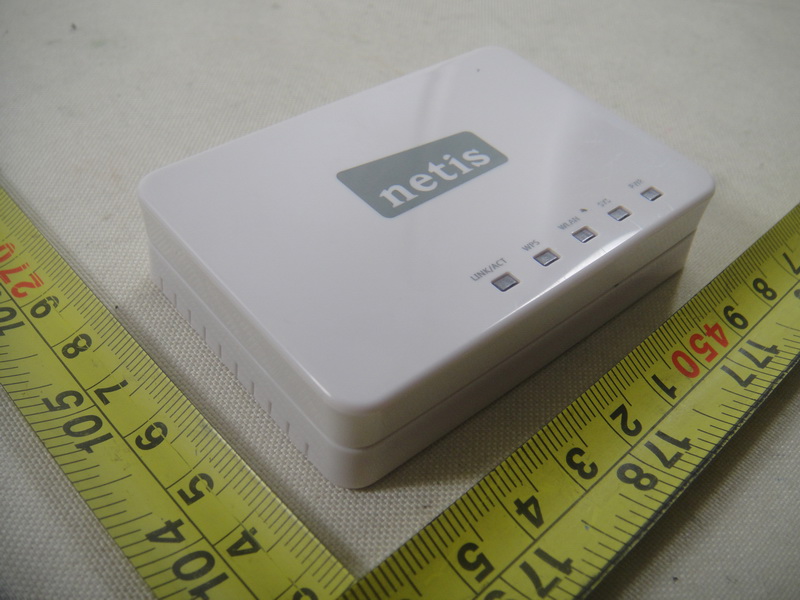

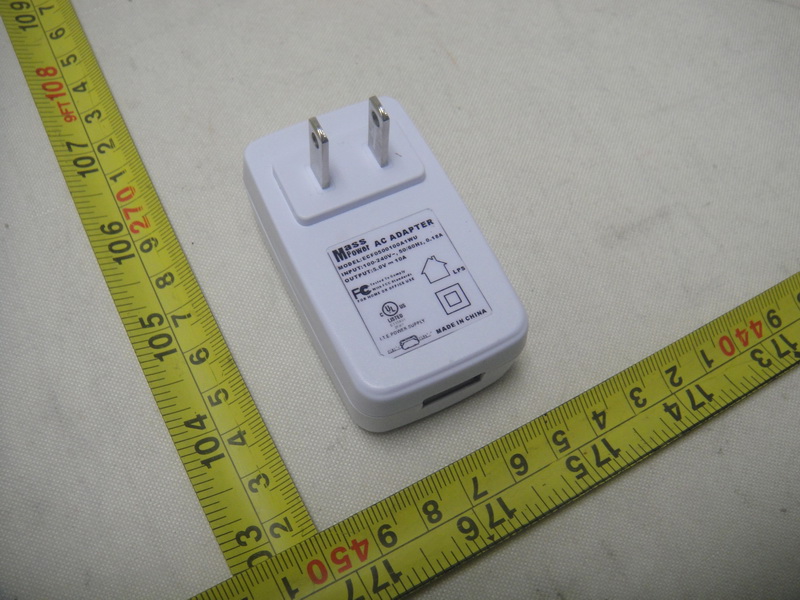

T58WF2405R150Mbps Wireless-N Mini Router/AP

WF-2405 User Manual V1.1 2011-0 6-22 WF-2405 User Manual 1 Certification FCC CE FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user‟s authority to operate this equipment. (Example- use only shielded interface cables when connecting to computer or peripheral devices) FCC Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Caution! The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user authority to operate the equipment .The distance between user and product should be no less than 20cm. WF-2405 User Manual 2 Package Contents The following items should be found in your package:  WF-2405  Power adapter  Quick Installation Guide  CD-Rom  Ethernet cable Make sure that the package contains above items. If any of the above items is missing or damaged, please contact the store you bought this product from. Brand and Copyright Announcement Copyright © 2010 Netis Corporation. All rights reserved is a registered trademark of Netis Corporation. Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Reproduction in any manner without the permission of Netis Corporation is strictly forbidden All the information in this document is subject to change without notice. USA/Canada Technical Support Phone: 1-866-71-network or 1-866-716-3896 (free in USA & Canada) E-mail: [email protected] WF-2405 User Manual 3 Contents CONTENTS ...................................................................................................................................... 3 1. INTRODUCTION .................................................................................................................... 6 1.1. PRODUCT OVERVIEW .......................................................................................................... 6 1.2. MAIN FEATURES ................................................................................................................. 6 1.3. SUPPORTING STANDARD AND PROTOCOL ............................................................................. 6 1.4. WORKING ENVIRONMENT ................................................................................................... 7 2. HARDWARE INSTALLATION .............................................................................................. 8 2.1. SYSTEM REQUIREMENT ...................................................................................................... 8 2.2. PANEL DEFINITION .............................................................................................................. 8 2.3. HOW TO RESTORE FACTORY CONFIGURATION ..................................................................... 10 2.4. HARDWARE INSTALLATION PROCEDURES ........................................................................... 10 2.4.1. AP-Router mode ...................................................................................................... 10 2.4.2. Client mode ............................................................................................................. 11 2.4.3. AP mode .................................................................................................................. 12 3. HOW TO CONFIGURE AP-ROUTER MODE .................................................................... 13 3.1. LOGIN WEB MANAGEMENT PAGE........................................................................................ 13 3.2. STATUS............................................................................................................................. 17 3.2.1. Version .................................................................................................................... 17 3.2.2. WAN ........................................................................................................................ 17 3.2.3. LAN......................................................................................................................... 18 3.2.4. Wireless ................................................................................................................... 19 3.2.5. Router Status .............................................................................................…

Text truncated - open the document above for the full version.

FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY (DoC) FOR THE FOLLOWING EQUIPMENT: PRODUCT NAME: 150Mbps Wireless-N Router/AP MODEL NO.: WF-2405 TRADE NAME: netis IS HEREWITH CONFIRMED AND FOUND TO COMPLY WITH THE REQUIREMENTS OF CFR 47 PART 15 REGULATION. THE RESULTS OF ELECTROMAGNETIC EMISSION EVALUATION ARE SHOWN IN THE REPORT NO.: NEI-FCCP-1-1108C244, ISSUED ON Sep. 19,2011 Testing lab: Neutron Engineering, Inc. Address: B1,No.37,Lane 365,Yang Guang St.,NeiHu District 114.,Taipei,Taiwan THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND; (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. THE FOLLOWING MANUFACTURER/IMPORTER IS RESPONSIBLE FOR THIS DECLARATION: NETIS SYSTEMS CO., LTD. (COMPANY NAME) 9F,B Block, Tsinghua Information Park, High-tech Industrial Park, Nanshan, Shenzhen, China (COMPANY ADDRESS) TEL : +86 755 8618 6790 Selena Bai , PD Assistant (NAME) (TITLE) _____________________________________________ 2011-09-21 (SIGNATURE) (DATE)

Neutron Engineering Inc. Project No.: 1108C244 Page 2 of 8 1108C244 Neutron Engineering Inc. Project No.: 1108C244 Page 3 of 8 1108C244 1108C244 Neutron Engineering Inc. Project No.: 1108C244 Page 3 of 8 1108C244 1108C244 Neutron Engineering Inc. Project No.: 1108C244 Page 4 of 8 1108C244 1108C244 Neutron Engineering Inc. Project No.: 1108C244 Page 4 of 8 1108C244 1108C244

Neutron Engineering Inc. Project No.: 1108C244 Page 5 of 8 1108C244 Neutron Engineering Inc. Project No.: 1108C244 Page 6 of 8 1108C244 1108C244 Neutron Engineering Inc. Project No.: 1108C244 Page 6 of 8 1108C244 1108C244 Neutron Engineering Inc. Project No.: 1108C244 Page 7 of 8 1108C244 1108C244 Neutron Engineering Inc. Project No.: 1108C244 Page 7 of 8 1108C244 1108C244 Neutron Engineering Inc. Project No.: 1108C244 Page 8 of 8 1108C244 1108C244 Neutron Engineering Inc. Project No.: 1108C244 Page 8 of 8 1108C244 1108C244

Neutron Engineering Inc. FCC RF EXPOSURE REPORT FCC ID: T58WF2405R Project No. : 1108C244 Equipment : 150Mbps Wireless-N Router/AP Model : WF-2405 Applicant : NETIS SYSTEMS CO., LTD. Address : 9F, B Block, Tsinghua Information Park, High-tech Industrial Park, Nanshan According: : FCC Guidelines for Human Exposure IEEE C95.1 Neutron Engineering Inc. No.3, Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL :(0769) 8318-3000 FAX:(0769)8319-6000 Neutron Engineering Inc. MPE CALCULATION METHOD: Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Ant. Brand name Model Name Antenna TypeConnector Gain (dBi) 1 Gortec NB0191-A Integral Antenna N/A 2.0 TEST RESULTS EUT： 150Mbps Wireless-N Router/AP Model Name ： WF-2405 Temperature： 24 °C Relative Humidity： 60 % Pressure： 1016 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX B MODE /CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 2.0 1.5849 17.86 61.0942 0.019273 1 Complies 2.0 1.5849 18.05 63.8263 0.020135 1 Complies 2.0 1.5849 18.12 64.8634 0.020462 1 Complies Neutron Engineering Inc. EUT： 150Mbps Wireless-N Router/AP Model Name ： WF-2405 Temperature： 24 °C Relative Humidity： 60 % Pressure： 1016 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX G MODE /CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 2.0 1.5849 16.62 45.9198 0.014486 1 Complies 2.0 1.5849 17.28 53.4564 0.016864 1 Complies 2.0 1.5849 17.55 56.8853 0.017945 1 Complies EUT： 150Mbps Wireless-N Router/AP Model Name ： WF-2405 Temperature： 24 °C Relative Humidity： 60 % Pressure： 1016 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX N MODE-20MHz /CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 2.0 1.5849 16.76 47.4242 0.014961 1 Complies 2.0 1.5849 17.24 52.9663 0.016709 1 Complies 2.0 1.5849 16.94 49.4311 0.015594 1 Complies EUT： 150Mbps Wireless-N Router/AP Model Name ： WF-2405 Temperature： 24 °C Relative Humidity： 60 % Pressure： 1016 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX N MODE-40MHz /CH03, CH06, CH09 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 2.0 1.5849 16.65 46.2381 0.014586 1 Complies 2.0 1.5849 16.25 42.1697 0.013303 1 Complies 2.0 1.5849 16.82 48.0839 0.015169 1 Complies Note: All test result is complies.

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1108C244 Page 1 of 122 FCC Radio Test Report FCC ID: T58WF2405R This report concerns (check one) : Original Grant Class II Change Issued Date : Sep. 19, 2011 Project No. : 1108C244 Equipment : 150Mbps Wireless-N Router/AP Model Name : WF-2405 Applicant : NETIS SYSTEMS CO., LTD. Address : 9F,B Block, Tsinghua Information Park, High-tech Industrial Park, Nanshan, Shenzhen, China Manufacturer : Shenzhen Netcore Industrial Ltd. Address : 9F,B Block, Tsinghua Information Park, High-tech Industrial Park, Nanshan, Shenzhen, China Tested by: Neutron Engineering Inc. EMC Laboratory Date of Receipt: Aug. 26, 2011 Date of Test: Aug. 26, 2011 ~ Sep. 16, 2011 Testing Engineer : (Ivan Cao) Technical Manager : (Leo Hung) Authorized Signatory : (Steven Lu) Neutron Engineering Inc. No.3,Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL : (0769) 8318-3000 FAX : (0769) 8319-6000 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1108C244 Page 2 of 122 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C, or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutron shall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Neutron Engineering Inc. Report No.: NEI-FCCP-1-1108C244 Page 3 of 122 Table of Contents Page 1 . CERTIFICATION 5 2 . SUMMARY OF TEST RESULTS 6 2.1 TEST FACILITY 7 2.2 MEASUREMENT UNCERTAINTY 7 3 . GENERAL INFORMATION 8 3.1 GENERAL DESCRIPTION OF EUT 8 3.2 DESCRIPTION OF TEST MODES 10 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 11 3.4 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 12 3.5 DESCRIPTION OF SUPPORT UNITS (RADIATED MODE) 13 4 . EMC EMISSION TEST 14 4.1 CONDUCTED EMISSION MEASUREMENT 14 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 14 4.1.2 MEASUREMENT INSTRUMENTS LIST AND SETTING 14 4.1.3 TEST PROCEDURE 15 4.1.4 DEVIATION FROM TEST STANDARD 15 4.1.5 TEST SETUP 15 4.1.6 EUT OPERATING CONDITIONS 15 4.1.7 TEST RESULTS 16 4.2 RADIATED EMISSION MEASUREMENT 18 4.2.1 RADIATED EMISSION LIMITS 18 4.2.2 MEASUREMENT INSTRUMENTS LIST ANS SETTING 19 4.2.3 TEST PROCEDURE 20 4.2.4 DEVIATION FROM TEST STANDARD 20 4.2.5 TEST SETUP 21 4.2.6 EUT OPERATING CONDITIONS 21 4.2.7 TEST RESULTS (BETWEEN 30 – 1000 MHZ) 22 4.2.8 TEST RESULTS (ABOVE 1000 MHZ) 24 5 . BANDWIDTH TEST 72 5.1 APPLIED PROCEDURES / LIMIT 72 5.1.1 MEASUREMENT INSTRUMENTS LIST 72 5.1.2 TEST PROCEDURE 72 5.1.3 DEVIATION FROM STANDARD 72 5.1.4 TEST SETUP 72 5.1.5 EUT OPERATION CONDITIONS 72 5.1.6 TEST RESULTS 73 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1108C244 Page 4 of 122 Table of Contents Page 6 . MAXIMUM OUTPUT POWER TEST 81 6.1 APPLIED PROCEDURES / LIMIT 81 6.1.1 MEASUREMENT INSTRUMENTS LIST 81 6.1.2 TEST PROCEDURE 81 6.1.3 DEVIATION FROM STANDARD 81 6.1.4 TEST SETUP 81 6.1.5 EUT OPERATION CONDITIONS 81 6.1.6 TEST RESULTS 82 7 . ANTENNA CONDUCTED SPURIOUS EMISSION 90 7.1 APPLIED PROCEDURES / LIMIT 90 7.1.1 MEASUREMENT INSTRUMENTS LIST 90 7.1.2 TEST PROCEDURE 90 7.1.3 DEVIATION FROM STANDARD 90 7.1.4 TEST SETUP 90 7.1.5 EUT OPERATION CONDITIONS 90 7.1.6 TEST RESULTS 91 8 . POWER SPECTRAL DENSITY TEST 111 8.1 APPLIED PROCEDURES / LIMIT 111 8.1.1 MEASUREMENT INSTRUMENTS LIST 111 8.1.2 TEST PROCEDURE 111 8.1.3 DEVIATION FROM STANDARD 111 8.1.4 TEST SETUP 111 8.1.5 EUT OPERATION CONDITIONS 111 8.1.6 TEST RESULTS 112 9 . EUT TEST PHOTO 120 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1108C244 Page 5 of 122 1. CERTIFICATION E q u i p m e n t : 150Mbps Wireless-N Router/AP Brand Name : netis Model Name : WF-2405 A p p l i c a n t : NETIS SYSTEMS CO., LTD. F a c t o r y : Dongguan City Netcore Network Technology Co.,Ltd. A d d r e s s : No.10-1,Sankeng Road,Qinghutou,Tangxia Town,Dongguan City Date of Test : Aug. 26, 2011 ~ Sep. 16, 2011 T e s t I t e m : ENGINEERING SAMPLE Standards : FCC Part15, Subpart C(15.247) / ANSI C63.4 : 2003 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCP-1-1108C244) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of NVLAP and TAF according to the ISO-17025 quality assessment standard and technical standard(s). Neutron Engineering Inc. Report No.: NEI-FCCP-1-1108C244 Page 6 of 122 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247(d) Antenna conducted Spurious EmissionPASS 15.247(a)(2) 6dB Bandwidth PASS 15.247(b)(3) Peak Output Power PASS 15.…

Text truncated - open the document above for the full version.

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1108C244 Page 51 of 122 TX CH01 (Above 1000 MHz, Horizontal) Neutron Engineering Inc. Report No.: NEI-FCCP-1-1108C244 Page 52 of 122 EUT： 150Mbps Wireless-N Router/AP Model Name ： WF-2405 Temperature： 25 °C Relative Humidity： 58 % Pressure： 1010 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX N-20M MODE 2437MHz Ant./CF PeakAVPeakAVPeakAV (MHz)H/V(dBuV) (dBuV)CF(dB) (dBuV/m) (dBuV/m) (dBuV/m) (dBuV/m) 2440.35V74.9066.3531.85106.7598.20X/F 4874.23V47.0140.226.1553.1646.3774.0054.00X/H Freq.Ant.Pol. Note ReadingAct.Limit Remark： (1) All readings are Peak unless otherwise stated QP in column of『Note』. Peak denotes that the Peak reading compliance with the QP Limits and then QP Mode measurement didn‘t perform。 (2) Measuring frequency range from 30MHz to 1000MHz or the 10th harmonic of highest fundamental frequency。“F” denotes fundamental frequency; “H” denotes spurious frequency. “E” denotes band edge frequency. (This judgment method includes the Band Edge Requirement.) (3) Radiated emissions measured in frequency range above 1000MHz were made with an instrument using Peak detector mode and AV detector mode of the emission 。 (4) Data of measurement within this frequency range shown “ * ” in the table above means the reading of emissions are attenuated more than 20dB below the permissible limits or the field strength is too small to be measured. (5) A preamp and high pass filter were used for this test in order to provide sufficient measurement sensitivity. (6) EUT Orthogonal Axis： “X” - denotes Laid on Table；”Y” - denotes Vertical Stand；”Z” - denotes Side Stand (7) During the measurements above 1 GHz it is taken care of that the EUT is always within the 3 dB cone of radiation BW of the used antenna Neutron Engineering Inc. Report No.: NEI-FCCP-1-1108C244 Page 53 of 122 TX CH06 (Above 1000 MHz, Vertical) Neutron Engineering Inc. Report No.: NEI-FCCP-1-1108C244 Page 54 of 122 EUT： 150Mbps Wireless-N Router/AP Model Name ： WF-2405 Temperature： 25 °C Relative Humidity： 58 % Pressure： 1010 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX N-20M MODE 2437MHz Ant./CF PeakAVPeakAVPeakAV (MHz)H/V(dBuV) (dBuV)CF(dB) (dBuV/m) (dBuV/m) (dBuV/m) (dBuV/m) 2432.50H72.6264.0331.87104.4995.89X/F 4874.22H44.6237.436.1550.7743.5874.0054.00X/H Freq.Ant.Pol. Note ReadingAct.Limit Remark： (1) All readings are Peak unless otherwise stated QP in column of『Note』. Peak denotes that the Peak reading compliance with the QP Limits and then QP Mode measurement didn‘t perform。 (2) Measuring frequency range from 30MHz to 1000MHz or the 10th harmonic of highest fundamental frequency。“F” denotes fundamental frequency; “H” denotes spurious frequency. “E” denotes band edge frequency. (This judgment method includes the Band Edge Requirement.) (3) Radiated emissions measured in frequency range above 1000MHz were made with an instrument using Peak detector mode and AV detector mode of the emission 。 (4) Data of measurement within this frequency range shown “ * ” in the table above means the reading of emissions are attenuated more than 20dB below the permissible limits or the field strength is too small to be measured. (5) A preamp and high pass filter were used for this test in order to provide sufficient measurement sensitivity. (6) EUT Orthogonal Axis： “X” - denotes Laid on Table；”Y” - denotes Vertical Stand；”Z” - denotes Side Stand (7) During the measurements above 1 GHz it is taken care of that the EUT is always within the 3 dB cone of radiation BW of the used antenna Neutron Engineering Inc. Report No.: NEI-FCCP-1-1108C244 Page 55 of 122 TX CH06 (Above 1000 MHz, Horizontal) Neutron Engineering Inc. Report No.: NEI-FCCP-1-1108C244 Page 56 of 122 EUT： 150Mbps Wireless-N Router/AP Model Name ： WF-2405 Temperature： 25 °C Relative Humidity： 58 % Pressure： 1010 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX N-20M MODE 2462MHz Freq.Ant.Pol.Ant./CF PeakAVPeakAVPeakAV (MHz)H/V(dBuV) (dBuV) CF(dB) (dBuV/m) (dBuV/m) (dBuV/m) (dBuV/m) 2459.00V75.6766.3131.83107.5098.13X/F 2483.50V32.5718.4531.8064.3750.2574.0054.00X/E 4924.13V47.2838.146.3053.5844.4474.0054.00X/H Note ReadingAct.Limit Remark： (1) All readings are Peak unless otherwise stated QP in column of『Note』. Peak denotes that the Peak reading compliance with the QP Limits and then QP Mode measurement didn‘t perform。 (2) Measuring frequency range from 30MHz to 1000MHz or the 10th harmonic of highest fundamental frequency。“F” denotes fundamental frequency; “H” denotes spurious frequency. “E” denotes band edge frequency. (This judgment method includes the Band Edge Requirement.) (3) Radiated emissions measured in frequency range above 1000MHz were made with an instrument using Peak detector mode and AV detector mode of the emission 。 (4) Data of measurement within this frequency range shown “ * ” in the table above means the reading of emissions are attenuated more than 20dB below the permissible limits or the field strength is too small to be measured. (5) A preamp and high pass filter were used for this test in order to provide sufficient measurement sensitivity. (6) EUT Orthogonal Axis： “X” - denotes Laid on Table；”Y” - denotes Vertical Stand；”Z” - denotes Side Stand (7) During the measurements above 1 GHz it is taken care of that the EUT is always within the 3 dB cone of radiation BW of the used antenna Neutron Engineering Inc. Report No.: NEI-FCCP-1-1108C244 Page 57 of 122 TX CH11 (Above 1000 MHz, Vertical) Neutron Engineering Inc. Report No.: NEI-FCCP-1-1108C244 Page 58 of 122 EUT： 150Mbps Wireless-N Router/AP Model Name ： WF-2405 Temperature： 25 °C Relative Humidity： 58 % Pressure： 1010 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX N-20M MODE 2462MHz Freq.Ant.Pol.Ant./CF PeakAVPeakAVPeakAV (MHz)H/V(dBuV) (dBuV) CF(dB) (dBuV/m) (dBuV/m) (dBuV/m) (dBuV/m) 2459.00 H71.7864.2531.83103.6196.07X/F 2483.50 H29.3616.2531.8061.1648.0574.0054.00X/E 4924.22 H45.3239.246.3051.6245.5474.0054.00X/H Note ReadingAct.Limit Remark： (1) All readings a…

Text truncated - open the document above for the full version.

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1108C244 Page 81 of 122 6. MAXIMUM OUTPUT POWER TEST 6.1 Applied procedures / limit FCC Part15 (15.247) , Subpart C Section Test Item Limit Frequency Range (MHz) Result 15.247(b)(3) Maximum Output Power 1 watt or 30dBm 2400-2483.5 PASS 6.1.1 MEASUREMENT INSTRUMENTS LIST Item Kind of Equipment Manufacturer Type No. Serial No. Calibrated until 1 Spectrum Analyzer R&S FSP_40 100129 Jan. 04, 2012 Remark: ” N/A” denotes No Model Name. , Serial No. or No Calibration specified. 6.1.2 TEST PROCEDURE a. The EUT was directly connected to the spectrum analyzer and antenna output port as show in the block diagram below, b. Spectrum Setting : RBW= 1MHz, VBW=3MHz, Sample detector,Sweep time = 5 ms. 6.1.3 DEVIATION FROM STANDARD No deviation. 6.1.4 TEST SETUP 6.1.5 EUT OPERATION CONDITIONS The EUT tested system was configured as the statements of 4.1.6 Unless otherwise a special operating condition is specified in the follows during the testing. Transmit output power was measured while the host equipment supply voltage was varied from 85 % to 115 % of the nominal rated supply voltage. No change in transmit output power was observed. Neutron Engineering Inc. Report No.: NEI-FCCP-1-1108C244 Page 82 of 122 6.1.6 TEST RESULTS EUT： 150Mbps Wireless-N Router/AP Model Name ： WF-2405 Temperature： 24 °C Relative Humidity： 60 % Pressure： 1016 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX B MODE /CH01, CH06, CH11 Maximum Output Power Test Channel Frequency (MHz) Output Power (dBm) LIMIT (dBm) LIMIT (W) CH01 2412 MHz 17.86 30 1 CH06 2437 MHz 18.05 30 1 CH11 2462 MHz 18.12 30 1 TX CH 01 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1108C244 Page 83 of 122 TX CH 06 TX CH 11 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1108C244 Page 84 of 122 EUT： 150Mbps Wireless-N Router/AP Model Name ： WF-2405 Temperature： 24 °C Relative Humidity： 60 % Pressure： 1016 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX G MODE /CH01, CH06, CH11 Maximum Output Power Test Channel Frequency (MHz) Output Power (dBm) LIMIT (dBm) LIMIT (W) CH01 2412 MHz 16.62 30 1 CH06 2437 MHz 17.28 30 1 CH11 2462 MHz 17.55 30 1 TX CH 01 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1108C244 Page 85 of 122 TX CH 06 TX CH 11 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1108C244 Page 86 of 122 EUT： 150Mbps Wireless-N Router/AP Model Name ： WF-2405 Temperature： 24 °C Relative Humidity： 60 % Pressure： 1016 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX N-20M MODE /CH01, CH06, CH11 Maximum Output Power Test Channel Frequency (MHz) Output Power (dBm) LIMIT (dBm) LIMIT (W) CH01 2412 MHz 16.76 30 1 CH06 2437 MHz 17.24 30 1 CH11 2462 MHz 16.94 30 1 TX CH 01 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1108C244 Page 87 of 122 TX CH 06 TX CH 11 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1108C244 Page 88 of 122 EUT： 150Mbps Wireless-N Router/AP Model Name ： WF-2405 Temperature： 24 °C Relative Humidity： 60 % Pressure： 1016 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX N-40M MODE /CH03, CH06, CH09 Maximum Output Power Test Channel Frequency (MHz) Output Power (dBm) LIMIT (dBm) LIMIT (W) CH03 2422 MHz 16.65 30 1 CH06 2437 MHz 16.25 30 1 CH09 2452 MHz 16.82 30 1 TX CH 03 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1108C244 Page 89 of 122 TX CH 06 TX CH 09 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1108C244 Page 90 of 122 7. ANTENNA CONDUCTED SPURIOUS EMISSION 7.1 Applied procedures / limit 30dBc in any 100 kHz bandwidth outside the operating frequency band. In case the emission fall within the restricted band specified on 15.205(a), then the 15.209(a) limit in the table below has to be followed. Frequencies (MHz) Field Strength (micorvolts/meter) Measurement Distance (meters) 0.009~0.490 2400/F(KHz) 300 0.490~1.705 24000/F(KHz) 30 1.705~30.0 30 30 30~88 100 3 88~216 150 3 216~960 200 3 Above 960 500 3 7.1.1 MEASUREMENT INSTRUMENTS LIST Item Kind of Equipment Manufacturer Type No. Serial No. Calibrated until 1 Spectrum Analyzer R&S FSP_40 100129 Jan. 04, 2012 Remark: ” N/A” denotes No Model Name. , Serial No. or No Calibration specified. 7.1.2 TEST PROCEDURE a. The EUT was directly connected to the spectrum analyzer and antenna output port as show in the block diagram below, b. Spectrum Setting : RBW= 100KHz, VBW=100KHz, Sweep time = 10 ms. 7.1.3 DEVIATION FROM STANDARD No deviation. 7.1.4 TEST SETUP 7.1.5 EUT OPERATION CONDITIONS The EUT tested system was configured as the statements of 4.1.6 Unless otherwise a special operating condition is specified in the follows during the testing. Neutron Engineering Inc. Report No.: NEI-FCCP-1-1108C244 Page 91 of 122 7.1.6 TEST RESULTS EUT： 150Mbps Wireless-N Router/AP Model Name ： WF-2405 Temperature： 24 °C Relative Humidity： 60 % Pressure： 1016 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX B MODE /CH01, CH06 , CH11 Channel of Worst Data: CH01 The max. radio frequency power in any 100kHz bandwidth within the frequency band The max. radio frequency power in any 100 kHz bandwidth within the frequency band. FREQUENCY(MHz) POWER(dBm) FREQUENCY(MHz) POWER(dBm) 2397.00 -32.69 2483.50 -46.05 Result In any 100kHz bandwidth outside the frequency band, the radio frequency power is at least 30dB below that in the 100kHz bandwidth within the band that contains the highest lever of the desired power. Neutron Engineering Inc. Report No.: NEI-FCCP-1-1108C244 Page 92 of 122 TX B mode CH01 TX B mode CH11 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1108C244 Page 93 of 122 TX B mode CH01 (30M~1000MHz) TX B mode CH01 (1000MHz~10 th Harmonic) Neutron Engineering Inc. Report No.: NEI-FCCP-1-1108C244 Page 94 of 122 TX B mode CH06 (30M~1000MHz) TX B mode CH06 (1000MHz~10 th Harmonic) Neutron Engineering Inc. Report No.: NEI-FCCP-1-1108C244 Page 95 of 122 TX B mode CH11 (30M~1000MHz) TX B mode CH11 (1000MHz~10 th Harmonic) Neutron Engineering Inc. Report No.: NEI-FCCP-1-1108C244 Page 96 of 122 EUT： 150Mbps Wireless-N Router/AP Model Name ： WF-2405 Temperature： 24 °C Relative Hum…

Text truncated - open the document above for the full version.

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1108C244 Page 100 of 122 TX G mode CH11 (30M~1000MHz) TX G mode CH11 (1000MHz~10 th Harmonic) Neutron Engineering Inc. Report No.: NEI-FCCP-1-1108C244 Page 101 of 122 EUT： 150Mbps Wireless-N Router/AP Model Name ： WF-2405 Temperature： 24 °C Relative Humidity： 60 % Pressure： 1016 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX N-20M MODE / CH01, CH06 , CH11 Channel of Worst Data: CH01 The max. radio frequency power in any 100kHz bandwidth within the frequency band The max. radio frequency power in any 100 kHz bandwidth within the frequency band. FREQUENCY(MHz) POWER(dBm) FREQUENCY(MHz) POWER(dBm) 2400.00 -35.25 2483.50 -44.83 Result In any 100kHz bandwidth outside the frequency band, the radio frequency power is at least 30dB below that in the 100kHz bandwidth within the band that contains the highest lever of the desired power. Neutron Engineering Inc. Report No.: NEI-FCCP-1-1108C244 Page 102 of 122 TX HT20 mode CH01 TX HT20 mode CH11 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1108C2…

Text truncated - open the document above for the full version.
