T58WF2407R150Mbps Wireless-N High Gain Broadband Router

WF-2407 User Manual netis150Mbps Wireless-N High Gain Broadband Router V1.1 2011-04-07 150Mbps Wireless-NHigh Gain Broadband Router User Manual Certification FCC CE FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. (Example- use only shielded interface cables when connecting to computer or peripheral devices) FCC Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Caution! The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user authority to operate the equipment 1 150Mbps Wireless-NHigh Gain Broadband Router User Manual Package Contents The following items should be found in your package:  150Mbps Wireless-N High Gain Broadband Router  Power adapter  Quick Installation Guide  CD-Rom  Ethernet cable Make sure that the package contains above items. If any of the above items is missing or damaged, please contact the store you bought this product from. Brand and Copyright Announcement Copyright © 2011Netis Corporation. All rights reserved is a registered trademark of Netis Corporation. Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Reproduction in any manner without the permission of Netis Corporation is strictly forbidden All the information in this document is subject to change without notice. USA/Canada Technical Support Phone: 1-866-71-network or 1-866-716-3896 (free in USA & Canada) E-mail: [email protected] 2 150Mbps Wireless-NHigh Gain Broadband Router User Manual Contents 1. INTRODUCTION......................................................................................................................... 6 1.1. PRODUCT OVERVIEW............................................................................................................... 6 1.2. MAIN FEATURES...................................................................................................................... 6 1.3. SUPPORTING STANDARD AND PROTOCOL................................................................................. 6 1.4. WORKING ENVIRONMENT........................................................................................................ 7 2. HARDWARE INSTALLATION................................................................................................... 8 2.1. SYSTEM REQUIREMENT........................................................................................................... 8 2.2. PANEL...................................................................................................................................... 8 2.3. RESTORE TO FACTORY CONFIGURATION................................................................................... 9 2.4. HARDWARE INSTALLATION PROCEDURES................................................................................ 9 3. LOGIN..........................................................................................................................................11 3.1. CONFIGURE COMPUTER.......................................................................................................... 11 3.1.1. Windows 98/Me............................................................................................................ 11 3.1.2. Windows 2000.............................................................................................................. 12 3.1.3. Windows XP................................................................................................................. 14 3.1.4. Windows Vista.............................................................................................................. 17 3.1.5. Windows 7.................................................................................................................... 22 3.1.6. MAC OS....................................................................................................................... 24 3.2. CHECKING CONNECTION WITH THE ROUTER.......................................................................... 26 3.3. LOGIN.................................................................................................................................... 27 4. ROUTER SETUP..................…

Text truncated - open the document above for the full version.

CERTIFICATE OF COMPLIANCE Ref No.: NEI-FCCE-1-1109C276 Date of Issue: Oct. 26, 2011 Authorized under Declaration of Conformity according to 47 CFR, Part 2 and Part 15 of the FCC Rules. The product listed in follows was (were) tested in the Neutron EMC Laboratory to comply with the criteria limits Class B of conducted and radiated emissions of the Technical Standards FCC Part 15, Subpart B, established by the FCC, USA. Equipment 150Mbps Wireless-N High Gain Broadband Router Model Name WF-2407; DT-200NH Brand Name netis; CERIO Applicant NETIS SYSTEMS CO., LTD. Address 9F,B Block,Tsinghua Information Park, High-tech Industrial Park,Nanshan,Shenzhen,China Measurement ANSI C63.4 (2003) Method The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCE-1-1109C276) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of NVLAP and TAF according to the ISO-17025 quality assessment standard and technical standard(s). The test data contained in the referenced test report relate only to the EUT sample and item(s) tested. Andy Chiu Authorized Signatory Neutron Engineering Inc. B1, No.37, Lane 365, Yang Guang St., NeiHu District 114., Taipei, Taiwan TEL：+886-2-2657-3299 FAX：+886-2-2657-3331

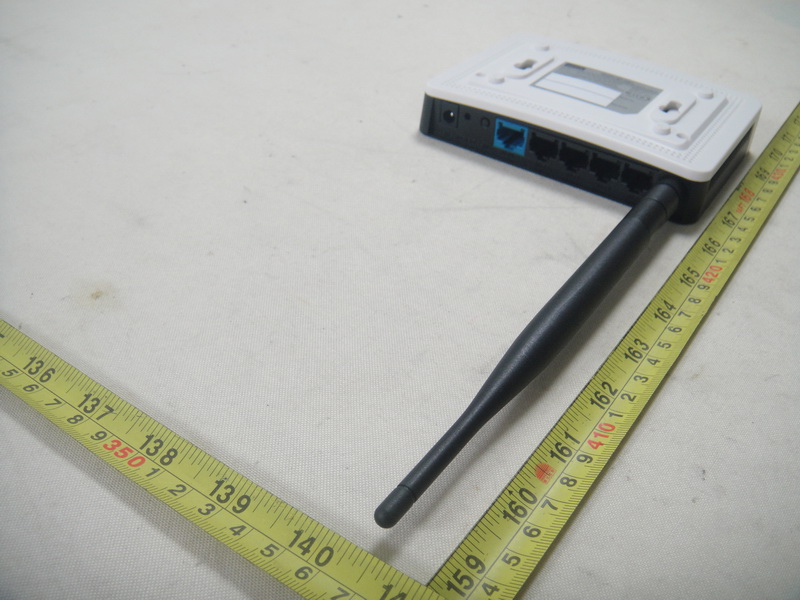

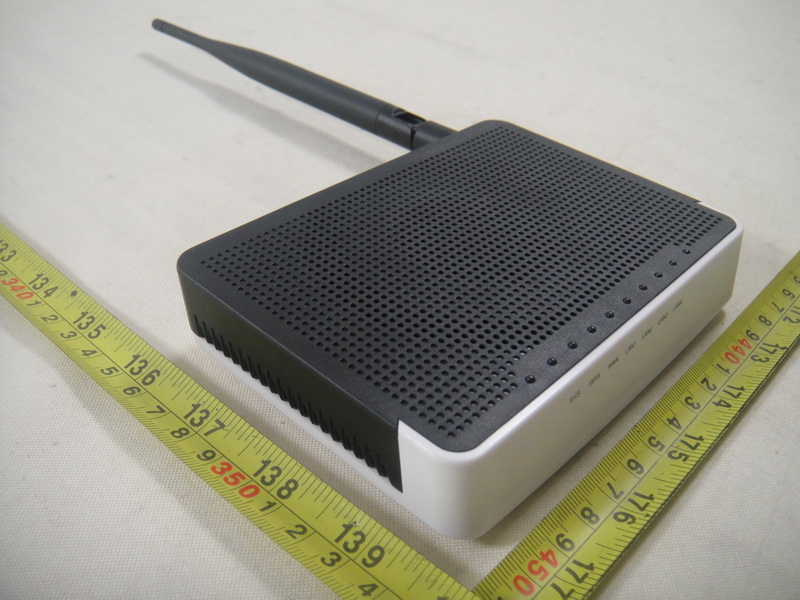

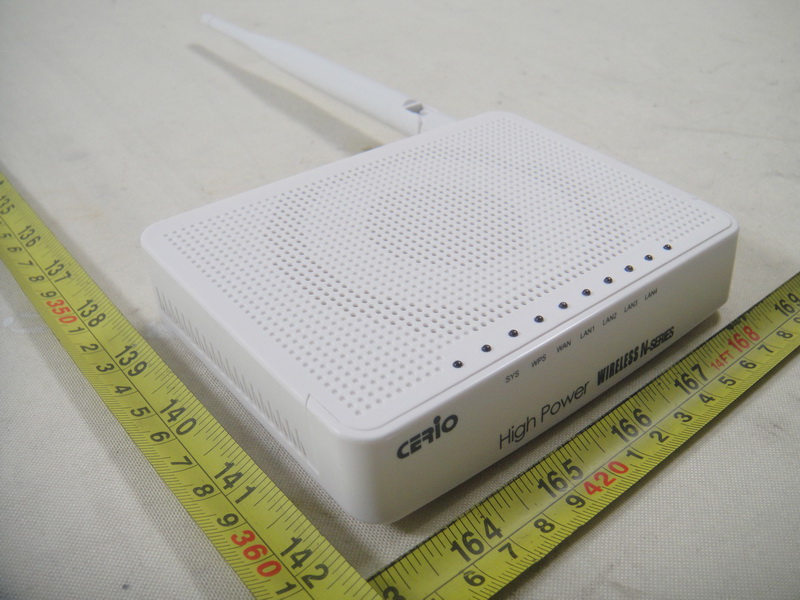

Neutron Engineering Inc. Project No.: 1109C276 Page 2 of 9 Model name: WF-2407 1109C276 1109C276 Neutron Engineering Inc. Project No.: 1109C276 Page 2 of 9 Model name: WF-2407 1109C276 1109C276 Neutron Engineering Inc. Project No.: 1109C276 Page 3 of 9 Adapter model: NQBCD2UL 1109C276 1109C276 Neutron Engineering Inc. Project No.: 1109C276 Page 3 of 9 Adapter model: NQBCD2UL 1109C276 1109C276 Neutron Engineering Inc. Project No.: 1109C276 Page 4 of 9 Model name: DT-200NH 1109C276 1109C276 Neutron Engineering Inc. Project No.: 1109C276 Page 4 of 9 Model name: DT-200NH 1109C276 1109C276 Neutron Engineering Inc. Project No.: 1109C276 Page 5 of 9 1109C276 1109C276 Neutron Engineering Inc. Project No.: 1109C276 Page 5 of 9 1109C276 1109C276

Neutron Engineering Inc. Project No.: 1109C276 Page 6 of 9 1109C276 1109C276 Neutron Engineering Inc. Project No.: 1109C276 Page 6 of 9 1109C276 1109C276 Neutron Engineering Inc. Project No.: 1109C276 Page 7 of 9 1109C276 1109C276 Neutron Engineering Inc. Project No.: 1109C276 Page 7 of 9 1109C276 1109C276 Neutron Engineering Inc. Project No.: 1109C276 Page 8 of 9 1109C276 1109C276 1109C276 1109C276 Neutron Engineering Inc. Project No.: 1109C276 Page 8 of 9 1109C276 1109C276 1109C276 1109C276 Neutron Engineering Inc. Project No.: 1109C276 Page 9 of 9 1109C276 1109C276 Neutron Engineering Inc. Project No.: 1109C276 Page 9 of 9 1109C276 1109C276

Neutron Engineering Inc. FCC RF EXPOSURE REPORT FCC ID: T58WF2407R Project No. : 1109C276 Equipment : 150Mbps Wireless-N High Gain Broadband Router Model Name : WF-2407; DT-200NH Applicant : NETIS SYSTEMS CO., LTD. Address : 9F,B Block, Tsinghua Information Park, High-tech Industrial Park, Nanshan, Shenzhen, China According: : FCC Guidelines for Human Exposure IEEE C95.1 Neutron Engineering Inc. No.3, Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL : (0769) 8318-3000 FAX : (0769) 8319-6000 Neutron Engineering Inc. MPE CALCULATION METHOD: Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Table for Filed Antenna Ant. Brand Model NameAntenna TypeConnector Gain (dBi) 1 Gortec R-AN2400-1901 RS Dipole R-SMA 5.02 TEST RESULTS EUT： 150Mbps Wireless-N High Gain Broadband Router Model Name ： WF-2407 Temperature： 24 °C Relative Humidity： 60 % Pressure： 1016 hPa Test Voltage： AC 120V/60Hz Test Mode ： TX B MODE /CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 5.02 3.1769 15.45 35.0752 0.022179 1 Complies 5.02 3.1769 15.29 33.8065 0.021377 1 Complies 5.02 3.1769 15.37 34.4350 0.021775 1 Complies Neutron Engineering Inc. EUT： 150Mbps Wireless-N High Gain Broadband Router Model Name ： WF-2407 Temperature： 24 °C Relative Humidity： 60 % Pressure： 1016 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX G MODE /CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 5.02 3.1769 15.67 36.8978 0.023332 1 Complies 5.02 3.1769 15.60 36.3078 0.022959 1 Complies 5.02 3.1769 15.74 37.4973 0.023711 1 Complies EUT： 150Mbps Wireless-N High Gain Broadband Router Model Name ： WF-2407 Temperature： 24 °C Relative Humidity： 60 % Pressure： 1016 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX N-20M MODE /CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 5.02 3.1769 15.01 31.6957 0.020042 1 Complies 5.02 3.1769 14.84 30.4789 0.019273 1 Complies 5.02 3.1769 15.03 31.8420 0.020135 1 Complies EUT： 150Mbps Wireless-N High Gain Broadband Router Model Name ： WF-2407 Temperature： 24 °C Relative Humidity： 60 % Pressure： 1016 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX N-40M MODE /CH03, CH06, CH09 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 5.02 3.1769 14.70 29.5121 0.018662 1 Complies 5.02 3.1769 14.51 28.2488 0.017863 1 Complies 5.02 3.1769 14.69 29.4442 0.018619 1 Complies

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1109C276 Page 1 of 122 FCC Radio Test Report FCC ID: T58WF2407R This report concerns (check one) : Original Grant Class II Change Issued Date : Oct. 26, 2011 Project No. : 1109C276 Equipment : 150Mbps Wireless-N High Gain Broadband Router Model Name : WF-2407; DT-200NH Applicant : NETIS SYSTEMS CO., LTD. Address : 9F,B Block, Tsinghua Information Park, High-tech Industrial Park, Nanshan, Shenzhen, China Manufacturer : Shenzhen Netcore Industrial Ltd. Address : 9F,B Block, Tsinghua Information Park, High-tech Industrial Park, Nanshan, Shenzhen, China Tested by: Neutron Engineering Inc. EMC Laboratory Date of Receipt: Sep. 28, 2011 Date of Test: Sep. 28, 2011 ~ Oct. 25, 2011 Testing Engineer : (Ivan Cao) Technical Manager : (Leo Hung) Authorized Signatory : (Steven Lu) Neutron Engineering Inc. No.3,Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL : (0769) 8318-3000 FAX : (0769) 8319-6000 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1109C276 Page 2 of 122 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C, or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutron shall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Neutron Engineering Inc. Report No.: NEI-FCCP-1-1109C276 Page 3 of 122 Table of Contents Page 1 . CERTIFICATION 5 2 . SUMMARY OF TEST RESULTS 6 2.1 TEST FACILITY 7 2.2 MEASUREMENT UNCERTAINTY 7 3 . GENERAL INFORMATION 8 3.1 GENERAL DESCRIPTION OF EUT 8 3.2 DESCRIPTION OF TEST MODES 10 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 11 3.4 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 12 3.5 DESCRIPTION OF SUPPORT UNITS (RADIATED MODE) 13 4 . EMC EMISSION TEST 14 4.1 CONDUCTED EMISSION MEASUREMENT 14 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 14 4.1.2 MEASUREMENT INSTRUMENTS LIST AND SETTING 14 4.1.3 TEST PROCEDURE 15 4.1.4 DEVIATION FROM TEST STANDARD 15 4.1.5 TEST SETUP 15 4.1.6 EUT OPERATING CONDITIONS 15 4.1.7 TEST RESULTS 16 4.2 RADIATED EMISSION MEASUREMENT 18 4.2.1 RADIATED EMISSION LIMITS 18 4.2.2 MEASUREMENT INSTRUMENTS LIST ANS SETTING 19 4.2.3 TEST PROCEDURE 20 4.2.4 DEVIATION FROM TEST STANDARD 20 4.2.5 TEST SETUP 21 4.2.6 EUT OPERATING CONDITIONS 21 4.2.7 TEST RESULTS (BETWEEN 30 – 1000 MHZ) 22 4.2.8 TEST RESULTS (ABOVE 1000 MHZ) 24 5 . BANDWIDTH TEST 72 5.1 APPLIED PROCEDURES / LIMIT 72 5.1.1 MEASUREMENT INSTRUMENTS LIST 72 5.1.2 TEST PROCEDURE 72 5.1.3 DEVIATION FROM STANDARD 72 5.1.4 TEST SETUP 72 5.1.5 EUT OPERATION CONDITIONS 72 5.1.6 TEST RESULTS 73 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1109C276 Page 4 of 122 Table of Contents Page 6 . MAXIMUM OUTPUT POWER TEST 81 6.1 APPLIED PROCEDURES / LIMIT 81 6.1.1 MEASUREMENT INSTRUMENTS LIST 81 6.1.2 TEST PROCEDURE 81 6.1.3 DEVIATION FROM STANDARD 81 6.1.4 TEST SETUP 81 6.1.5 EUT OPERATION CONDITIONS 81 6.1.6 TEST RESULTS 82 7 . ANTENNA CONDUCTED SPURIOUS EMISSION 90 7.1 APPLIED PROCEDURES / LIMIT 90 7.1.1 MEASUREMENT INSTRUMENTS LIST 90 7.1.2 TEST PROCEDURE 90 7.1.3 DEVIATION FROM STANDARD 90 7.1.4 TEST SETUP 90 7.1.5 EUT OPERATION CONDITIONS 90 7.1.6 TEST RESULTS 91 8 . POWER SPECTRAL DENSITY TEST 111 8.1 APPLIED PROCEDURES / LIMIT 111 8.1.1 MEASUREMENT INSTRUMENTS LIST 111 8.1.2 TEST PROCEDURE 111 8.1.3 DEVIATION FROM STANDARD 111 8.1.4 TEST SETUP 111 8.1.5 EUT OPERATION CONDITIONS 111 8.1.6 TEST RESULTS 112 9 . EUT TEST PHOTO 120 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1109C276 Page 5 of 122 1. CERTIFICATION E q u i p m e n t : 150Mbps Wireless-N High Gain Broadband Router Brand Name : netis; CERIO Model Name : WF-2407; DT-200NH A p p l i c a n t : NETIS SYSTEMS CO., LTD. F a c t o r y : Dongguan City Netcore Network Technology Co.,Ltd. A d d r e s s : No.10-1,Sankeng Road,Qinghutou,Tangxia Town,Dongguan City Date of Test : Sep. 28, 2011 ~ Oct. 25, 2011 T e s t I t e m : ENGINEERING SAMPLE Standards : FCC Part15, Subpart C(15.247) / ANSI C63.4 : 2003 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCP-1-1109C276) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of NVLAP and TAF according to the ISO-17025 quality assessment standard and technical standard(s). Neutron Engineering Inc. Report No.: NEI-FCCP-1-1109C276 Page 6 of 122 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247(d) Antenna conducted Spurious EmissionPASS 15.247(a)(…

Text truncated - open the document above for the full version.

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1109C276 Page 120 of 122 9. EUT TEST PHOTO Conducted Measurement Photos Neutron Engineering Inc. Report No.: NEI-FCCP-1-1109C276 Page 120 of 122 9. EUT TEST PHOTO Conducted Measurement Photos Neutron Engineering Inc. Report No.: NEI-FCCP-1-1109C276 Page 121 of 122 Radiated Measurement Photos 30-1000MHz Neutron Engineering Inc. Report No.: NEI-FCCP-1-1109C276 Page 121 of 122 Radiated Measurement Photos 30-1000MHz Neutron Engineering Inc. Report No.: NEI-FCCP-1-1109C276 Page 122 of 122 Radiated Measurement Photos Above 1000MHz Neutron Engineering Inc. Report No.: NEI-FCCP-1-1109C276 Page 122 of 122 Radiated Measurement Photos Above 1000MHz
