WF-2409 300Mbps High Performance Wireless-N Broadband Router Quick Installation Guide V1.1 2011-06-23 WF-2409 Quick Installation Guide 1 Certification FCC CE FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. (Example- use only shielded interface cables when connecting to computer or peripheral devices) FCC Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Caution! The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user authority to operate the equipment. WF-2409 Quick Installation Guide 2 Package Contents The following items should be found in your package: 300Mbps High Performance Wireless-N Broadband Router Power Adapter Quick Installation Guide 3 Antennas CD-ROM Ethernet Cable Make sure that the package contains above items. If any of the above items is missing or damaged, please contact the store you bought this product from. Before You Begin Minimum Requirements: Broadband (DSL/Cable) modem and service with Ethernet port 802.11b/g/n wireless adapter or Ethernet adapter and cable for each computer Internet Explorer , ® 5.0Firefox®2.0 or Safari® 1.4 or higher Brand and Copyright Announcement Copyright © 2010 Netis Corporation. All rights reserved is a registered trademark of Netis Corporation. Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Reproduction in any manner without the permission of Netis Corporation is strictly forbidden All the information in this document is subject to change without notice. USA/Canada Technical Support Phone: 1-866-71-network or 1-866-716-3896 (free in USA & Canada) E-mail: [email protected] WF-2409 Quick Installation Guide 3 1. Hardware Installation Procedure The procedures to install the WF-2409 please refer to Figure 1-1. Figure 1-1 Step 1 connecting your computer to the LAN port. Attach one end of the Ethernet cable with RJ-45 connector to your hub, switch or a computer’s Ethernet port, and the other end to one of the LAN ports of your WF-2409. Step 2 Connecting Cable/ADSL Modem to the WAN port. Connect the Ethernet cable attaching to your Cable/ADSL modem to the WAN port of your WF-2409. Step 3 connecting the power adapter. Connect the single DC output connector of the power adapter to the power jack on the side of the WF-2409. Then plug the Power Adapter into an AC outlet. Step 4 Power on the following devices in this order: Cable/ADSL modem, Router, and PCs 2. Login You can manage the WF-2409 through the Web browser-based configuration utility. To configure the device via Web browser, at least one properly configured computer must be connected to the device via Ethernet or wireless network. The WF-2409 is configured with the default IP address of 192.168.1.1 and subnet mask of 255.255.255.0 and its DHCP server is enabled by default. Before setting up the Router, make sure your PCs are configured to obtain WF-2409 Quick Installation Guide 4 an IP address automatically from the Router by the steps below. 2.1. Configure computer (Windows 7) Please follow the steps below to setup your computer: 1. Go to Start Settings Control Panel 2. Click Network and Sharing Center Figure 2-1 3. Click Manage Network Connections Figure 2-2 4. Highlight the icon Local Area Connection, right click your mouse, and click Properties WF-2409 Quick Installation Guide 5 Figure 2-3 5. Highlight Internet Protocol Version 4 (TCP/IP) and then press Properties button Figure 2-4 6. Choose Obtain an IP address automatically and Obtain DNS server address automatically, and then press OK to close the Internet Protocol (TCP/IP) Properties window WF-2409 Quick Installation Guide 6 Figure 2-5 7. Press OK to close the Local Area Connection Properties window Figure 2-6 WF-2409 Quick Installation Guide 7 2.2. LED Indicators Figure 2-7 LED Function PWR On Power on WPS Flashing slowly WPS is running SYS Flashing Normal WLAN Flashing Wireless data transmitting ON WAN connection normal WAN Flashing Data transmitting ON Corresponding LAN port connection normal LAN Flashing Corres…
Text truncated - open the document above for the full version.

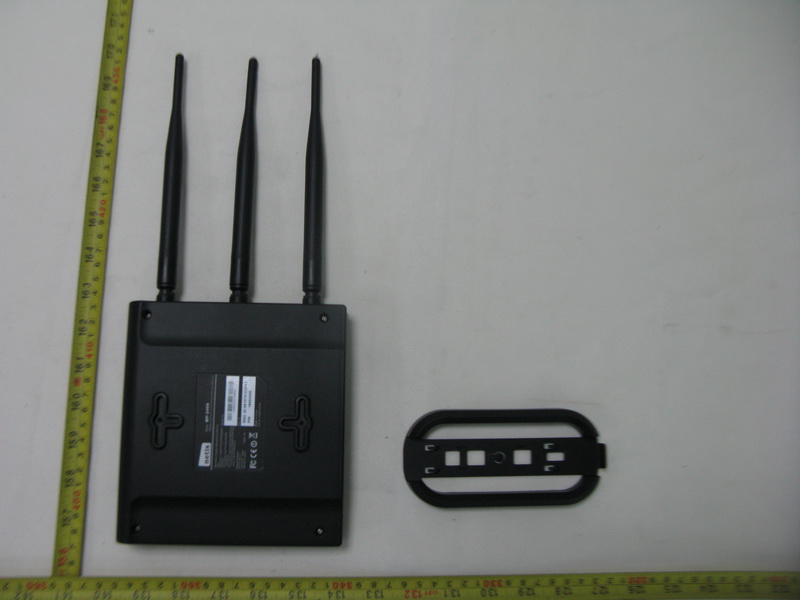

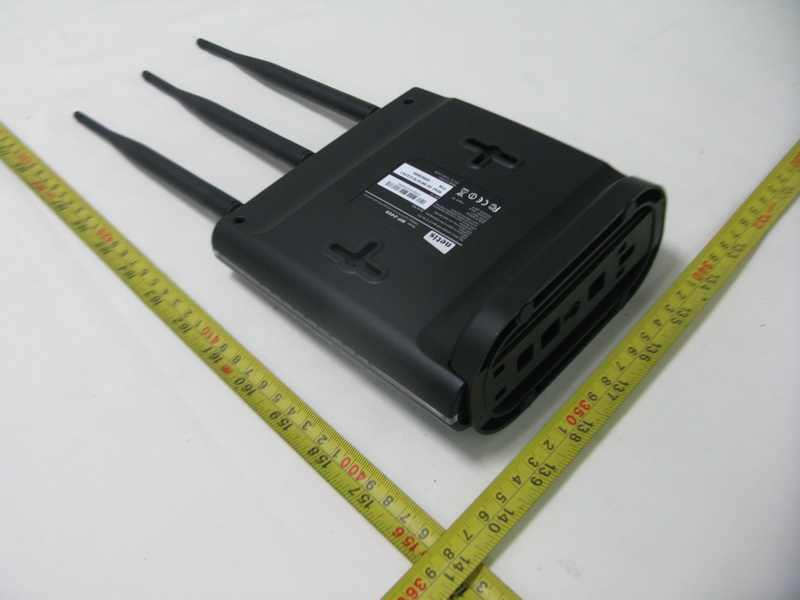

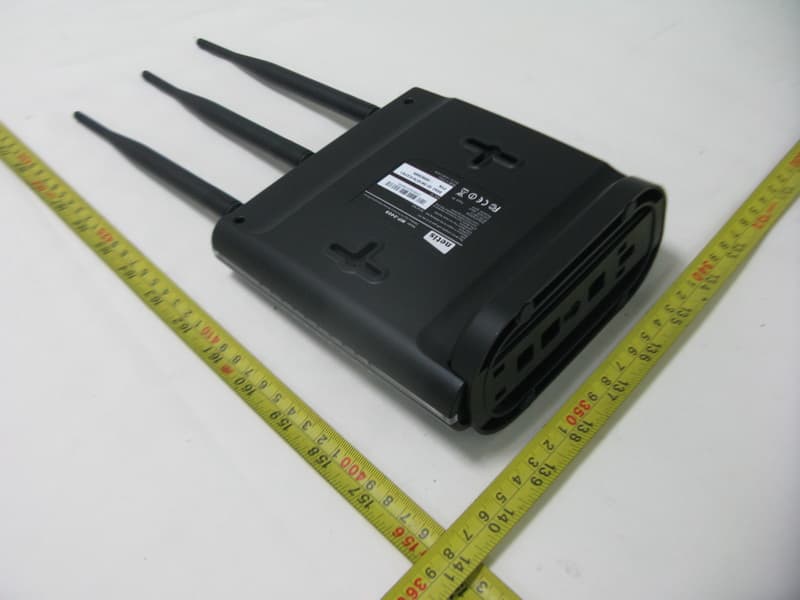

Neutron Engineering Inc. Project No.: 1203C098 Page 2 of 9 1203C098 Neutron Engineering Inc. Project No.: 1203C098 Page 3 of 9 1203C098 1203C098 Neutron Engineering Inc. Project No.: 1203C098 Page 3 of 9 1203C098 1203C098 Neutron Engineering Inc. Project No.: 1203C098 Page 4 of 9 1203C098 1203C098 Neutron Engineering Inc. Project No.: 1203C098 Page 4 of 9 1203C098 1203C098
Label Location
Neutron Engineering Inc. Project No.: 1203C098 Page 5 of 9 1203C098 1203C098 Neutron Engineering Inc. Project No.: 1203C098 Page 5 of 9 1203C098 1203C098 Neutron Engineering Inc. Project No.: 1203C098 Page 6 of 9 1203C098 1203C098 Neutron Engineering Inc. Project No.: 1203C098 Page 6 of 9 1203C098 1203C098 Neutron Engineering Inc. Project No.: 1203C098 Page 7 of 9 1203C098 1203C098 Neutron Engineering Inc. Project No.: 1203C098 Page 7 of 9 1203C098 1203C098 Neutron Engineering Inc. Project No.: 1203C098 Page 8 of 9 1203C098 1203C098 Neutron Engineering Inc. Project No.: 1203C098 Page 8 of 9 1203C098 1203C098 Neutron Engineering Inc. Project No.: 1203C098 Page 9 of 9 1203C098
Product Number: AN2400-92F19BO Product Name: Antenna COR/F-G-15b Specification For Approval Date: 2011 / 04/ 28 File No.: 110428003 Version: 1.0 Customer: 磊科 Customer P/N: / INVAX P/N: AN2400-92F19BO Description : Antenna Cortec Checked By: Customer Approved By: INVAX System Technology Corp. Cortec Technology Inc. 4F. No. 815.Chung Hsiao East Rd.,Sec.5 Xian-Xi Industrial, Sha-Tou Administration Zone, Taipei, TAIWAN Chang-An Town, Dong-Guan City, Guangdong Province, China TEL:886-2-2788-5218 FAX:886-2-2783-1658 TEL:86-769-85388261 FAX:86-769-85317869 http://www invaxsystem comhttp://www cortec com cn Product Number: AN2400-92F19BO Product Name: Antenna Page 1 Version: 1.0 Issue Date: 2011-04-28 Index: 1. Specification / Page 2 2. Characteristics and Reliability Test / Page 3 3. Antenna - S Parameter Test Data / Page 4 4. Antenna - Radiation Pattern Test Data / Page 5 ~ 7 5. Mechanical and Packing Drawing / Page 8 ~ 9 6. Material Description and RoHS Test Report / Page 10 ~ end Product Number: AN2400-92F19BO Product Name: Antenna Page 2 Version: 1.0 Issue Date: 2011-04-28 1. Specification Sample Photo A. Electrical Characteristics Frequency 2400 ~ 2500 MHz S.W.R. <= 2.0 Antenna Gain 5.71 dBi Polarization Linear Impedance 50 Ohm B. Material & Mechanical Characteristics Material of Radiator Cu Material of Plastic Body: TPE Hinge: ABS Holder: PC+ABS Cable Type OD1.13mm Connector Type Mini Connector Connector Pull Test >= 1 Kg Connector Torque Test / C. Environmental Operation Temperature - 40 °C ~ + 65 °C Storage Temperature - 40 °C ~ + 80 °C Product Number: AN2400-92F19BO Product Name: Antenna Page 3 Version: 1.0 Issue Date: 2011-04-28 2. Characteristics and Reliability Test Test Items Test Condition and Procedure Requirements C1 S.W.R. Set DUT on Network Analyzer; make individual calibration to test Directive DUT specification C2 Ant enna Gain Set DUT on Antenna Chamber; make individual calibration to test Directive DUT specification M1 V ibration MIL-STD-202G, 201A Amplitude: 0.03 inch (0.76mm); Freq: 10 to 55 Hz 3 directions; 2 hours for each direction 1. No Visual Damage 2. Frequency Tol.<= 5% M2 Rand om Drop Height: 1.5 Meter; 3 directions; 1 time for each direction 1. No parts separated 2. Frequency Tol.<= 5% M3 Solderability MIL-STD-202G, 210F, cond. A Solder iron: 350±10°C; Duration: 5 seconds 1. Mounted on PCB 2. No Visual Damage M4 T erminal- Pull Test MIL-STD-202G, 211A, cond. A Holding with individual specification; force applied to axis of terminal 1. Directive DUT specification 2. Frequency Tol.<= 5% M5 T erminal- Torque Test MIL-STD-202G, 211A, cond. E Holding with individual specification; applied clockwise and counterclockwise to the axis of terminal 1. Directive DUT specification 2. Frequency Tol.<= 5% M6 Dimension Inspection of dimension, color, material, package, surface process Directive DUT specification E1 Salt Spray MIL-STD-202G, 101E, cond. B Temp: 35°C; RH: >= 95%; NaCl solution: >= 5%; Time: 48 hours After 2 Hours Recovery 1. No Visual Damage 2. Frequency Tol.<= 5% E2 Humidity MIL-STD-202G, 103B, cond. B Temp: 40°C; RH: >= 95%; Time: 48 hours After 2 Hours Recovery 1. No Visual Damage 2. Frequency Tol.<= 5% E3 Thermal Shock 1 Cycle: - 40°C (30 minutes) to + 80°C (30 minutes) Cycles: 24 After 2 Hours Recovery 1. No Visual Damage 2. Frequency Tol.<= 5% E4 Life (High Temp.) MIL-STD-202G, 108A, cond. A Temp: 85°C; Time: 96 hours After 2 Hours Recovery 1. No Visual Damage 2. Frequency Tol.<= 5% R1 RoHS With Reference to IEC 62321:2008 with flow chart Directive RoHS 2002/95/EC R2 PFOS With Reference to USA EPA 3540C:1996 by LC/MS Directive RoHS 2006/122/EC R3 PFOA With Reference to USA EPA 3540C:1996 by LC/MS Directive RoHS 2006/122/EC Product Number: AN2400-92F19BO Product Name: Antenna Page 4 Version: 1.0 Issue Date: 2011-04-28 3. Antenna - S Parameter Test Data Product Number: AN2400-92F19BO Product Name: Antenna Page 5 Version: 1.0 Issue Date: 2011-04-28 4. Antenna - Radiation Pattern Test Data Testing Equipment Specification: Antenna Anechoic Chamber Dimension: 8 x 4 x 4 m Quite Zone: 600mm @1 GHz Isolation: >100dB @ 1 MHz ~ 10 GHz Testing Equipment: Agilent 5071B Received Antenna: 0.7 ~ 6.0 GHz for Gain Calibration Double Ridged Horn Antenna 5. Mechanical Drawing See attached files 6. Material Description and RoHS Test Report See attached files 填表: 時麗 部門: 研發部 職務: 文員 Cd Pb Hg Cr(VI) PBBs PBDEs 1 AN9201-04WB Body1 TPE N.D. N.D. N.D. N.D. N.D. N.D. CE/2009/C4753 2009.12.25 THERMOPLASTIC SGS 2 AN9201-07B Body2 ABS N.D. N.D. N.D. N.D. N.D. N.D. RLSZC000730820008 2010.11.17 ABS CTI 3 AN9201-05B Body3 PC+ABS N.D. N.D. N.D. N.D. N.D. N.D. CANEC1001721801 2010.04.28 PC/ABS SGS FEP N.D. 7mg/kg N.D. N.D. N.D. N.D. RLSHC000344580002 2010.07.06 Coaxial Cable CTI FEP N.D. N.D. N.D. N.D. N.D. N.D. RLSHC000344580002 2010.07.06 Coaxial Cable CTI 鍍錫銅線 N.D. N.D. N.D. Negative RLSHC000344580002 2010.07.06 Coaxial Cable CTI 鍍銀銅線 N.D. N.D. N.D. Negative RLSHC000344580002 2010.07.06 Coaxial Cable CTI 康捷電子有限公司 物料名稱: AN2400-92F19BO 各構成物料的材質 物料中 HSF 對象物質含量調查表 測試名稱 測試報告裡 RoHS 對應物質測試結果 檢測報告編號 包裝材料中鉛、鎘、汞、六價鉻總含量不超過 100ppm ,鎘的允許濃度為 5ppm 測試日期 物料型號 物料各構成名 稱 測試機構 名稱 序號 根據測試報告如實填寫鉛、鎘、汞、六價鉻、 PBBs 和 PBDEs 六項禁用物質的含量 源達1.13灰 Cable R-CB-113B 4
Neutron Engineering Inc. FCC RF EXPOSURE REPORT FCC ID: T58WF2409B Project No. : 1203C098 Equipment : 300Mbps High Performance Wireless-N Broadband Router Model : WF-2409; WF2409 Applicant : NETIS SYSTEMS CO., LTD. Address : 9F,B Block,Tsinghua Information Park, High-tech Industrial Park,Nanshan, Shenzhen,China According: : FCC Guidelines for Human Exposure IEEE C95.1 Neutron Engineering Inc. No.3, Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL : (0769) 8318-3000 FAX : (0769) 8319-6000 Neutron Engineering Inc. MPE CALCULATION METHOD: Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Table for Filed Antenna Ant. Brand Model Name Antenna TypeConnector Gain (dBi) Note 1 Cortec AN2400-92F19BODipole N/A 5.71 TRX 2 Cortec AN2400-92F19BODipole N/A 5.71 TRX 3 Cortec AN2400-92F19BODipole N/A 5.71 RX Note: The antenna of EUT could be rotated, but the Antenna Polarity vertical is max. The EUT incorporates a MIMO function. Physically, the EUT provides two completed transmitters and three receivers (2T3R). This EUT supports MIMO, any transmit signals are correlated with each other, so , that is Directional gain=5.71+10log(2)dBi=8.71; So,the out power limit is 30-8.71+6=27.29; and power density limit is 8-8.71+6=5.29 Operating Mode TX Mode 1TX 2TX 802.11b V (ANT1 or ANT2) - 802.11g V (ANT1 or ANT2) - 802.11n(20MHz) - V (ANT1 & ANT2) 802.11n(40MHz) - V (ANT1 & ANT2) Neutron Engineering Inc. TEST RESULTS EUT: 300Mbps High Performance Wireless-N Broadband Router Model Name : WF-2409 Temperature: 25 °C Relative Humidity: 60 % Pressure: 1012 hPa Test Voltage : AC 120V/60Hz Test Mode : CH01/CH06/CH11-802.11b Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 5.71 3.7239 18.40 69.1831 0.051280281 Complies 5.71 3.7239 17.80 60.2560 0.044663251 Complies 5.71 3.7239 17.96 62.5173 0.046339401 Complies EUT: 300Mbps High Performance Wireless-N Broadband Router Model Name : WF-2409 Temperature: 25 °C Relative Humidity: 60 % Pressure: 1012 hPa Test Voltage : AC 120V/60Hz Test Mode : CH01/CH06/CH11-802.11g Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 5.71 3.7239 25.01 316.9567 0.23493643 1 Complies 5.71 3.7239 24.76 299.2265 0.22179429 1 Complies 5.71 3.7239 24.95 312.6079 0.23171298 1 Complies Neutron Engineering Inc. EUT: 300Mbps High Performance Wireless-N Broadband Router Model Name : WF-2409 Temperature: 25 °C Relative Humidity: 60 % Pressure: 1012 hPa Test Voltage : AC 120V/60Hz Test Mode : CH01/CH06/CH11-802.11n 20MHz – ANT 1 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 5.71 3.7239 19.16 82.4138 0.061087221 Complies 5.71 3.7239 19.26 84.3335 0.062510131 Complies 5.71 3.7239 19.76 94.6237 0.070137511 Complies EUT: 300Mbps High Performance Wireless-N Broadband Router Model Name : WF-2409 Temperature: 25 °C Relative Humidity: 60 % Pressure: 1012 hPa Test Voltage : AC 120V/60Hz Test Mode : CH01/CH06/CH11-802.11n 20MHz – ANT 2 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 5.71 3.7239 19.21 83.3681 0.061794581 Complies 5.71 3.7239 19.27 84.5279 0.062654231 Complies 5.71 3.7239 19.68 92.8966 0.068857361 Complies EUT: 300Mbps High Performance Wireless-N Broadband Router Model Name : WF-2409 Temperature: 25 °C Relative Humidity: 60 % Pressure: 1012 hPa Test Voltage : AC 120V/60Hz Test Mode : CH01/CH06/CH11-802.11n 20MHz – ANT 1+ANT 2 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 8.71 7.4302 22.20 165.9587 0.245442841 Complies 8.71 7.4302 22.28 169.0441 0.250005961 Complies 8.71 7.4302 22.73 187.4995 0.277300321 Complies Neutron Engineering Inc. EUT: 300Mbps High Performance Wireless-N Broadband Router Model Name : WF-2409 Temperature: 25 °C Relative Humidity: 60 % Pressure: 1012 hPa Test Voltage : AC 120V/60Hz Test Mode : CH03/CH06/CH09-802.11n 40MHz – ANT 1 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 5.71 3.7239 19.74 94.1890 0.069815261 Complies 5.71 3.7239 19.58 90.7821 0.067289981 Complies 5.71 3.7239 19.48 88.7156 0.065758271 Complies EUT: 300Mbps High Performance Wireless-N Broadband Router Model Name : WF-2409 Temperature: 25 °C Relative Humidity: 60 % Pressure: 1012 hPa Test Voltage : AC 120V/60Hz Test Mode : CH03/CH06/CH09-802.11n 40MHz – ANT 2 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 5.71 3.7239 19.65 92.2571 0.068383351 Complies 5.71 3.7239 19.46 88.3080 0.065456141 Complies 5.71 3.7239 19.38 86.6962 0.064261431 Complies EUT: 300Mbps High Performance Wireless-N Broadband Router Model Name : WF-2409 Temperature: 25 °C Relative Humidity: 60 % Pressure: 1012 hPa Test Voltage : AC 120V/60Hz Test Mode : CH03/CH06/CH09-802.11n 40MHz – ANT 1+ANT 2 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 8.71 7.4302 22.71 186.6380 0.276026241 Complies 8.71 7.4302 22.53 179.0606 0.264819751 Complies 8.71 7.4302 22.44 175.3881 0.259388291 Complies
Neutron Engineering Inc. Report No.: NEI-FCCP-1-1203C098 Page 1 of 135 FCC Radio Test Report FCC ID: T58WF2409B This report concerns (check one) : Original Grant Class II Change Issued Date : Apr. 18, 2012 Project No. : 1203C098 Equipment : 300Mbps High Performance Wireless-N Broadband Router Model Name : WF-2409; WF2409 Applicant : NETIS SYSTEMS CO., LTD. Address : 9F,B Block, Tsinghua Information Park, High-tech Industrial Park, Nanshan, Shenzhen, China Manufacturer : Shenzhen Netcore Industrial Ltd. Address : 9F,B Block, Tsinghua Information Park, High-tech Industrial Park, Nanshan, Shenzhen, China Tested by: Neutron Engineering Inc. EMC Laboratory Date of Receipt: Mar. 14, 2012 Date of Test: Mar. 14, 2012 ~ Apr. 17, 2012 Testing Engineer : (David Mao) Technical Manager : (Leo Hung) Authorized Signatory : (Steven Lu) Neutron Engineering Inc. No.3,Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL : (0769) 8318-3000 FAX : (0769) 8319-6000 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1203C098 Page 2 of 135 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C, or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutron shall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Neutron Engineering Inc. Report No.: NEI-FCCP-1-1203C098 Page 3 of 135 Table of Contents Page 1 . CERTIFICATION 5 2 . SUMMARY OF TEST RESULTS 6 2.1 TEST FACILITY 7 2.2 MEASUREMENT UNCERTAINTY 7 3 . GENERAL INFORMATION 8 3.1 GENERAL DESCRIPTION OF EUT 8 3.2 DESCRIPTION OF TEST MODES 10 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 11 3.4 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 12 3.5 DESCRIPTION OF SUPPORT UNITS 13 4 . EMC EMISSION TEST 14 4.1 CONDUCTED EMISSION MEASUREMENT 14 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 14 4.1.2 MEASUREMENT INSTRUMENTS LIST AND SETTING 14 4.1.3 TEST PROCEDURE 15 4.1.4 DEVIATION FROM TEST STANDARD 15 4.1.5 TEST SETUP 15 4.1.6 EUT OPERATING CONDITIONS 15 4.1.7 TEST RESULTS 16 4.2 RADIATED EMISSION MEASUREMENT 18 4.2.1 RADIATED EMISSION LIMITS 18 4.2.2 MEASUREMENT INSTRUMENTS LIST ANS SETTING 19 4.2.3 TEST PROCEDURE 20 4.2.4 DEVIATION FROM TEST STANDARD 20 4.2.5 TEST SETUP 21 4.2.6 EUT OPERATING CONDITIONS 22 4.2.7 TEST RESULTS (BELOW 30MHZ) 23 4.2.8 TEST RESULTS (BETWEEN 30 – 1000 MHZ) 24 4.2.9 TEST RESULTS (ABOVE 1000 MHZ) 26 5 . BANDWIDTH TEST 74 5.1 APPLIED PROCEDURES / LIMIT 74 5.1.1 MEASUREMENT INSTRUMENTS LIST 74 5.1.2 TEST PROCEDURE 74 5.1.3 DEVIATION FROM STANDARD 74 5.1.4 TEST SETUP 74 5.1.5 EUT OPERATION CONDITIONS 74 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1203C098 Page 4 of 135 Table of Contents Page 5.1.6 TEST RESULTS 75 6 . MAXIMUM OUTPUT POWER TEST 83 6.1 APPLIED PROCEDURES / LIMIT 83 6.1.1 MEASUREMENT INSTRUMENTS LIST 83 6.1.2 TEST PROCEDURE 83 6.1.3 DEVIATION FROM STANDARD 83 6.1.4 TEST SETUP 83 6.1.5 EUT OPERATION CONDITIONS 83 6.1.6 TEST RESULTS 84 7 . ANTENNA CONDUCTED SPURIOUS EMISSION 88 7.1 APPLIED PROCEDURES / LIMIT 88 7.1.1 MEASUREMENT INSTRUMENTS LIST 88 7.1.2 TEST PROCEDURE 88 7.1.3 DEVIATION FROM STANDARD 88 7.1.4 TEST SETUP 88 7.1.5 EUT OPERATION CONDITIONS 88 7.1.6 TEST RESULTS 89 8 . POWER SPECTRAL DENSITY TEST 119 8.1 APPLIED PROCEDURES / LIMIT 119 8.1.1 MEASUREMENT INSTRUMENTS LIST 119 8.1.2 TEST PROCEDURE 119 8.1.3 DEVIATION FROM STANDARD 119 8.1.4 TEST SETUP 119 8.1.5 EUT OPERATION CONDITIONS 119 8.1.6 TEST RESULTS 120 9 . EUT TEST PHOTO 132 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1203C098 Page 5 of 135 1. CERTIFICATION E q u i p m e n t : 300Mbps High Performance Wireless-N Broadband Router Brand Name : netis Model Name : WF-2409; WF2409 A p p l i c a n t : NETIS SYSTEMS CO., LTD. F a c t o r y : Dongguan City Netcore Network Technology Co.,Ltd. A d d r e s s : No.10-1,Sankeng Road,Qinghutou,Tangxia Town,Dongguan City Date of Test : Mar. 14, 2012 ~ Apr. 17, 2012 T e s t I t e m : ENGINEERING SAMPLE Standards : FCC Part15, Subpart C(15.247) / ANSI C63.4-2003 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCP-1-1203C098) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of NVLAP and TAF according to the ISO-17025 quality assessment standard and technical standard(s). Neutron Engineering Inc. Report No.: NEI-FCCP-1-1203C098 Page 6 of 135 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247(d) Antenna conducted Spurious E…
Text truncated - open the document above for the full version.
Neutron Engineering Inc. Report No.: NEI-FCCP-1-1203C098 Page 131 of 134 9. EUT TEST PHOTO Conducted Measurement Photos Neutron Engineering Inc. Report No.: NEI-FCCP-1-1203C098 Page 131 of 134 9. EUT TEST PHOTO Conducted Measurement Photos Neutron Engineering Inc. Report No.: NEI-FCCP-1-1203C098 Page 132 of 134 Radiated Measurement Photos 9K~ 30MHz Neutron Engineering Inc. Report No.: NEI-FCCP-1-1203C098 Page 132 of 134 Radiated Measurement Photos 9K~ 30MHz Neutron Engineering Inc. Report No.: NEI-FCCP-1-1203C098 Page 133 of 134 Radiated Measurement Photos 30MHz~1000MHz Neutron Engineering Inc. Report No.: NEI-FCCP-1-1203C098 Page 133 of 134 Radiated Measurement Photos 30MHz~1000MHz Neutron Engineering Inc. Report No.: NEI-FCCP-1-1203C098 Page 134 of 134 Radiated Measurement Photos Above 1000MHz Neutron Engineering Inc. Report No.: NEI-FCCP-1-1203C098 Page 134 of 134 Radiated Measurement Photos Above 1000MHz
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 2 | 15C | 2.42 GHz - 2.45 GHz | 187.00 mW |
