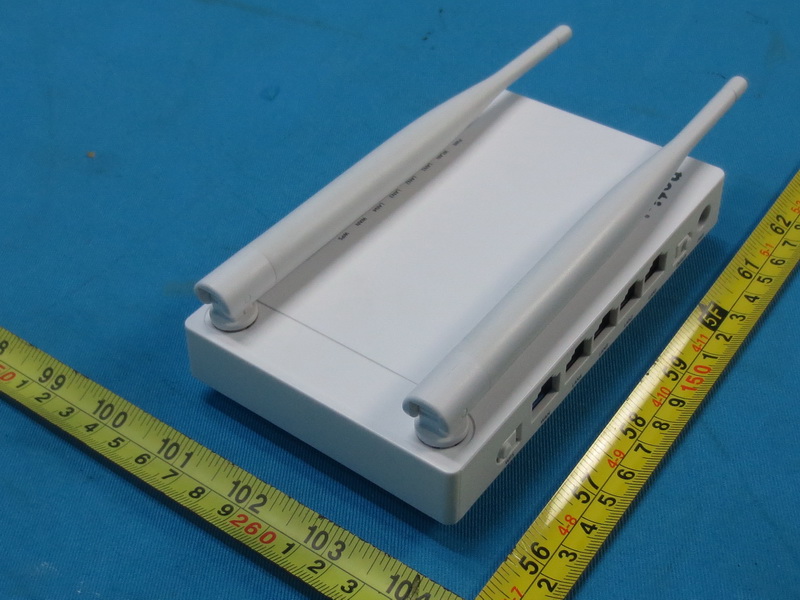

T58WF2419ER300Mbps Wireless N Router

netis Wireless N Router Quick Installation Guide R 1.Package Contents *This QIG is for all netis 150Mbps/300Mbps wireless N routers, including models- WF2409, WF2409D, WF2411, WF2411D, WF2412, WF2414, WF2414D, WF2419, WF2419D, WF2419E, WF2420, WF2411E, WF2422E, WF2409E, etc. * The product model shown in this QIG is WF2419, as an example. Power Adapter Ethernet Cable Wireless N Router QIG netis Wireless N Router Quick Installation Guide netis Wireless N Router Quick Installation Guide 1 2.Hardware Connection 2.1. Power off your Modem. 2.2. Connect the WAN port on netis Router to the Modem's LAN port with an Ethernet cable. 2.3. Connect your computer to one of the LAN ports on netis Router with an Ethernet cable. 2.4. Power on your Modem. 2.5. Plug the provided Power Adapter into the PWR jack of netis Router and the other end to a standard electrical socket. Then wait for one minute. CABLE CABLE LINE IN POWER xDSL/Cable Modem Notebook with wireless network adapter Computer with wired network adapter 5 POWER netis Wireless N Router Quick Installation Guide 2 3.Configure the Router via Web Management Page 3.1. Set the IP address of the wired network adapter on your computer as“Automatic” or “DHCP”. For Windows 8/ 7/Vista 1) Go to “Settings” (Win 8)/ “Start” (Win 7/Vista)> “Control Panel”. 2) Left-click on “Network and Internet”> “Network and Sharing Center”> “Change adapter settings” (Win 8/7)/ “Manage network connections” (Win Vista). 3) Right-click on “Local Area Connection” and left-click on “Properties”. 4) Double-click on “Internet Protocol Version 4 (TCP/IPv4)”. 5) Select “Obtain an IP address automatically” and “Obtain DNS server address automatically” then left-click on “OK”. For Windows XP/2000 1) Go to “Start”> “Control Panel”. 2) Left-click on “Network and Internet Connections”> “Network Connections”. 3) Right-click on “Local Area Connection” and left-click on “Properties”. 4) Double-click on “Internet Protocol (TCP/IP)”. 5) Select “Obtain an IP address automatically” and “Obtain DNS server address automatically” then left-click on “OK”. For MAC OS 1) Click on the “Apple” menu> “System Preferences”. 2) Click on the “Network” icon. 3) Click on “Ethernet” in the left side box and click on “Advanced” in the lower right corner. 4) In the top options, select “TCP/IP”. 5 ) In the pull-down menu next to “Configure Ipv4”, select “Using DHCP”. 6) Click “OK” then “Apply”. 3.2. Open your browser and type 192.168.1.1 in the address field to visit router's web management page. 192.168.1.1 netis Wireless N Router Quick Installation Guide 3 1) In “Quick Setup” page, select your Internet Connection Type. If “DHCP (Cable Modem)” is selected, the router will automatically receive the IP parameters from your ISP (Internet Service Provider). If “Static IP” is selected, please enter the IP Address/Subnet Mask/Default Gateway/DNS Servers given by your ISP. If “PPPoE” is selected, please enter the Username and Password given by your ISP. 2) Under Wireless Setup, configure your wireless network name (SSID) and password. 3) Left-click on “Save” to make your settings take effect. 3. 3. Select the language as you need on the top box,default is in English. Tip 1: Default IP address: 192.168.1.1 Default SSID: netis Default wireless password: password Tip 2: You can click on button on the top for other Internet connection types and further settings. netis Wireless N Router Quick Installation Guide 4 How do I restore my netis Router's configuration to its default settings? With the router powered on, use a pin to press and hold the Default button on the rear panel for 8 to 10 seconds before releasing it. The router will reboot and all configurations are back to factory default. Q A 4.Troubleshooting What can I do if my Internet cannot be accessed? 1) Check to verify the hardware connections are correct. Please refer to the “Hardware Connection” step. 2) Login to netis Router's web management page and ensure that you set the correct Internet Connection Type. For cable modem users, please configure “MAC Clone” additionally. Q A On the left-side menu, left-click on > “Network”> “WAN”. And in the middle page, left-click on “Advanced”> “MAC Clone” and then “Save” it. NETIS SYSTEMS CO., LTD. www.netis-systems.com MADE IN CHINA Technical Support: USA/ Canada: Toll Free: +1 866 71 network (+1 866 716 3896) E-mail: [email protected] Other Regions: E-mail: [email protected] 3) Reboot the modem first and then netis Router. Wait for one minute before you check the Internet again. 4) If Internet access is not available, please connect your computer directly to your modem and try the Internet again. If the Internet is still not working, please contact your ISP for further help. Router Inalámbrico N netis Guía de Instalación Rápida R 1.Contenido del Empaque Adaptador de alimentación Cable Ethernet Router inalámbrico N Guía de Instalación Rápida netis Wireless N Router Quick Installation Guide Guía de Instalación Rápida del Router Inalámbrico N netis 1 2.Conexión del Hardware 2.1. Apague el Módem. 2.2. Conecte el puerto de red de área amplia (WAN) del Router netis al puerto de red de área local (LAN) del módem con un cable Ethernet. 2.3. Conecte su ordenador a uno de los puertos de red de área local (LAN) del router netis con un cable Ethernet. 2.4. Encienda el Módem. 2.5. Conecte el adaptador de alimentación suministrado en el conector de alimentación (PWR) del router netis y el otro extremo a una toma de corriente estándar. Luego, espere durante un minuto. CABLE CABLE ENTRADA DE LINEA ALIMENTACIÓN XDSL / Cable de Modem portátil (notebook) con el adaptador de red inalámbrica 5 ALIMENTACIÓN *Esta guía de instalación rápida es para todos los router inalámbrico N netis incluyendo modelos WF2409, WF2409D, WF2411, WF2411D, WF2412, WF2414, WF2414D, WF2419, WF2419D, WF2419E, WF2420, WF2411E, WF2422E, WF2409E, etc. *El ejemplo del modelo del producto que se muestra en esta Guía de Instalación Rápida es WF2419. ord…

Text truncated - open the document above for the full version.

NETIS SYSTEMS CO., LTD. To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Subject: Request for confidentiality FCC ID: T58WF2419ER Dear FCC TCB: 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Schematic Block diagram Operational description Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. Sincerely, Selena Bai 2015-3-3

RF_160, Issue 03 Declaration of Authorization We Name: NETIS SYSTEMS CO., LTD. Address: 4F&5F R&D Building,Oriental Cyberport, High-Tech Industrial Park, Nanshan City: Shenzhen Country: China Declare that: Name Representative of agent: Cathy Wang Agent Company name: BTL Inc. Address: No.3 Jinshagang 1st Road, Shixia, Dalang Town City: Dong Guan Country: China is authorized to apply for Certification of the following product(s), including the signing of the related documents such as 731 form(s): Product description: 300Mbps Wireless N Router Type designation: WF2419E Trademark: netis on our behalf. Date: 2015-3-3 City: Shenzhen Name: Selena Bai Function: Director Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

NETIS SYSTEMS CO., LTD. Ad Hoc Mode Declaration We, the undersigning company Name: NETIS SYSTEMS CO., LTD. Address: 4F&5F R&D Building,Oriental Cyberport, High-Tech Industrial Park, Nanshan City: Shenzhen Country: China Hereby confirm that the following products: Product description: 300Mbps Wireless N Router Type designation: WF2419E Brand: netis Doesn’t have Ad Hoc Mode function on “non-US frequencies”. In addition, the frequency selection feature is disabled by firmware for devices marketed to the US. For this product, only channels 1~11 will be used in USA. Country code selection is disabled. Signature: Name: Selena Bai/ Director Date: 2015-3-3

Project No.: 1502C109 Page 2 of 9 Project No.: 1502C109 Page 3 of 9

ODEHOORFDWLRQ

Project No.: 1502C109 Page 4 of 9 Project No.: 1502C109 Page 5 of 9 Project No.: 1502C109 Page 6 of 9 Project No.: 1502C109 Page 7 of 9 Project No.: 1502C109 Page 8 of 9 Project No.: 1502C109 Page 9 of 9

FCC RF EXPOSURE REPORT FCC ID: T58WF2419ER Equipment : 300Mbps Wireless N Router Model : WF2419E Applicant : NETIS SYSTEMS CO., LTD Address : 4F&5F R&D Building，Oriental Cyberport, High-Tech Industrial Park, Nanshan, Shenzhen, China According: : FCC Guidelines for Human Exposure IEEE C95.1 BTL INC. No.3, Jinshagang 1st Road, Shixia, Dalang Town, Dongguan, China. TEL: +86-769-8318-3000 FAX: +86-769-8319-6000 MPE CALCULATION METHOD: Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiato r R = distance to the center of radiation of the antenna Table for Filed Antenna Ant. Brand Model Name Antenna Type ConnectorGain(dBi) Note 1 N/A N/A Dipole N/A 4.97 TX/RX 2 N/A N/A Dipole N/A 4.97 TX/RX TEST RESULTS EUT： 300Mbps Wireless N Router Model Name : WF2419E Temperature： 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode ： TX B MODE /CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 4.97 3.1405 16.92 49.2040 0.030757451 Complies 4.97 3.1405 16.94 49.4311 0.030899421 Complies 4.97 3.1405 17.03 50.4661 0.031546441 Complies EUT： 300Mbps Wireless N Router Model Name : WF2419E Temperature： 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode ： TX G MODE /CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 4.97 3.1405 22.43 174.9847 0.109383141 Complies 4.97 3.1405 22.71 186.6380 0.116667631 Complies 4.97 3.1405 22.84 192.3092 0.120212701 Complies EUT： 300Mbps Wireless N Router Model Name : WF2419E Temperature: 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode : TX N-20M MODE_ Total /CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 4.97 3.1405 24.45 278.6121 0.174160781 Complies 4.97 3.1405 24.57 286.4178 0.179040121 Complies 4.97 3.1405 24.44 277.9713 0.173760221 Complies EUT： 300Mbps Wireless N Router Model Name : WF2419E Temperature: 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode : TX N-40M MODE_Total /CH03, CH06, CH09 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 4.97 3.1405 24.5 281.8383 0.176177471 Complies 4.97 3.1405 24.37 273.5269 0.170981991 Complies 4.97 3.1405 24.45 278.6121 0.174160781 Complies Note: the calculated distance is 20 cm.

Report No.: BTL-FCCP-1-1502C109 Page 1 of 143 FCC Radio Test Report FCC ID: T58WF2419ER This report concerns (check one): Original Grant Class II Change Project No. : 1502C109 Equipment : 300Mbps Wireless N Router Model Name : WF2419E Applicant : NETIS SYSTEMS CO., LTD Address : 4F&5F R&D Building, Oriental Cyberport, High-Tech Industrial Park, Nanshan, Shenzhen, China. Date of Receipt : Feb. 12, 2015 Date of Test : Feb. 12, 2015 ~ Mar. 04, 2015 Issued Date : Mar. 05, 2015 Tested by : BTL Inc. Testing Engineer : (David Mao) Technical Manager : (Leo Hung) Authorized Signatory : (Steven Lu) BTL INC. No.3, Jinshagang 1st Road, Shixia, Dalang Town, Dongguan, Guangdong, China. TEL: +86-769-8318-3000 FAX: +86-769-8319-6000 Report No.: BTL-FCCP-1-1502C109 Page 2 of 143 Declaration BTL represents to the client that testing i s done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C, or National Institute of Standards and Technology (NIST) of U.S.A. BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. BTL’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. Thi s report is the confidential property of the client. As a mutual protection to the clients, the public and BTL-self, extracts from the test report shall not be reproduced except in full with BTL’s authorized written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s )/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Report No.: BTL-FCCP-1-1502C109 Page 3 of 143 Table of Contents Page 1 . CERTIFICATION 6 2 . SUMMARY OF TEST RESULTS 7 2.1 TEST FACILITY 8 2.2 MEASUREMENT UNCERTAINTY 8 3 . GENERAL INFORMATION 9 3.1 GENERAL DESCRIPTION OF EUT 9 3.2 DESCRIPTION OF TEST MODES 11 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 12 3.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 13 3.5 DESCRIPTION OF SUPPORT UNITS 13 4 . EMC EMISSION TEST 14 4.1 CONDUCTED EMISSION MEASUREMENT 14 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 14 4.1.2 TEST PROCEDURE 14 4.1.3 DEVIATION FROM TEST STANDARD 14 4.1.4 TEST SETUP 15 4.1.5 EUT OPERATING CONDITIONS 15 4.1.6 EUT TEST CONDITIONS 15 4.1.7 TEST RESULTS 15 4.2 RADIATED EMISSION MEASUREMENT 16 4.2.1 RADIATED EMISSION LIMITS 16 4.2.2 TEST PROCEDURE 17 4.2.3 DEVIATION FROM TEST STANDARD 17 4.2.4 TEST SETUP 17 4.2.5 EUT OPERATING CONDITIONS 18 4.2.6 EUT TEST CONDITIONS 18 4.2.7 TEST RESULTS (9KHZ TO 30MHZ) 19 4.2.8 TEST RESULTS (BETWEEN 30MHZ TO 1000 MHZ) 19 4.2.9 TEST RESULTS (ABOVE 1000 MHZ) 19 5 . BANDWIDTH TEST 20 5.1 APPLIED PROCEDURES 20 5.1.1 TEST PROCEDURE 20 5.1.2 DEVIATION FROM STANDARD 20 5.1.3 TEST SETUP 20 5.1.4 EUT OPERATION CONDITIONS 20 5.1.5 EUT TEST CONDITIONS 20 5.1.6 TEST RESULTS 20 Report No.: BTL-FCCP-1-1502C109 Page 4 of 143 Table of Contents Page 6 . MAXIMUM PEAK CONDUCTED OUTPUT POWER TEST 21 6.1 APPLIED PROCEDURES / LIMIT 21 6.1.1 TEST PROCEDURE 21 6.1.2 DEVIATION FROM STANDARD 21 6.1.3 TEST SETUP 21 6.1.4 EUT OPERATION CONDITIONS 21 6.1.5 EUT TEST CONDITIONS 21 6.1.6 TEST RESULTS 21 7 . ANTENNA CONDUCTED SPURIOUS EMISSION 22 7.1 APPLIED PROCEDURES / LIMIT 22 7.1.1 TEST PROCEDURE 22 7.1.2 DEVIATION FROM STANDARD 22 7.1.3 TEST SETUP 22 7.1.4 EUT OPERATION CONDITIONS 22 7.1.5 EUT TEST CONDITIONS 22 7.1.6 TEST RESULTS 22 8 . POWER SPECTRAL DENSITY TEST 23 8.1 APPLIED PROCEDURES / LIMIT 23 8.1.1 TEST PROCEDURE 23 8.1.2 DEVIATION FROM STANDARD 23 8.1.3 TEST SETUP 23 8.1.4 EUT OPERATION CONDITIONS 23 8.1.5 EUT TEST CONDITIONS 23 8.1.6 TEST RESULTS 23 9 . MEASUREMENT INSTRUMENTS LIST 24 10 . EUT TEST PHOTO 26 ATTACHMENT A - CONDUCTED EMISSION 30 ATTACHMENT B - RADIATED EMISSION (9KHZ TO 30MHZ) 33 ATTACHMENT C - RADIATED EMISSION (30MHZ TO 1000MHZ) 35 ATTACHMENT D - RADIATED EMISSION (ABOVE 1000MHZ) 42 ATTACHMENT E - BANDWIDTH 91 ATTACHMENT F – MAXIMUM PEAK CONDUCTED OUTPUT POWER 100 ATTACHMENT G - ANTENNA CONDUCTED SPURIOUS EMISSION 104 ATTACHMENT H - POWER SPECTRAL DENSITY 129 Report No.: BTL-FCCP-1-1502C109 Page 5 of 143 REPORT ISSUED HISTORY Issued No. Description Issued Date BTL-FCCP-1-1502C109 Original Issue. Mar. 05, 2015 Report No.: BTL-FCCP-1-1502C109 Page 6 of 143 1. CERTIFICATION Equipment : 300Mbps Wireless N Router Brand Name : netis Model Name : WF2419E Applicant : NETIS SYSTEMS CO., LTD Manufacturer : Shenzhen Netcore Industrial Ltd. Address : 4F&5F R&D Building, Oriental Cyberport, High-Tech Industrial Park, Nanshan, Shenzhen, China. Factory : Dongguan City Netcore Network Technology Co.,Ltd. Address : No.10-1,Sankeng Road,Qinghutou,Tangxia Town,Dongguan City Date of Test : Feb. 12, 2015 ~ Mar. 04, 2015 Test Sample : ENGINEERING SAMPLE Standard(s) : FCC Part15, Subpart C: 2013 (15.247) / ANSI C63.4-2009 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. BTL-FCCP-1-1502C109) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). Report No.: BTL-FCCP-1-1502C109 Page 7 of 143 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standard…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-1-1502C109 Page 26 of 143 10. EUT TEST PHOTO Conducted Measurement Photos Report No.: BTL-FCCP-1-1502C109 Page 27 of 143 Radiated Measurement Photos 9KHz to 30MHz Report No.: BTL-FCCP-1-1502C109 Page 28 of 143 Radiated Measurement Photos 30MHz to 1000MHz Report No.: BTL-FCCP-1-1502C109 Page 29 of 143 Radiated Measurement Photos Above 1000MHz
