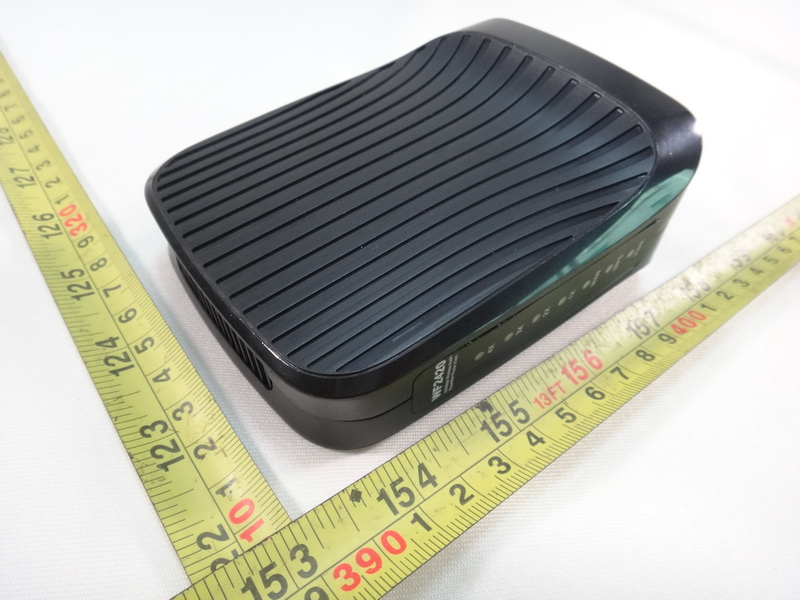

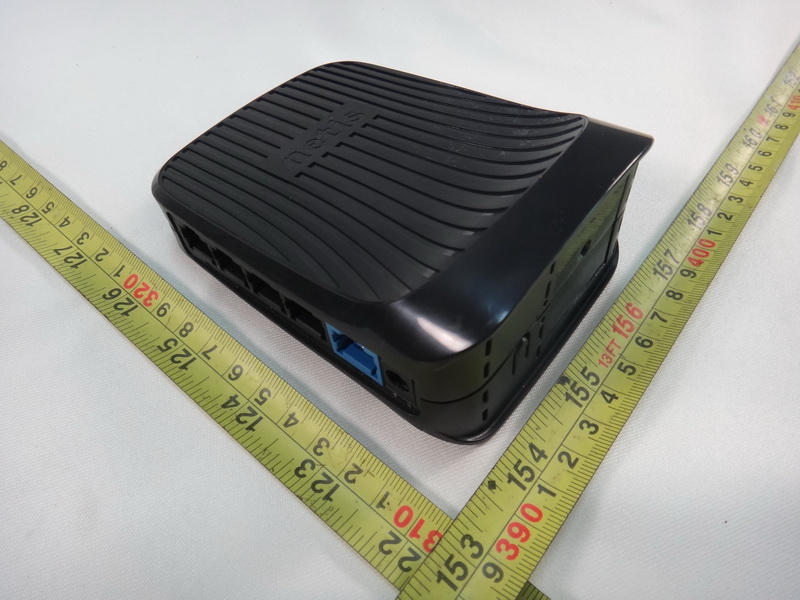

T58WF2420R300Mbps Wireless-N AP/ Repeater / Router client

150Mbps/300Mbps Wireless-N AP/ Repeater/ Router client WF2412 WF2420 User Manual V1.0 2012-02-14 150Mbps/300Mbps Wireless-N AP / Repeater / Router client User Manual 1 Certification FCC CE FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. (Example- use only shielded interface cables when connecting to computer or peripheral devices) FCC Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Caution! The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user authority to operate the equipment. 150Mbps/300Mbps Wireless-N AP / Repeater / Router client User Manual 2 Package Contents The following items should be found in your package:  150Mbps/300Mbps Wireless-N AP/ Repeater/ Router client  Power Adapter  CD-Rom  Ethernet cable Make sure that the package contains above items. If any of the above items is missing or damaged, please contact the store you bought this product from. Brand and Copyright Announcement Copyright © 2011 Netis Corporation. All rights reserved is a registered trademark of Netis Corporation. Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Reproduction in any manner without the permission of Netis Corporation is strictly forbidden All the information in this document is subject to change without notice. USA/Canada Technical Support Phone: 1-866-71-network or 1-866-716-3896 (free in USA & Canada) E-mail: [email protected] 150Mbps/300Mbps Wireless-N AP / Repeater / Router client User Manual 3 Contents 1. INTRODUCTION ......................................................................................................................... 6 1.1. PRODUCT OVERVIEW............................................................................................................... 6 1.2. MAIN FEATURES...................................................................................................................... 6 1.3. SUPPORTING STANDARD AND PROTOCOL................................................................................. 7 1.4. WORKING ENVIRONMENT........................................................................................................ 7 2. HARDWARE INSTALLATION................................................................................................... 8 2.1. SYSTEM REQUIREMENT........................................................................................................... 8 2.2. PANEL...................................................................................................................................... 8 2.3. RESTORE TO FACTORY CONFIGURATION................................................................................... 9 2.4. HARDWARE INSTALLATION PROCEDURES.............................................................................. 10 3. LOGIN.......................................................................................................................................... 11 3.1. CONFIGURE COMPUTER.......................................................................................................... 11 3.1.1. Windows 98/Me ............................................................................................................ 11 3.1.2. Windows 2000 .............................................................................................................. 12 3.1.3. Windows XP ................................................................................................................. 14 3.1.4. Windows Vista .............................................................................................................. 17 3.1.5. Windows 7 .................................................................................................................... 22 3.1.6. MAC OS ....................................................................................................................... 24 3.2. CHECKING CONNECTION WITH THE ROUTER.......................................................................... 26 3.3. LOGIN....…

Text truncated - open the document above for the full version.

Neutron Engineering Inc. Project No.: 1205C015B Page 2 of 7 1205C015B 1205C015B Neutron Engineering Inc. Project No.: 1205C015B Page 2 of 7 1205C015B 1205C015B Neutron Engineering Inc. Project No.: 1205C015B Page 3 of 7 1205C015B 1205C015B Neutron Engineering Inc. Project No.: 1205C015B Page 3 of 7 1205C015B 1205C015B

Neutron Engineering Inc. Project No.: 1205C015B Page 4 of 7 1205C015B 1205C015B Neutron Engineering Inc. Project No.: 1205C015B Page 4 of 7 1205C015B 1205C015B Neutron Engineering Inc. Project No.: 1205C015B Page 5 of 7 1205C015B 1205C015B Neutron Engineering Inc. Project No.: 1205C015B Page 5 of 7 1205C015B 1205C015B Neutron Engineering Inc. Project No.: 1205C015B Page 6 of 7 1205C015B 1205C015B Neutron Engineering Inc. Project No.: 1205C015B Page 6 of 7 1205C015B 1205C015B Neutron Engineering Inc. Project No.: 1205C015B Page 7 of 7 1205C015B 1205C015B Neutron Engineering Inc. Project No.: 1205C015B Page 7 of 7 1205C015B 1205C015B

- 1 - / 光启--全球智力引领产业革命 产品测试报告 Testing Report - 2 - / 光启--全球智力引领产业革命 KCI2401天线测试报告 Testing Report of KCI2401 Product Antenna 文件編號 : KC- 17-DB-003/A0 2011/9/7 - 3 - / 光启--全球智力引领产业革命 摘要： 本测 试报告记录了KCI2401单频内置天线的有源和无源性能，包括S参数，驻波比， Smith圆图，方向图和吞吐量等参数的测量数据及图表。 一、 测量环境 1 无源测量环境 1.1 反射参数测量环境 测量设备：网络分析仪（Agilent E5071C） 测量设置： （1）使用校准件对网络分析仪进行单端口校准。 （2）将待测天线连接到网络分析仪上。 （3）测量S11、驻波比和Smith圆图。 - 4 - / 光启--全球智力引领产业革命 1.2 方向图测量环境 测量设备：网络分析仪，微波暗室，测试软件(VeryCTE) 微波暗室说明： 图1 微波暗室量测系统架构 图1为微波暗室内的设备架构以及和网络分析仪的连线图。待测天线(AUT)和标准天线 之间的距离为6.5米。待测天线放置在旋转台中心位置上，通过测试软件控制旋转台进行水 平方向Theta（θ）和垂直方向Phi（φ）两个方向的旋转，由此可以完成对待测天线的方 向图测试。测试完成后，可通过测试软件计算生成相应的辐射方向图和相关的量测参数。 - 5 - / 光启--全球智力引领产业革命 2 有源测量环境 吞吐量测量： (1) 测试地点：KC暗室&红树林 (2) 测试软件：IxChariot5.4 & Endpoint5.0 (3) 测试设备： 300M无线网卡一台，150M无线网卡一台，测试笔记本两台 二、 天线 参数 1 天线参数 1.1 工作频率：2400～2483MHz 1.2 阻抗：50Ω 1.3 极化方式：线极化 1.4 天线增益：4.10dBi - 6 - / 光启--全球智力引领产业革命 三、 天线结构和尺寸 Picture : Antenna and Testing RF Connector 天线尺寸见表1。 表1 天线尺寸 型号 长(mm) 宽(mm) 厚(mm) KCI2401单频天线 24 17.5 0.4 - 7 - / 光启--全球智力引领产业革命 四、 量测结果： 1 S11、Smith圆图、驻波比 KCI2401单频天线S参数 2.40GHz 2.44GHz 2.48GHz SWR Smith S11 SWR Smith S11 SWR Smith S11 KC 1.218 47.702-j9.341 -20.166 1.177 50.350-j8.205 -21.769 1.187 55.407-j7.133 -21.419 - 8 - / 光启--全球智力引领产业革命 2方向图 2.4GHz E面方向图 2.4GHz H面方向图 - 9 - / 光启--全球智力引领产业革命 2.44GHz E面方向图: 2.44GHz H面方向图： - 10 - / 光启--全球智力引领产业革命 2.48GHz E面方向图： 2.48GHz H面方向图： - 11 - / 光启--全球智力引领产业革命 2 吞吐量 (1) 近场测试 测试地点：KC暗室 测试时间：1分钟 测试设备：150M无线网卡，300M无线网卡 测试方向：测试天线竖直，测试150M网卡旋转，测试四个不同方向。 测试距离：近场1米测试 测试方法： 1． 连接150M无线网卡到发射用笔记本。 2． 连接300M无线网卡到接收用笔记本。 3． 设置网卡的IP模式，与测试软件配置，测试不同信道的上行/下行/双向吞吐量。 4. 考虑到实际使用环境，对网卡的方向与放置位置做相应改变, 测试吞吐量。 5. 比较不同的天线的吞吐量差异。 1米近距离吞吐量测试表 天线 型号 信 道 前 后 左 右 平均 上行 下行 双向 上行 下行 双向 上行 下 行 双 向 上行 下 行 双 向 KC 6 102.1 95.0 88.2 105.3 96.5 92.6 56.6 84.1 64.3 102.3 96.5 94.7 89.8 鞭状 6 78.8 88.1 73.0 59.2 65.4 51.6 67.5 76.7 59.7 92.4 87.2 66.4 72.2 结论: 由以上图形可知，KCI2401单频内置天线的整体性能较鞭状天线有明显优势，稳定性 强，并且一致性较好。 - 12 - / 光启--全球智力引领产业革命 (2) 远场测试 测试地点：红树林 测试时间：1分钟 测试设备：150M无线网卡,300M无线网卡 测试方向：测试天线竖直，测试150M网卡旋转，测试四个不同方向。 测试距离：远场44米测试 测试方法： 1． 连接150M无线网卡到发射用笔记本。 2． 连接300M无线网卡到接收用笔记本。 3． 设置网卡的IP模式，与测试软件配置，测试不同信道的上行/下行/双向吞吐量。 4. 考虑到实际使用环境，对网卡的方向与放置位置做相应改变, 测试吞吐量。 5. 比较不同的天线的吞吐量差异。 44米远场对比测试表 天线 型号 信 道 前 后 左 右 平均 上行 下行 双向 上行 下行 双向 上行 下行 双向 上行 下行 双向 KC 6 58 76 74 55 86 75 48 73 75 54 77 70 68.4 鞭状 6 58 55 37 49 70 35 58 88 68 55 72 61 58.8 30 35 40 45 50 55 60 65 70 75 KC鞭状 Total Test Thoughput Average Data KCI2401 Antenna 鞭状天线 结论: 由以上图形可知，KCI2401单频内置天线的远距离吞吐量测试结果亦较鞭狀天線为稳 定。 - 13 - / 光启--全球智力引领产业革命 3. 綜合测试结果說明 KCI2401超材料单频内置天线性能较为稳定，一致性好，较传统的鞭状天线有优势。針 對相對應的参数调整，可以使天线的性能更佳，可在WLAN领域中得到较好的应用。

- 1 - / 光启--全球智力引领产业革命 产品测试报告 Testing Report - 2 - / 光启--全球智力引领产业革命 KCI2402天线测试报告 Testing Report of KCI2402 Product Antenna 文件編號 : KC-17-DB-011/A0 2011/9/15 - 3 - / 光启--全球智力引领产业革命 摘要： 本测试报告记录了KCI2402单频内置天线的有源和无源性能，包括S参数，驻波比， Smith圆图，方向图和吞吐量等参数的测量数据及图表。 一 测量环境 1 无源测量环境 1.1 反射参数测量环境 测量设备：网络分析仪（Agilent E5071C） 测量设置： （1）使用校准件对网络分析仪进行单端口校准。 （2）将待测天线连接到网络分析仪上。 （3）测量S11、驻波比和Smith圆图。 - 4 - / 光启--全球智力引领产业革命 1.2 方向图测量环境 测量设备：网络分析仪，微波暗室，测试软件(VeryCTE) 微波暗室说明： 图1 微波暗室量测系统架构 图1为微波暗室内的设备架构以及和网络分析仪的连线图。待测天线(AUT)和标准天线 之间的距离为6.5米。待测天线放置在旋转台中心位置上，通过测试软件控制旋转台进行水 平方向Theta（θ）和垂直方向Phi（φ）两个方向的旋转，由此可以完成对待测天线的方 向图测试。测试完成后，可通过测试软件计算生成相应的辐射方向图和相关的量测参数。 - 5 - / 光启--全球智力引领产业革命 2 有源测量环境 吞吐量测量： (1) 测试地点：KC暗室&红树林 (2) 测试软件：IxChariot5.4 & Endpoint5.0 (3) 测试设备： 300M无线网卡一台，150M无线网卡一台，测试笔记本两台 - 6 - / 光启--全球智力引领产业革命 二 天线参数 1 天线参数 1.1 工作频率：2400～2484MHz 1.2 阻抗：50Ω 1.3 极化方式：线极化 1.4 天线增益: 天线增益数据表 天线 Freq. (MHz) Gain (dBi) KC KCI2402 2400.0 3.83 2440.0 3.85 2480.0 4.62 Ag N2420 2400.0 3.71 2440.0 4.10 2480.0 3.90 註: Ag N2420天線為對比天線. 三 天线结构和尺寸 天线尺寸见表1。 表1 天线尺寸 型 号 长(mm) 宽(mm) 厚(mm) KCI2402单频天线 46.5 9 0.5 - 7 - / 光启--全球智力引领产业革命 四 量测结果： 1 S11、Smith圆图、驻波比 KCI2402 S 参数: Ag N2420 S 参数: - 8 - / 光启--全球智力引领产业革命 单频天线S参数對比 Antenna 2.4GHz 2.44GHz 2.48GHz SWR Smith S11 SWR Smith S11 SWR Smith S11 KC 1.409 49.767-j17.149 -15.450 1.383 49.612-j16.230 -15.871 1.258 41.673-j6.222 -18.865 Ag 3.2174 37.070+j51.462 -5.592 2.313 62.492+j46.612 -8.039 1.625 70.841+j20.380 -12.502 - 9 - / 光启--全球智力引领产业革命 2方向图 2.4GHz E面方向图: 2.4GHz H面方向图: - 10 - / 光启--全球智力引领产业革命 2.44GHz E面方向图: 2.44GHz H面方向图: - 11 - / 光启--全球智力引领产业革命 2.48GHz E面方向图: 2.48GHz H面方向图: - 12 - / 光启--全球智力引领产业革命 2 吞吐量 (1) 近距离测试 测试地点：KC暗室 测试时间：1分钟 测试设备：zPlus 150Mbps无线网卡， xLink 300M无线网卡 测试方向：测试天线竖直，zPlus 150Mbps无线网卡旋转，测试四个不同方向。 测试距离：近距离1米测试 测试方法： 1． 连接zPlus 150Mbps无线网卡到发射用笔记本。 2． 连接xLink 300M无线网卡到接收用笔记本。 3． 设置zPlus 150Mbps无线网卡 & xLink 300M无线网卡的IP模式和测试软件配置， 测试不同信道的上行、下行和双向吞吐量。 4. 考虑到实际使用环境，对网卡的方向与放置位置做相应改变, 测试吞吐量。 5. 比较不同的天线的吞吐量差异。 1米近距离吞吐量测试表 天线 型号 信 道 前 后 左 右 平均 上行 下行 双向 上行 下行 双向 上行 下 行 双 向 上行 下 行 双 向 KC 6 75.5 80.1 66.7 83.5 75.4 71.0 84.6 91.9 76.9 89.3 93.7 78.9 80.6 Ag 6 100.8 88.0 76.3 51.2 87.7 76.1 92.5 81.6 83.5 80.2 82.1 72.3 81.0 结论: 由以上可知，KCI2402单频内置天线與對比天線性能一致。 - 13 - / 光启--全球智力引领产业革命 (2) 远场测试 测试地点：红树林 测试时间：1分钟 测试设备：zPlus 150Mbps无线网卡， xLink 300M无线网卡 测试方向：测试天线竖直，测试zPlus 150Mbps无线网卡旋转，测试四个不同方向。 测试距离：远场44米测试 测试方法： 1． 连接zPlus 150Mbps无线网卡到发射用笔记本。 2． 连接xLink 300M无线网卡到接收用笔记本。 3． 设置zPlus 150Mbps无线网卡 & xLink 300M无线网卡的IP模式和测试软件配置， 测试不同信道的上行、下行和双向吞吐量。 4. 考虑到实际使用环境，对网卡的方向与放置位置做相应改变, 测试吞吐量。 5. 比较不同的天线的吞吐量差异。 44米远场对比测试表 天线 型号 信 道 前 后 左 右 平均 上行 下行 双向 上行 下行 双向 上行 下行 双向 上行 下行 双向 KC 6 24 54 52 25 55 46 27 50 46 27 69 62 44.8 Ag 6 35 54 50 31 53 48 31 46 42 41 50 50 44.3 结论: 由以上图形可知，KCI2402单频内置天线的远距离吞吐量测试结果较为稳定，适 当调试S参数，可进一步提高天线的性能。 - 14 - / 光启--全球智力引领产业革命 3.测试结果 总体看来，超材料天线在工作频率点的S11、驻波比等性能指标，较對比天线有明显的 优势。若经过进一步优化设计天线，可以使天线的性能更佳，可在WLAN领域中得到较好 的应用。

Neutron Engineering Inc. FCC RF EXPOSURE REPORT FCC ID: T58WF2420R Project No. : 1205C015B Equipment : 300Mbps Wireless-N AP/ Repeater / Router client Model : WF2420 Applicant : NETIS SYSTEMS CO., LTD. Address : 9F,B Block,Tsinghua Information Park, High-tech Industrial Park,Nanshan, Shenzhen,China According: : FCC Guidelines for Human Exposure IEEE C95.1 Neutron Engineering Inc. No.3, Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL : (0769) 8318-3000 FAX : (0769) 8319-6000 Neutron Engineering Inc. MPE CALCULATION METHOD: Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Table for Filed Antenna Ant. Brand Model Name Antenna TypeConnector Gain (dBi) Note 1 Kuang-Chi KCI2401 Integral N/A 4.10 2 Kuang-Chi KCI2402 Integral N/A 4.62 Note: The antenna of EUT could be rotated, but the Antenna Polarity vertical is max. The EUT incorporates a MIMO function. Physically, the EUT provides two completed transmitters and two receivers (2T2R). all transmit signals are completely uncorrelated, then, , that is Directional gain=7.37; so, the out power limit is 30-7.37+6=28.63, the power density limit is 8-7.37+6=6.63 Operating Mode TX Mode 1TX 2TX 802.11b V (ANT1 or ANT2) - 802.11g V (ANT1 or ANT2) - 802.11n(20MHz) - V (ANT1 & ANT2) 802.11n(40MHz) - V (ANT1 & ANT2) Neutron Engineering Inc. Test Result: EUT： 300Mbps Wireless-N AP/ Repeater / Router client Model Name ： WF2420 Temperature： 25 °C Relative Humidity： 58 % Pressure： 1010 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX B MODE /CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 4.62 2.8973 17.25 53.0884 0.061087221 Complies 4.62 2.8973 17.45 55.5904 0.063966171 Complies 4.62 2.8973 17.49 56.1048 0.064558041 Complies EUT： 300Mbps Wireless-N AP/ Repeater / Router client Model Name ： WF2420 Temperature： 25 °C Relative Humidity： 58 % Pressure： 1010 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX G MODE /CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 4.62 2.8973 24.23 264.8500 0.304754671 Complies 4.62 2.8973 24.26 266.6859 0.306867131 Complies 4.62 2.8973 24.11 257.6321 0.296449261 Complies EUT： 300Mbps Wireless-N AP/ Repeater / Router client Model Name ： WF2420 Temperature： 25 °C Relative Humidity： 58 % Pressure： 1010 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX N MODE-20MHz /CH01, CH06, CH11-ANT1 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 4.10 2.5704 20.48 111.6863 0.128513981 Complies 4.10 2.5704 20.75 118.8502 0.136757251 Complies 4.10 2.5704 20.54 113.2400 0.130301791 Complies Neutron Engineering Inc. EUT： 300Mbps Wireless-N AP/ Repeater / Router client Model Name ： WF2420 Temperature： 25 °C Relative Humidity： 58 % Pressure： 1010 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX N MODE-20MHz /CH01, CH06, CH11-ANT2 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 4.62 2.8973 21.46 139.9587 0.161046161 Complies 4.62 2.8973 21.89 154.5254 0.177807621 Complies 4.62 2.8973 21.98 157.7611 0.181530821 Complies EUT： 300Mbps Wireless-N AP/ Repeater / Router client Model Name ： WF2420 Temperature： 25 °C Relative Humidity： 58 % Pressure： 1010 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX N MODE-40MHz /CH03, CH06, CH09 - ANT 1 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 4.10 2.5704 21.16 130.6171 0.150297021 Complies 4.10 2.5704 21.11 129.1219 0.148576581 Complies 4.10 2.5704 21.04 127.0574 0.146201011 Complies EUT： 300Mbps Wireless-N AP/ Repeater / Router client Model Name ： WF2420 Temperature： 25 °C Relative Humidity： 58 % Pressure： 1010 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX N MODE-40MHz /CH03, CH06, CH09 - ANT 2 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 4.62 2.8973 22.26 168.2674 0.193620071 Complies 4.62 2.8973 22.57 180.7174 0.207945901 Complies 4.62 2.8973 22.60 181.9701 0.209387321 Complies Neutron Engineering Inc. EUT： 300Mbps Wireless-N AP/ Repeater / Router client Model Name ： WF2420 Temperature： 25 °C Relative Humidity： 58 % Pressure： 1010 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX N MODE-20MHz /CH01, CH06, CH11 - ANT 1+ ANT 2 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 7.37 5.4576 24.01 251.7677 0.289701251 Complies 7.37 5.4576 24.37 273.5269 0.314738861 Complies 7.37 5.4576 24.33 271.0192 0.311853321 Complies EUT： 300Mbps Wireless-N AP/ Repeater / Router client Model Name ： WF2420 Temperature： 25 °C Relative Humidity： 58 % Pressure： 1010 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX N MODE-40MHz /CH03, CH06, CH09 - ANT 1+ ANT 2 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 7.37 5.4576 24.76 299.2265 0.344310581 Complies 7.37 5.4576 24.91 309.7419 0.356410401 Complies 7.37 5.4576 24.90 309.0295 0.355590681 Complies

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1205C015B Page 1 of 140 FCC Radio Test Report FCC ID: T58WF2420R This report concerns (check one) : Original Grant Class II Change Issued Date : Jun. 07, 2012 Project No. : 1205C015B Equipment : 300Mbps Wireless-N AP/ Repeater / Router client Model Name : WF2420 Applicant : NETIS SYSTEMS CO., LTD. Address : 9F,B Block, Tsinghua Information Park, High-tech Industrial Park, Nanshan, Shenzhen, China Manufacturer : Shenzhen Netcore Industrial Ltd. Address : 9F,B Block, Tsinghua Information Park, High-tech Industrial Park, Nanshan, Shenzhen, China Tested by: Neutron Engineering Inc. EMC Laboratory Date of Receipt: May. 30, 2012 Date of Test: May. 30, 2012 ~ Jun. 06, 2012 Testing Engineer : (David Mao) Technical Manager : (Leo Hung) Authorized Signatory : (Steven Lu) Neutron Engineering Inc. No.3,Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL : (0769) 8318-3000 FAX : (0769) 8319-6000 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1205C015B Page 2 of 140 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C, or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutron shall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Neutron Engineering Inc. Report No.: NEI-FCCP-1-1205C015B Page 3 of 140 Table of Contents Page 1 . CERTIFICATION 5 2 . SUMMARY OF TEST RESULTS 6 2.1 TEST FACILITY 7 2.2 MEASUREMENT UNCERTAINTY 7 3 . GENERAL INFORMATION 8 3.1 GENERAL DESCRIPTION OF EUT 8 3.2 DESCRIPTION OF TEST MODES 10 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 11 3.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 12 3.5 DESCRIPTION OF SUPPORT UNITS 13 4 . EMC EMISSION TEST 14 4.1 CONDUCTED EMISSION MEASUREMENT 14 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 14 4.1.2 MEASUREMENT INSTRUMENTS LIST AND SETTING 14 4.1.3 TEST PROCEDURE 15 4.1.4 DEVIATION FROM TEST STANDARD 15 4.1.5 TEST SETUP 15 4.1.6 EUT OPERATING CONDITIONS 15 4.1.7 TEST RESULTS 16 4.2 RADIATED EMISSION MEASUREMENT 18 4.2.1 RADIATED EMISSION LIMITS 18 4.2.2 MEASUREMENT INSTRUMENTS LIST ANS SETTING 19 4.2.3 TEST PROCEDURE 20 4.2.4 DEVIATION FROM TEST STANDARD 20 4.2.5 TEST SETUP 21 4.2.6 EUT OPERATING CONDITIONS 22 4.2.7 TEST RESULTS (BELOW 30MHZ) 23 4.2.8 TEST RESULTS (BETWEEN 30 – 1000 MHZ) 24 4.2.9 TEST RESULTS (ABOVE 1000 MHZ) 26 5 . BANDWIDTH TEST 74 5.1 APPLIED PROCEDURES / LIMIT 74 5.1.1 MEASUREMENT INSTRUMENTS LIST 74 5.1.2 TEST PROCEDURE 74 5.1.3 DEVIATION FROM STANDARD 74 5.1.4 TEST SETUP 74 5.1.5 EUT OPERATION CONDITIONS 74 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1205C015B Page 4 of 140 Table of Contents Page 5.1.6 TEST RESULTS 75 6 . MAXIMUM OUTPUT POWER TEST 87 6.1 APPLIED PROCEDURES / LIMIT 87 6.1.1 MEASUREMENT INSTRUMENTS LIST 87 6.1.2 TEST PROCEDURE 87 6.1.3 DEVIATION FROM STANDARD 87 6.1.4 TEST SETUP 87 6.1.5 EUT OPERATION CONDITIONS 87 6.1.6 TEST RESULTS 88 7 . ANTENNA CONDUCTED SPURIOUS EMISSION 91 7.1 APPLIED PROCEDURES / LIMIT 91 7.1.1 MEASUREMENT INSTRUMENTS LIST 91 7.1.2 TEST PROCEDURE 91 7.1.3 DEVIATION FROM STANDARD 91 7.1.4 TEST SETUP 91 7.1.5 EUT OPERATION CONDITIONS 91 7.1.6 TEST RESULTS 92 8 . POWER SPECTRAL DENSITY TEST 122 8.1 APPLIED PROCEDURES / LIMIT 122 8.1.1 MEASUREMENT INSTRUMENTS LIST 122 8.1.2 TEST PROCEDURE 122 8.1.3 DEVIATION FROM STANDARD 122 8.1.4 TEST SETUP 122 8.1.5 EUT OPERATION CONDITIONS 122 8.1.6 TEST RESULTS 123 9 . EUT TEST PHOTO 137 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1205C015B Page 5 of 140 1. CERTIFICATION E q u i p m e n t : 300Mbps Wireless-N AP/ Repeater / Router client Brand Name : netis Model Name : WF2420 A p p l i c a n t : NETIS SYSTEMS CO., LTD. F a c t o r y : Dongguan City Netcore Network Technology Co.,Ltd. A d d r e s s : No.10-1,Sankeng Road,Qinghutou,Tangxia Town,Dongguan City Date of Test : May. 30, 2012 ~ Jun. 06, 2012 T e s t I t e m : ENGINEERING SAMPLE Standards : FCC Part15, Subpart C(15.247) / ANSI C63.4-2009 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCP-1-1205C015B) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of NVLAP and TAF according to the ISO-17025 quality assessment standard and technical standard(s). Neutron Engineering Inc. Report No.: NEI-FCCP-1-1205C015B Page 6 of 140 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247(d) Antenna conducted Spurious EmissionPASS 15.247(…
