T58WF2561RWireless USB Adaptor

netis Wireless USB Adapter Quick Installation Guide R 2.Hardware Connection Plug the wireless adapter directly into an available USB interface on your computer. (For WF2116/WF2151/WF2190/WF2561, you may connect the adapter and your computer with the USB cradle included.) 1 netis Wireless USB Adapter Quick Installation Guide 1.Package Contents Wireless USB Adapter Driver CD USB Cradle *only for WF2116, WF2151,WF2190, WF2561 QIG * This QIG is for all netis wireless USB adapters, including models- WF2109, WF2111, WF2116, WF2119, WF2119S, WF2120, WF2123, WF2503, WF2505, WF2506; WF2150, WF2151, WF2190, WF2561, etc. * The product model shown in this QIG is WF2150, as an example. 3.Driver Installation 3.1. Insert the netis Driver CD into your CD-ROM drive. netis Wireless USB Adapter Quick Installation Guide Caution! This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. R R 3.2. Install the provided driver from the CD. For Windows 8/7/Vista/XP The Setup Wizard on the CD will guide you through the driver installation procedures. 2 Simply click “Install”. The netis smart driver assistant will choose the correct driver program automatically based on your Windows operating system. The InstallShield Wizard window will appear, then please click “Next” and follow the step by step procedures to finish the driver installation. For MAC OS Open the folder “Driver” > “MAC” from the CD. Select the driver package according to your MAC OS version and click the Installer.pkg file. Then an installation dialog will pop up. Please click “Continue” and follow the step by step procedures to finish the driver installation. For Linux You may get the available driver files from the “Driver” > “Linux” folder in the CD. Tip: For further steps, please visit netis website at www.netis-systems.com. 4.Connect to the Wireless Network For Windows 8/7/Vista/XP (Here we take Windows 7 for example.) After driver installation, please click on the wireless network connection icon in the lower right corner of the task bar. Choose the available wireless network, and click on the “Connect” button to setup a wireless connection. If the wireless network is secured, enter the security key/ password in the next popup window. netis Wireless USB Adapter Quick Installation Guide www.netis-systems.com For MAC OS Click the Wireless Network icon as below. 3 Choose the available wireless network, and click on the “Connect” button to setup a wireless connection. If the wireless network is secured, enter the network key/ password in the next page. netis Wireless USB Adapter Quick Installation Guide Connections are available Not connected Wireless Network Connection netis Connect automatically Connect netis-VAP1 netis-VAP2 netis-VAP3 netis-2 netis-3 netis-4 Open Network and sharing Center EN For Linux (Here we take Ubuntu for example.) Choose the available wireless network to setup a wireless connection. If the wireless network is secured, enter the password in the popup window. Technical Support: [email protected] netis Wireless USB Adapter Quick Installation Guide NETIS SYSTEMS CO., LTD. www.netis-systems.com MADE IN CHINA Associated SSID Channel Network Type Encryption BSSID netis netis-VAP1 netis-VAP2 netis-VAP3 netis-2 netis-3 netis-4 netis-5 netis-6 9 11 1 1 6 6 6 8 8 Infrastructure Infrastructure Infrastructure Infrastructure Infrastructure Infrastructure Infrastructure Infrastructure Infrastructure f8d111fefaa6 00e04c972cd2 1c7ee5937a08 0810765ed407 000c35450c00 08107777113a 081076733021 081076430e81 08107704313d 08107704312d Link Status Profiles Advanced Setting WPS Information Available Network Wireless Network Utility Refresh Connect Add to Profile WPA2-PSK AES WPA2-PSK AES WPA-PSK AES WPA2-PSK AES WPA2-PSK AES WPA2-PSK AES WPA-PSK AES WPA2-PSK AES WPA2-PSK AES WPA2-PSK AES Wired Network Auto eth0 Disconnect Wireless Networks disconnected Available netis netis-VAP1 netis-VAP2 netis-VAP3 netis-2 More networks... VPN Connections Connect to Hidden Wireless Network... Create New Wireless Network... Interruptor no administrado netis Guía de Instalación Rápida R 2.Conexión del Hardware Conecte el adaptador inalámbrico directamente a un puerto disponible de USB en su ordenador. (Para WF2116/WF2151/WF2190/WF2561, puede conectar el adaptador y el ordenador con la base de la USB adjunta aquí.) 1 Interruptor no administrado netis. Guía de instalación rápida 1. Contenido del empaque Adaptador inalámbrico USB CD driver Guía de Instalación Rápida * Esta guía de instalación rápida es para todos los adaptadores inalámbricos USB netis, incluyendo los modelos- WF2109, WF2111, WF2116, WF2119, WF2119S, WF2120, WF2123, WF2503, WF2505, WF2506; WF2150, WF2151, WF2190, WF2561, etc. 3. Instalación del Driver 3.1. Introduzca el CD del Driver netis en la unidad del CD-ROM. Interruptor no administrado netis Guía de Instalación Rápida la base de la USB* exclusivamente para WF2116, WF2151, WF2190, WF2561 R R 2 Simplemente haga clic en “Install” (Instalar). El asistente del smart driver netis elegirá automáticamente el correcto programa del driver en función de su sistema operativo de Windows. Aparecerá la ventana del Asistente de Instalación, a continuación, haga clic en “Siguiente” y siga las instrucciones paso a paso de los procedimientos para finalizar la instalación del driver. Para MAC OS Abra la carpeta “Driver”> “MAC” que está en el CD. Seleccione el paquete de driver según la versión de su MAC OS y ejecute el archivo Installer.pkg. A continuación, se abre un cuadro de diálogo de instalación. Por favor, haz clic en “Continuar” y siga las instrucciones paso a paso de los procedimientos para finalizar la instalación del driver. Para Linux Puede encontrar los archivos de los driver disponibles en la carpeta del “Driver”> “Linux” que está en el CD. Consejo: Para más pasos, por favor visite el sitio web de netis www.netis-systems.com. 4.Conectar a la red inalámbrica Para Windows 8/7/Vis…

Text truncated - open the document above for the full version.

NETIS SYSTEMS CO., LTD 4F & 5F, R&D Building, Oriental Cyberport, High-Tech Industrial Park, Nanshan, Shenzhen, China Date : August , 05 ,2014 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC Application for FCC ID: T58WF2561R To Whom It May Concern: We, as the grantee of this project FCC ID: T58WF2561R, would like to declare that the composite portion categorized as computer peripheral has been authorized under the Declaration of Conformity procedures. Sincerely yours, Name/Title: SelenaBai / Director Contact information / Address 4F & 5F, R&D Building, Oriental Cyberport, High-Tech Industrial Park, Nanshan, Shenzhen, China TEL: +86 0755-86186790 FAX: +86 0755-86186779 Email: [email protected]

NETIS SYSTEMS CO., LTD 4F & 5F, R&D Building, Oriental Cyberport, High-Tech Industrial Park, Nanshan, Shenzhen, China Date : August , 05 ,2014 BABT FCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, NETIS SYSTEMS CO., LTD hereby authorize Compliance Certification Services Inc / David.Wang toact as our agent in all matters relating to applications for equipment authorization, including thesigning of all documents relating to these matters. This authorization expires on 2/20/2015 Sincerely, _____________________________________ Signature Name/Title: SelenaBai / Director Contact information / Address 4F & 5F, R&D Building, Oriental Cyberport, High-Tech Industrial Park, Nanshan, Shenzhen, China TEL: +86 0755-86186790 FAX: +86 0755-86186779 Email: [email protected]

NETIS SYSTEMS CO., LTD 4F & 5F, R&D Building, Oriental Cyberport, High-Tech Industrial Park, Nanshan, Shenzhen, China Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Date: August ,08 ,2014 Subject: Request for Confidentiality FCC ID: T58WF2561R To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation ANT specification Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until 2015/02/30. External Photos Internal Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Sincerely yours, ___________________________ Name/Title: SelenaBai / Director August ,08 ,2014

Letter of Authorization We Name: NETIS SYSTEMS CO., LTD. Address: 4F&5F R&D Building,Oriental Cyberport High-Tech Industrial Park, Nanshan, Shenzhen, China Declare the following Person: Name： Alex Chen Title：Vice President is authorized to sign all the related doucuments of FCC certification，the signature has the same effectas as SelenaBai: on our behalf. Authorized Person: SelenaBai Signature: City: Shenzhen Date: 2014-2-26

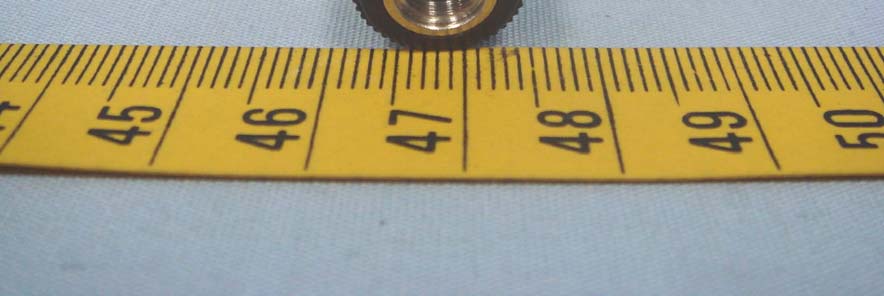

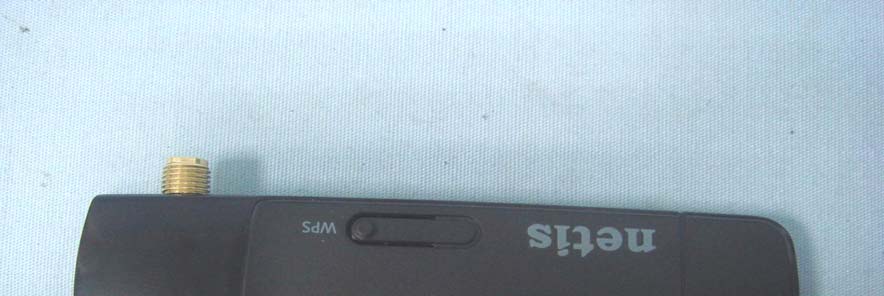

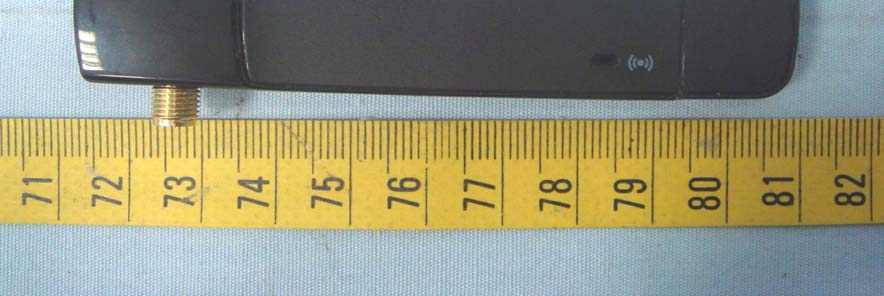

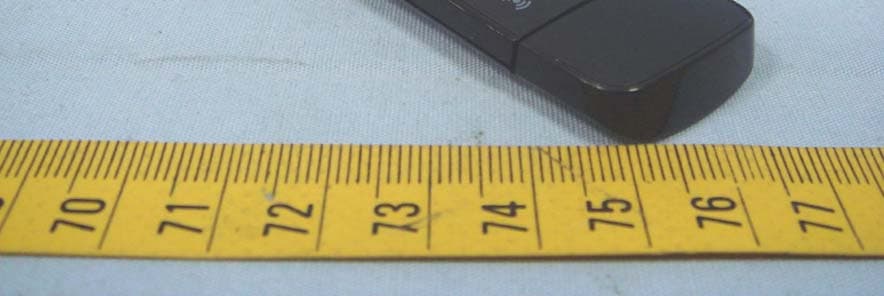

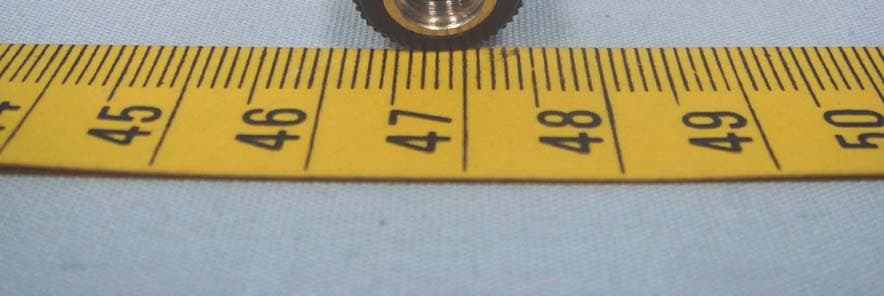

Report No: T140605D06 Page 1 / 7 Rev.00 EXTERNAL PHOTOGRAPHS OF EUT Report No: T140605D06 Page 2 Rev.00 Report No: T140605D06 Page 3 Rev.00 Report No: T140605D06 Page 4 Rev.00 Antenna




Report No: T140605D06 Page 5 Rev.00 INTERNAL PHOTOGRAPHS OF EUT Report No: T140605D06 Page 6 Rev.00 Report No: T140605D06 Page 7 Rev.00

Page: 1 of 44 TEST REPORT of FCC SAR New Application; Class I PC; Class II PC Product Name: AC1200 Wireless Dual Band High Power USB Adapter Brand Name: N/A Model Name: WF2561 Model Difference: N/A FCC ID: T58WF2561R Standard: FCC 47 CFR Part2(2.1093) IEEE C95.1-1999; IEEE 1528 FCC OET 65 Supplement C(Edition 01-10) Applicant: NETIS SYSTEMS CO., LTD Address: 4F & 5F, R&D Building, Oriental Cyberport, High-Tech Industrial Park, Nanshan, Shenzhen, China Test Performed by: International Standards Laboratory <Lung-Tan LAB> *Site Registration No.: TAF: 0997 *Address: No. 120, Lane 180, San Ho Tsuen, Hsin Ho Rd. Lung-Tan Hsiang, Tao Yuan County 325, Taiwan *Tel : 886-3-407-1718; Fax: 886-3-407-1738 Report No.: ISL-14LR238FSAR Issue Date : 2014/10/30 Test results given in this report apply only to the specific sample(s) tested and are traceable to national or international standard through calibration of the equipment and evaluating measurement uncertainty herein. This report MUST not be used to claim product endorsement by TAF or any agency of the Government. This test report shall not be reproduced except in full, without the written approval of International Standards Laboratory. -2 of 44- FCC ID: T58WF2561R International Standards Laboratory Report Number: ISL-14LR238FSAR VERIFICATION OF COMPLIANCE Applicant: NETIS SYSTEMS CO., LTD Product Description: AC1200 Wireless Dual Band High Power USB Adapter Brand Name: N/A Model No.: WF2561 Model Difference: N/A FCC ID: T58WF2561R Date of Receipt: 2014/10/07 Date of Test: 2014/10/07 ~ 2014/10/09 Standard: FCC 47 CFR Part2(2.1093) IEEE C95.1-1999; IEEE 1528 FCC OET 65 Supplement C(Edition 01-10) We hereby certify that: All the tests in this report have been performed and recorded in accordance with the standards described above and performed by an independent electromagnetic compatibility consultant, International Standards Laboratory. The test results contained in this report accurately represent the measurements of the characteristics and the energy generated by sample equipment under test at the time of the test. The sample equipment tested as described in this report is in compliance with the limits of above standards. Test By: Date: 2014/10/30 Dino Chen / Engineer Prepared By: Date: 2014/10/30 Arno Hsieh / Supervisor Approved By: Date: 2014/10/30 Vincent Su / Technical Manager -3 of 44- FCC ID: T58WF2561R International Standards Laboratory Report Number: ISL-14LR238FSAR Version Version No. Date Description 00 2014/10/30 Initial creation of document -4 of 44- FCC ID: T58WF2561R International Standards Laboratory Report Number: ISL-14LR238FSAR Table of Contents 1 STATEMENT OF COMPLIANCE ........................................................................... 5 2 GENERAL INFORMATION ..................................................................................... 6 2.1 DESCRIPTION OF DEVICE UNDER TEST (DUT) .......................................................................... 6 2.2 DUT PHOTOS ............................................................................................................................. 7 2.3 APPLIED STANDARDS ................................................................................................................ 7 2.4 DEVICE CATEGORY AND SAR LIMITS ....................................................................................... 7 2.5 TEST ENVIRONMENT .................................................................................................................. 7 2.6 TEST CONFIGURATION ............................................................................................................... 8 3 SPECIFIC ABSORPTION RATE (SAR) ................................................................. 8 3.1 INTRODUCTION .......................................................................................................................... 8 3.2 SAR DEFINITION ....................................................................................................................... 8 4 SAR MEASUREMENT SYSTEM ............................................................................. 9 4.1 ALSAS-10U SYSTEM DESCRIPTION ......................................................................................... 9 4.2 E-FIELD PROBE ALS-E-020S .................................................................................................. 10 4.3 DAQ-PAQ (ANALOG TO DIGITAL ELECTRONICS) ALS-DAQ-PAQ-3 BOUNDARY DETECTION UNIT ALS-PMDPS-3 ............................................................................................................... 12 4.4 AXIS ARTICULATED ROBOT ALS-F3 ...................................................................................... 14 4.5 ALSAS UNIVERSAL WORKSTATION ALS-UWS ..................................................................... 14 4.6 SAM PHANTOMS ALS-P-SAM-L / ALS-P-SAM-R ................................................................ 15 4.7 UNIVERSAL DEVICE POSITIONER ............................................................................................ 17 4.8 TEST EQUIPMENT LIST ............................................................................................................ 18 5 TISSUE SIMULATING LIQUIDS .......................................................................... 19 6 SAR MEASUREMENT EVALUATION ................................................................ 22 7 DUT TESTING POSITION ..................................................................................... 25 8 SAR MEASUREMENT PROCEDURES ................................................................ 28 9 SAR TEST RESULTS ............................................................................................... 30 9.1 CONDUCTED POWER TABLE: .................................................................................................... 30 9.2 TEST RECORDS FOR BODY SAR TEST .........................................................................…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: T140605D06-RP2 FCC ID: T58WF2561R Date of Issue: November 10, 2014 Page 1 / 100 Rev.00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For AC1200 Wireless Dual Band High Power USB Adapter Model: WF2561 Trade Name: netis Issued to NETIS SYSTEMS CO., LTD 4F & 5F, R&D Building, Oriental Cyberport, High-Tech Industrial Park, Nanshan, Shenzhen, China Issued by Compliance Certification Services Inc. No.81-1, Lane 210, Bade 2nd Rd., Lujhu Township, Taoyuan County 33841, Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 http://www.ccsrf.com [email protected] Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NIST or any government agencies. The test results in the report only apply to the tested sample. Compliance Certification Services Inc. Report No.: T140605D06-RP2 FCC ID: T58WF2561R Date of Issue: November 10, 2014 Page 2 Rev.00 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 November 10, 2014 Initial Issue All Iren Wang Compliance Certification Services Inc. Report No.: T140605D06-RP2 FCC ID: T58WF2561R Date of Issue: November 10, 2014 Page 3 Rev.00 TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION......................................................................................... 4 2 EUT DESCRIPTION............................................................................................................. 5 3 TEST METHODOLOGY....................................................................................................... 6 3.1 EUT CONFIGURATION ..................................................................................................... 6 3.2 EUT EXERCISE ................................................................................................................. 6 3.3 GENERAL TEST PROCEDURES ...................................................................................... 6 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS .......................................... 7 3.5 DESCRIPTION OF TEST MODES..................................................................................... 8 4 INSTRUMENT CALIBRATION ............................................................................................ 9 4.1 MEASURING INSTRUMENT CALIBRATION..................................................................... 9 4.2 MEASUREMENT EQUIPMENT USED .............................................................................. 9 4.3 MEASUREMENT UNCERTAINTY ....................................................................................11 5 FACILITIES AND ACCREDITATIONS ............................................................................... 12 5.1 FACILITIES....................................................................................................................... 12 5.2 LABORATORY ACCREDITATIONS AND LISTING .......................................................... 12 5.3 TABLE OF ACCREDITATIONS AND LISTINGS............................................................... 13 6 SETUP OF EQUIPMENT UNDER TEST ........................................................................... 14 6.1 SETUP CONFIGURATION OF EUT................................................................................. 14 6.2 SUPPORT EQUIPMENT .................................................................................................. 14 7 FCC PART 15 REQUIREMENTS....................................................................................... 15 7.1 6DB BANDWIDTH............................................................................................................ 15 7.2 PEAK POWER .................................................................................................................26 7.3 AVERAGE POWER .......................................................................................................... 28 7.4 BAND EDGES MEASUREMENT ..................................................................................... 30 7.5 PEAK POWER SPECTRAL DENSITY ............................................................................. 54 7.6 SPURIOUS EMISSIONS.................................................................................................. 65 7.7 POWERLINE CONDUCTED EMISSIONS ....................................................................... 93 8 APPENDIX I PHOTOGRAPHS OF TEST SETUP ............................................................. 96 9 APPENDIX II: PHOTOGRAPHS OF EUT........................................................................ 100 Compliance Certification Services Inc. Report No.: T140605D06-RP2 FCC ID: T58WF2561R Date of Issue: November 10, 2014 Page 4 Rev.00 1 TEST RESULT CERTIFICATION Applicant: NETIS SYSTEMS CO., LTD 4F & 5F, R&D Building, Oriental Cyberport, High-Tech Industrial Park, Nanshan, Shenzhen, China Manufacturer: Shenzhen Netcore Industrial Ltd. 4F & 5F, R&D Building, Oriental Cyberport, High-Tech Industrial Park, Nanshan, Shenzhen, China Equipment Under Test: AC1200 Wireless Dual Band High Power USB Adapter Trade Name: netis Model: WF2561 Date of Test: June 6 ~ July 11, 2014 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: Compliance Certification Services Inc. tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: Stan Lin Section Manager Angel Hu Section Manage…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: T140605D06-RP2 FCC ID: T58WF2561R Date of Issue: November 10, 2014 Page 96 Rev.00 8 APPENDIX I PHOTOGRAPHS OF TEST SETUP Radiated Emissions Setup Photos Below 1GHz Compliance Certification Services Inc. Report No.: T140605D06-RP2 FCC ID: T58WF2561R Date of Issue: November 10, 2014 Page 97 Rev.00 Above 1GHz Compliance Certification Services Inc. Report No.: T140605D06-RP2 FCC ID: T58WF2561R Date of Issue: November 10, 2014 Page 98 Rev.00 Conducted Emissions Setup Photo Compliance Certification Services Inc. Report No.: T140605D06-RP2 FCC ID: T58WF2561R Date of Issue: November 10, 2014 Page 99 Rev.00 Powerline Conducted Emissions Setup Photos
