T58WF2710RAC750 Wireless Dual Band Router

NETIS SYSTEMS CO., LTD.

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Dec 22, 2013
Application Purpose: Original Equipment
Date of Application: Dec 19, 2013
Equipment Note: AC750 Wireless Dual Band Router
Frequency Range: 5745.00000000 - 5825.00000000
Company: NETIS SYSTEMS CO., LTD.
Country: China

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

netis Wireless Dual Band Router Quick Installation Guide R 1.Package Contents * WF2710, WF2710D, WF2722,WF2722D, WF2780, WF2780D, WF2891, WF2891D,etc. * The product model shown in this QIG is WF2710, as an example. This QIG is for all netis wireless dual band routers, including models- WF2471, WF2471D, Power Adapter Ethernet Cable Wireless Dual Band Router QIG netis Wireless Dual Band Router Quick Installation Guide netis Wireless Dual Band Router Quick Installation Guide 1 2.Hardware Connection 2.1. Power off your Modem. 2.2. Connect the WAN port on netis Router to the Modem's LAN port with an Ethernet cable. 2.3. Connect your computer to one of the LAN ports on netis Router with an Ethernet cable. 2.4. Power on your Modem. 2.5. Plug the provided Power Adapter into the PWR jack of netis Router and the other end to a standard electrical socket. Then wait for one minute. CABLE CABLE LINE IN POWER xDSL/Cable Modem Notebook with wireless network adapter Computer with wired network adapter 5 POWER netis Wireless Dual Band Router Quick Installation Guide 2 3.Configure the Router via Web Management Page 3.1. Set the IP address of the wired network adapter on your computer as“Automatic” or “DHCP”. For Windows 8/ 7/Vista 1) Go to “Settings” (Win 8)/ “Start” (Win 7/Vista)> “Control Panel”. 2) Left-click on “Network and Internet”> “Network and Sharing Center”> “Change adapter settings” (Win 8/7)/ “Manage network connections” (Win Vista). 3) Right-click on “Local Area Connection” and left-click on “Properties”. 4) Double-click on “Internet Protocol Version 4 (TCP/IPv4)”. 5) Select “Obtain an IP address automatically” and “Obtain DNS server address automatically” then left-click on “OK”. For Windows XP/2000 1) Go to “Start”> “Control Panel”. 2) Left-click on “Network and Internet Connections”> “Network Connections”. 3) Right-click on “Local Area Connection” and left-click on “Properties”. 4) Double-click on “Internet Protocol (TCP/IP)”. 5) Select “Obtain an IP address automatically” and “Obtain DNS server address automatically” then left-click on “OK”. For MAC OS 1) Click on the “Apple” menu> “System Preferences”. 2) Click on the “Network” icon. 3) Click on “Ethernet” in the left side box and click on “Advanced” in the lower right corner. 4) In the top options, select “TCP/IP”. 5 )In the pull-down menu next to “Configure Ipv4”, select “Using DHCP”. 6) Click “OK” then “Apply”. 3.2. Open your browser and type 192.168.1.1 in the address field to visit router's web management page. 192.168.1.1 netis Wireless Dual Band Router Quick Installation Guide 3 1) In “Quick Setup” page, select your Internet Connection Type. If “DHCP (Cable Modem)” is selected, the router will automatically receive the IP parameters from your ISP (Internet Service Provider). If “Static IP” is selected, please enter the IP Address/Subnet Mask/Default Gateway/DNS Servers given by your ISP. If “PPPoE” is selected, please enter the Username and Password given by your ISP. 2) Under Wireless Setup, configure your wireless network name (SSID) and password. 3) Left-click on “Save” to make your settings take effect. 3. 3. Select the language as you need on the top box,default is in English. Tip 1: IP address: 192.168.1.1 2.4G default SSID: netis_2.4G_XXXXXX 5G default SSID: netis_5G_XXXXXX Default wireless password: password (XXXXXX: Last 6 digits of LAN MAC Address) Tip 2: You can click on button on the top for other Internet connection types and further settings. netis Wireless Dual Band Router Quick Installation Guide 4 How do I restore my netis Router's configuration to its default settings? With the router powered on, use a pin to press and hold the Default button on the rear panel for 8 to 10 seconds before releasing it. The router will reboot and all configurations are back to factory default. Q A 4.Troubleshooting What can I do if my Internet cannot be accessed? 1) Check to verify the hardware connections are correct. Please refer to the “Hardware Connection” step. 2) Login to netis Router's web management page and ensure that you set the correct Internet Connection Type. For cable modem users, please configure “MAC Clone” additionally. Q A On the left-side menu, left-click on > “Network”> “WAN”. And in the middle page, left-click on “Advanced”> “MAC Clone” and then “Save” it. NETIS SYSTEMS CO., LTD. www.netis-systems.com MADE IN CHINA Technical Support: USA/ Canada: Toll Free: +1 866 71 network (+1 866 716 3896) E-mail: [email protected] Other Regions: E-mail: [email protected] 3) Reboot the modem first and then netis Router. Wait for one minute before you check the Internet again. 4) If Internet access is not available, please connect your computer directly to your modem and try the Internet again. If the Internet is still not working, please contact your ISP for further help. Router Inalámbrico de Doble Banda netis Guía de Instalación Rápida R 1.Contenido del Empaque Adaptador de alimentación Cable Ethernet Router inalámbrico de Doble Banda Guía de Instalación Rápida Guía de Instalación Rápida del Router Inalámbrico de Doble Banda netis 1 2.Conexión del Hardware 2.1. Apague el Módem. 2.2. Conecte el puerto de red de área amplia (WAN) del Router netis al puerto de red de área local (LAN) del módem con un cable Ethernet. 2.3. Conecte su ordenador a uno de los puertos de red de área local (LAN) del router netis con un cable Ethernet. 2.4. Encienda el Módem. 2.5. Conecte el adaptador de alimentación suministrado en el conector de alimentación (PWR) del router netis y el otro extremo a una toma de corriente estándar. Luego, espere durante un minuto. CABLE CABLE ENTRADA DE LINEA ALIMENTACIÓN XDSL / Cable de Modem portátil (notebook) con el adaptador de red inalámbrica 5 ALIMENTACIÓN * incluidos los modelos- WF2471, WF2471D, WF2710, WF2710D, WF2722,WF2722D, WF2780, WF2780D, WF2891, WF2891D, etc. *El ejemplo del modelo del producto que se muestra en esta Guía de Instalación Rápida es WF2710. Esta guía de instalación …

Text truncated - open the document above for the full version.

Cover Letter(s)

CERTIFICATE OF COMPLIANCE Authorized under Declaration of Conformity according to 47 CFR, Part 2 and Part 15 of the FCC Rules. The product listed in follows was (were) tested in the Neutron EMC Laboratory to comply with the criteria limits Class B of conducted and radiated emissions of the Technical Standards FCC Part 15, Subpart B, established by the FCC, USA. Equipment AC750 Wireless Dual Band Router Model Name WF2710 Brand Name netis Applicant NETIS SYSTEMS CO., LTD Address 4F&5F R&D Building, Oriental Cyberport, High-Tech Industrial Park, Nanshan, Shenzhen, China. Standard(s) FCC Part 15, Subpart B: 2012 ANSI C63.4 -2009 Report(s) NEI-FCCE-1-1309C035A The test data, data evaluation, and equipment configuration contained in our test report(s) above was(were) obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). The test data contained in the referenced test report relate only to the EUT sample and item(s) tested. Andy Chiu Authorized Signatory Neutron Engineering Inc. B1, No.37, Lane 365, Yang Guang St., NeiHu District 114., Taipei, Taiwan TEL：+886-2-2657-3299 FAX：+886-2-2657-3331

External Photos

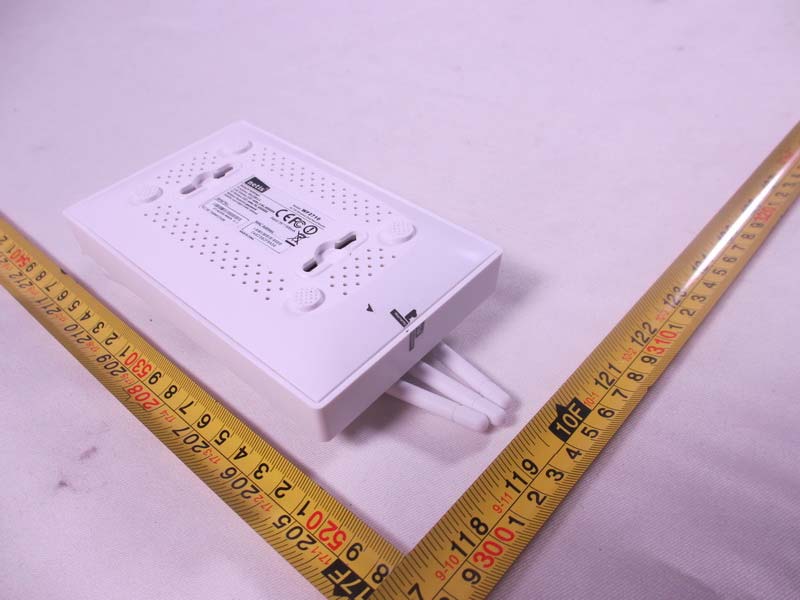

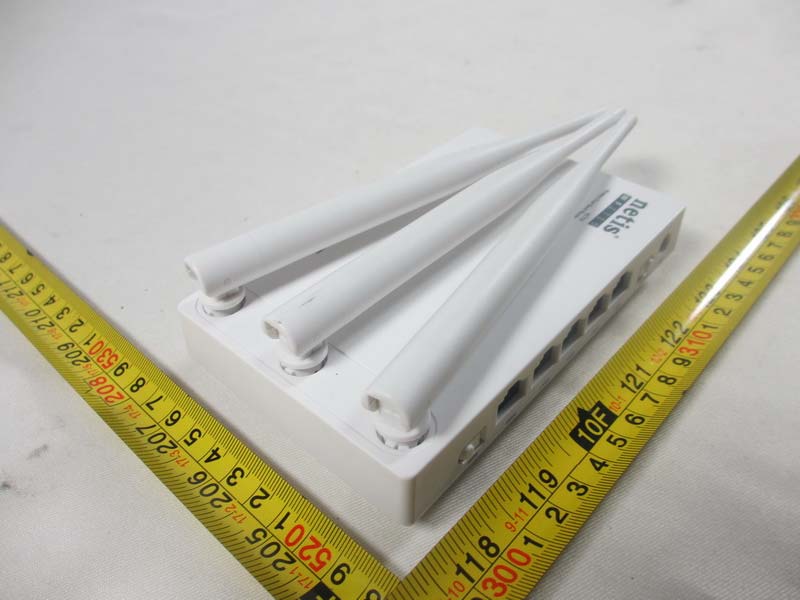

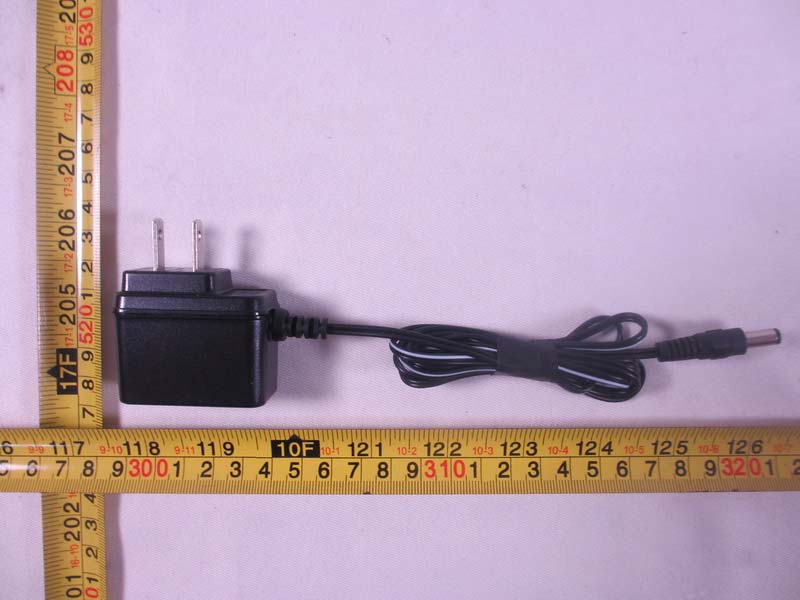

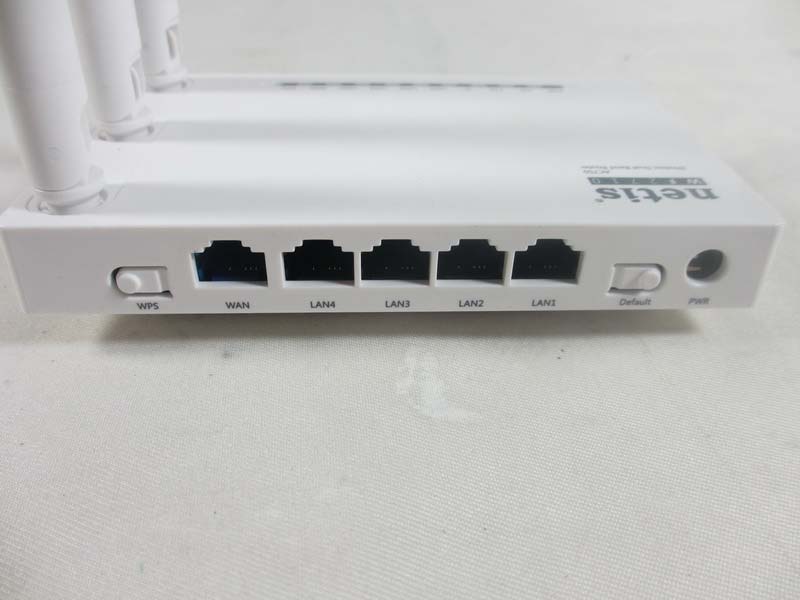

Neutron Engineering Inc. Project No.: 1309C035A Page 2 of 9 Neutron Engineering Inc. Project No.: 1309C035A Page 3 of 9 Neutron Engineering Inc. Project No.: 1309C035A Page 4 of 9

ID Label/Location Info

label location

Internal Photos

Neutron Engineering Inc. Project No.: 1309C035A Page 5 of 9 Main board Main board Neutron Engineering Inc. Project No.: 1309C035A Page 6 of 9 Main board Main board Neutron Engineering Inc. Project No.: 1309C035A Page 7 of 9 RF module IC RF module crystal Neutron Engineering Inc. Project No.: 1309C035A Page 8 of 9 Two antennas for 2.4G Antenna for 5G Neutron Engineering Inc. Project No.: 1309C035A Page 9 of 9 RF module IC (5G)

RF Exposure Info

Neutron Engineering Inc. FCC RF EXPOSURE REPORT FCC ID: T58WF2710R Project No. : 1309C035A Equipment : AC750 Wireless Dual Band Router Model Name : WF2710 Applicant : NETIS SYSTEMS CO., LTD. Address : 4F&5F R&D Building, Oriental Cyberport, High-Tech Industrial Park, Nanshan, Shenzhen, China Manufacturer : Shenzhen Netcore Industrial Ltd Address : 4F&5F R&D Building，Oriental Cyberport, High-Tech Industrial Park, Nanshan, Shenzhen, China. According: : FCC Guidelines for Human Exposure IEEE C92.76 Neutron Engineering Inc. No.3, Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL : (0769) 8318-3000 FA X : (0769) 8319-6000 Neutron Engineering Inc. MPE CALCULATION METHOD: Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Ant. Brand Model Name Antenna Type Connector Gain (dBi) Note 1 RF21C00139A Dipole N/A 5.16 TX/RX 2 RF21C00138A Dipole N/A 5.28 TX/RX Note: The EUT incorporates a MIMO function. Physically, the EUT provides two completed transmitters and two receivers (2T2R). Operating Mode TX Mode 1TX 2TX 802.11b V (ANT 1 or ANT 2) - 802.11g V (ANT 1 or ANT 2) - 802.11n(20MHz) - V (ANT 1 + ANT 2 802.11n(40MHz) - V (ANT 1 + ANT 2) Neutron Engineering Inc. TEST RESULTS EUT: AC750 Wireless Dual Band Router Model Name : WF2710 Temperature: 24 °C Relative Humidity: 60 % Pressure: 1016 hPa Test Voltage : AC 120V/60Hz Test Mode : TX B MODE /CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 Limit of Power Density (S) (mW/cm) 2 Te s t Result ) 5.28 3.3729 16.97 49.7737 0.03341569 1 Complies 5.28 3.3729 16.75 47.3151 0.03176511 1 Complies 5.28 3.3729 16.95 49.5450 0.03326215 1 Complies EUT: AC750 Wireless Dual Band Router Model Name : WF2710 Temperature: 24 °C Relative Humidity: 60 % Pressure: 1016 hPa Test Voltage : AC 120V/60Hz Test Mode : TX G MODE /CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 Limit of Power Density (S) (mW/cm) 2 Te s t Result ) 5.28 3.3729 19.95 98.8553 0.06636672 1 Complies 5.28 3.3729 19.83 96.1612 0.06455804 1 Complies 5.28 3.3729 19.72 93.7562 0.06294342 1 Complies EUT: AC750 Wireless Dual Band Router Model Name : WF2710 Temperature: 24 °C Relative Humidity: 60 % Pressure: 1016 hPa Test Voltage : AC 120V/60Hz Test Mode : TX N-20M MODE /CH01, CH06, CH11-ANT 1 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 Limit of Power Density (S) (mW/cm) 2 Te s t Result ) 5.28 3.3729 17.52 56.4937 0.03792716 1 Complies 5.28 3.3729 17.62 57.8096 0.03881060 1 Complies 5.28 3.3729 17.26 53.2108 0.03572320 1 Complies Neutron Engineering Inc. EUT: AC750 Wireless Dual Band Router Model Name : WF2710 Temperature: 24 °C Relative Humidity: 60 % Pressure: 1016 hPa Test Voltage : AC 120V/60Hz Test Mode : TX N-20M MODE /CH01, CH06, CH11-ANT 2 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 Limit of Power Density (S) (mW/cm) 2 Te s t Result ) 5.28 3.3729 17.23 52.8445 0.03547728 1 Complies 5.28 3.3729 16.83 48.1948 0.03235567 1 Complies 5.28 3.3729 17.19 52.3600 0.03515203 1 Complies EUT: AC750 Wireless Dual Band Router Model Name : WF2710 Temperature: 24 °C Relative Humidity: 60 % Pressure: 1016 hPa Test Voltage : AC 120V/60Hz Test Mode : TX N-20M MODE /CH01, CH06, CH11-ANT 1+ANT 2 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 Limit of Power Density (S) (mW/cm) 2 Te s t Result ) 5.28 3.3729 20.39 109.3956 0.07344299 1 Complies 5.28 3.3729 20.25 105.9254 0.07111322 1 Complies 5.28 3.3729 20.24 105.6818 0.07094967 1 Complies Neutron Engineering Inc. EUT: AC750 Wireless Dual Band Router Model Name : WF2710 Temperature: 24 °C Relative Humidity: 60 % Pressure: 1016 hPa Test Voltage : AC 120V/60Hz Test Mode : TX N-40M MODE /CH03, CH06, CH09 ANT 1 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 Limit of Power Density (S) (mW/cm) 2 Te s t Result ) 5.28 3.3729 16.73 47.0977 0.03161916 1 Complies 5.28 3.3729 16.93 49.3174 0.03310933 1 Complies 5.28 3.3729 16.72 46.9894 0.03154644 1 Complies EUT: AC750 Wireless Dual Band Router Model Name : WF2710 Temperature: 24 °C Relative Humidity: 60 % Pressure: 1016 hPa Test Voltage : AC 120V/60Hz Test Mode : TX N-40M MODE /CH03, CH06, CH09 ANT 1 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 Limit of Power Density (S) (mW/cm) 2 Te s t Result ) 5.28 3.3729 16.73 47.0977 0.03161916 1 Complies 5.28 3.3729 16.93 49.3174 0.03310933 1 Complies 5.28 3.3729 16.72 46.9894 0.03154644 1 Complies EUT: AC750 Wireless Dual Band Router Model Name : WF2710 Temperature: 24 °C Relative Humidity: 60 % Pressure: 1016 hPa Test Voltage : AC 120V/60Hz Test Mode : TX N-40M MODE /CH03, CH06, CH09 ANT 2 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 Limit of Power Density (S) (mW/cm) 2 Te s t Result ) 5.28 3.3729 17.42 55.2077 0.03706384 1 Complies 5.28 3.3729 17.35 54.3250 0.03647123 1 Complies 5.28 3.3729 17.21 52.6017 0.03531428 1 Complies Neutron Engineering Inc. EUT: AC750 Wireless Dual Band Router Model Name : WF2710 Temperature: 24 °C Relative Humidity: 60 % Pressure: 1016 hPa Test Voltage : AC 120V/60Hz Test Mode : TX N-40M MODE /CH03, CH06, CH09 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 Limit of Power Density (S) (mW/cm) 2 Te s t Result ) 5.28 3.3729 20.1 102.3293 0.06869899 1 Complies 5.28 3.3729 20.16 103.7528 0.06965469 1 Complies 5.28 3.372…

Text truncated - open the document above for the full version.

RF Exposure Info

Test Report

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1309C035A Page 1 of 146 FCC Radio Test Report FCC ID: T58WF2710R This report concerns (check one): Original Grant Class II Change Issued Date : Dec. 16, 2013 Project No. : 1309C035A Equipment : AC750 Wireless Dual Band Router Model Name : WF2710 Applicant : NETIS SYSTEMS CO., LTD Address : 4F&5F R&D Building, Oriental Cyberport, High-Tech Industrial Park, Nanshan, Shenzhen, China. Tested by: Neutron Engineering Inc. EMC Laboratory Date of Receipt: Nov. 26, 2013 Date of Test: Nov. 26, 2013~ Dec. 13, 2013 Testing Engineer : ( David Mao) Technical Manager : (Leo Hung) Authorized Signatory: (Steven Lu) Neutron Engineering Inc. No.3,Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL: 0769-8318-3000 FAX: 0769-8319-6000 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1309C035A Page 2 of 146 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C, or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutronshall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Neutron Engineering Inc. Report No.: NEI-FCCP-1-1309C035A Page 3 of 146 Table of Contents Page 1 . CERTIFICATION 6 2 . SUMMARY OF TEST RESULTS 7 2.1 TEST FACILITY 8 2.2 MEASUREMENT UNCERTAINTY 8 3 . GENERAL INFORMATION 9 3.1 GENERAL DESCRIPTION OF EUT 9 3.2 DESCRIPTION OF TEST MODES 11 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 12 3.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 13 3.5 DESCRIPTION OF SUPPORT UNITS 14 4 . EMC EMISSION TEST 15 4.1 CONDUCTED EMISSION MEASUREMENT 15 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 15 4.1.2 MEASUREMENT INSTRUMENTS LIST AND SETTING 15 4.1.3 TEST PROCEDURE 16 4.1.4 DEVIATION FROM TEST STANDARD 16 4.1.5 TEST SETUP 16 4.1.6 EUT OPERATING CONDITIONS 16 4.1.7 TEST RESULTS 17 4.2 RADIATED EMISSION MEASUREMENT 20 4.2.1 RADIATED EMISSION LIMITS 20 4.2.2 MEASUREMENT INSTRUMENTS LIST ANS SETTING 21 4.2.3 TEST PROCEDURE 21 4.2.4 DEVIATION FROM TEST STANDARD 21 4.2.5 TEST SETUP 22 4.2.6 EUT OPERATING CONDITIONS 23 4.2.7 TEST RESULTS (BELOW 30MHZ) 24 4.2.8 TEST RESULTS (BETWEEN 30 – 1000 MHZ) 25 4.2.9 TEST RESULTS (ABOVE 1000 MHZ) 32 5 . BANDWIDTH TEST 80 5.1 APPLIED PROCEDURES / LIMIT 80 5.1.1 MEASUREMENT INSTRUMENTS LIST 80 5.1.2 TEST PROCEDURE 80 5.1.3 DEVIATION FROM STANDARD 80 5.1.4 TEST SETUP 80 5.1.5 EUT OPERATION CONDITIONS 80 5.1.6 TEST RESULTS 81 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1309C035A Page 4 of 146 Table of Contents Page 6 . MAXIMUM OUTPUT POWER TEST 93 6.1 APPLIED PROCEDURES / LIMIT 93 6.1.1 MEASUREMENT INSTRUMENTS LIST 93 6.1.2 TEST PROCEDURE 93 6.1.3 DEVIATION FROM STANDARD 93 6.1.4 TEST SETUP 93 6.1.5 EUT OPERATION CONDITIONS 93 6.1.6 TEST RESULTS 94 7 . ANTENNA CONDUCTED SPURIOUS EMISSION 97 7.1 APPLIED PROCEDURES / LIMIT 97 7.1.1 MEASUREMENT INSTRUMENTS LIST 97 7.1.2 TEST PROCEDURE 97 7.1.3 DEVIATION FROM STANDARD 97 7.1.4 TEST SETUP 97 7.1.5 EUT OPERATION CONDITIONS 97 7.1.6 TEST RESULTS 98 8 . POWER SPECTRAL DENSITY TEST 128 8.1 APPLIED PROCEDURES / LIMIT 128 8.1.1 MEASUREMENT INSTRUMENTS LIST 128 8.1.2 TEST PROCEDURE 128 8.1.3 DEVIATION FROM STANDARD 128 8.1.4 TEST SETUP 128 8.1.5 EUT OPERATION CONDITIONS 128 8.1.6 TEST RESULTS 129 9 . EUT TEST PHOTO 143 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1309C035A Page 5 of 146 REPORT ISSUED HISTORY Issued No. Description Issued Date NEI-FCCP-1-1309C035A Original Issue. Dec. 16, 2013 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1309C035A Page 6 of 146 1. CERTIFICATION Equipment : AC750 Wireless Dual Band Router Brand Name : netis Model Name : WF2710 Applicant : NETIS SYSTEMS CO., LTD Manufacture : Shenzhen Netcore Industrial Ltd. Address : 4F&5F R&D Building, Oriental Cyberport, High-Tech Industrial Park, Nanshan, Shenzhen, China. Factory : Dongguan City Netcore Network Technology Co., Ltd. Address No.10-1,Sankeng Road,Qinghutou,Tangxia Town, Dongguan City Date of Test : Nov. 26, 2013~ Dec. 13, 2013 Test Item : ENGINEERING SAMPLE Standard(s) : FCC Part15(2012), Subpart C(15.247) / ANSI C63.4-2009 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCP-1-1309C035A) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). Neutron Engineering Inc. Report No.: NEI-FCCP-1-1309C035A Page 7 of 146 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): FCC Part15 (15.247) , Subpart C Standard(s) Section Test I…

Text truncated - open the document above for the full version.

Test Report

Neutron Engineering Inc. Report No.: NEI-FCCP-3-1309C035A Page 1 of 151 FCC Radio Test Report FCC ID: T58WF2710R This report concerns (check one): Original Grant Class II Change Issued Date : Dec. 16, 2013 Project No. : 1309C035A Equipment : AC750 Wireless Dual Band Router Model Name : WF2710 Applicant : NETIS SYSTEMS CO., LTD Address : 4F&5F R&D Building, Oriental Cyberport, High-Tech Industrial Park, Nanshan, Shenzhen, China. Testing Engineer : (David Mao) Technical Manager : (Leo Hung) Authorized Signatory: (Steven Lu) Neutron Engineering Inc. No.3,Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL: 0769-8318-3000 FAX: 0769-8319-6000 Tested by: Neutron Engineering Inc. EMC Laboratory Date of Receipt: Nov. 26, 2013 Date of Test: Nov. 26, 2013~ Dec. 13, 2013 Neutron Engineering Inc. Report No.: NEI-FCCP-3-1309C035A Page 2 of 151 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of CHINA, or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutronshall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Neutron Engineering Inc. Report No.: NEI-FCCP-3-1309C035A Page 3 of 151 Table of Contents Page 1 . CERTIFICATION 6 2 . SUMMARY OF TEST RESULTS 7 2.1 TEST FACILITY 8 2.2 MEASUREMENT UNCERTAINTY 8 3 . GENERAL INFORMATION 9 3.1 GENERAL DESCRIPTION OF EUT 9 3.2 DESCRIPTION OF TEST MODES 11 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 12 3.4 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 13 3.5 DESCRIPTION OF SUPPORT UNITS 14 4 . EMC EMISSION TEST 15 4.1 CONDUCTED EMISSION MEASUREMENT 15 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 15 4.1.2 MEASUREMENT INSTRUMENTS LIST AND SETTING 15 4.1.3 TEST PROCEDURE 16 4.1.4 DEVIATION FROM TEST STANDARD 16 4.1.5 TEST SETUP 16 4.1.6 EUT OPERATING CONDITIONS 16 4.1.7 TEST RESULTS 17 4.2 RADIATED EMISSION MEASUREMENT 20 4.2.1 RADIATED EMISSION LIMITS 20 4.2.2 MEASUREMENT INSTRUMENTS LIST ANS SETTING 21 4.2.3 TEST PROCEDURE 21 4.2.4 DEVIATION FROM TEST STANDARD 21 4.2.5 TEST SETUP 22 4.2.6 EUT OPERATING CONDITIONS 23 4.2.7 TEST RESULTS (BELOW 30MHZ) 24 4.2.8 TEST RESULTS (BETWEEN 30 – 1000 MHZ) 25 4.2.9 TEST RESULTS (ABOVE 1000 MHZ) 38 5 . BANDWIDTH TEST 94 5.1 APPLIED PROCEDURES / LIMIT 94 5.1.1 MEASUREMENT INSTRUMENTS LIST 94 5.1.2 TEST PROCEDURE 94 5.1.3 DEVIATION FROM STANDARD 94 5.1.4 TEST SETUP 94 5.1.5 EUT OPERATION CONDITIONS 94 5.1.6 TEST RESULTS 95 Neutron Engineering Inc. Report No.: NEI-FCCP-3-1309C035A Page 4 of 151 Table of Contents Page 6 . MAXIMUM OUTPUT POWER TEST 106 6.1 APPLIED PROCEDURES / LIMIT 106 6.1.1 MEASUREMENT INSTRUMENTS LIST 106 6.1.2 TEST PROCEDURE 106 6.1.3 DEVIATION FROM STANDARD 106 6.1.4 TEST SETUP 106 6.1.5 EUT OPERATION CONDITIONS 106 6.1.6 TEST RESULTS 107 7 . ANTENNA CONDUCTED SPURIOUS EMISSION 109 7.1 APPLIED PROCEDURES / LIMIT 109 7.1.1 MEASUREMENT INSTRUMENTS LIST 109 7.1.2 TEST PROCEDURE 109 7.1.3 DEVIATION FROM STANDARD 109 7.1.4 TEST SETUP 110 7.1.5 EUT OPERATION CONDITIONS 110 7.1.6 TEST RESULTS 111 8 . POWER SPECTRAL DENSITY TEST 136 8.1 APPLIED PROCEDURES / LIMIT 136 8.1.1 MEASUREMENT INSTRUMENTS LIST 136 8.1.2 TEST PROCEDURE 136 8.1.3 DEVIATION FROM STANDARD 136 8.1.4 TEST SETUP 136 8.1.5 EUT OPERATION CONDITIONS 136 8.1.6 TEST RESULTS 137 9 . EUT TEST PHOTO 148 Neutron Engineering Inc. Report No.: NEI-FCCP-3-1309C035A Page 5 of 151 REPORT ISSUED HISTORY Issued No. Description Issued Date NEI-FCCP-3-1309C035A Original Issue. Dec. 16, 2013 Neutron Engineering Inc. Report No.: NEI-FCCP-3-1309C035A Page 6 of 151 1. CERTIFICATION Equipment : AC750 Wireless Dual Band Router Brand Name : netis Model Name : WF2710 Applicant : NETIS SYSTEMS CO., LTD Manufacture : Shenzhen Netcore Industrial Ltd. Address : 4F&5F R&D Building, Oriental Cyberport, High-Tech Industrial Park, Nanshan, Shenzhen, China. Factory : Dongguan City Netcore Network Technology Co., Ltd. Address No.10-1,Sankeng Road,Qinghutou,Tangxia Town, Dongguan City Date of Test : Nov. 26, 2013~ Dec. 13, 2013 Test Item : ENGINEERING SAMPLE Standard(s) : FCC Part15, Subpart C(15.247) / ANSI C63.4-2009 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCP-3-1309C035A) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). Test result included in this report is only for the 5745~5825MHz part of the product. Neutron Engineering Inc. Report No.: NEI-FCCP-3-1309C035A Page 7 of 151 2. SUMMARY OF TEST RESULTS Test procedures acco…

Text truncated - open the document above for the full version.

Test Setup Photos

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1309C035A Page 143 of 146 9. EUT TEST PHOTO Conducted Measurement Photos Neutron Engineering Inc. Report No.: NEI-FCCP-1-1309C035A Page 144 of 1…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Kinki Wang(Auditor)

[email protected]+86-755-86677078Fax: +86-755-86186779

Technical Contact

Neutron Engineering, Inc.Steven Lu

86-769-83183000

China

Non-Technical Contact

Neutron Engineering, Inc.Cathy Wang

86-769-83183000

Test Firm

BTL Inc.Daisy Dai

[email protected]8676983183000Fax: +8676983196000

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
2	15C	5.75 GHz - 5.83 GHz	130.00 mW

Confidentiality

Long Term

Grant Notes

Output power listed is conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation and transmitter operating conditions for satisfying RF exposure compliance. This device has 20/40/80 MHz bandwidth modes. The 80 MHz mode is limited to channel at 5775 MHz
