T7V-B611Bluetooth LE LR Module

Wireless Connectivity PAN B611-1x Bluetooth ® Low Energy Module Product Specification Rev. 1.1 PAN B611-1x Bluetooth Module Product Specification Rev. 1.1 Page 2 of 54 Overview The PAN B611-1x is a Bluetooth 6.0 qualified Low Energy (LE) module based on the Nordic nRF54L15 single chip controller. Features • Surface mount type with castellated holes, dimensions: 10.35 mm × 9.8 mm × 1.9 mm • Nordic nRF54L15 featuring a 128 MHz Arm Cortex M33 processor, 1.5 MB non-volatile memory, and 256 KB RAM • Bluetooth 6.0 LE including LE 2M and LE Coded PHY • Supports 802.15.4 - ZigBee® and Thread • 128-bit AES/ECB/CCM/AAR co-processor • Up to 32× General Purpose I/Os (GPIO) at 1.7 V to 3.6 V, which are shared by SPI, I²C, UART, PWM, ADC (up to 14-bit), NFC, QSPI Bluetooth • Channel Sounding • LE 2M and LE Coded • LE Audio and Isochronous Channels • Extended Advertising and Channel Sounding • Mesh Networking Characteristics • Typical sensitivity: 96 dBm (at 1 Mbps) and 104 dBm (at 125 kbps) • Programmable from: -8 dBm to +8 dBm in 1 dB steps • Typical Sleep current consumptions: 0.6 μA (System OFF, Wake on pin, 0KB RAM retained) 3.7 μA (System ON, Wake on pin + GRTC, LFRC, 256 KB RAM retained) • Typical Radio current consumptions: 3.3 mA (Radio RX @ 1 Mbps, HFXO 4.8 mA (Radio TX @ 0 dBm, HFXO 9.8 mA (Radio TX @ 8dBm, HFXO • On module DC DC and LDO regulators with automated low current modes • Wide temperature ranges from -40 °C to 85 °C • Voltage range: 1.7 V to 3.6 V Block Diagram PAN B611-1x Bluetooth Module Product Specification Rev. 1.1 Page 3 of 54 By purchase of any of the products described in this document the customer accepts the document's validity and declares their agreement and understanding of its contents and recommendations. Panasonic Industrial Devices Europe GmbH (Panasonic) reserves the right to make changes as required at any time without notification. Please consult the most recently issued Product Specification before initiating or completing a design. © Panasonic Industrial Devices Europe GmbH 2025. This specification sheet is copyrighted. Reproduction of this document is permissible only if reproduction is without alteration and is accompanied by all associated warranties, conditions, limitations, and notices. Do not disclose it to a third party. All rights reserved. This Product Specification does not lodge the claim to be complete and free of mistakes. If this document is marked as preliminary, please be aware that its final content is not yet concluded and the use of it is at your own risk. Document Acceptance By signing the Product Specification, you acknowledge that you are a legal representative for your company and that you understand and accept the validity of the contents herein. If the signed version of the Product Specification has not been returned to Panasonic within 30 days after receipt of the product, the specification or approval sheet shall be deemed to be accepted by you. Engineering Samples (ES) If Engineering Samples are delivered to the customer, these samples have the status “Engineering Samples”. This means that the design of this product is not yet concluded. Engineering Samples may be partially or fully functional, and they may differ from the published Product Specification. Engineering Samples are not qualified and they are not to be used for reliability testing or series production. Disclaimer The customer acknowledges that samples may deviate from the Product Specification and may bear defects due to their status of development and the lack of qualification mentioned above. Panasonic rejects any liability or product warranty for Engineering Samples. In particular, Panasonic disclaims liability for damages caused by: • The use of the Engineering Sample other than for evaluation purposes, particularly the installation or integration in another product to be sold by the customer, • Deviation or lapse in function of the Engineering Sample, • Improper use of the Engineering Sample. Panasonic Industrial Devices Europe GmbH disclaims any liability for consequential and incidental damages. In case of any queries regarding the Engineering Samples, please contact your local sales partner or the related product manager. Information on Software The PAN B611-1x module does not contain any software ex works, i.e. software is provided by 3rd party suppliers only. The essential software resources can be found on the partner website of Nordic Semiconductor https://www.nordicsemi.com/. PIDEU provides a factory software programming service for your customized firmware; for further information please reach out to your local sales contact this regarding  7.2.1 Contact Us. PAN B611-1x Bluetooth Module Product Specification Rev. 1.1 Page 4 of 54 Table of Contents 1 About This Document ......................................................................................................................... 5 1.1 Purpose and Audience .............................................................................................................. 5 1.2 Revision History ......................................................................................................................... 5 1.3 Use of Symbols ......................................................................................................................... 5 1.4 Related Documents ................................................................................................................... 6 2 Overview .............................................................................................................................................. 7 2.1 Block Diagram ........................................................................................................................... 8 2.2 Pin Configuration ....................................................................................................................... 9 2.3 Peripherals ..........................................................…

Text truncated - open the document above for the full version.

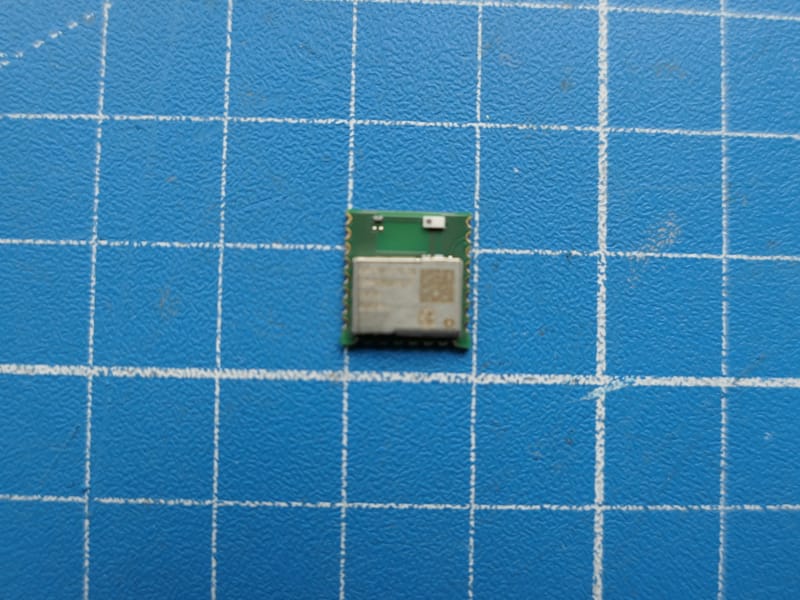

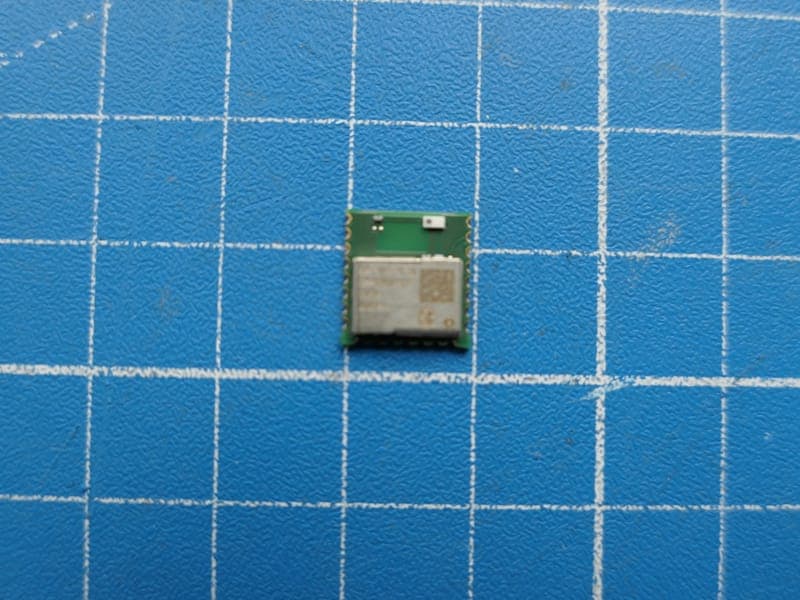

Annex A104 - Photographs No. 1-8026-24-01-01_TR1-A104-R02 December 12, 2025 DescriptionTest setup photos This document is electronically signed and valid without handwritten signature. Public keys for verifcation of the electronic signatures can be requested at the testing laboratory. Michael Dorongovski Lab Manager/ Telecommunication Certification Body (USA/CAN/ JPN) Radio Labs/ Assessment &Approvals authorized by cetecom advanced GmbH Untertuerkheimer Str. 6-10, 66117 Saarbruecken Document No. 1-8026-24-01-01_TR1-A104-R02 Page 1 of 7 Photo 1 Photo 2 cetecom advanced GmbH Untertuerkheimer Str. 6-10, 66117 Saarbruecken Document No. 1-8026-24-01-01_TR1-A104-R02 Page 2 of 7 Photo 3 Photo 4 cetecom advanced GmbH Untertuerkheimer Str. 6-10, 66117 Saarbruecken Document No. 1-8026-24-01-01_TR1-A104-R02 Page 3 of 7 Photo 5 Photo 6 cetecom advanced GmbH Untertuerkheimer Str. 6-10, 66117 Saarbruecken Document No. 1-8026-24-01-01_TR1-A104-R02 Page 4 of 7 Photo 7 Photo 8 cetecom advanced GmbH Untertuerkheimer Str. 6-10, 66117 Saarbruecken Document No. 1-8026-24-01-01_TR1-A104-R02 Page 5 of 7 Photo 9 cetecom advanced GmbH Untertuerkheimer Str. 6-10, 66117 Saarbruecken Document No. 1-8026-24-01-01_TR1-A104-R02 Page 6 of 7 Document History End of document ReleaseApplied changesRelease date R01initial releaseSeptember 01, 2025 R02AC conducted addedDecember 12, 2025 cetecom advanced GmbH Untertuerkheimer Str. 6-10, 66117 Saarbruecken Document No. 1-8026-24-01-01_TR1-A104-R02 Page 7 of 7

Conducted test results No.1-8026-24-01-09_TR1-A201-R01 August 27, 2025 Test Standard(s)FCC 15.247 - NI FCC 15.247, ISED RSS247 - NI This document is electronically signed and valid without handwritten signature. Public keys for verification of the electronic signatures can be requested at the testing laboratory. Authorized Andreas Curette Lab Manager Radio Labs cetecom advanced GmbH Untertürkheimer Str. 6-10, 66117 Saarbrücken Document No. 1-8026-24-01-09_TR1-A201-R01 Release 1 - Page 1 of 44 Table of Content FCC 15.247 # Peak psd DTS ~ Generic 2G43 FCC 15.247 # Peak psd DTS ~ Generic 2G45 FCC 15.247 # Peak psd DTS ~ Generic 2G47 FCC 15.247 # Bandwidth 6dB DTS ~ Generic 2G49 FCC 15.247 # Bandwidth 6dB DTS ~ Generic 2G411 FCC 15.247 # Bandwidth 6dB DTS ~ Generic 2G413 FCC 15.247, ISED RSS247 # Bandwidth 99PCT and 20dB ~ Generic 2G415 FCC 15.247, ISED RSS247 # Bandwidth 99PCT and 20dB ~ Generic 2G419 FCC 15.247, ISED RSS247 # Bandwidth 99PCT and 20dB ~ Generic 2G423 FCC 15.247 # Maximum peak conducted output power DTS ~ Generic 2G427 FCC 15.247 # Maximum peak conducted output power DTS ~ Generic 2G430 FCC 15.247 # Maximum peak conducted output power DTS ~ Generic 2G433 FCC 15.247 # TX spurious conducted 20dBc ~ Generic 2G436 FCC 15.247 # TX spurious conducted 20dBc ~ Generic 2G439 FCC 15.247 # TX spurious conducted 20dBc ~ Generic 2G442 cetecom advanced GmbH Untertürkheimer Str. 6-10, 66117 Saarbrücken Document No. 1-8026-24-01-09_TR1-A201-R01 Release 1 - Page 2 of 44 FCC 15.247 # Peak psd DTS ~ Generic 2G4 References TC start22.08.2025 15:02:07 Ambit temp (test rack) [°C] | humidity [rel%] not enabled | not enabled System version6.0.3.0 Standard | Version FCC 15.247 | NI MethodDTS: KDB 558074 D01 V05 - Chapter 8.4 DTS maximum power spectral density level in the fundamental emission DescriptionFCC 15.247 Peak psd DTS - Generic 2G4 Information EUT Common settings 2G4 Hopping supportedNo Burst length [ms]10 Nominal bandwidth [MHz]2.4 User interactionNo Equipment Signal analyzer,Rohde&Schwarz,FSV-30,1321.3008K30/103170,3.70 Switch matrix,cetecom advanced GmbH,USM,A001,1.0.0 Test Parameter Technology to testGeneric 2G4 EUT portEUT1 Temperaturenom Voltagenom Frequency low to testTrue | Freq [MHz] 2405 Frequency mid to testFalse | Freq [MHz] 2440 Frequency high to testFalse | Freq [MHz] 2480 Auto control enabled power supply | Climatic Box No | No Additional path loss [dB]0.7 Full path typeEUT_SA_GEN_SIG Full path nameEUT1.MP.SIG1/EUT1.SA/EUT1.GEN1/EUT1.GEN2/ Switch bits 00010001:00010001:00000000:00000001 cetecom advanced GmbH Untertürkheimer Str. 6-10, 66117 Saarbrücken Document No. 1-8026-24-01-09_TR1-A201-R01 Release 1 - Page 3 of 44 Test at TX 2405 MHz RESULT: Reference power cond. DESCRIPTIONLOWER LIMITUPPER LIMITMEASUREDUNITVERDICT Ref. power 1MHz/1MHz cond. ------7.69dBmINFO Ref. frequency------2405.500MHzINFO READ SA SETTINGS: RefLevel [dBm] | RefLevelOffset [dB] | InpAtt [dB]12.69 | 9.26 | 20 Start [MHz] | Stop [MHz]2403.200 | 2406.800 RBW [MHz] | VBW [MHz]0.003000 | 0.010000 Detector | TraceModePOS | MAXH Sweep: time [ms] | count | points per Section | type1000 | 20 | 1001 | SWE 2403.502404.002404.502405.002405.502406.002406.50 MHz Frequency 0.0 -5.0 -10.0 -15.0 -20.0 -25.0 -30.0 -35.0 -40.0 -45.0 -50.0 -55.0 -60.0 dBm Magnitude Peak psd RESULT DESCRIPTIONLOWER LIMITUPPER LIMITMEASUREDUNITVERDICT Peak psd---8-4.91dBm/3KHzPASS Verdict PASS cetecom advanced GmbH Untertürkheimer Str. 6-10, 66117 Saarbrücken Document No. 1-8026-24-01-09_TR1-A201-R01 Release 1 - Page 4 of 44 FCC 15.247 # Peak psd DTS ~ Generic 2G4 References TC start22.08.2025 15:35:26 Ambit temp (test rack) [°C] | humidity [rel%] not enabled | not enabled System version6.0.3.0 Standard | Version FCC 15.247 | NI MethodDTS: KDB 558074 D01 V05 - Chapter 8.4 DTS maximum power spectral density level in the fundamental emission DescriptionFCC 15.247 Peak psd DTS - Generic 2G4 Information EUT Common settings 2G4 Hopping supportedNo Burst length [ms]10 Nominal bandwidth [MHz]2.4 User interactionNo Equipment Signal analyzer,Rohde&Schwarz,FSV-30,1321.3008K30/103170,3.70 Switch matrix,cetecom advanced GmbH,USM,A001,1.0.0 Test Parameter Technology to testGeneric 2G4 EUT portEUT1 Temperaturenom Voltagenom Frequency low to testFalse | Freq [MHz] 2405 Frequency mid to testTrue | Freq [MHz] 2440 Frequency high to testFalse | Freq [MHz] 2480 Auto control enabled power supply | Climatic Box No | No Additional path loss [dB]0.7 Full path typeEUT_SA_GEN_SIG Full path nameEUT1.MP.SIG1/EUT1.SA/EUT1.GEN1/EUT1.GEN2/ Switch bits 00010001:00010001:00000000:00000001 cetecom advanced GmbH Untertürkheimer Str. 6-10, 66117 Saarbrücken Document No. 1-8026-24-01-09_TR1-A201-R01 Release 1 - Page 5 of 44 Test at TX 2440 MHz RESULT: Reference power cond. DESCRIPTIONLOWER LIMITUPPER LIMITMEASUREDUNITVERDICT Ref. power 1MHz/1MHz cond. ------7.75dBmINFO Ref. frequency------2440.500MHzINFO READ SA SETTINGS: RefLevel [dBm] | RefLevelOffset [dB] | InpAtt [dB]12.75 | 9.28 | 20 Start [MHz] | Stop [MHz]2438.200 | 2441.800 RBW [MHz] | VBW [MHz]0.003000 | 0.010000 Detector | TraceModePOS | MAXH Sweep: time [ms] | count | points per Section | type1000 | 20 | 1001 | SWE 2438.502439.002439.502440.002440.502441.002441.50 MHz Frequency 0.0 -5.0 -10.0 -15.0 -20.0 -25.0 -30.0 -35.0 -40.0 -45.0 -50.0 -55.0 -60.0 dBm Magnitude Peak psd RESULT DESCRIPTIONLOWER LIMITUPPER LIMITMEASUREDUNITVERDICT Peak psd---8-6.87dBm/3KHzPASS Verdict PASS cetecom advanced GmbH Untertürkheimer Str. 6-10, 66117 Saarbrücken Document No. 1-8026-24-01-09_TR1-A201-R01 Release 1 - Page 6 of 44 FCC 15.247 # Peak psd DTS ~ Generic 2G4 References TC start22.08.2025 16:12:11 Ambit temp (test rack) [°C] | humidity [rel%] not enabled | not enabled System version6.0.3.0 Standard | Version FCC 15.247 | NI MethodDTS: KDB 558074 D01 V05 - Chapter 8.4 DTS maximum power spectral density level in the fundamental emission DescriptionFCC 15.247 Peak psd DTS - Generic 2G4 Information EUT Common settings 2G4 H…

Text truncated - open the document above for the full version.

TEST REPORT Test report no.: 1-8026-24-01-09_TR1-R01 Testing laboratory Applicant cetecom advanced GmbH Untertuerkheimer Strasse 6 – 10 66117 Saarbruecken / Germany Phone: + 49 681 5 98 - 0 Fax: + 49 681 5 98 - 9075 Internet: https://cetecomadvanced.com e-mail: [email protected] Accredited Testing Laboratory: The testing laboratory (area of testing) is accredited according to DIN EN ISO/IEC 17025 (2018-03) by the Deutsche Akkreditierungsstelle GmbH (DAkkS). The accreditation is valid for the scope of testing procedures as stated in the accreditation certificate with the registration number: D-PL-12047-01-00. ISED Testing Laboratory Recognized Listing Number: DE0001 FCC designation number: DE0002 Panasonic Industrial Devices Europe GmbH Zeppelinstrasse 19 21337 Lüneburg / GERMANY Phone: +49-4131-899-0 Contact: Marcus Nottorf e-mail: [email protected] Manufacturer Panasonic Industrial Devices Slovakia s.r.o Tovarenska 13 06401 Stara Lubovna / SLOVAK REPUBLIC Test standard/s FCC - Title 47 CFR Part 15 FCC - Title 47 of the Code of Federal Regulations; Chapter I; Part 15 - Radio frequency devices RSS - 247 Issue 4 Digital Transmission Systems, Frequency Hopping Systems and Licence-Exempt Local Area Network Devices in 902-928 MHz, 2400-2483.5 MHz, 5150-5350 MHz, and 5470-5895 MHz band RSS - Gen Issue 5 incl. Amendment 1 & 2 Spectrum Management and Telecommunications Radio Standards Specification - General Requirements for Compliance of Radio Apparatus For further applied test standards please refer to section 3 of this test report. Test Item Kind of test item: Bluetooth® Low Energy / IEEE 802.15.4 Module Model name: PAN B611-1C FCC ID: T7V-B611 ISED certification number: 216Q-B611 Frequency: 2400 MHz to 2483.5 MHz Technology tested: ZigBee IEEE802.15.4 Antenna: Integrated antenna Power supply: 1.7 V to 3.6 V DC by external power supply Temperature range: -40°C to +85°C This test report is electronically signed and valid without handwritten signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Test report authorized: Test performed: On behalf of Michael Dorongovski Andreas Curette Lab Manager Lab Manager Radio Labs Radio Labs Test report no.: 1-8026-24-01-09_TR1-R01 © cetecom advanced GmbH Page 2 of 44 1 Table of contents 1 Table of contents ....................................................................................................................................... 2 2 General information ................................................................................................................................... 3 2.1 Notes and disclaimer ...................................................................................................................... 3 2.2 Application details .......................................................................................................................... 3 2.3 Test laboratories sub-contracted .................................................................................................... 3 3 Test standard/s, references and accreditations ......................................................................................... 4 4 Reporting statements of conformity – decision rule .................................................................................. 5 5 Test environment ...................................................................................................................................... 6 6 Test item ................................................................................................................................................... 6 6.1 General description ......................................................................................................................... 6 6.2 Additional information .................................................................................................................... 6 7 Sequence of testing ................................................................................................................................... 7 7.1 Sequence of testing radiated spurious 9 kHz to 30 MHz ................................................................. 7 7.2 Sequence of testing radiated spurious 30 MHz to 1 GHz ................................................................. 8 7.3 Sequence of testing radiated spurious 1 GHz to 18 GHz ................................................................. 9 7.4 Sequence of testing radiated spurious above 18 GHz.................................................................... 10 8 Description of the test setup .................................................................................................................... 11 8.1 Shielded semi anechoic chamber .................................................................................................. 12 8.2 Shielded fully anechoic chamber ................................................................................................... 14 8.3 Radiated measurements > 18 GHz ................................................................................................ 15 8.4 Conducted measurements Bluetooth system ................................................................................ 16 8.5 AC conducted ................................................................................................................................ 17 9 Measurement uncertainty ........................................................................................................................ 18 10 Summary of measurement results ....................................................................................................... 19 11 Additional comments ........................................................................................................................... 20 12 Measurement results .......................................................…

Text truncated - open the document above for the full version.

Conducted test results No.1-8026-24-01-08_TR1-A201-R01 August 27, 2025 Test Standard(s)FCC 15.247 - NI FCC 15.247, ISED RSS247 - NI This document is electronically signed and valid without handwritten signature. Public keys for verification of the electronic signatures can be requested at the testing laboratory. Authorized Andreas Curette Lab Manager Radio Labs cetecom advanced GmbH Untertürkheimer Str. 6-10, 66117 Saarbrücken Document No. 1-8026-24-01-08_TR1-A201-R01 Release 1 - Page 1 of 76 Table of Content FCC 15.247 # Peak psd DTS ~ BT LE 1 Msps3 FCC 15.247 # Peak psd DTS ~ BT LE 2 Msps8 FCC 15.247 # Bandwidth 6dB DTS ~ BT LE 1 Msps13 FCC 15.247 # Bandwidth 6dB DTS ~ BT LE 2 Msps18 FCC 15.247, ISED RSS247 # Bandwidth 99PCT and 20dB ~ BT LE 1 Msps23 FCC 15.247, ISED RSS247 # Bandwidth 99PCT and 20dB ~ BT LE 2 Msps34 FCC 15.247 # Maximum peak conducted output power DTS ~ BT LE 1 Msps45 FCC 15.247 # Maximum peak conducted output power DTS ~ BT LE 2 Msps53 FCC 15.247 # TX spurious conducted ~ BT LE 1 Msps61 FCC 15.247 # TX spurious conducted ~ BT LE 2 Msps69 cetecom advanced GmbH Untertürkheimer Str. 6-10, 66117 Saarbrücken Document No. 1-8026-24-01-08_TR1-A201-R01 Release 1 - Page 2 of 76 FCC 15.247 # Peak psd DTS ~ BT LE 1 Msps References TC start22.08.2025 17:04:47 Ambit temp (test rack) [°C] | humidity [rel%] not enabled | not enabled System version6.0.3.0 Standard | Version FCC 15.247 | NI MethodDTS: KDB 558074 D01 V05 - Chapter 8.4 DTS maximum power spectral density level in the fundamental emission DescriptionFCC 15.247 Peak psd DTS - BT LE 1 Msps Information EUT Common Settings BT Low Energy Intermodulation value N 3 Image freq. Low | Mid | High [MHz] 0 | 0 | 0 Power class2 1 Mbps supported True | TXpayload 255 | RXpayload 255 2 Mbps supported True | TXpayload 255 | RXpayload 255 Longrange S8 supported False | TXpayload 255 | RXpayload 255 Longrange S2 supportedFalse | TXpayload 255 | RXpayload 255 Signaling settings WS_USB_RS232 | TWO | 16 | 19200 | None | S1 | None | On Signaling RF settings RF1com | 0 | 0 | On | User interaction No Equipment Signal analyzer,Rohde&Schwarz,FSV-30,1321.3008K30/103170,3.70 Switch matrix,cetecom advanced GmbH,USM,A001,1.0.0 Test Parameter Technology to testBT LE 1 Msps EUT portEUT1 Temperaturenom Voltagenom Frequency low to testTrue | Freq [MHz] 2402 Frequency mid to testTrue | Freq [MHz] 2440 Frequency high to testTrue | Freq [MHz] 2480 Auto control enabled power supply | Climatic Box No | No Additional path loss [dB]0.7 Full path typeEUT_SA_GEN_SIG cetecom advanced GmbH Untertürkheimer Str. 6-10, 66117 Saarbrücken Document No. 1-8026-24-01-08_TR1-A201-R01 Release 1 - Page 3 of 76 Test Parameter Full path nameEUT1.MP.SIG1/EUT1.SA/EUT1.GEN1/EUT1.GEN2/ Switch bits 00010001:00010001:00000000:00000001 cetecom advanced GmbH Untertürkheimer Str. 6-10, 66117 Saarbrücken Document No. 1-8026-24-01-08_TR1-A201-R01 Release 1 - Page 4 of 76 Test at TX 2402 MHz RESULT: Reference power cond. DESCRIPTIONLOWER LIMITUPPER LIMITMEASUREDUNITVERDICT Ref. power 1MHz/1MHz cond. ------7.39dBmINFO Ref. frequency------2402.300MHzINFO READ SA SETTINGS: RefLevel [dBm] | RefLevelOffset [dB] | InpAtt [dB]12.39 | 9.26 | 20 Start [MHz] | Stop [MHz]2401.250 | 2402.750 RBW [MHz] | VBW [MHz]0.003000 | 0.010000 Detector | TraceModePOS | MAXH Sweep: time [ms] | count | points per Section | type1000 | 20 | 1001 | SWE 2401.402401.602401.802402.002402.202402.402402.60 MHz Frequency 0.0 -5.0 -10.0 -15.0 -20.0 -25.0 -30.0 -35.0 -40.0 -45.0 -50.0 dBm Magnitude Peak psd RESULT DESCRIPTIONLOWER LIMITUPPER LIMITMEASUREDUNITVERDICT Peak psd---8-8.93dBm/3KHzPASS cetecom advanced GmbH Untertürkheimer Str. 6-10, 66117 Saarbrücken Document No. 1-8026-24-01-08_TR1-A201-R01 Release 1 - Page 5 of 76 Test at TX 2440 MHz RESULT: Reference power cond. DESCRIPTIONLOWER LIMITUPPER LIMITMEASUREDUNITVERDICT Ref. power 1MHz/1MHz cond. ------7.49dBmINFO Ref. frequency------2440.200MHzINFO READ SA SETTINGS: RefLevel [dBm] | RefLevelOffset [dB] | InpAtt [dB]12.50 | 9.28 | 20 Start [MHz] | Stop [MHz]2439.250 | 2440.750 RBW [MHz] | VBW [MHz]0.003000 | 0.010000 Detector | TraceModePOS | MAXH Sweep: time [ms] | count | points per Section | type1000 | 20 | 1001 | SWE 2439.402439.602439.802440.002440.202440.402440.60 MHz Frequency 0.0 -5.0 -10.0 -15.0 -20.0 -25.0 -30.0 -35.0 -40.0 -45.0 -50.0 -55.0 -60.0 dBm Magnitude Peak psd RESULT DESCRIPTIONLOWER LIMITUPPER LIMITMEASUREDUNITVERDICT Peak psd---8-8.92dBm/3KHzPASS cetecom advanced GmbH Untertürkheimer Str. 6-10, 66117 Saarbrücken Document No. 1-8026-24-01-08_TR1-A201-R01 Release 1 - Page 6 of 76 Test at TX 2480 MHz RESULT: Reference power cond. DESCRIPTIONLOWER LIMITUPPER LIMITMEASUREDUNITVERDICT Ref. power 1MHz/1MHz cond. ------7.77dBmINFO Ref. frequency------2480.200MHzINFO READ SA SETTINGS: RefLevel [dBm] | RefLevelOffset [dB] | InpAtt [dB]12.77 | 9.41 | 20 Start [MHz] | Stop [MHz]2479.250 | 2480.750 RBW [MHz] | VBW [MHz]0.003000 | 0.010000 Detector | TraceModePOS | MAXH Sweep: time [ms] | count | points per Section | type1000 | 20 | 1001 | SWE 2479.402479.602479.802480.002480.202480.402480.60 MHz Frequency 0.0 -5.0 -10.0 -15.0 -20.0 -25.0 -30.0 -35.0 -40.0 -45.0 -50.0 -55.0 -60.0 dBm Magnitude Peak psd RESULT DESCRIPTIONLOWER LIMITUPPER LIMITMEASUREDUNITVERDICT Peak psd---8-8.78dBm/3KHzPASS Verdict PASS cetecom advanced GmbH Untertürkheimer Str. 6-10, 66117 Saarbrücken Document No. 1-8026-24-01-08_TR1-A201-R01 Release 1 - Page 7 of 76 FCC 15.247 # Peak psd DTS ~ BT LE 2 Msps References TC start22.08.2025 17:50:09 Ambit temp (test rack) [°C] | humidity [rel%] not enabled | not enabled System version6.0.3.0 Standard | Version FCC 15.247 | NI MethodDTS: KDB 558074 D01 V05 - Chapter 8.4 DTS maximum power spectral density level in the fundamental emission DescriptionFCC 15.247 Peak psd DTS - BT LE 2 Msps Information EUT Common Settings BT Low Energy Intermodulation value N 3 Image freq. Low | Mid | High [MHz] 0 | 0 | 0 Power class2 1 Mbps supported True …

Text truncated - open the document above for the full version.

TEST REPORT Test report no.: 1-8026-24-01-08_TR1-R01 Testing laboratory Applicant cetecom advanced GmbH Untertuerkheimer Strasse 6 – 10 66117 Saarbruecken / Germany Phone: + 49 681 5 98 - 0 Fax: + 49 681 5 98 - 9075 Internet: https://cetecomadvanced.com e-mail: [email protected] Accredited Testing Laboratory: The testing laboratory (area of testing) is accredited according to DIN EN ISO/IEC 17025 (2018-03) by the Deutsche Akkreditierungsstelle GmbH (DAkkS). The accreditation is valid for the scope of testing procedures as stated in the accreditation certificate with the registration number: D-PL-12047-01-00. ISED Testing Laboratory Recognized Listing Number: DE0001 FCC designation number: DE0002 Panasonic Industrial Devices Europe GmbH Zeppelinstrasse 19 21337 Lüneburg / GERMANY Phone: +49-4131-899-0 Contact: Marcus Nottorf e-mail: [email protected] Manufacturer Panasonic Industrial Devices Slovakia s.r.o Tovarenska 13 06401 Stara Lubovna / SLOVAK REPUBLIC Test standard/s FCC - Title 47 CFR Part 15 FCC - Title 47 of the Code of Federal Regulations; Chapter I; Part 15 - Radio frequency devices RSS - 247 Issue 4 Digital Transmission Systems, Frequency Hopping Systems and Licence-Exempt Local Area Network Devices in 902-928 MHz, 2400-2483.5 MHz, 5150-5350 MHz, and 5470-5895 MHz band RSS - Gen Issue 5 incl. Amendment 1 & 2 Spectrum Management and Telecommunications Radio Standards Specification - General Requirements for Compliance of Radio Apparatus For further applied test standards please refer to section 3 of this test report. Test Item Kind of test item: Bluetooth® Low Energy / IEEE 802.15.4 Module Model name: PAN B611-1C FCC ID: T7V-B611 ISED certification number: 216Q-B611 Frequency: 2400 MHz to 2483.5 MHz Technology tested: Bluetooth ® LE Antenna: Integrated antenna Power supply: 1.7 V to 3.6 V DC by external power supply Temperature range: -40°C to +85°C This test report is electronically signed and valid without handwritten signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Test report authorized: Test performed: On behalf of Michael Dorongovski Andreas Curette Lab Manager Lab Manager Radio Labs Radio Labs Test report no.: 1-8026-24-01-08_TR1-R01 © cetecom advanced GmbH Page 2 of 49 1 Table of contents 1 Table of contents ....................................................................................................................................... 2 2 General information ................................................................................................................................... 3 2.1 Notes and disclaimer ...................................................................................................................... 3 2.2 Application details .......................................................................................................................... 3 2.3 Test laboratories sub-contracted .................................................................................................... 3 3 Test standard/s, references and accreditations ......................................................................................... 4 4 Reporting statements of conformity – decision rule .................................................................................. 5 5 Test environment ...................................................................................................................................... 6 6 Test item ................................................................................................................................................... 6 6.1 General description ......................................................................................................................... 6 6.2 Additional information .................................................................................................................... 6 7 Sequence of testing ................................................................................................................................... 7 7.1 Sequence of testing radiated spurious 9 kHz to 30 MHz ................................................................. 7 7.2 Sequence of testing radiated spurious 30 MHz to 1 GHz ................................................................. 8 7.3 Sequence of testing radiated spurious 1 GHz to 18 GHz ...............................................................…

Text truncated - open the document above for the full version.
