T7V301XBluetooth Low Energy Module

Panasonic Industrial Devices Europe GmbH
Bluetooth Low Energy Module - FCC ID T7V301X - Panasonic Industrial Devices Europe GmbH
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Apr 28, 2021
Application Purpose
Original Equipment
Date of Application
Apr 28, 2021
Equipment Note
Bluetooth Low Energy Module
Frequency Range
2402.00000000 - 2480.00000000
Company
Panasonic Industrial Devices Europe GmbH
Country
Germany

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Wireless Connectivity PAN301x Bluetooth ® Low Energy Module Product Specification Rev. 0.3 PAN301x Bluetooth Module Product Specification Rev. 0.2 Page 2 of 51 Overview The PAN301x is a Bluetooth 5 Low Energy (LE) module based on ST’s BlueNRG-2 Bluetooth low energy single mode system-on-chip. Features • Surface mount type (SMT) dimensions − PAN3011/3012: 25 mm x 14 mm x 3 mm − PAN3013: 31 mm x 14 mm x 3 mm • PAN3011 and PAN3012 have same form factor and pinning • ARM ® Cortex ® -M0 microcontroller • Embedded 256 kB flash memory and 24 kB internal RAM • Interfaces: I 2 C, UART, PDM, GPIO, ADC, SWD • Internal chip antenna Characteristics • Typical sensitivity: -88 dBm • Typical max. output power: 8 dBm • Typical current consumption: 16 mA in Tx and 9 mA in Rx mode • Typical current consumption in sleep-mode: 10 μA • Voltage range − PAN3011/3012: 1.7 V to 3.6 V − PAN3013: 2.6 V to 3.5 V • Temperature range − PAN3011/3012: -40 °C to 85 °C − PAN3013: -20 °C to 85 °C Sensor application • PAN3011 − LSM6DSO: 3D accelerometer and 3D gyroscope − LIS2MDL: magnetometer − MP34DT05-A: digital microphone • PAN3012 − HTS221: humidity and temperature − LPS22HH: pressure sensor − MP34DT05-A: digital microphone • PAN3013 − VL53L1X: time of flight sensor − LSM6DSO: 3D accelerometer and 3D gyroscope − LIS2MDL: magnetometer PAN301x Bluetooth Module Product Specification Rev. 0.2 Page 3 of 51 By purchase of any of the products described in this document the customer accepts the document's validity and declares their agreement and understanding of its contents and recommendations. Panasonic Industrial Devices Europe GmbH (Panasonic) reserves the right to make changes as required at any time without notification. Please consult the most recently issued Product Specification before initiating or completing a design. © Panasonic Industrial Devices Europe GmbH 2021. This specification sheet is copyrighted. Reproduction of this document is permissible only if reproduction is without alteration and is accompanied by all associated warranties, conditions, limitations, and notices. Do not disclose it to a third party. All rights reserved. This Product Specification does not lodge the claim to be complete and free of mistakes. Document Acceptance By signing the Product Specification, you acknowledge that you are a legal representative for your company and that you understand and accept the validity of the contents herein. If the signed version of the Product Specification has not been returned to Panasonic within 30 days after receipt of the product, the specification or approval sheet shall be deemed to be accepted by you. Engineering Samples (ES) If Engineering Samples are delivered to the customer, these samples have the status “Engineering Samples”. This means that the design of this product is not yet concluded. Engineering Samples may be partially or fully functional, and they may differ from the published Product Specification. Engineering Samples are not qualified and they are not to be used for reliability testing or series production. Disclaimer The customer acknowledges that samples may deviate from the Product Specification and may bear defects due to their status of development and the lack of qualification mentioned above. Panasonic rejects any liability or product warranty for Engineering Samples. In particular, Panasonic disclaims liability for damages caused by: • The use of the Engineering Sample other than for evaluation purposes, particularly the installation or integration in another product to be sold by the customer, • Deviation or lapse in function of the Engineering Sample, • Improper use of the Engineering Sample. Panasonic Industrial Devices Europe GmbH disclaims any liability for consequential and incidental damages. In case of any queries regarding the Engineering Samples, please contact your local sales partner or the related product manager. PAN301x Bluetooth Module Product Specification Rev. 0.2 Page 4 of 51 Table of Contents 1 About This Document ......................................................................................................................... 6 1.1 Purpose and Audience .............................................................................................................. 6 1.2 Revision History ......................................................................................................................... 6 1.3 Use of Symbols ......................................................................................................................... 6 1.4 Related Documents ................................................................................................................... 6 2 Overview .............................................................................................................................................. 7 2.1 Block Diagrams ......................................................................................................................... 8 2.2 Pin Configuration ....................................................................................................................... 9 2.3 Peripherals .............................................................................................................................. 11 2.4 Bluetooth Features .................................................................................................................. 11 3 Detailed Description ......................................................................................................................... 12 3.1 Dimensions .............................................................................................................................. 12 3.2 Footprint .................................................................................................................................. 14 3.3 Packaging ........................................................................................................…

Text truncated - open the document above for the full version.

Attestation Statements

PANASONIC INDUSTRIAL DEVICES EUROPE GmbH Zeppelinstraße 19, 21337 Lüneburg Provided by Eurofins Produc t Service GmbH v.0.2 Telefon +49 (0) 4131 899-0 Telefax +49 (0) 4131 899-120 E-Mail: [email protected] www.pideu.panasonic.de Modular Approval Request Letter Date: 2021-04-21 FCC ID: T7V301X Type of Equipment: Bluetooth Low Energy Module Herewith we state that the requirements according to FCC Part 15.212 are met and the module qualifies for a single modular transmitter approval. # Requirement as per 47 CFR Part 15 Subpart C §15.212 Conditions met? (Y/N) Realisation / Evidence in FORM 731 application filing i RF shielding The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. Y The radio portion has his own shielding (see external photos). ii Buffered modulation/data inputs The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with part 15 requirements under conditions of excessive data rates or over-modulation. Y The function has been integrated in the chipset (see operational description) iii Power supply regulation The modular transmitter must have its own power supply regulation. Y The function has been integrated in the chipset (see operational description) iv Antenna requirements The modular transmitter must comply with the antenna and transmission system requirements of §§15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). Additional justification and details may be requested – please refer to KDB 996369 Y The module comes with one permanently attached antenna. The spurious emission requirements are fulfilled (see attached test report). v Stand-alone test configuration The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing for compliance with part 15 requirements. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in §15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see §15.27(a)). The length of these lines shall be the length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified and commercially available (see §15.31(i)). Y The module has been tested in a stand-alone configuration (see test report/ test set-up photos) vi Labelling The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. Y The module has its own label The FCC ID is shown in the User Manual. The instruction for labelling rules for the host device has been stated in the user manual vii Compliance on specific rule or operating requirements The modular transmitter must comply with any specific rules or Y The required FCC rules has been fulfilled and all instructions for PANASONIC INDUSTRIAL DEVICES EUROPE GmbH Zeppelinstraße 19, 21337 Lüneburg Provided by Eurofins Produc t Service GmbH v.0.2 Telefon +49 (0) 4131 899-0 Telefax +49 (0) 4131 899-120 E-Mail: [email protected] www.pideu.panasonic.de operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. maintaining compliance has been clearly stated in the user manual viii RF Exposure Radio frequency devices operating under the provisions of this part are subject to the radio frequency radiation exposure requirements specified in §§1.1307(b), 1.1310, 2.1091, and 2.1093 of this chapter, as appropriate. Applications for equipment authorization of modular transmitters under this section must contain a statement confirming compliance with these requirements. The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. Y RF exposure requirements are fulfilled for mobile configuration. The installation of the module is restricted to mobile host devices what is clearly stated in the installation instruction of the user manual. For portable applications OEM integrators need SAR evaluation and an own FCC ID. Olaf Knoth Safety Manager Panasonic Industrial Devices Europe GmbH Zeppelinstraße 19 21337 Lueneburg Germany

Cover Letter(s)

Panasonic Industrial Devices Europe GmbH Zeppelinstraße 19, 21337 Lüneburg Phone +49 (0) 4131 899-0 Fax +49 (0) 4131 899-120 E-Mail: [email protected] www.pideu.panasonic.de Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 4/21/2021 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: T7V301X including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Olaf Knoth Safety Manager Panasonic Industrial Devices Europe GmbH Zeppelinstrasse 19 21337 Lueneburg

Cover Letter(s)

Panasonic Industrial Devices Europe GmbH Zeppelinstraße 19, 21337 Lüneburg Phone +49 (0) 4131 899-0 Fax +49 (0) 4131 899-120 E-Mail: [email protected] www.pideu.panasonic.de Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 4/21/2021 Request for Permanent Confidentiality Company name: Panasonic Industrial Devices Europe GmbH FCC ID: T7V301X FCC Part 15 Certification Gentlemen, In accordance with CFR 47 § 0.457 and CFR 47 § 0.459 Panasonic Industrial Devices Europe GmbH hereby requests confidentiality of following attachments: (1) schematic diagrams, (2) detailed block diagrams, (3) detailed operational descriptions, (4) parts lists. These documents contain detailed system and equipment description and related information about the product which Panasonic Industrial Devices Europe GmbH considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, Panasonic Industrial Devices Europe GmbH considers that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Olaf Knoth Safety Manager Panasonic Industrial Devices Europe GmbH Zeppelinstrasse 19 21337 Lueneburg

External Photos

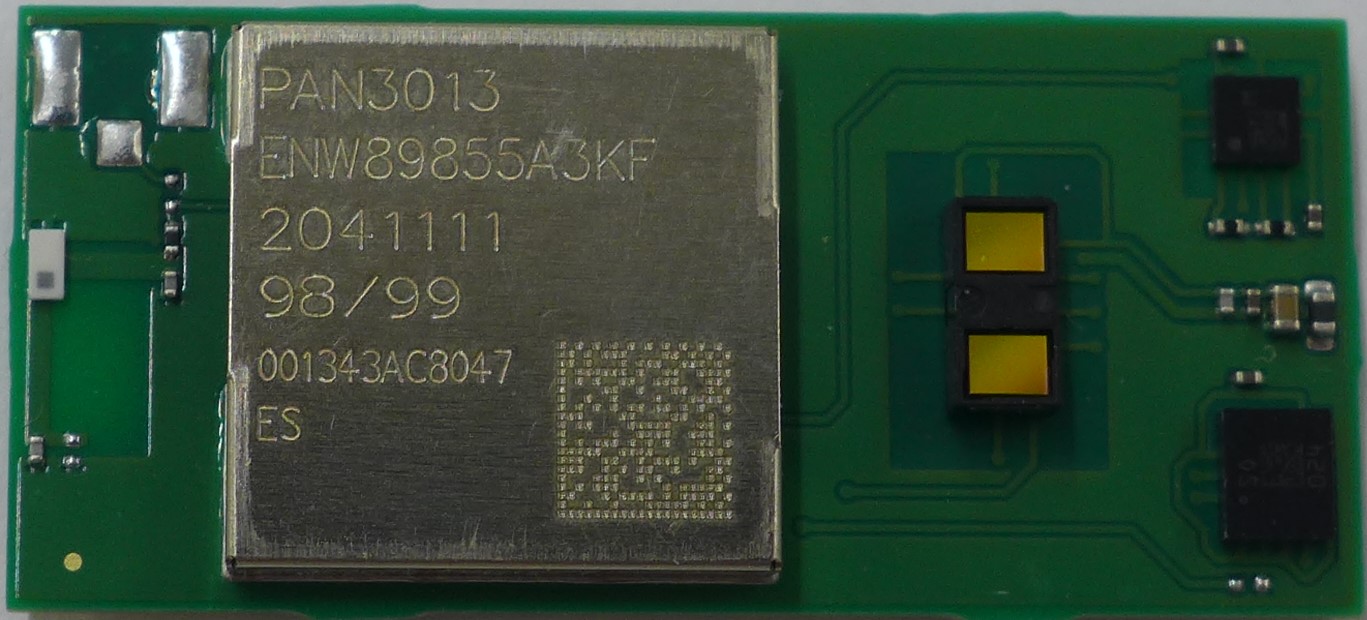

G0M-2009-9273 PAN3011: PAN3013:

ID Label/Location Info

REASONING PANASONIC BT MODUL PAN301x WITHOUT FCC ID ON PRODUCT CAUSED BY SIZE RESTRICTIONS In KDB784748D01V09r01 chapter 3 the FCC states the following: (3) CERTIFICATION For certification, the product shall bear a nameplate or label with the FCC Identifier (FCC ID), as defined in Section 2.925.13 The FCC ID must always be accessible when using the product. The placement of the FCC ID must be a physical label on the product, unless an e-label is used. Physical FCC ID labels must be located on the surface of the product, or within a user-accessible non-detachable compartment (such as the battery compartment). The label shall be permanently affixed, permitting the device to be positively identified. The font needs to be readily legible, consistent with the dimensions of the equipment and its label area. When the device is so small, or for such use that it is impracticable to label with a font size that is four-points or larger (and the device does not utilize electronic labeling), then the FCC ID shall be placed in the user manual, and the FCC ID shall also be placed either on the device packaging or on a removable label attached to the device Definition of point (pt) A computer point (pt) is the smallest unit of measure in typography. It is a subdivision of the larger pica. The contemporary desktop publishing point (also called the PostScript point) was defined as 72 points to the inch (1 point = 1⁄72 inches = 25.4⁄72 mm = 0.3527 mm). Conversion 4pt to mm 4pt = 0.3527 x 4mm = 1,4108mm The below dimensioned and magnified graphic shows the product with the actual label and a visualized FCC ID printed in 4pt font size. It demonstrates that the FCC ID doesn’t fit on the label if printed in 4pt. The brand name, product number, lot code and 2D data matrix code are laser printed in a font smaller than 2pt and are intended to be read by machines (scanner) or in a factory using a microscope. This product is intended to be sold to OEM’s only. The OEM is obliged to print on the label of the end product containing this BT module the following This product contains transmitter FCC ID: T7V301X Module Laser Marking Description No. Item ENW89855A1KF 1 Series (Brand) PAN301x 2 ENW-No. / Model Name ENW89855AxKF 3 Lotcode (YYWWDLL) YY - Year WW - Calendar Week D - Day of Week (e.g. Friday is 5) L - Line L - Lot 4 HW/SW Version HW Major Hardware Version: please refer to MS-CS-PAN301x document SW Major Software Version: please refer to AI document 5 MAC address MAC address for BLE, 12 digits, hexadecimal count 6 ES Marking Need to be mentioned during ES status (remove ES for MP) Necessity of ES marking will also be stated in the ECN 7 BT marking Bluetooth logo 8 2D Data Matrix Code Contains in total 30 characters, seperated by a semicolon. YYWWDLL;MACMACMACMAC;P/N;Hw(Minor)Sw(Minor) YYWWDLL Production Date Code (see No. 6 above) MACMACMACMAC Last eight digits from hexadecimal Panasonic Mac Address (example: 001343ABCDEF) 89855A1K Part of the ENW-Number HW(Minor);SW(Minor) Minor Hardware and Minor Software Version, each 2 digits, please refer to MS-CS-PAN301x and AI Document

Internal Photos

G0M-2009-9273

RF Exposure Info

Test Report No.: G0M-2009-9273-TFC093PE-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 1 of 15 RF-EXPOSURE REPORT FCC 47 CFR Part 2.1093 ISED RSS-102 RF-Exposure evaluation of portable equipment Report Reference No G0M-2009-9273-TFC093PE-V01 Testing Laboratory Eurofins Product Service GmbH Address Storkower Str. 38c 15526 Reichenwalde Germany Accreditation A2LA Accredited Testing Laboratory, Certificate No.: 1983.01 FCC Test Firm Designation Number: DE0008 ISED Testing Laboratory site: 3470A-2 Applicant Panasonic Industrial Devices Europe GmbH Address Zeppelinstr. 19 21337 Lüneburg GERMANY Test Specification According to FCC/ISED rules Standard FCC 47 CFR 2.1093 ISED RSS-102 Issue 5 Non-Standard Test Method None Equipment under Test (EUT): Product Description Bluetooth Low Energy Module Model(s) ENW89855A1KF Additional Model(s) None Brand Name(s) PAN3011 Hardware Version(s) 01 Software Version(s) Stack 2.1c FCC ID T7V301X IC 216Q-301X Test Result PASSED Test Report No.: G0M-2009-9273-TFC093PE-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 3 of 15 VERSION HISTORY Version History Version Issue Date Remarks Revised By 01 2021-04-27 Initial Release Test Report No.: G0M-2009-9273-TFC093PE-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 4 of 15 ABBREVIATIONS AND ACRONYMS Acronyms Acronym Description EIRP Equivalent Isotropic Radiated Power ERP Effective Radiated Power EUT Equipment Under Test LPE Low Power Exclusion Test Report No.: G0M-2009-9273-TFC093PE-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 5 of 15 REPORT INDEX 1 Equipment (Test Item) Under Test................................................................................................... 6 1.1 Reference Documents ................................................................................................................................... 7 1.2 Standalone radiation sources ........................................................................................................................ 8 1.3 Concurrent Sources ...................................................................................................................................... 8 2 Result Summary ................................................................................................................................. 9 3 RF-Exposure classification ............................................................................................................ 10 4 RF-Exposure limits and exclusion thresholds ............................................................................ 11 4.1 SAR limits .................................................................................................................................................... 11 4.2 SAR standalone test exclusion threshold .................................................................................................... 11 4.3 SAR concurrent test exclusion threshold ..................................................................................................... 12 5 RF-Exposure Evaluation ................................................................................................................. 13 6 Single Source Evaluation Results - FCC ...................................................................................... 14 7 Single Source Evaluation Results - ISED ..................................................................................... 15 Test Report No.: G0M-2009-9273-TFC093PE-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 6 of 15 1 Equipment (Test Item) Under Test Description Bluetooth Low Energy Module Model ENW89855A1KF Additional Model(s) None Brand Name(s) PAN3011 Serial Number(s) Nome Hardware Version(s) 01 Software Version(s) Stack 2.1c PMN PAN3011, PAN3012, PAN3013 HVIN ENW89855A1KF, ENW89855A2KF, ENW89855A3KF FVIN Stack 2.1c HMN n/a FCC ID T7V301X IC 216Q-301X Equipment type Radio module Environment General public Use case Body worn Test Report No.: G0M-2009-9273-TFC093PE-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 7 of 15 1.1 Reference Documents Document Type Document No. Issued by Date Radio Test Report FCC 47 CFR Part 15C ISED Canada RSS-247 G0M-2009-9273- TFC247BL-V01 Eurofins Product Service GmbH 2021-04-27 Test Report No.: G0M-2009-9273-TFC093PE-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 8 of 15 1.2 Standalone radiation sources FCC - Standalone radiation sources Mode Operating Frequency [MHz] Maximum conducted power [dBm] Maximum radiated power [dBm EIRP] Maximum duty cycle [%] Antenna distance to body [mm] Bluetooth LE 2440 7.6 9.2 64 5.0 Comment: ISED - Standalone radiation sources Mode Operating Frequency [MHz] Maximum conducted power [dBm] Maximum radiated power [dBm EIRP] Maximum duty cycle [%] Antenna distance to body [mm] Bluetooth LE 2440 7.6 9.2 64 10.0 Comment: 1.3 Concurrent Sources No concurrent radiation sources Test Report No.: G0M-2009-9273-TFC093PE-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 9 of 15 2 Result Summary Standalone sources - FCC KDB 447498 Product Standard Reference Requirement Reference Method Mode Verdict KDB 447498 SAR Test Exclusion KDB 447498 4.3.1 Bluetooth LE PASS Comment: Standalone sources - ISED RSS-102 Product Standard Reference Requirement Reference Method Mode Verdict ISED RSS-102 SAR Test Exclusion ISED RSS-102 2.5.1 Bluetooth LE PASS Comment: Test Report No.: G0M-2009-9273-TFC093PE-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 10 of 15 3 RF-Exposure classification RF-Exposure Categories Fixed A fixed device is defined as a device physically secured at one fixed location and cannot be easily re-located. Mobile A mob…

Text truncated - open the document above for the full version.

Test Report

Test Report No.: G0M-2009-9273-TFC247BL-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 1 of 90 RADIO REPORT FCC 47 CFR Part 15C ISED Canada RSS-247 Digital transmission systems operating within the 2400.0 MHz - 2483.5 MHz band Report Reference No G0M-2009-9273-TFC247BL-V01 Testing Laboratory Eurofins Product Service GmbH Address Storkower Str. 38c 15526 Reichenwalde Germany Accreditation DAkkS - Registration number : D-PL-12092-01-03 (ISED) ISED Testing Laboratory site: 3470A-2 DAkkS - Registration number : D-PL-12092-01-04 (FCC) FCC Filed Test Laboratory, Reg.-No.: 96970 Applicant Panasonic Industrial Devices Europe GmbH Address Zeppelinstr. 19 21337 Lüneburg GERMANY Test Specification 47 CFR Part 15C RSS-247, Issue 2, 2017-02 RSS-Gen, Issue 5, Amendment 1, 2019-03 Non-Standard Test Method None Equipment under Test (EUT): Product Description Bluetooth Low Energy Module Model(s) ENW89855A1KF Additional Model(s) None Brand Name(s) PAN3011 Hardware Version(s) 01 Software Version(s) Stack 2.1c FCC ID T7V301X IC 216Q-301X Test Result PASSED Test Report No.: G0M-2009-9273-TFC247BL-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 3 of 90 ADDITIONAL VARIANTS Additional Variants (not tested and not evaluated variants) Not-tested Variant Description 1 Product Type Description Bluetooth Low Energy Module Model name ENW89855A2KF Brand name PAN3012 Hardware Version 01 Software Version 01 2 Product Type Description Bluetooth Low Energy Module Model name ENW89855A3KF Brand name PAN3013 Hardware Version 01 Software Version 01 Comment: Those named additional variants above have not been tested. Those additional variants of the series have been declared by the manufacturer. The test report explicitly states that those variants were neither tested nor assessed nor evaluated. Test Report No.: G0M-2009-9273-TFC247BL-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 4 of 90 VERSION HISTORY Version History Version Issue Date Remarks Revised By 01 2021-04-27 Initial Release Test Report No.: G0M-2009-9273-TFC247BL-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 5 of 90 ABBREVIATIONS AND ACRONYMS Acronyms Acronym Description EUT Equipment Under Test FCC Federal Communications Commission ISED Innovation, Science and Economic Development Canada RBW Resolution bandwidth RMS Root mean square VBW Video bandwidth V NOM Nominal supply voltage Test Report No.: G0M-2009-9273-TFC247BL-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 6 of 90 REPORT INDEX 1 Equipment (Test Item) Under Test................................................................................................... 7 1.1 Photos – Equipment External ........................................................................................................................ 8 1.2 Photos – Equipment Internal ....................................................................................................................... 10 1.3 Photos – Test Setup .................................................................................................................................... 13 1.4 Support Equipment ...................................................................................................................................... 16 1.5 Test Modes ................................................................................................................................................. 17 1.6 Test Frequencies ......................................................................................................................................... 18 1.7 Sample emission level calculation ............................................................................................................... 19 2 Result Summary ............................................................................................................................... 20 3 Test Conditions and Results .......................................................................................................... 21 3.1 Test Conditions and Results - Occupied bandwidth .................................................................................... 21 3.2 Test Conditions and Results - 6 dB bandwidth ............................................................................................ 25 3.3 Test Conditions and Results - Maximum peak conducted output power ..................................................... 30 3.4 Test Conditions and Results - Power spectral density ................................................................................ 35 3.5 Test Conditions and Results - AC powerline conducted emissions ............................................................. 40 3.6 Test Conditions and Results - Band-edge compliance ................................................................................ 43 3.7 Test Conditions and Results - Conducted spurious emissions .................................................................... 47 3.8 Test Conditions and Results - Transmitter radiated emissions ................................................................... 52 3.9 Test Conditions and Results - Receiver radiated emissions ....................................................................... 55 ANNEX A Transmitter spurious emissions ....................................................................................................... 57 ANNEX B Receiver spurious emissions ........................................................................................................... 83 Test Report No.: G0M-2009-9273-TFC247BL-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 7 of 90 1 Equipment (Test Item) Under Test Description Bluetooth Low Energy Module Model ENW89855A1KF Additional Model(s) None Brand Name(s) PAN301…

Text truncated - open the document above for the full version.

Test Setup Photos

G0M-2009-9273 FCC ID: T7V301X IC: 216Q-301X

Contact Information

Applicant

Olaf Knoth(Product Safety)
[email protected]+49-4131-899Fax: +49-4131-899-187

Technical Contact

Panasonic Industrial Devices Europe GmbHUlf Heinrichs
[email protected]+49 4131899-188

Germany

Test Firm

Eurofins Product Service GmbHMichael Howard
[email protected]49-33631-888-300Fax: 49-33631-888-650

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.40 GHz - 2.48 GHz5.70 mW
Modular Type
Single Modular Approval
Confidentiality
Long Term
Grant Notes
Single Modular Approval. Output power listed is peak conducted. RF exposure compliance is addressed for §2.1093 MPE limits. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 5 mm from all persons. End users must be provided with transmitter operation conditions for satisfying RF exposure compliance. Host product manufacturers must follow the instructions according to KDB 996369 D04 to demonstrate compliance with the FCC rules.
