T7V-W602WiFi / BLE Module

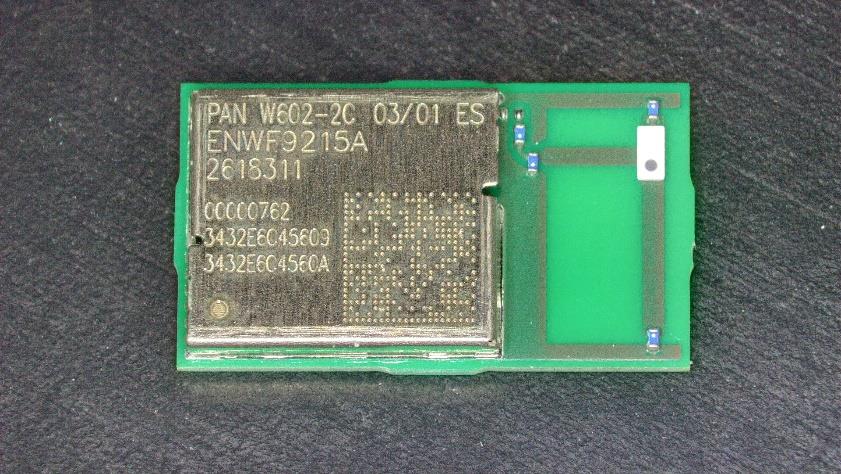

Wireless Connectivity PAN W602-xx Wi-Fi Single-Band 2.4 GHz and Bluetooth ® Module Wi-Fi Dual-Band 2.4/5 GHz and Bluetooth ® Module Product Specification Rev. 1.0 PAN W602 Bluetooth/Wi-Fi Modul Product Specification Rev. 1.0 Page 2 of 82 Overview The PAN W602-1x is a single band 2.4 GHz companion module with integrated Bluetooth® Low Energy for cost-effective projects and is based on the chipset CC3301 from Texas Instruments. The PAN W602-2x is a dual band 2.4 & 5 GHz companion module with integrated Bluetooth® Low Energy for projects which require more data rates or less interferences and is based on the chipset CC3351 from Texas Instruments. In a compact form factor the module either comes with an integrated chip antenna or the option to connect an external antenna via the bottom Pad. Latest technologies like multiuser MIMO and OFDMA improve the efficiency in large networks. Integrated power management, 802.11i/w security standard support, and high-speed data interfaces deliver the performance for the speed, reliability, and quality requirements of next generation products. Features • Single & Dual band (2.4 GHz & 5 GHz) 802.11 a/b/g/n/ax Wi-Fi • Bluetooth® 5.4 Low Energy (1M, 2M, LE Coded PHY) • WPA3 Personal and Enterprise as station • Multirole support: Access point & station • WiFi 6: Target Wake Time (TWT), OFDMA, MUMIMO (Downlink), Basic Service Set Coloring • Simultaneous operation of Wi-Fi and Bluetooth ® • IEEE 802.11ax, 1×1 spatial stream with data rates up to 86 Mbps (MCS7, 20 MHz channel bandwidth) • Enhanced security such as firmware authentication and anti-rollback protection • Support for host processors running a Linux ® operating system Characteristics • Integrated antenna or bottom pad version • Dimensions [mm] – Bottom Pad: 8.8 x 10.0 x 1.8 – Integrated Antenna: 8.8 x 15.25 x 1.8 • Host Interface – WiFi: SDIO 2.0 (1.8 V) – Bluetooth®: Highspeed UART (1.8 V) • Coexistence: 3-wire or 1-wire PTA for external coexistence with additional 2.4-GHz radios • Tx power up to +16 dBm • 20 MHz channel bandwidth • Rx Sensitivity: -96 dBm at IEEE 802.11b 1 Mbps • Power supply: 1.8 V (core and I/O) and 3.3 (PA) • Wide temperature range: -40 °C to +85 °C • Typical current consumption – Tx:115mA (V 1V8 ) and 215mA (V 3V3 ) @ 802.11ax (HE MCS7) 2.4 GHz, Rx: 62mA @ 2.4 GHz, – Tx:175mA (V 1V8 ) and 190mA (V 3V3 ) @ 802.11ax (HE MCS7) 5 GHz, Rx:110mA @ 5 GHz • Low Power Shutdown Mode – 313 uA @ 2.4 GHz – 348 uA @ 5 GHz Block Diagram PAN W602 Bluetooth/Wi-Fi Modul Product Specification Rev. 1.0 Page 3 of 82 By purchasing any of the products described in this document the customer accepts the document's validity and declares their agreement and understanding of its contents and recommendations. Panasonic Industrial Devices Europe GmbH (Panasonic) reserves the right to make changes as required at any time without notification. Please consult the most recently issued Product Specification before initiating or completing a design. © Panasonic Industrial Devices Europe GmbH 2026. This specification sheet is copyrighted. Reproduction of this document is permissible only if reproduction is without alteration and is accompanied by all associated warranties, conditions, limitations, and notices. Do not disclose it to a third party. All rights reserved. This Product Specification does not lodge the claim to be complete and free of mistakes. If this document is marked as preliminary, please be aware that its final content is not yet concluded and the use of it is at your own risk. Document Acceptance By signing the Product Specification, you acknowledge that you are a legal representative for your company and that you understand and accept the validity of the contents herein. If the signed version of the Product Specification has not been returned to Panasonic within 30 days after receipt of the product, the specification or approval sheet shall be deemed to be accepted by you. Engineering Samples (ES) If Engineering Samples are delivered to the customer, these samples have the status “Engineering Samples”. This means that the design of this product is not yet concluded. Engineering Samples may be partially or fully functional, and they may differ from the published Product Specification. Engineering Samples are not qualified and they are not to be used for reliability testing or series production. Disclaimer The customer acknowledges that samples may deviate from the Product Specification and may bear defects due to their status of development and the lack of qualification mentioned above. Panasonic rejects any liability or product warranty for Engineering Samples. In particular, Panasonic disclaims liability for damages caused by: • The use of the Engineering Sample other than for evaluation purposes, particularly the installation or integration in another product to be sold by the customer, • Deviation or lapse in function of the Engineering Sample, • Improper use of the Engineering Sample. Panasonic Industrial Devices Europe GmbH disclaims any liability for consequential and incidental damages. In case of any queries regarding the Engineering Samples, please contact your local sales partner or the related product manager. Information on Software The PAN W602 module does not contain any software ex works, i.e. software is provided by 3rd party suppliers only. The essential software resources can be found on the partner website of Texas Instruments Incorporated (https://www.ti.com). PIDEU provides a factory software programming service for your customized firmware; for further information please reach out to your local sales contact this regarding  7.3.1 Contact Us. PAN W602 Bluetooth/Wi-Fi Modul Product Specification Rev. 1.0 Page 4 of 82 Table of Contents 1 About This Document ......................................................................................................................... 6 1.1 Purpose and Audience .........................................................................…

Text truncated - open the document above for the full version.

Conducted test results No.1-9318-25-02-04_TR1-A201-R02 June 26, 2026 Test Standard(s)FCC 15.407, ISED RSS247 - NI FCC 15.407 - NI ISED RSS247 - NI This document is electronically signed and valid without handwritten signature. Public keys for verification of the electronic signatures can be requested at the testing laboratory. Authorized David Lang Lab Manager Radio Labs cetecom advanced GmbH Untertürkheimer Str. 6-10, 66117 Saarbrücken Document No. 1-9318-25-02-04_TR1-A201-R02 Release 1 - Page 1 of 794 Table of Content FCC 15.407, ISED RSS247 # Bandwidths 99PCT and 26dB (UNII-3 20dB) ~ WLAN5Gx a U-NII-17 FCC 15.407, ISED RSS247 # Bandwidths 99PCT and 26dB (UNII-3 20dB) ~ WLAN5Gx a U-NII-111 FCC 15.407, ISED RSS247 # Bandwidths 99PCT and 26dB (UNII-3 20dB) ~ WLAN5Gx a U-NII-115 FCC 15.407, ISED RSS247 # Bandwidths 99PCT and 26dB (UNII-3 20dB) ~ WLAN5Gx a U-NII-2A19 FCC 15.407, ISED RSS247 # Bandwidths 99PCT and 26dB (UNII-3 20dB) ~ WLAN5Gx a U-NII-2A24 FCC 15.407, ISED RSS247 # Bandwidths 99PCT and 26dB (UNII-3 20dB) ~ WLAN5Gx a U-NII-2A29 FCC 15.407, ISED RSS247 # Bandwidths 99PCT and 26dB (UNII-3 20dB) ~ WLAN5Gx a U-NII-2C34 FCC 15.407, ISED RSS247 # Bandwidths 99PCT and 26dB (UNII-3 20dB) ~ WLAN5Gx a U-NII-2C39 FCC 15.407, ISED RSS247 # Bandwidths 99PCT and 26dB (UNII-3 20dB) ~ WLAN5Gx a U-NII-2C44 FCC 15.407, ISED RSS247 # Bandwidths 99PCT and 26dB (UNII-3 20dB) ~ WLAN5Gx a U-NII-349 FCC 15.407, ISED RSS247 # Bandwidths 99PCT and 26dB (UNII-3 20dB) ~ WLAN5Gx a U-NII-354 FCC 15.407, ISED RSS247 # Bandwidths 99PCT and 26dB (UNII-3 20dB) ~ WLAN5Gx a U-NII-359 FCC 15.407, ISED RSS247 # Bandwidths 99PCT and 26dB (UNII-3 20dB) ~ WLAN5Gx n-HT20 U-NII-164 FCC 15.407, ISED RSS247 # Bandwidths 99PCT and 26dB (UNII-3 20dB) ~ WLAN5Gx n-HT20 U-NII-168 FCC 15.407, ISED RSS247 # Bandwidths 99PCT and 26dB (UNII-3 20dB) ~ WLAN5Gx n-HT20 U-NII-172 FCC 15.407, ISED RSS247 # Bandwidths 99PCT and 26dB (UNII-3 20dB) ~ WLAN5Gx n-HT20 U-NII-2A76 FCC 15.407, ISED RSS247 # Bandwidths 99PCT and 26dB (UNII-3 20dB) ~ WLAN5Gx n-HT20 U-NII-2A81 FCC 15.407, ISED RSS247 # Bandwidths 99PCT and 26dB (UNII-3 20dB) ~ WLAN5Gx n-HT20 U-NII-2A86 FCC 15.407, ISED RSS247 # Bandwidths 99PCT and 26dB (UNII-3 20dB) ~ WLAN5Gx n-HT20 U-NII-2C91 FCC 15.407, ISED RSS247 # Bandwidths 99PCT and 26dB (UNII-3 20dB) ~ WLAN5Gx n-HT20 U-NII-2C96 FCC 15.407, ISED RSS247 # Bandwidths 99PCT and 26dB (UNII-3 20dB) ~ WLAN5Gx n-HT20 U-NII-2C101 FCC 15.407, ISED RSS247 # Bandwidths 99PCT and 26dB (UNII-3 20dB) ~ WLAN5Gx n-HT20 U-NII-3106 FCC 15.407, ISED RSS247 # Bandwidths 99PCT and 26dB (UNII-3 20dB) ~ WLAN5Gx n-HT20 U-NII-3111 FCC 15.407, ISED RSS247 # Bandwidths 99PCT and 26dB (UNII-3 20dB) ~ WLAN5Gx n-HT20 U-NII-3116 FCC 15.407, ISED RSS247 # Bandwidths 99PCT and 26dB (UNII-3 20dB) ~ WLAN5Gx ac-VHT20 U-NII-1121 FCC 15.407, ISED RSS247 # Bandwidths 99PCT and 26dB (UNII-3 20dB) ~ WLAN5Gx ac-VHT20 U-NII-1125 FCC 15.407, ISED RSS247 # Bandwidths 99PCT and 26dB (UNII-3 20dB) ~ WLAN5Gx ac-VHT20 U-NII-1129 FCC 15.407, ISED RSS247 # Bandwidths 99PCT and 26dB (UNII-3 20dB) ~ WLAN5Gx ac-VHT20 U- NII-2A 133 FCC 15.407, ISED RSS247 # Bandwidths 99PCT and 26dB (UNII-3 20dB) ~ WLAN5Gx ac-VHT20 U- NII-2A 138 FCC 15.407, ISED RSS247 # Bandwidths 99PCT and 26dB (UNII-3 20dB) ~ WLAN5Gx ac-VHT20 U- NII-2A 143 FCC 15.407, ISED RSS247 # Bandwidths 99PCT and 26dB (UNII-3 20dB) ~ WLAN5Gx ac-VHT20 U- NII-2C 148 FCC 15.407, ISED RSS247 # Bandwidths 99PCT and 26dB (UNII-3 20dB) ~ WLAN5Gx ac-VHT20 U- NII-2C 153 FCC 15.407, ISED RSS247 # Bandwidths 99PCT and 26dB (UNII-3 20dB) ~ WLAN5Gx ac-VHT20 U- NII-2C 158 FCC 15.407, ISED RSS247 # Bandwidths 99PCT and 26dB (UNII-3 20dB) ~ WLAN5Gx ac-VHT20 U-NII-3163 FCC 15.407, ISED RSS247 # Bandwidths 99PCT and 26dB (UNII-3 20dB) ~ WLAN5Gx ac-VHT20 U-NII-3168 FCC 15.407, ISED RSS247 # Bandwidths 99PCT and 26dB (UNII-3 20dB) ~ WLAN5Gx ac-VHT20 U-NII-3173 cetecom advanced GmbH Untertürkheimer Str. 6-10, 66117 Saarbrücken Document No. 1-9318-25-02-04_TR1-A201-R02 Release 1 - Page 2 of 794 FCC 15.407, ISED RSS247 # Bandwidths 99PCT and 26dB (UNII-3 20dB) ~ WLAN5Gx ax-HE20 U-NII-3 SU 178 FCC 15.407, ISED RSS247 # Bandwidths 99PCT and 26dB (UNII-3 20dB) ~ WLAN5Gx ax-HE20 U-NII-3 SU 183 FCC 15.407, ISED RSS247 # Bandwidths 99PCT and 26dB (UNII-3 20dB) ~ WLAN5Gx ax-HE20 U-NII-3 SU 188 FCC 15.407, ISED RSS247 # Bandwidths 99PCT and 26dB (UNII-3 20dB) ~ WLAN5Gx ax-HE20 U-NII-2C SU 193 FCC 15.407, ISED RSS247 # Bandwidths 99PCT and 26dB (UNII-3 20dB) ~ WLAN5Gx ax-HE20 U-NII-2C SU 198 FCC 15.407, ISED RSS247 # Bandwidths 99PCT and 26dB (UNII-3 20dB) ~ WLAN5Gx ax-HE20 U-NII-2C SU 203 FCC 15.407, ISED RSS247 # Bandwidths 99PCT and 26dB (UNII-3 20dB) ~ WLAN5Gx ax-HE20 U-NII-2A SU 208 FCC 15.407, ISED RSS247 # Bandwidths 99PCT and 26dB (UNII-3 20dB) ~ WLAN5Gx ax-HE20 U-NII-2A SU 213 FCC 15.407, ISED RSS247 # Bandwidths 99PCT and 26dB (UNII-3 20dB) ~ WLAN5Gx ax-HE20 U-NII-2A SU 218 FCC 15.407, ISED RSS247 # Bandwidths 99PCT and 26dB (UNII-3 20dB) ~ WLAN5Gx ax-HE20 U-NII-1 SU 223 FCC 15.407, ISED RSS247 # Bandwidths 99PCT and 26dB (UNII-3 20dB) ~ WLAN5Gx ax-HE20 U-NII-1 SU 227 FCC 15.407, ISED RSS247 # Bandwidths 99PCT and 26dB (UNII-3 20dB) ~ WLAN5Gx ax-HE20 U-NII-1 SU 231 FCC 15.407, ISED RSS247 # Emission mask (eirp) ~ WLAN5Gx a U-NII-3235 FCC 15.407, ISED RSS247 # Emission mask (eirp) ~ WLAN5Gx a U-NII-3238 FCC 15.407, ISED RSS247 # Emission mask (eirp) ~ WLAN5Gx a U-NII-3241 FCC 15.407, ISED RSS247 # Emission mask (eirp) ~ WLAN5Gx n-HT20 U-NII-3244 FCC 15.407, ISED RSS247 # Emission mask (eirp) ~ WLAN5Gx n-HT20 U-NII-3247 FCC 15.407, ISED RSS247 # Emission mask (eirp) ~ WLAN5Gx n-HT20 U-NII-3250 FCC 15.407, ISED RSS247 # Emission mask (eirp) ~ WLAN5Gx ac-VHT20 U-NII-3253 FCC 15.407, ISED RSS247 # Emission mask (eirp) ~ WLAN5Gx ac-VHT20 U-NII-3256 FCC 15.407, ISED RSS247 # Emission mask (eirp) ~ WLAN5Gx ac-VHT20 U-NII-3259 FCC 15.407, ISED RSS247 # Emission mask (eirp) ~ WLAN5Gx ax-HE20 U-NII-3 SU262 FCC 15.407, ISED RSS247 # Emission mask (ei…

Text truncated - open the document above for the full version.

DATASHEET Part No. X9003019 Product: External Hinged Wi-Fi 6 & Wi-Fi 6E Part No. X9003019 External HingedWi-Fi6 & Wi-Fi6E 2.4 GHz, 5 GHz, 6 GHz Supports: Wi-Fi applications, Bluetooth, ZigBee, WLAN, Smart Home, Healthcare, Digital Signage TheX9003019isanexternalhingeddipoleantennadeliversthekeyneeds ofdevicedesignersforhigherfunctionalityandperformance.Thisdipole antennadesignedforsuperiorperformanceinthe2.4GHz,5GHz,and6 GHzbandssupportingbothWi-Fi6andWi-Fi6E.Thisantennacanbe mountedeasilystraightoratrightangletothedeviceviaanSMAofRP- SMAconnector.Antennaofferedinwhiteorblack. ExtensiveRFExperience Ourexternalantennasaresupportedbydocumentationand,whenneeded,by theexpertiseofRFengineerswhohaveintegratedhundredsofantennadesigns intowirelessdevices. Global Operations & DesignSupport KYOCERAAVX’globaloperationsencompassanintegratednetworkof designcentersthatprovidelocalcustomersupport. Electrical Specifications Typical Characteristics measured in Free Space tested and 90ºbent position Frequency(GHz) 2.400–2.485 4900–5.850 6.000–7.125 VSWR2.0:1 max Peak Gain 2.8 dBi4.9 dBi5.5 dBi Average Efficiency72%60%76% Polarization Vertical Feed Point Impedance 50ohm Mechanical Specifications Ordering Part Number X9003019-W3DRMW Dimensions(mm) 84.00 ±2.00 height 9.35 ±0.10 diameter ConnectorTypeRP-SMAMale Weight (grams)12 HingeFoldable90º at the hinge level ColorWhite Operating Temperature (ºC) -40 to +120 Radome Material TPEE External Hinged Wi-Fi 6 & Wi-Fi 6E 2.4 GHz, 5 GHz, 6 GHz KEY BENEFITS Quicker Time-to-Market Standard parts means fewer design cycles allowing for faster production times. Easy assembly using RP-SMAor SMA connection. Best in Class Performance External antennas are designed to maintain high efficiency in a variety of deviceconfigurations. Great Flexibility Standard connector to makes easy set-up. Environmental Compliance Products are the latest RoHS version compliant. APPLICATIONS •Internet of Things (IoT) devices •Smart Home networking / Gateway •Sensing and remote monitoring •Healthcare devices •M2M & Industrial IoT devices •Remote Access Monitoring •Asset Tracking www.KYOCERA-AVX.com Proprietary 9/29/2022 TDS-ANT-0100 | Rev. 0 © 2019 KYOCERA AVX tel +(1) 858.550.3820 | fax +(1) 858.550.3821 email: [email protected] 5501 Oberlin Drive, Suite 100 San Diego, CA 92121 -USA © 2022 KYOCERA AVX tel +(1) 858.550.3820 email: [email protected] 1 AvxBlvd, Fountain Inn, SC 29644 2.4 / 5 / 6 GHz External Wi-Fi 6 & Wi-Fi 6E KYOCERA AVX Antenna Specifications KYOCERA AVX produces a wide variety of standard and custom antennas to meet userneeds DATASHEET | Part No. X9003019-W3DRMW 5 GHz VSWR VSWR Frequency (MHz) VSWR Plots Typical performance measured in free space 2.4 GHz VSWR X9003019-W3DRMW in 90ºbent position VSWR Frequency (MHz) 6 GHz VSWR VSWR Frequency (MHz) TDS-ANT-0100 | Rev. 0 © 2019 KYOCERA AVX tel +(1) 858.550.3820 | fax +(1) 858.550.3821 email: [email protected] 5501 Oberlin Drive, Suite 100 San Diego, CA 92121 -USA © 2022 KYOCERA AVX tel +(1) 858.550.3820 email: [email protected] 1 AvxBlvd, Fountain Inn, SC 29644 2.4 / 5 / 6 GHz External Wi-Fi 6 & Wi-Fi 6E KYOCERA AVX Antenna Specifications KYOCERA AVX produces a wide variety of standard and custom antennas to meet userneeds DATASHEET | Part No. X9003019-W3DRMW 5 GHz Efficiency Efficiency (%) Frequency (MHz) Efficiency Plots Typical performance measured in free space 2.4 GHz Efficiency Efficiency (%) Frequency (MHz) 6 GHz Efficiency Efficiency (%) Frequency (MHz) X9003019-W3DRMW in 90ºbent position TDS-ANT-0100 | Rev. 0 © 2019 KYOCERA AVX tel +(1) 858.550.3820 | fax +(1) 858.550.3821 email: [email protected] 5501 Oberlin Drive, Suite 100 San Diego, CA 92121 -USA © 2022 KYOCERA AVX tel +(1) 858.550.3820 email: [email protected] 1 AvxBlvd, Fountain Inn, SC 29644 2.4 / 5 / 6 GHz External Wi-Fi 6 & Wi-Fi 6E KYOCERA AVX Antenna Specifications KYOCERA AVX produces a wide variety of standard and custom antennas to meet userneeds DATASHEET | Part No. X9003019-W3DRMW 5 GHz Peak Gain Peak Gain ( dBi ) Frequency (MHz) Peak Gain Plots Typical performance measured in free space 2.4 GHz Peak Gain Peak Gain ( dBi ) Frequency (MHz) 6 GHz Peak Gain Peak Gain ( dBi ) Frequency (MHz) X9003019-W3DRMW in 90ºbent position TDS-ANT-0100 | Rev. 0 © 2019 KYOCERA AVX tel +(1) 858.550.3820 | fax +(1) 858.550.3821 email: [email protected] 5501 Oberlin Drive, Suite 100 San Diego, CA 92121 -USA © 2022 KYOCERA AVX tel +(1) 858.550.3820 email: [email protected] 1 AvxBlvd, Fountain Inn, SC 29644 2.4 / 5 / 6 GHz External Wi-Fi 6 & Wi-Fi 6E KYOCERA AVX Antenna Specifications KYOCERA AVX produces a wide variety of standard and custom antennas to meet userneeds DATASHEET | Part No. X9003019-W3DRMW Radiation Patterns Plots Typical performance measured in free space, and in 90º bent position Measured at 2.460 GHz, 5.550 GHz Measured at 2.460 GHz Measured at 5.550 GHz x y Y X Z z x z y x y z x z y TDS-ANT-0100 | Rev. 0 © 2019 KYOCERA AVX tel +(1) 858.550.3820 | fax +(1) 858.550.3821 email: [email protected] 5501 Oberlin Drive, Suite 100 San Diego, CA 92121 -USA © 2022 KYOCERA AVX tel +(1) 858.550.3820 email: [email protected] 1 AvxBlvd, Fountain Inn, SC 29644 2.4 / 5 / 6 GHz External Wi-Fi 6 & Wi-Fi 6E KYOCERA AVX Antenna Specifications KYOCERA AVX produces a wide variety of standard and custom antennas to meet userneeds DATASHEET | Part No. X9003019-W3DRMW Radiation Patterns Plots Typical performance measured in free space, and in 90º bent position Measured at 6.540 GHz Measured at 6.540 GHz x y z x z y Y X Z TDS-ANT-0100 | Rev. 0 © 2019 KYOCERA AVX tel +(1) 858.550.3820 | fax +(1) 858.550.3821 email: [email protected] 5501 Oberlin Drive, Suite 100 San Diego, CA 92121 -USA © 2022 KYOCERA AVX tel +(1) 858.550.3820 email: [email protected] 1 AvxBlvd, Fountain Inn, SC 29644 2.4 / 5 / 6 GHz External Wi-Fi 6 & Wi-Fi 6E KYOCERA AVX Antenna Specifications KYOCERA AVX produces a wide variety of standard and custom ante…

Text truncated - open the document above for the full version.

SPE-23-8-345-A Freedom Part No: FXP830.54.0100C Description: FXP830 Freedom Wi-Fi 2.4/5.8/7.1GHz Dipole Antenna, Wi-Fi 6 included with 100mm of 1.37mm cable and I-PEX MHF®4L (HSC) connector Features: Flexible Polymer Antenna Covers Newly established Wi-Fi 6 Covers 2.4/5.8/7.1GHz Wi-Fi Bands Dipole Antenna Operates in Free Space (Ground Plane Independent) Cable: 100mm of Ø1.37mm Connector: IPEX MHF4L (HSC) CE Certified RoHS & Reach Compliant 2 SPE-23-8-345-A www.taoglas.com Taoglas makes no warranties based on the accuracy or completeness of the contents of this document and reserves the right to make changes to specifications and product descriptions at any time without notice. Taoglas reserves all rights to this document and the information contained herein. Reproduction, use or disclosure to third parties without express permission is strictly prohibited. 1. Introduction 3 2. Specifications 4 3. Antenna Characteristics 5 4. Radiation Patterns 11 5. Mechanical Drawing 14 6. Packaging 15 Changelog 16 3 SPE-23-8-345-A www.taoglas.com The FXP830 is a high efficiency, small, dipole antenna covering 2.4/5.8/7.1GHz bands including Bluetooth, Wi-Fi and the newly established Wi-Fi 6/Wi-Fi 6E, making this an ideal solution for future-proofing an IoT device. This Taoglas patent pending antenna is unique in the market because it is made from poly-flexible material, has a tiny form factor (42*7*.01mm) and has double-sided 3M tape for easy “peel and stick” mounting. The FXP830 is the ideal all-round antenna solution for squeezing into narrow spaces and still maintaining high performance, for example at the top of LCD devices. Many module manufacturers specify peak gain limits for any antennas that are to be connected to that module. Those peak gain limits are based on free-space conditions. In practice, the peak gain of an antenna tested in free-space can degrade by at least 1 or 2dBi when put inside a device. So ideally you should go for a slightly higher peak gain antenna than mentioned on the module specification to compensate for this effect, giving you better performance. Upon testing of any of our antennas with your device and a selection of appropriate layout, integration technique, or cable, Taoglas can make sure any of our antennas’ peak gain will be below the peak gain limits. Taoglas can then issue a specification and/or report for the selected antenna in your device that will clearly show it complying with the peak gain limits, so you can be assured you are meeting regulatory requirements for that module. For example, a module manufacturer may state that the antenna must have less than 2dBi peak gain, but you don’t need to select an embedded antenna that has a peak gain of less than 2dBi in free-space. This will give you a less optimized solution. It is better to go for a slightly higher free-space peak gain of 3dBi or more if available. Once that antenna gets integrated into your device, performance will degrade below this 2dBi peak gain due to the effects of GND plane, surrounding components, and device housing. If you want to be absolutely sure, contact Taoglas and we will test. Choosing a Taoglas antenna with a higher peak gain than what is specified by the module manufacturer and enlisting our help will ensure you are getting the best performance possible without exceeding the peak gain limits. The cable and connector are fully customizable, for further information contact your regional Taoglas customer support team. 1. Introduction 1. Introduction 1. Introduction 1. Introduction 1. Introduction 1. Introduction 1. Introduction 1. Introduction 4 SPE-23-8-345-A www.taoglas.com Wi-Fi Electrical Band Frequency (MHz) Efficiency (%) Average Gain (dB) Peak Gain (dBi) Impedance Max Power Input Polarization Radiation Pattern 2.4GHz Wi-Fi 2400~2500 50 -3 2.5 50Ω 2W Linear Omnidirectional 5.8GHz Wi-Fi 5150~5850 86 -3 4.7 7.1GHz Wi-Fi 6 5925~7125 65 -1.8 3.1 Mechanical Dimensions 42*7mm Antenna Body Material Polymer Cable Gray 100mm 1.37 co-axial Connector I-PEX MHF®4L (HSC Compatible) Weight 7g Environmental Temperature Range -40°C to 85°C Humidity Non-condensing 65°C 95% RH 2. Specifications 3. Antenna Characteristics2. Specifications 3. Antenna Characteristics 4. Antenna Radiation Patterns3. Antenna Characteristics2. Specifications 3. Antenna Characteristics2. Specifications 3. Antenna Characteristics 4. Antenna Radiation Patterns3. Antenna Characteristics 4. Antenna Radiation Patterns 4. Antenna Radiation Patterns3. Antenna Characteristics 4. Antenna Radiation Patterns3. Antenna Characteristics2. Specifications 5 SPE-23-8-345-A www.taoglas.com 3.1 Return Loss -30 -25 -20 -15 -10 -5 0 2000 2500 3000 3500 4000 4500 5000 5500 6000 ( MHz) (dB) free space on plastic -30 -25 -20 -15 -10 -5 0 60006500700075008000 (dB) (MHz) 3. Antenna Characteristics 4. Antenna Radiation Patterns3. Antenna Characteristics 4. Antenna Radiation Patterns 4. Antenna Radiation Patterns3. Antenna Characteristics 4. Antenna Radiation Patterns3. Antenna Characteristics 4. Antenna Radiation Patterns 4. Antenna Radiation Patterns 4. Antenna Radiation Patterns 4. Antenna Radiation Patterns3. Antenna Characteristics 4. Antenna Radiation Patterns3. Antenna Characteristics 6 SPE-23-8-345-A www.taoglas.com 3.2 Efficiency 0 10 20 30 40 50 60 70 80 90 100 2300235024002450250025502600 (%) free space on plastic (MHz) 0 10 20 30 40 50 60 70 80 90 100 49005000510052005300540055005600570058005900 (%) free space on plastic (MHz) 7 SPE-23-8-345-A www.taoglas.com 3.5 Average Gain 0 10 20 30 40 50 60 70 80 90 100 60006200640066006800700072007400760078008000 Efficiency (%) Frequency (MHz) -5.0 -4.0 -3.0 -2.0 -1.0 0.0 2300235024002450250025502600 (dBi) free space on plastic (MHz) 8 SPE-23-8-345-A www.taoglas.com -3.0 -2.5 -2.0 -1.5 -1.0 -0.5 0.0 0.5 1.0 4900 5000 5100 5200 5300 5400 5500 5600 5700 5800 5900 (dBi) free space on plastic ( MHz) -3 -2 -1 0 60006200640066006800700072007400760078008000 Average gain (dB) Frequency (MHz) 9 SPE-23-8-…

Text truncated - open the document above for the full version.

SPE-19-8-087-B Part No: GW.51.5153 Description: Wi-Fi 2.4/5.8/7.1GHz 5dBi Dipole Terminal Mount Antenna RP-SMA(M) Hinged Features: 2.4/5.8/7.1GHz Band Operation Wi-Fi 6/7 Compatible 5dBi Gain High Efficiency up to 80% Hinged RP-SMA (M) Connector Height: 198mm Diameter: 13mm RoHS & Reach Compliant 2 SPE-19-8-087-B www.taoglas.com Taoglas makes no warranties based on the accuracy or completeness of the contents of this document and reserves the right to make changes to specifications and product descriptions at any time without notice. Taoglas reserves all rights to this document and the information contained herein. Reproduction, use or disclosure to third parties without express permission is strictly prohibited. 1. Introduction 3 2. Specifications 4 3. Antenna Characteristics 5 4. Radiation Patterns 7 5. Mechanical Drawing 14 6. Packaging 15 Changelog 16 3 SPE-19-8-087-B www.taoglas.com The Taoglas GW.51 is a 2.4 & 5.8GHz Wi-Fi terminal mount dipole antenna. At just 198mm in height and 13mm in diameter, the robust TPEE enclosure can be mounted straight or at right angle to the device with its hinged RP- SMA(M) connector. It is ideal for applications such as Bluetooth, BLE, ZigBee, Wi-Fi 6 & 7 and Wireless LAN. The GW.51, designed for superior performance and reliability, has an omnidirectional radiation pattern and extremely high efficiency and gain on all Wi-Fi bands. Typical applications include: - Smart Home - Gateways/Routers - Connected Agriculture The GW.51 has up to 5dBi Peak making it a cost-effective, high-performing choice for any indoor or outdoor application. Many module manufacturers specify peak gain limits for any antennas that are to be connected to that module. Those peak gain limits are based on free-space conditions. In practice, the peak gain of an antenna tested in free-space can degrade by at least 1 or 2dBi when installed. So ideally you should go for a slightly higher peak gain antenna than mentioned on the module specification to compensate for this effect. This provides you with improved performance. Upon testing of any of our antennas with your device and appropriate layout, integration technique, or cable, we can work with you to make any of our antennas’ perform below the peak gain limits. Taoglas can then issue a specification and/or report for the selected antenna in your device that will clearly show it complying with the peak gain limits. You can be assured that you are meeting the regulatory requirements for that module whilst getting the best performance possible, without exceeding the peak gain limits. For further information, or support to test and integrate this product please contact your regional Taoglas customer support team. 1. Introduction 1. Introduction 1. Introduction 1. Introduction 1. Introduction 1. Introduction 1. Introduction 1. Introduction 4 SPE-19-8-087-B www.taoglas.com Electrical Frequency (MHz) 2400~2500 4900~5850 5925~7125 Efficiency (%) Free space 63 61 60 30X30cm Ground plane 64 65 64 Average Gain (dB) Free space -1.99 -2.14 -2.23 30X30cm Ground plane -1.94 -1.89 -1.94 Peak Gain (dBi) Free space 5.23 5.54 6.57 30X30cm Ground plane 4.52 6.38 8.83 Impedance 50Ω Polarization Linear Radiation Pattern Omni Max. input power 1W Mechanical Height 198 ±3.3 mm Planner Dimension 198*Ø13 mm Casing TPEE Connector RP-SMA(M) Weight 22.5 g Environmental Temperature Range -40°C to 85°C Humidity Non-condensing 65°C 95% RH 2. Specifications 3. Antenna Characteristics2. Specifications 3. Antenna Characteristics 4. Antenna Radiation Patterns3. Antenna Characteristics2. Specifications 3. Antenna Characteristics2. Specifications 3. Antenna Characteristics 4. Antenna Radiation Patterns3. Antenna Characteristics 4. Antenna Radiation Patterns 4. Antenna Radiation Patterns3. Antenna Characteristics 4. Antenna Radiation Patterns3. Antenna Characteristics2. Specifications 5 SPE-19-8-087-B www.taoglas.com 3.1 Return Loss 3.2 Efficiency 3. Antenna Characteristics 4. Antenna Radiation Patterns3. Antenna Characteristics 4. Antenna Radiation Patterns 4. Antenna Radiation Patterns3. Antenna Characteristics 4. Antenna Radiation Patterns3. Antenna Characteristics 4. Antenna Radiation Patterns 4. Antenna Radiation Patterns 4. Antenna Radiation Patterns 4. Antenna Radiation Patterns3. Antenna Characteristics 4. Antenna Radiation Patterns3. Antenna Characteristics -35 -30 -25 -20 -15 -10 -5 0 2000250030003500400045005000550060006500700075008000 Return Loss [dB] Frequency [MHz] Free Space 30x30 Groundplane 0 10 20 30 40 50 60 70 80 90 100 2000250030003500400045005000550060006500700075008000 Efficiency [%] Frequency [MHz] Free Space 30x30cm Groundplane 6 SPE-19-8-087-B www.taoglas.com 3.3 Average Gain 3.4 Peak Gain -10 -8 -6 -4 -2 0 2000250030003500400045005000550060006500700075008000 Aver Gain [dB] Frequency [MHz] Free Space 30x30cm Groundplane -4 -2 0 2 4 6 8 10 12 2000250030003500400045005000550060006500700075008000 Gain [dBi] Frequency [MHz] Free Space 30x30cm Groundplane 7 SPE-19-8-087-B www.taoglas.com 4. 4.1 Test Setup Free space 30x30cm Ground plane 4. Radiation Patterns 4. Antenna Radiation Patterns 4. Antenna Radiation Patterns 4. Antenna Radiation Patterns 4. Antenna Radiation Patterns 4. Antenna Radiation Patterns 4. Antenna Radiation Patterns 4. Antenna Radiation Patterns 8 SPE-19-8-087-B www.taoglas.com 4.2 2400MHz 3D and 2D Radiation Patterns - Free space XY Plane XZ Plane YZ Plane 9 SPE-19-8-087-B www.taoglas.com 4.3 2400MHz 3D and 2D Radiation Patterns – 30x30cm Ground plane XY Plane XZ Plane YZ Plane 10 SPE-19-8-087-B www.taoglas.com 4.4 5800MHz 3D and 2D Radiation Patterns – Free space XY Plane XZ Plane YZ Plane 11 SPE-19-8-087-B www.taoglas.com 4.5 5800MHz 3D and 2D Radiation Patterns – 30x30cm Ground plane XY Plane XZ Plane YZ Plane 12 SPE-19-8-087-B www.taoglas.com 4.6 6500MHz 3D and 2D Radiation Patterns – Free space XY Plane XZ Plane YZ Plane 13 SPE-19-8-087-B www.taoglas.com 4.7 6500MHz 3D and 2D Radiation Patterns – 30x30cm Ground plane XY Pla…
