T7V1315Bluetooth Module

CLASSIFICATION Einstufung PRODUCT SPECIFICATION Produktspezifikation No. DS-1315-2400-102 REV. 0.98 SUBJECT Thema CLASS 2 BLUETOOTH MODULE Bluetooth Modul der Klasse 2 PAGE Seite 1 of 32 CUSTOMER’S CODE PAN1315 PANASONIC’S CODE ENW89818C2JF DATE Datum 21.04.2009 HIGH FREQUENCY PRODUCTS DIVISION Module Business PANASONIC ELECTRONIC DEVICES EUROPE GmbH APPROVED genehmigt CHECKED geprüft DESIGNED erstellt Specification for Production Panasonic Electronic Devices Europe GmbH Zeppelinstrasse 19 21337 Lüneburg Applicant / Manufacturer Hardware Germany tbd Applicant / Manufacturer Software Software Version tbd Contents Approval for Mass Production Customer By signing this document, you acknowledge that you are the legal representative for your company and that you understand and accept the validity of the contents herein. Customer acknowledges that samples may deviate from the Data Sheet and may bear defects due to their status of development and the lack of qualification mentioned above. Panasonic rejects any liability or product warranty for Engineering Samples. In particular, Panasonic disclaims liability for damages caused by • the use of the Engineering Sample other than for Evaluation Purposes, particularly the installation or integration in an other product to be sold by Customer, • deviation or lapse in function of Engineering Sample, • improper use of Engineering Samples. Panasonic disclaimes any liability for consequential and incidental damages. CHECKED / APPROVED: DATE: NAME: SIGNATURE: CLASSIFICATION Einstufung PRODUCT SPECIFICATION Produktspezifikation No. DS-1315-2400-102 REV. 0.98 SUBJECT Thema CLASS 2 BLUETOOTH MODULE Bluetooth Modul der Klasse 2 PAGE Seite 2 of 32 CUSTOMER’S CODE PAN1315 PANASONIC’S CODE ENW89818C2JF DATE Datum 21.04.2009 PANASONIC ELECTRONIC DEVICES EUROPE GMBH www.pedeu.pansonic.de TABLE OF CONTENTS 1. Scope of this Document ..................................................................................................4 2. Key Features...................................................................................................................4 3. Applications for the Module.............................................................................................5 4. Description for the Module ..............................................................................................5 5. Detailed Description ........................................................................................................6 5.1. PAN1315 Terminal Layout.....................................................................................6 5.2. Pin Description.......................................................................................................7 5.3. Device Power Supply.............................................................................................8 5.4. Clock Inputs ...........................................................................................................9 6. Bluetooth Features........................................................................................................10 7. Block Diagram...............................................................................................................11 8. Test Conditions .............................................................................................................11 9. General Device Requirements and Operation ..............................................................11 9.1. Absolute Maximum Ratings .................................................................................12 9.2. Recommended Operating Conditions..................................................................12 9.3. Current Consumption...........................................................................................13 9.4. General Electrical Characteristics........................................................................13 9.5. nSHUTD Requirements .......................................................................................14 9.6. External Digital Slow Clock Requirements (–20°C to +70°C) ..............................14 10. Bluetooth RF Performance (BT)....................................................................................15 10.1. Bluetooth Receiver Characteristics – In-Band Signals ........................................15 10.2. Bluetooth Receiver Characteristics – General Blocking ......................................16 10.3. Bluetooth Receiver Characteristics – GFSK/EDR2/EDR3...................................16 10.4. Bluetooth Transmitter, GFSK, Full output ............................................................16 10.5. Bluetooth Transmitter, EDR, Full output ..............................................................17 10.6. Bluetooth Modulation, GFSK, Full output ............................................................17 10.7. Bluetooth Modulation, EDR, Full output...............................................................18 10.8. Bluetooth Transmitter, Out-of-Band Emissions ...................................................18 11. Soldering Temperature-Time Profile (for reflow soldering) ...........................................19 11.1. For lead solder .....................................................................................................19 11.2. For leadfree solder...............................................................................................19 12. Module Dimension ........................................................................................................20 13. FootPrint of the Module.................................................................................................20 14. Labelling Drawing..........................................................................................................21 14.1. Engineering Samples...........................................................................................21 14.2. Mass Production ......…

Text truncated - open the document above for the full version.

PAN1315ETU DESIGN GUIDE w w w.panasonic.com /r fmodules POWERED BY Panasonic Electronic Components Panasonic Electronic Components 2 Copyright © 2010 Panasonic Corporation of North America. All Rights Reserved. Specifi cations are subject to change without notice. Please contact your local Panasonic sales representative before purchase. http://www.panasonic.com/industrial/electronic-components/ [email protected] 1-800-344-2112 PAN1315ETU - DESIGN GUIDE Panasonic’s unique Easy-To-Use (ETU) series of modules, plug directly into evaluation kits with the added benefi t of header connectors that simplify prototype wiring and fi eld trials. The engine of the PAN1315ETU is Panasonic’s new PAN1315 Host Controlled Interface (HCI) Bluetooth RF module based upon Texas Instrument’s seventh generation Bluetooth core integrated circuit, the CC2560. The PAN1315 series has been designed to be 100% pin compatible with the next generation of Bluetooth Low Energy devices. This unique design feature enables designers to seamlessly transition between Bluetooth Classic and Low Energy modules. TABLE OF CONTENTS 1.Scope of this Document .................................................................................................. 3 2.Key Features................................................................................................................... 3 3.PAN1315 Applications .................................................................................................... 4 4.Module Description ......................................................................................................... 4 5.Detailed Description ........................................................................................................ 5 5.1. Block Diagram / Design Help ................................................................................. 5 5.2. Schematic .............................................................................................................. 6 5.3. Placement .............................................................................................................. 7 5.4. Pin Description....................................................................................................... 7 5.5. Clock Inputs ........................................................................................................... 8 6.Key Parts List .................................................................................................................. 8 7.Module DimensionS ........................................................................................................ 8 8.APPLICATION Development .......................................................................................... 9 8.1. NEEDED Tools ...................................................................................................... 9 9.RoHS Declaration ......................................................................................................... 10 10.Data Sheet Status ......................................................................................................... 10 11.History for this Document.............................................................................................. 11 12.Related Documents....................................................................................................... 11 13.General Information ...................................................................................................... 12 14.FCC Warning ................................................................................................................ 12 15.Life Support Policy ........................................................................................................ 12 Panasonic Electronic Components 3 Copyright © 2010 Panasonic Corporation of North America. All Rights Reserved. Specifi cations are subject to change without notice. Please contact your local Panasonic sales representative before purchase. Panasonic Electronic Components http://www.panasonic.com/industrial/electronic-components/ 1-800-344-2112 PAN1315ETU - DESIGN GUIDE 1. SCOPE OF THIS DOCUMENT This Design Guide is intended for use with the Bluetooth development platform PAN1315ETU. (Easy To Use). This guide will help you create a design that can be implemented quickly into your product. This guide describes the hardware and gives usefull tips. In addition, the software description can be downloaded from TI’s website. Please refer to chapter 8 “Application Development” for a quick overview. 2. KEY FEATURES x Fast Time to Market x Easy PCB Layout Using Eagle CAD Files: x Capable of 2 Layer PCB with 0.2mm Line Width x Optional EEPROM for Data Configuration x Optional -40 to +85°C Operating Temperature Range x MindTree Ethermind Bluetooth Stack with SPP for TI MSP430 Available From TI. x Other Profiles Available on Request x FCC, IC and ETSE Compliant x 100% Compatible with Next Generation PAN1315 Bluetooth Low Energy/Classic Module Eagle CAD Files in use Panasonic Electronic Components 4 Copyright © 2010 Panasonic Corporation of North America. All Rights Reserved. Specifi cations are subject to change without notice. Please contact your local Panasonic sales representative before purchase. http://www.panasonic.com/industrial/electronic-components/ [email protected] 1-800-344-2112 PAN1315ETU - DESIGN GUIDE 3. PAN1315 APPLICATIONS All Embedded Wireless Applications x Access Points x Cable Replacement x Printer Adapters x Personal Digital Assistants (PDAs) x Printers x Access Points x Scanners x Computers and Peripherals x Wireless Sensors x Low Power x Industrial Control Applications x Medical 4. MODULE DESCRIPTION The PAN1315ETU (EasyToUse) Module is a development platform for a class 2 HCI module to implement Bluetooth functionality into various electronic devices. The PAN1315ETU is intended for evaluation purpose and works with Texas Inst…

Text truncated - open the document above for the full version.

CLASSIFICATION FCC ID T7V1315 OEM antenna instructions No. Instructions_Antenna REV. 1.0 SUBJECT Manual according KDB996369 question 11 for host manufactures how to design antennas PAGE 1 of 4 DATE 12.05.2015 PANASONIC INDUSTRIAL DEVICES EUROPE GMBH www.pideu.panasonic.de TABLE OF CONTENTS 1. Trace layout and dimensions including specific design .................................................. 2 1.1. Detailed engineering reference ............................................................................ 2 1.1.1. Answer 11 item 1a: ................................................................................. 2 1.1.2. Answer 11 item 1b, c: .............................................................................. 3 1.1.3. Answer 11 item 1d: ................................................................................. 4 1.1.4. Answer 11 item 2: ................................................................................... 4 1.1.5. Answer 11 item 3: ................................................................................... 4 2. History for this Document .............................................................................................. 4 CLASSIFICATION FCC ID T7V1315 OEM antenna instructions No. Instructions_Antenna REV. 1.0 SUBJECT Manual according KDB996369 question 11 for host manufactures how to design antennas PAGE 2 of 4 DATE 12.05.2015 PANASONIC INDUSTRIAL DEVICES EUROPE GMBH www.pideu.panasonic.de 1. TRACE LAYOUT AND DIMENSIONS INCLUDING SPECIFIC DESIGN 1.1. DETAILED ENGINEERING REFERENCE 1.1.1. Answer 11 item 1a: The antenna trace has to be matched to 50ohm impedance. To keep this the recommended antenna trace has to be used with the following components and design. Schematic: If using UFL connector R17 has to be mounted with 0Ohm resistor instead of R18. Layout of antenna trace: Trace width 0.9mm Trace distance to GND 0.2mm Trace distance to L2 GND 35μm Trace length shall not exceed 2cm Antenna Pin of module CLASSIFICATION FCC ID T7V1315 OEM antenna instructions No. Instructions_Antenna REV. 1.0 SUBJECT Manual according KDB996369 question 11 for host manufactures how to design antennas PAGE 3 of 4 DATE 12.05.2015 PANASONIC INDUSTRIAL DEVICES EUROPE GMBH www.pideu.panasonic.de 1.1.2. Answer 11 item 1b, c: Only chip antennas listed below can be used: Johanson partnumber 2450AT43B100 CLASSIFICATION FCC ID T7V1315 OEM antenna instructions No. Instructions_Antenna REV. 1.0 SUBJECT Manual according KDB996369 question 11 for host manufactures how to design antennas PAGE 4 of 4 DATE 12.05.2015 PANASONIC INDUSTRIAL DEVICES EUROPE GMBH www.pideu.panasonic.de 1.1.3. Answer 11 item 1d: Above data for PCB layout can be requested in original Cad format by writing an email to [email protected] 1.1.4. Answer 11 item 2: If using an chip antenna R18, C9, L2 has to be mounted. For C9 the manufacturer has to be Murata 0402/COG/2.2pF/50V. For L2 the manufacturer has to be Murata with part number LQG15HN3N6S02. 1.1.5. Answer 11 item 3: The impedance S12 of the antenna including the trace shall be measured with a network analyser. Answer 11 Item 4: In the production the output power of the radiated emissions shall be measured with a spectrum analyser. 2. HISTORY FOR THIS DOCUMENT Revision Version Date Datum Modification / Remarks Änderungen / Bemerkungen 1.0 12.05.2015 Puplished Version for FCC Website

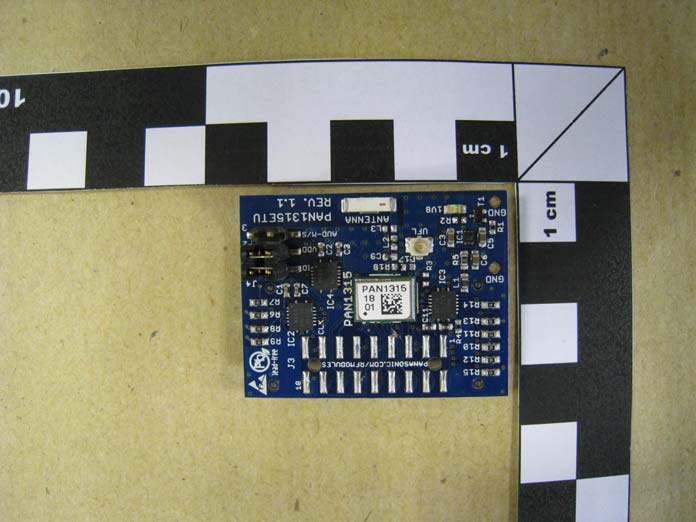

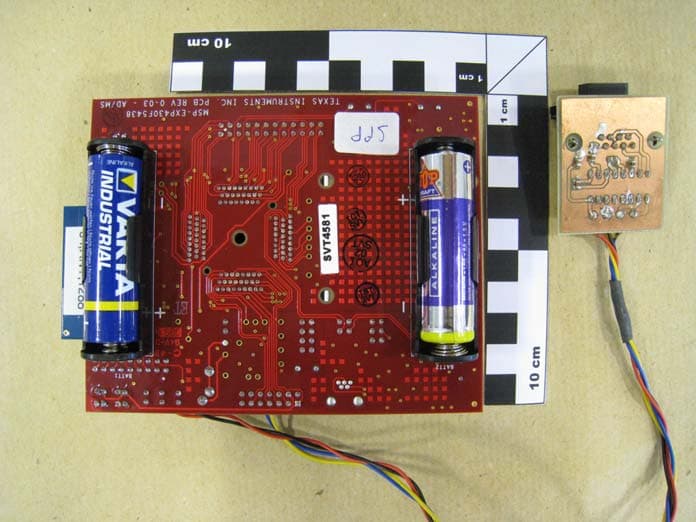

Test Report No.: G0M21008-3623-P-15 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany EUT, Top EUT, Buttom Seite 38 von 132 Test Report No.: G0M21008-3623-P-15 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Annex A Photos EUT with evaluation board, Top EUT with evaluation board, Bottom Seite 37 von 132

9,00mm 6,50mm Original Module Size

9,00mm 6,50mm Original Module Size The above picture shows the full module with the case, the laser marking is made moreless on the hole case.

Test Report No.: G0M21008-3623-P-15 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany EUT, Top EUT, Buttom Seite 38 von 132 Test Report No.: G0M21008-3623-P-15 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Annex A Photos EUT with evaluation board, Top EUT with evaluation board, Bottom Seite 37 von 132

Product Service GmbH Pr No. G0M21008-3623 1 / 1 Maximal Permissible Exposure FCC IC : T7V1315 IC : 216Q-1315 Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 and RSS-102 this device has been defined as a mobile device whereby a distance of 0.2 m, normally can be maintained between the user and the device. The following calculation presents the exposure value against the limits for occupational / controlled use. Operating mode: Test Mode 1: DH5 (worst case) name nature value log value max conducted power 10,47 mW 10,20dBm max Antenna gain 1,35 1,30dBi calculated radiated power EIRP 14,13 mW 11,50dBm measured radiated power EIRP 14,13 mW 11,50dBm Tx frequency 2402,000 MHz duty cycle factor duty cycle factor 10log(dwell time/100 ms) declared 47,0% -3,28dB max source-based time-averaged power conducted power 4,92 mW 6,92dB calculated radiated power EIRP 6,64 mW 8,22dB measured radiated power EIRP 6,64 mW 8,22dB M P E calculated with max source-based time-averaged power measured conducted power r [cm] 20 2,5 1,5 0,73 S [mW/cm²] 0,001 0,085 0,235 1,0 Limit general population [mW/cm²] 1,0 Limit occupational population [mW/cm²] 5,0 for f = 2402,000 MHz calculated with max source-based time-averaged power measured radiated power r [cm] 20 2,5 1,5 0,73 S [mW/cm²] 0,001 0,085 0,235 1,0

EUROFINS PRODUCT SERVICE GMBH Testing Cert #1983.01 TEST- REPORT Compliance Test Report FCC PART 15 SUBPART C IC RSS 210 ISSUE 7 FCC ID: T7V1315 IC ID: 216Q-1315 Bluetooth module ENW89818C2JF PAN1315 T EST REPORT NUMBER: G0M21008-3623-P-15 Eurofins Product Service GmbH Storkower Str. 38c, 15526 Reichenwalde, Phone +49-33631-888 0 Germany Fax +49-33631-888 660 Test Report No.: G0M21008-3623-P-15 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany TABLE OF CONTENTS 1 General Information 4 1.1 Notes 4 1.2 Testing laboratory 5 1.3 Details of approval holder 6 1.4 Application details 6 1.5 Test item 6 1.6 Test standards 7 1.7 Acronyms and abbreviations 7 2 Technical test 8 2.1 Summary of test results 8 2.2 Test environment 8 2.3 Test equipment utilized 9 2.4 Sample emission level calculation 10 2.5 Test results 11 3 Informational Transmitter parameters 12 3.1 Transmitter Modes for conformance testing 12 3.2 Occupied Bandwidth 13 4 Transmitter parameters 15 4.1 20dB Bandwidth 15 4.2 Frequency hopping channel number 17 4.3 Frequency hopping channel spacing 19 4.4 Time of occupancy (Dwell time) 21 4.5 Maximum peak conducted output power 23 4.6 Maximum e.i.r.p. output power 25 4.7 Transmitter band-edge compliance 27 4.8 Transmitter conducted spurious emissions 29 4.9 Transmitter radiated spurious emissions 31 5 Receiver parameters 34 5.1 Receiver spurious emissions 34 6 Power Line parameters 36 6.1 AC power line conducted emissions 36 Seite 2 von 132 Test Report No.: G0M21008-3623-P-15 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Annex A Photos 37 Annex B Transmitter occupied bandwidth 40 Annex C Transmitter 20dB bandwidth 46 Annex D Hopping channels 55 Annex E Hopping channel separation 59 Annex F Time of occupancy 60 Annex G AC Powerline Conducted Emissions 61 Annex H Transmitter conducted spurious emissions 63 Annex I Band edge compliance 81 Annex J Transmitter radiated spurious emissions 93 Annex K Receiver radiated spurious emissions 131 Seite 3 von 132 Seite 4 von 132 Test Report No.: G0M21008-3623-P-15 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany 1.2 Testing laboratory EUROFINS PRODUCT SERVICE GMBH Storkower Strasse 38c D-15526 Reichenwalde b. Berlin Germany Telefon : +49 33631 888 00 Telefax : +49 33631 888 660 DAR ACCREDITED TESTING LABORATORY DAR-R EGISTRATION NUMBER: DAT-P-268/08 R ECOGNIZED NOTIFIED BODY EMC R EGISTRATION NUMBER: BNetzA-bS EMV-07/61 R ECOGNIZED NOTIFIED BODY R&TTE R EGISTRATION NUMBER: BNetzA-bS-02/51-53 FCC FILED TEST LABORATORY R EG.-NO. 96970 A2LA ACCREDITED TESTING LABORATORY C ERTIFICATE NO. 1983.01 B LUETOOTH QUALIFICATION TEST FACILITY (BQTF) A CCREDITED BY BLUETOOTH QUALIFICATION REVIEW BOARD I NDUSTRY CANADA FILED TEST LABORATORY R EG. NO. IC 3470 Test location, where different: Name : ./. Street : ./. Town : ./. Country : ./. Telephone : ./. Fax : ./. Seite 5 von 132 Test Report No.: G0M21008-3623-P-15 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany 1.3 Details of approval holder Name : Panasonic Electronic Devices Europe GmbH Street : Zeppelinstr. 28 Town : 21337 Lueneburg Country : Germany Telephone : +49 4131 899 304 Fax : +49 4131 899 210 Contact : Herr Heino Kaehler Telephone : +49 4131 899 304 1.4 Application details Date of receipt of application : 24.08.2010 Date of receipt of test item : 24.08.2010 Date of test : 31.08 – 02.09.2010 1.5 Test item Description of test item : Bluetooth module Type identification : ENW89818C2JF Brand Name : PAN1315 Serial number : None Hardware version : 01 Software version : 01 Equipment type : Radio module Technical data Frequency range : 2400 - 2483.5MHz Tested frequencies : F 1 2402MHz Tested frequencies : F 2 2441MHz Tested frequencies : F 3 2480MHz Antenna type : integrated Antenna models used : 1.) 2450AT43B100, Johanson Technology, Chip antenna 2.) LDA212G3110K-282, muRata, Chip antenna 3.) 7488930245, Würth Elektronik, Chip antenna Number of antennas per module : 1 Antenna gain : 1.) 1.3dBi 2.) 0.9dBi 3.) 0.5dBi Power supply : 3.3VDC Seite 6 von 132 Test Report No.: G0M21008-3623-P-15 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Duty cycle : 46% Operating mode : semi duplex Spreading technique : FHSS Modulations : GFSK, PI/4-DQPSK, 8-PSK Device classification : Mobile Device (Human Body distance > 20 cm) Additional information : The radio module itself without antenna is designated ENW89818C2JF (PAN1315). The antenna module with mounted antenna is designated ENW89818A2JF (PAN1325). Three different antenna models are provided for testing. The antenna model which provides the highest output power (2450AT43B100) is selected for compliance testing. Manufacturer: (if applicable) Name : Panasonic Electronic Devices Slovakia s.r.o. Street : Tovarenska 13 Town : 06401 Stara Lubovna Country : Slovakia 1.6 Test standards Technical standard : FCC PART 15 SUBPART C IC RSS 210 ISSUE 7 1.7 Acronyms and abbreviations EUT : Equipment under Test TX : Transmission RX : Reception RBW : Measurement Resolution Bandwidth Pol : Measurement Polarization e.i.r.p. : Equivalent isotropic radiated power FHSS : Frequency hopping spread spectrum DSSS : Direct Sequence Spread Spectrum OFDM : Orthogonal frequency division multiplexing CCK : Complementary code keying GFSK : Gaussian frequency shift keying DQPSK : Differential quadrature phase shift keying PSK : Phase shift keying T nom : Nominal Temperature T min : Minimum Temperature T max : Maximum Temperature V nom : Nominal Supply Voltage V min : Minimum Supply Voltage V max : Maximum Supply Voltage VDC : DC voltage N/A : Not applicable IC : Industry Canada Seite 7 von 132 Test Report No.: G0M21008-3623-P-15 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course : of the tests per…

Text truncated - open the document above for the full version.

Test Report No.: G0M21008-3623-P-15 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Test setup radiated emissions Test setup conducted emissions Seite 39 von 132
