T7V1740Bluetooth Smart Module

CLASSIFICATION PRODUCT SPECIFICATION No. DS-1740-2400-102 REV. 0.3 SUBJECT CLASS 2 BLUETOOTH LOW ENERGY SINGLE MODE MODULE PAGE 1 of 33 CUSTOMER’S CODE PAN1740 PANASONIC’S CODE ENW89846A1KF DATE 04.06.2014 Power Electronics R&D Center Wireless Connectivity Panasonic Industrial Devices Europe GmbH APPROVED CHECKED DESIGNED Product Specification Applicant / Manufacturer Hardware Panasonic Industrial Devices Europe GmbH Zeppelinstrasse 19 21337 Lüneburg Germany Applicant / Manufacturer Software Dialog Semiconductors By purchase of any of products described in this document the customer accepts the document's validity and declares their agreement and understanding of its contents and recommendations. Panasonic reserves the right to make changes as required without notification. CLASSIFICATION PRODUCT SPECIFICATION No. DS-1740-2400-102 REV. 0.3 SUBJECT CLASS 2 BLUETOOTH LOW ENERGY SINGLE MODE MODULE PAGE 2 of 33 CUSTOMER’S CODE PAN1740 PANASONIC’S CODE ENW89846A1KF DATE 04.06.2014 PANASONIC INDUSTRIAL DEVICES EUROPE GMBH www.pideu.panasonic.de TABLE OF CONTENTS 1 Key Features ................................................................................................................. 4 2 Bluetooth Low Energy ................................................................................................... 4 3 Description for the Module ............................................................................................. 4 4 Block Diagram ............................................................................................................... 5 4.1 PAN1740.............................................................................................................. 5 4.2 Bluetooth IC ......................................................................................................... 5 5 System Overview .......................................................................................................... 6 5.1 ARM Cortex M0 CPU ........................................................................................... 6 5.2 Bluetooth Smart ................................................................................................... 6 5.2.1 BLE Core ................................................................................................ 6 5.2.2 Smart Snippets ....................................................................................... 7 5.2.3 Memory ................................................................................................... 7 5.2.4 Functional Modes .................................................................................... 8 5.2.5 Power Modes .......................................................................................... 8 6 Terminal Layout ............................................................................................................ 9 7 Terminal Description ..................................................................................................... 9 8 Interfaces .................................................................................................................... 10 8.1 UART ................................................................................................................. 10 8.2 SPI+ ................................................................................................................... 11 8.3 I 2 C ...................................................................................................................... 11 8.4 General Purpose (GP) ADC ............................................................................... 12 8.5 Quadrature Decoders ......................................................................................... 12 8.6 Keyboard Controller ........................................................................................... 13 8.7 Input/Output Ports .............................................................................................. 13 8.8 Timers ................................................................................................................ 13 8.9 Reset ................................................................................................................. 13 9 Specifications .............................................................................................................. 14 10 Soldering Temperature-Time Profile (for reflow soldering) ........................................... 17 11 Module Dimension....................................................................................................... 18 12 FootPrint of the Module ............................................................................................... 19 13 Case Marking .............................................................................................................. 20 14 Marking ....................................................................................................................... 20 15 Marking Definition ....................................................................................................... 20 16 Mechanical Requirements ........................................................................................... 20 17 Reliability Tests ........................................................................................................... 21 18 Cautions ...................................................................................................................... 21 19 Design Notes ............................................................................................................... 21 20 Installation Notes ......................................................................................................... 22 21 Usage Conditions Notes .............................................................................................. 22 CLASSIFICATION PRODUCT SPECIFICATION No. DS-1740-2400-102 REV. 0.3 SUBJECT CLASS 2 BL…

Text truncated - open the document above for the full version.

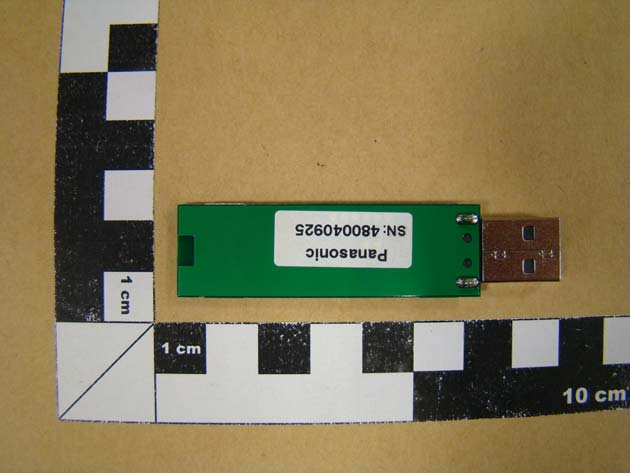

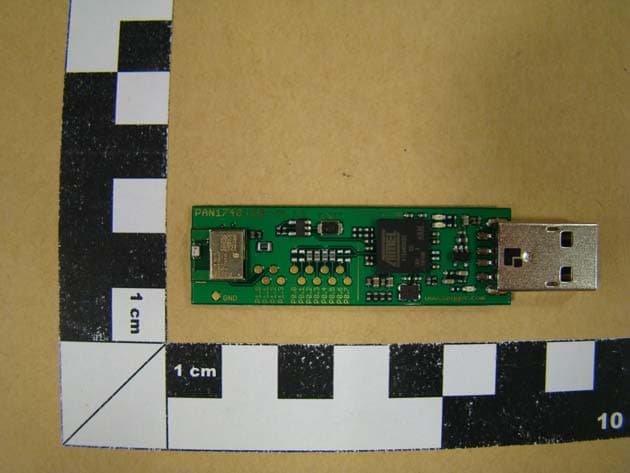

Internal_External Photos page 1 Model No.: PAN1740 FCC ID: T7V1740 IC: 216Q-1740 Project No.: G0M-1406-3913-TFC247BL-V01 Internal_External Photos page 2 Model No.: PAN1740 FCC ID: T7V1740 IC: 216Q-1740 Project No.: G0M-1406-3913-TFC247BL-V01

PAN1740 Label Sample FCC ID: T7V1740 IC:216Q-1740 Original Module size: The above picture shows the full module with the case. The laser marking is made on the whole case. 9,50mm 9,0mm

PAN1740 Label Location Original Module size: The above picture shows the full module with the case. The laser marking is made more or less on the whole case. Therefore the IC ID can not be placed on the label. The 2D code area can not be used. The IC 216Q-1740 is listed in the user manual only. 9,50mm 9,0mm

Internal_External Photos page 1 Model No.: PAN1740 FCC ID: T7V1740 IC: 216Q-1740 Project No.: G0M-1406-3913-TFC247BL-V01 Internal_External Photos page 2 Model No.: PAN1740 FCC ID: T7V1740 IC: 216Q-1740 Project No.: G0M-1406-3913-TFC247BL-V01

Test Report No.: G0M-1406-3913-TFC093PE-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 1 of 12 RF-EXPOSURE ASSESSMENT REPORT FCC 47 CFR Part 2.1093 Industry Canada RSS-102 RF-Exposure evaluation of portable equipment Report Reference No. ..................... : G0M-1406-3913-TFC093PE-V01 Testing Laboratory ......................... : Eurofins Product Service GmbH Address............................................. : Storkower Str. 38c 15526 Reichenwalde Germany Accreditation ..................................... : A2LA Accredited Testing Laboratory, Certificate No.: 1983.01 FCC Filed Test Laboratory, Reg.-No.: 96970 IC OATS Filing assigned code: 3470A Applicant’s name ............................ : Panasonic Industrial Devices Europe GmbH Address............................................. : Zeppelinstr. 19 21337 Lüneburg GERMANY Test specification: Standard ........................................... : 47 CFR 1.1310 / 47 CFR 2.1091 / 47 CFR 2.1093 OET Bulletin 65:1997 KDB 447498 D01 v05r01:2013-05-28 RSS-102, Issue 4:2010 Safety Code 6:2009 Equipment under test (EUT): Product description Bluetooth Smart Module Model No. PAN1740 Additional Model(s) None Brand Name(s) None Hardware version 02 Firmware / Software version 02 FCC-ID: T7V1740 IC: 216Q-1740 Test result Passed Test Report No.: G0M-1406-3913-TFC093PE-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 3 of 12 Version History Version Issue Date Remarks Revised by 01 2017-07-02 Initial Release Test Report No.: G0M-1406-3913-TFC093PE-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 4 of 12 REPORT INDEX 1 EQUIPMENT (TEST ITEM) DESCRIPTION 5 1.1 Reference Documents 6 1.2 Radiation Sources 7 2 RESULT SUMMARY 8 3 RF-EXPOSURE CLASSIFICATIONS 9 4 ASSESSMENT 10 4.1 SAR Exemption Assessment –FCC KDB447498 / RSS-102 10 Test Report No.: G0M-1406-3913-TFC093PE-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 5 of 12 1 Equipment (Test item) Description Description Bluetooth Smart Module Model PAN1740 Additional Model(s) None Brand Name(s) None Serial number None Hardware version 02 Software / Firmware version 02 FCC-ID T7V1740 IC 216Q-1740 Equipment type Radio module Test Report No.: G0M-1406-3913-TFC093PE-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 6 of 12 1.1 Reference Documents Document type Document No. Issued by Date FCC 15.247 test report G0M-1406-3913-TFC247BL-V01 Eurofins Product Service GmbH 2014-07-02 Test Report No.: G0M-1406-3913-TFC093PE-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 7 of 12 1.2 Radiation Sources Mode # Description Bluetooth LE Frequency range [MHz] 2402 – 2480 Channels 40 Modulations GFSK Maximum conducted power [dBm] -1.85 Maximum transmission duty cycle [%] 100 (worst case assessment) Test Report No.: G0M-1406-3913-TFC093PE-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 8 of 12 2 Result Summary FCC 47 CFR Part 2.1093, KDB447498, IC RSS-102 Product Specific Standard Section Requirement Result Remarks 47 CFR 2.1093 KDB447498 SAR evaluation exemption : Bluetooth LE PASS RSS-102 2.5.1 SAR evaluation exemption : Bluetooth LE PASS Remarks: Test Report No.: G0M-1406-3913-TFC093PE-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 9 of 12 3 RF-Exposure Classifications Device Types Fixed A fixed device is defined as a device physically secured at one fixed location and cannot be easily re-located. Mobile A mobile device is defined as a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter's radiating structure(s) and the body of the user or nearby persons. (47 CFR 2.1091) Portable A portable device is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. (47 CFR 2.1093) Exposure Categories Occupational / Controlled Limits apply in situations in which persons are exposed as a consequence of their employment provided those persons are fully aware of the potential for exposure and can exercise control over their exposure. Limits for occupational/controlled exposure also apply in situations when an individual is transient through a location where occupational/controlled limits apply provided he or she is made aware of the potential for exposure. General population / uncontrolled Exposures apply in situations in which the general public may be exposed, or in which persons that are exposed as a consequence of their employment may not be fully aware of the potential for exposure or cannot exercise control over their exposure. Test Report No.: G0M-1406-3913-TFC093PE-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 10 of 12 4 Assessment 4.1 SAR Exemption Assessment –FCC KDB447498 / RSS-102 Low Power Exclusion acc. to FCC KDB447498 / IC RSS-102 Verdict: PASS Assessment according to reference Reference Method KDB447498 & 2.1093 / RSS-102 & Safety Code 6 Device type portable Exposure category General population FCC/IC SAR Limits Region Occupational SAR values [W/kg] General public SAR values [W/kg] Whole-body SAR averaging mass = entire body 0.4 0.08 Partial-body SAR averaging mass = 1g 8.0 1.6 Hands, Wrists, Feet and Ankles SAR averaging mass = 10g 20 4 FCC SAR test exclusion Excerpt from KDB 447498: Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Exclusion Threshold condition, listed below, is satisfied. …

Text truncated - open the document above for the full version.

Test Report No.: G0M-1406-3913-TFC247BL-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 1 of 80 FCC TEST REPORT FCC 47 CFR Part 15C Industry Canada RSS-210 Digital transmission systems operating within the 2400 – 2483.5 MHz band Report Reference No. ..................... : G0M-1406-3913-TFC247BL-V01 Testing Laboratory ......................... : Eurofins Product Service GmbH Address ............................................. : Storkower Str. 38c 15526 Reichenwalde Germany Accreditation ..................................... : A2LA Accredited Testing Laboratory, Certificate No.: 1983.01 FCC Filed Test Laboratory, Reg.-No.: 96970 IC OATS Filing assigned code: 3470A Applicant’s name ............................ : Panasonic Industrial Devices Europe GmbH Address ............................................. : Zeppelinstr. 19 21337 Lüneburg GERMANY Test specification: Standard ........................................... : 47 CFR Part 15C KDB Publication No. 558074 RSS-210, Issue 8, 2010-12 RSS-Gen, Issue 3, 2010-12 ANSI C63.4:2009 Equipment under test (EUT): Product description Bluetooth Smart Module Model No. PAN1740 Additional Model(s) None Brand Name(s) None Hardware version 02 Firmware / Software version 02 FCC-ID: T7V1740 IC: 216Q-1740 Test result Passed Test Report No.: G0M-1406-3913-TFC247BL-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 3 of 80 Version History Version Issue Date Remarks Revised by 01 2014-07-02 Initial Release Test Report No.: G0M-1406-3913-TFC247BL-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 4 of 80 REPORT INDEX 1 EQUIPMENT (TEST ITEM) DESCRIPTION 5 1.1 Photos – Equipment External 6 1.3 Photos – Test setup 8 1.4 Supporting Equipment Used During Testing 9 1.5 Test Modes 10 1.6 Test Equipment Used During Testing 11 1.7 Sample emission level calculation 13 2 RESULT SUMMARY 14 3 TEST CONDITIONS AND RESULTS 15 3.1 Test Conditions and Results – Occupied Bandwidth 15 3.2 Test Conditions and Results – 6 dB Bandwidth 19 3.3 Test Conditions and Results – Maximum peak conducted power 23 3.4 Test Conditions and Results – Power spectral density 25 3.5 Test Conditions and Results – AC power line conducted emissions 26 3.6 Test Conditions and Results – Band edge compliance 29 3.7 Test Conditions and Results – Conducted spurious emissions 32 3.8 Test Conditions and Results – Transmitter radiated emissions 36 3.9 Test Conditions and Results – Receiver radiated emissions 38 ANNEX A Transmitter radiated spurious emissions 40 ANNEX B Receiver radiated spurious emissions 73 Test Report No.: G0M-1406-3913-TFC247BL-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 5 of 80 1 Equipment (Test item) Description Description Bluetooth Smart Module Model PAN1740 Additional Model(s) None Brand Name(s) None Serial number None Hardware version 02 Software / Firmware version 02 FCC-ID T7V1740 IC 216Q-1740 Equipment type Radio module Radio type Transceiver Radio technology Bluetooth 4.0 Low Energy Operating frequency range 2402 - 2480 MHz Assigned frequency band 2400 - 2483.5 MHz Main test frequencies F LOW 2402 MHz F MID 2442 MHz F HIGH 2480 MHz Spreading Frequency Hopping Modulations GFSK Number of channels 40 Channel spacing 2MHz Number of antennas 1 Antenna Type integrated Model LDA21K Manufacturer Murata Gain +0.9 dBi (manufacturer declaration) Manufacturer Panasonic Industrial Devices Slovakia s.r.o. Tovarenska 13 06401 Stara Lubovna SLOVAKIA Power supply V NOM 3.3VDC V MIN 2.0VDC V MAX 3.45VDC AC/DC-Adaptor none Test Report No.: G0M-1406-3913-TFC247BL-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 6 of 80 1.1 Photos – Equipment External EUT EVALUATION BOARD TOP EUT EVALUATION BOARD BOTTOM Test Report No.: G0M-1406-3913-TFC247BL-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 7 of 80 EUT TOP Test Report No.: G0M-1406-3913-TFC247BL-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 8 of 80 1.3 Photos – Test setup AC Power line Radiated spurious emission Test Report No.: G0M-1406-3913-TFC247BL-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 9 of 80 1.4 Supporting Equipment Used During Testing Product Type* Device Manufacturer Model No. Comments AE USB Extender Icron Technologies Corporation USB Ranger 2224 AE Laptop Samsung NP-X20I AE : Auxiliary/Associated Equipment Test Report No.: G0M-1406-3913-TFC247BL-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 10 of 80 1.5 Test Modes Mode # Description Transmit General conditions: EUT powered by USB Extender. Radio conditions: Mode = standalone transmit Spreading = Hopping stopped (single hopping channel) Modulation = GFSK Data rate = 1 Mbps Bandwidth = 2 MHz Duty cycle = 100 % Power level = Maximum Receive General conditions: EUT powered by USB Extender. Radio conditions: Mode = standalone receive (scan mode) Spreading = On Modulation = GFSK AC-Powerline General conditions: EUT powered by commercial Laptop via USB Radio conditions: Mode = Transmit Spreading = On Test Report No.: G0M-1406-3913-TFC247BL-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 11 of 80 1.6 Test Equipment Used During Testing Measurement Software Description Manufacturer Name Version EMC Test Software Dare Instruments Radimation 2014.1.15 Occupied Bandwidth Description Manufacturer Model Identifier Cal. Date Cal. Due Spectrum analyzer R&S FSW43 EF00896 2014-02 2015-02 6dB Bandwidth Description Manufacturer Model Identifier Cal. Date Cal. Due Spectrum analyzer R&S FSW43 EF00896 2014-02 2015-02 Maximum peak conducted power Description Manufacturer Model Identifier Cal. Date Cal. Due Spectrum analyzer R&S FSW43 EF00896 2014-02 2015-02 Power spectral density Description Manufacturer…

Text truncated - open the document above for the full version.

Test Report No.: G0M-1406-3913-EF0115B-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 1 of 23 EMC TEST REPORT FCC 47 CFR Part 15B Industry Canada RSS-Gen Electromagnetic compatibility - Unintentional radiators Report Reference No. .................... : G0M-1406-3913-EF0115B-V01 Testing Laboratory ........................ : Eurofins Product Service GmbH Address ............................................ : Storkower Str. 38c 15526 Reichenwalde Germany Accreditation .................................... : A2LA Accredited Testing Laboratory, Certificate No.: 1983.01 FCC Filed Test Laboratory, Reg.-No.: 96970 IC OATS Filing assigned code: 3470A Applicant’s name ........................... : Panasonic Industrial Devices Europe GmbH Address ............................................ : Zeppelinstr. 19 21337 Lüneburg GERMANY Test specification: Standard ........................................... : 47 CFR Part 15 Subpart B RSS-Gen, Issue 3, 2010-12 ANSI C63.4:2009 Equipment under test (EUT): Product description Bluetooth Smart Module Model No. PAN1740 Additional Models None Hardware version 02 Firmware / Software version 02 Contains FCC-ID: T7V1740 IC: 216Q-1740 Test result Passed Test Report No.: G0M-1406-3913-EF0115B-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 3 of 23 Version History Version Issue Date Remarks Revised by V01 2014-07-03 Initial Release Test Report No.: G0M-1406-3913-EF0115B-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 4 of 23 1 EQUIPMENT (TEST ITEM) DESCRIPTION 5 1.1 Photos – Equipment external 6 1.2 Photos – Test setup 8 1.3 Supporting Equipment Used During Testing 9 1.4 Operating Modes 10 1.5 Test Equipment Used During Testing 11 1.6 Sample emission level calculation 12 2 RESULT SUMMARY 13 3 TEST CONDITIONS AND RESULTS 14 3.1 Test Conditions and Results – Radiated emissions 14 3.2 Test Conditions and Results – AC power line conducted emissions 21 Test Report No.: G0M-1406-3913-EF0115B-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 5 of 23 1 Equipment (Test item) Description Description Bluetooth Smart Module Model PAN1740 Additional Models None Serial number 480040925 Hardware version 02 Software / Firmware version 02 Contains FCC-ID T7V1740 Contains IC 216Q-1740 Power supply 5 VDC via USB AC/DC-Adaptor None Radio module Type Bluetooth Smart Module Model PAN1740 Manufacturer Panasonic Industrial Devices Slovakia s.r.o. HW Version 02 SW Version 02 SVN N/A FCC-ID T7V1740 IC 216Q-1740 IMEI N/A Manufacturer Panasonic Industrial Devices Slovakia s.r.o. Tovarenska 13 06401 Stara Lubovna SLOVAKIA Highest emission frequency > 1000 MHz (up to 5th Harm) Device classification Class B Equipment type Tabletop Number of tested samples 1 Test Report No.: G0M-1406-3913-EF0115B-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 6 of 23 1.1 Photos – Equipment external EUT TOP EUT BOTTOM Test Report No.: G0M-1406-3913-EF0115B-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 7 of 23 EUT Module Test Report No.: G0M-1406-3913-EF0115B-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 8 of 23 1.2 Photos – Test setup Test Setup : Radiated Emissions Test Setup : Conducted Emissions Test Report No.: G0M-1406-3913-EF0115B-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 9 of 23 1.3 Supporting Equipment Used During Testing Product Type* Device Manufacturer Model No. Comments AE Laptop Samsung NP-X20 J AE : Auxiliary/Associated Equipment Test Report No.: G0M-1406-3913-EF0115B-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 10 of 23 1.4 Operating Modes Mode # Description 1 Bluetooth LE Test mode continuous TX channel: 37 Test Report No.: G0M-1406-3913-EF0115B-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 11 of 23 1.5 Test Equipment Used During Testing Radiated emissions Description Manufacturer Model Identifier Cal. Date Cal. Due Biconical Antenna R&S HK 116 EF00012 2013-02 2016-02 LPD-Antenne R&S HL 223 EF00187 2014-03 2017-03 LPD-Antenna R&S HL 025 EF00327 2013-02 2016-02 EMI Test Receiver R&S ESU26 EF00887 2014-01 2015-01 Conducted emissions Description Manufacturer Model Identifier Cal. Date Cal. Due AMN R&S ESH2-Z5 EF00182 2012-10 2014-10 EMI Test Receiver R&S ESCS 30 EF00295 2013-10 2014-10 Test Report No.: G0M-1406-3913-EF0115B-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 12 of 23 1.6 Sample emission level calculation The following is a description of terms and a sample calculation, as appears in the radiated emissions data table. The numbers used in the calculation are for example only. There is no direct correlation to the specific data taken for the product described in this document: Reading: This is the reading obtained on the spectrum analyzer in dBμV. Any external preamplifiers used are taken into account through internal analyzer settings. A.F.: This is the antenna factor for the receiving antenna. It is a conversion factor, which converts electric fields strengths to voltages, which can be measured directly on the spectrum analyzer. It is treated as a loss in dB. Cable losses have been included with the A.F. to simplify the calculations. The antenna factor is used in calculations as follows: Reading on Analyzer (dBμV) + A.F. (dB) = Net field strength (dBμV/m) Net: This is the net field strength measurement (as shown above). Limit: This is the FCC Class B radiated emission limit (in units of dBμV/m). The FCC limits are given in units of μV/m. The following formula is used to convert the units of μV/m to dBμV/m: Limit (dBμV/m) = 20*log (μV/m) Margin: This is the margin of compliance below the FCC limit. The units are given in dB. A negative…

Text truncated - open the document above for the full version.
