T7V1760Bluetooth Smart Module

CLASSIFICATION PRODUCT SPECIFICATION No. DS-1760-2400-102 REV. 0.1 SUBJECT CLASS 2 BLUETOOTH LOW ENERGY SINGLE MODE MODULE PAGE 1 of 33 CUSTOMER’S CODE PAN1760 PANASONIC’S CODE ENW89847A1KF DATE 12.01.2015 Power Electronics R&D Center Wireless Connectivity Panasonic Industrial Devices Europe GmbH APPROVED genehmigt CHECKED geprüft DESIGNED erstellt Product Specification Applicant / Manufacturer Hardware Panasonic Industrial Devices Europe GmbH Zeppelinstrasse 19 21337 Lüneburg Germany Applicant / Manufacturer Software Toshiba Software Version Please refer to chapter 21 By purchase of any of products described in this document the customer accepts the document's validity and declares their agreement and understanding of its contents and recommendations. Panasonic reserves the right to make changes as required without notification. CLASSIFICATION PRODUCT SPECIFICATION No. DS-1760-2400-102 REV. 0.1 SUBJECT CLASS 2 BLUETOOTH LOW ENERGY SINGLE MODE MODULE PAGE 2 of 33 CUSTOMER’S CODE PAN1760 PANASONIC’S CODE ENW89847A1KF DATE 12.01.2015 PANASONIC INDUSTRIAL DEVICES EUROPE GMBH www.pideu.panasonic.de TABLE OF CONTENTS 1. Scope of this Document ................................................................................................ 4 2. Key Features ................................................................................................................. 4 3. Bluetooth Low Energy ................................................................................................... 5 4. Applications for the Module ........................................................................................... 5 5. Description for the Module ............................................................................................. 5 6. Detailed Description ...................................................................................................... 6 6.1. PAN1760 Terminal Layout ................................................................................... 6 7. PAN1760 Block Diagram ............................................................................................... 8 8. GPIO Function List ........................................................................................................ 9 9. Test Conditions ........................................................................................................... 10 10. General Device Requirements and Operation ............................................................. 10 10.1. Absolute Maximum Ratings ................................................................................ 10 10.2. Recommended Operating Conditions ................................................................. 10 10.3. Power up sequence ........................................................................................... 11 10.4. PAN1760 Current Consumption ......................................................................... 11 11. Bluetooth RF Performance .......................................................................................... 12 11.1. PAN1760 Bluetooth Characteristics ................................................................... 12 11.2. PAN1760 Spurious Emission ............................................................................. 12 12. Soldering Temperature-Time Profile (for reflow soldering) ........................................... 13 12.1. For lead solder ................................................................................................... 13 12.2. For leadfree solder ............................................................................................. 13 13. PAN1760 Module Dimension ...................................................................................... 14 14. PAN1760 Footprint of the Module ............................................................................... 15 15. Case Marking .............................................................................................................. 16 15.1. Example for Marking .......................................................................................... 16 15.2. Marking Definition .............................................................................................. 16 16. Mechanical Requirements ........................................................................................... 16 17. Development of Applications ....................................................................................... 17 18. Reliability Tests ........................................................................................................... 17 19. Cautions ...................................................................................................................... 17 19.1. Design Notes ..................................................................................................... 17 19.2. Installation Notes ................................................................................................ 18 19.3. Usage Conditions Notes ..................................................................................... 18 19.4. Storage Notes .................................................................................................... 19 19.5. Safety Cautions .................................................................................................. 19 19.6. Other cautions .................................................................................................... 19 20. Packaging ................................................................................................................... 21 20.1. PAN1760 Tape Dimension ................................................................................. 21 20.2. Packing in Tape ................................................................................................. 22 CLASSIFICATION PRODUCT SPECIFICATION No. DS-1760-2400-102 REV. 0.1 SUBJECT CLASS 2 BLUETOOTH LOW ENERGY SI…

Text truncated - open the document above for the full version.

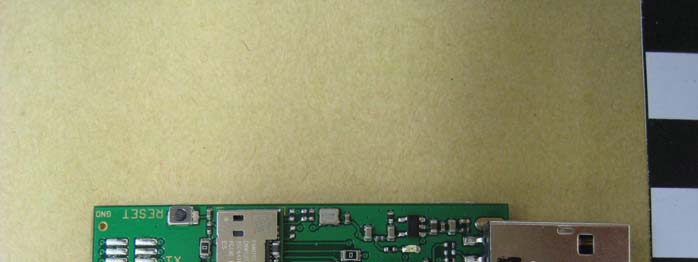

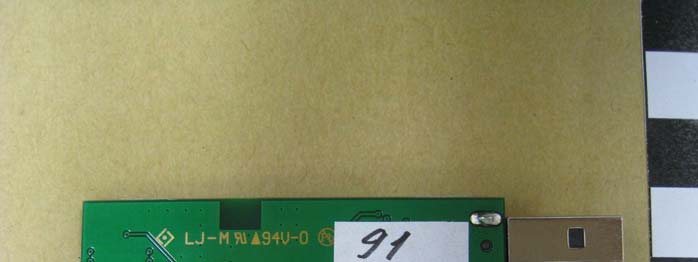

External Photos page 1 Model No.:ENW89847A1KF FCC ID: T7V1760 IC: 216Q-1760 Project No.: G0M-1502-4538 module evaluation board

8,70mm PAN1670 Label Sample Label Location 15,60mm Original Module Size FCCID: T7V1760 IC: 216Q-1760 The above picture shows the full module with the case. The laser marking is made more or less on the whole case. Therefore the IC ID can not be placed on the label. The 2D code area can not be used. The IC 216Q-1760 is listed in the user manual only.

Internal Photos page 1 Model No.:ENW89847A1KF FCC ID: T7V1760 IC: 216Q-1760 Project No.: G0M-1502-4538 Module

Test Report No.: G0M-1502-4538-TFC093PE-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 1 of 12 RF-EXPOSURE ASSESSMENT REPORT FCC 47 CFR Part 2.1093 Industry Canada RSS-102 RF-Exposure evaluation of portable equipment Report Reference No. ..................... : G0M-1502-4538-TFC093PE-V01 Testing Laboratory ......................... : Eurofins Product Service GmbH Address............................................. : Storkower Str. 38c 15526 Reichenwalde Germany Accreditation ..................................... : A2LA Accredited Testing Laboratory, Certificate No.: 1983.01 FCC Filed Test Laboratory, Reg.-No.: 96970 IC OATS Filing assigned code: 3470A Applicant’s name ............................ : Panasonic Industrial Devices Europe GmbH Address............................................. : Zeppelinstr. 19 21337 Lüneburg GERMANY Test specification: Standard ........................................... : 47 CFR 1.1310 / 47 CFR 2.1091 / 47 CFR 2.1093 OET Bulletin 65:1997 KDB 447498 D01 v05r02:2014-02-07 RSS-102, Issue 5:2015-03 Safety Code 6:2015-03 Equipment under test (EUT): Product description Bluetooth Smart Module Model No. ENW89847A1KF Additional Model(s) None Brand Name(s) PAN1760 Hardware version 01 Firmware / Software version 01 FCC-ID: T7V1760 IC: 216Q-1760 Test result Passed Test Report No.: G0M-1502-4538-TFC093PE-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 3 of 12 Version History Version Issue Date Remarks Revised by 01 2015-05-28 Initial Release Test Report No.: G0M-1502-4538-TFC093PE-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 4 of 12 REPORT INDEX 1 EQUIPMENT (TEST ITEM) DESCRIPTION 5 1.1 Reference Documents 6 1.2 Radiation Sources 7 2 RESULT SUMMARY 8 3 RF-EXPOSURE CLASSIFICATIONS 9 4 ASSESSMENT 10 4.1 SAR Exemption Assessment –FCC KDB447498 / RSS-102 10 Test Report No.: G0M-1502-4538-TFC093PE-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 5 of 12 1 Equipment (Test item) Description Description Bluetooth Smart Module Model ENW89847A1KF Additional Model(s) None Brand Name(s) PAN1760 Serial number None Hardware version 01 Software / Firmware version 01 FCC-ID T7V1760 IC 216Q-1760 Equipment type Radio module Test Report No.: G0M-1502-4538-TFC093PE-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 6 of 12 1.1 Reference Documents Document type Document No. Issued by Date Radio Test Report G0M-1502-4538-TFC247BL-V01 Eurofins Product Service GmbH 2015-05-11 Test Report No.: G0M-1502-4538-TFC093PE-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 7 of 12 1.2 Radiation Sources Mode # Description Bluetooth Low Energy Frequency range [MHz] 2402 – 2480 Channels 40 Modulations GFSK Maximum conducted power [dBm] -2.0 Maximum transmission duty cycle [%] 100 Test Report No.: G0M-1502-4538-TFC093PE-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 8 of 12 2 Result Summary FCC 47 CFR Part 2.1093, KDB447498, IC RSS-102 Product Specific Standard Section Requirement Result Remarks 47 CFR 2.1093 KDB447498 SAR evaluation exemption : Bluetooth Low Energy PASS RSS-102 2.5.1 SAR evaluation exemption : Bluetooth Low Energy PASS Remarks: Test Report No.: G0M-1502-4538-TFC093PE-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 9 of 12 3 RF-Exposure Classifications Device Types Fixed A fixed device is defined as a device physically secured at one fixed location and cannot be easily re-located. Mobile A mobile device is defined as a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter's radiating structure(s) and the body of the user or nearby persons. (47 CFR 2.1091) Portable A portable device is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. (47 CFR 2.1093) Exposure Categories Occupational / Controlled Limits apply in situations in which persons are exposed as a consequence of their employment provided those persons are fully aware of the potential for exposure and can exercise control over their exposure. Limits for occupational/controlled exposure also apply in situations when an individual is transient through a location where occupational/controlled limits apply provided he or she is made aware of the potential for exposure. General population / uncontrolled Exposures apply in situations in which the general public may be exposed, or in which persons that are exposed as a consequence of their employment may not be fully aware of the potential for exposure or cannot exercise control over their exposure. Test Report No.: G0M-1502-4538-TFC093PE-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 10 of 12 4 Assessment 4.1 SAR Exemption Assessment –FCC KDB447498 / RSS-102 Low Power Exclusion acc. to FCC KDB447498 / IC RSS-102 Verdict: PASS Assessment according to reference Reference Method KDB447498 & 2.1093 / RSS-102 & Safety Code 6 Device type portable Exposure category General population FCC/IC SAR Limits Region Occupational SAR values [W/kg] General public SAR values [W/kg] Whole-body SAR averaging mass = entire body 0.4 0.08 Partial-body SAR averaging mass = 1g 8.0 1.6 Hands, Wrists, Feet and Ankles SAR averaging mass = 10g 20 4 FCC SAR test exclusion Excerpt from KDB 447498: Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Exclusion Threshold condition, listed below…

Text truncated - open the document above for the full version.

Test Report No.: G0M-1502-4538-TFC247BL-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 1 of 78 FCC TEST REPORT FCC 47 CFR Part 15C Industry Canada RSS-210 Digital transmission systems operating within the 2400 – 2483.5 MHz band Report Reference No. ..................... : G0M-1502-4538-TFC247BL-V01 Testing Laboratory ......................... : Eurofins Product Service GmbH Address............................................. : Storkower Str. 38c 15526 Reichenwalde Germany Accreditation ..................................... : A2LA Accredited Testing Laboratory, Certificate No.: 1983.01 FCC Filed Test Laboratory, Reg.-No.: 96970 IC OATS Filing assigned code: 3470A Applicant’s name ............................ : Panasonic Industrial Devices Europe GmbH Address............................................. : Zeppelinstr. 19 21337 Lüneburg GERMANY Test specification: Standard ........................................... : 47 CFR Part 15C KDB Publication No. 558074 RSS-210, Issue 8, 2010-12 RSS-Gen, Issue 4, 2014-11 ANSI C63.4:2009 Test scope.............. ........................ : complete Radio compliance test Equipment under test (EUT): Product description Bluetooth Smart Module Model No. ENW89847A1KF Additional Model(s) None Brand Name(s) PAN1760 Hardware version 01 Firmware / Software version 01 FCC-ID: T7V1760 IC: 216Q-1760 Test result Passed Test Report No.: G0M-1502-4538-TFC247BL-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 3 of 78 Version History Version Issue Date Remarks Revised by 01 2015-05-11 Initial Release Test Report No.: G0M-1502-4538-TFC247BL-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 4 of 78 REPORT INDEX 1 EQUIPMENT (TEST ITEM) DESCRIPTION 5 1.1 Photos – Equipment External 6 1.2 Photos – Equipment internal 7 1.3 Photos – Test setup 8 1.4 Supporting Equipment Used During Testing 9 1.5 Test Modes 10 1.6 Test Equipment Used During Testing 11 1.7 Sample emission level calculation 13 2 RESULT SUMMARY 14 3 TEST CONDITIONS AND RESULTS 15 3.1 Test Conditions and Results – Occupied Bandwidth 15 3.2 Test Conditions and Results – 6 dB Bandwidth 19 3.3 Test Conditions and Results – Maximum peak conducted power 23 3.4 Test Conditions and Results – Power spectral density 24 3.5 Test Conditions and Results – AC power line conducted emissions 25 3.6 Test Conditions and Results – Band edge compliance 28 3.7 Test Conditions and Results – Conducted spurious emissions 31 3.8 Test Conditions and Results – Transmitter radiated emissions 35 3.9 Test Conditions and Results – Receiver radiated emissions 37 ANNEX A Transmitter radiated spurious emissions 39 ANNEX B Receiver radiated spurious emissions 71 Test Report No.: G0M-1502-4538-TFC247BL-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 5 of 78 1 Equipment (Test item) Description Description Bluetooth Smart Module Model ENW89847A1KF Additional Model(s) None Brand Name(s) PAN1760 Serial number None Hardware version 01 Software / Firmware version 01 FCC-ID T7V1760 IC 216Q-1760 Equipment type Radio module Radio type Transceiver Radio technology Bluetooth 4.0 Low Energy Operating frequency range 2402 - 2480 MHz Assigned frequency band 2400 - 2483.5 MHz Main test frequencies F LOW 2402 MHz F MID 2440 MHz F HIGH 2480 MHz Spreading Frequency Hopping Modulations GFSK Number of channels 40 Channel spacing 2MHz Number of antennas 1 Antenna Type integrated Model ANT2012L Manufacturer Yageo Gain 2.7 dBi (manufacturer declaration) Manufacturer Panasonic Industrial Devices Europe GmbH Zeppelinstr. 19 21337 Lüneburg GERMANY Power supply V NOM 3.3VDC V MIN N/R V MAX N/R AC/DC-Adaptor none Test Report No.: G0M-1502-4538-TFC247BL-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 6 of 78 1.1 Photos – Equipment External MODULE TOP MODULE BOTTOM Test Report No.: G0M-1502-4538-TFC247BL-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 7 of 78 1.2 Photos – Equipment internal MODULE SHIELDING OPEN Test Report No.: G0M-1502-4538-TFC247BL-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 8 of 78 1.3 Photos – Test setup AC POWER LINE RADIATED EMISSIONS Test Report No.: G0M-1502-4538-TFC247BL-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 9 of 78 1.4 Supporting Equipment Used During Testing Product Type* Device Manufacturer Model No. Comments None *Note: Use the following abbreviations: AE : Auxiliary/Associated Equipment, or SIM : Simulator (Not Subjected to Test) CABL : Connecting cables Test Report No.: G0M-1502-4538-TFC247BL-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 10 of 78 1.5 Test Modes Mode # Description Transmit General conditions: EUT powered by via USB. Radio conditions: Mode = standalone transmit Spreading = Hopping stopped (single hopping channel) Modulation = GFSK Data rate = 1 Mbps Duty cycle = 100 % Power level = Maximum Receive General conditions: EUT powered by via USB. Radio conditions: Mode = standalone receive Spreading = On Modulation = GFSK AC-Powerline General conditions: EUT powered by commercial Laptop Radio conditions: Mode = Transmit Spreading = On Test Report No.: G0M-1502-4538-TFC247BL-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 11 of 78 1.6 Test Equipment Used During Testing Measurement Software Description Manufacturer Name Version EMC Test Software Dare Instruments Radimation 2014.1.15 Occupied Bandwidth Description Manufacturer Model Identifier Cal. Date Cal. Due Spectrum Analyzer R&S FSP 30 EF00312 2015-02 2016-02 6dB Bandwidth Description Manufacturer Model Identifier Cal. Date Cal. Due Spectrum Analyzer R&S FSP 30 EF00312 2015-02 2016-02 Maximum peak conducted power Description Manufacturer Model Identifier Cal. Date Cal…

Text truncated - open the document above for the full version.

Test Report No.: G0M-1502-4538-EF0115B-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 1 of 28 EMC TEST REPORT FCC 47 CFR Part 15B Industry Canada RSS-Gen Electromagnetic compatibility - Unintentional radiators Report Reference No. .................... : G0M-1502-4538-EF0115B-V01 Testing Laboratory ........................ : Eurofins Product Service GmbH Address ............................................ : Storkower Str. 38c 15526 Reichenwalde Germany Accreditation .................................... : A2LA Accredited Testing Laboratory, Certificate No.: 1983.01 FCC Filed Test Laboratory, Reg.-No.: 96970 IC OATS Filing assigned code: 3470A Applicant’s name ........................... : Panasonic Industrial Devices Europe GmbH Address ............................................ : Zeppelinstr. 19 21337 Lüneburg GERMANY Test specification: Standard ........................................... : 47 CFR Part 15 Subpart B RSS-Gen, Issue 4, 2014-11 ANSI C63.4:2009 Equipment under test (EUT): Product description Bluetooth Smart Module Model No. ENW89847A1KF Additional Models None Hardware version 01 Firmware / Software version 01 FCC-ID: T7V1760 IC: 216Q-1760 Test result Passed Test Report No.: G0M-1502-4538-EF0115B-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 3 of 28 Version History Version Issue Date Remarks Revised by V01 2015-05-19 Initial Release Test Report No.: G0M-1502-4538-EF0115B-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 4 of 28 REPORT INDEX 1 EQUIPMENT (TEST ITEM) DESCRIPTION 5 1.1 Photos – Equipment external 6 1.2 Photos – Equipment internal 7 1.3 Photos – Test setup 8 1.4 Supporting Equipment Used During Testing 10 1.5 Input / Output Ports 10 1.6 Operating Modes and Configurations 11 1.7 Test Equipment Used During Testing 12 1.8 Sample emission level calculation 13 2 RESULT SUMMARY 14 3 TEST CONDITIONS AND RESULTS 15 3.1 Test Conditions and Results – Radiated emissions 15 3.2 Test Conditions and Results – AC power line conducted emissions 25 Test Report No.: G0M-1502-4538-EF0115B-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 5 of 28 1 Equipment (Test item) Description Description Bluetooth Smart Module Model ENW89847A1KF Additional Models None Serial number None Hardware version 01 Software / Firmware version 01 FCC-ID T7V1760 IC 216Q-1760 Power supply 5 VDC (USB) Radio module Type BT Module Model PAN 1760 / ENW89847A1KF Manufacturer Panasonic HW Version 01 SW Version 01 FCC-ID T7V1760 IC 216Q-1760 Manufacturer Panasonic Industrial Devices Europe GmbH Zeppelinstr. 19 21337 Lüneburg GERMANY Highest emission frequency Fmax = 2.4 GHz Device classification Class B Equipment type Tabletop Number of tested samples 1 Test Report No.: G0M-1502-4538-EF0115B-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 6 of 28 1.1 Photos – Equipment external EUT Top EUT Bottom Test Report No.: G0M-1502-4538-EF0115B-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 7 of 28 1.2 Photos – Equipment internal EUT Radio Module Test Report No.: G0M-1502-4538-EF0115B-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 8 of 28 1.3 Photos – Test setup Test Setup : Radiated Emissions Test Report No.: G0M-1502-4538-EF0115B-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 9 of 28 Test Setup : Conducted Emissions Test Report No.: G0M-1502-4538-EF0115B-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 10 of 28 1.4 Supporting Equipment Used During Testing Product Type* Device Manufacturer Model No. Comments AE Notebook Dell Latitude *Note: Use the following abbreviations: AE : Auxiliary/Associated Equipment, or SIM : Simulator (Not Subjected to Test) CABL : Connecting cables 1.5 Input / Output Ports Port # Name Type* Max. Cable Length Cable Shielded Comments 1 USB I/O / DC 1.5m Yes - 2 AC Mains AC >3m No AC power port from Notebook *Note: Use the following abbreviations: AC : AC power port DC : DC power port N/E : Non electrical I/O : Signal input or output port TP : Telecommunication port Test Report No.: G0M-1502-4538-EF0115B-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 11 of 28 1.6 Operating Modes and Configurations Mode # Description 1 Permanent TX @ 2419 MHz via TestTool supplied by customer. Configuration # EUT Configuration 1 EUT configured for use with Test-Notebook. Test Report No.: G0M-1502-4538-EF0115B-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 12 of 28 1.7 Test Equipment Used During Testing Measurement Software Description Manufacturer Name Version EMC Test Software Dare Instruments Radimation 2014.1.15 Radiated emissions Description Manufacturer Model Identifier Cal. Date Cal. Due Biconical Antenna R&S HK 116 EF00012 2013-02 2016-02 LPD-Antenne R&S HL 223 EF00187 2014-03 2017-03 Horn antenna Schwarzbeck BBHA 9120D EF00018 2013-09 2016-09 EMI Test Receiver R&S ESU26 EF00887 2015-01 2016-01 Conducted emissions Description Manufacturer Model Identifier Cal. Date Cal. Due AMN R&S ESH2-Z5 EF00182 2014-11 2016-11 AMN R&S ESH3-Z5 EF00036 2014-12 2016-12 EMI Test Receiver R&S ESCS 30 EF00295 2014-10 2015-10 Test Report No.: G0M-1502-4538-EF0115B-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 13 of 28 1.8 Sample emission level calculation The following is a description of terms and a sample calculation, as appears in the radiated emissions data table. The numbers used in the calculation are for example only. There is no direct correlation to the specific data taken for the product described in this document: Reading: This is the reading obtained on the spectrum analyzer in dBμV. Any external preamplifiers used are taken in…

Text truncated - open the document above for the full version.

Test Setup Photos page 1 Model No.:ENW89847A1KF FCC ID: T7V1760 IC: 216Q-1760 Project No.: G0M-1502-4538
