T7VEM250BETRX2-PA, STRX2-PA, ETRX2HR-PA, STRX2HR-PA

CLASSIFICATION Einstufung PRODUCT SPECIFICATION Produktspezifikation No. DS-ETRX2-PA-2400-102 REV. D SUBJECT Thema MODEM FOR IEEE802.15.4 (ZIGBEE) “ZigBee” Modem“ (IEEE802.15.4) PAGE Seite 1 of 33 CUSTOMER’S CODE ETRX2-PA PANASONIC’S CODE ENWC9A13A3EF / ENWC9A16A3EF DATE Datum 25.10.2007 HIGH FREQUENCY PRODUCTS DIVISION Module Business PANASONIC ELECTRONIC DEVICES (EUROPE) GmbH APPROVED genehmigt CHECKED geprüft DESIGNED erstellt Specification for Production Panasonic Electronic Devices (Europe) GmbH Zeppelinstrasse 19 21337 Lüneburg Applicant / Manufacturer Hardware Germany Ember Inc. Telegesis (UK) Limited Applicant / Manufacturer Software Contents Approval for Mass Production Telegesis (UK) Limited Customer By signing this document, Customer accepts the validity of the below-mentioned contents and declares his full notice to it. Some passages may be changed if required; the validity shall not be affected thereby. CHECKED / APPROVED: DATE: NAME: SIGNATURE: NOTE: AT LEAST ONE SET OF APPROVED SPECIFICATIONS SHOULD BE RETURNED TO THE ADDRESS OF THE ISSUING PARTY. CLASSIFICATION Einstufung PRODUCT SPECIFICATION Produktspezifikation No. DS-ETRX2-PA-2400-102 REV. D SUBJECT Thema MODEM FOR IEEE802.15.4 (ZIGBEE) “ZigBee” Modem“ (IEEE802.15.4) PAGE Seite 2 of 33 CUSTOMER’S CODE ETRX2-PA PANASONIC’S CODE ENWC9A13A3EF / ENWC9A16A3EF DATE Datum 25.10.2007 HIGH FREQUENCY PRODUCTS DIVISION Module Business PANASONIC ELECTRONIC DEVICES (EUROPE) GmbH APPROVED genehmigt CHECKED geprüft DESIGNED erstellt TABLE OF CONTENTS 1. Key Features...................................................................................................................4 2. Applications for the Module.............................................................................................4 3. Description of the Module................................................................................................5 3.1. On board DC Regulator.........................................................................................5 3.2. On Board reference Crystal...................................................................................5 4. Scope of this Document..................................................................................................6 5. History for this Document................................................................................................6 6. Terminal Layout...............................................................................................................7 7. Block Diagram...............................................................................................................10 8. Key Parts List................................................................................................................10 9. Test Conditions.............................................................................................................10 10. Absolute Maximum Ratings...........................................................................................11 11. Operating Conditions.....................................................................................................11 12. DC Electrical Characteristics.........................................................................................12 13. A/D converter Characteristics........................................................................................13 14. AC Electrical Characteristics.........................................................................................14 14.1. Tx power characteristics......................................................................................16 15. Mechanical Requirements.............................................................................................17 16. Soldering Temperature-time profile (for reflow soldering).............................................18 16.1. For lead solder.....................................................................................................18 16.2. For lead free solder..............................................................................................18 17. Module Dimensions.......................................................................................................19 18. Foot Print of the Module................................................................................................19 19. Labeling Drawing...........................................................................................................20 20. Recommended Land Pattern........................................................................................20 21. Software........................................................................................................................21 21.1. Software Declaration............................................................................................21 21.2. Software Tools.....................................................................................................21 21.3. Ember ZigBee® Stack.........................................................................................22 22. Reliability Tests.............................................................................................................22 23. Application Notes..........................................................................................................22 23.1. Cautions for safety...............................................................................................22 23.2. Design engineering notes....................................................................................23 23.3. Storage conditions...............................................................................................24 24. Packaging......................................................................................................................25 24.1. Embossed tape / Blistergurt................................................................…

Text truncated - open the document above for the full version.

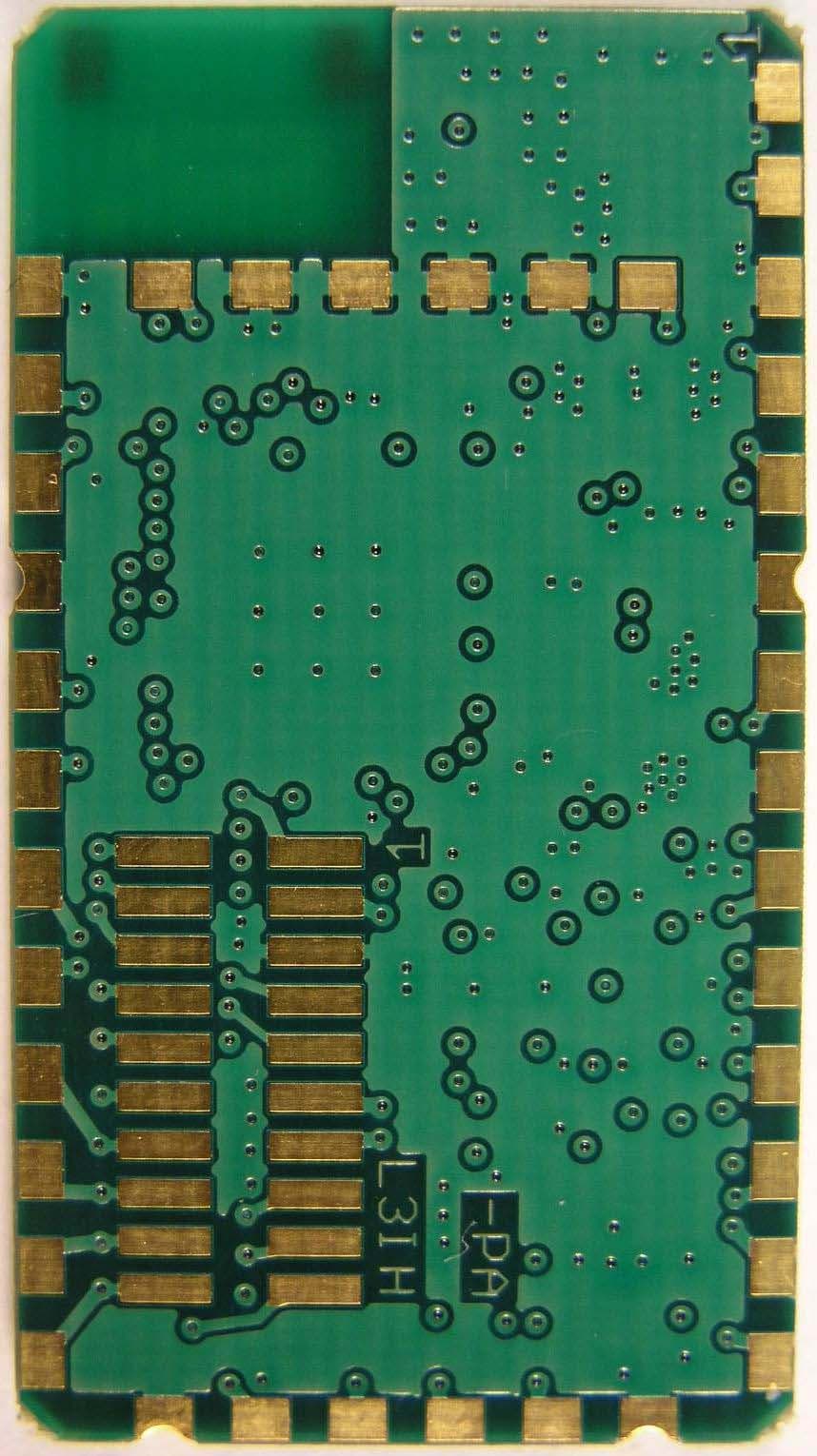

ETS Product Service AG Registration number: G0M20707-1512-C-1 Page 1 of 9 Appendix A. Pictures ETS Product Service AG Registration number: G0M20707-1512-C-1 Page 2 of 9 ETS Product Service AG Registration number: G0M20707-1512-C-1 Page 3 of 9

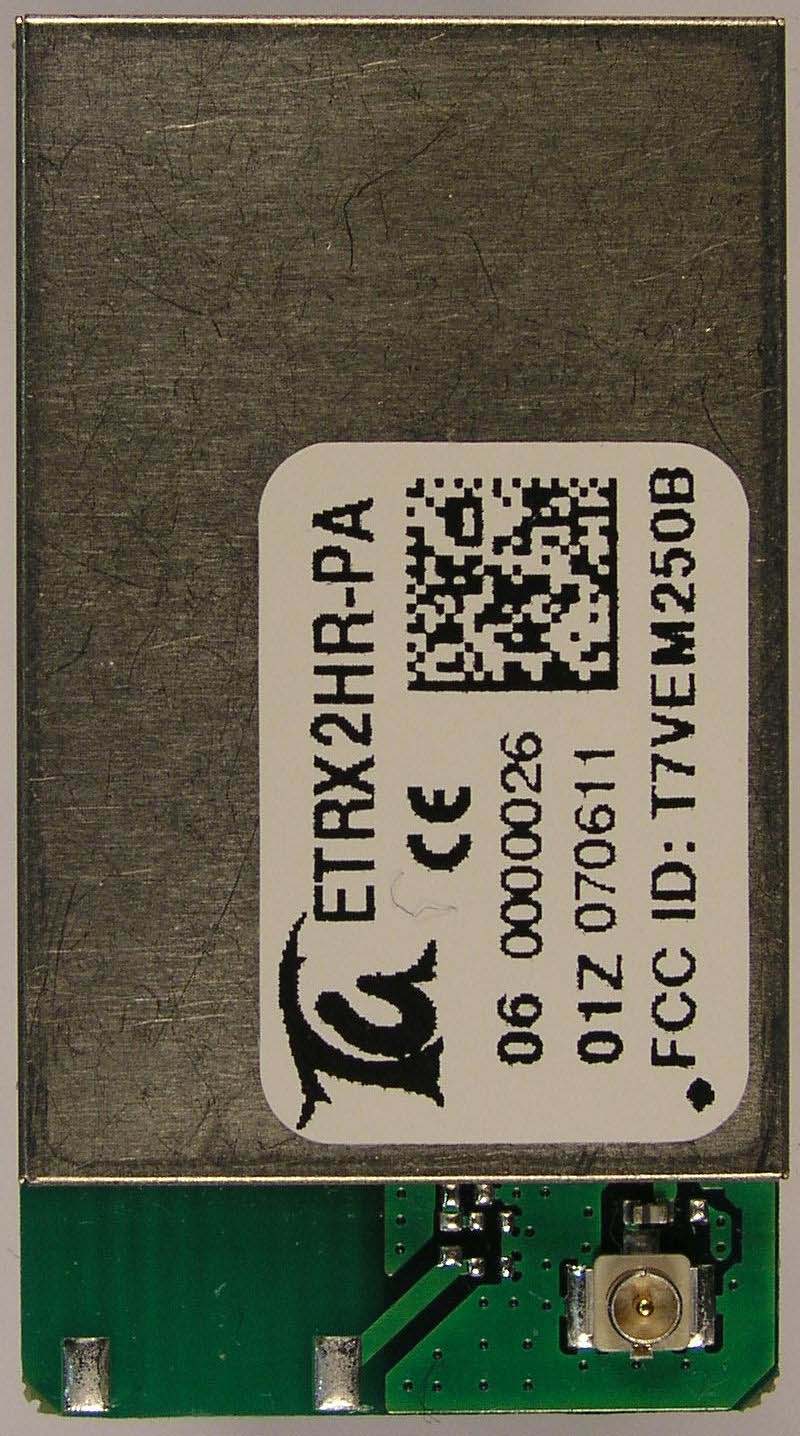

ETRX2(HR)-PA FCC ID Label Location 18,50mm. 13,00mm. Original Size

18,50mm. 13,00mm. Original Size

ETS Product Service AG Registration number: G0M20707-1512-C-1 Page 4 of 9 ETS Product Service AG Registration number: G0M20707-1512-C-1 Page 5 of 9

2.45 GHz AntennaP/N 2450AT43A100 Detail Specification: 12/21/03Page 1 of 3 General Specifications Part Number2450AT43A100Input Power3W max. Frequency Range2400 - 2500 MhzImpedance50 Ω Peak Gain2.0 dBi typ. (XZ-V)Operating Temperature-40 to +85°C Average Gain0.5 dBi typ. (XZ-V)Reel Quanity1,000 Return Loss9.5 dB min. No. Function Terminal Configuration Mechanical Dimensions Inmm L±± W±± T a±± Mounting Considerations Mount these devices with brown mark facing up. Units: mm * Line width should be designed to provide 50Ω impedance matching characteristics. Johanson Technology, Inc. reserves the right to make design changes without notice. All sales are subject to Johanson Technology, Inc. terms and conditions. www.johansontechnology.com 931 Via Alondra • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821 2003 Johanson Technology, Inc. All Rights Reserved Feeding Point NC 1 2 0.20 0.500.30 +0.1/-0.2 0.079 0.047 2.00 +.004/-.008 0.008 "High Frequency Ceramic Solutions" 0.0080.2767.000.20 1.20 0.0200.012 12 L W a T * 2.0 5.5 8.0 1.0 (Matching components, if used, will vary in value depending on PCB layout) 2.45 GHz AntennaP/N 2450AT43A100 Detail Specification: 12/21/03Page 2 of 3 Typical Electrical Characteristics (T=25 o C) Test Board Return Loss Johanson Technology, Inc. reserves the right to make design changes without notice. All sales are subject to Johanson Technology, Inc. terms and conditions. www.johansontechnology.com 931 Via Alondra • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821 2003 Johanson Technology, Inc. All Rights Reserved "High Frequency Ceramic Solutions" ) ) ) ) ) ) ) ) ) Antenna No Ground Ground 20mm 19mm 40mm9.5mm 50Ω Feed Line 2.45 GHz AntennaP/N 2450AT43A100 Detail Specification: 12/21/03Page 3 of 3 Typical Radiation Patterns Johanson Technology, Inc. reserves the right to make design changes without notice. All sales are subject to Johanson Technology, Inc. terms and conditions. www.johansontechnology.com 931 Via Alondra • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821 2003 Johanson Technology, Inc. All Rights Reserved "High Frequency Ceramic Solutions" ) ) ) ) ) ) ) ) ) XY-V/XY-H 180° 270° 0° 90° X Z Y XY-cut scanning direction XY cut @2.45GHz Vertical H orizontal XZ-V/XZ-H YZ-V/YZ-H 180° 270° 0° 90° X Z Y XZ-cut scanning direction 180° 270° 0° 90° X Z Y YZ-cut scanning direction XZ cut @2.45GHz Vertical H orizontal YZ cut @2.45GHz Vertical H orizontal

Product Specification BKR2400™ 2.4 GHz Knuckle Antenna Features 9External Mount Antenna 9Groundplane independent 9SMA Male connector 9Knuckle for straight or right-angle 9Ideal for fixed applications Specifications Radiating element½Wave Dipole Frequency Band 2.4 GHz Peak gain 2 dBi Polarisation Linear VSWR 2:1 Impedance 50 ohm Cable / Connector SMA Male knuckle Dimensions 138mm x 13mm (length x diameter) Ordering Options FBKR35068-SM-KRBKR2400 with SMA-Male knuckle connector Specifications subject to change without notice Embedded Antenna Design Ltd Tel. +44 (0) 1280 825537Fax +44 (0)1280 817179 [email protected] www.ead-ltd.com

Product Specification BT-Stubby™ 2.4 GHz Stubby Antenna Features 9External Mount Antenna 9Covers 2.4 GHz Band 9Stubby with SMA Male connector 9Straight or right-angle 9Ideal for fixed applications Specifications Radiating elementWire Frequency Band 2.4 GHz Peak gain 0 dBi Polarisation Linear VSWR 2:1 Impedance 50 ohm Cable / Connector SMA Male – straight or right angle connector Dimensions Straight:32x8mm (incl. SMA) Right-angle 34.5x8mm (excl. SMA) Ordering Options FBTS35024-SM-ST BT-Stubby with straight SMA-Male connector BT-Stubby with right-angle SMA-Male connector FBTS35024-SM-RA Specifications subject to change without notice Embedded Antenna Design Ltd Tel. +44 (0) 1280 822537Fax +44 (0)1280 817179 [email protected] www.ead-ltd.com

xTRX2(HR)-PA Operational Description: The xTRX2(HR)-PA module is a short range, low power, 2,4GHz ISM band transceiver module using the Ember TM EM250 or STM SN250 single chip solution for ZigBee TM , a IEEE802.15.4- compliant transceiver with a 16-bit XAP2b microprocessor plus an additional 2.4GHz power amplifier from NEC (UPG2314T5N) is included in the module. With added onboard reference oscillators and optimized RF frontend circuitry xTRX2(HR)-PA provides the complete hardware needed for a ZigBee TM class 1 solution. ETRX2(HR)-PA comprises EmberZNet, the Ember TM ZigBee–compliant software stack, which is a ZigBee TM profile-ready platform compliant solution. A reliable Application Programming Interface based on the ZigBee TM specification is provided for the ease of the creation of application profiles. Same software is also possible from ST Microelectronics (STM) for the versions STRX2- PA [version with ceramic antenna] and STRX2HR-PA [version with plug connector]. The RF system itself, follows the IEEE802.15.4 standard. xTRX2(HR)-PA Tuning Procedure: The xTRX2(HR)-PA module is a short range, low power, 2,4GHz ISM band transceiver module using the Ember TM EM250 or ST Microelectronics SN250 single chip solution for ZigBee TM , a IEEE802.15.4- compliant transceiver with a 16-bit XAP2b microprocessor plus an additional 2.4GHz power amplifier from NEC (UPG2314T5N) is included in the module. Tuning procedure for channel accuracy is not applicable, the crystal tolerance and the capacitor values are in the ZigBee TM accuracy for ±40ppm. The RF system itself, follows the IEEE802.15.4 standard: IEEE Standard 802.15.4 –2003 Wireless Medium Access Control (MAC) and Physical Layer (PHY) Specifications for Low-Rate Wireless Personal Area Networks (LR-WPANs) The channel selection must follow the above standard, here are some information, copied from this standard: Page 1 of 2 The channel selection are done by the OEM manufacturer. Page 2 of 2

ETS PRODUCT SERVICE AG TEST - REPORT FCC RULES PARTS 15.247 IC RADIO STANDARDS RSS-210 Issue 7 FCC ID: T7VEM250B Model Name: ZigBee-Module ETRX-2-PA Test report no.:G0M20707-1512-C-1 Certificate #1983.01 ETS STORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN PRODUCT SERVICE AG PHONE +49-33631-888 00 FAX +49-33631-888 660 ETS Product Service AG Registration number: G0M20707-1512-C-1 Page 1 of 32 TABLE OF CONTENTS 1 General information 2 1.1 Notes 2 1.2 Testing laboratory 3 1.3 Details of approval holder 3 1.4 Application details 4 1.5 Test item 4 1.6 Test standards 6 2 Technical test 6 2.1 Summary of test results 6 2.2 Test environment 6 2.3 Test equipment utilized 7 2.4 Test Procedure 18 3 Test Results 19 3.1 Peak Output Power 20 3.2 De Facto Equivalent Isotropic Radiated Power 21 3.3 Minimum 6 dB Bandwidth 22 3.4 Peak Power Spectral Density 23 3.5 Spurious Emissions conducted 24 3.6 Spurious Emissions radiated 25 3.7 Conducted Emission at (AC) Power Line 30 4 Receiver parameters 31 4.1 Radiated emission 31 APPENDIX 32 ETS Product Service AG Registration number: G0M20707-1512-C-1 Page 2 of 32 1 General information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ETS PRODUCT SERVICE AG. Tester: 15.10.2007 W. Treffke Date ETS-Lab. Name Signature Technical responsibility for area of testing: 15.10.2007 N. Kaspar Date ETS Name Signature ETS Product Service AG Registration number: G0M20707-1512-C-1 Page 3 of 32 1.2 Testing laboratory 1.2.1 Location ETS PRODUCT SERVICE AG Storkower Straße 38c D-15526 Reichenwalde b. Berlin Germany Telephone : +49 33631 888 00 Telefax : +49 33631 888 660 1.2.2 Details of accreditation status A CCREDITED TESTING LABORATORY DAR-REGISTRATION NUMBER: DAT-P-201/96 ACCREDITED NOTIFIED BODY EMC BNETZA-REGISTRATION NO.: BNETZA-BS EMV-7/61 ACCREDITED NOTIFIED BODY R&TTE BNetzA-Registration number: BNetzA-BS-02/51-53 FCC filed test laboratory Reg. No. 96970 A2LA Accredited Certification #1983.01 B LUETOOTH QUALIFICATION TEST FACILITY (BQTF) Accredited by Bluetooth Qualification Review Board Industry Canada filed test laboratory Reg. No. IC 3470A 1.3 Details of approval holder Name : Panasonic Electronic Devices Europe GmbH Street : Zeppelinstr. 19 Town : 21337 Lueneburg Country : Germany Telephone : +49.4131 899-304 Fax : +49.4131 899-108 Contact : Herr Heino Kaehler E-Mail : +49.4131 899-304 ETS Product Service AG Registration number: G0M20707-1512-C-1 Page 4 of 32 1.4 Application details Date of receipt of application : 02.07.2007 Date of receipt of test item : 02.07.2007 Date of test : 03.07.2007 – 04.10.2007 1.5 Test item Description of test item : ZigBee-Module Type identification : ETRX-2-PA Serial number : without Photos : See annex A. Technical data Frequency band : 2.4GHz – 2.4835 GHz Frequency (ch A) : 2405 MHz Frequency (ch B) : 2445 MHz Frequency (ch C) : 2480 MHz Number of Channels : 16 Operating Modes : duplex Type of modulation : PWM Fixed point-to-point operation: Yes / No Power supply : 3.3 V DC Antenna 1 : internal ceramic antenna Antenna 2 : external antenna with unique Connector; 2.4GHz Knuckle Antenna Antenna 3 : external antenna with unique Connector; 2.4GHz Stubby Antenna Antenna gain : Antenna 1 2 dBi : Antenna 2 2 dBi : Antenna 3 0 dBi Host device : none ETS Product Service AG Registration number: G0M20707-1512-C-1 Page 5 of 32 Classification : Fixed Device Mobile Device (Human Body distance > 20cm Portable Device (Human Body distance < 20cm Transmitter Vnom Vnom –15 % Vnom +15 % Power (ch A) : Conducted: 17.53 dBm Conducted: 15.28 dBm Conducted: 18.23 dBm Power (ch B) : Conducted: 18.13 dBm Conducted: 15.63 dBm Conducted: 18.75 dBm Power (ch C) : Conducted: 17.28 dBm Conducted: 15.05 dBm Conducted: 17.89 dBm Manufacturer: (if applicable) Name : Panasonic Electronic Devices Europe GmbH Street : Zeppelinstr. 19 Town : 21337 Lueneburg Country : Germany Additional information: The scheme for frequency generation, spectrum spreading, receiver parameters, synchronization procedure, and other parameters are determined by the mentioned standard above. The sample for low Rate Wireless Personal Area Networks (LR-WPAN) technology according IEEE 802.15.4. ETS Product Service AG Registration number: G0M20707-1512-C-1 Page 6 of 32 1.6 Test standards Technical standard : FCC Parts: 15.247 IC Standards: RSS 210 Issue 7 Annex 8.2 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course : of the tests performed. or The deviations as specified in 2.5 were ascertained in the course of the tests … performed. 2.2 Test environment Temperature : 25 o C Relative humidity content : 20 ... 75 % Air pressure : 86 ... 103 kPa Details of power supply : 3.3 V DC Extrem conditions parameters: : test voltage - extreme min.: 2.7 V DC max: 3.5 V DC Extreme test voltages were declared by manufacturer. ETS Product Service AG Registration number: G0M20707-1512-C-1 Page 7 of 32 2.3 Test equipment utilized No. Test equipment Type Manufacturer ETS 0001 ESD Gun SESD …
