T7VPAN10Bluetooth Module

CLASSIFICATION PRODUCT SPECIFICATION No. DS-1026-2400-102 REV. 0.3 SUBJECT CLASS 2 BLUETOOTH LOW ENERGY SPP MODULE PAGE 1 of 35 CUSTOMER’S CODE PAN1026 PANASONIC’S CODE ENW89837AxKF DATE 02.10.2013 Power Electronics R&D Center Wireless Connectivity Panasonic Industrial Devices Europe GmbH APPROVED genehmigt CHECKED geprüft DESIGNED erstellt Product Specification Panasonic Industrial Devices Europe GmbH Zeppelinstrasse 19 21337 Lüneburg Applicant / Manufacturer Hardware Germany TOSHIBA Electronics Europe GmbH Hansaallee 181 40549 Düsseldorf Applicant / Manufacturer Software Germany Software Version Please refer to chapter 20 / 21 By purchase of any of products described in this document the customer accepts the document's validity and declares their agreement and understanding of its contents and recommendations. Panasonic reserves the right to make changes as required without notification. CHECKED / APPROVED: Company: DATE: NAME: SIGNATURE: NOTE: AT LEAST ONE SET OF APPROVED SPECIFICATIONS SHOULD BE RETURNED TO THE ADDRESS OF THE ISSUING PARTY. CLASSIFICATION PRODUCT SPECIFICATION No. DS-1026-2400-102 REV. 0.3 SUBJECT CLASS 2 BLUETOOTH LOW ENERGY SPP MODULE PAGE 2 of 35 CUSTOMER’S CODE PAN1026 PANASONIC’S CODE ENW89837AxKF DATE 02.10.2013 PANASONIC INDUSTRIAL DEVICES EUROPE GMBH www.pideu.panasonic.de TABLE OF CONTENTS 1 .................................................................................................. 4 Scope of this Document 2 Key Features................................................................................................................... 4 3 Bluetooth Low Energy ..................................................................................................... 5 4 Applications for the Module............................................................................................. 5 5 Description for the Module.............................................................................................. 5 6 Detailed Description........................................................................................................ 6 6.1 PAN1026 Terminal Layout..................................................................................... 6 6.2 PAN1026 Terminal Description ............................................................................. 6 6.3 UART Interface...................................................................................................... 8 6.3.1 Features................................................................................................... 8 6.3.2 Connection Example................................................................................ 9 6.3.3 Frame Format......................................................................................... 10 6.3.4 Flow Control Function............................................................................ 10 6.3.5 UART Baud Rate Setting....................................................................... 10 6.3.6 Error Detect Function............................................................................. 11 7 Bluetooth Features........................................................................................................ 12 8 Block Diagram............................................................................................................... 12 9 Test Conditions............................................................................................................. 13 10 General Device Requirements and Operation.............................................................. 13 10.1 Absolute Maximum Ratings................................................................................. 13 10.2 Recommended Operating Conditions.................................................................. 13 10.3 Current Consumption........................................................................................... 14 11 Bluetooth RF Performance............................................................................................ 15 11.1 Bluetooth Characteristics..................................................................................... 15 12 Soldering Temperature-Time Profile (for reflow soldering) ........................................... 16 13 Module Dimension........................................................................................................ 17 14 PAN1026 FootPrint of the Module................................................................................ 18 15 Case Marking ................................................................................................................ 19 15.1 Example for Marking............................................................................................ 19 15.2 Marking Definition................................................................................................ 19 16 Mechanical Requirements............................................................................................. 19 17 Reliability Tests............................................................................................................. 20 18 Cautions........................................................................................................................ 20 18.1 Design Notes....................................................................................................... 20 18.2 Installation Notes................................................................................................. 21 18.3 Usage Conditions Notes...................................................................................... 21 18.4 Storage Notes...................................................................................................... 22 18.5 Safety Cautions................................................................................................... 22 18.6 Other cautions..............................................................…

Text truncated - open the document above for the full version.

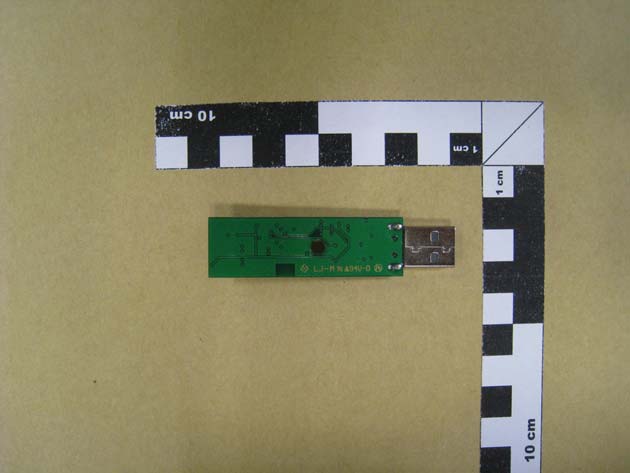

External Photos page 1 Model No.: ENW89837AxKF FCC ID: T7VPAN10 IC: 216Q-PAN10 Test Report No.: G0M-1208-2160-TFC247B-V01 Eurofins Product Service GmbH Storkower Str. 38C, D-15526 Reichenwalde, Germany

Label Location Original Module size: The above picture shows the full module with the case. The laser marking is made more or less on the whole case. Therefore the IC ID can not be placed on the label. The 2D code area can not be used. The IC 216Q-PAN10 is listed in the user manual only. 8,70mm 15,60mm

Internal Photos page 1 Model No.: ENW89837AxKF FCC ID: T7VPAN10 IC: 216Q-PAN10 Test Report No.: G0M-1208-2160-TFC247B-V01 Eurofins Product Service GmbH Storkower Str. 38C, D-15526 Reichenwalde, Germany

Test Report No.: G0M-1208-2160-TFC093P-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 1 of 13 RF-EXPOSURE ASSESSMENT REPORT FCC 47 CFR Part 2.1093 Industry Canada RSS-102 RF-Exposure evaluation of portable equipment Report Reference No. .................... : G0M-1208-2160-TFC093P-V01 Testing Laboratory ........................ : Eurofins Product Service GmbH Address ............................................ : Storkower Str. 38c 15526 Reichenwalde Germany Accreditation .................................... : A2LA Accredited Testing Laboratory, Certificate No.: 1983.01 FCC Filed Test Laboratory, Reg.-No.: 96970 IC OATS Filing assigned code: 3470A Applicant’s name ........................... : Panasonic Industrial Devices Europe GmbH Address ............................................ : Zeppelinstr. 19 21337 Lüneburg GERMANY Test specification: Standard ........................................... : 47 CFR 1.1310 / 47 CFR 2.1091 / 47 CFR 2.1093 OET Bulletin 65:1997 KDB 447498 D01 v05r01:2013-05-28 RSS-102, Issue 4:2010 Safety Code 6:2009 Equipment under test (EUT): Product description Class 2 Bluetooth Low Energy Module Model No. ENW89837AxKF Hardware version 0x Firmware / Software version 0x FCC-ID: T7VPAN10 IC: 216Q-PAN10 Test result Passed Test Report No.: G0M-1208-2160-TFC093P-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 3 of 13 Version History Version Issue Date Remarks Revised by 01 2013-10-28 Initial Release Test Report No.: G0M-1208-2160-TFC093P-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 4 of 13 REPORT INDEX 1 EQUIPMENT (TEST ITEM) DESCRIPTION 5 1.1 Reference Documents 6 1.2 Radiation Sources 7 2 RESULT SUMMARY 8 3 RF-EXPOSURE CLASSIFICATIONS 9 4 ASSESSMENT 10 4.1 SAR Exemption Assessment –FCC KDB447498 / RSS-102 10 Test Report No.: G0M-1208-2160-TFC093P-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 5 of 13 1 Equipment (Test item) Description Description Class 2 Bluetooth Low Energy Module Model ENW89837AxKF Serial number None Hardware version 0x Software / Firmware version 0x FCC-ID T7VPAN10 IC 216Q-PAN10 Equipment type Radio module Test Report No.: G0M-1208-2160-TFC093P-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 6 of 13 1.1 Reference Documents Document type Document No. Issued by Date FCC 15.247 Bluetooth Radio Report G0M-1208-2160-TFC247B-V01 Eurofins Product Service GmbH 2013-10-25 FCC 15.247 Bluetooth LE Radio Report G0M-1208-2160-TFC247W-V01 Eurofins Product Service GmbH 2013-10-25 Test Report No.: G0M-1208-2160-TFC093P-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 7 of 13 1.2 Radiation Sources Mode # Description Bluetooth Frequency range [MHz] 2402 – 2480 Channels 79 Modulations GFSK Maximum conducted power [dBm] 0.99 Maximum transmission duty cycle [%] 100 (worst case assessment) Bluetooth LE Frequency range [MHz] 2402 – 2480 Channels 40 Modulations GFSK Maximum peak power [dBm] 0.82 Maximum transmission duty cycle [%] 100 (worst case assessment) Test Report No.: G0M-1208-2160-TFC093P-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 8 of 13 2 Result Summary FCC 47 CFR Part 2.1093, KDB447498, IC RSS-102 Product Specific Standard Section Requirement Result Remarks 47 CFR 2.1093 KDB447498 SAR evaluation exemption : Bluetooth PASS minimum separation distance 5 mm 47 CFR 2.1093 KDB447498 SAR evaluation exemption : Bluetooth LE PASS minimum separation distance 5 mm RSS-102 2.5.1 SAR evaluation exemption : Bluetooth PASS RSS-102 2.5.1 SAR evaluation exemption : Bluetooth LE PASS Remarks: Test Report No.: G0M-1208-2160-TFC093P-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 9 of 13 3 RF-Exposure Classifications Device Types Fixed A fixed device is defined as a device physically secured at one fixed location and cannot be easily re-located. Mobile A mobile device is defined as a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter's radiating structure(s) and the body of the user or nearby persons. (47 CFR 2.1091) Portable A portable device is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. (47 CFR 2.1093) Exposure Categories Occupational / Controlled Limits apply in situations in which persons are exposed as a consequence of their employment provided those persons are fully aware of the potential for exposure and can exercise control over their exposure. Limits for occupational/controlled exposure also apply in situations when an individual is transient through a location where occupational/controlled limits apply provided he or she is made aware of the potential for exposure. General population / uncontrolled Exposures apply in situations in which the general public may be exposed, or in which persons that are exposed as a consequence of their employment may not be fully aware of the potential for exposure or cannot exercise control over their exposure. Test Report No.: G0M-1208-2160-TFC093P-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 10 of 13 4 Assessment 4.1 SAR Exemption Assessment –FCC KDB447498 / RSS-102 Low Power Exclusion acc. to FCC KDB447498 / IC RSS-102 Verdict: PASS Assessment according to reference Reference Method KDB447498 & 2.1093 / RSS-102 & Safety Code 6 Device type portable Exposure category General population FCC/IC SAR Limits Region Occupational SAR values [W/kg] General public SAR values [W/kg] Whole-body SAR averaging mass = entire body 0.4 0.08 Partial-body SAR averaging mass = 1g 8.0 1.6 Hands, Wrists, Feet and A…

Text truncated - open the document above for the full version.

Test Report No.: G0M-1208-2160-TFC247B-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 1 of 101 FCC TEST REPORT FCC 47 CFR Part 15C Industry Canada RSS-210 Frequency hopping systems operating within the 2400 – 2483.5 MHz band Report Reference No. .................... : G0M-1208-2160-TFC247B-V01 Testing Laboratory ........................ : Eurofins Product Service GmbH Address ............................................ : Storkower Str. 38c 15526 Reichenwalde Germany Accreditation .................................... : A2LA Accredited Testing Laboratory, Certificate No.: 1983.01 FCC Filed Test Laboratory, Reg.-No.: 96970 IC OATS Filing assigned code: 3470A Applicant’s name ........................... : Panasonic Industrial Devices Europe GmbH Address ............................................ : Zeppelinstr. 19 21337 Lüneburg GERMANY Test specification: Standard ........................................... : 47 CFR Part 15C RSS-210, Issue 8, 2010-12 RSS-Gen, Issue 3, 2010-12 ANSI C63.4:2009 Equipment under test (EUT): Product description Class 2 Bluetooth Low Energy Module Model No. ENW89837AxKF Hardware version 0x Firmware / Software version 0x FCC-ID: T7VPAN10 IC: 216Q-PAN10 Test result Passed Test Report No.: G0M-1208-2160-TFC247B-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 3 of 101 Version History Version Issue Date Remarks Revised by 01 2013-10-25 Initial Release Test Report No.: G0M-1208-2160-TFC247B-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 4 of 101 REPORT INDEX 1 EQUIPMENT (TEST ITEM) DESCRIPTION: 5 1.1 Photos – Equipment External 6 1.2 Photos – Equipment internal 7 1.3 Photos – Test setup 8 1.4 Supporting Equipment Used During Testing 9 1.5 Test Modes 10 1.6 Test Equipment Used During Testing 11 1.7 Sample emission level calculation 12 2 RESULT SUMMARY 13 3 TEST CONDITIONS AND RESULTS 14 3.1 Test Conditions and Results – Occupied Bandwidth 14 3.2 Test Conditions and Results – 20 dB Bandwidth 18 3.3 Test Conditions and Results – Number of hopping frequencies 22 3.4 Test Conditions and Results – Frequency hopping channel separation 27 3.5 Test Conditions and Results – Time of occupancy (Dwell Time) 29 3.6 Test Conditions and Results – Maximum peak conducted power 31 3.7 Test Conditions and Results – AC power line conducted emissions 33 3.8 Test Conditions and Results – Band edge compliance 36 3.9 Test Conditions and Results – Conducted spurious emissions 41 3.10 Test Conditions and Results – Transmitter radiated emissions 48 3.11 Test Conditions and Results – Receiver radiated emissions 50 ANNEX A Transmitter radiated spurious emissions 52 ANNEX B Receiver radiated spurious emissions 92 Test Report No.: G0M-1208-2160-TFC247B-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 5 of 101 1 Equipment (Test item) Description: Description Class 2 Bluetooth Low Energy Module Model ENW89837AxKF Serial number None Hardware version 0x Software / Firmware version 0x FCC-ID T7VPAN10 IC 216Q-PAN10 Equipment type Radio module Radio type Transceiver Radio technology Bluetooth 2.1 Operating frequency range 2402 - 2480 MHz Assigned frequency band 2400 - 2483.5 MHz Main test frequencies F LOW 2402 MHz F MID 2441 MHz F HIGH 2480 MHz Spreading FHSS Modulations GFSK Number of channels 79 hopping channels at all Channel spacing 1 MHz Number of antennas 1 Antenna Type integrated Model LDA212G3110K Manufacturer Murata Gain +0.9 Manufacturer Panasonic Industrial Devices Europe GmbH Zeppelinstr. 19 21337 Lüneburg GERMANY Power supply V NOM 3.7 VDC V MIN 2.0 VDC V MIN 3.6 VDC AC/DC-Adaptor Model N/A Vendor N/A Input N/A Output N/A Test Report No.: G0M-1208-2160-TFC247B-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 6 of 101 1.1 Photos – Equipment External EVALUATION BOARD BOTTOM EUT ON EVALUATION BOARD TOP Test Report No.: G0M-1208-2160-TFC247B-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 7 of 101 1.2 Photos – Equipment internal MODULE BOTTOM MODULE TOP Test Report No.: G0M-1208-2160-TFC247B-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 8 of 101 1.3 Photos – Test setup TESTSETUP RADIATED MEASUREMENTS TESTSETUP CONDUCTED MEASUREMENTS Test Report No.: G0M-1208-2160-TFC247B-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 9 of 101 1.4 Supporting Equipment Used During Testing Product Type* Device Manufacturer Model No. Comments AE USB LWL ICRON USB Ranger 2224 AE Laptop DELL Latitude D430 *Note: Use the following abbreviations: AE : Auxiliary/Associated Equipment, or SIM : Simulator (Not Subjected to Test) CABL : Connecting cables Test Report No.: G0M-1208-2160-TFC247B-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 10 of 101 1.5 Test Modes Mode # Description DH5-Sngl General conditions: EUT powered by laboratory power supply. Radio conditions: Mode = standalone transmit Spreading = Hopping stopped (single hopping channel) Modulation = GFSK Packet type = DH5 Data rate = 1 Mbps Duty cycle = 78 % Power level = Maximum DH5-Hop General conditions: EUT powered by laboratory power supply. Radio conditions: Mode = standalone transmit Spreading = Hopping Modulation = GFSK Packet type = DH5 Data rate = 1 Mbps Duty cycle = 78 % Power level = Maximum Receive General conditions: EUT powered by laboratory power supply. Radio conditions: Mode = standalone receive Spreading = Hopping AC-Powerline General conditions: EUT powered by commercial AC/DC-Adapter via Laptop. Radio conditions: Mode = standalone transmit Spreading = Hopping Power level = Maximum Test Report No.: G0M-1208-2160-TFC247B-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 11 of 101 1.6 Test Equipment Used During Testing 20dB Bandwidth Description…

Text truncated - open the document above for the full version.

Test Report No.: G0M-1208-2160-TFC247W-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany FCC TEST REPORT FCC 47 CFR Part 15C Industry Canada RSS-210 Digital transmission systems operating within the 2400 – 2483.5 MHz band Report Reference No. .................... : G0M-1208-2160-TFC247W-V01 Testing Laboratory ........................ : Eurofins Product Service GmbH Address ............................................ : Storkower Str. 38c 15526 Reichenwalde Germany Accreditation .................................... : A2LA Accredited Testing Laboratory, Certificate No.: 1983.01 FCC Filed Test Laboratory, Reg.-No.: 96970 IC OATS Filing assigned code: 3470A Applicant’s name ........................... : Panasonic Industrial Devices Europe GmbH Address ............................................ : Zeppelinstr. 19 21337 Lüneburg GERMANY Test specification: Standard ........................................... : 47 CFR Part 15C KDB Publication No. 558074 RSS-210, Issue 8, 2010-12 RSS-Gen, Issue 3, 2010-12 ANSI C63.4:2009 Equipment under test (EUT): Product description Class 2 Bluetooth Low Energy Module Model No. ENW89837AxKF Hardware version 0x Firmware / Software version 0x FCC-ID: T7VPAN10 IC: 216Q-PAN10 Test result Passed Page 1 of 90 Page 2 of 90 Test Report No.: G0M-1208-2160-TFC247W-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Version History Version Issue Date Remarks Revised by 01 2013-10-25 Initial Release Page 3 of 90 Test Report No.: G0M-1208-2160-TFC247W-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany REPORT INDEX 1 EQUIPMENT (TEST ITEM) DESCRIPTION: 5 1.1 Photos – Equipment External 6 1.2 Photos – Equipment internal 7 1.3 Photos – Test setup 8 1.4 Supporting Equipment Used During Testing 9 1.5 Test Modes 10 1.6 Test Equipment Used During Testing 11 1.7 Sample emission level calculation 12 2 RESULT SUMMARY 13 3 TEST CONDITIONS AND RESULTS 14 3.1 Test Conditions and Results – Occupied Bandwidth 14 3.2 Test Conditions and Results – 6 dB Bandwidth 18 3.3 Test Conditions and Results – Maximum peak conducted power 22 3.4 Test Conditions and Results – Power spectral density 23 3.5 Test Conditions and Results – AC power line conducted emissions 24 3.6 Test Conditions and Results – Band edge compliance 27 3.7 Test Conditions and Results – Conducted spurious emissions 30 3.8 Test Conditions and Results – Transmitter radiated emissions 37 3.9 Test Conditions and Results – Receiver radiated emissions 39 ANNEX A Transmitter radiated spurious emissions 41 ANNEX B Receiver radiated spurious emissions 81 Page 4 of 90 Test Report No.: G0M-1208-2160-TFC247W-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany 1 Equipment (Test item) Description: Description Class 2 Bluetooth Low Energy Module Model ENW89837AxKF Serial number None Hardware version 0x Software / Firmware version 0x FCC-ID T7VPAN10 IC 216Q-PAN10 Equipment type Radio module Radio type Transceiver Radio technology Bluetooth 4.0 Low Energy Operating frequency range 2402 - 2480 MHz Assigned frequency band 2400 - 2483.5 MHz Main test frequencies F LOW 2402 MHz F MID 2440 MHz F HIGH 2480 MHz Spreading None Modulations GFSK Number of channels 40 Channel spacing 2MHz Number of antennas 1 Antenna Type integrated Model LDA21K 7488930245 Manufacturer Murata Gain +0.9 dBi (manufacturer declaration) Manufacturer Panasonic Industrial Devices Europe GmbH Zeppelinstr. 19 21337 Lüneburg GERMANY Power supply V NOM 3.3VDC V MIN 2.0VDC V MAX 3.6VDC AC/DC-Adaptor none Page 5 of 90 Test Report No.: G0M-1208-2160-TFC247W-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany 1.1 Photos – Equipment External EVALUATION BOARD BOTTOM EUT ON EVALUATION BOARD TOP Page 6 of 90 Test Report No.: G0M-1208-2160-TFC247W-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany 1.2 Photos – Equipment internal MODULE BOTTOM MODULE TOP Page 7 of 90 Test Report No.: G0M-1208-2160-TFC247W-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany 1.3 Photos – Test setup TESTSETUP RADIATED MEASUREMENTS TESTSETUP CONDUCTED MEASUREMENTS Page 8 of 90 Test Report No.: G0M-1208-2160-TFC247W-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany 1.4 Supporting Equipment Used During Testing Product Type* Device Manufacturer Model No. Comments AE USB LWL ICRON USB Ranger 2224 AE Laptop DELL Latitude D430 *Note: Use the following abbreviations: AE : Auxiliary/Associated Equipment, or SIM : Simulator (Not Subjected to Test) CABL : Connecting cables Page 9 of 90 Test Report No.: G0M-1208-2160-TFC247W-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany 1.5 Test Modes Mode # Description Transmit General conditions: EUT powered by laboratory power supply. Radio conditions: Mode = standalone transmit Spreading = None Modulation = GFSK Data rate = 1 Mbps Bandwidth = 2 MHz Duty cycle = 100 % Power level = Maximum Receive General conditions: EUT powered by laboratory power supply. Radio conditions: Mode = standalone receive (scan mode) Spreading = None Modulation = GFSK AC-Powerline General conditions: EUT powered by commercial Laptop Radio conditions: Mode = Transmit Spreading = None Page 10 of 90 Test Report No.: G0M-1208-2160-TFC247W-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany 1.6 Test Equipment Used During Testing Occupied Bandwidth Description Manufacturer Model Identifier Cal. Date Cal. Due Spectrum Analyzer R&S FSP 30 EF00312 2011-12 2012-12 6dB Bandwidth Description Manufacturer Model Identifier Cal. Date Cal. Due Spectrum Analyzer R&S FSP 30 EF00312 2011-12 2012-12 Maximum peak conducted power Description Manufacturer Model Identifier Cal. Date Cal. Due Spectrum Analyzer R&S FSP 30 EF00312 2011-12 2012-12 Power spectral density Description Manufacturer Model Identifier…

Text truncated - open the document above for the full version.

Test Set-Up Photos page 1 Model No.: ENW89837AxKF FCC ID: T7VPAN10 IC: 216Q-PAN10 Test Report No.: G0M-1208-2160-TFC247B-V01 Eurofins Product Service GmbH Storkower Str. 38C, D-15526 Reichenwalde, Germany
