T7VPAN17Bluetooth Low Energy Module

CLASSIFICATION PRODUCT SPECIFICATION No. DS-172x-2400-102 REV. 1.2 SUBJECT CLASS 2 BLUETOOTH LOW ENERGY SINGLE MODE MODULE PAGE 1 of 29 CUSTOMER’S CODE PAN172x / PAN1721 PANASONIC’S CODE ENW89820AxKF / ENW89835AxKF DATE 17.07.2012 HIGH FREQUENCY PRODUCTS DIVISION Module Business PANASONIC ELECTRONIC DEVICES EUROPE GmbH APPROVED genehmigt CHECKED geprüft DESIGNED erstellt Specification for Production Panasonic Electronic Devices Europe GmbH Zeppelinstrasse 19 21337 Lüneburg Applicant / Manufacturer Hardware Germany Please refer to chapter 22 / 22.1 Information regarding Software Versions Applicant / Manufacturer Software Software Version Please refer to chapter 22 / 22.1 Information regarding Software Versions By purchase of any of products described in this document the customer accepts the document's validity and declares their agreement and understanding of its contents and recommendations. Panasonic reserves the right to make changes as required without notification. CLASSIFICATION PRODUCT SPECIFICATION No. DS-172x-2400-102 REV. 1.2 SUBJECT CLASS 2 BLUETOOTH LOW ENERGY SINGLE MODE MODULE PAGE 2 of 29 CUSTOMER’S CODE PAN172x / PAN1721 PANASONIC’S CODE ENW89820AxKF / ENW89835AxKF DATE 17.07.2012 PANASONIC ELECTRONIC DEVICES EUROPE GMBH www.pideu.pansonic.de TABLE OF CONTENTS 1. Scope of this Document.................................................................................................. 4 2. Difference PAN1720 / PAN1721..................................................................................... 4 3. Key Features................................................................................................................... 4 4. Bluetooth Low Energy ..................................................................................................... 5 5. Applications for the Module............................................................................................. 5 6. Description for the Module.............................................................................................. 5 7. Detailed Description........................................................................................................ 6 7.1. PAN172x Terminal Layout..................................................................................... 6 8. Bluetooth Features.......................................................................................................... 8 9. Block Diagram................................................................................................................. 8 10. Test Conditions............................................................................................................... 9 11. General Device Requirements and Operation................................................................ 9 11.1. Absolute Maximum Ratings................................................................................... 9 11.2. Recommended Operating Conditions.................................................................... 9 11.3. Current Consumption........................................................................................... 10 12. Bluetooth RF Performance............................................................................................ 11 12.1. Bluetooth Characteristics..................................................................................... 11 13. Soldering Temperature-Time Profile (for reflow soldering) ........................................... 12 13.1. For lead solder ..................................................................................................... 12 13.2. For leadfree solder............................................................................................... 12 14. Module Dimension........................................................................................................ 13 15. PAN172x FootPrint of the Module................................................................................. 14 16. Case Marking ................................................................................................................ 15 16.1. Example for Marking............................................................................................ 15 16.2. Marking Definition................................................................................................ 15 17. Mechanical Requirements............................................................................................. 16 18. Development of Applications......................................................................................... 16 19. Reliability Tests............................................................................................................. 16 20. Cautions........................................................................................................................ 16 20.1. Design Notes....................................................................................................... 16 20.2. Installation Notes................................................................................................. 17 20.3. Usage Conditions Notes...................................................................................... 17 20.4. Storage Notes...................................................................................................... 18 20.5. Safety Cautions................................................................................................... 18 20.6. Other cautions..................................................................................................... 18 21. Packaging..................................................................................................................... 20 21.1. Tape Dimension................................................................................................... 20 21.2. Packing in Tape...............................................................................…

Text truncated - open the document above for the full version.

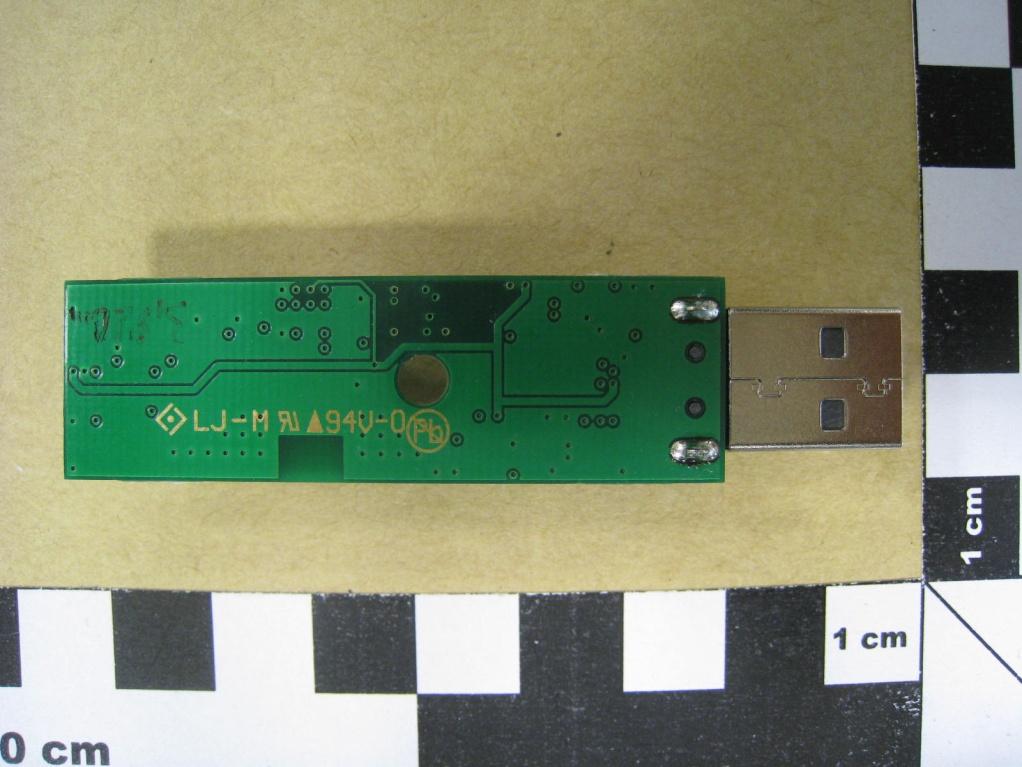

Test Report No.: G0M-1204-1920-TFC247W-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany 1.1 Photos – Equipment External EUT WITH EVALUATION BOARD TOP EUT WITH EVALUATION BOARD BOTTOM Page 5 of 95 Test Report No.: G0M-1204-1920-TFC247W-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany 1.2 Photos – Equipment internal EUT WITH SHIELDING EUT WITHOUT SHIELDING Page 6 of 95

15.60mm 8.70mm Original Module Size The above picture shows the full module with the case, the laser marking is made moreless on the hole case.

Test Report No.: G0M-1204-1920-TFC247W-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany 1.1 Photos – Equipment External EUT WITH EVALUATION BOARD TOP EUT WITH EVALUATION BOARD BOTTOM Page 5 of 95 Test Report No.: G0M-1204-1920-TFC247W-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany 1.2 Photos – Equipment internal EUT WITH SHIELDING EUT WITHOUT SHIELDING Page 6 of 95

Test Report No.: G0M-1204-1920-TFC093M-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 1 of 11 RF-EXPOSURE ASSESSMENT REPORT FCC 47 CFR Part 2.1093 Industry Canada RSS-102 RF-Exposure evaluation of portable equipment Report Reference No. .................... : G0M-1204-1920-TFC093M-V01 Testing Laboratory ........................ : Eurofins Product Service GmbH Address ............................................ : Storkower Str. 38c 15526 Reichenwalde Germany Accreditation .................................... : A2LA Accredited Testing Laboratory, Certificate No.: 1983.01 FCC Filed Test Laboratory, Reg.-No.: 96970 IC OATS Filing assigned code: 3470A Applicant’s name ........................... : Panasonic Industrial Devices Europe GmbH Address ............................................ : Zeppelinstr. 19 21337 Lüneburg GERMANY Test specification: Standard ........................................... : 47 CFR 1.1310 / 47 CFR 2.1091 / 47 CFR 2.1093 OET Bulletin 65:1997 KDB 447498:2009 RSS-102, Issue 4:2010 Safety Code 6:2009 Equipment under test (EUT): Product description Bluetooth Low Energy Module Model No. ENW898xxAxKF Hardware version 0x Firmware / Software version 0x FCC-ID: T7VPAN17 IC: 216Q-PAN17 Test result Passed Test Report No.: G0M-1204-1920-TFC093M-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 3 of 11 REPORT INDEX 1 EQUIPMENT (TEST ITEM) DESCRIPTION 4 1.1 Reference Documents 5 1.2 Radiation Sources 6 2 RESULT SUMMARY 7 3 RF-EXPOSURE CLASSIFICATIONS 8 4 ASSESSMENT 9 4.1 SAR Exemption Assessment –FCC KDB447498 / RSS-102 9 Test Report No.: G0M-1204-1920-TFC093M-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 4 of 11 1 Equipment (Test item) Description Description Bluetooth Low Energy Module Model ENW898xxAxKF Serial number None Hardware version 0x Software / Firmware version 0x FCC-ID T7VPAN17 IC 216Q-PAN17 Equipment type Radio module Test Report No.: G0M-1204-1920-TFC093M-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 5 of 11 1.1 Reference Documents Document type Document No. Issued by Date FCC 15.247 Radio Report G0M-1204-1920-TFC247W-V01 Eurofins Product Service GmbH 2012-06-21 Test Report No.: G0M-1204-1920-TFC093M-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 6 of 11 1.2 Radiation Sources Mode # Description Bluetooth 4.0 LE Frequency range [MHz] 2402 – 2480 Channels 40 Modulations GFSK Maximum conducted power [dBm] -0.5 Antenna gain [dBi] 0.9 Maximum radiated power [dBm e.i.r.p.] 0.4 Maximum transmission duty cycle [%] 100 Test Report No.: G0M-1204-1920-TFC093M-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 7 of 11 2 Result Summary FCC 47 CFR Part 2.1093, KDB447498, IC RSS-102 Product Specific Standard Section Requirement Result Remarks 47 CFR 2.1093 KDB447498 SAR evaluation exemption : Bluetooth 4.0 Low Energy PASS RSS-102 2.5.1 SAR evaluation exemption : Bluetooth 4.0 Low Energy PASS Remarks: Test Report No.: G0M-1204-1920-TFC093M-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 8 of 11 3 RF-Exposure Classifications Device Types Fixed A fixed device is defined as a device physically secured at one fixed location and cannot be easily re-located. Mobile A mobile device is defined as a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter's radiating structure(s) and the body of the user or nearby persons. (47 CFR 2.1091) Portable A portable device is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. (47 CFR 2.1093) Exposure Categories Occupational / Controlled Limits apply in situations in which persons are exposed as a consequence of their employment provided those persons are fully aware of the potential for exposure and can exercise control over their exposure. Limits for occupational/controlled exposure also apply in situations when an individual is transient through a location where occupational/controlled limits apply provided he or she is made aware of the potential for exposure. General population / uncontrolled Exposures apply in situations in which the general public may be exposed, or in which persons that are exposed as a consequence of their employment may not be fully aware of the potential for exposure or cannot exercise control over their exposure. Test Report No.: G0M-1204-1920-TFC093M-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 9 of 11 4 Assessment 4.1 SAR Exemption Assessment –FCC KDB447498 / RSS-102 MPE Assessment acc. to FCC KDB447498 / IC RSS-102 Verdict: PASS Assessment according to reference Reference Method KDB447498 & 2.1093 / RSS-102 & Safety Code 6 Device type portable Exposure category General population FCC/IC SAR Limits Region Occupational SAR values [W/kg] General public SAR values [W/kg] Whole-body SAR averaging mass = entire body 0.4 0.08 Partial-body SAR averaging mass = 1g 8.0 1.6 Hands, Wrists, Feet and Ankles SAR averaging mass = 10g 20 4 FCC SAR evaluation exemptions Excerpt from KDB 447498: Unlicensed intentional radiators and licensed devices can be approved as either a transmitter or a module for use in stand-alone portable exposure conditions that do not allow simultaneous transmission. Based on the SAR or output power level, the following three conditions may be applied; A device may be used in portable exposure conditions with no restrictions on host plat forms when either the source-based time-averaged output power is ≤ 60/f(GHz) mW or all measured 1-g SAR are < 0.4 W/kg. When SAR evaluation is required, the most conservative exposure condition…

Text truncated - open the document above for the full version.

Test Report No.: G0M-1204-1920-TFC247W-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany FCC TEST REPORT FCC 47 CFR Part 15C Industry Canada RSS-210 Digital transmission systems operating within the 2400 – 2483.5 MHz band Report Reference No. .................... : G0M-1204-1920-TFC247W-V01 Testing Laboratory ........................ : Eurofins Product Service GmbH Address ............................................ : Storkower Str. 38c 15526 Reichenwalde Germany Accreditation .................................... : A2LA Accredited Testing Laboratory, Certificate No.: 1983.01 FCC Filed Test Laboratory, Reg.-No.: 96970 IC OATS Filing assigned code: 3470A Applicant’s name ........................... : Panasonic Industrial Devices Europe GmbH Address ............................................ : Zeppelinstr. 19 21337 Lüneburg GERMANY Test specification: Standard ........................................... : 47 CFR Part 15C KDB Publication No. 558074 RSS-210, Issue 8, 2010-12 RSS-Gen, Issue 3, 2010-12 ANSI C63.4:2009 Equipment under test (EUT): Product description Bluetooth Low Energy Module Model No. ENW898xxAxKF Hardware version 0x Firmware / Software version 0x FCC-ID: T7VPAN17 IC: 216Q-PAN17 Test result Passed Seite 1 von 95 Seite 2 von 95 Test Report No.: G0M-1204-1920-TFC247W-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany REPORT INDEX 1 EQUIPMENT (TEST ITEM) DESCRIPTION: 4 1.1 Photos – Equipment External 5 1.2 Photos – Equipment internal 6 1.3 Photos – Test setup 7 1.4 Supporting Equipment Used During Testing 8 1.5 Test Modes 9 1.6 Test Equipment Used During Testing 10 1.7 Sample emission level calculation 11 2 RESULT SUMMARY 12 3 TEST CONDITIONS AND RESULTS 13 3.1 Test Conditions and Results – Occupied Bandwidth 13 3.2 Test Conditions and Results – 6 dB Bandwidth 17 3.3 Test Conditions and Results – Maximum peak conducted power 21 3.4 Test Conditions and Results – Power spectral density 23 3.5 Test Conditions and Results – AC power line conducted emissions 24 3.6 Test Conditions and Results – Band edge compliance 27 3.7 Test Conditions and Results – Conducted spurious emissions 30 3.8 Test Conditions and Results – Transmitter radiated emissions 34 3.9 Test Conditions and Results – Receiver radiated emissions 36 ANNEX A Transmitter radiated spurious emissions 38 ANNEX B Receiver radiated spurious emissions 85 Seite 3 von 95 Test Report No.: G0M-1204-1920-TFC247W-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany 1 Equipment (Test item) Description: Description Bluetooth Low Energy Module Model ENW898xxAxKF Serial number None Hardware version 0x Software / Firmware version 0x FCC-ID T7VPAN17 IC 216Q-PAN17 Equipment type Radio module Radio type Transceiver Radio technology Bluetooth 4.0 Low Energy Operating frequency range 2402 - 2480 MHz Assigned frequency band 2400 - 2483.5 MHz Main test frequencies F LOW 2402 MHz F MID 2442 MHz F HIGH 2480 MHz Spreading Frequency Hopping Modulations GFSK Number of channels 40 Channel spacing 2MHz Number of antennas 1 Antenna Type integrated Model LDA21K 7488930245 Manufacturer Murata Gain +0.9 dBi (manufacturer declaration) Manufacturer Panasonic Industrial Devices Europe GmbH Zeppelinstr. 19 21337 Lüneburg GERMANY Power supply V NOM 3.3VDC V MIN 2.0VDC V MAX 3.6VDC AC/DC-Adaptor none Seite 4 von 95 Test Report No.: G0M-1204-1920-TFC247W-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany 1.1 Photos – Equipment External EUT WITH EVALUATION BOARD TOP EUT WITH EVALUATION BOARD BOTTOM Seite 5 von 95 Test Report No.: G0M-1204-1920-TFC247W-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany 1.2 Photos – Equipment internal EUT WITH SHIELDING EUT WITHOUT SHIELDING Seite 6 von 95 Test Report No.: G0M-1204-1920-TFC247W-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany 1.3 Photos – Test setup TEST SETUP RADIATED MEASUREMENTS TEST SETUP CONDUCTED MEASUREMENTS Seite 7 von 95 Test Report No.: G0M-1204-1920-TFC247W-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany 1.4 Supporting Equipment Used During Testing Product Type* Device Manufacturer Model No. Comments AE Laptop Lenovo R61 *Note: Use the following abbreviations: AE : Auxiliary/Associated Equipment, or SIM : Simulator (Not Subjected to Test) CABL : Connecting cables Seite 8 von 95 Test Report No.: G0M-1204-1920-TFC247W-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany 1.5 Test Modes Mode # Description Transmit General conditions: EUT powered by laboratory power supply. Radio conditions: Mode = standalone transmit Spreading = Hopping stopped (single hopping channel) Modulation = GFSK Data rate = 1 Mbps Bandwidth = 2 MHz Duty cycle = 100 % Power level = Maximum Receive General conditions: EUT powered by laboratory power supply. Radio conditions: Mode = standalone receive (scan mode) Spreading = On Modulation = GFSK AC-Powerline General conditions: EUT powered by commercial Laptop Radio conditions: Mode = Transmit Spreading = On Seite 9 von 95 Test Report No.: G0M-1204-1920-TFC247W-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany 1.6 Test Equipment Used During Testing Occupied Bandwidth Description Manufacturer Model Identifier Cal. Date Cal. Due Spectrum Analyzer R&S FSP 30 EF00312 2011-12 2012-12 6dB Bandwidth Description Manufacturer Model Identifier Cal. Date Cal. Due Spectrum Analyzer R&S FSP 30 EF00312 2011-12 2012-12 Maximum peak conducted power Description Manufacturer Model Identifier Cal. Date Cal. Due Spectrum Analyzer R&S FSP 30 EF00312 2011-12 2012-12 Power spectral density Description Manufacturer Model Identifier Cal. Date Cal. Due Spectrum Analyzer R&S FSP 30 EF00312 2011-12 2012-12 Band edge compliance Description Manufacturer Model Identifier Cal. Date Cal. Due Spectrum Analyzer R&S FSP 30 EF0…

Text truncated - open the document above for the full version.

Test Report No.: G0M-1204-1920-TFC247W-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany 1.3 Photos – Test setup TEST SETUP RADIATED MEASUREMENTS TEST SETUP CONDUCTED MEASUREMENTS Page 7 of 95
