PANEL SW [CZ186] User manual Product name ： PANEL SW Model No. ： CZ186 How to use Immobilizer，CZ186 1. Immobilizer System This product is equipped with immobilizer system to protect against theft. 2. How to set the immobilizer The immobilizer system is consists of the PANEL SW, immobilizer key, and antenna. These are attached to the construction machine by the operator at the factory or in field. 3. How to use the product User owns the immobilizer key. When to start the engine of the construction machine, user insert the immobilizer key in the ignition SW. At this time, panel SW and the immobilizer key built-in chip authenticate the code via antenna. In case that the code inside the immobilizer key matches, engine starting and construction machine operation can be possible. In case that the code does not match, on the other hand, engine starting and construction machine operation can not be possible. 4. Technical Specification Parameter NOTE MIN NOM MAX UNIT Operating frequency - - 134.2 - kHz RF Power - - - 55 dBuV/m @10m PANEL SW [CZ186] [for FCC] FCC CAUTION Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines as this equipment has very low levels of RF energy. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

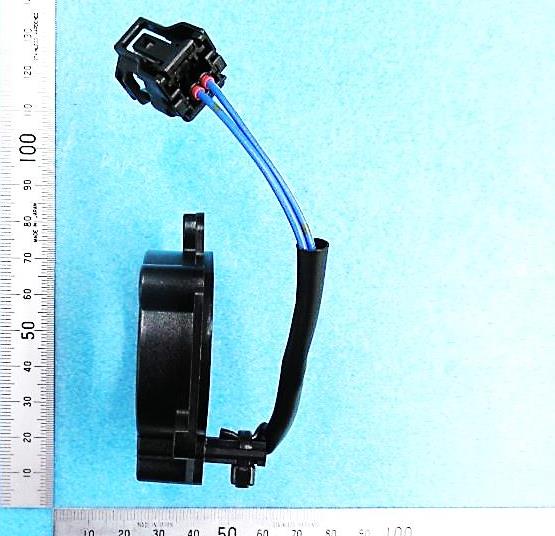

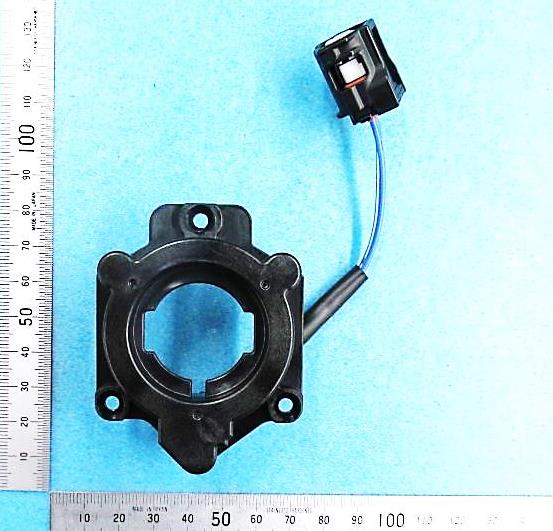

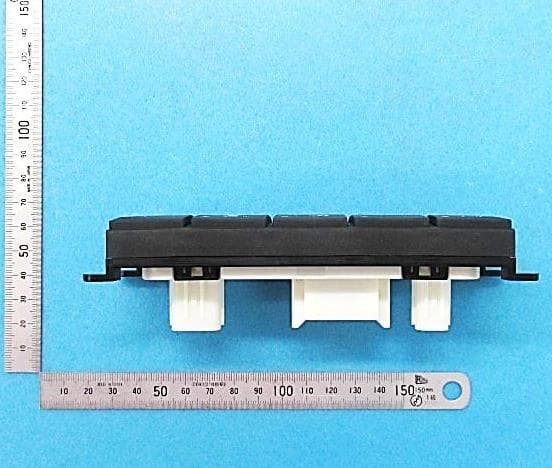

CZ186 Product Photos 左側 Left Side右側 Right Side 下側 Lower上側 Upper Side 正面 FRONT背面 BACK CZ186-083 Product Photos 正面 FRONT右側 Right Side

unit: mm

CZ186 Product Photos (Internal) アンテナ内部 Inside the antenna 正面 FRONT 背面 Back Side

UL Japan, Inc. Ise EMC Lab 4383-326 Asama-cho, Ise-shi, Mie 516-0021 Japan T:: +81.596.24.8999 / F:: +81.596.24.8124 / W:: japan.ul.com March 19, 2024 FCC ID: T8VCZ186 To whom it may concern, We, UL Japan, Inc, hereby declare that PANEL SW, model: CZ186 (FCC ID: T8VCZ186) of ASAHI DENSO CO., LTD. is exempt from RF exposure SAR evaluation as its output power meets the exclusion limits stated in KDB 447498D01(v06). KDB 447498D01(v06) has the following exclusion for portable devices: The SAR test exclusion thresholds for below 100 MHz at test separation distances ≤ 50 mm are determined by step c) 2): c) For frequencies below 100 MHz, the following may be considered for SAR test exclusion: 1) For test separation distances > 50 mm and < 200 mm, the power threshold at the corresponding test separation distance at 100 MHz in step b) is multiplied by [1 + log(100 / f(MHz))] 2) For test separation distances ≤ 50 mm, the power threshold determined by the equation in c) 1) for 50 mm and 100 MHz is multiplied by ½ Numeric exemption threshold: Pth step c) [mW]: 918.38 Radio specification and use-case for this deveice are below: f [MHz]:0.1342 d [mm]:0 Maximum average output power [mW]:114 f [MHz]: Operating frequency d [mm]: Minimum separation distance Maximum average output power [mW]: timed-average power This is less than Pth step c), so SAR test is exemption for this device. Thank you for your attention to this matter. Shinichi Miyazono Engineer

Test Report No. 15092638H-A Page 1 of 20 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81-596-24-8999 RADIO TEST REPORT Test Report No. 15092638H-A Customer ASAHI DENSO CO., LTD. Description of EUT PANEL SW Model Number of EUT CZ186 FCC ID T8VCZ186 Test Regulation FCC Part 15 Subpart C Test Result Complied Issue Date March 19, 2024 Remarks - Representative test engineer Approved by Junki Nagatomi Engineer Shinichi Miyazono Engineer CERTIFICATE 5107.02 The testing in which "Non-accreditation" is displayed is outside the accreditation scopes in UL Japan, Inc. There is no testing item of "Non-accreditation". Report Cover Page - Form-ULID-003532 (DCS:13-EM-F0429) Issue# 23.0 Test Report No. 15092638H-A Page 2 of 20 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81-596-24-8999 ANNOUNCEMENT REVISION HISTORY Original Test Report No. 15092638H-A Revision Test Report No. Date Page Revised Contents - (Original) 15092638H-A March 19, 2024 -  This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc.  The results in this report appl y only to the sample tested. (Laboratory was not involved in sampling.)  This sample tested is in compliance with the limits of the above re gulation.  The test results in this test report are traceable to the national or international standards.  This test report must not be used by the customer to claim product certification, approval, or endorsement b y the A2LA accreditation body.  This test report covers Radio technical requirements. It does not cover administrative issues such as Manual or non-Radio test related Requirements. (if applicable)  The all test items in this test report are conducted b y UL Japan, Inc. Ise EMC Lab.  The opinions and the interpretations to the result of the description in this report are outside scopes where UL Japan, Inc. has been accredited.  The information provided b y the customer for this report is identified in SECTION 1.  The laboratory is not responsible for information provided by the customer which can impact the validit y of the results.  For test report (s) referred in this report, the latest version (including any revisions) is always referred. Test Report No. 15092638H-A Page 3 of 20 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81-596-24-8999 Reference: Abbreviations (Including words undescribed in this report) A2LA The American Association for Laboratory Accreditation ICES Interference-Causing Equipment Standard AC Alternating Current IEC International Electrotechnical Commission AFH Adaptive Frequency Hopping IEEE Institute of Electrical and Electronics En gineers AM Amplitude Modulation IF Intermediate Frequency Amp, AMP Amplifier ILAC International Laboratory Accreditation Conference ANSI American National Standards Institute ISED Innovation, Science and Economic Develo pment Canada Ant, ANT Antenna ISO International Organization for Standardization AP Access Point JAB Japan Accreditation Board ASK Amplitude Shift Keying LAN Local Area Network Atten., ATT Attenuator LIMS Laboratory Information Management S ystem AV Average MCS Modulation and Coding Scheme BPSK Binary Phase-Shift Keying MRA Mutual Recognition Arrangement BR Bluetooth Basic Rate N/A Not Applicable BT Bluetooth NIST National Institute of Standards and Technolo gy BT LE Bluetooth Low Energy NS No signal detect. BW BandWidth NSA Normalized Site Attenuation Cal Int Calibration Interval NVLAP National Voluntary Laboratory Accreditation Pro gram CCK Complementary Code Keying OBW Occupied Band Width Ch., CH Channel OFDM Orthogonal Frequency Division Multiplexing CISPR Comite International Special des Perturbations Radioelectri ques P/M Power meter CW Continuous Wave PCB Printed Circuit Board DBPSK Differential BPSK PER Packet Error Rate DC Direct Current PHY Physical Layer D-factor Distance factor PK Peak DFS Dynamic Frequency Selection PN Pseudo random Noise DQPSK Differential QPSK PRBS Pseudo-Random Bit Sequence DSSS Direct Sequence Spread Spectrum PSD Power Spectral Density EDR Enhanced Data Rate QAM Quadrature Amplitude Modulation EIRP, e.i.r.p. Equivalent Isotropically Radiated Power QP Quasi-Peak EMC ElectroMagnetic Compatibility QPSK Quadri-Phase Shift Keying EMI ElectroMagnetic Interference RBW Resolution Band Width EN European Norm RDS Radio Data System ERP, e.r.p. Effective Radiated Power RE Radio Equipment EU European Union RF Radio Frequency EUT Equipment Under Test RMS Root Mean Square Fac. Factor RSS Radio Standards Specifications FCC Federal Communications Commission Rx Receiving FHSS Frequency Hopping Spread Spectrum SA, S/A Spectrum Analyzer FM Frequency Modulation SG Signal Generator Freq. Frequency SVSWR Site-Voltage Standing Wave Ratio FSK Frequency Shift Keying TR Test Receiver GFSK Gaussian Frequency-Shift Keying Tx Transmitting GNSS Global Navigation Satellite System VBW Video BandWidth GPS Global Positioning System Vert. Vertical Hori. Horizontal WLAN Wireless LAN Test Report No. 15092638H-A Page 4 of 20 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81-596-24-8999 CONTENTS PAGE SECTION 1: Customer Information ....................................................................................... 5 SECTION 2: Equipment Under Test (EUT) ........................................................................... 5 SECTION 3: Test specification, procedures & results ........................................................ 6 SECTION 4: Operation of EUT during testing ...................................................................... 9 SECTION 5: Radiated emission (Fundamental and Spurious Emission) ........................ 11 SECTION 6: -20 dB Bandwidth ............................................................................................ 13 SECTION 7: 99 % emission bandwidth ......................................................…

Text truncated - open the document above for the full version.

Test Report No. 15092638H-A Page 18 of 20 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81-596-24-8999 APPENDIX 3: Photographs of test setup Radiated Emission Photo 1 Photo 2 Test Report No. 15092638H-A Page 19 of 20 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81-596-24-8999 Worst Case Position Below 30 MHz: X-axis Above 30 MHz: Horizontal: X-axis / Vertical: Z-axis X-axis Y-axis Z-axis Test Report No. 15092638H-A Page 20 of 20 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81-596-24-8999 Worst case position With transponder key attached Without transponder key attached (Worst) End of Report
