T8VZKM013A903SMART KEY

User Manual Handsfree-System The document hereon is the property of Asahi Denso Co., Ltd. Page 1 of 17 ZKM013-820_0 User Manual Handsfree-System Models : ZKM013 ZKM013A ZKM013-903 ZKM013A-903 User Manual Handsfree-System The document hereon is the property of Asahi Denso Co., Ltd. Page 2 of 17 ZKM013-820_0  Revision history Rev. Date Points modified Changes description 00 20.Oct.2020 First Release 01 9.Nov.2020 Modify FCC ID (3.2.4) Replace NCC disclaimer (3.2.8) 02 17.Dec.2020 3.2.4 Change product name Steering lock ⇒ Ignition SW 3.2.5 Change product name Steering lock ⇒ Ignition SW Add Vietnam certification 1.Add and change sentence User Manual Handsfree-System The document hereon is the property of Asahi Denso Co., Ltd. Page 3 of 17 ZKM013-820_0 Index 1. Overview .......................................................................................................................................... 4 Motorcycle start (Turn on the ignition and start the engine) ................................................... 5 Smart key ............................................................................................................................ 5 Immobilizer key .................................................................................................................. 5 Turn off the ignition and stop the engine ................................................................................. 6 Parking (Lock of the steering) .................................................................................................. 6 Smart key ............................................................................................................................ 6 Immobilizer key .................................................................................................................. 6 Replacing the battery in the Smart Key .................................................................................... 7 2. Installation notes ............................................................................................................................ 11 Handsfree-System attachment................................................................................................ 11 Access to Smart key internal parts .......................................................................................... 11 Product modifications ............................................................................................................. 11 If the product fails ................................................................................................................... 11 3. Certification .................................................................................................................................... 12 Manufacturer .......................................................................................................................... 12 Approval of each country ........................................................................................................ 12 Australia certification ....................................................................................................... 12 China precautions for use ................................................................................................ 12 EU DoC ............................................................................................................................. 13 FCC(USA) certification ...................................................................................................... 15 ISED(Canada) certification ............................................................................................... 15 Korea certification ............................................................................................................ 16 Malaysia certification ....................................................................................................... 16 Taiwan certification .......................................................................................................... 16 Thailand certification ....................................................................................................... 16 Vietnam certification ..................................................................................................... 17 User Manual Handsfree-System The document hereon is the property of Asahi Denso Co., Ltd. Page 4 of 17 ZKM013-820_0 1. Overview This product is an steering lock with Handsfree-System designed to prevent theft. This product can be attached to the motorcycle. The system is composed of: - The Ignition SW (1) with its integral steering lock equipped control unit (4), which provides the following functions:  User recognizer, by means of a Smart key (2) or an Immobilizer Key (3).  Lock and Unlock of the steering, by moving the Lock bar (5).  Enable and disable of the ignition of the bike . - The Smart key (2) referred to as Active Transponder. It can also be used as an Immobilizer key. - The Immobilizer key (3) referred to as Passive Transponder. The Handsfree-System combines the LF: Low Frequency and the RF: Radio Frequency to recognize the right user of the motorcycle. The system is integrated in CAN bus for all data transfer with the other electronic units on the motorcycle. (3) (4) (1) (5) (2) (6) User Manual Handsfree-System The document hereon is the property of Asahi Denso Co., Ltd. Page 5 of 17 ZKM013-820_0 Motorcycle start (Turn on the ignition and start the engine) Smart key User recognition with the Smart key (2) is performed as described below: A. Press the knob on the Ignition SW (1). B. The Control unit (4) installed on the Ignition SW (1) requires the Smart key (2) for a radio frequency identification with an LF signal transmitted by the LF antenna incorporated in the Control unit (4). C. If the Smart key (2) is within a range of 1.0 m from the vehicle and the battery is adequately charged, replies …

Text truncated - open the document above for the full version.

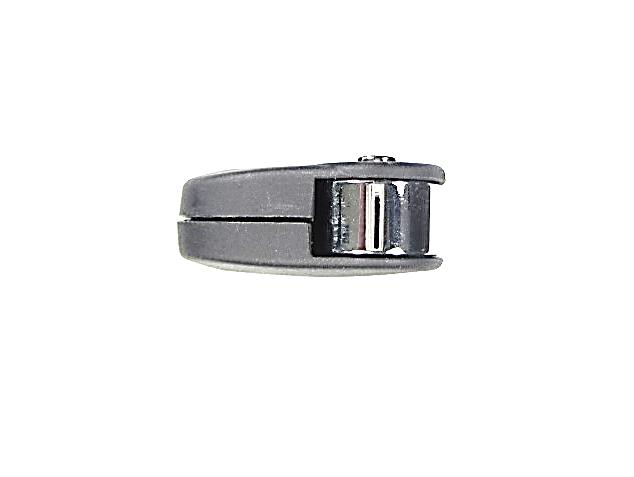

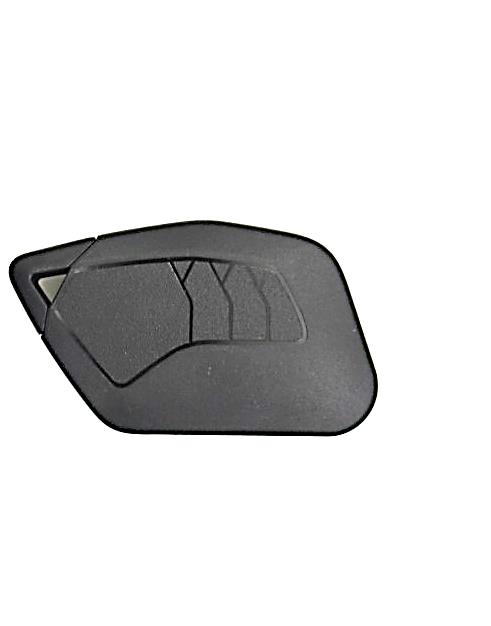

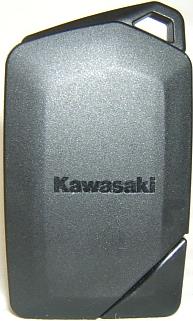

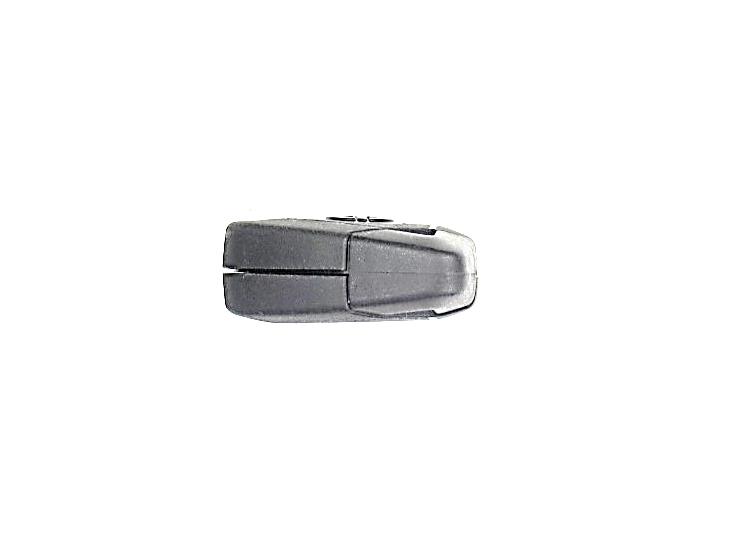

ZKM013A-903 Product Photos 下側 Lower 上側 Upper Side 左側 Left Side 右側 Right Side 正面 FRONT 背面 Back

ZKM013A-903 Product Photos 正面 FRONT 背面 Back

Test report No. : 13325695H-A-R1 Page : 19 of 22 Issued date : December 16, 2020 FCC ID : T8VZKM013A-903 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 APPENDIX 3: Photographs of test setup Radiated emission (Below 1 GHz) Photo 1 Photo 2 Test report No. : 13325695H-A-R1 Page : 20 of 22 Issued date : December 16, 2020 FCC ID : T8VZKM013A-903 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Radiated emission (Above 1 GHz) Photo 1 Photo 2 Test report No. : 13325695H-A-R1 Page : 21 of 22 Issued date : December 16, 2020 FCC ID : T8VZKM013A-903 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Worst case position (Horizontal: X-axis / Vertical: Y-axis) X-axis Y-axis Z-axis Test report No. : 13325695H-A-R1 Page : 22 of 22 Issued date : December 16, 2020 FCC ID : T8VZKM013A-903 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Worst case position Mechanical Key (Outside) Worst Mechanical Key (Inside) End of Report
