TA7-A100Airista Flow A1 Tag

Copyright © 2020 AiRISTA Flow, Inc. All rights reserved. a i r i s t a f l o w . c o m Revision 1.0 AiRISTA Flow A1 Tag USER GUIDE Copyright © 2020 AiRISTA Flow, Inc. All rights reserved. a i r i s t a f l o w . c o m 2 Contents General ............................................................................................. 3 Use Cases for the A1 Tag ...................................................................................................... 3 Physical Features .................................................................................................................... 4 Dimensions: ................................................................................................................ 4 Weight: ....................................................................................................................... 4 Specifications ......................................................................................................................... 4 Environment: .............................................................................................................. 4 Typical Operating Range: ....................................................................................... 4 Electrical Interface: .................................................................................................. 4 Certifications: ............................................................................................................ 4 Supported Protocols: ................................................................................................ 4 A1 Tag Activation and De-Activation ................................................. 6 Contact ........................................................................................... 11 Copyright © 2020 AiRISTA Flow, Inc. All rights reserved. a i r i s t a f l o w . c o m 3 General This user guide relates to the economical AiRISTA Flow A1 small factor BLE only Tag. Use Cases for the A1 Tag The AiRISTA Flow A1 tag is a multipurpose BLE 4.2+ tag. The tag can be worn in a wristwatch type format or on a key tag/ pendant or it can be attached to an asset that need to be tracked. The tag has a single tactile push button on the center top of the tag. The tag has optional Temperature and humidity sensors or a three axis Accelerometer. The tag is over the air programmable and upgradable. The AiRISTA Flow A1 tag uses the BLE network infrastructure to send data back to the controlling server. In addition to beaconing the tag also scans for beacons so it could be used in cases where people or assets can be associated to each other. Typical applications for this are social distancing and asset monitoring so that assets/objects can stay within parameters of each other. When no existing infrastructure is available AiRISTA Flow provides low cost Wi-Fi/BLE gateways to transfer tag data to the controlling server. Copyright © 2020 AiRISTA Flow, Inc. All rights reserved. a i r i s t a f l o w . c o m 4 Physical Features Dimensions: 7 mm x 40 mm (0.25 x 1.5 in) Thickness and Dial size. Weight: 23 g (0.8 oz). Specifications Environment: Operating Temperature: -40 to 70° C (-40 to 158° F). Storage Temperature: 10 to 25° C (50 to 70° F). Typical Operating Range: Line of Site: 45 meters (150 feet) at 5 dBm. Obstructions: 22 meters (75 feet) at 5 dBm. Electrical Interface: Long lasting replaceable 3V CR2032 coin battery (Up to 5 years at 1.5 second update interval). Certifications: FCC: Part 15. (See FCC Statement) CE: Europe. Supported Protocols: Cisco Support: LTX protocol support. iBeacon. Eddystone. Copyright © 2020 AiRISTA Flow, Inc. All rights reserved. a i r i s t a f l o w . c o m 5 Pendant or Wristwatch strap Splash Proof enclosure 3V CR2032 coin battery Tactile Push Button Multi-Color LED MAC address Optional Temperature and humidity sensor And/or 3 axis Accelerometer. Copyright © 2020 AiRISTA Flow, Inc. All rights reserved. a i r i s t a f l o w . c o m 6 A1 Tag Activation and De-Activation Press the button on the tag and the tag will activate. The tag will automatically de-activate after 15 minutes if it is not in motion. (Not moved) Press and hold the button for 5 seconds to force the tag to reset. This action will stop the tag process and the button needs to be pushed again to activate the tag. Copyright © 2020 AiRISTA Flow, Inc. All rights reserved. a i r i s t a f l o w . c o m 7 Battery Replacement The A1 tag can be opened by prying the front and back of the clam shell enclosure away from each other. Do not insert any device in the square slot as that is where the sensitive humidity sensor is located. Once you have the 2 parts of the enclosure separated you will see the battery located in a slide holder on the back of the PCB. Slide the battery (CR2032) out of the battery holder and replace with a fresh battery in the same polarity as the one removed. (Negative side towards the PCB.) Copyright © 2020 AiRISTA Flow, Inc. All rights reserved. a i r i s t a f l o w . c o m 8 When placing the A1 Tag PCB back into the enclosure make sure you line up the 2 alignment pins inside the mold with the holes in the PCB. After the battery was replaced close the A1 Tag by lining up the enclosure clips and then pressing the 2 parts of the enclosure together. Copyright © 2020 AiRISTA Flow, Inc. All rights reserved. a i r i s t a f l o w . c o m 9 A1 Tag Programming with nRF Connect The tag should preferably be programmed by the controller server as it has over the air capability (OTA). The tag can also be re-configured from the standard default settings with the nRF Connect application that can be run from any device that has Bluetooth technology and that has the application to support it. It is recommended that you contact your AiRISTA Flow representative for more information on this process. These are the default settings for the A1 tag: RSSI Thresholdvalue in hex= 41 ui 8 - Contact distance RSSI Threshold offset value in hex = 7 u…

Text truncated - open the document above for the full version.

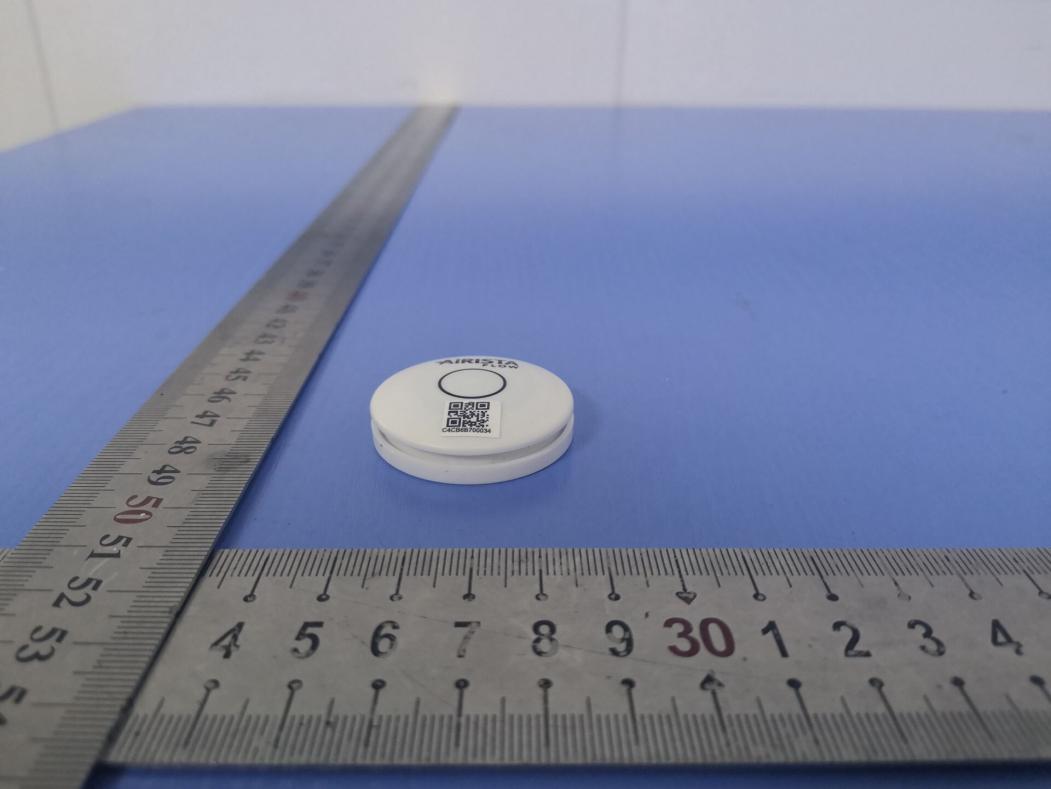

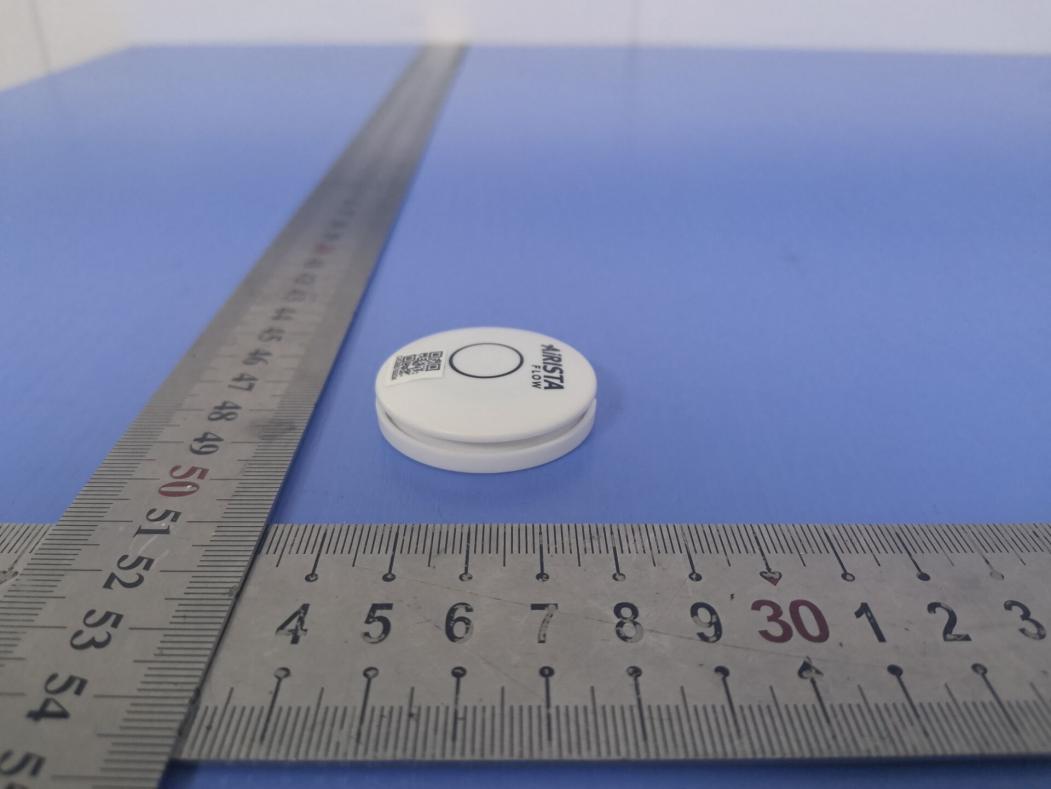

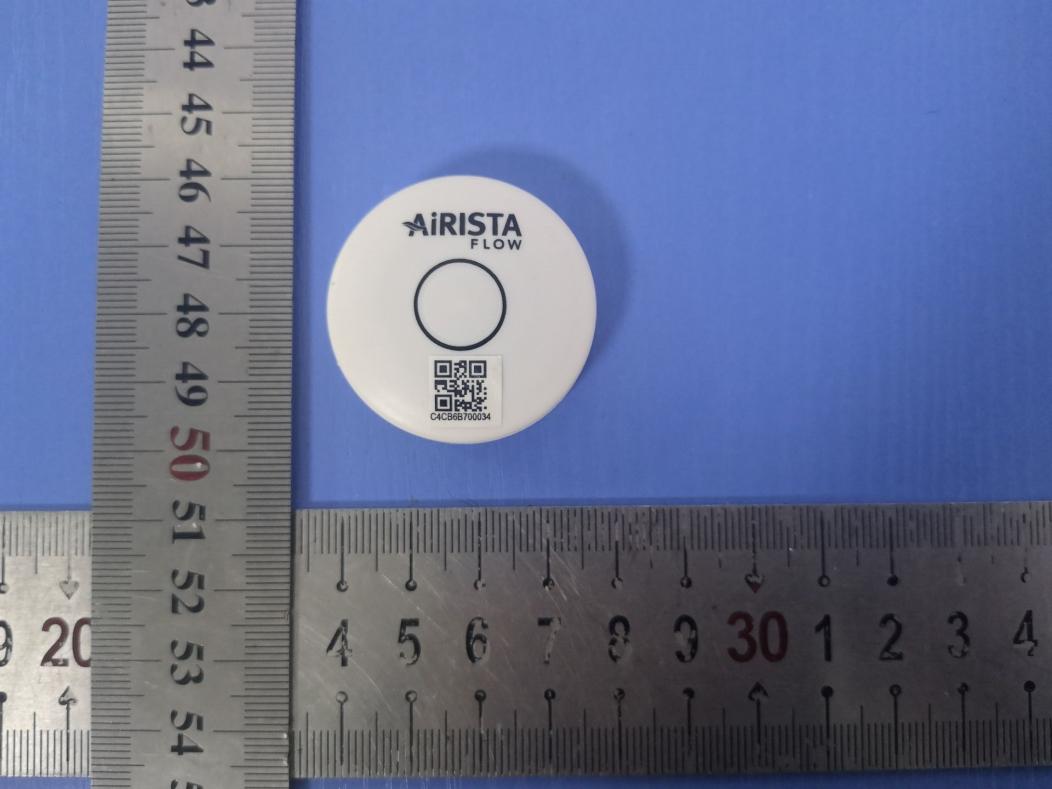

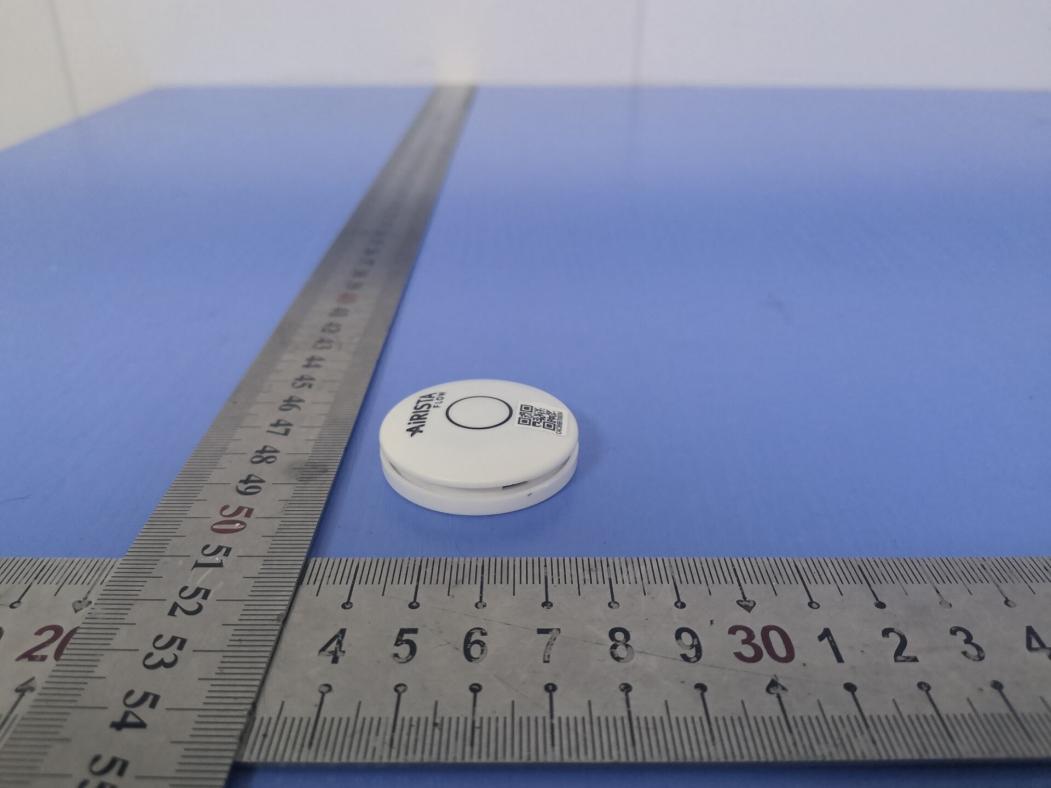

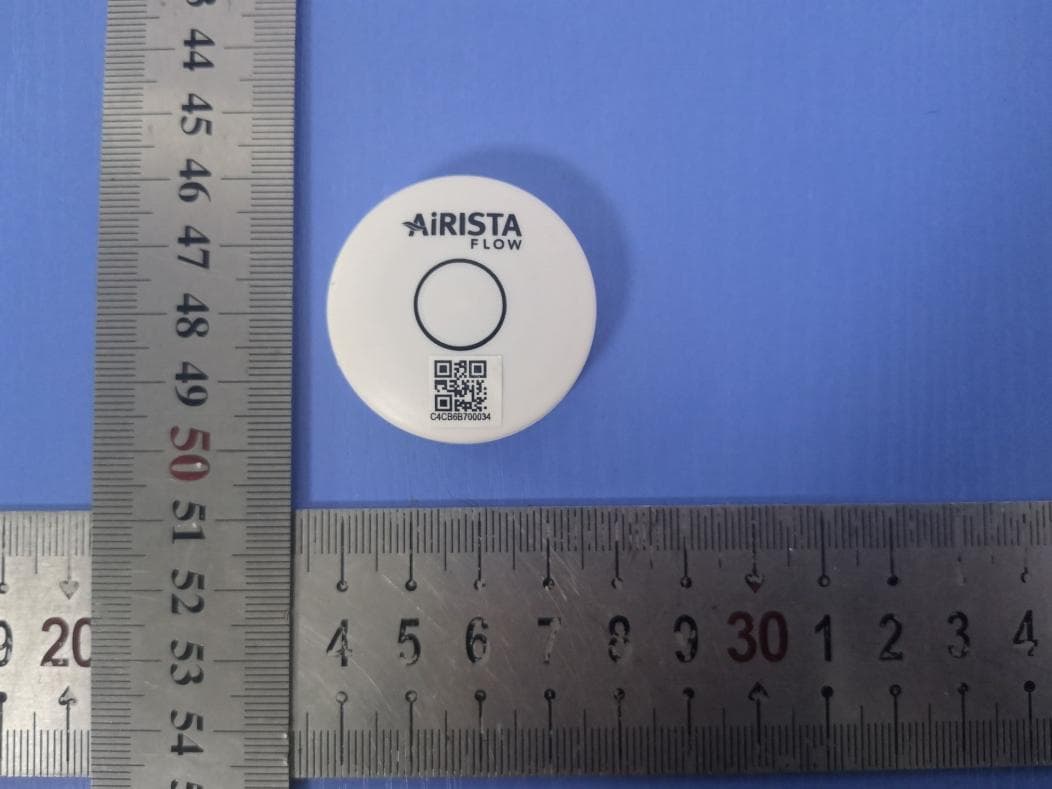

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: TA7-A100 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 3 External Photos Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: TA7-A100 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 3 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: TA7-A100 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 3 Fig.5 Fig.6

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: TA7-A100 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 LABEL AND LOCATION Size: L1.0cm*W1.0cm Label Location Airista Flow A1 Tag Model No.: V100 FCC ID: TA7-A100

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: TA7-A100 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 3 Internal Photos Fig.1 Fig.2 BT Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: TA7-A100 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 3 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: TA7-A100 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 3 Fig.5 Fig.6

version01 Airista Flow, Inc Declaration concerning Antenna Specification It is hereby declared that the product Model No.: V100 FCC ID: TA7-A100 fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for internal / external antenna type(s) described below: Model No. of antenna: K5_CC2642 Type of antenna: PCB Antenna Gain of the antenna: 0 dBi Frequency range: 2400-2480 MHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: Airista Flow, Inc. Address: 913 Ridgebrook Road, Suite 110 City: Sparks ZIP / Postal code: MD 21152 Country: United States Place: United States Date: 2020/07/14 Signature:

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: TA7-A100 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 3 FCC RF Exposure Evaluation 1. Product Information FCC ID : TA7-A100 Product name : Airista Flow A1 Tag Test Model : V100 Power supply : DC 3V by battery(210mA) Bluetooth : 2402-2480MHz Channel Number : 40 channels for Bluetooth V5.0(DTS) Channel Spacing : 2MHz for Bluetooth V5.0(DTS) Modulation Type : GFSK for Bluetooth V5.0(DTS) Bluetooth Version : V5.0 Antenna Type : PCB Antenna Antenna Gain : 0dBi (maximum) Hardware version : V1.0 Software version : V1.0.0 Exposure category : General population/uncontrolled environment EUT Type : Production Unit Device Type : Portable Device 2. Evaluation method and Limit According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.“ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to f) in section 4.1 is applied to determine SAR test exclusion. SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: TA7-A100 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 3 When one of the following test exclusion conditions is satisfied for all combinations of simultaneous transmission configurations, further equipment approval is not required to incorporate transmitter modules in host devices that operate in the mixed mobile and portable host platform exposure conditions. The grantee is responsible for documenting this according to Class I permissive change requirements. Antennas that qualify for standalone SAR test exclusion must apply the estimated standalone SAR to determine simultaneous transmission test exclusion. a) The [∑ of (the highest measured or estimated SAR for each standalone antenna configuration, adjusted for maximum tune-up tolerance) / 1.6 W/kg] + [∑ of MPE ratios] is ≤ 1.0. b)The SAR to peak location separation ratios of all simultaneously transmitting antenna pairs operating in portable device exposure conditions are all ≤ 0.04, and the [∑ of MPE ratios] is ≤ 1.0. 3. Refer Evaluation Method ANSI C95.1–2019: IEEE Standard for Safety Levels with Respect to Human Exposure to Electric, Magnetic, and Electromagnetic Fields, 0 Hz to 300 GHz FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices 4. Conducted Power Results <BT LE> Mode Channel Frequency (MHz) Peak Conducted Output Power (dBm) GFSK 0 2402 0.884 19 2440 1.173 39 2480 0.973 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: TA7-A100 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 3 5. Manufacturing Tolerance <BT LE> GFSK (Peak) Channel Channel 0 Channel 19 Channel 39 Target (dBm) 0.0 1.0 0.0 Tolerance ±(dB) 1.0 1.0 1.0 6. Evaluation Results 6.1 Standalone Evaluation Band/Mode f (GHz) Antenna Distance (mm) RF output power SAR Test Exclusion Threshold SAR Test Exclusion dBm mW BT LE GFSK 2.440 5 2.0 1.58 0.50 < 3.0 Yes Remark: 1. Output power including tune up tolerance; 2…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: TA7-A100 Report No.: LCS200616114AEA Page 1 of 14 Appendix A RF Test Data for BT V5.0(BT LE) (Conducted Measurement) Product Name: Airista Flow A1 Tag Trade Mark: Airista Flow Test Model: V100 Environmental Conditions Temperature: 23.5  C Relative Humidity: 54.1% ATM Pressure: 100.0 kPa Test Engineer: Li Huan Supervised by: Tom Liu A.1 Duty Cycle Test Mode Test Channel Ant Duty Cycle[%] Verdict BT LE 2440 Ant1 100 PASS #im grbble1hchnnav SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: TA7-A100 Report No.: LCS200616114AEA Page 2 of 14 A.2 Maximum Conducted Peak Output Power Mode Channel Conduct Peak Power[dBm] Limit [dBm] Verdict BT LE LCH 0.884 30 PASS BT LE MCH 1.173 30 PASS BT LE HCH 0.973 30 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: TA7-A100 Report No.: LCS200616114AEA Page 3 of 14 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: TA7-A100 Report No.: LCS200616114AEA Page 4 of 14 A.3 Maximum Power Spectral Density Mode Channel PSD [dBm/3KHz] Limit [dBm/3KHz] Verdict BT LE LCH -14.032 8 PASS BT LE MCH -13.622 8 PASS BT LE HCH -14.131 8 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: TA7-A100 Report No.: LCS200616114AEA Page 5 of 14 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: TA7-A100 Report No.: LCS200616114AEA Page 6 of 14 A.4 6dB Bandwidth Mode Channel 6dB Bandwidth [MHz] Limit [MHz] Verdict BT LE LCH 0.6855 ≥0.5 PASS BT LE MCH 0.6997 ≥0.5 PASS BT LE HCH 0.6817 ≥0.5 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: TA7-A100 Report No.: LCS200616114AEA Page 7 of 14 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: TA7-A100 Report No.: LCS200616114AEA Page 8 of 14 A.5 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict BT LE LCH 0.317 -34.945 -19.683 PASS BT LE MCH 0.611 -36.548 -19.389 PASS BT LE HCH 0.393 -37.013 -19.607 PASS BT LE_LCH_Graphs Pref/BT LE/LCH Puw/BT LE/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: TA7-A100 Report No.: LCS200616114AEA Page 9 of 14 BT LE_MCH_Graphs Pref/BT LE/MCH Puw/BT LE/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: TA7-A100 Report No.: LCS200616114AEA Page 10 of 14 BT LE_HCH_Graphs Pref/BT LE/HCH Puw/BT LE/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: TA7-A100 Report No.: LCS200616114AEA Page 11 of 14 A.6 Band-edge for RF Conducted Emissions Mode Channel Carrier Power[dBm] Max.Spurious Level [dBm] Limit [dBm] Verdict BT LE LCH 0.338 -49.107 -19.66 PASS BT LE HCH 0.476 -48.546 -19.52 PASS Test Graphs LCH HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: TA7-A100 Report No.: LCS200616114AEA Page 12 of 14 A.7 Restrict-band band-edge measurements Test Mode Test Chann el Ant Freq. Power [dBm] Gain Ground Factor E [dBuV/m] Detector Limit [dBuV/ m] Verdi ct BT LE 2402 Ant1 2310.0 -41.63 2.0 0 55.63 PEAK 74 PASS Ant1 2310.0 -53.18 2.0 0 44.08 AV 54 PASS Ant1 2390.0 -43.71 2.0 0 53.55 PEAK 74 PASS Ant1 2390.0 -52.84 2.0 0 44.42 AV 54 PASS 2480 Ant1 2483.5 -42.06 2.0 0 55.2 PEAK 74 PASS Ant1 2483.5 -52.43 2.0 0 44.83 AV 54 PASS Ant1 2500.0 -41.66 2.0 0 55.6 PEAK 74 PASS Ant1 2500.0 -52.20 2.0 0 45.06 AV 54 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: TA7-A100 Report No.: LCS200616114AEA Page 13 of 14 Restrict-band band-edge measurements_BT LE_2402_Ant1_PEAK Restrict-band band-edge measurements_BT LE_2402_Ant1_AV SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: TA7-A100 Report No.: LCS200616114AEA Page 14 of 14 Restrict-band band-edge measurements_BT LE_2480_Ant1_PEAK Restrict-band band-edge measurements_BT LE_2480_Ant1_AV

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: TA7-A100 Report No.: LCS200616114AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 30 FCC TEST REPORT For Airista Flow, Inc. Airista Flow A1 Tag Test Model: V100 Prepared for : Airista Flow, Inc. Address : 913 Ridgebrook Road, Suite 110, Sparks, MD 21152, United States Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : June 18, 2020 Number of tested samples : 2 Sample number : 200616114A-1, 200616114A -2 Serial number : Prototype Date of Test : June 18, 2020 ~ June 22, 2020 Date of Report : June 24, 2020 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: TA7-A100 Report No.: LCS200616114AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 30 FCC TEST REPORT FCC CFR 47 PART 15 C (15.247) Report Reference No. ................. : LCS200616114AEA Date of Issue ................................... : June 24, 2020 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Testing Location/ Procedure ........... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name .......................... : Airista Flow, Inc. Address ........................................... : 913 Ridgebrook Road, Suite 110, Sparks, MD 21152, United States Test Specification Standard.......................................... : FCC CFR 47 PART 15 C (15.247) Test Report Form No. ................... : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. ........................... : Airista Flow A1 Tag Trade Mark .......................................................................................................................................... : Airista Flow Model/ Type reference ........................................................................................................................ : V100 Ratings ................................................................................................................................................ : DC 3V by battery(210mA) Result ........................................... : Positive Compiled by: Supervised by: Approved by: Linda He / Administrators Jin Wang / Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: TA7-A100 Report No.: LCS200616114AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 30 FCC -- TEST REPORT Type / Model........................... : V100 EUT......................................... : Airista Flow A1 Tag Applicant............................... : Airista Flow, Inc. Address.................................. : 913 Ridgebrook Road, Suite 110, Sparks, MD 21152, United States Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Airista Flow, Inc. Address................................... : 913 Ridgebrook Road, Suite 110, Sparks, MD 21152, United States Telephone............................... : / Fax.......................................... : / Factory................................... : Airista Flow, Inc. Address................................... : 913 Ridgebrook Road, Suite 110, Sparks, MD 21152, United States Telephone............................... : / Fax.......................................... : / Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS200616114AEA June 24, 2020 Date of issue SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: TA7-A100 Report No.: LCS200616114AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 30 Revision History Revision Issue Date Revisions Revised By 000 June 24, 2020 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: TA7-A100 Report No.: LCS200616114AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 30 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 6 1.1. DESCRIPTION OF DEVICE (EUT) ........................................................................................................................ 6 1.2. HOST SYSTEM CONFIGURATION LIST AND DETAILS .......................................................................................... 6 1.3. EXTERNAL I/O CABLE .......................................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: TA7-A100 _______________________________________________________________________________________________ 1. TEST SETUP PHOTOGRAPHS 1.1. Photo of Radiated Emissions Measurement Fig. 1 Fig. 2
