TA7-G3Wi-Fi/BLE Gateway

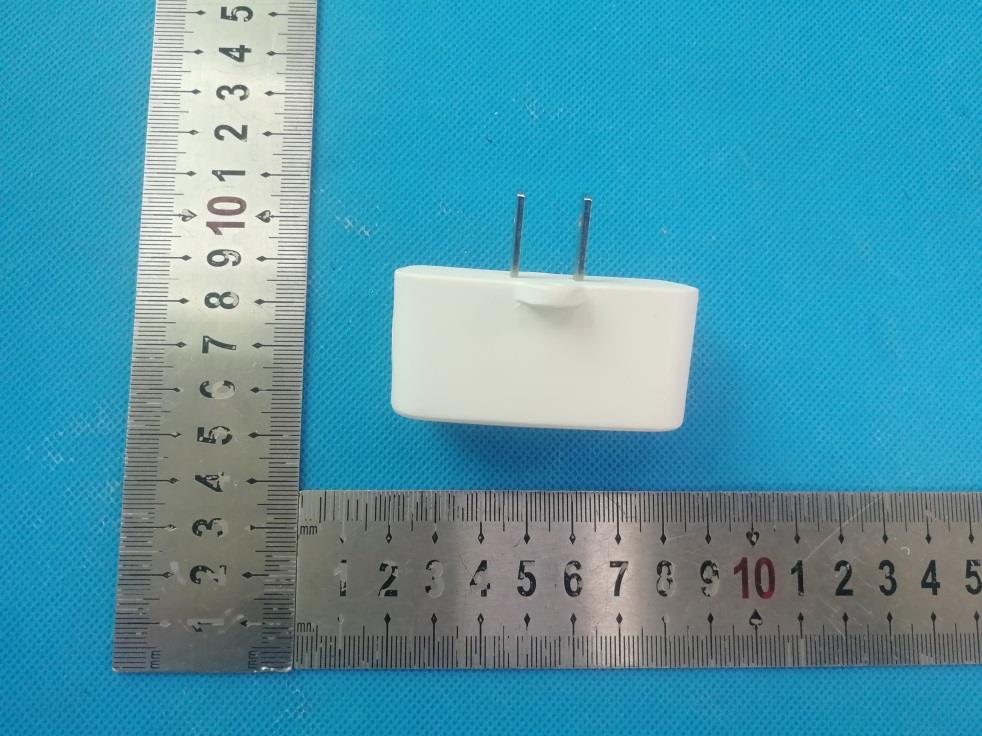

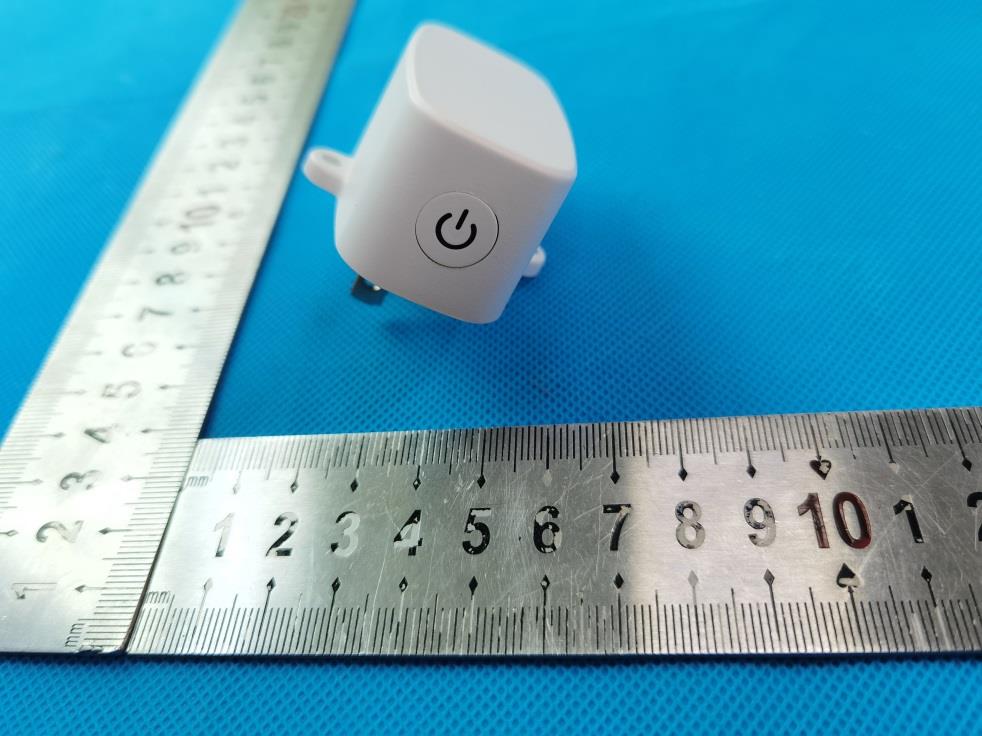

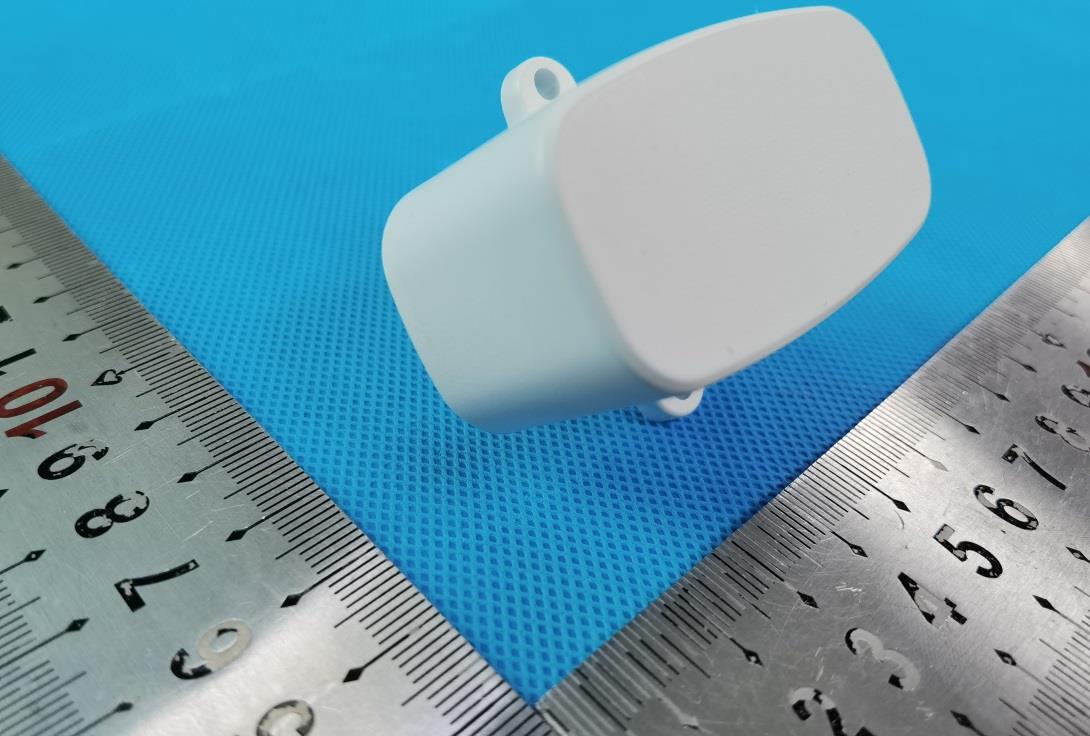

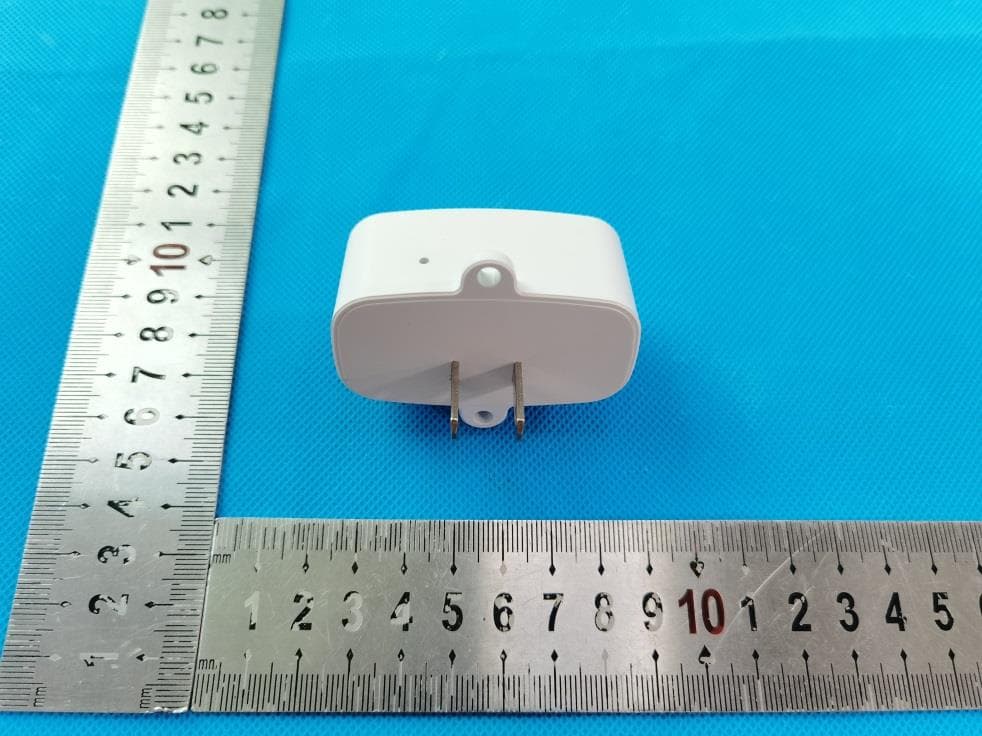

G3 Wi-Fi / BLE Wi-Fi / BLE Gateway Copyright © 2018 AiRISTA Flow, Inc. All rights reserved. a i r i s t a f l o w . c o m The G3 gateway is a small AC powered device suitable for North American power outlets and many electrical outlet types for other countries using a plug adapter. It provides a low-cost method to communicate BLE information over Wi-Fi networks. BLE tags are convenient for their long battery life and low cost. But when a Wi-Fi network is used to exchange tag information, BLE-only tags require a dual BLE / Wi-Fi gateway to facilitate the communication. Small, cost effective device allows BLE tags to communicate over Wi-Fi networks The AiRISTA Flow G3 gateway uses an integrated eyelet to screw to the wall plate to deter theft. And the tactile button allows for user defined actions when necessary. The G3 gateway is small and deploys quickly. It can be used at choke points like doorways as BLE tags move past. And they can be used in hotel rooms or along production lines to create an umbrella of communication coverage. Companies want to maximize the investment in their Wi- Fi deployments. But until the access points support an integral BLE radio, the G3 will be the gateway between BLE networks and Wi-Fi networks. Wi-Fi / BLE Gateway Provides Wi-Fi Network Access for BLE Tags •BLE 5.0 compliant •Over the Air programmability •Omni-directional antenna •On/Off switch •Theft deterrent eyelet securely attaches to electrical face plate •Temperature and Humidity Sensor Benefits Features •Leverage the investment in Wi-Fi networks when deploying BLE tags •Low cost •Fast to deploy •Support for popular BLE protocols •Ideal for conference rooms, break areas, choke points, etc. •Can be configured and monitored remotely •Provides two-way communication with Airista Flow BLE Tags The AiRISTA Flow G3 gateway provides Wi-Fi network access for BLE tags. The low cost and long battery life of BLE tags make them desirable, but to exchange data over Wi-Fi networks they need a gateway device between BLE networks and Wi-Fi networks. This facilitates use cases like choke point detection, telemetry exchange and proximity detection for social distancing. G3 has a built in temperature and humidity sensor. Technical Specifications AiRISTA Flow, Americas 913 Ridgebrook Rd. | Suite 110 Sparks, MD | 21152 | USA Tel: 1-844-816-7127 [email protected] AiRISTA Flow, APAC Level 9 Wyndham Building 1 Corporate Court Gold Coast |QLD | Australia Tel:+61- 07 3053 8375 AiRISTA Flow, EMEA Vaisalantie 4 | B-rakennus | 02130 Espoo | Finland Tel: +358-10-326-7600 [email protected] copyright © 2019 AiRISTA Flow, Inc. All rights reserved. a i r i s t a f l o w . c o m reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna.—Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. RF exposure compliance statement: This device has been evaluated to meet the general RF exposure requirement Please ensure that the product is normally connected to the wifi network during use, and that the contact voltage is good during use, and there are no obstructions within 20cm to avoid poor zaoc signal strength causing the connection to be interrupted. ISED Statement: This device complies with Part 15 of FCC Rules [ and contains license-exempt transmitter(s) that comply with innovation， Science and Economic Development Canada’s licence-exempt RSS Standar(s)]. Operation is subject to the following two conditions: (1) This device may not cause interference; and(2) This device must accept any interference received, including interference that may cause undesired operation The digital apparatus complies with Canadian CAN ICES 3 (B)/ NMB 3(B). French: L’émetteur/récepteurexempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et DéveloppementéconomiqueCanada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. l'appareil numérique du ciem conforme canadien peut 3 (b) / nmb 3 (b). This device meets the exemption from the routine evaluation limits in section 2.5 of RSS 102 and compliance with RSS 102 RF exposure, users can obtain Canadian information on RF exposure and compliance. cet appareil est conforme à l'exemption des limites d'évaluation courante dans la section 2.5 du cnr - 102 et conformité avec rss 102 de l'exposition aux rf, les utilisateurs peuvent obtenir des données canadiennes sur l'exposition aux champs rf et la conformité. This equipment complies with Canada radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Cet équipement est conforme Canada limites d'exposition aux radiations dans un environnement non contr?lé. Cet équipement doit être installé et utilisé à une distance minimale de 20 cm entre le radiateur et votre corps. Wi-Fi Radio Supported Wi-Fi Networks: 802.11 b/g/n Layer 2 Network Support: CCX, Blink Security: WEP, WPA2-PSK Suppor…

Text truncated - open the document above for the full version.

AiRISTA Flow, Inc. Agent Authorization Company: AiRISTA Flow, Inc. Address: 913 Ridgebrook Rd., Suite 110, Sparks, MD, 21152, USA Product Name: Wi-Fi/BLE Gateway Model Number(s): G3 We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Date: Feb. 24, 2021Signature: Name: Sy Sajjad Title:Chief Executive Officer Company: AiRISTA Flow, Inc.

AiRISTA Flow, Inc. Date: Feb. 24, 2021 Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Subject; Request for Confidentiality FCC ID: TA7-G3 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Sy Sajjad Title: Chief Executive Officer

Label Size：50*22mm IC:26357-G3 IC:26357-G3

BLE ANTENNA WIFI ANTENNA

RF Exposure Evaluation Test report On Behalf of AiRISTA Flow, Inc. For Wi-Fi/BLE Gateway Model No. : G3 FCC ID: TA7-G3 Prepared for : AiRISTA Flow, Inc. 913 Ridgebrook Rd., Suite 110, Sparks, MD, 21152, USA Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1F, B2 Building, Junfeng Zhongcheng Zhizao Innovation Park, Fuhai Street, Bao'an District, Shenzhen City, China Date of Test: Jun. 20, 2020 ~ Feb. 22, 2021 Date of Report: Feb. 22, 2021 1 General Description of EUT Equipment Wi-Fi/BLE Gateway Model Name G3 Serial No. N/A Trade Mark: FCC ID TA7-G3 Hardware Version: V1.2 Software Version: V2.58 BLE Operation frequency: 2402MHz ~ 2480MHz Channel separation: 2MHz Data rate 1Mbit/s Channel number: 40 Modulation Technology: GFSK Antenna Type: Chip Antenna Antenna Gain: 0dBi 2.4GWIFI Operation frequency 802.11b/g/n 20: 2412~2462 MHz Number of Channels 802.11b/g/n20: 11CH Modulation Type CCK/DSSS/OFDM Antenna type: Chip Antenna Antenna gain: 0dBi 2 RF Exposure Compliance Requirement 2.1 Standard Requirement According to FCC Part1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in part1.1307(b) F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4* Pi * R 2) Where Pd = power density in mW/cm2 Pout = output power to antenna in mW G =gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 3 EUT RF Exposure Antenna Gain: 0Bi Antenna Gain: The maximum Gain measured in fully anechoic chamber is in linear scale. Output Power Into Antenna & RF Exposure Evaluation Distance: Measurement Data For BLE: BLE-1Mbit/s Channel Maximum Peak Conducted Output Power (dBm) Tune up tolerance (dBm) Maximum tune-up Power Calculated value Exclusion threshold (dBm) (mW) Lowest (2402MHz) 1.844 1±1 2 1.585 0.491 3.0 Middle (2440MHz) 1.526 1±1 2 1.585 0.495 Highest (2480MHz) 1.241 1±1 2 1.585 0.499 Conclusion: the calculated value ≤3.0, SAR is exempted. Remark: The Max Conducted Peak Output Power data refer to report Report No.: HK2007211844-2E For 2.4GWIFI 802.11b mode Test channel Peak Output Power (dBm) Tune up tolerance (dBm) Maximum tune-up Power (dBm) (mW) Lowest(2412MHz) 16.802 16±1 17 50.119 Middle(2437MHz) 15.736 15±1 16 39.811 Highest(2462MHz) 13.558 13±1 14 25.119 802.11g mode Test channel Peak Output Power (dBm) Tune up tolerance (dBm) Maximum tune-up Power (dBm) (mW) Lowest(2412MHz) 15.266 16±1 17 50.119 Middle(2437MHz) 15.566 15±1 16 39.811 Highest(2462MHz) 12.235 13±1 14 25.119 802.11n(HT20)mode Test channel Peak Output Power (dBm) Tune up tolerance (dBm) Maximum tune-up Power (dBm) (mW) Lowest(2412MHz) 15.554 16±1 17 50.119 Middle(2437MHz) 15.019 15±1 16 39.811 Highest(2462MHz) 12.126 13±1 14 25.119 Worst case: 802.11g mode Lowest (2462MHz) Using the maximum value of the test report Maximum tune-up Power (mW) Antenna Gain (dBi) Power Density at R =20m (mW/cm2) Limit Result 50.119 0 0.00997 1 PASS Remark: The Max Conducted Peak Output Power data refer to report Report No.: HK2007211844-1E Value : Pd = (Pout*G)/(4* Pi * R 2 )=(50.119 *1)/(4*3.1416*20*20)= 0.00997mW/cm2

Report No.: HK2007211844-1E FCC TEST REPORT Test report On Behalf of AiRISTA Flow, Inc. For Wi-Fi/BLE Gateway Model No. : G3 FCC ID: TA7-G3 Prepared for : AiRISTA Flow, Inc. 913 Ridgebrook Rd., Suite 110, Sparks, MD, 21152, USA Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1F, B2 Building, Junfeng Zhongcheng Zhizao Innovation Park, Fuhai Street, Bao'an District, Shenzhen City, China Date of Test: Jun. 20, 2020 ~ Feb. 22, 2021 Date of Report: Feb. 22, 2021 Report Number: HK2007211844-1E Report No.: HK2007211844-1E Page 2 of 70 TEST RESULT CERTIFICATION Applicant’s name ................. : AiRISTA Flow, Inc. Address ................................. : 913 Ridgebrook Rd., Suite 110, Sparks, MD, 21152, USA Manufacture's Name ............ : AiRISTA Flow, Inc. Address ................................. : 913 Ridgebrook Rd., Suite 110, Sparks, MD, 21152, USA Product description Trade Mark : Product name ...................... : Wi-Fi/BLE Gateway Model and/or type reference : G3 Standards ............................. : FCC Part 15 Subpart C Section 15.247 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HUAK Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HUAK Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ........................................... : Date (s) of performance of tests ............. : Jun. 20, 2020 ~ Feb. 22, 2021 Date of Issue .......................................... : Feb. 22, 2021 Test Result ............................................. : Pass Testing Engineer : (Gary Qian) Technical Manager : (Eden Hu) Authorized Signatory : (Jason Zhou) Report No.: HK2007211844-1E Page 3 of 70 TABLE OF CONTENTS 1. Test Result Summary........................................................................................................................ 4 1.1. TEST PROCEDURES AND RESULTS ...................................................................................... 4 1.2. TEST FACILITY .......................................................................................................................... 4 1.3. Measurement Uncertainty .......................................................................................................... 5 2. EUT Description ................................................................................................................................ 6 2.1. GENERAL DESCRIPTION OF EUT ........................................................................................... 6 2.2. Carrier Frequency of Channels .................................................................................................. 6 2.3. Operation of EUT during testing ................................................................................................. 6 2.4. DESCRIPTION OF TEST SETUP .............................................................................................. 7 3. General Information .......................................................................................................................... 8 3.1. Test environment and mode ....................................................................................................... 8 3.2. Description of Support Units ....................................................................................................... 9 4. Test Results and Measurement Data ............................................................................................ 10 4.1. Conducted Emission ................................................................................................................. 10 4.2. Maximum Conducted Output Power ........................................................................................ 14 4.3. Emission Bandwidth ................................................................................................................. 16 4.4. Power Spectral Density ............................................................................................................ 21 4.5. Conducted Band Edge and Spurious Emission Measurement ................................................ 26 4.6. Radiated Spurious Emission Measurement ............................................................................. 39 4.7. ANTENNA REQUIREMENT ..................................................................................................... 60 4.8. PHOTOGRAPH OF TEST ........................................................................................................ 61 5. PHOTOS OF THE EUT..................................................................................................................... 63 Report No.: HK2007211844-1E Page 4 of 70 1. Test Result Summary 1.1. TEST PROCEDURES AND RESULTS Requirement CFR 47 Section Result Antenna requirement §15.203/§15.247 (c) PASS AC Power Line Conducted Emission §15.207 PASS Conducted Peak Output Power §15.247 (b)(3) PASS 6dB Occupied Bandwidth 99% Occupied Bandwidth §15.247 (a)(2) PASS Power Spectral Density §15.247 (e) PASS Band Edge §15.247(d) PASS Spurious Emission §15.205/§15.209 PASS Note: 1. PASS: Test item meets the requirement. 2. Fail: Test item does not meet the requirement. 3. N/A: Test case does not apply to the test object. 4. The test result judgment is decided by the limit of test standard. 1.2. TEST FACILITY Test Firm : Shenzhen HUAK Testing Technology Co., Ltd. Address 1F, B2 Building, Junfeng Zhongcheng Zhizao Innovation Park, Fuhai Street, Bao'an District, Shenzhen City, China Report No.: HK2007211844-1E Page 5 of 70 1.3. Measurement Uncertainty The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of c…

Text truncated - open the document above for the full version.

Page 1 of 38 Report No.: HK2007211844-2E TEST REPORT Test report On Behalf of AiRISTA Flow, Inc. For Wi-Fi/BLE Gateway Model No. : G3 FCC ID: TA7-G3 Prepared for : AiRISTA Flow, Inc. 913 Ridgebrook Rd., Suite 110, Sparks, MD, 21152, USA Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1F, B2 Building, Junfeng Zhongcheng Zhizao Innovation Park, Fuhai Street, Bao'an District, Shenzhen City, China Date of Test: Jun. 20, 2020 ~ Feb. 22, 2021 Date of Report: Feb. 22, 2021 Report Number: HK2007211844-2E Page 2 of 38 Report No.: HK2007211844-2E TEST RESULT CERTIFICATION Applicant’s name .................... : AiRISTA Flow, Inc. Address ..................................... : 913 Ridgebrook Rd., Suite 110, Sparks, MD, 21152, USA Manufacture's Name ............... : AiRISTA Flow, Inc. Address ..................................... : 913 Ridgebrook Rd., Suite 110, Sparks, MD, 21152, USA Product description Trade Mark ................................. : Product name ............................. : Wi-Fi/BLE Gateway Model and/or type reference ... : G3 Standards ................................. : FCC Part 15 Subpart C 15.247 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HUAK Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HUAK Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ................................................: Date (s) of performance of tests .................: Jun. 20, 2020 ~ Feb. 22, 2021 Date of Issue ...............................................: Feb. 22, 2021 Test Result ...................................................: Pass Prepared by: Project Engineer Reviewed by: Project Supervisor Approved by: Technical Director Page 3 of 38 Report No.: HK2007211844-2E Table of Contents 1 TEST SUMMARY ............................................................................................................................................ 4 1.1 TEST DESCRIPTION ...................................................................................................................................... 4 1.2 TEST FACILITY ............................................................................................................................................. 4 1.3 MEASUREMENT UNCERTAINTY ...................................................................................................................... 5 2 GENERAL INFORMATION ............................................................................................................................. 6 2.1 ENVIRONMENTAL CONDITIONS ...................................................................................................................... 6 2.2 GENERAL DESCRIPTION OF EUT .................................................................................................................. 6 2.3 DESCRIPTION OF TEST MODES AND TEST FREQUENCY .................................................................................. 7 2.4 EQUIPMENTS USED DURING THE TEST .......................................................................................................... 8 2.5 DESCRIPTION OF TEST CONDITIONS .............................................................................................................. 8 2.6 DESCRIPTION OF TEST SETUP ............................................................................................................. 9 2.7 DESCRIPTION OF SUPPORT UNITS ................................................................................................................ 9 3 TEST CONDITIONS AND RESULTS ........................................................................................................... 10 3.1 ANTENNA REQUIREMENT ............................................................................................................................ 10 3.2 CONDUCTION EMISSIONS MEASUREMENT ................................................................................................... 11 3.3 RADIATED EMISSIONS MEASUREMENT ........................................................................................................ 14 3.4 MAXIMUM OUTPUT POWER MEASUREMENT ................................................................................................. 23 3.5 POWER SPECTRAL DENSITY ....................................................................................................................... 25 3.6 6DB BANDWIDTH ....................................................................................................................................... 27 3.7 OCCUPIED BANDWIDTH .............................................................................................................................. 29 3.8 BAND EDGE ............................................................................................................................................... 30 3.9 CONDUCTED SPURIOUS EMISSIONS ............................................................................................................ 32 4 TEST SETUP PHOTOS OF THE EUT .......................................................................................................... 36 5 PHOTOS OF THE EUT ................................................................................................................................. 38 Page 4 of 38 Report No.: HK2007211844-2E 1 Test Summary 1.1 Test Description 1.2 Test Facility 1.2.1 Address of the test laboratory Shenzhen HUAK Testing Technology Co., Ltd. Add.:1F, B2 Building, Junfeng Zhongcheng Zhizao Innovation Park,Heping Community, Fuhai Street, Bao'an District, Shenzhen, China There is one 3m semi-anechoic chamber and two line conducted labs for final test. The Test Sites meet the requirements in doc…

Text truncated - open the document above for the full version.

30MHz-1000MHz Above 1000MHz Conducted Emission
