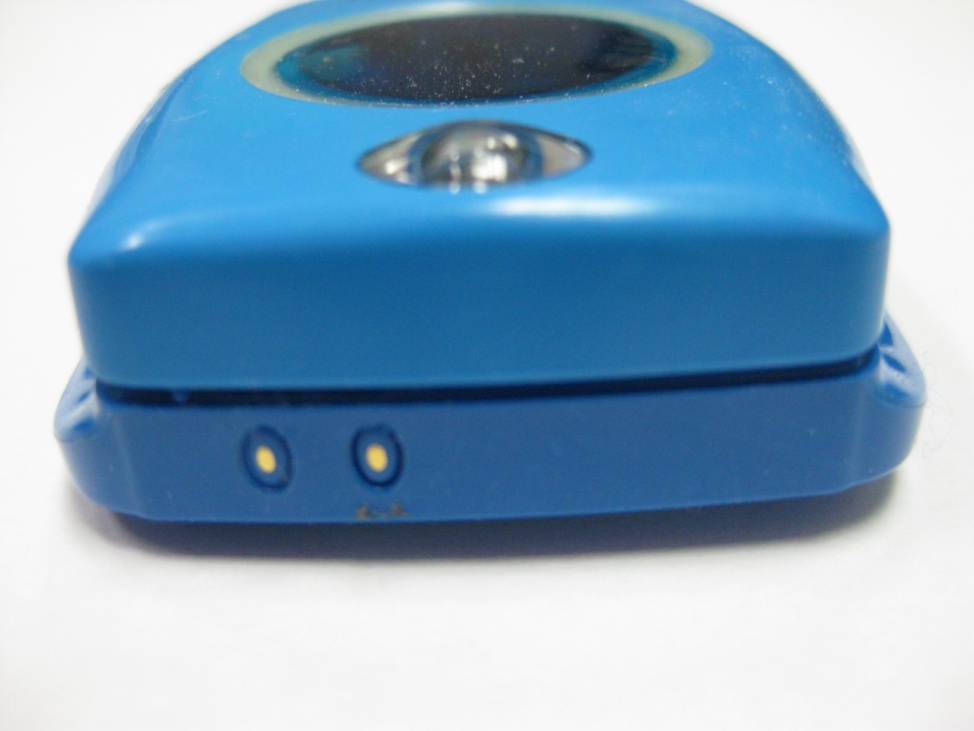

EXTERNAL PHOTOS Company Name Ekahau, Inc Model # T301W FCC ID # TA7‐T301‐WI IC # 6864A‐T301W1 Page 1 of 2 Front of Device Side of Device EXTERNAL PHOTOS Company Name Ekahau, Inc Model # T301W FCC ID # TA7‐T301‐WI IC # 6864A‐T301W1 Page 2 of 2 Top Side of Device Back of Device

FCC ID: TA7-T301-W1 IC: 6864A-T301W1 Model: T301W

INTERNAL PHOTOS Company Name Ekahau, Inc Model # T301W FCC ID # TA7‐T301‐WI IC # 6864A‐T301W1 Page 1 of 3 Enclosure open for view – front side of board Close up front side of board with shield on INTERNAL PHOTOS Company Name Ekahau, Inc Model # T301W FCC ID # TA7‐T301‐WI IC # 6864A‐T301W1 Page 2 of 3 Close up front side of board with shield removed Area without shield INTERNAL PHOTOS Company Name Ekahau, Inc Model # T301W FCC ID # TA7‐T301‐WI IC # 6864A‐T301W1 Page 3 of 3 Back side of board

LS Research, LLC website: www.lsr.com W66 N220 Commerce Court Phone: 262-375-4400 Cedarburg, WI 53012 FCC RF Safety Evaluation Exhibit Ekahau FCC ID Number: TA7-T301-W1 LS Research, LLC website: www.lsr.com W66 N220 Commerce Court Phone: 262-375-4400 Cedarburg, WI 53012 Output Power Evaluation. Evaluation Frequency = __2412MHz_______ Maximum Uncorrected EIRP = _13.96dBm_ Corrected EIRP= 13.96-14.57 Note 1 = -0.61dBm Maximum EIRP (mW) = log -1 (ERP(dBm)/10) = _0.87mW_ Conclusion: Since the maximum EIRP is less than the applicable limit: 60/f(GHz) mW = 60/2.412 = 24.9mW this product is exempt from SAR Evaluation. Note: 1. Refer to appendix for calculation of source-based time average correction factor. LS Research, LLC website: www.lsr.com W66 N220 Commerce Court Phone: 262-375-4400 Cedarburg, WI 53012 Appendix Correction Factor = 10* Log 10 (duty cycle) Total transmit on-time = 0.308 + 0.308 + 0.656 + 0.656 + 1.208 + 0.180 + 0.110 + 0.220 + 0.110 + 0.220 = 3.976 ms Transmit period = 114 ms Correction Factor = 10* Log 10 (3.976 / 114 ms) = -14.57dB 1 st packet (0.308ms) 2 nd packet (0.308ms) LS Research, LLC website: www.lsr.com W66 N220 Commerce Court Phone: 262-375-4400 Cedarburg, WI 53012 3 rd packet (0.656ms) 4 th packet (0.656ms) 5 th packet (1.208ms) LS Research, LLC website: www.lsr.com W66 N220 Commerce Court Phone: 262-375-4400 Cedarburg, WI 53012 6 th packet (0.180ms) 7 th packet (0.110ms) 8 th packet (0.220ms) LS Research, LLC website: www.lsr.com W66 N220 Commerce Court Phone: 262-375-4400 Cedarburg, WI 53012 9 th packet (.110ms) 10 th packet (.220ms) Capture of 114ms transmit cycle

W66 N220 Commerce Court ● Cedarburg, WI 53012 Phone: 262.375.4400 ● Fax: 262.375.4248 www.lsr.com TEST REPORT # 310207 LSR Job #: C-949 Compliance Testing of: T301W Test Date(s): July 13 th -20 th , 2010 Prepared For: Ekahau Attn: Arttu Huhtiniemi Hiilikatu 3 Helinski, Finland 00180 In accordance with: Federal Communications Commission (FCC) Part 15, Subpart C, Section 15.247 Industry Canada (IC) RSS 210 Annex 8 for Digital Modulation Transmitters (DTS) This Test Report is issued under the Authority of: Signature: Date: 5/5/11 Quality Assurance by: Khairul Aidi Zainal, Senior EMC Engineer Signature: Date: 5/5/11 Project Engineer: Shane D. Rismeyer, EMC Engineer Signature: Date: 5/1/11 This Test Report may not be reproduced, except in full, without written approval of LS Research, LLC. LS Research, LLC Page 2 of 49 Prepared For: Ekahau Model Number: T301W Report #: 310207 EUT: T301W Serial Number: N/A LSR Job #: C-949 TABLE OF CONTENTS EXHIBIT 1. INTRODUCTION ............................................................................................................. 4 1.1 - Scope .................................................................................................................................. 4 1.2 – Normative References ....................................................................................................... 4 1.3 - LS Research, LLC in Review .............................................................................................. 5 EXHIBIT 2. PERFORMANCE ASSESSMENT ................................................................................... 6 2.1 – Client Information ............................................................................................................... 6 2.2 - Equipment Under Test (EUT) Information .......................................................................... 6 2.3 - EUT’S Technical Specifications .......................................................................................... 7 2.4 - Product Description ............................................................................................................. 8 EXHIBIT 3. EUT OPERATING CONDITIONS & CONFIGURATIONS DURING TESTS ................... 9 3.1 - Climate Test Conditions ...................................................................................................... 9 3.2 - Applicability & Summary of EMC Emission Test Results .................................................... 9 3.3 - Modifications Incorporated in the EUT For Compliance Purposes ..................................... 9 3.4 - Deviations & Exclusions from Test Specifications .............................................................. 9 EXHIBIT 4. DECLARATION OF CONFORMITY .............................................................................. 10 EXHIBIT 5. RADIATED EMISSIONS TEST ...................................................................................... 11 5.1 - Test Setup ......................................................................................................................... 11 5.2 - Test Procedure ................................................................................................................. 11 5.3 - Test Equipment Utilized .................................................................................................... 11 5.4 - Test Results ...................................................................................................................... 11 5.5 - Calculation of Radiated Emissions Limits ......................................................................... 12 5.6 - Radiated Emissions Test Data Chart ................................................................................ 13 5.7 - Screen Captures - Radiated Emissions Test .................................................................... 15 5.8 - Receive Mode Testing ...................................................................................................... 20 5.9 - Screen Captures - Radiated Emissions Testing – Receive Mode .................................... 21 EXHIBIT 6. OCCUPIED BANDWIDTH ............................................................................................. 24 6.1 - Limits ................................................................................................................................. 24 6.2 - Method of Measurements ................................................................................................. 24 6.3 - Test Equipment List .......................................................................................................... 24 6.4 - Test Data .......................................................................................................................... 24 6.5 - Screen Captures - Occupied Bandwidth ........................................................................... 25 EXHIBIT 7. BAND EDGE MEASUREMENTS .................................................................................. 27 7.1 - Method of Measurements ................................................................................................. 27 LS Research, LLC Page 3 of 49 Prepared For: Ekahau Model Number: T301W Report #: 310207 EUT: T301W Serial Number: N/A LSR Job #: C-949 EXHIBIT 8. POWER OUTPUT (CONDUCTED): 15.247(b) ............................................................. 29 8.1 - Method of Measurements ................................................................................................. 29 8.2 – Test Equipment List ......................................................................................................... 29 8.3 - Test Data .......................................................................................................................... 29 8.4 - Screen Captures – Power Output (Conducted) ................................................................ 30 EXHIBIT 9. POWER SPECTRAL DENSITY: 15.247(e) .................…

Text truncated - open the document above for the full version.

TEST SETUP PHOTOS Company Name Ekahau, Inc Model # T301W FCC ID # TA7-T301-WI IC # 6864A-T301W1 Page 1 of 2 Radiated Emissions Test Vertical Orientation Horizontal Orientation TEST SETUP PHOTOS Company Name Ekahau, Inc Model # T301W FCC ID # TA7-T301-WI IC # 6864A-T301W1 Page 2 of 2 Side Orientation EUT on Test Pedestal
