TA8AKRY901626Radio Unit

Ericsson AB

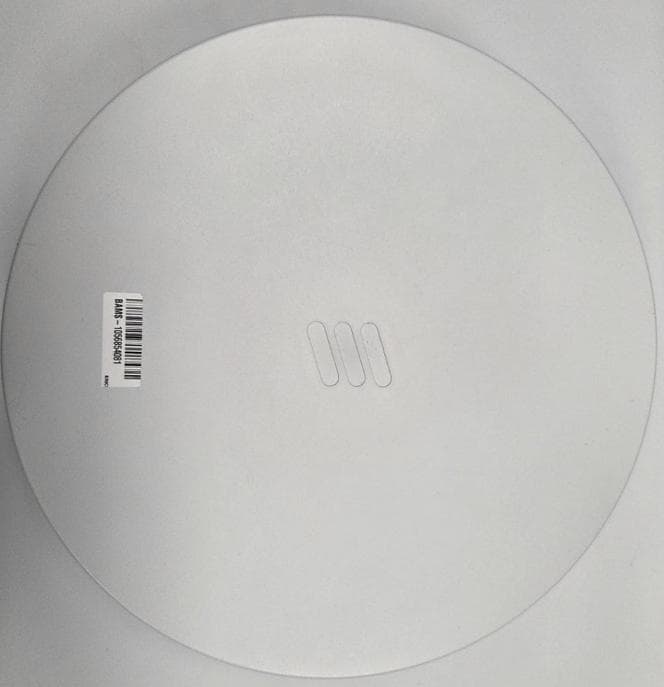

Radio Unit - FCC ID TA8AKRY901626 - Ericsson AB
Click to zoom

Application Details

Equipment Class
PCB - PCS Licensed Transmitter
Date of Grant
Mar 19, 2026
Application Purpose
Original Equipment
Equipment Note
Radio Unit
Frequency Range
1930.00000000 - 1995.00000000
Company
Ericsson AB
Country
Sweden

Documents & Files

Select a file to view

Attestation Statements

β†—
β†—

Cover Letter(s)

β†—
β†—
β†—
β†—

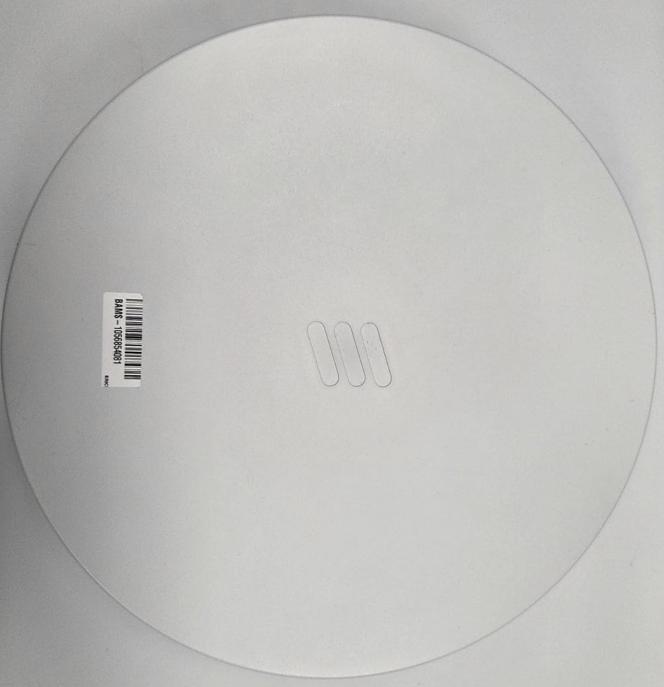

External Photos

β†—
β†—

ID Label/Location Info

β†—
β†—

Operational Description

β†—

RF Exposure Info

β†—
β†—

Test Report

β†—
β†—
β†—
β†—
β†—
β†—
β†—

Test Setup Photos

β†—

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Operational Description

Page 1 of 1 Nemko North America Inc. 303 River Road Ottawa, Ontario, Canada K1V 1H2 Innovation, Science and Economic Development Certification and Engineering Bureau 3701 Carling Avenue, Bldg. 94 P.O. Box 11490, Station β€œH” Ottawa, Ontario, Canada K2K 8S2 IC: 287AB-AS901626, FCC ID: TA8AKRY901626 HVIN: AS9016261, AS9016262 PMN: Dot 2254 B25 B66, Dot 2264 B25 B66 Product Description: Radio Unit 18 March 2026 Declaration Letter - Uncorrelated Gain To Whom It May Concern: We, Ericsson AB, hereby confirm that the radiated intra-band signals of this product are uncorrelated: [1] The product does not support beamforming. [2] The Dot antenna design is optimized to minimize correlation for best MIMO and diversity performance; this is achieved by maximizing spatial separation of antennas supporting the same band. [3] Each branch/antenna of the same band transmits an uncorrelated signal. The EIRP calculations used in the supplied test report are therefore appropriate for this product. Signature: Name: Gavin Gan Title: Developer, Regulatory Approval Company: Ericsson Canada Inc. Address: 349 Terry Fox Drive, Ottawa, On, K2K 2V6, Canada Phone: 613-716-9161 Email: [email protected]

Test Setup Photos

Section 3: Equipment under test (EUT) details Report ID: REP152272 Page 12 of 66 3.4 Setup photographs Figure 3.4-1: Set up photo for Conducted Radio Compliance Testing Section 3: Equipment under test (EUT) details Report ID: REP152272 Page 13 of 66 Setup photographs, continued Figure 3.4-2: EUT Set-up photo for Radiated Emissions [30 MHz to 1000 MHz Figure 3.4-3: EUT Set-up photo for Radiated Emissions [1-10 GHz] Section 3: Equipment under test (EUT) details Report ID: REP152272 Page 14 of 66 Setup photographs, continued Figure 3.4-4: EUT Set-up photo for Radiated Emissions [10-18 GHz Figure 3.4-5: EUT Set-up photo for Radiated Emissions [18-26.5 GHz]

Test Report

Document 75956591 Report 03 Issue 1 25-November-2022 Report On FCC Testing of the Ericsson Remote Radio Unit Dot 4455/4465 B77DB25B66 KRY 901 523/1, KRY 901 523/2, NR + LTE (2100 MHz) Base Station in accordance with FCC CFR 47 Part 2, FCC CFR 47 Part 27 COMMERCIAL-IN-CONFIDENCE FCC: TA8AKRY901523-1 & TA8AKRY901523-2 PREPARED BY APPROVED BY DATED 29 November 2022 Glen Westwell Scott Drysdale Senior Test Engineer (Technical) Authorised Signatory Document 75956591 Report 03 Issue 1 Page 1 of 99 COMMERCIAL – IN - CONFIDENCE CONTENTS Section Page No 1 REPORT INFORMATION ............................................................................................................ 2 1.1 Report Details ................................................................................................................................ 3 1.2 Brief Summary of Results .............................................................................................................. 4 1.3 Test Rationale ................................................................................................................................ 5 1.4 Configuration Description .............................................................................................................. 6 1.5 Declaration of Build Status ............................................................................................................ 8 1.6 Product Information ..................................................................................................................... 10 1.7 Test Setup ................................................................................................................................... 11 1.8 Deviation From The Standard ..................................................................................................... 13 1.9 Modification Record ..................................................................................................................... 13 1.10 Additional Information .................................................................................................................. 13 2 TEST DETAILS .......................................................................................................................... 15 2.1 Maximum Peak Output Power and Peak to Average Ratio - Conducted .................................... 16 2.2 Occupied Bandwidth .................................................................................................................... 47 2.3 Band Edge ................................................................................................................................... 54 2.4 Transmitter Spurious Emissions .................................................................................................. 80 2.5 Frequency Stability ...................................................................................................................... 94 3 TEST EQUIPMENT USED ......................................................................................................... 95 3.1 Test Equipment Used .................................................................................................................. 96 3.2 Measurement Uncertainty ........................................................................................................... 97 4 ACCREDITATION, DISCLAIMERS AND COPYRIGHT ............................................................ 98 4.1 Accreditation, Disclaimers and Copyright .................................................................................... 99 ANNEX A Module Lists .............................................................................................................................. A.2 Document 75956591 Report 03 Issue 1 Page 2 of 99 COMMERCIAL – IN - CONFIDENCE SECTION 1 REPORT INFORMATION Document 75956591 Report 03 Issue 1 Page 3 of 99 COMMERCIAL – IN - CONFIDENCE 1.1 REPORT DETAILS Manufacturer Ericsson Address Torshamnsgatan 23 Kista SE-16480 Stockholm Sweden Product Name & Product Number Dot 4465 B77DB25B66 - KRY 901 523/2 Serial Number(s) TD3W340089 Software Version R1A modified as a R1B Hardware Version Dot 4465 B77DB25B66 - KRY 901 523/2 Non-Tested Variant (See Section 1.10 Additional Information) Dot 4455 B77DB25B66 - KRY 901 523/1 Test Specification/Issue/Date FCC CFR 47 Part 2: 2021 FCC CFR 47 Part 27: 2021 Test Plan TP_RA-FCC_Dot_4465_B77DB25B66 Start of Test 12-October-2022 Finish of Test 16-October-2022 Name of Engineer(s) Glen Westwell Related Document(s) KDB 971168 D01 v02r02 KDB 662911 D01 v02r01 ANSI C63.26-2015 Glen Westwell ENGINEERING STATEMENT The measurements shown in this report were made in accordance with the procedures described on test pages. All reported testing was carried out on a sample equipment to demonstrate compliance with and FCC CFR 47 Part 2: 2021, FCC CFR 47 Part 27: 2021. The sample tested was found to comply with the requirements defined in the applied rules. Test Engineer(s); Document 75956591 Report 03 Issue 1 Page 4 of 99 COMMERCIAL – IN - CONFIDENCE 1.2 BRIEF SUMMARY OF RESULTS A brief summary of results for each configuration, in accordance with FCC CFR 47 Part 2, FCC CFR 47 Part 27 is shown below. Section Specification Clause Test Description Result FCC CFR 47 Part 2 FCC CFR 47 Part 27 2.1 2.1046 27.50 Maximum Peak Output Power and Peak to Average Ratio - Conducted Pass 2.2 2.1049 27.53 Occupied Bandwidth Pass 2.3 2.1051 27.53 Band Edge Pass 2.4 2.1051 27.53 Transmitter Spurious Emissions Pass 2.5 2.1055 -- Frequency Stability Pass Document 75956591 Report 03 Issue 1 Page 5 of 99 COMMERCIAL – IN - CONFIDENCE 1.3 TEST RATIONALE The tests that have been selected are detailed in the customer Test Plan as defined in section 1.1 of this report. The Test Plan is based on the TÜV SÜD FCC Test Plan Rationale, available on request. Document 75956591 Report 03 Issue 1 Page 6 of 99 COMMERCIAL – IN - CONFIDENCE 1.4 CONFIGURATION DESCRIPTION Con…

Text truncated - open the document above for the full version.

Test Report

Document 75956591 Report 02, Issue 1 17-November-2022 Report On FCC Testing of the Ericsson Remote Radio Unit Dot 4455/4465 B77DB25B66 KRY 901 523/1, KRY 901 523/2, NR + LTE (1900 MHz) Base Station in accordance with FCC CFR 47 Part 2, FCC CFR 47 Part 24 COMMERCIAL-IN-CONFIDENCE FCC: TA8AKRY901523-1 & TA8AKRY901523-2 PREPARED BY APPROVED BY DATED 17-November-2022 Glen Westwell Scott Drysdale Senior Test Engineer Authorised Signatory Document 75956591 Report 02 Issue 1 Page 1 of 101 COMMERCIAL – IN - CONFIDENCE CONTENTS Section Page No 1 REPORT INFORMATION ............................................................................................................ 2 1.1 Report Details ................................................................................................................................ 3 1.2 Brief Summary of Results .............................................................................................................. 4 1.3 Test Rationale ................................................................................................................................ 5 1.4 Configuration Description .............................................................................................................. 6 1.5 Declaration of Build Status ............................................................................................................ 8 1.6 Product Information ..................................................................................................................... 10 1.7 Test Setup ................................................................................................................................... 11 1.8 Deviation From The Standard ..................................................................................................... 13 1.9 Modification Record ..................................................................................................................... 13 1.10 Additional Information .................................................................................................................. 13 2 TEST DETAILS .......................................................................................................................... 15 2.1 Maximum Peak Output Power and Peak to Average Ratio - Conducted .................................... 16 2.2 Occupied Bandwidth .................................................................................................................... 47 2.3 Band Edge ................................................................................................................................... 54 2.4 Transmitter Spurious Emissions .................................................................................................. 81 2.5 Frequency Stability ...................................................................................................................... 96 3 TEST EQUIPMENT USED ......................................................................................................... 97 3.1 Test Equipment Used .................................................................................................................. 98 3.2 Measurement Uncertainty ........................................................................................................... 99 4 ACCREDITATION, DISCLAIMERS AND COPYRIGHT .......................................................... 100 4.1 Accreditation, Disclaimers and Copyright .................................................................................. 101 ANNEX A Module Lists .............................................................................................................................. A.2 Document 75956591 Report 02 Issue 1 Page 2 of 101 COMMERCIAL – IN - CONFIDENCE SECTION 1 REPORT INFORMATION Document 75956591 Report 02 Issue 1 Page 3 of 101 COMMERCIAL – IN - CONFIDENCE 1.1 REPORT DETAILS Manufacturer Ericsson Address Torshamnsgatan 23 Kista SE-16480 Stockholm Sweden Product Name & Product Number Dot 4465 B77DB25B66 - KRY 901 523/2 Serial Number(s) TD3W340089 Software Version R1A modified as a R1B Hardware Version Dot 4465 B77DB25B66 - KRY 901 523/2 Non-Tested Variant (See Section 1.10 Additional Information) Dot 4455 B77DB25B66 - KRY 901 523/1 Test Specification/Issue/Date FCC CFR 47 Part 2: 2021 FCC CFR 47 Part 24: 2021 Test Plan TP_RA-FCC_Dot_4465_B77DB25B66 Start of Test 7-October-2022 Finish of Test 13-October-2022 Name of Engineer(s) Glen Westwell Related Document(s) KDB 971168 D01 v02r02 KDB 662911 D01 v02r01 ANSI C63.26-2015 Glen Westwell ENGINEERING STATEMENT The measurements shown in this report were made in accordance with the procedures described on test pages. All reported testing was carried out on a sample equipment to demonstrate compliance with and FCC CFR 47 Part 2: 2021, FCC CFR 47 Part 24: 2021. The sample tested was found to comply with the requirements defined in the applied rules. Test Engineer(s); Document 75956591 Report 02 Issue 1 Page 4 of 101 COMMERCIAL – IN - CONFIDENCE 1.2 BRIEF SUMMARY OF RESULTS A brief summary of results for each configuration, in accordance with FCC CFR 47 Part 2, FCC CFR 47 Part 24 is shown below. Section Specification Clause Test Description Result FCC CFR 47 Part 2 FCC CFR 47 Part 24 2.1 2.1046 24.232 Maximum Peak Output Power and Peak to Average Ratio - Conducted Pass 2.2 2.1049 24.238 (b) Occupied Bandwidth Pass 2.3 2.1051 24.238 (b) Band Edge Pass 2.4 2.1051 24.238 (a) Transmitter Spurious Emissions Pass 2.5 2.1055 24.235 Frequency Stability Pass Document 75956591 Report 02 Issue 1 Page 5 of 101 COMMERCIAL – IN - CONFIDENCE 1.3 TEST RATIONALE The tests that have been selected are detailed in the customer Test Plan as defined in section 1.1 of this report. The Test Plan is based on the TÜV SÜD FCC Test Plan Rationale, available on request. Document 75956591 Report 02 Issue 1 Page 6 of 101 COMMERCIAL – IN - CONFIDENCE 1.4 CONFIGURATION DES…

Text truncated - open the document above for the full version.

Test Report

Document 75956591 Report 01 Issue 2 02-November-2022 FCC Testing of the Ericsson Remote Radio Unit Dot 4455/4465 B77DB25B66 KRY 901 523/1, KRY 901 523/2 NR (3700-3980 MHz) Base Station in accordance with FCC CFR 47 Part 2, FCC CFR 47 Part 27 COMMERCIAL-IN-CONFIDENCE FCC: TA8AKRY901523-1 & TA8AKRY901523-2 PREPARED BY APPROVED BY DATED 07-November-2022 Glen Westwell Scott Drysdale Senior Test Engineer Authorised Signatory Document 75956591 Report 01 Issue 2 Page 1 of 97 COMMERCIAL – IN - CONFIDENCE CONTENTS Section Page No 1 REPORT INFORMATION ............................................................................................................ 2 1.1 Report Details ................................................................................................................................ 3 1.2 Brief Summary of Results .............................................................................................................. 4 1.3 Test Rationale ................................................................................................................................ 5 1.4 Configuration Description .............................................................................................................. 6 1.5 Declaration of Build Status ............................................................................................................ 8 1.6 Product Information ..................................................................................................................... 10 1.7 Test Setup ................................................................................................................................... 11 1.8 Deviation From The Standard ..................................................................................................... 13 1.9 Modification Record ..................................................................................................................... 13 1.10 Additional Information .................................................................................................................. 13 2 TEST DETAILS .......................................................................................................................... 14 2.1 Maximum Peak Output Power and Peak to Average Ratio - Conducted .................................... 15 2.2 Occupied Bandwidth .................................................................................................................... 46 2.3 Band Edge ................................................................................................................................... 53 2.4 Transmitter Spurious Emissions .................................................................................................. 76 2.5 Frequency Stability ...................................................................................................................... 91 3 TEST EQUIPMENT USED ......................................................................................................... 93 3.1 Test Equipment Used .................................................................................................................. 94 3.2 Measurement Uncertainty ........................................................................................................... 95 4 ACCREDITATION, DISCLAIMERS AND COPYRIGHT ............................................................ 96 4.1 Accreditation, Disclaimers and Copyright .................................................................................... 97 ANNEX A Module Lists .............................................................................................................................. A.2 Document 75956591 Report 01 Issue 2 Page 2 of 97 COMMERCIAL – IN - CONFIDENCE SECTION 1 REPORT INFORMATION Document 75956591 Report 01 Issue 2 Page 3 of 97 COMMERCIAL – IN - CONFIDENCE 1.1 REPORT DETAILS Manufacturer Ericsson Address Torshamnsgatan 23 Kista SE-16480 Stockholm Sweden Product Name & Product Number Dot 4465 B77D - KRY 901 523/2 Serial Number(s) TD3W340089 Software Version CXP2030045/26 Hardware Version R1A modified as a R1B Non-Tested Variant (See Section 1.10 Additional Information) Dot 4455 B77DB25B66 - KRY 901 523/1 Test Specification/Issue/Date FCC CFR 47 Part 2: 2021 FCC CFR 47 Part 27: 2021 Test Plan TP_RA-FCC_Dot_4465_B77DB25B66 Start of Test 3-October-2021 Finish of Test 7-October-2022 Name of Engineer(s) Glen Westwell Related Document(s) KDB 971168 D01 v02r02 KDB 662911 D01 v02r01 ANSI C63.26-2015 Glen Westwell ENGINEERING STATEMENT The measurements shown in this report were made in accordance with the procedures described on test pages. All reported testing was carried out on a sample equipment to demonstrate compliance with and FCC CFR 47 Part 2: 2021, FCC CFR 47 Part 27: 2021. The sample tested was found to comply with the requirements defined in the applied rules. Test Engineer(s); Document 75956591 Report 01 Issue 2 Page 4 of 97 COMMERCIAL – IN - CONFIDENCE 1.2 BRIEF SUMMARY OF RESULTS A brief summary of results for each configuration, in accordance with FCC CFR 47 Part 2, FCC CFR 47 Part 27 is shown below. Section Specification Clause Test Description Result FCC CFR 47 Part 2 FCC CFR 47 Part 27 2.1 2.1046 27.50 Maximum Peak Output Power and Peak to Average Ratio - Conducted Pass 2.2 2.1049 27.53 Occupied Bandwidth Pass 2.3 2.1051 27.53 Band Edge Pass 2.4 2.1051 27.53 Transmitter Spurious Emissions Pass 2.5 2.1055 27.54 Frequency Stability Pass 2.1055 27.54 Frequency Stability Pass Document 75956591 Report 01 Issue 2 Page 5 of 97 COMMERCIAL – IN - CONFIDENCE 1.3 TEST RATIONALE The tests that have been selected are detailed in the customer Test Plan as defined in section 1.1 of this report. The Test Plan is based on the TÜV SÜD FCC Test Plan Rationale, available on request. Document 75956591 Report 01 Issue 2 Page 6 of 97 COMMERCIAL – IN - CONFIDENCE 1.4 CONFIGURATION DESCRIPTION Configuration A …

Text truncated - open the document above for the full version.

Test Report

Document 7169014607 Report 02, Issue 1 25-November-2022 Report On FCC/ISED Testing of the Ericsson Remote Radio Unit Dot 4455/4465 B77DB25B66 KRY 901 523/1, KRY 901 523/2, NR + LTE (2100 MHz) Base Station in accordance with FCC CFR 47 Part 2, FCC CFR 47 Part 27, ISED RSS- 139, RSS-GEN COMMERCIAL-IN-CONFIDENCE FCC: TA8AKRY901523-1 & TA8AKRY901523-2 ISED: 287AB-AS9015231 & 287AB-AS9015232 PREPARED BY APPROVED BY DATED 18 Apr. 2024 Glen Westwell Nour El Masri Senior Test Engineer Authorised Signatory Document 7169014607 Report 02, Issue 1 Page 1 of 99 COMMERCIAL – IN - CONFIDENCE CONTENTS Section Page No 1 REPORT INFORMATION ............................................................................................................ 2 1.1 Report Details ................................................................................................................................ 3 1.2 Brief Summary of Results .............................................................................................................. 4 1.3 Test Rationale ................................................................................................................................ 5 1.4 Configuration Description .............................................................................................................. 6 1.5 Declaration of Build Status ............................................................................................................ 8 1.6 Product Information ..................................................................................................................... 10 1.7 Test Setup ................................................................................................................................... 11 1.8 Deviation From The Standard ..................................................................................................... 13 1.9 Modification Record ..................................................................................................................... 13 1.10 Additional Information .................................................................................................................. 13 2 TEST DETAILS .......................................................................................................................... 15 2.1 Maximum Peak Output Power and Peak to Average Ratio - Conducted .................................... 16 2.2 Occupied Bandwidth .................................................................................................................... 47 2.3 Band Edge ................................................................................................................................... 54 2.4 Transmitter Spurious Emissions .................................................................................................. 80 2.5 Frequency Stability ...................................................................................................................... 94 3 TEST EQUIPMENT USED ......................................................................................................... 95 3.1 Test Equipment Used .................................................................................................................. 96 3.2 Measurement Uncertainty ........................................................................................................... 97 4 ACCREDITATION, DISCLAIMERS AND COPYRIGHT ............................................................ 98 4.1 Accreditation, Disclaimers and Copyright .................................................................................... 99 ANNEX A Module Lists .............................................................................................................................. A.2 Document 7169014607 Report 02, Issue 1 Page 2 of 99 COMMERCIAL – IN - CONFIDENCE SECTION 1 REPORT INFORMATION Document 7169014607 Report 02, Issue 1 Page 3 of 99 COMMERCIAL – IN - CONFIDENCE 1.1 REPORT DETAILS Manufacturer Ericsson Address Torshamnsgatan 23 Kista SE-16480 Stockholm Sweden Product Name & Product Number Dot 4465 B77DB25B66 - KRY 901 523/2 Serial Number(s) TD3W340089 Software Version R1A modified as a R1B Hardware Version Dot 4465 B77DB25B66 - KRY 901 523/2 Non-Tested Variant (See Section 1.10 Additional Information) Dot 4455 B77DB25B66 - KRY 901 523/1 Test Specification/Issue/Date ISED RSS-139, Issue 4: 2022 ISED RSS-GEN, Issue 5:2018 FCC CFR 47 Part 2: 2021 FCC CFR 47 Part 27: 2021 Test Plan TP_RA-FCC_Dot_4465_B77DB25B66 Start of Test 12-October-2022 Finish of Test 16-October-2022 Name of Engineer(s) Glen Westwell Related Document(s) KDB 971168 D01 v02r02 KDB 662911 D01 v02r01 ANSI C63.26-2015 Glen Westwell ENGINEERING STATEMENT The measurements shown in this report were made in accordance with the procedures described on test pages. All reported testing was carried out on a sample equipment to demonstrate compliance with FCC CFR 47 Part 2: 2021, FCC CFR 47 Part 27: 2021, ISED RSS-139 : 2022, ISED RSS-GEN : 2018. The sample tested was found to comply with the requirements defined in the applied rules. Test Engineer(s); Document 7169014607 Report 02, Issue 1 Page 4 of 99 COMMERCIAL – IN - CONFIDENCE 1.2 BRIEF SUMMARY OF RESULTS A brief summary of results for each configuration, in accordance with FCC CFR 47 Part 2, FCC CFR 47 Part 27, ISED RSS-139, RSS-GEN is shown below. Section Specification Clause Test Description Result FCC CFR 47 Part 27 FCC CFR 47 Part 2 RSS-139 RSS-Gen 2.1 27.50 2.1046 5.5 6.12 Maximum Peak Output Power and Peak to Average Ratio - Conducted Pass 2.2 27.53 2.1049 5.3 6.7 Occupied Bandwidth Pass 2.3 27.53 2.1051 5.6 6.13 Band Edge Pass 2.4 27.53 2.1051 5.6 6.13 Transmitter Spurious Emissions Pass 2.5 -- 2.1055 5.4 6.11 Frequency Stability Pass Document 7169014607 Report 02, Issue 1 Page 5 of 99 COMMERCIAL – IN - CONFIDENCE 1.3 TEST RATIONALE The tests that have been selected are detailed in the customer Te…

Text truncated - open the document above for the full version.

Test Report

Document 7169014607 Report 01, Issue 1 Page 1 of 102 COMMERCIAL – IN - CONFIDENCE Report On FCC/ISED Testing of the Ericsson Remote Radio Unit Dot 4455/4465 B77DB25B66 KRY 901 523/1, KRY 901 523/2, NR + LTE (1900 MHz) Base Station in accordance with FCC CFR 47 Part 2, FCC CFR 47 Part 24, ISED RSS- 133, RSS-GEN COMMERCIAL-IN-CONFIDENCE FCC: TA8AKRY901523-1 & TA8AKRY901523-2 ISED: 287AB-AS9015231 & 287AB-AS9015232 PREPARED BY APPROVED BY DATED 29 Apr. 2024 Glen Westwell Nour El Masri Senior Test Engineer Authorised Signatory Document 7169014607 Report 01, Issue 1 Page 2 of 102 COMMERCIAL – IN - CONFIDENCE CONTENTS Section Page No 1 REPORT INFORMATION ............................................................................................................ 3 1.1 Report Details ................................................................................................................................ 4 1.2 Brief Summary of Results .............................................................................................................. 5 1.3 Test Rationale ................................................................................................................................ 6 1.4 Configuration Description .............................................................................................................. 7 1.5 Declaration of Build Status ............................................................................................................ 9 1.6 Product Information ..................................................................................................................... 11 1.7 Test Setup ................................................................................................................................... 12 1.8 Deviation From The Standard ..................................................................................................... 14 1.9 Modification Record ..................................................................................................................... 14 1.10 Additional Information .................................................................................................................. 14 2 TEST DETAILS .......................................................................................................................... 16 2.1 Maximum Peak Output Power and Peak to Average Ratio - Conducted .................................... 17 2.2 Occupied Bandwidth .................................................................................................................... 48 2.3 Band Edge ................................................................................................................................... 55 2.4 Transmitter Spurious Emissions .................................................................................................. 82 2.5 Frequency Stability ...................................................................................................................... 97 3 TEST EQUIPMENT USED ......................................................................................................... 98 3.1 Test Equipment Used .................................................................................................................. 99 3.2 Measurement Uncertainty ......................................................................................................... 100 4 ACCREDITATION, DISCLAIMERS AND COPYRIGHT .......................................................... 101 4.1 Accreditation, Disclaimers and Copyright .................................................................................. 102 ANNEX A Module Lists .............................................................................................................................. A.2 Document 7169014607 Report 01, Issue 1 Page 3 of 102 COMMERCIAL – IN - CONFIDENCE SECTION 1 REPORT INFORMATION Document 7169014607 Report 01, Issue 1 Page 4 of 102 COMMERCIAL – IN - CONFIDENCE 1.1 REPORT DETAILS Manufacturer Ericsson Address Torshamnsgatan 23 Kista SE-16480 Stockholm Sweden Product Name…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Qiwei Wang(Head of PEU Radio Atlantic)
[email protected]Fax: +46 10 716 00 28

Technical Contact

Ericsson IncRanjeet Bhattacharya
[email protected]

6300 Legacy Drive Β· Plano, Texas Β· United States

Test Firm

Nemko Canada Inc. (Ottawa)Charles Neal
[email protected]Fax: 613-737-9691

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
124E1.93 GHz - 2.00 GHz200.00 mW5M00W7D0.1ppm
224E1.93 GHz - 2.00 GHz200.00 mW10M0W7D0.1ppm
324E1.93 GHz - 2.00 GHz200.00 mW15M0W7D0.1ppm
424E1.93 GHz - 2.00 GHz200.00 mW20M0W7D0.1ppm
524E1.93 GHz - 2.00 GHz200.00 mW5M00F9W0.1ppm
624E1.93 GHz - 2.00 GHz200.00 mW15M0F9W0.1ppm
724E1.93 GHz - 2.00 GHz200.00 mW20M0F9W0.1ppm
824E1.93 GHz - 2.00 GHz200.00 mW25M0F9W0.1ppm
924E1.93 GHz - 2.00 GHz200.00 mW40M0F9W0.1ppm
1272.11 GHz - 2.20 GHz200.00 mW5M00W7D0.1ppm
11272.11 GHz - 2.20 GHz200.00 mW10M0W7D0.1ppm
12272.11 GHz - 2.20 GHz200.00 mW15M0W7D0.1ppm
13272.11 GHz - 2.20 GHz200.00 mW5M00F9W0.1ppm
14272.11 GHz - 2.20 GHz200.00 mW10M0F9W0.1ppm
15272.11 GHz - 2.20 GHz200.00 mW15M0F9W0.1ppm
16272.11 GHz - 2.20 GHz200.00 mW20M0F9W0.1ppm
17272.11 GHz - 2.20 GHz200.00 mW25M0F9W0.1ppm
18272.11 GHz - 2.20 GHz200.00 mW30M0F9W0.1ppm
19272.11 GHz - 2.20 GHz200.00 mW40M0F9W0.1ppm
Confidentiality
Long Term
Grant Notes
The RF power is rated power. This transmitter must only be operated in the grantees RBS systems.
