TCLEPICPROJECTION KEYBOARD

EPIC User Guide • Copyright: All rights reserved by Celluon. All page contents are properties of Celluon. • Celluon, evoMouse®,Magic Cube® are trademarks or registered trademark of Celluon. All other products are trademarks or registered trademarks of the irrespective c ompanies. • Please refer to host device instruction manual for Bluetooth pairing information. Safety P r ec autions 1. Avoid exposing this product to direct sunlight for extended periods of time, and keep it away from heat sources. 2. There is a risk of malfunction if product is used in places where sudden or extreme temperature changes occur. 3. Applying excessive force or impact to this product may result in product damage, and will void warranty. 4. To ensure safety and prevent damage, use only the dedicated Micro-USB to USB cable supplied with this product. 5. Never attempt to disassemble or service this product yourself. Doing so can result in electrical shock and void warranty. 6. This is a Class I laser product. For your safety, please do not stare directly into the laser source. Doing so could damage your eyes. 7. Avoid placing any object within the space between the main unit and the laser projection keyboard layout. 8. Please do not use this product on uneven or irregular surfaces. Place the product on a flat surface. Avoid table or surface that is reflective, such as glass or mirror. Caution Use of control or adjustments or performances of procedures other than those specified herein may result in hazardous radiation exposure. FCC Compliance Information This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference to another device. 2. This device must accept any interference received, including interference that may cause undesired operation. 2 3 FCC Class N otic e This equipment has been tested and found to comply within the limits for a Class B digital device, pursuant to Part15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential environment. This equipment generates, uses ,and radiates radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur with special installation. If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase separation between the equipment and receiver. - Connect the equipment to an outlet on a circuit different from which the receiver is connected. - Consult the dealer or an experienced radio/TV technician. FCC Warning This equipment generates and uses radio frequency energy. If this equipment is changed or modified in any way except for modifications approved in this manual, it may cause harmful interference. Any unauthorized changes or modifications to this equipment could void the user’s authority to operate this device. Industry Canada S ta t emen t This device complies with Industry Canada license- exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device. 4 5 RF Exposure Information The antenna used for this transmitter must be installed to provide a separation distance of at least 20cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. ❏ C er tifica tion ❏ Caution: 1 . Battery may explode if replaced with an incompatible battery. Dispose the used batteries according to the instructions.“This transmi tter must not be co-located or operated in conjunction with any other antenna or transmitter.” 2. Antenna shall be mounted in such a manner to minimize the potential for human contact during normal operation. The antenna should not be touched during operation to avoid the possibility of exceeding the FCC radio frequency exposure limit. 6 7 ❏ Environmentally Friendly Disposal and Rec ycling To protect the environment, dispose of this product separately from household waste once it has reached its end of life, or take it to your local electronic waste disposal center. Built-in Battery Rechargeable Lithium-ion Polymer Battery: Battery Operating Time: Approx. 120 minutes (with continuous use) Capacity: 660 mAh (Max) @ 3.7V Charging the Battery: Use supplied USB cable to begin charging the battery. When charging is complete, battery status LED turns green. Charging Time: Approx. 180 minutes Note Charging time increases if product is used while charging. 8 9 C autions 1. For Safety reasons, be sure to use only the Micro USB to USB cable specified for this product. 2. Make sure to fully charge the battery before using the product for the first time. 3. Battery charging times may vary slightly depending on the ambient temperature. 4. The battery may not be charged to 100 percent of its rated cell capacity even when the battery status LED indicates green light. 5. Using or storing the battery in high temperature, humidity and pressure environments may cause the battery to explode. 6. Since the battery is a consumable item, its storage C on t en ts 1. Product Features ........................................................... 12 2. Package Contents .. .. .................................................... 12 3. How EPIC Works .......................................................... 13 4. Identifying Parts ................................. .............. 15 5. Connecting EPIC ...................... ........................... 18 6. Making Adjustments ..........................................…

Text truncated - open the document above for the full version.

Ace High-End Tower 1101 235-2, Guro-Dong, Guro- Gu, Seoul, Korea, 152-740 Tel No : +82-2-6220-3886 Fax No : +82-2-6220-3899 ATTESTATION STATEMENT In re : Celluon, Inc. FCC ID : TCLEPIC Date : 2013-04-24 15.247(a)(1) The hopping sequence is random. Each hopping channels is used equally on the average. The receiver input bandwidth matches the bandwidth of the transmitted signal. The receiver has the ability to shift frequencies in synchronization with the transmitted signals. Example of a 79 hopping sequence in data mode: 40, 21, 44, 23, 42, 53, 46, 55, 48, 33, 52, 35, 50, 65, 54, 67, 56, 37, 60, 39, 58, 69, 62, 71, 64, 25, 68, 27, 66, 57, 70, 59, 72, 29, 76, 31, 74, 61, 78, 63, 01, 41, 05, 43, 03, 73, 07, 75, 09, 45, 13, 47, 11, 77, 15, 00, 64, 49, 66, 53, 68, 02, 70, 06, 01, 51, 03, 55, 05, 04 15.247(g) The system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information). 15.247(h) The system does not coordinate its channel selection/hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters. Sincerely, PARK CHUN BAE / Team Manager Celluon, Inc.

Rev 11/20/07 Ace High-End Tower 1101 235-2, Guro-Dong, Guro-Gu, Seoul, Korea, 152-740 Tel No : +82-2-6220-3886 Fax No : +82-2-6220-3899 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: TCLEPIC Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram Schematics Parts List Operational description Block Diagram(Epic).pdf Schematics(Epic).pdf Part List(Epic).pdf Operational Description(Epic).pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Pursuant to DA04-1705 June 15, 2004 of the Commission’s public notice, we also request temporary confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name - - Sincerely, PARK CHUN BAE / Team Manager Celluon, Inc.

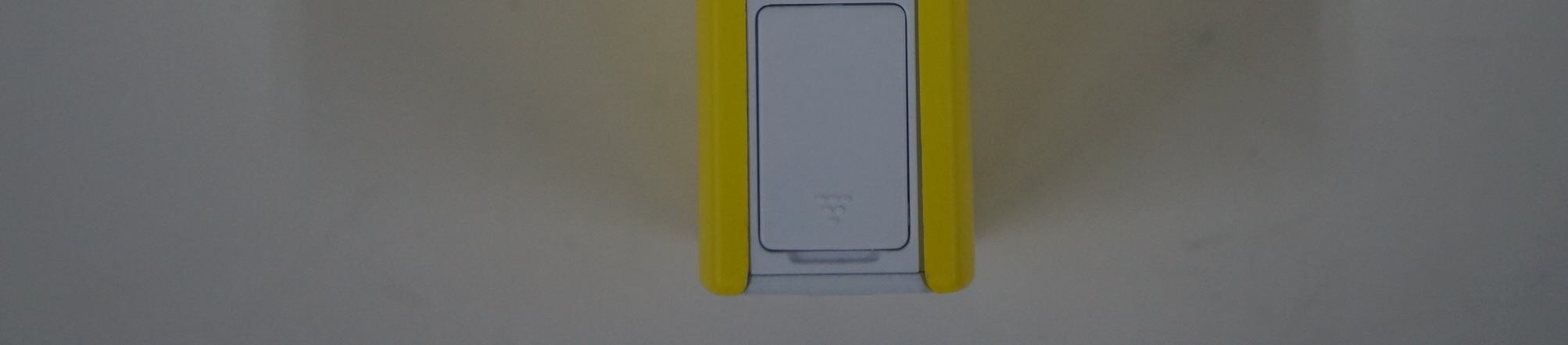

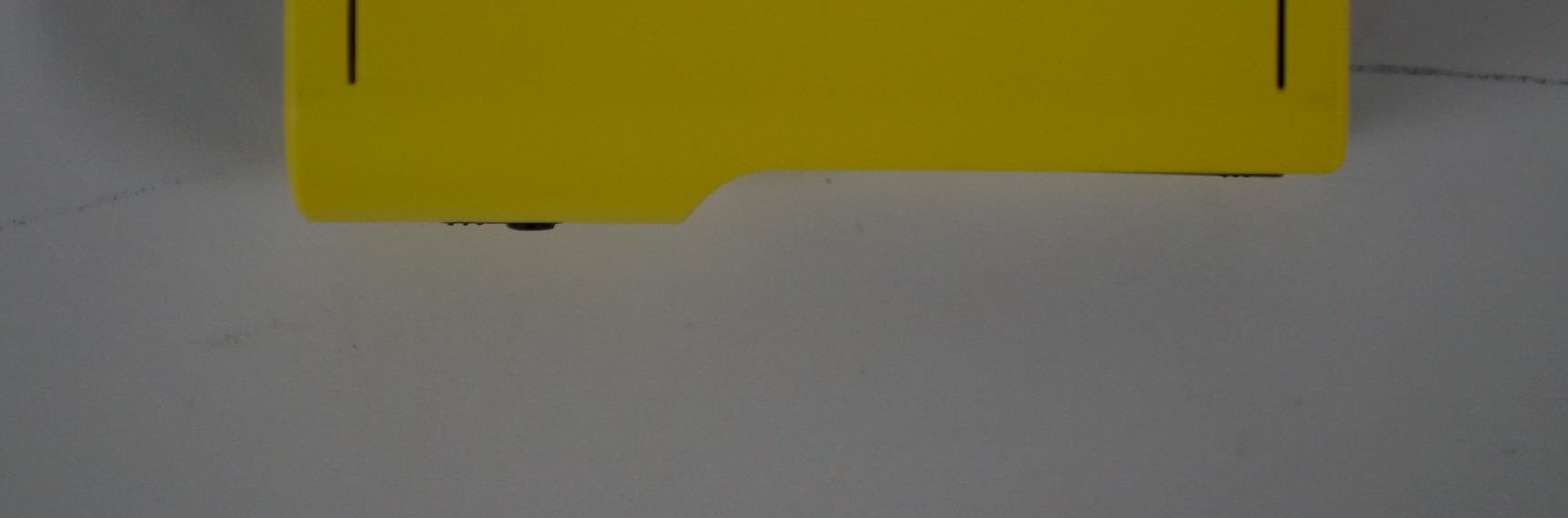

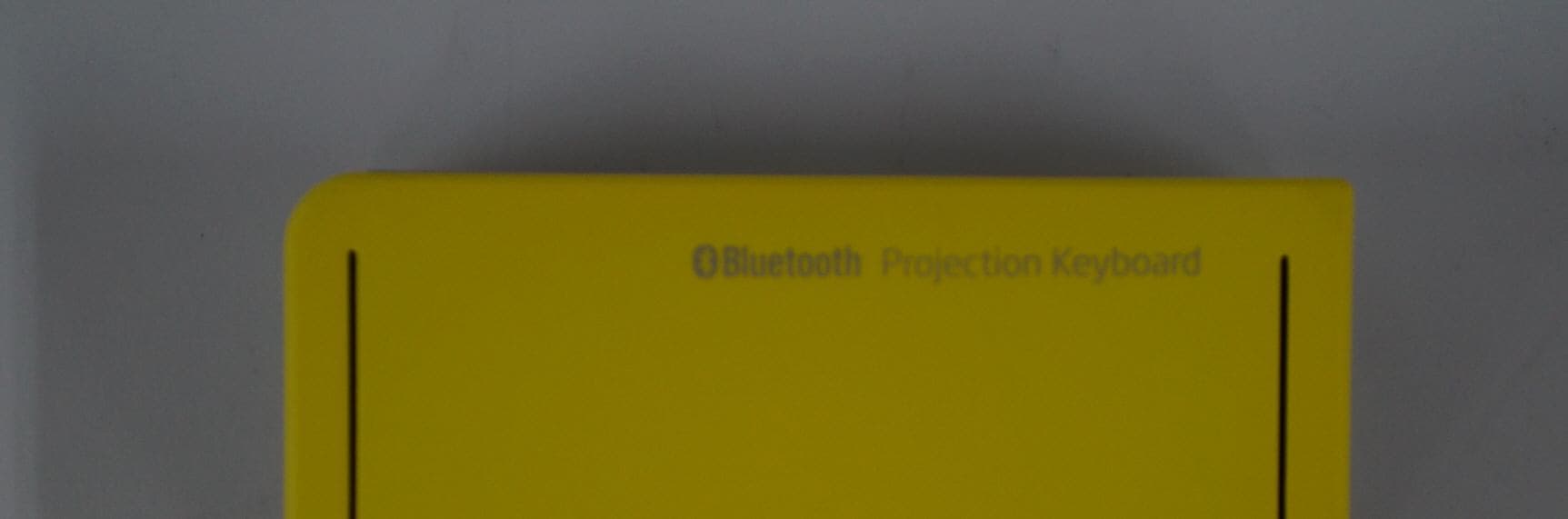

CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com EUT External Photographs CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com

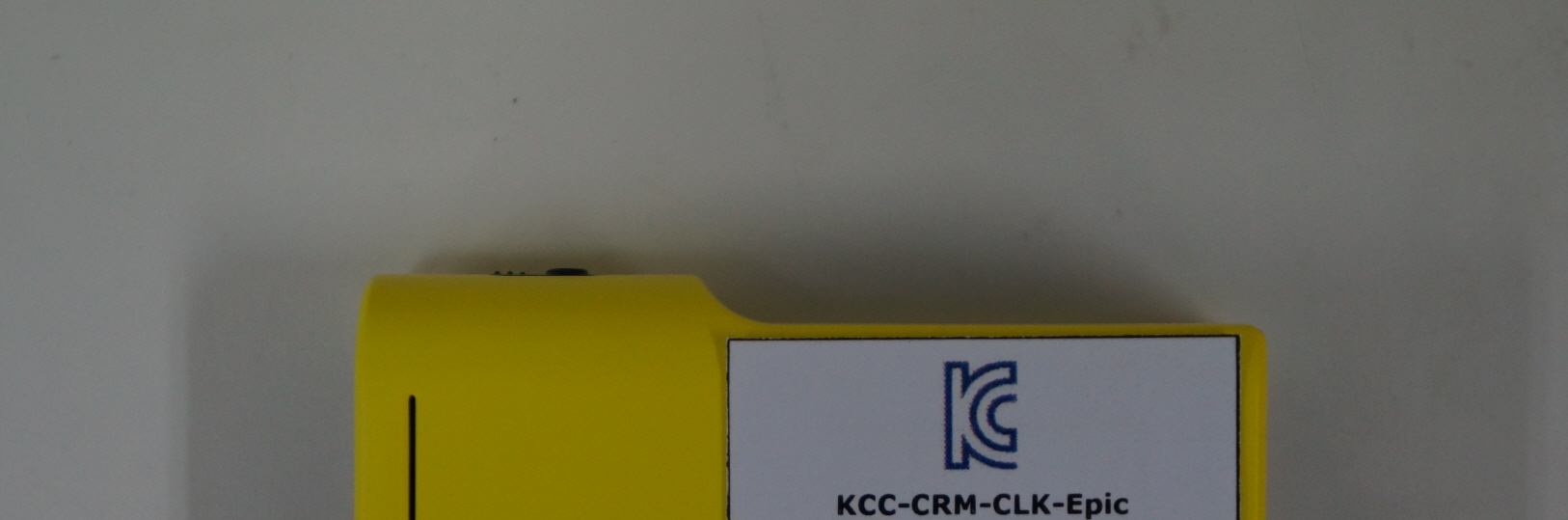

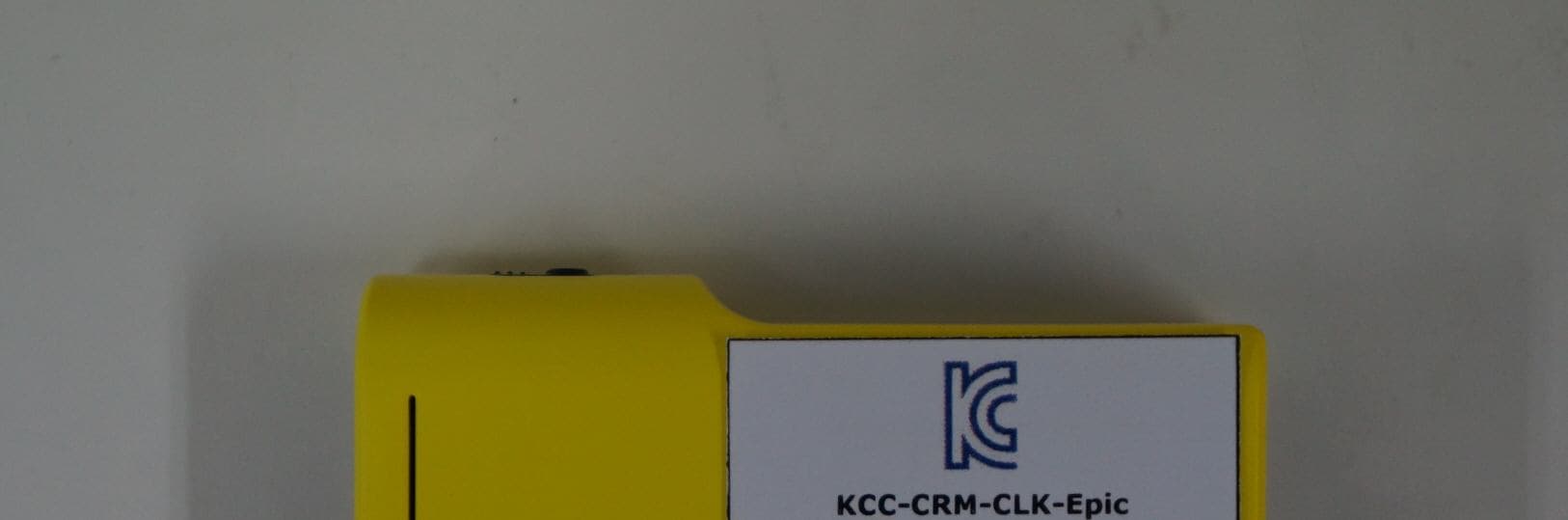

CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Label Photographs

CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com EUT Internal Photographs CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Antenna

CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Page 1 of 2 RF EXPOSURE EVALUATION Applicant : Celluon, Inc. Applicant Address : Ace High-End Tower 1101 235-2, Guro- Dong, Guro-Gu, Seoul, Korea, 152-740 Kind of Product : Projection Keyboard Equipment model name : Epic & Epic Plus Antenna type : PCB antenna Gain 1.87 dBi Frequency Range : 2400 – 2483.5 MHz Peak Output Power : –5.357 dBm Number of channels : 79 CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Page 2 of 2 ** MPE Calculations ** No Evaluation Required if power is below this threshold. (60/f(GHz) mW) Frequency (GHz) mW 2.480 24.19 The MPE calculation for this exposure is shown below. EIRP = P + G Where, P = Conducted output power (dBm) G = Power gain of the antenna (dBi) Mode Output Power(dBm) Antenna gain (dBi) EIRP (dBm) EIRP (mW) GFSK -5.357 1.87 -3.487 0.448 Conclusion: No SAR evaluation required since Transmitter EIRP is below FCC threshold.

CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Test Report No.: CTK-2013-00672 Date: 2013-04-24 Page 1 of 27 This Report shall not be reproduced except in full without the written approval of CTK Form No.: CTK-RF-EF-Part15(Rev.13.1) EMC TEST REPORT For FCC Test Report No. : CTK-2013-00672 Date of Issue : 2013-04-24 Kind of Product : Projection Keyboard Basic Model/Type No. : Epic Variant Model/Type No. : Epic Plus Applicant : Celluon, Inc. Applicant Address : Ace High-End Tower 1101 235-2, Guro-Dong, Guro-Gu, Seoul, Korea, 152-740 Manufacturer : Celluon, Inc. Manufacturer Address : Ace High-End Tower 1101 235-2, Guro-Dong, Guro-Gu, Seoul, Korea, 152-740 Factory : 1. GEONAS CO., LTD. 2. Heilongjiang Celluon Electornic Product Developing Co., Ltd. Factory Address : 1. 693-24 Geumjeong-Dong, Gunpo-si, Gyeonggi-Do, Korea 2. No.99, Bamiantong Street, Jiangnan Develop District, Dongan District, Mudanjiang City, Heilongjiang Province China Contact Person : PARK CHUN BAE Telephone : +82-2-6220-3886 Received Date : 2013-03-08 Test period : Start : 2013-03-15 End : 2013-03-25 Test Results : In Compliance Not in Compliance The test results presented in this report relate only to the object tested. Tested by Reviewed by Lee Eun-Won EMC Test Engineer James Hong EMC Technical Manager Date: 2013-04-24 Date: 2013-04-24 CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Test Report No.: CTK-2013-00672 Date: 2013-04-24 Page 2 of 27 This Report shall not be reproduced except in full without the written approval of CTK Form No.: CTK-RF-EF-Part15(Rev.13.1) REPORT REVISION HISTORY Date Revision Page No 2013-04-24 Issued (CTK-2013-00672) All This report shall not be reproduced except in full, without the written approval of CTK Co., Ltd. This document may be altered or revised by CTK Co., Ltd. personnel only, and shall be noted in the revision section of the document. Any alteration of this document not carried out by CTK Co., Ltd. will constitute fraud and shall nullify the document. CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Test Report No.: CTK-2013-00672 Date: 2013-04-24 Page 3 of 27 This Report shall not be reproduced except in full without the written approval of CTK Form No.: CTK-RF-EF-Part15(Rev.13.1) TABLE OF CONTENTS REPORT REVISION HISTORY...........................................................................................2 1.0 General Product Description................................................................................4 1.1 Model Differences..............................................................................................4 1.2 Device Modifications...........................................................................................4 1.3 EUT Configuration(s)..........................................................................................5 1.4 Test Software....................................................................................................5 1.5 EUT Operating Mode(s)......................................................................................5 1.6 Configuration....................................................................................................6 1.7 Calibration Details of Equipment Used for Measurement.........................................7 1.8 Test Facility.......................................................................................................7 1.9 Measurement Procedure.....................................................................................7 1.10 Laboratory Accreditations and Listings..................................................................8 1.11 Measurement Uncertainty...................................................................................8 2.0 EMC Test Regulations/Standards..........................................................................9 3.0 Results of Individual Test..................................................................................10 3.1 Conducted Voltage Emissions of Mains ports.......................................................10 3.2 Radiated Electric Field Emissions (Below 1 ㎓).....................................................15 3.3 Radiated Electric Field Emissions (Above 1 ㎓)....................................................17 APPENDIX A - Test Setup Photos and Configuration..........................................................18 Conducted Voltage Emissions of Mains Ports..............................................................19 Radiated Electric Field Emissions (Below 1 ㎓)...........................................................20 Radiated Electric Field Emissions (Above 1 ㎓)...........................................................21 APPENDIX B – EUT Photographs....................................................................................22 EUT External Photographs.......................................................................................23 EUT Internal Photographs.......................................................................................24 PCB......................................................................................................................25 Label and Location.................................................................................................27 CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Test Report No.: CTK-2013-00672 Date: 2013-04-24 Page 4 of 27 This Report shall not be reproduced except in full without the written approval of CTK Form No.: CTK-RF-EF-Part15(Rev.13.1) 1.0 General Product Description No. ITEM APPLICATION 1 Kind of Product Projection Keyboard 2 Basic Model/Type No. Epic 3 Varia…

Text truncated - open the document above for the full version.

UCI CENTER FOR RF DESI GN AND CHARACTERIZATION Report for Broadcom By Alfred Grau UCI CENTER FOR RF DESI GN AND CHARACTERIZATION Tested Products.• Antenna 1: integrated antenna. • Frequency = 2.402GHz. • Frequency = 2.441GHz. • Frequency = 2.480GHz. UCI CENTER FOR RF DESI GN AND CHARACTERIZATION Coordinate System Reference: Antenna 1. Top view Side view Z Y X Front view Front viewRear view SMA connector X Z Y UCI CENTER FOR RF DESI GN AND CHARACTERIZATION Radiation pattern: Antenna 1. XZ Plane at f = 2.402GHz Co-cross polarization field (dBi) Solid line: vertical polarizationDash line: horizontal polarization Total field (dBi) 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 -15 -20 -20 -25 -25 -30 -30 -35 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 UCI CENTER FOR RF DESI GN AND CHARACTERIZATION Radiation pattern: Antenna 1. YZ Plane at f = 2.402GHz Co-cross polarization field (dBi) Solid line: vertical polarizationDash line: horizontal polarization Total field (dBi) 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 -15 -20 -20 -25 -25 -30 -30 -35 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 UCI CENTER FOR RF DESI GN AND CHARACTERIZATION Radiation pattern: Antenna 1. XY Plane at f = 2.402GHz Co-cross polarization field (dBi) Solid line: vertical polarizationDash line: horizontal polarization Total field (dBi) 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 -15 -20 -20 -25 -25 -30 -30 -35 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 UCI CENTER FOR RF DESI GN AND CHARACTERIZATION Radiation pattern: Antenna 1. XZ Plane at f = 2.441GHz Co-cross polarization field (dBi) Solid line: vertical polarizationDash line: horizontal polarization Total field (dBi) 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 -15 -20 -20 -25 -25 -30 -30 -35 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 UCI CENTER FOR RF DESI GN AND CHARACTERIZATION Radiation pattern: Antenna 1. YZ Plane at f = 2.441GHz Co-cross polarization field (dBi) Solid line: vertical polarizationDash line: horizontal polarization Total field (dBi) 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 -15 -20 -20 -25 -25 -30 -30 -35 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 UCI CENTER FOR RF DESI GN AND CHARACTERIZATION Radiation pattern: Antenna 1. XY Plane at f = 2.441GHz Co-cross polarization field (dBi) Solid line: vertical polarizationDash line: horizontal polarization Total field (dBi) 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 -15 -20 -20 -25 -25 -30 -30 -35 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 UCI CENTER FOR RF DESI GN AND CHARACTERIZATION Radiation pattern: Antenna 1. XZ Plane at f = 2.480GHz Co-cross polarization field (dBi) Solid line: vertical polarizationDash line: horizontal polarization Total field (dBi) 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 -15 -20 -20 -25 -25 -30 -30 -35 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 UCI CENTER FOR RF DESI GN AND CHARACTERIZATION Radiation pattern: Antenna 1. YZ Plane at f = 2.480GHz Co-cross polarization field (dBi) Solid line: vertical polarizationDash line: horizontal polarization Total field (dBi) 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 -15 -20 -20 -25 -25 -30 -30 -35 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 UCI CENTER FOR RF DESI GN AND CHARACTERIZATION Radiation pattern: Antenna 1. XY Plane at f = 2.480GHz Co-cross polarization field (dBi) Solid line: vertical polarizationDash line: horizontal polarization Total field (dBi) 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 -15 -20 -20 -25 -25 -30 -30 -35 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 UCI CENTER FOR RF DESI GN AND CHARACTERIZATION Return Loss: Antenna 1 BW(-10dB) ¡ 13.48% 2 2.2 2.4 2.6 2.8 3 Frequency (GHz) -16-14-12-10 -8-6-4-2 R e t u r n L o s s ( d B ) UCI CENTER FOR RF DESI GN AND CHARACTERIZATION Measurements summary Frequency (GHz) Plane Return Loss (dB) Polarization Gain max. (dBi) θ for Gain max. φ for Gain max. Antenna 1 2.402 XZ -10.90 Vertical -7.8 290 2.402 XZ -10.90 Horizontal 0.786 182 2.402 YZ -10.90 Vertical 1.21 226 2.402 YZ -10.90 Horizontal -7.75 10 2.402 XY -10.90 Vertical -15.4 20 2.402 XY -10.90 Horizontal 0.93 180 2.441 XZ -12.20 Vertical -7.36 318 2.441 XZ -12.20 Horizontal 1.32 180 2.441 YZ -12.20 Vertical 0.981 204 2.441 YZ -12.20 Horizontal -8.23 24 2.441 XY -12.20 Vertical -14.1 -14 2.441 XY -12.20 Horizontal 1.74 180 2.48 XZ -13.80 Vertical -7.95 312 2.48 XZ -13.80 Horizontal 1.81 186 2.48 YZ -13.80 Vertical 0.204 214 2.48 YZ -13.80 Horizontal -8.38 8 2.48 XY -13.80 Vertical -15.8 12 2.48 XY -13.80 Horizontal 1.87 180

CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Test Report No.: CTK-2013-00670 Date: 2013-04-28 Page 1 of 40 This Report shall not be reproduced except in full without the written approval of CTK Form No.: CTK-RF-EF-Part15 SubpartC(Rev.2) TEST REPORT FCC Standards : FCC 47CFR part 15 subpart C Industry Canada Standards :RSS-210 Issue 8 & RSS-GEN Issue 3 Test Report No. : CTK-2013-00670 Date of Issue : 2013-04-28 FCC ID : TCLEPIC Model/Type No. : Epic Variant Model/Type No. : Epic Plus Kind of Product : Projection Keyboard Applicant : Celluon, Inc. Applicant Address : Ace High-End Tower 1101 235-2, Guro-Dong, Guro-Gu, Seoul, Korea, 152-740 Manufacturer : Celluon, Inc. Manufacturer Address : Ace High-End Tower 1101 235-2, Guro-Dong, Guro-Gu, Seoul, Korea, 152-740 Factory : 1. GEONAS CO., LTD. 2. Heilongjiang Celluon Electornic Product Developing Co., Ltd. Factory Address : 1. 693-24 Geumjeong-Dong, Gunpo-si, Gyeonggi-Do, Korea 2. No.99, Bamiantong Street, Jiangnan Develop District, Dongan District, Mudanjiang City, Heilongjiang Province China Contact Person : PARK CHUN BAE / Team Manager Telephone : +82-2-6220-3886 Received Date : 2013-04-05 Test period : Start : 2013-04-10 End : 2013-04-28 The test results presented in this report relate only to the object tested. Tested by Reviewed by Won-Jae, Hwang Test Engineer Young-Joon, Park Technical Manager Date: 2013-04-28 Date: 2013-04-28 CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Test Report No.: CTK-2013-00670 Date: 2013-04-28 Page 2 of 40 This Report shall not be reproduced except in full without the written approval of CTK Form No.: CTK-RF-EF-Part15 SubpartC(Rev.2) REPORT REVISION HISTORY Date Revision Page No 2013-04-28 Issued (CTK-2013-00670) All This report shall not be reproduced except in full, without the written approval of CTK Co., Ltd. This document may be altered or revised by CTK Co., Ltd. personnel only, and shall be noted in the revision section of the document. Any alteration of this document not carried out by CTK Co., Ltd. will constitute fraud and shall nullify the document. CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Test Report No.: CTK-2013-00670 Date: 2013-04-28 Page 3 of 40 This Report shall not be reproduced except in full without the written approval of CTK Form No.: CTK-RF-EF-Part15 SubpartC(Rev.2) TABLE OF CONTENTS REPORT REVISION HISTORY...........................................................................................2 1.0 General Product Description................................................................................4 1.1 Tested Frequency...............................................................................................4 1.2 Tested Mode......................................................................................................4 1.3 Device Modifications...........................................................................................5 1.4 Peripheral Devices.............................................................................................5 1.5 Calibration Details of Equipment Used for Measurement.........................................5 1.6 Test Facility.......................................................................................................5 1.7 Laboratory Accreditations and Listings..................................................................6 2.0 Summary of tests..............................................................................................7 2.1 Transmitter Requirements...................................................................................8 2.1.1 Carrier Frequency Separation........................................................................8 2.1.2 Number of Hopping Frequencies..................................................................10 2.1.4 Time of Occupancy (Dwell Time)..................................................................15 2.1.5 Maximum peak Conducted Output Power......................................................19 2.1.6 Band-edge................................................................................................22 2.1.7 Field Strength of Emissions.........................................................................28 2.1.8 AC Conducted Emissions.............................................................................37 APPENDIX A – Test Equipment Used For Tests.................................................................40 CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Test Report No.: CTK-2013-00670 Date: 2013-04-28 Page 4 of 40 This Report shall not be reproduced except in full without the written approval of CTK Form No.: CTK-RF-EF-Part15 SubpartC(Rev.2) 1.0 General Product Description Basic Model/Type No. Epic Variant Model/Type No. Epic Plus Serial number Prototype EUT condition Pre-production, not damaged Antenna type PCB antenna Gain 1.87 dBi Frequency Range 2402 MHz - 2480 MHz RF power -5.357 dBm Peak Conducted Number of channels 79 Channel Spacing 1 MHz Channel Access Protocol Frequency Hopping Type of Modulation GFSK(1 Mbps) Power Source DC 3.7 V (Lithium Ion Rechargeable Battery) 1.1 Tested Frequency LOW MID HIGH Frequency (MHz) 2402 2441 2480 1.2 Tested Mode - Pre-Scan has been conducted to determine the worst-case mode from all possible combinations between available modulations, data rates and antenna ports (if EUT with antenna diversity architecture). - Following channel(s) was (were) selected for the final test as listed below. Tested Ch Modulation Technology Modulation Type Packet Type Low, Mid, High FHSS GFSK DH 5 CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-d…

Text truncated - open the document above for the full version.

CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Test Setup Photos and Configuration Radiated Electric Field Emissions CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Conducted Voltage Emissions of Mains Ports
