TCLPICOPROPico projector

1. Safety Precautions This product is not waterproof – avoid using it near water or wet places. There is a risk of malfunction if product is used in places where sudden or extreme temperature changes occur. Applying excessive force or impact to this product may result in product damage, and will void warranty. Never attempt to disassemble or service this product yourself. Doing so can result in electrical shock and void warranty. This is a Class 3R Laser product. For your safety, do not stare directly into the laser source. Doing so could damage your eyes. FCC Compliance Information This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference to another device. 2. This device must accept any interference received, including interference that may cause undesired operation. FCC Class Notice This equipment has been tested and found to comply within the limits for a Class B digital device, pursuant to Part15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential environment. This equipment generates, uses, and radiates radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur with special installation. If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to correct the interference by one of the following measures: ■ Reorient or relocate the receiving antenna. ■ Increase separation between the equipment and receiver. ■ Connect the equipment to an outlet on a circuit different from which the receiver is connected. ■ Consult the dealer or an experienced radio/TV technician. FCC Caution Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC RF Radiation Exposure Statement: This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Industry Canada Statement This device complies with Industry Canada license- exempt RSS standard(s). Operation is subject to the following two conditions: 1. This device may not cause interference. 2. This device must accept any interference, including interference that may cause undesired operation of the device. CE Caution Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions. IEC-60825-1 Caution Use of control or adjustments or performances of procedures other than those specified here in may result in hazardous radiation exposure. 8. Making Adjustments Volume Adjustment Volume is controlled directly from PicoPro. Locate touch volume control area on top of device. Adjust the volume by lightly touching on the + or – pattern. Speaker / Earphone Usage Please connect a speaker or an earphone to the 3.5mm audio out jack. Laser Alignment When the images seem blurry and/or the colors appear skewed, please visit Celluon website at www.celluon.com/support.php 5. Product Features PicoPro is a laser-based pico projector that fits in your pocket for a superior portability. It allows you to project contents in your mobile devices onto any surface via HDMI connection or Miracast screen mirroring capability. 6. Identifying Parts Touch-sensitive Volume Up Touch-sensitive Volume Down Backlit Battery Indicator Light Speaker MHL/HDMI cable input 3.5mm Audio Out Battery Status Indicator CHARGE – Micro USB port for charging Power Button Mode Switch Button Reset Button FCC ID : TCLPICOPRO CE1177 KC : MSIP-CMM-CLK-PICOPRO IC : 10211A-PICOPRO Model : PicoPro DC : 5V 2A Celluon, Inc. Made in Korea 4. Package Contents PicoProUser Manual Power Adapter HDMI/MHL cable Samsung microUSB AdapterTripodPouch The perceived brightness of laser projectors with a given ANSI brightness is 50%+ higher than that of the LED based projectors Brightness 150 x 73 x 13.4 mm (6 x 3 x 0.5 inches) 181g ( 0.4lbs ) Wireless Connection: 2+ hrs Wired Connection: up to 3 hrs Size Measurement Weight The operating time may vary depending on the environment of useBattery Operation Time Download of DLNA streaming application required for DLNA connectioniOS ItemSpec.Remark Product Lifetime Focus Max. Image (Screen) Size Sequential Contrast Ratio Display Performance Resolution Aspect ratio Speaker Electrical Characteristics Audio Interface Wireless ClassificationLaser Safety Operating TemperatureEnvironmental Condition Wired Connection Android/Windows OS iOS Compatibility Wireless Connection Android/Windows OS Throw Ratio Color Depth 30 ANSI lumens DLNA Laser 10,000 hours Infinite Focus (always in focus)No focus wheel required 250 inchesIn optimal lighting conditions 80,000 : 1 1920 x 720pHD resolution 16:9 1.0 W 3.5mm ear phone jack Dual (2.4G, 5G) IEC Class 2, Edition 3Consumer safe device 0°C - 35°C Micro HDMI/MHL cable Micro HDMIAdditional Apple Lightning Digital AV Adapter required MiracastScreen Mirroring 1.1Big screen at a short distance 1.67M colors (R/G/B 24bit) 11. Specifications No signal when a device is connected via HDMI cablePlease make sure the cables are inserted into the correct port. Please note that different devices require different gender/adapter to convert to micro HDMI compatible. Mobile device cannot find Celluon PicoPro during Miracast connection search Please make sure PicoPro is on Miracast mode. This may also be due to a particularly heavy wireless traffic. If this is the ca…

Text truncated - open the document above for the full version.

Software Security Declaration Model: TCLPICOPRO This device is fully compliant with the requirement of KDB 594280 D02 U‐NII Device Security v01r01. SOFTWARE SECURITY DESCRIPTION General Description 1. Describe how anysoftware/firmware update will be obtained, downloaded, and installed. Celluon introduce new SW that has secured sign through Celluon website. Celluon product can only download the code and install. 2. Describe all the radio frequency parameters that are modified by any software/firmware without any hardware changes. Are these parameters in some way limited, such that, it will not exceed the authorized parameters? All the radio frequency parameters are Transmit power, operating channel, modulation type but those authorized parameters are fixed. 3. Are there any authentication protocols in place to ensure that the source of the software/firmware is legitimate? If so, describe in details; if not, explain how the software is secured from modification. Celluon SW in our product runs a validation during the SW upgrade process to ensure the SW’s legitimate, unaltered, and downloaded correctly by proprietary load validation. 4. Are there any verification protocols in place to ensure that the software/firmware is legitimate? If so, describe in details. Celluon SW contains MD5 signature and contains platform type imbedded in header. 5. Describe, if any, encryption methods used. Celluon SWs are not encrypted but are compressed. 6. For a device that can be configured as a master and client (with active or passive scanning), explain how the device ensures compliance for each mode? In particular if the device acts as master in some band of operation and client in another; how is compliance ensured in each band of operation? The device is only a slaver. Third Party Access Control 1. How are unauthorizedsoftware/ firmware changes prevented? The SW has secure signed code that only released by Celluon. Any changes check the secure signed code. SOFTWARE SECURITY DESCRIPTION Third Party Access Control 2. Is it possible for third parties to load device drivers that could modify the RF parameters, country of operation or other parameters which impact device compliance? If so, describe procedures to ensure that only approved drivers are loaded. No, the products are not allow any changes by any user. It is a proprietary system. The memory maps, SW algorithms are not published. 3. Explain if any third parties have the capability to operate a US sold device on any other regulatory domain, frequencies, or in any manner that is in violation of the certification This is locked into the manufacturing data and cannot be changed. 4. What prevents third parties from loading non‐US versions of the software/firmware on the device? The configuration for US is located in secure area, so cannot be changed any loadings non‐US versions of SW/ firmware. 5. For modular devices, describe how authentication is achieved when used with different hosts. This is not a modular device. User Configuration Guide 1. To whom is the UI accessible? (Professional installer, end user, other.) The UI is not accessible except Celluon. a) What parameters are viewable to the professional installer/end‐user? All parameters are hidden. b) What parameters are accessible or modifiable to the professional installer? Not support parameters access and modify. i) Are the parameters insome way limited, so that the installers will not enter parameters that exceed those authorized? Not support parameters access and modify. ii) What controls exist thatthe user cannot operate the device outside its authorization in the U.S.? The radios are configured at manufacturing to be US only and the configuration cannot be changed by any SW update for the product. c) What configuration options are available to the end‐user? Not support any configuration option. i) Are the parameters insome way limited, so that the installers will not enter parameters that exceed those authorized? Not support parameters access and modify. ii) What controls exist thatthe user cannot operate the device outside its authorization in the U.S.? The radios are configured at manufacturing to be US only and the configuration cannot be changed by any SW update for the product. d) Is the country code factory set? Can it be changed in the UI? Yes, the country code is factory set. It does not support the UI menu. SOFTWARE SECURITY DESCRIPTION User Configuration Guide i) If so, what controls existto ensure that the device can only operate within its authorization in the U.S.? The radios are configured at manufacturing to be US only and the configuration cannot be changed by any SW update for the product. e) What are the default parameters when the device is restarted? The product goes to a default(approved) Tx channel and power level based on factory country setting. 2. Can the radio be configured in bridge or mesh mode? If yes, an attestation may be required. Further information is available in KDB Publication 905462 D02. No, can’t configure bridge or mesh mode. 3. For a device that can be configured as a master and client (with active or passive scanning) If this is user configurable, describe what controls exist to ensure compliance. The product is a slave only.

CELLUON, INC. Ace High-END Tower 1101 235-2, Guro-Dong, Guro-Gu, Seoul, Korea, 152-740 Date: February 04, 2015 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Timco Engineering, Inc. Certification Division 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 USA To whom it may concern: I, the undersigned, hereby authorize Technical Manager Issac Jin of MOVON CORPORATION and here after referred to as MOVON CORPORATION , to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these m atters. Any and all acts carried out by Technical Manager Issac Jin of MOVON CORPORATION on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing MOVON CORPORATION as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; CELLUON, INC. Ace High-END Tower 1101 235-2, Guro-Dong, Guro-Gu, Seoul, Korea, 152-740 e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Chun bae, Park / Manager CELLUON, INC. REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

CELLUON, INC. Ace High-END Tower 1101 235-2, Guro-Dong, Guro-Gu, Seoul, Korea, 152-740 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: TCLPICOPRO To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematics / Block Diagram / Operational Description / Parts List Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. 2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until 180 days External Photos / Internal Photos / Test Setup Photos / User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondence during certification review process cannot be granted as confidential documents and such information will be available for public review once the grant of equipment authorization is issued. Sincerely Yours, Chun bae, Park / Manager CELLUON, INC.

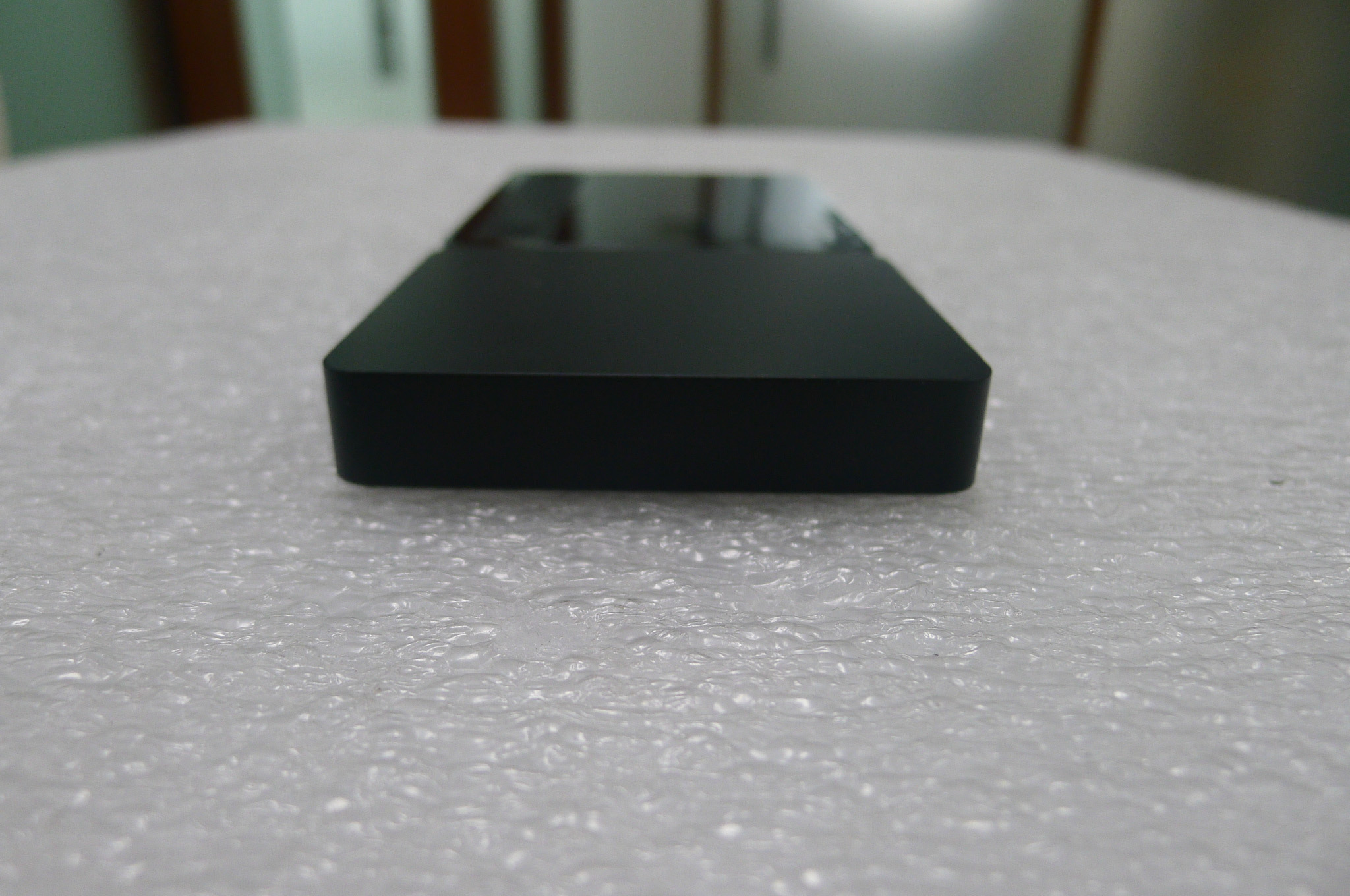

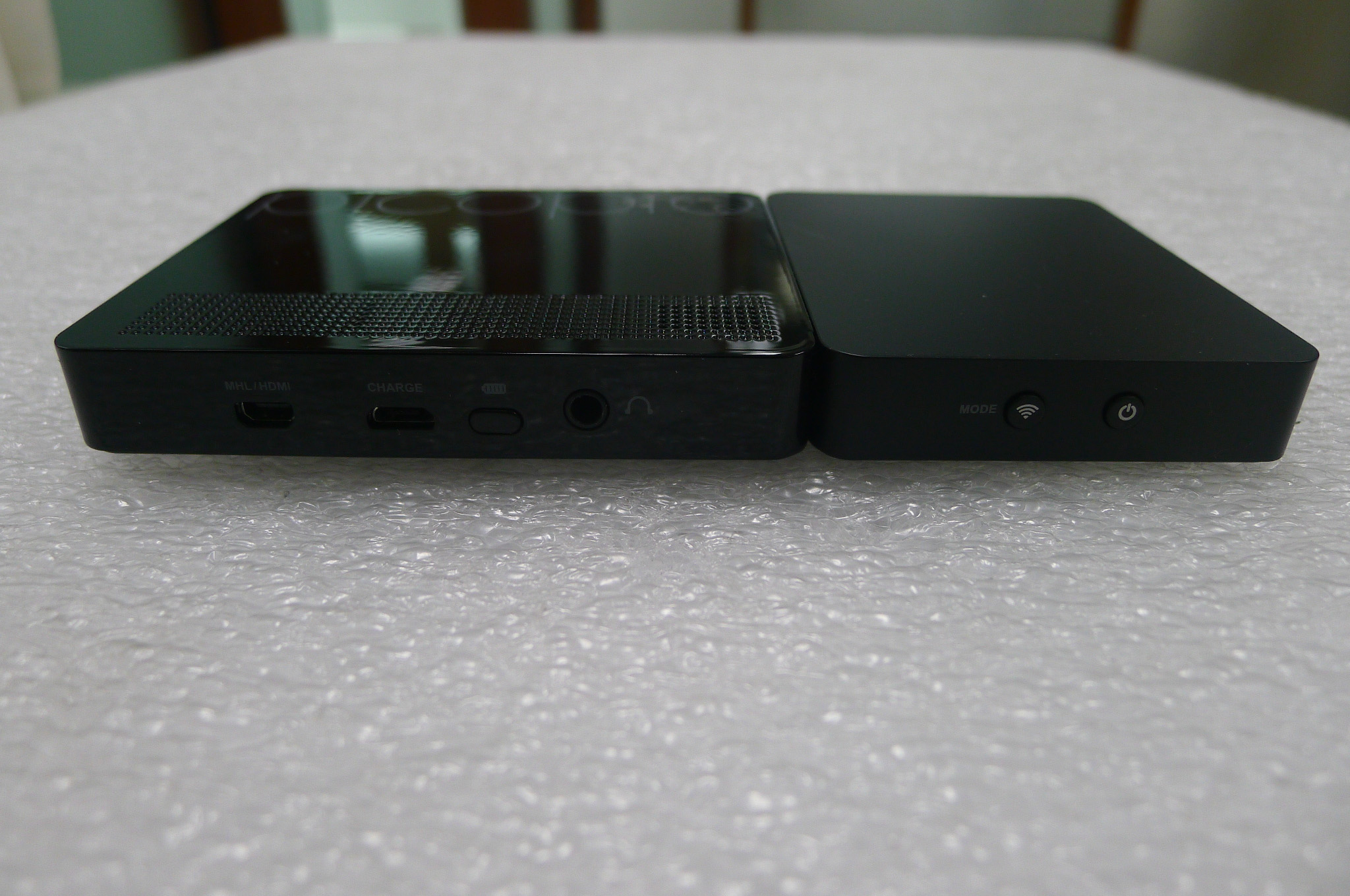

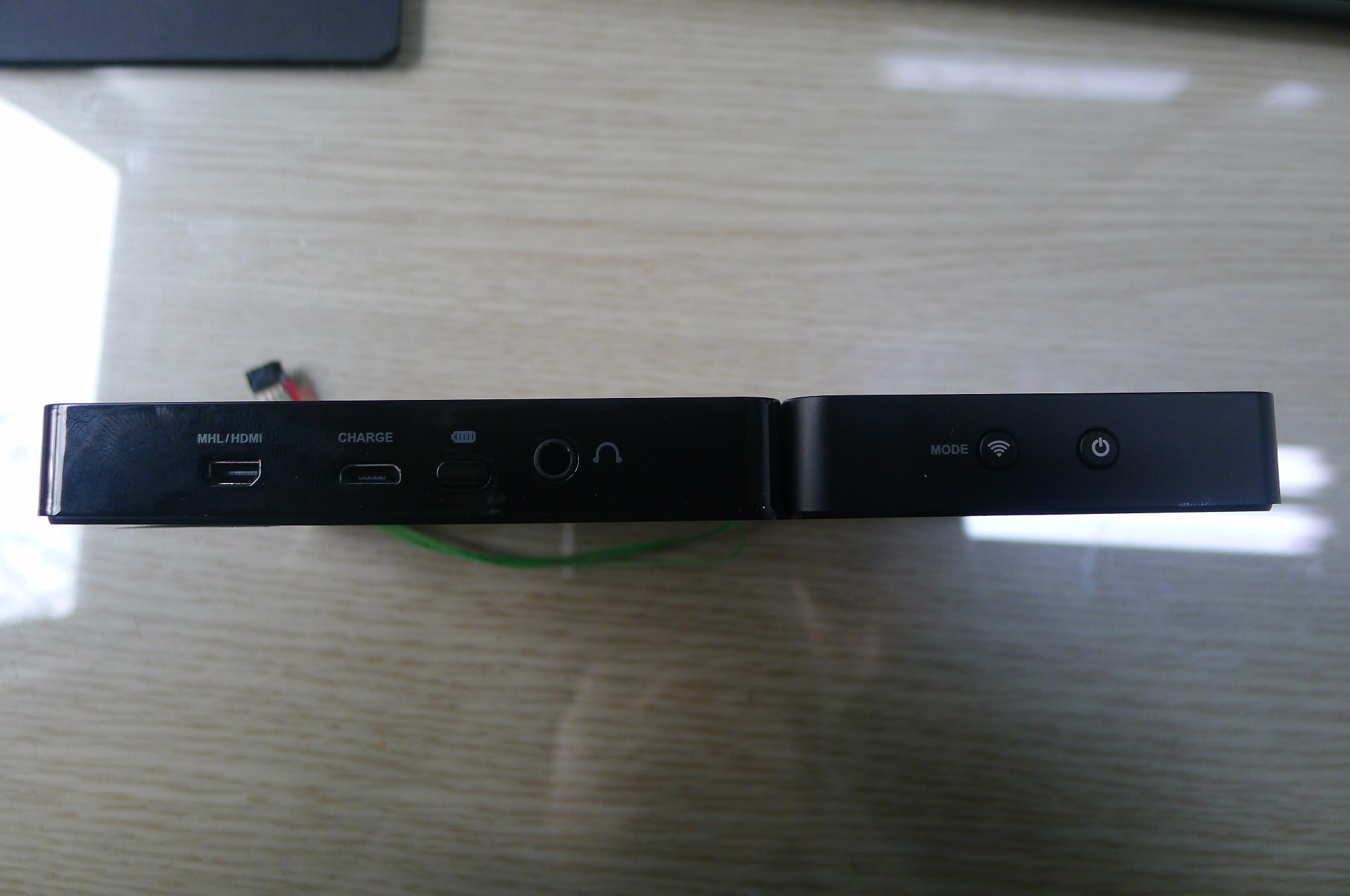

External photos of EUT Front view of EUT Rear view of EUT Side view of EUT Side view of EUT Side view of EUT Side view of EUT Side view of EUT

Label information FCC ID: TCLPICOPRO CE1177 KC: MSIP-CMM-CLK-PICOPRO IC: 10211A-PICOPRO Model: Pico Pro Input: 5V 2A Celluon, Inc. Made in Korea

Internal photos of EUT Main board (Front) Main board (Rear) WLAN module board (Front) WLAN module board (Rear) Internal photo (Front) WLAN Module – Internal PCB Antenna

Celluon_9374 Rev1.0 패턴 안테나 매칭 값 및 성능 데이터 2014. 08. 13 (주) 라디언트 2 1.Rev 1.0 패턴 안테나 매칭 값 및 성능 1-1. CH0 패턴 안테나 vswr 및 매칭 값 1-2. CH0 패턴 안테나 Gain 1-3. CH1 패턴 안테나 VSWR 및 매칭 값 1-4. CH1 패턴 안테나 Gain (주) 라디언트 3 1-1. CH0 패턴 안테나 vswr 및 매칭 값 튜닝 매칭 값 N.C 4.7nH 9pF (주) 라디언트 4 1-2. CH0 패턴 안테나 Gain 2.4GHz 대역 5GHz 대역 (주) 라디언트 5 2-1. CH1 패턴 안테나 vswr 및 매칭 값 튜닝 매칭 값 N.C N.C 9pF (주) 라디언트 6 2-2. CH1 패턴 안테나 Gain 2.4GHz 대역 5GHz 대역 45mm 17mm

MOVON CORPORATION Report Number: MOV-15-RF-I019 Page : (1) of (130) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. FCC Part 15 Subpart C §15.247 RSS-210 ISSUE No. :8 Test Report Equipment Under Test Pico projector Model Name Pico Pro Applicant CELLUON, INC. FCC ID TCLPICOPRO IC Number 10211A-PICOPRO Manufacturer CELLUON, INC. Date of Test(s) 2015. 01. 19 ~ 2015. 02. 03 Date of Issue 2015. 02. 05 In the configuration tested, the EUT complied with the standards specified above. Issue to Issue by CELLUON, INC. Ace High-End Tower 1101 235-2, Guro-Dong, Guro-Gu, Seoul, Korea, 152-740 Tel.: +82-2-6220-3886 Fax: +82-2-6220-3899 MOVON CORPORATION 498-2, Geumeo-ro, Pogok-eup, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea, 449-812 Tel.: +82-31-338-8837 Fax: +82-31-338-8847 MOVON CORPORATION Report Number: MOV-15-RF-I019 Page : (2) of (130) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. Revision history Revision Date of issue Description Revised by -- Feb. 05, 2015 Initial -- MOVON CORPORATION Report Number: MOV-15-RF-I019 Page : (3) of (130) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. Table of contents 1. GENERAL INFORMATION ............................................................................................. 5 1.1. DETAILS OF APPLICANT .................................................................................................................................... 5 1.2. SUMMARY OF TEST RESULTS ............................................................................................................................ 5 2. EUT DESCRIPTION ........................................................................................................ 6 2.1. DECLARATIONS BY THE MANUFACTURER ............................................................................................................ 6 3. MEASUREMENT EQUIPMENT ...................................................................................... 7 4. TRANSMITTER RADIATED SPURIOUS EMISSIONS AND CONDUCTED SPURIOUS EMISSIONS .................................................................................................................. 8 4.1. TEST SETUP ................................................................................................................................................... 8 4.1.1. TRANSMITTER RADIATED SPURIOUS EMISSIONS ............................................................................................... 8 4.2. LIMIT ............................................................................................................................................................. 9 4.3. TEST PROCEDURES ....................................................................................................................................... 11 4.3.1. TEST PROCEDURES FOR RADIATED SPURIOUS EMISSIONS ............................................................................... 11 4.3.2. TEST PROCEDURES FOR CONDUCTED SPURIOUS EMISSIONS ........................................................................... 11 4.4. TEST RESULT ............................................................................................................................................... 12 4.4.1. SPURIOUS RADIATED EMISSION ................................................................................................................... 12 4.4.2. SPURIOUS RADIATED EMISSION ................................................................................................................... 18 4.4.3. SPURIOUS RADIATED EMISSION ................................................................................................................... 21 THE AMPLITUDE OF SPURIOUS EMISSIONS FROM INTENTIONAL RADIATORS AND EMISSIONS FROM UNINTENTIONAL RADIATORS WHICH ARE ATTENUATED MORE THAN 20 DB BELOW THE PERMISSIBLE VALUE NEED NOT BE REPORTED UNLESS SPECIFICALLY REQUIRED ELSEWHERE IN THIS PART . ..................................................................................................................... 23 THE AMPLITUDE OF SPURIOUS EMISSIONS FROM INTENTIONAL RADIATORS AND EMISSIONS FROM UNINTENTIONAL RADIATORS WHICH ARE ATTENUATED MORE THAN 20 DB BELOW THE PERMISSIBLE VALUE NEED NOT BE REPORTED UNLESS SPECIFICALLY REQUIRED ELSEWHERE IN THIS PART . ..................................................................................................................... 24 THE AMPLITUDE OF SPURIOUS EMISSIONS FROM INTENTIONAL RADIATORS AND EMISSIONS FROM UNINTENTIONAL RADIATORS WHICH ARE ATTENUATED MORE THAN 20 DB BELOW THE PERMISSIBLE VALUE NEED NOT BE REPORTED UNLESS SPECIFICALLY REQUIRED ELSEWHERE IN THIS PART . ..................................................................................................................... 25 THE AMPLITUDE OF SPURIOUS EMISSIONS FROM INTENTIONAL RADIATORS AND EMISSIONS FROM UNINTENTIONAL RADIATORS WHICH ARE ATTENUATED MORE THAN 20 DB BELOW THE PERMISSIBLE VALUE NEED NOT BE REPORTED UNLESS SPECIFICALLY REQUIRED ELSEWHERE IN THIS PART . ..................................................................................................................... 26 4.4.4. BAND EDGE .............................................................................................................................................. 27 4.4.5 CONDUCTED POWER LINE TEST .................................................................... 29 4.4.5.1 TEST SETUP ...............................................................................................................…

Text truncated - open the document above for the full version.

MOVON CORPORATION Report Number: MOV-15-RF-I019 Page : (80) of (130) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. 5. Receiver radiated spurious emissions 5.1. Test setup Same as clause 5.1. 5.1.1. Receiver radiated spurious emissions Same as clause 5.1.1 5.2. Limit According to §15.109(a), Except for Class A digital devices, the field strength of radiated emission from unintentional radiator at a distance of 3 m shall not exceed the following values: Frequency (㎒) Distance (Meters) Radiated (㏈㎶/m) Radiated (㎶/m) 0.009–0.490 300 See the remark 2400/F(㎑) 0.490–1.705 30 24000/F(㎑) 1.705–30.0 30 30 30 - 88 3 40.0 100 88 – 216 3 43.5 150 216 – 960 3 46.0 200 Above 960 3 54.0 500 5.3. Test procedures Same as clause 5.3. Radiated emissions from the EUT were measured according to the dictates of ANSI C63.4:2003 In case of the air temperature of the test site is out of the range is 10 to 40°C before the testing proceeds the warm-up time of EUT maintain adequately 5.3.1. Test procedures for radiated spurious emissions Same as Clause 5.3.1. MOVON CORPORATION Report Number: MOV-15-RF-I019 Page : (81) of (130) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. 5.4. Test results Ambient temperature: 22 °C Relative humidity: 40 % R.H. 5.4.1. Spurious radiated emission. The frequency spectrum from 30 ㎒ to 26 ㎓ was investigated. Emission levels are not reported much lower than the limits by over 30 ㏈. All reading values are peak values. Operation mode: 802.11b/g/n20 mode A. LOW channel (2 412㎒) Radiated emissions Ant.Correction factors Total Limit Frequency (㎒) Reading (㏈㎶) Detector mode Pol. Ant. factor (㏈/m) Amp + CL (㏈) Actual (㏈㎶/m) Limit (㏈㎶/m) Margin (㏈) 1702.75 42.02 Peak H 28.86 43.65 27.23 74.00 46.77 - - - - - - - - - B. MID channel (2 437㎒) Radiated emissions Ant.Correction factors Total Limit Frequency (㎒) Reading (㏈㎶) Detector mode Pol. Ant. factor (㏈/m) Amp + CL (㏈) Actual (㏈㎶/m) Limit (㏈㎶/m) Margin (㏈) 1711.05 45.59 Peak H 28.86 43.65 30.80 54.00 23.20 - - - - - - - - - C. High channel (2 462 ㎒) Radiated emissions Ant.Correction factors Total Limit Frequency (㎒) Reading (㏈㎶) Detector mode Pol. Ant. factor (㏈/m) Amp + CL (㏈) Actual (㏈㎶/m) Limit (㏈㎶/m) Margin (㏈) 1724.43 45.83 Peak H 28.86 43.65 31.04 74.00 42.96 - - - - - - - - - ※ Remark: Actual = Reading + Ant. factor + Amp + CL (Cable loss) MOVON CORPORATION Report Number: MOV-15-RF-I019 Page : (82) of (130) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. Operation mode: 802.11a/an20/an40 mode A. LOW channel (5 745㎒) Radiated emissions Ant.Correction factors Total Limit Frequency (㎒) Reading (㏈㎶) Detector mode Pol. Ant. factor (㏈/m) Amp + CL (㏈) Actual (㏈㎶/m) Limit (㏈㎶/m) Margin (㏈) 1765.65 49.22 Peak H 28.86 43.65 34.43 74.00 39.57 - - - - - - - - - B. MID channel (5 785㎒) Radiated emissions Ant.Correction factors Total Limit Frequency (㎒) Reading (㏈㎶) Detector mode Pol. Ant. factor (㏈/m) Amp + CL (㏈) Actual (㏈㎶/m) Limit (㏈㎶/m) Margin (㏈) 1760.98 49.26 Peak H 28.86 43.65 34.47 54.00 19.53 - - - - - - - - - C. High channel (5 805 ㎒) Radiated emissions Ant.Correction factors Total Limit Frequency (㎒) Reading (㏈㎶) Detector mode Pol. Ant. factor (㏈/m) Amp + CL (㏈) Actual (㏈㎶/m) Limit (㏈㎶/m) Margin (㏈) 1759.80 49.33 Peak H 28.86 43.65 34.54 74.00 39.46 - - - - - - - - - ※ Remark: Actual = Reading + Ant. factor + Amp + CL (Cable loss) MOVON CORPORATION Report Number: MOV-15-RF-I019 Page : (83) of (130) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. 6. 6 ㏈ bandwidth & 99 % bandwidth measurement 6.1. Test setup EUT Spectrum analyzer 6.2. Limit According to §15.247(a)(2), systems using digital modulation techniques may operate in the 902~928 ㎒, 2 400~2 483.5 ㎒, and 5 725~5 825 ㎒ bands. The minimum of 6 ㏈ Bandwidth shall be at least 500 ㎑ 6.3. Test procedure 1. The 6 ㏈ band width was measured with a spectrum analyzer connected to RF antenna connector (conducted measurement) while EUT was operating in transmit mode at the appropriate center frequency. The analyzer center frequency was set to the EUT carrier frequency, using the analyzer. Display Line and Marker Delta functions, the 6 ㏈ band width of the emission was determined. 2. The bandwidth of the fundamental frequency was measured with the spectrum analyzer using RBW = 100 ㎑, VBW = 100 ㎑, Span = 5 ㎒. MOVON CORPORATION Report Number: MOV-15-RF-I019 Page : (84) of (130) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. 6.4. Test results Ambient temperature: 22 °C Relative humidity: 40 % R.H. Mode Frequency(㎒) 6 ㏈ bandwidth(㎒) 99% bandwidth(㎒) 802.11b (Ant 1) 2 412 10.16 13.81 2 437 10.38 13.98 2 462 10.29 14.24 802.11b (Ant 2) 2 412 10.42 13.85 2 437 10.16 13.94 2 462 10.25 14.24 802.11g (Ant 1) 2 412 16.50 16.41 2 437 16.50 16.45 2 462 16.50 16.45 802.11g (Ant 2) 2 412 16.50 16.45 2 437 16.50 16.45 2 462 16.50 16.50 802.11n_20 (MIMO) 2 412 17.63 17.63 2 437 17.67 17.63 2 462 17.63 17.63 802.11a (Ant 1) 5 745 16.45 16.42 5 785 16.45 16.41 5 805 16.45 16.41 802.11a (Ant 2) 5 745 16.45 16.41 5 785 16.45 16.41 5 805 16.45 16.41 802.11an_20 (MIMO) 5 745 17.32 17.63 5 785 17.32 17.58 5 805 17.54 17.58 802.11an_40 (MIMO) 5 755 36.25 35.96 5 795 36.25 36.03 MOVON CORPORATION Report Number: MOV-15-RF-I019 Page : (85) of (130) The results …

Text truncated - open the document above for the full version.

Test setup photo of EUT A. Setup photo of EUT Photo of radiated spurious emission at below 30 ㎒ Photo of radiated spurious emission at 30 ㎒ ~ 1 000 ㎒ Photo of radiated spurious emission at above 1 000 ㎒ Photo of Conducted emission at below 30 ㎒
