TCORT5020VHF Marine Radiotelephone

SAILOR RT5022 VHF DSC SAILOR RT5020 VHF DSC Duplex OPERATION MANUAL Introduction Congratulations on your new SAILOR RT5022/RT5020 VHF. SAILOR marine equipment is specially designed for the extremely rugged conditions on board a ship, based on more than 50 years of experience with all kinds of vessels, from small pleasure crafts, over fishing vessels working under all climatic conditions, to the biggest ships. SAILOR ® is one of Europe’s leading manufacturers of maritime radio communication equipment - a position which has been maintained by means of constant and extensive product development. We have a worldwide network of distributors with general agencies in more than 80 countries. All our distributors are specially trained to service all your SAILOR ® products. About this manual This manual is for the daily user of the system. Additionally, it includes a section on the installation procedures, and - on page iii - standard distress procedures. We highly recom- mend you to read the manual before you start using the equipment. Notice: There may be some minor differences in the graphic layout of the product in the manual compared to the actual physical unit. Abbreviations used in this manual ADDRAddress BIChannel mode when sailing on European rivers BQDSC Call Acknowledgement Reply CUControl Unit DSCDigital Selective Calling DWDual Watch EOSDSC End Of Sequence GMDSSGlobal Maritime Distress and Safety System MMSIMaritime Mobile Service Identification PTT“Push To Talk” button RQDSC Call Acknowledgement Request RXReceive/r SQSquelch TXTransmit/ter UTCCoordinated Universal Time Please note Any responsibility or liability for loss or damage in connection with the use of this product and the accompanying documentation is disclaimed. The information in this manual is provided for information purposes only, is subject to change without notice, may contain errors or inaccuracies, and represents no commitment whatsoever. This agreement is governed by the laws of Denmark. Doc. No.: B5022GB0Issue: F/0549 ii iii 0549 Training Information The Thrane & Thrane RT5022/RT5020 VHF radio is designed for “occupational use only” and is also classified as such. It must only be used in the course of employment by individuals aware of both the hazards as well as the way to minimize those hazards. The radio is thus NOT intended for use in an uncontrolled environment by general public. The RT5022/RT5020 has been tested and complies with the FCC RF exposure limits for “Occupational Use Only”. The radio also complies with the following guidelines and standards regarding RF energy and electromagnetic energy levels including the recommended levels for human exposure: •FCC OET Bulletin 65 Supplement C, evaluating compliance with FCC guidelines for human exposure to radio frequency electromagnetic fields •American National Standards Institute (C95.1) IEEE standard for safety levels with respect to human exposure to radio frequency electromagnetic fields, 3 kHz to 300 GHz •American National Standards Institute (C95.3) IEEE recommended practice for the measurement of potentially hazardous electromagnetic fields – RF and microwaves Below the RF exposure hazards and instructions in safe operation of the radio within the FCC RF exposure limits established for it are described. Warning: Your Thrane & Thrane radio set generates electromagnetic RF (radio frequency) energy when it is transmitting. To ensure that you and those around you are not exposed to excessive amounts of that energy (beyond FCC allowable limits for occupational use) and thus to avoid health hazards from excessive exposure to RF energy, FCC OET bulletin 65 establishes an Maximum Permissible Exposure (MPE) radius of 3” (0.9m) for the maximum power of your radio (25W selected) with an half wave omni-directional antenna having a maximum gain of 3 dB (5.2dBi). This means all persons must be at least 3” (0.9m) away from the antenna when the radio is transmitting. Installation: 1. An omni-directional antenna with a maximum power gain of 5.2 dBi must be mounted at least 9.6” (2.9m) above the highest deck where people may be staying during radio transmissions. The distance is to be measured vertically from the lowest point of the antenna. This provides the minimum separation distance which is in compliance with RF exposure requirements and is based on the MPE radius of 3” (0,9m) plus the 6.6” (2m) height of an adult. 2. On vessels that cannot fulfil requirements in item 1, the antenna must be mounted so that its lowest point is at least 3” (0.9m) vertically above the heads of people on deck and all persons must be outside the 3” (0.9m) MPE radius during radio transmission. •Always mount the antenna at least 3” (0.9m) from possible human access •Never touch the antenna when transmitting •Use only authorized T&T accessories 3. If antenna has to be placed in public areas or near people with no awareness of the radio transmission, the antenna must be placed at a distance not less than 6” (1.8m) from possible human access. Failure to observe any of these warnings may cause you or other people to exceed FCC RF exposure limits or create other dangerous conditions. Quick DSC distress call (only for emergency use) 1. If necessary, switch on by pressing the ON/OFF button 2. Lift up the lid covering the orange key and press for 5 seconds. 3. The Alarm indicator light will flash and will be accompanied by a sound. Distress message is sent at the continuous tone. 4. Unless stopped manually, by pressing the key or switching the unit off, the distress call is automatically repeated every 3½-4½ minutes until distress acknowledg- ment is received. Wait for distress acknowledgement and start mayday procedure. If an alarm panel is connected the VHF DISTRESS button on this unit will have the same functionality. All further handling should continue in front of your main VHF DSC. NOTE: If needed the default language (English) is obtained by pressing the following keys: Mayday procedure Wh…

Text truncated - open the document above for the full version.

Doc. no 40356A00 To: Federal Communications CommissionAalborg, 08.12-2005 Regarding FCC ID: TCORT5020 Attestation Statement Thrane & Thrane A/S being the applicant attest that the equipment complies with performance standards as specified in 80.1101 and where applicable, measurements have been made that demonstrate the necessary compliance. Yours sincerely Chief Executive Officer Henrik Lunde

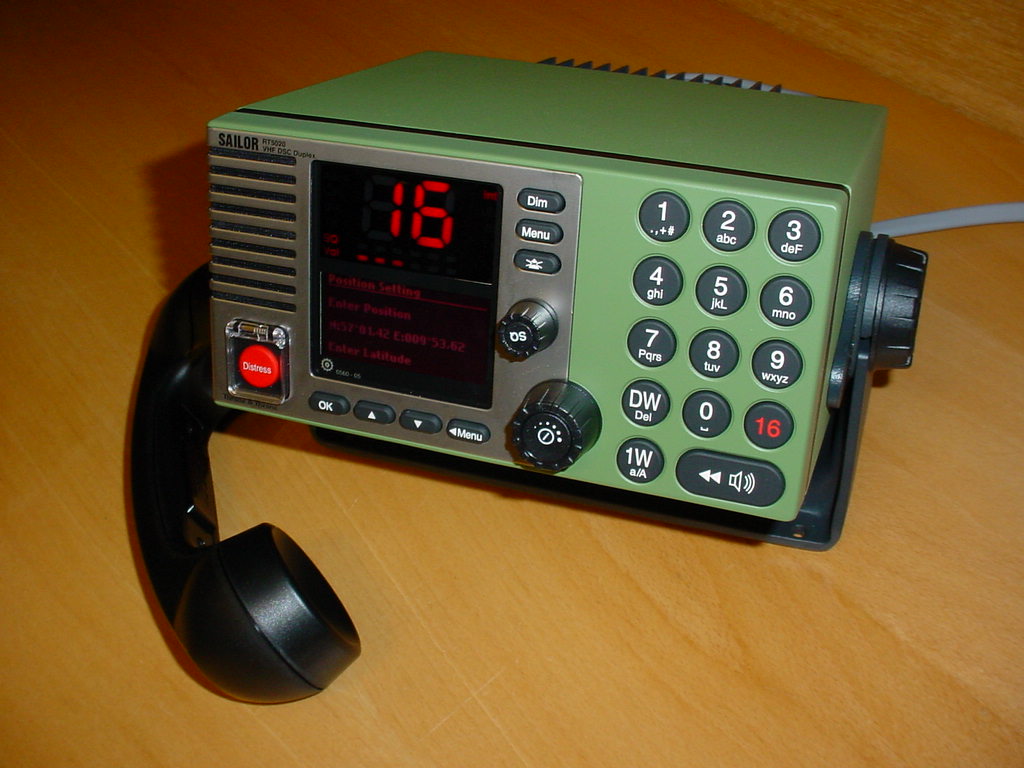

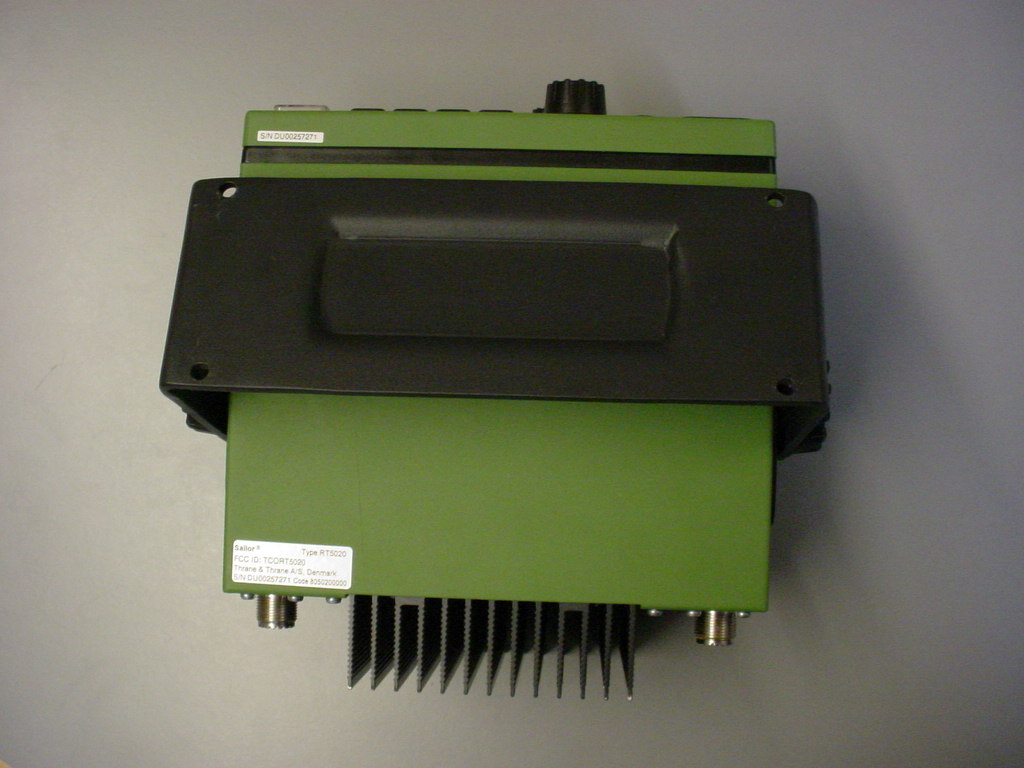

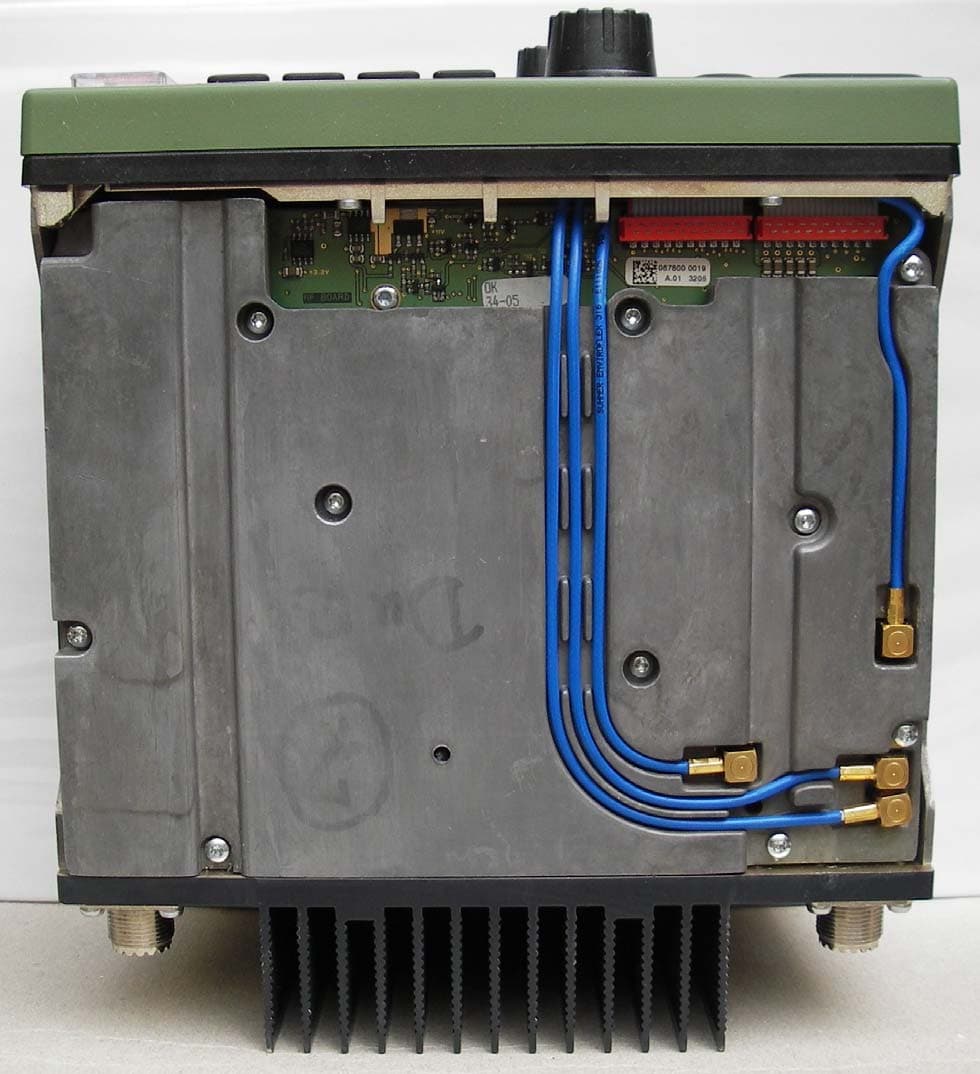

Sailor Maritime VHF duplex radio telephone RT5020 RT5020 EXTERNAL PICTURES Front view with handset HS 5001. VHF mounted in bracket 1/8 Type label with FCC ID 2/8 Location of type label at lower left corner 3/8 Keyboard and Display front view 4/8 Rear view 5/8 Location of duplex filter inside radio 6/8 Duplex filter seen from left side 7/8 Location of cables to duplex filter 8/8

Sailor Maritime VHF duplex radio telephone RT5020 RT5020 INTERNAL PICTURES RF module 639120, upper layer 1/8 RF module 639120, lower layer 2/8 Base Band module 639110, upper layer 3/8 Base Band module 639110, lower layer 4/8 Keyboard / Display module 639130, upper layer Keyboard / Display module 639130, lower layer 5/8 Cover removed to Base band with rf screen. Keyboard/display at left. Loudspeaker at upper left corner. Power supply module in metal box at bottom 6/8 Cover removed to Rf module with Rf screen 7/8 Power supply module, upper layer Power supply module, lower layer 8/8

Radio test report 99608334 based on Telefication test report 99608331 based on: FCC Part 80 (10-1-04 Edition) Maritime shipborne VHF radio telephone with integrated DSC class A controller and channel 70 watchkeeping receiver SAILOR RT5020 Report number: 99608334 Contents MAIN MODULE.......................................................................................................................................................3 1 I NTRODUCTION ...............................................................................................................................................3 2 P RODUCT ........................................................................................................................................................4 3 T EST SCHEDULE ..............................................................................................................................................4 4 P RODUCT DOCUMENTATION ............................................................................................................................5 5 O BSERVATIONS AND COMMENTS .....................................................................................................................5 6 S UMMARY .......................................................................................................................................................5 7 C ONCLUSIONS .................................................................................................................................................6 TEST RESULTS MODULE.....................................................................................................................................7 1 S UMMARY .......................................................................................................................................................8 2 T RANSMITTER TESTS .......................................................................................................................................9 2.1 Conducted spurious (> 30 MHz) ...........................................................................................................9 2.2 Transmitter power ...............................................................................................................................10 2.3 Frequency stability..............................................................................................................................11 USED TEST EQUIPMENT MODULE.................................................................................................................12 This report comprises of three modules. The total number of pages is: 12 Page: 3 of 12 Main module Report number: 99608334 Main module 1 Introduction This report contains the result of tests performed by: Telefication B.V. Edisonstraat 12a 6902 PK Zevenaar The Netherlands Telefication complies with the accreditation criteria for test laboratories as laid down in ISO/IEC 17025:1999. The accreditation covers the quality system of the laboratory as well as the specific activities as described in the authorized annex bearing the accreditation number L021 and is granted on 30 November 1990 by the Dutch Council For Accreditation (RvA: Raad voor Accreditatie). The copyright of this test report is owned by Telefication bv and may not be reproduced except in full without the written approval of Telefication bv. Ordering party: Company name : Thrane & Thrane A/S Address : Porsvej 2 Zipcode : 9200 City/town : Aalborg Country : Denmark Date of order : 22 December 2004 Page: 4 of 12 Main module Report number: 99608334 2 Product A sample of the following product was submitted for testing: Product name : Maritime shipborne VHF radio telephone with integrated DSC class A controller and channel 70 watchkeeping receiver Product category : Stations in the maritime services Manufacturer : Thrane & Thrane A/S Trade mark : SAILOR Type designation : RT5020 FCC ID : TCORT5020 Hardware version : -- Software version : Application (OS): 2.00 Boot Monitor (BM): 1.01/1.02 DSP: 1.25 Serial number : 0001 3 Test schedule Tests were carried out in accordance with the specification detailed in chapter 6 "Summary" of this report. Tests were carried out at the following location: • Telefication, Zevenaar Tests were carried out between: • 10 and 27 October 2005 Page: 5 of 12 Main module Report number: 99608334 4 Product documentation For production of this report the following product documentation was used: Description Date Identification Operator’s Manual Issue C/0531 Sailor RT5022/RT5020 B5022GB0 Technical specification February 2005 Sailor 5000 5 Observations and comments This test report includes results of selected measurements on the duplex variant RT5020 in addition to the measurements on the simplex version RT5022. Test results of the RT5022 are contained in test report 99608331. The difference between the duplex variant and the simplex version RT5022 is the installed duplex filter. 6 Summary The product is intended for use in the following application area: Maritime ship borne communication equipment The sample was tested according to the following specification: FCC Part 80 (10-1-04 Edition) Page: 6 of 12 Main module Report number: 99608334 7 Conclusions The sample of the product showed NO NON-COMPLIANCES to the specification stated in chapter 6 of this report. The results of the tests as stated in this report, are exclusively applicable to the product item as identified in this report. Telefication does not accept any responsibility for the results stated in this report, with respect to the properties of product items not involved in these tests. All tests are performed by: name : ing. P.A. Suringa function : Senior Engineer Radio/EMC signature : Review of test methods and report by: name : M.W. Jansen function : Senior Engineer Maritime Radio signature : The above conclusions have been verified by the following signatory: date : 17 november 2005 nam…

Text truncated - open the document above for the full version.

Test report 99608331 based on: FCC Part 80 (10-1-04 Edition) Maritime shipborne VHF radio telephone with integrated DSC class A controller and channel 70 watchkeeping receiver SAILOR RT5022 Report number: 99608331 Contents MAIN MODULE.......................................................................................................................................................3 1 I NTRODUCTION ...............................................................................................................................................3 2 P RODUCT ........................................................................................................................................................4 3 T EST SCHEDULE ..............................................................................................................................................4 4 P RODUCT DOCUMENTATION ............................................................................................................................5 5 O BSERVATIONS AND COMMENTS .....................................................................................................................5 6 S UMMARY .......................................................................................................................................................5 7 C ONCLUSIONS .................................................................................................................................................6 TEST RESULTS MODULE.....................................................................................................................................7 1 S UMMARY .......................................................................................................................................................8 2 E MISSION TESTS ..............................................................................................................................................9 2.1 Radiated spurious ( < 30 MHz), exploratory ........................................................................................9 2.2 Radiated spurious (> 30 MHz), cabinet radiation ..............................................................................11 2.3 Conducted spurious ( > 30 MHz) ........................................................................................................16 2.4 Occupied bandwidth ............................................................................................................................17 2.5 Frequency deviation ............................................................................................................................19 2.5.1 Maximum frequency deviation at modulation frequencies below 3 kHz .........................................................19 2.5.2 Maximum frequency deviation at modulation frequencies above 3 kHz .........................................................20 2.6 Modulation limitation ..........................................................................................................................21 2.7 Transmitter power ...............................................................................................................................22 2.8 Frequency stability..............................................................................................................................23 USED TEST EQUIPMENT MODULE.................................................................................................................24 This report comprises of three modules. The total number of pages is: 24 Page: 3 of 24 Main module Report number: 99608331 Main module 1 Introduction This report contains the result of tests performed by: Telefication bv Edisonstraat 12a 6902 PK Zevenaar The Netherlands Telefication complies with the accreditation criteria for test laboratories as laid down in ISO/IEC 17025:1999. The accreditation covers the quality system of the laboratory as well as the specific activities as described in the authorized annex bearing the accreditation number L021 and is granted on 30 November 1990 by the Dutch Council For Accreditation (RvA: Raad voor Accreditatie). The copyright of this test report is owned by Telefication bv and may not be reproduced except in full without the written approval of Telefication bv. Ordering party: Company name : Thrane & Thrane A/S Address : Porsvej 2 Zipcode : 9200 City/town : Aalborg Country : Denmark Date of order : 22 December 2004 Page: 4 of 24 Main module Report number: 99608331 2 Product A sample of the following product was submitted for testing: Product name : Maritime shipborne VHF radio telephone with integrated DSC class A controller and channel 70 watchkeeping receiver Product category : Stations in the maritime services Manufacturer : Thrane & Thrane A/S Trade mark : SAILOR Type designation : RT5022 FCC ID : TCORT5022 Hardware version : -- Software version : Application (OS): 1.20 Boot Monitor (BM): 1.00 DSP: 1.10 Serial number : -- 3 Test schedule Tests were carried out in accordance with the specification detailed in chapter 6 "Summary" of this report. Tests were carried out at the following locations: • Telefication, Zevenaar; • TNO EPS, Niekerk (FCC listed site nr. 90828) Tests were carried out between: • 2 March and 21 April 2005 Page: 5 of 24 Main module Report number: 99608331 4 Product documentation For production of this report the following product documentation was used: Description Date Identification RT 5022 SAILOR Operation Manual (preliminary) Issue 0505 B5022GB0 5 Observations and comments None. 6 Summary The product is intended for use in the following application area: Maritime ship born communication equipment The sample was tested according to the following specification: FCC Part 80 (10-1-04 Edition) Page: 6 of 24 Main module Report number: 99608331 7 Conclusions The sample of the product showed NO NON-COMPLIANCES to the specification stated in chapte…

Text truncated - open the document above for the full version.

Test set up photographs Photograph 1: Radiated emissions test set-up (OATS) ............................................................................2 Photograph 1: Radiated emissions test set-up (OATS)
