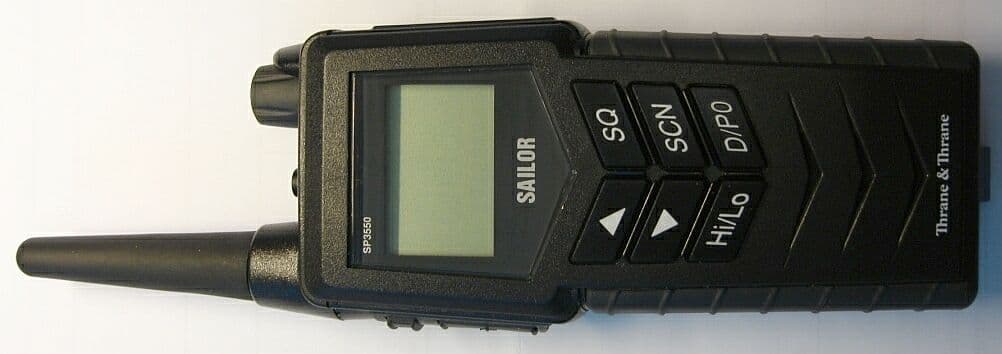

TCOSP3550UHF Transceiver

SAILOR SP3550 UHF USER MANUAL i SP3550 UHF Document number: TT 98-124308-B Release date: October, 2007 Copyright: © 2007 Thrane & Thrane A/S. All rights reserved. Trademark Acknowledgements •SAILOR is a registered trademark of Thrane & Thrane A/S. •Other product and company names mentioned in this manual may be trademarks or trade names of their respective owners. Warranty limitation IMPORTANT - The radio is a sealed waterproof unit. To create and maintain its waterproof integrity it was assembled in a controlled environment using special equipment. The radio is not a user maintainable unit, and under no circumstances should the unit be opened except by authorized personnel. Unauthorized opening of the unit will invalidate the warranty. Disclaimer Any responsibility or liability for loss or damage in connection with the use of this product and the accompanying documentation is disclaimed by Thrane & Thrane. The information in this manual is provided for information purposes only, is subject to change without notice, may contain errors or inaccuracies, and represents no commitment whatsoever by Thrane & Thrane. This agreement is governed by the laws of Denmark. Manuals issued by Thrane & Thrane are periodically revised and updated. Anyone relying on this information should satisfy himself/herself as to the most current version. Providers with access to Thrane & Thrane's Extranet may obtain current copies of manuals at: http://extranet.thrane.com. Thrane & Thrane is not responsible for the content or accuracy of any translations or reproductions, in whole or in part, of this manual from any other source. 0740 ii Precautions Avoid water and salt in the I/O connector and keep it clean frequently. Only use original Thrane & Thrane battery packs. Make sure they are clean and dry before attaching the transceiver. Be careful not to damage any gaskets. Only use the original Thrane & Thrane charger for the rechargeable battery. Be very careful when handling the Lithium batteries. With correct use they are safe but any misuse might cause dangerous situations. Never short circuit the battery terminals, never expose the transceiver and the batteries to extreme temperature or fire and never use any kind of violence. Avoid close contact between the antenna and parts of the human body. The top of the antenna must never be closer than 2.5 cm to the body when transmitting. Do not submerge the transceiver more than 1 m for 30 minutes. Keep the transceiver at least 0.3 m away from the magnetic compass. 0740 iii Training information SAILOR SP3550 UHF is designed for to be operated safely. It must be operated by licensed personnel only. The SP3550 complies with the uncontrolled RF exposure limits. • FCC OET Bulletin 65 Supplement C, evaluating compliance with FCC guidelines for human exposure to radio frequency electromagnetic fields. • American National Standards Institute (C95.1) IEEE standard for safety levels with respect to human exposure to radio frequency electromagnetic fields, 3 kHz to 300 GHz. • American National Standards Institute (C95.3) IEEE recommended practice for the measurement of potentially hazardous electromagnetic fields - RF and microwaves. Correct use For best performance, hold the radio vertically and 5 cm away from the head when talking into the microphone. Warning!Your Thrane & Thrane UHF radio generates electromagnetic RF (radio frequency) energy when transmitting. To ensure that you are not exposed to excessive amounts of energy and thus to avoid health hazards from excessive exposure to RF energy, all persons must be at least 2.5 cm away from the antenna when the radio is transmitting. 0740 iv 0730 v Contents Chapter 1 Introduction Your UHF ............................................................................ 1 Performance .......................................................................2 Channels ............................................................................2 Chapter 2 Operation Controls ..............................................................................5 Keys and buttons ................................................................5 The display ......................................................................... 7 Using the UHF .....................................................................8 Basic functions ...................................................................8 Other functions .................................................................. 11 Chapter 3 Batteries Battery level indication ......................................................13 Removing and inserting the battery pack ...........................13 The battery chargers ..........................................................14 Installing the charger ........................................................14 Recharging the battery ......................................................15 Chapter 4 Configuring the radio Configuration mode ...........................................................17 Entering and using configuration mode .............................17 List of configuration settings ............................................. 18 0730 vi Chapter 5 Equipment and accessories External equipment .......................................................... 23 List of equipment .............................................................. 23 Connecting external equipment ........................................ 23 Impact on radio operation ................................................ 24 Accessories ...................................................................... 25 List of accessories ............................................................. 25 Attaching and removing the belt clip ................................ 27 Attaching the lanyard ....................................................... 27 Chapter 6 Troubleshooting Displaying errors .............................................................. 29 App. ATechnical speci…

Text truncated - open the document above for the full version.

Equipment and accessories 26 Accessories you may buy Warning! The display must always be kept away from the body to reduce the RF exposure when body worn. AccessoryPart number Dual Position Charger CH3508403508A Leather Case403500-205 0740 Equipment and accessories 27 Attaching and removing the belt clip To attach the belt clip, slide the belt clip upwards into the rails at the back of the radio until it locks. To remove the belt clip, press the projection at the top of the belt clip to release the lock and slide the belt clip downwards out of the rails. Attaching the lanyard Do as follows: 1.Take the lanyard through the eye at the top of the radio. 2. Put one end of the lanyard through the loop at the other end of the lanyard and pull to tighten. Release lock Top view 0740 Equipment and accessories 28 0740 Chapter 6 29 Tro u b le sh o ot i n g Displaying errors Some errors result in an error message in the display. These error messages are listed below. Display textProblemTy p eActions Err EMPTY BAT The battery voltage is below a critical level, where further operation would damage the battery. Severe. Radio is non- functional. Change/recharge the battery. Err HW ERR Hardware error.Severe. Radio is non- functional. Service required. ILLEGAL Context fails operation. This text will appear on the following occasions: •Multiple watch is selected on channel 16, or in channel regions where it is not allowed. • High power is selected on a channel where it is prohibited. • Transmission on blocked channels Fail operation Consider operation in a different context. 0730 Troubleshooting 30 0730 Appendix A 31 Technical specifications Technical data SP3550 General ItemSpecification RX frequency range440.000 - 470.000 MHz TX frequency range440.000 - 470.000 MHz Modulation 25 kHz 12.5 kHz 16K0G3E 8K50G3E Power supply7.2 VDC Li battery Current drain at 5 W TX1.8 A Current drain at 1 W TX0.9 A Current drain RX max audio0.25 A Antenna port50 ohm BatteryLithium-Ion, 1800 mAh rechargeable Operating temperature-20°C to +55°C Water ingress protectionIP67 Frequency stabilityBetter than ±1.0 kHz Weight with battery340g 0740 Technical specifications 32 Transmitter Receiver ItemSpecification RF output power, landmobile4.8 W ±1 dB / 0.3 W ±1 dB RF output power, maritime1.8 W radiated / 0.3 W radiated Max deviation 25 kHz 12.5 kHz ±5 kHz ±2.5 kHz Spurious emission< 0.25 μW Adjacent channel power 25 kHz 12.5 kHz > 70 dB > 60 dB ItemSpecification Sensitivity (20 dB SINAD)-117 dBm typical Intermodulation EN 300 720 EN 300 086 Better than 68 dB 65 dB Spurious response> 70 dB 0740 Technical specifications 33 Adjacent channel selectivity 25 kHz 12.5 kHz > 70 dB > 60 dB Audio output, internal0.25 W at 10% dist. Audio output, external0.25 W/8 ohm ItemSpecification 0740 Technical specifications 34 Battery life guidelines Battery (rechargeable) During daily use, always keep the battery fully charged and away from hot areas. Keep the battery terminals dry and clean. Never discharge beyond the specifications of the battery. Operation/Standby time depends on usage. Generally, the more the radio is transmitting, the faster it will drain the battery. Also, the “Hi” power setting will drain the battery faster than the “Lo” setting. Approximate figures are: •A battery can be stored for 4 to 6 month at 25°C if charged to 25%. •The battery will normally last for 5 to 9 hours of use on a fully charged battery. NoteNew batteries should be placed in the charger for minimum 12 hours first time. 0730 Technical specifications 35 Dimensional drawing, transceiver 0730

Technical specifications 36 Dimensional drawing, chargers Declaration of Conformity 0740 Mounting Possibillities Desktop mounting, top view Wall mounting, rear view Technical specifications 37 R & TTE Doc. no TT99-125716-C Thrane & Thrane A/S Declaration of Conformity with R&TTE Directive The undersigned of this letter declares that the following equipment complies with the specifications of EC directive 1999/5/EC concerning Radio & Telecommunications Terminal Equipment. Equipment included in this declaration SAILOR SP3550Portable UHF radiotelephonePN = 623550A SAILOR B3502Rechargeable Li-Ion BatteryPN = 403502A SAILOR CH3507Battery ChargerPN = 403507A SAILOR CH3508Dual Battery ChargerPN = 403508A AC/DC AdapterPN = 88-125538 Equipment Applicability SAILOR SP3550 is a simplex/semi-duplex handheld UHF radiotelephone designed for maritime & landmobile communication within the frequency range 440 MHz to 470 MHz. Declaration The requirement with respect to the LVD directive 73/23/EC is met by conforming to the harmonized EU standard EN 60950. The protection requirement with respect to the EMC directive 89/336/EC is met by conforming to the harmonized EU standard EN 60945. Effective use of frequency spectrum is met by conforming to the harmonizied EU standard ETSI EN 300 720 and EN 300 086. Manufacturer Thrane & Thrane A/SLundtoftegårdsvej 93D, DK-2800 Kgs. Lyngby, Denmark Porsvej 2, DK-9200 Aalborg SV, Denmark Place and Date Aalborg, 8. January 2008 Chief Financial Officer Svend Åge Lundgaard Jensen Page 1 of 1 Thrane & Thrane A/S· Lundtoftegårdsvej 93D · DK-2800 Kgs. Lyngby · Denmark T +45 39 55 88 00 · F +45 39 55 88 88 · [email protected] · www.thrane.com Bank: Danske Bank · Comp. reg.: 65 72 46 18 · VAT: DK-20 64 64 46 0740 Technical specifications 38 0730 Appendix B 39 Attention Goretex Membran To keep the UHF watertight, is it very important that the goretex membran behind the label under no circumstances must be damaged or removed. 0740 Attention 40 0740 TT-98-124308-B Issue: B/0740 Thrane & Thrane A/S • [email protected] • www.thrane.com

Thrane & Thrane A/S · Porsvej 2 · P.O. Box 7071 · DK-9200 Aalborg SV · Denmark T +45 39 55 88 00 · F +45 96 34 63 90 · [email protected] · www.thrane.com Bank: Danske Bank · Comp.reg.: 65 72 46 18 · VAT: DK-20 64 64 46 1/1 SAILOR SP3550 UHF Type label Description of type label The label is designed to withstand daily use in harsh environment at sea. Scratch resistant, not sensitive to water, oil and sun. Heat resistant >100 º C. Strong adhesive. It is a top-coated thermal transfer printable metalized silver matte polyester film coated with a permanent pressure sensitive acrylic adhesive and backed with a glassine liner Basic material: Manufacture: Flexcon, USA Top-coat no. TC-387 Material: Polyester, THERMLfilm SELECT Thickness: 128 mocron UL recognition: Flexcons UL file no. MH16635 Text film, Material: Wax/Resin Text film, Thickness: 4.6micron

DAT-P-152/98-01 SAR_Report_Nemko_6620_656_FCC_T&T_SAILOR_SP3550_4 Page 1 of 42 Report Dosimetric Assessment of the UHF Handheld Transceiver (portable device) Thrane & Thrane SAILOR SP3550 (FCC ID: TCOSP3550) According to the FCC Requirements January 09, 2008 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Nemko AS Gasevikveien 8 N-2007 Kjeller The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. Dasy_Report_FCC_PTT_450MHz_1.1.doc/05.10.2007/CH SAR_Report_Nemko_6620_656_FCC_T&T_SAILOR_SP3550_4 Page 2 of 42 Dasy_Report_FCC_PTT_450MHz_1.1.doc/05.10.2007/CH Executive Summary The SAILOR SP3550 is an UHF handheld transceiver (portable device) from Thrane & Thrane operating in the 440 MHz – 470 MHz frequency range. The objective of the measurements done by IMST was the dosimetric assessment of one device in the 440 MHz – 470 MHz frequency range. The handset was set to use one specific frequency during the measurements. The examinations have been carried out with the dosimetric assessment system „DASY4“. The measurements were made according to the Supplement C to OET Bulletin 65 of the Federal Communications Commission (FCC) Guidelines [OET 65] for evaluating compliance of mobile and portable devices with FCC limits for human exposure (general population) to radiofrequency emissions. All measurements have been performed in accordance to the recommendations given by SPEAG. SAR_Report_Nemko_6620_656_FCC_T&T_SAILOR_SP3550_4 Page 3 of 42 Dasy_Report_FCC_PTT_450MHz_1.1.doc/05.10.2007/CH Compliance statement The Thrane & Thrane SAILOR SP3550 UHF handheld transceiver (FCC ID: TCOSP3550) is in compliance with the Federal Communications Commission (FCC) Guidelines [OET 65] for uncontrolled exposure. The handset was tested in the following configurations: • Push to Talk (display towards the phantom, distance 25 mm) • Body Worn with belt clip and leather case in different configurations The measurements were done with a cw signal which represents a worst case scenario. The measured SAR values were scaled to the duty cycle of 15/30 as stated by the manufacturer. Maximum SAR 1g Push to Talk 0.712 W/kg Body Worn 0.679 W/kg prepared by: ........................................... reviewed by: ..................................... Alexander Rahn André van den Bosch test engineer quality assurance engineer IMST GmbH Carl-Friedrich-Gauß-Straße 2 D-47475 Kamp-Lintfort Tel. +49- 2842-981 378 Fax +49- 2842-981 399 email: [email protected] SAR_Report_Nemko_6620_656_FCC_T&T_SAILOR_SP3550_4 Page 4 of 42 Dasy_Report_FCC_PTT_450MHz_1.1.doc/05.10.2007/CH Table of Contents 1 SUBJECT OF INVESTIGATION.................................................................................................................... 5 2 THE IEEE STANDARD C95.1-1999 AND THE FCC EXPOSURE CRITERIA....................................... 5 2.1 DISTINCTION BETWEEN EXPOSED POPULATION, DURATION OF EXPOSURE AND FREQUENCIES........... 5 2.2 DISTINCTION BETWEEN MAXIMUM PERMISSIBLE EXPOSURE AND SAR LIMITS....................................... 6 2.3 SAR LIMIT.................................................................................................................................................. 6 3 THE FCC MEASUREMENT PROCEDURE................................................................................................. 7 3.1 GENERAL REQUIREMENTS......................................................................................................................... 7 3.2 DEVICE OPERATING NEXT TO A PERSON’S EAR....................................................................................... 7 4 BODY-WORN CONFIGURATIONS............................................................................................................ 10 4.1 POC (PTT) POSITION............................................................................................................................. 11 4.2 PHANTOM REQUIREMENTS...................................................................................................................... 11 4.3 TEST TO BE PERFORMED......................................................................................................................... 11 5 THE MEASUREMENT SYSTEM................................................................................................................. 11 5.1 PHANTOM................................................................................................................................................. 13 5.2 PROBE...................................................................................................................................................... 13 5.3 MEASUREMENT PROCEDURE.................................................................................................................. 14 5.4 UNCERTAINTY ASSESSMENT................................................................................................................... 15 6 SAR RESULTS............................................................................................................................................... 16 7 EVALUATION................................................................................................................................................. 20 8 APPENDIX....................................................................................................................................................... 23 8.1 ADMINISTRATIVE DATA............................................................................................................................ 23 8.2 DEVICE UNDER TEST AND TEST CONDITIONS......................................................................................... 23 8.3 TISSUE RECIPES...................................................................................................................................... 23 8.4…

Text truncated - open the document above for the full version.

DAT-P-152/98-01 SAR_Report_Nemko_6620_656_FCC_plots_T&T_SAILOR_SP3550_4 Page 1 of 9 Appendix for the Report Dosimetric Assessment of the UHF Handheld Transceiver (portable device) Thrane & Thrane SAILOR SP3550 (FCC ID: TCOSP3550) According to the FCC Requirements SAR Distribution Plots January 09, 2008 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Nemko AS Gasevikveien 8 N-2007 Kjeller The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. dasy_report_fcc_DECT_1900_plots_1.0.doc/110.05.2006/ABo SAR_Report_Nemko_6620_656_FCC_plots_T&T_SAILOR_SP3550_4 Page 2 of 9 dasy_report_fcc_DECT_1900_plots_1.0.doc/110.05.2006/ABo Table of Contents 1 SAR DISTRIBUTION PLOTS, PTT CONFIGURATION............................................................................. 3 2 SAR DISTRIBUTION PLOTS, BODY WORN............................................................................................. 4 3 SAR Z-AXIS SCANS (VALIDATION)........................................................................................................... 7 4 SAR Z-AXIS SCANS (MEASUREMENTS).................................................................................................. 9 SAR_Report_Nemko_6620_656_FCC_plots_T&T_SAILOR_SP3550_4 Page 3 of 9 dasy_report_fcc_DECT_1900_plots_1.0.doc/110.05.2006/ABo 1 SAR Distribution Plots, PTT configuration Test Laboratory: Imst GmbH, DASY Yellow (II); File Name: SP3550_y4hm_1_PTT_P45.da4 DUT: SAILOR; Type: SP3550; Serial: 1234560014 Program Name: Body Worn Communication System: CW; Frequency: 457.575 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 457.575 MHz; σ = 0.905 mho/m; ε r = 44.7; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ET3DV6R - SN1669; ConvF(7.32, 7.32, 7.32); Calibrated: 15.02.2007 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn631; Calibrated: 17.09.2007 - Phantom: ELI 4; Type: ELI 4; - Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Body Worn/Area Scan (9x17x1): Measurement grid: dx= Maximum value of SAR (measured) = 1.35 mW/g Body Worn/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 29.3 V/m; Power Drift = -0.602 dB Peak SAR (extrapolated) = 1.67 W/kg SAR(1 g) = 1.24 mW/g; SAR(10 g) = 0.934 mW/g Maximum value of SAR (measured) = 1.29 mW/g Fig. 1: SAR distribution for PTT configuration, 457.575 MHz, 25 mm distance (October 02, 2007; Ambient Temperature: 22.2°C; Liquid Temperature: 21.3°C). SAR_Report_Nemko_6620_656_FCC_plots_T&T_SAILOR_SP3550_4 Page 4 of 9 dasy_report_fcc_DECT_1900_plots_1.0.doc/110.05.2006/ABo 2 SAR Distribution Plots, Body Worn Test Laboratory: IMST GmbH, DASY Blue (I); File Name: SP3550_b4hm_1_P45_Clip_Conf1.da4 DUT: SAILOR; Type: SP3550; Serial: 1234560014 Program Name: Body Worn Communication System: CW; Frequency: 457.575 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 457.575 MHz; σ = 0.92 mho/m; ε r = 57.1; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ET3DV6R - SN1669; ConvF(7.83, 7.83, 7.83); Calibrated: 15.02.2007 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn631; Calibrated: 17.09.2007 - Phantom: ELI 4; Type: ELI 4; - Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Body Worn/Area Scan (10x17x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.04 mW/g Body Worn/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 35.3 V/m; Power Drift = -0.521 dB Peak SAR (extrapolated) = 1.29 W/kg SAR(1 g) = 0.934 mW/g; SAR(10 g) = 0.696 mW/g Maximum value of SAR (measured) = 0.976 mW/g Body Worn/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 35.3 V/m; Power Drift = -0.521 dB Peak SAR (extrapolated) = 1.18 W/kg SAR(1 g) = 0.868 mW/g; SAR(10 g) = 0.645 mW/g Maximum value of SAR (measured) = 0.907 mW/g Fig. 2: SAR distribution for Body Worn with clip, 457.575 MHz, display towards the ground, Configuration 1 (January 03, 2008; Ambient Temperature: 21.2° C; Liquid Temperature: 20.5° C). SAR_Report_Nemko_6620_656_FCC_plots_T&T_SAILOR_SP3550_4 Page 5 of 9 dasy_report_fcc_DECT_1900_plots_1.0.doc/110.05.2006/ABo Test Laboratory: IMST GmbH, DASY Blue (I); File Name: SP3550_b4hm_1_P45_Case_Conf2_dspl dwn.da4 DUT: SAILOR; Type: SP3550; Serial: 1234560014 Program Name: Body Worn Communication System: CW; Frequency: 457.575 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 457.575 MHz; σ = 0.932 mho/m; ε r = 58; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ET3DV6R - SN1669; ConvF(7.83, 7.83, 7.83); Calibrated: 15.02.2007 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn631; Calibrated: 17.09.2007 - Phantom: ELI 4; Type: ELI 4; - Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Body Worn/Area Scan (10x17x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.26 mW/g Body Worn/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 37.0 V/m; Power Drift = -0.684 dB Peak SAR (extrapolated) = 1.67 W/kg SAR(1 g) = 1.16 mW/g; SAR(10 g) = 0.843 mW/g Maximum value of SAR (measured) = 1.23 mW/g Body Worn/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 37.0 V/m; Power Drift = -0.684 dB Peak SAR (extrapolated) = 1.73 W/kg SAR(1 g) = 0.915 mW/g; SAR(10 g) = 0.645 mW/g Maximum value of SAR (measured) = 0.984 mW/g Fig. 3: SAR distribution for Body Worn with leather case, 457.575 MHz, display towards the ground, Configuration 2 (January 07, 2008; Ambient Temperature: 21.5° C; Liquid Temperature: 20.9° C). SAR_Report_Nemko_6620_656_FCC_plots_T&T_SAILOR_SP3550_4 Page 6 of 9 dasy_report_fcc_DECT_1900_plots_1.0.doc/110.05.2006/ABo Test La…

Text truncated - open the document above for the full version.

DAT-P-152/98-01 SAR_Report_Nemko_6620_656_FCC_CalData_T&T_SAILOR_SP3550_3 dasy_report_fcc_850_1900_cal_data_2.0.doc/08.01.2005/CH Appendix for the Report Dosimetric Assessment of the UHF Handheld Transceiver (portable device) Thrane & Thrane SAILOR SP3550 (FCC ID: TCOSP3550) According to the FCC Requirements Calibration Data January 09, 2008 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Nemko AS Gasevikveien 8 N-2007 Kjeller This report shall not be reproduced except in full without the written approval of the testing laboratory.

Nemko AS, Gaustadalléen 30, P.O.Box 73 Blindern, NO-0314 Oslo Norway T +47 22 96 03 30 F +47 22 96 05 50 Enterprise number NO974404532 Visiting address: Nemko Comlab, Gåsevikveien 8, P.O.Box 96, NO-2027 Kjeller Norway T +47 64 84 57 00 F +47 64 84 57 05 Test report no. : 93339-11 Item tested : SP3550 Type of equipment : Handheld UHF Transceiver FCC ID : TCOSP3550 Client : Thrane & Thrane A/S FCC Parts 80 and 90 Non-Broadcast Transmitter held to face RSS-119, Issue 9 Land Mobile and Fixed Radio Transmitters and Receivers Operating in the Frequency Range 27.41-960 MHz 12 November 2007 Authorized by : ........................ ...................... G.Suhanthakumar Technical Verificator TEST REPORT FCC parts 80 and 90 Project no.: 93339-11 FCC ID: TCOSP3550 Nemko Comlab, N-2027 Kjeller Page 2 (39) CONTENTS 1 GENERAL INFORMATION ...................................................................................................... 3 1.1 Testhouse Info .......................................................................................................................... 3 1.2 Client Information ...................................................................................................................... 3 1.3 Manufacturer (if other than client) ............................................................................................. 3 2 Test Information ...................................................................................................................... 4 2.1 Test Item ................................................................................................................................... 4 2.2 Test Environment ...................................................................................................................... 5 2.3 Test Period................................................................................................................................ 5 3 TEST REPORT SUMMARY...................................................................................................... 6 3.1 General ..................................................................................................................................... 6 3.2 Test Summary........................................................................................................................... 7 3.3 Description of modification for Modification Filing..................................................................... 7 3.4 Comments................................................................................................................................. 7 3.5 Family List Rational ................................................................................................................... 7 4 TEST RESULTS ....................................................................................................................... 8 4.1 RF Output Power, Conducted ................................................................................................... 8 4.2 Modulation Characteristics ........................................................................................................ 9 4.3 Occupied Bandwidth ............................................................................................................... 18 4.4 Spurious Emissions at the Antenna Terminal, Swept Frequency ............................................ 22 4.5 Spurious Emissions at the Antenna Terminal, Emission Masks.............................................. 26 4.6 Field Strength of Spurious Radiations ..................................................................................... 30 4.7 Frequency Stability.................................................................................................................. 31 4.8 Transient Frequency Behaviour .............................................................................................. 32 4.9 Suppression of Interference Aboard Ships/ Receiver Spurious Emissions ............................. 35 5 LIST OF TEST EQUIPMENT.................................................................................................. 38 6 TEST SETUP .......................................................................................................................... 39 6.1 Test Site Radiated Emissions ................................................................................................. 39 TEST REPORT FCC parts 80 and 90 Project no.: 93339-11 FCC ID: TCOSP3550 Nemko Comlab, N-2027 Kjeller Page 3 (39) 1 GENERAL INFORMATION 1.1 Testhouse Info Name : Nemko Comlab Address : Gåsevikveien 8, Box 96 N-2027 Kjeller, NORWAY Telephone : +47 64 84 57 00 Fax : +47 64 84 57 05 E-mail: [email protected] FCC test firm registration # : 994405 IC OATS registration # : 4443 Total Number of Pages: 39 1.2 Client Information Name : Thrane & Thrane A/S Address : Porsvej 2, DK-9200 Aalborg …
