TDU-0500710Bluetooth Headset

Bluetooth Headset Ear hook A/C power 3 diff erent size ear Bud User manual adapter (Small, Medium, Large) POWER ON/ OFF Power On : Please push the button to ON side. Power Off : Please push the button to the opposite direction of ON. PAIRING Before you use headset, please pair your headset with mobile phone fi rst. 1. Push the button to ON. (Ensure headset is turned ON) ENCLOSURES HEADSET OVERVIEW HOW TO USE Multifunction Button ON/OFF Button Charging Port Indication LED Volume Up Button Speaker Volume Down Button Microphone Ear Bud -1- EnglishEnglish 2. Press and hold the Multi-Function Button for 4 sec. until Blue & Red LED light fl ash repeatedly. 3. Search the headset via your mobile phone. Please follow the instruction of your mobile phone. 4. When you fi nd your headset MF230, Please select it and confi rm by “Yes” or “OK” 5. Enter PIN Number ‘0000’(4 zeros). SIMPLE PAIRING: If your mobile phone supports bluetooth core spec 2.1, then you don’t need to put PIN number to pair. (This function is only available when your mobile phone supports bluetooth version 2.1) EASY PAIRING: If you use headset for the fi rst time, headset will go pairing mode directly. HOW TO PLAY MUSIC Play Music 1. Press Volume Up button for 2 seconds. 2. Music stops when there is an incoming call. After the call ends, music resumes automatically. Music pause 1. Press Volume Up button for 2 seconds. 2. Press Volume Up button for 2 seconds again, music resumes automatically. Stop: Press Volume Down button for 2 seconds while listening music or pause mode. Skip to Prev. Song: Press Volume Down button for 4 seconds. Skip to next Song: Press Volume Up button for 4 seconds. 4.reference 5.reference Power ON Power OFF -2- MAKING A CALL Last number re-dial : Press Multi-Function button shortly. Voice dial : Press Multi-Function button for 2 seconds. Once your mobile phone is in voice dialing mode, please follow the step as your mobile phone instructs. You can de-activate voice dial mode by pushing Multi-Function button for 2 seconds in voice dialing mode. [Note] Please check if your mobile phone supports voice dialing function. Please record voice tag fi rst before you use this function. ANSWERING A CALL Press the Multi-function button briefl y to receive a call. REJECT AN INCOMING CALL Press and hold Multi-Function button for 2 seconds. ENDING A CALL Press Multi-Function button shortly while you are on the line. You can also end a call from your mobile by pushing “END” button. TRANSFERRING A CALL Headset to mobile phone: Press and hold Multi-Function button for 2 seconds. Mobile phone to headset: Press and hold Multi-Function button for 2 seconds. MIC MUTE Press and hold volume down button for 2 seconds. Then the MIC mute will be activated. You can hear the status indication melody every 5 seconds in MIC mute mode. You can de-activate the MIC mute mode by pushing volume down button for 2 seconds. CALL WAITING [3way calling] Before you use 3way calling function, please make sure that your mobile phone supports “Handsfree profi le”. And please check with your network operator if they support Call hold & Multiparty call service. 1. Connect to incoming call & disconnect your current call. : Press and hold volume down button for 4 seconds. 2. Put your current call in waiting mode and receive incoming call. : Press and hold volume up button for 4 seconds. [TIP] Call waiting mode by pushing “Send” button on your mobile phone. RESET OF THE HEADSET Press and hold Multi-Function button & Volume Down button for 4 seconds. Then all device information and call list of your headset will be reset. (Please make sure that the headset is not connected) 1. LED Indication StatusLED Indication Power OnBlue LED blinks 3 times Power Off Red LED turns on for 2 seconds Pairing ModeBlue & Red LED blink repeatedly Connectable ModeBlue LED blinks 1 time every 5 seconds Connected ModeBlue LED blinks 2 times every 5 seconds STATUS INDICATION -3--4- EnglishEnglish Active Call ModeBlue LED blinks 3 times every 5 seconds Streaming ModeBlue LED blinks 2 times every 5 seconds Charging in ProgressRed LED turns on Charging CompleteRed LED turns off 2. Tone Indication StatusTone Indication Power OnTurn-on melody Power Off Long Low Beep Connect3 Short Beep Incoming CallRing melody Active Call2 Rising Beep Ending a Call2 Falling Beep Low BatteryLow Battery melody Model NameR7 Bluetooth Core SpecBluetooth Specifi cation 2.1+EDR Profi leHSP, HFP1.5, A2DP, AVRCP Carrier Frequency2400 MHz to 2483.5 MHz Modulation MethodGFSK, 1Mbps, 0.5BT Gaussian Maximum Data RateAsynchronous : 2178.1 kbps / 177.1 kbps Synchronous : 1306.9 kbps / 1306.9 kbps Bluetooth ClassClass 2 Hopping1600 hops/sec, 1MHz Channel Space Transmit Power0 dBm Coverage Range10 Meters Receiver Sensitivity-82 dBm / 0.1 % BER Continuous Talk Time4 Hours Music Time4 Hours Standby Time170 Hours Weight10 g Dimension18.1(H) x 51.3(L) x 9.5(H) mm Charging VoltageDC 5.0 ~ 5.3 V Charging Time2 Hours Operating Temperature-10° to +50°C Storage Temperature-20° to +80°C BatteryLithium Polymer 3.7V 90mAH SAFET Y AND GENERAL INFORMATION 1. Please read this guidebook carefully and follow the instruction. 2. To avoid any damage or malfunction of the unit, do not drop it from high place. 3. Keep away unit from humidity, water and any other liquid. And if the unit is exposed by water, moisture and other liquid directly, then do not operate it normally to avoid any electrical shock, explosion and damage of the unit. 4. Do not place or keep the unit near the heat sources such as direct sun light, radiators, stoves or other apparatus which produce heat. It may cause explosion, degrade of performance and reduce battery life. 5. Do not modify, repair & disassemble unit at discretion. [especially battery: it may cause an explosion] 6. Do not place the heavy objects on the unit. 7. Use only supplied and approved charger. 8. Replacement or service must be done at a qualifi ed service center or manufacturer. 9. Unplug this unit…

Text truncated - open the document above for the full version.

MOVON CORPORATION 6Fl., Hyunjuk Bldg., 140-28, Samseong-dong, Gangnam-Gu, Seoul, 135-090 Korea TEL: +82-2-2050-4654, FAX: +82-2-2050-4666 http://www.movon.co.kr April 2, 2010 Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD21046 TO WHOM IT MAY CONCERN ATTESTATION: I attest that the product, model R7 , has a USB port for charging the battery; that the USB port has Parallel (SPI) interface which is used in the industry during fabrication; and that the USB port can not be used by the End-User for data exchange as a computer peripheral device. FCC ID Number Product Product description (Model) TDU-0500710 Bluetooth Headset (R7) Sincerely, Dominic So/ General Manager

MOVON CORPORATION 6Fl., Hyunjuk Bldg., 140-28, Samseong-dong, Gangnam-Gu, Seoul, 135-090 Korea TEL: +82-2-2050-4654, FAX: +82-2-2050-4666 http://www.movon.co.kr April 2, 2010 Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD21046 RE: LETTER OF AGENT AUTHORIZATION We, the undersigned, hereby authorize SK TECH Co., Ltd.(Mr. Jongsoo, Yoon) to act on our behalf in all matters relating to application for equipment authorization. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). Sincerely, Dominic So/ General Manager

MOVON CORPORATION 6Fl., Hyunjuk Bldg., 140-28, Samseong-dong, Gangnam-Gu, Seoul, 135-090 Korea TEL: +82-2-2050-4654, FAX: +82-2-2050-4666 http://www.movon.co.kr April 2, 2010 Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD21046 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission's Rules (47 C.F.R) and Section §552(b)(4) of the Freedom of Information Act, MOVON CORPORATION requests confidentiality for the following products: FCC ID Number Product Description (Model) TDU-0500710 Bluetooth Headset (R7) The requested Permanent and Short-Term Confidential exhibits art listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description 3 Schematics PERMANENT 4 Part List No other items submitted as part of the equipment authorization filing process are deemed confidential. The above exhibits contain MOVON CORPORATION trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our products. This material is not customarily available to the general public and we request that it be withheld from public inspection. Sincerely, Dominic So/ General Manager

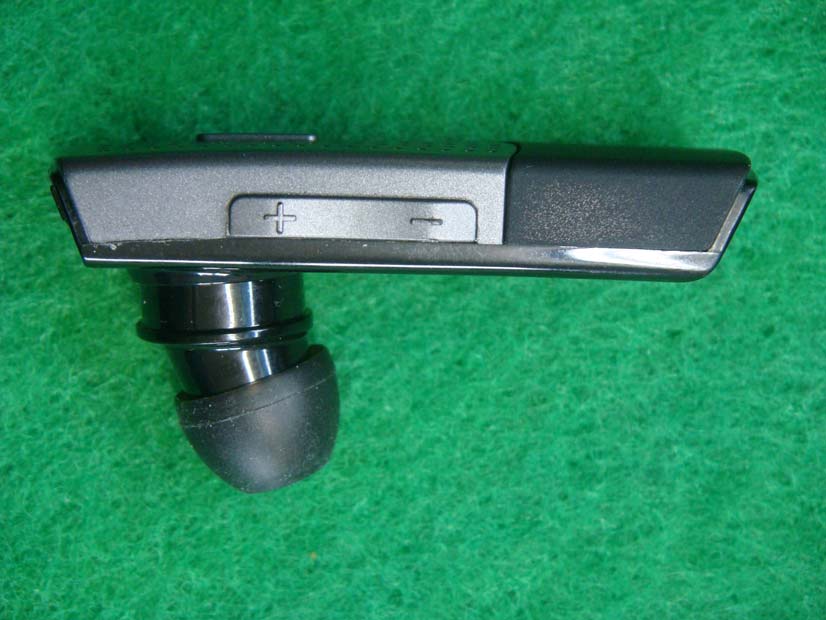

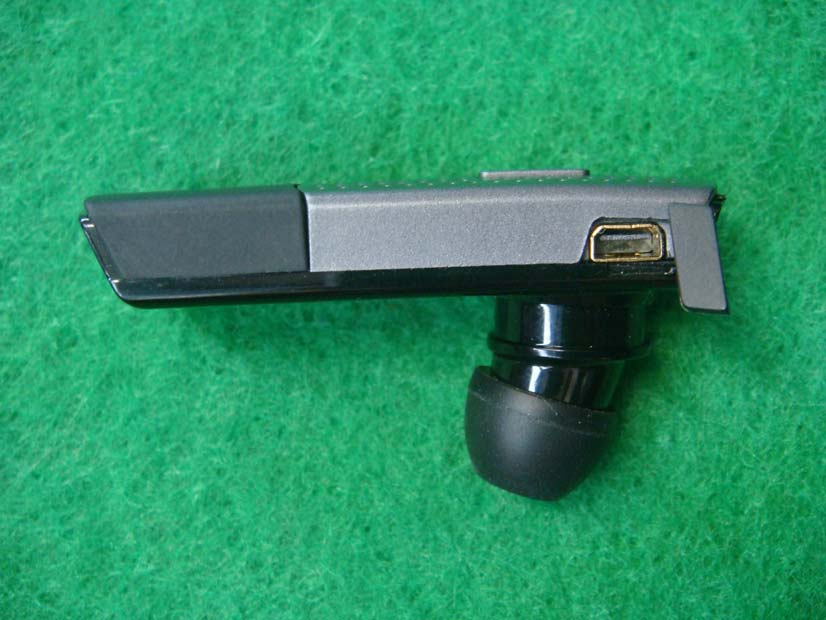

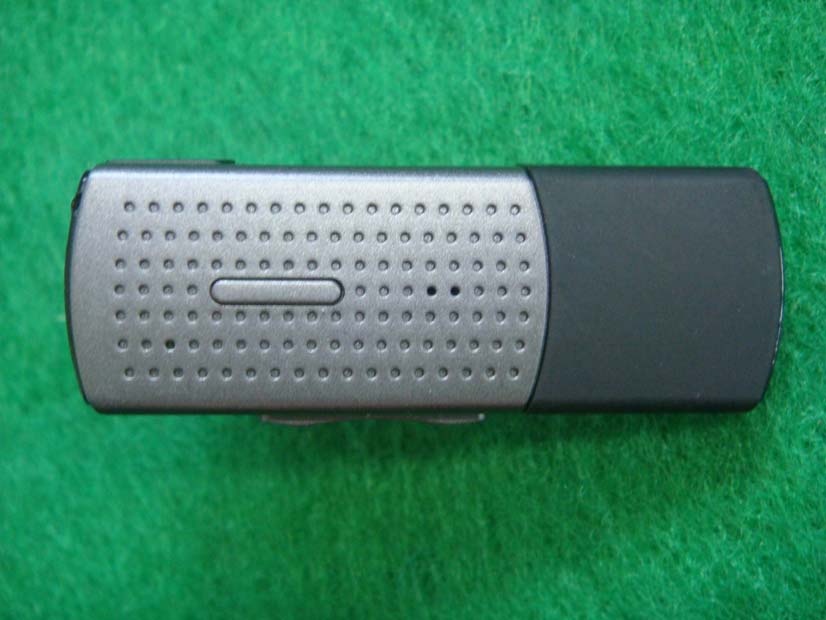

SK TECH CO., LTD. Page 1 of 3 SKTRFC-100407-006 FCC ID: TDU-0500710, IC: 6432A-0500710 External Photographs of EUT <Photograph 1: Front View> <Photograph 2: Rear View> SK TECH CO., LTD. Page 2 of 3 SKTRFC-100407-006 FCC ID: TDU-0500710, IC: 6432A-0500710 <Photograph 3: Left-Side View (Side buttons)> <Photograph 4: Right-Side View (DC input port)> SK TECH CO., LTD. Page 3 of 3 SKTRFC-100407-006 FCC ID: TDU-0500710, IC: 6432A-0500710 <Photograph 5: Accessory AC/DC adaptor>

ID Label Location & Sample LABEL LOCATION: ID Label will be printed on the Rear of the product LABEL Drawing:

SK TECH CO., LTD. Page 1 of 3 SKTRFC-100407-006 FCC ID: TDU-0500710, IC: 6432A-0500710 Internal Photographs <Photograph 1: Cover removed> SK TECH CO., LTD. Page 2 of 3 SKTRFC-100407-006 FCC ID: TDU-0500710, IC: 6432A-0500710 <Photograph 2: Front view> SK TECH CO., LTD. Page 3 of 3 SKTRFC-100407-006 FCC ID: TDU-0500710, IC: 6432A-0500710 <Photograph 3: Rear view>

SK TECH CO., LTD. Page 2 of 38 SKTRFC-100407-006 FCC ID: TDU-0500710, IC: 6432A-0500710 >> CONTENTS << 1. GENERAL ··························································································································· 4 2. TEST SITE ··························································································································· 4 2.1 Location ······················································································································ 4 2.2 List of Test and Measurement Instruments ································································· 5 2.3 Test Date ····················································································································· 5 2.4 Test Environment ········································································································ 5 3. DESCRIPTION OF THE EQUIPMENT UNDER TEST ·············································· 6 3.1 Rating and Physical Characteristics ··········································································· 6 3.2 Equipment Modifications ··························································································· 6 3.3 Submitted Documents ································································································· 6 4. MEASUREMENT CONDITIONS ··················································································· 7 4.1 Description of test configuration ················································································ 7 4.2 List of Peripherals ·······································································································7 4.3 Type of Used Cables ··································································································· 7 4.4 Uncertainty ················································································································· 7 5. TEST AND MEASUREMENTS ························································································ 8 5.1 ANTENNA REQUIREMENT ··················································································· 8 5.1.1 Regulation ············································································································ 8 5.1.2 Result ···················································································································8 5.2 MAXIMUM PEAK OUTPUT POWER ·································································· 9 5.2.1 Regulation ············································································································ 9 5.2.2 Test Procedure ····································································································· 9 5.2.3 Test Results ·········································································································· 9 Table 1: Measured values of the Maximum Peak Output Power (Conducted) ··································· 9 Figure 1: Plot of the Maximum Peak Output Power (Conducted) ····················································· 10 5.3 CARRIER FREQUENCY SEPARATIONS and 20 dB BANDWIDTH ·············· 12 5.3.1 Regulation ·········································································································· 12 5.3.2 Test Procedure ··································································································· 12 5.3.3 Test Results ········································································································ 12 Table 2: Measured values of the Carrier Frequency Separation and 20 dB Bandwidth ·················· 12 Figure 2: Plot of the Carrier Frequency Separation ········································································· 13 Figure 3: Plot of the 20dB Channel Bandwidth ·············································································· 15 5.4 NUMBER OF HOPPING CHANNELS ································································· 17 5.4.1 Regulation ·········································································································· 17 5.4.2 Test Procedure ··································································································· 17 5.4.3 Test Results ········································································································ 17 Table 3: Measured values of the Number of Hopping Channels ····················································17 Figure 4: Plot of the Number of Hopping Channels ········································································18 SK TECH CO., LTD. Page 3 of 38 SKTRFC-100407-006 FCC ID: TDU-0500710, IC: 6432A-0500710 5.5 TIME OF OCCUPANCY (DWELL TIME) ·························································· 19 5.5.1 Regulation ·········································································································· 19 5.5.2 Test Procedure ··································································································· 19 5.5.3 Test Results ········································································································ 19 Table 4: Measured values of the Time of Occupancy ···································································· 19 Figure 5: Plot of the Time of Occupancy ························································································20 5.6 SPURIOUS EMISSION, BAND EDGE, AND RESTRICTED BANDS ············ 22 5.6.1 Regulation ·········································································································· 22 5.6.2 Test Procedure ··································································································· 22 5.6.3 Test Results ········································································································ 24 Table 5: Results for the final radiated measurements of th…

Text truncated - open the document above for the full version.

SK TECH CO., LTD. Page 1 of 4 SKTRFC-100407-006 FCC ID: TDU-0500710, IC: 6432A-0500710 Test set up photos <Radiated Emissions - FRONT View> <Radiated Emissions - REAR View> SK TECH CO., LTD. Page 2 of 4 SKTRFC-100407-006 FCC ID: TDU-0500710, IC: 6432A-0500710 <Radiated Emissions - below 30 MHz> <Radiated Emissions - below 1 GHz> SK TECH CO., LTD. Page 3 of 4 SKTRFC-100407-006 FCC ID: TDU-0500710, IC: 6432A-0500710 <Radiated Emissions - above 1 GHz> SK TECH CO., LTD. Page 4 of 4 SKTRFC-100407-006 FCC ID: TDU-0500710, IC: 6432A-0500710 <AC power line conducted emissions - FRONT view> <AC power line conducted emissions - REAR view>
