TDU-S845BLUETOOTH HEADSET

  Using your headset Turing ON/OFF Turning ON: Please press Multi function button for 3sec. Turning OFF: Please press Multi function button for 4 sec. CHARGE THE BATTERY Before using your stereo headset, charge the battery completely. Connect an adapter to the charging port of the headset and plug it into home power outlet. The Red LED remains on while the headset is charging and LED turns into Blue when charging is completed. [NOTE] Please use supplied power adaptor only. CHECKING THE BATTERY LEVEL Press volume down button for 4 sec. Then SWING will announce battery level. iPhone/iPad shows the current battery level on screen when connected. LOW Battery Alarm When the battery is low, Blue LED will be turned into RED and alarm with beep sound every 10 minutes. Once you hear beep alert, please charge immediately. What’s in the box? Stereo Headset AC Charger head USB cable Carrier pouch User manual Getting to know the SWING -1--2- ※ Please, use provided adapter. Charging port Multi-function Button(MFB) LED Volum up Volum down Microphone MIC 3 sec.4 sec. Turning ON Turning OFF PAIR THE HEADSET TO YOUR MOBILE PHONE Turn the headset on. When turned on for the first time, headset will go to pairing mode automatically. (LED will blink Blue and Red) Or Press the Multi-function buttons for 4 sec. until LED blink as Blink as Blue and Red. Search the headset via your mobile phone and confirm it when the connection confirmation message appears on your mobile phone. PIN code is “0000” (4 zero) ※ Auto reconnection SWING will try to connect to the latest paired mobile phone as you turn on or re-connected. ※ Simple pairing If your mobile phone supports Bluetooth version spec. 2.1, you don’t need to put PIN code to pair. (This function is only available when your mobile phone supports Bluetooth version 2.1) -3--4- ※ Easy pairing The headset goes into pairing mode (Proximity pairing) mode automatically the first time you use it. ※ Proximity pairing 1. Set your mobile phone to Bluetooth discoverable mode or set visibility on. (See your phone’s manual for the detailed instruction) 2. Set your headset to pairing mode then press the volume button twice. 3. Place the headset near to (10cm) to your mobile phone. 4. Headset will pair automatically with your mobile phone. PLAYING MUSIC Play music: Press Multi-function button one time shortly. Pause music: Press Multi-function button one time shortly to pause music play. Stop music: Press volume down button for 4 sec. to stop music play. Previous music: Press volume down button for 2 sec. to play previous music. Next music: Press volume up button for 2 sec. to play next music. 1.SWING 블루투스 연결 인증번호 입력 1.헤드셋 2.핸즈프리 3. 스테레오헤드셋 1.설정 2.해제 MAKING A CALL Last call re-dialing: Press the Multi-function button for 2 sec. Voice dialing : Press volume up button twice then the voice dialing is activated. You can also deactivate voice dialing by press volume up button twice. [NOTE] Please make sure that your phone supports voice dialing feature. (Check your phone’s manual for the detailed instruction) RECEIVING A CALL Press the Multi-function button for 2sec. when there is an incoming call. ENDING A CALL Press the Multi-function button during the call or just press the “END” button on your mobile phone. TRANSFERRING A CALL To transfer a call from headset to your mobile phone and vice versa, press the Multi-function button on headset for 2 sec. -5--6- ADJUSTING A VOLUME Please press volume up or down button while you are listening music or making a call. There are 7 volume levels and you will hear beep sound as you change volume. And when the volume reaches to Max or Min. you will hear beep alarm. MIC MUTE If you press the volume down button for 2 sec while you are on the line, the microphone will be muted and you will hear a beep every 5second during the mute mode. [NOTE] You can deactivate microphone mute by push volume down button for 2sec. CALL WAITING To activate call waiting function, you must subscribe to call waiting through your service provider. To put your current call on hold and switch to the waiting call, press volume up button for 4 sec. If you want to switch back to the current call, press volume up button for 4 sec. again. To terminate your current call and answer to the waiting call, press volume down button for 4 sec. -7--8- MULTIPOINT: Using the headset with 2 mobile phones simultaneously. You can connect with 2 mobile phones at the same time. Multipoint connect(Pairing) : Set please put headset in pairing mode first. After then search headset from each mobile phones at the same time. Please connect first mobile phone. Once the connection is completed, please connect the second mobile phones. MUSIC Play : You can switch music source between 2 mobile phones by pressing volume up button for 4 sec. Once you select mobile phones, please follow the instruction of “PLAYING MUSIC”. Making a phone call Last call redialing : Press the volume down button for 2 sec. for last call redialing from the second mobile phone. Voice dialing : Press the volume down button twice. [NOTE] Making a call via the first mobile phones, please follow the same instruction of “MAKING A CALL”. Receiving a call : Press Multi-function button. [NOTE] Each mobile phone plays different ring tones. USING WIRED HEADPHONE Please connect USB cable to your PC & Headset. Then you can listen audio through your headset while charging. Your PC will be automatically switch audio path to your headset. RESETTING THE Headset Press volume up and down button simultaneously for 4 sec. when disconnected with your mobile phone. Status LED Lighting Beep & Voice prompt Power ON Flash Blue LED 3 times “Power ON” Pairing Mode Flash Blue & Red LED 2 beeps Disconnected Mode Flash Blue LED every 5 sec. “Disconnected” Connected Mode Flash Blue LED 2times every 5 sec. “Connected” Making a call Flash Blue LED 3times every 5sec. Incoming call Flash Blue LED 2times every 2sec. Ringtone Calling Flash B…

Text truncated - open the document above for the full version.

MOVON CORPORATION 6Fl., Hyunjuk Bldg., 140-28, Samseong-Dong, Gangnam-Gu, Seoul, Korea Date: November 26, 2012 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Timco Engineering, Inc. Certification Division 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 USA To whom it may concern: I, the undersigned, hereby authorize Technical Manager Issac Jin of MOVON CORPORATION and hereafter referred to as MOVON CORPORATION , to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these m atters. Any and all acts carried out by Technical Manager Issac Jin of MOVON CORPORATION on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing MOVON CORPORATION as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; MOVON CORPORATION 6Fl., Hyunjuk Bldg., 140-28, Samseong-Dong, Gangnam-Gu, Seoul, Korea e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Dominic So / Manager MOVON CORPORATION REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

MOVON CORPORATION 6Fl., Hyunjuk Bldg., 140-28, Samseong-Dong, Gangnam-Gu, Seoul, Korea Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: TDU-S845 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematics Block Diagram Operation Description Parts List Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely Yours, Dominic So / Manager MOVON CORPORATION

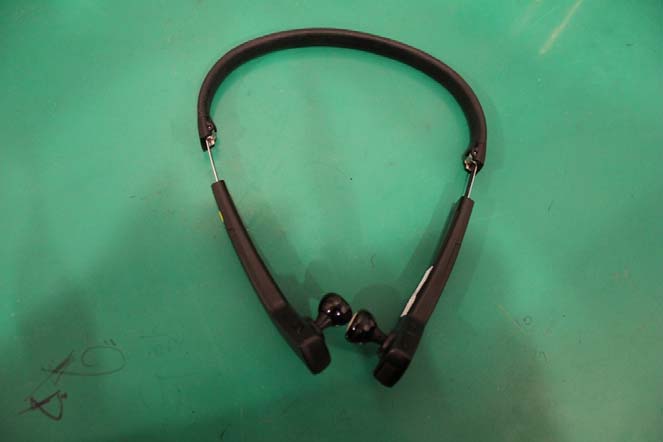

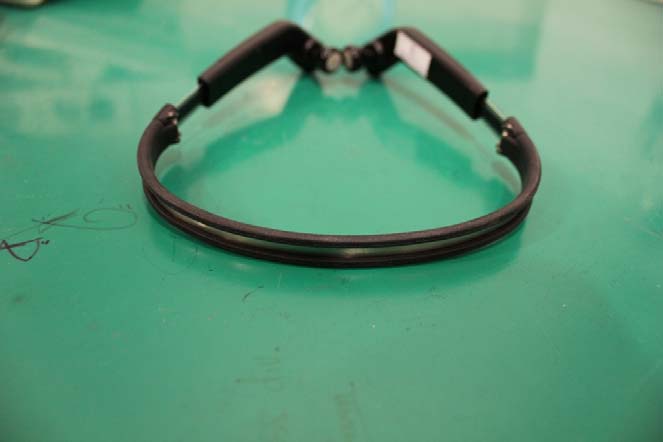

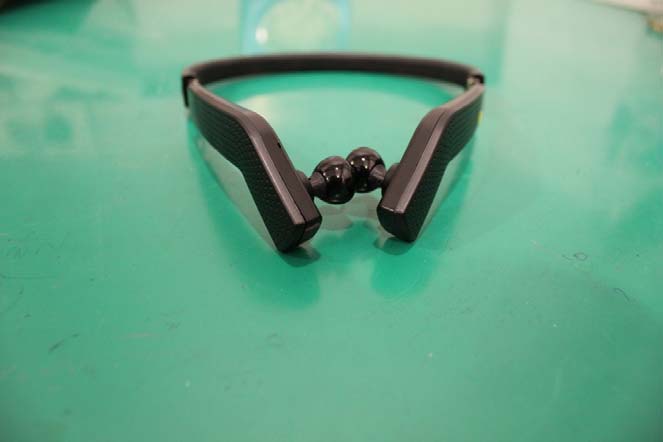

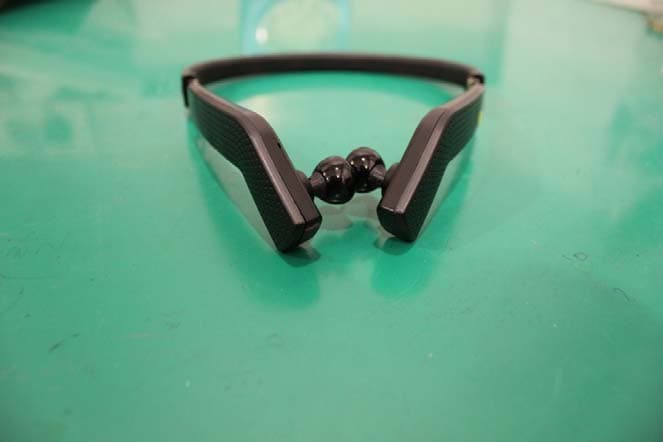

External photos of EUT Front view of EUT Rear view of EUT Top view of EUT Bottom view of EUT

Internal photos of EUT Bluetooth module board Chip Antenna Top view of Main PCB Bottom view of Main PCB Top view of SUB PCB Bottom view of SUB PCB

Bluetooth Chip Antenna MicroRF Co., LTD. Bluetooth Chip Antenna For ISM 2.4 GHz Applications
Part number : ADSBTF0702-A02 [email protected] +82-2-6406-5590 Dimensions Specification Frequency2400 ~ 2484 MHz VSWR4.0 max Peak Gain-0.2 dBi Radiation PatternOmni-directional Input Impedance50 ohm Recommended Pad Layout <Typical Test Board> • Ground size : 40 X 50 mm Size : 7(L) by 2(W) by 1.2(t) mm 50 Ohm Feeding line 1.0 mm 7 mm Other Layers Top Layer (normal PCB - line width : 0.2 mm - clearance : 0.12 mm) GND VIA Phi Matching Circuit All conditions are for best performance. But specific layout is strongly recommended to be asked our engineer. VSWR on Evaluation Board Gain on Evaluation Board Bluetooth Chip Antenna MicroRF Co., LTD. XY-PlaneYZ-PlaneZX-Plane Frequency (MHz) XYYZZX Peak gain Avg. gain Peak gain Avg. gain Peak gain Avg. gain 2400-4.0-8.0-2.3-6.4-10.4-15.1 2450-1.7-5.9-0.2-4.2-11.7-16.0 2500-7.9-11.8-7.1-10.0-18.8-24.3 (unit : dBi)

MOVON CORPORATION Report Number: MOV-12-RF-I018(1) Page : (1) of (45) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. FCC Part 15 Subpart B&C §15.247 Test Report Equipment Under Test Bluetooth headset Model Name S845 Applicant MOVON CORPORATION FCC ID TDU-S845 Manufacturer QINGDAO MOVON ELECTRONIC CORPORATION Date of Test(s) 2012.11.28 ~ 12.12 Date of Issue 2012.12.17 In the configuration tested, the EUT complied with the standards specified above. Issue to Issue by MOVON CORPORATION 140-28 SAMSUNG DONG, GANGNAM GU, SEOUL, KOREA Tel.: +82-2-2050-4632 Fax: +82-2-2050-4666 MOVON CORPORATION 194-1, Geumeo-ri, Pogok-eup, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea, 449-812 Tel.: +82-31-338-8837 Fax: +82-31-338-8847 MOVON CORPORATION Report Number: MOV-12-RF-I018(1) Page : (2) of (45) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. Revision history Revision Date of issue Description Revised by -- Dec 13, 2012 Initial -- 1 Dec 17, 2012 P11,12,20 revised comment (10dB below limit  20dB below limit) P20 Added test data Q-Peak -- MOVON CORPORATION Report Number: MOV-12-RF-I018(1) Page : (3) of (45) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. Table of contents 1. ATTESTATION OF TEST RESULTS ............................................................................. 4 2. EUT DESCRIPTION ........................................................................................................ 5 3. INFORMATION ABOUT THE FHSS CHARACTERISTICS ............................................ 5 4. MEASUREMENT EQUIPMENT ...................................................................................... 6 5. TRANSMITTER RADIATED SPURIOUS EMISSIONS ................................................... 7 6. CONDUCTED POWER LINE TEST .............................................................................. 19 7. 20 ㏈ BANDWIDTH MEASUREMENT & 99 % BANDWIDTH MEASUREMENT ........ 22 8. MAXIMUM PEAK OUTPUT POWER MEASUREMENT ............................................... 27 9. HOPPING CHANNEL SEPARATION ........................................................................... 31 10. NUMBER OF HOPPING FREQUENCY ...................................................................... 33 11. TIME OF OCCUPANCY(DWELL TIME) ..................................................................... 35 12. ANTENNA REQUIREMENT ....................................................................................... 40 13. RF EXPOSURE EVALUATION .................................................................................. 41 14. TEST SETUP PHOTO OF EUT .................................................................................. 43 MOVON CORPORATION Report Number: MOV-12-RF-I018(1) Page : (5) of (45) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. 2. EUT Description Kind of product Bluetooth headset Model Name S845 Serial Number N/A Power supply DC 3.70 V Frequency range 2 402 ㎒ ~ 2 480 ㎒ Modulation technique Basic Mode(GFSK) Number of channels 79 Antenna gain -0.2㏈i (Max.) TEST SITE REGISTRATION NUMBER FCC(67068) , IC(6432B-1) 2.1. Declarations by the manufacturer The EUT is does not do anything at charging mode (Power is turned off when it is charging) 2.2. Details of modification None 3. Information about the FHSS characteristics 3.1. Pseudorandom frequency hopping sequence The channel is represented by a pseudo-random hopping sequence hopping through the 79 RF channels. The hopping sequence is unique for the piconet and is determined by the Bluetooth device address of the master; the phase in the hopping sequence is determined by the Bluetooth clock of the master. The channel is divided into time slots where each slot corresponds to an RF hop frequency. Consecutive hops correspond to different RF hop frequencies. The nominal hop rate is 1 600 hops/s. Example of a 79 hopping sequence in data mode: 40,21,44,23,42,53,46,55,48,33,52,35,50,65,54... 3.3 Equal Hopping Frequency Use All Bluetooth units participating in the piconet are time and hop-synchronized to the channel. 3.4 System Receiver Input Bandwidth The input bandwidth of the receiver is 1㎒. In every connection one Bluetooth device is the master and the other one is slave. The master determines the hopping sequence. The slave follows this sequence. Both devices shift between RX and TX time slot according to the clock of the master. Additionally the type of connection (e.g. single of multisport (packet) is set up at the beginning of the connection. The master adapts its hopping frequency and its TX/RX timing according to the packet type of the connection. Also the slave of the connection will use these settings. Repeating of a packet has no influence on the hopping sequence. The hopping sequence generated by the master of the connection will be followed in any case. That means, a repeated packet will not be send on the same frequency, it is send on the next frequency of the hopping sequence. 3.5 Equipment Description 15.247(g): In accordance with the Bluetooth Industry Standard, the system is designed to comply with all of The regulations in Section15.247 when the transmitter is presented with a continuous data (or information) system. 15.247(h):In accordance with the Bluetooth Industry Standard, the system does not coordinate it channels selection/ hopping sequence with other frequency hopping systems for the express purpose of avoiding the simult…

Text truncated - open the document above for the full version.

Test setup photo of EUT A. Setup photo of EUT Photo of radiated spurious emission at below 30 ㎒ Photo of radiated spurious emission at 30 ㎒ ~ 1 000 ㎒ Photo of radiated spurious emission at above 1 000 ㎒ Photo of Conducted emission at below 30 ㎒
